Miele Optima II G1202SCi User manual

Operating Instructions
Dishwasher
G 1202
To prevent accidents
and appliance damage
read these instructions
before
installation or use. M.-Nr. 07 768 740
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel ......................................................8
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
To open the door ..................................................10
To close the door ..................................................10
Child Safety Lock..................................................10
Water softener ....................................................11
Programming the water softener ......................................12
Filling the salt container .............................................13
Salt indicator .....................................................13
Rinse aid ........................................................14
Adding rinse aid ..................................................14
Rinse aid indicator .................................................15
Adjusting the dosage...............................................15
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Items not recommended for dishwashing ...............................17
Cutlery tray.......................................................18
Upper basket .....................................................19
Adjusting the upper basket ..........................................20
Lower basket .....................................................21
Basket accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adding detergent..................................................26
Turning on .......................................................27
Selecting and starting a program .....................................27
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Time display......................................................29
Program sequence display ..........................................29
At the end of a program.............................................29
Interrupting a program..............................................30
Changing a program ...............................................30
Contents
2

Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Turbo ...........................................................31
Tab.............................................................31
Delay Start .......................................................32
Default settings ...................................................33
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Technical faults ...................................................34
Problems water intake/drain .........................................35
General problems with the dishwasher .................................36
Sounds..........................................................37
Poor cleaning results ...............................................38
Comparison tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
User Maintenance Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Triple filter system .................................................47
Cleaning the spray arms ............................................49
Cleaning the water inlet filter .........................................50
Cleaning the drain pump and non-return valve...........................51
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Help to protect the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Waterproof system.................................................56
Connection to the water supply .......................................56
Drainage ........................................................57
Contents
3

WARNING –
When using your dishwasher, follow
basic precautions, including the
following:
Read all instructions before
installation or use of the dishwasher
to prevent injury and machine
damage.
Use the dishwasher only for its
intended purpose. This appliance is
intended for residential use only.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Electrical Safety
~Before installation, make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
~Before installation or service,
disconnect the power supply to the
work area by unplugging the unit,
"tripping" the circuit breaker or
removing the fuse.
~Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
IMPORTANT SAFETY INSTRUCTIONS
4

Installation
~The dishwasher must be installed
and connected in compliance with the
installation instructions.
~Installation and repair work should
be performed by a Miele authorized
service technician. Work by unqualified
persons could be dangerous and may
void the warranty.
~Do not install or use a damaged
dishwasher. A damaged appliance is
dangerous. Unplug the machine and
call your Miele dealer or the Miele
Technical Service Department.
~Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
~This equipment is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
an installation in these applications.
Please contact the nearest Miele dealer
or the Miele Technical Service
Department with specific requirements.
~It is recommended that the
dishwasher only be connected to the
mains with the plug (no hard-wiring).
The outlet must be accessible at all
times after installation to disconnect the
dishwasher.
~,WARNING - Fire hazard
Do not cover or crush the plug of the
appliance. Ensure that the cabinet
opening for the dishwasher provides
ample space for the plug. Installing the
dishwasher in a tight space may crimp
the power cord or put pressure on the
plug which could cause overheating.
~This dishwasher should only be
installed under a continuous counter
top secured to adjacent cabinetry.
~Do not install this dishwasher
beneath a cooking surface, oven or any
appliance that radiates heat.
High temperatures from these units
may damage the dishwasher.
~When installing the dishwasher
under a counter top and removing the
toekick, a build-under toekick must be
installed. Use the respective installation
kit. Danger of injuries.
~Do not cut the intake hose or
submerge it in liquid. This hose
contains electrical components that
could cause injury or property damage
if cut or submerged.
~Only connect the dishwasher to the
mains when all installation and
plumbing work is complete.
IMPORTANT SAFETY INSTRUCTIONS
5

Use
~To reduce the risk of injury, do not
allow children to play in, on or near the
dishwasher.
~Only use the dishwasher if all panels
are properly in place.
~Do not tamper with the controls.
~Do not damage, sit or stand on the
door or baskets of the dishwasher.
Close the door when not in use.
~Under certain conditions, hydrogen
gas may be produced in a hot water
system that has not been used for two
weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has
not been used for such a period, turn
on all hot water faucets and let water
flow from each for several minutes
before using the dishwasher. This will
release any accumulated hydrogen
gas. Do not smoke or use an open
flame during this time.
~Be sure that all items placed in the
dishwasher are "dishwasher safe". For
items not labeled, check the
manufacturer’s recommendations.
~When loading tableware, place
sharp items away from the door to
prevent damage to the seal. Load
sharp items pointing downwards to
prevent injuries.
~Only use detergents and rinse aids
recommended for residential
dishwashers. Keep all detergents and
rinse aids out of the reach of children.
~Do not inhale or swallow detergents.
Dishwasher detergents contain irritant
and corrosive ingredients. They can
cause burning in the mouth and throat if
swallowed, or inhibit breathing. Consult
a doctor immediately if detergent has
been swallowed or inhaled.
~Do not drink water from the
dishwasher! Harmful residues could be
present.
~Do not fill the rinse aid reservoir or
salt container with detergent. It will
destroy the rinse aid compartment and
water softener.
~The door will close automatically
once pushed against the door catch.
Do not put your hand inside of the door
as it is closing. Danger of injury.
~If the power cord is damaged it
must only be replaced by a Miele Ser-
vice technician with a genuine Miele
power cord.
Disposal of an appliance
~If the appliance is removed from its
installation site and will not be used,
remove the doorlock to the wash
cabinet to prevent children from locking
themselves in the machine.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
6

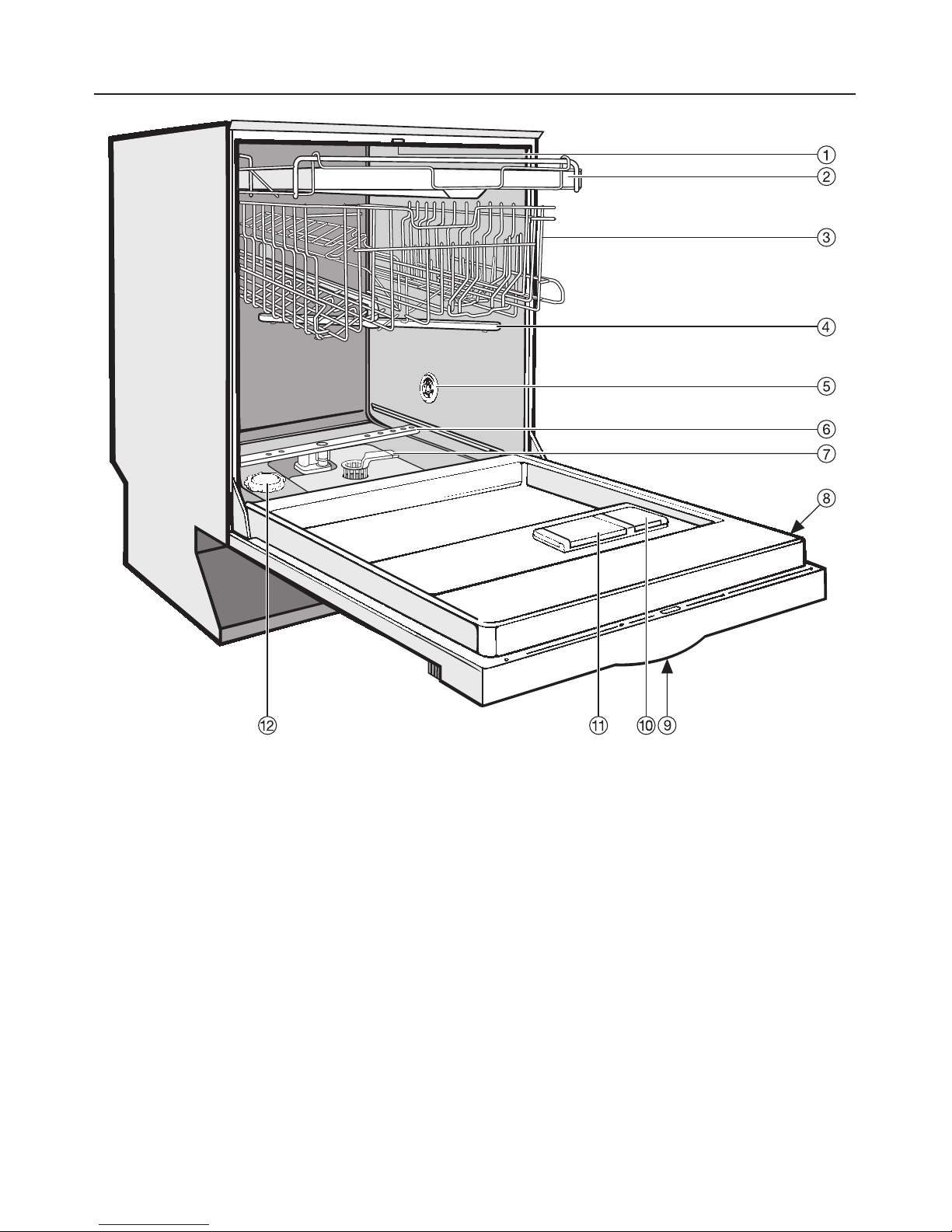

aUpper spray arm (not visible)
bCutlery tray
cUpper basket
dMiddle spray arm
eAir inlet for drying
(depending on model)
fLower spray arm
gTriple filter system
hData plate
iChild Safety Lock in the door handle
(not visible)
jRinse aid reservoir
kDual compartment detergent
dispenser
lSalt container
Guide to the dishwasher
7

Control panel

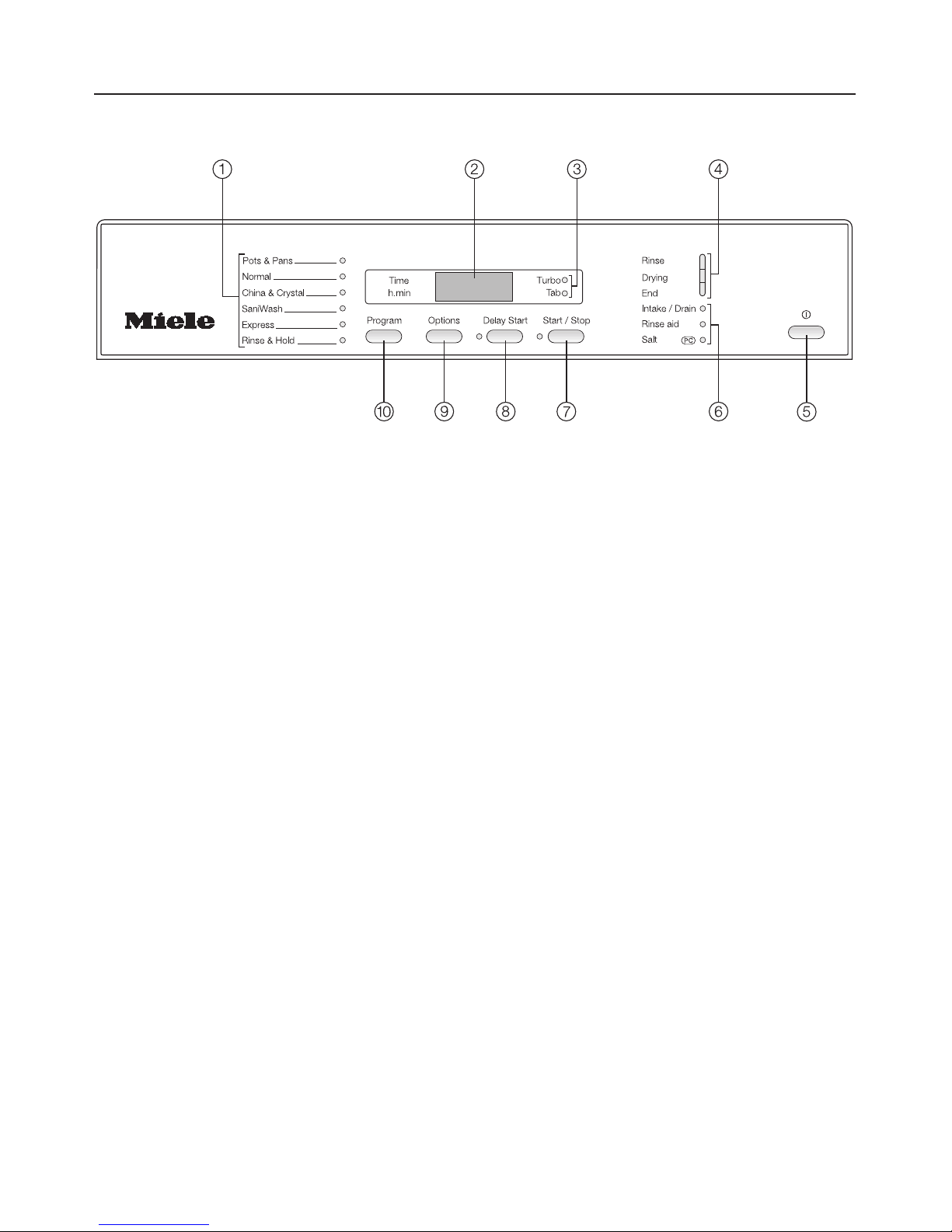

aProgram selection
bTime display
cAdditional options with indicators
dProgram sequence display
eOn/Off button K
fCheck/Refill indicators
gStart/Stop button with indicator light
hDelay start button with indicator light
iOptions button
jProgram button
Guide to the dishwasher
8

Energy saving washing
This dishwasher is exceptionally
economical in the use of water and
electricity. For best results follow these
tips:
^For lowest energy consumption you
may connect the dishwasher to a
cold water source.
^For fastest possible wash times, with
slightly higher energy consumption,
connect the dishwasher to a hot
water source.
^Make full use of the baskets without
overloading for the most economical
washing.
^Use the correct amount of detergent
and rinse aid. Detergent dosage is
dependent upon the amount of
soiling and type of dishware being
washed. See the "Program Guide" for
more information.
^When using powder or gel detergent,
reduce the amount to 2/3of the
normal amount when washing a small
load.
^Choose a program that best suits the
degree of soiling and the type of
dishes being washed.
^For small loads select "Express".
Caring for the environment
9

To open the door
^Press the release catch inside the
door grip.
If the door is opened during operation,
the dishwasher will stop running. Once
the door is closed the program will
restart.
To close the door
^Push the baskets in.
^Lift the door and push until it clicks
into place.
Child Safety Lock
The Child Safety Lock is designed to
prevent children from opening the
dishwasher.
^To lock the door, push the slider
below the door grip to the right.
^To unlock the door, push the slider to
the left.
Before using for the first time
10

Water softener
Every dishwasher is tested before
leaving the factory. Any water
remaining in the machine is from the
final factory test and does not
indicate that the machine has been
used.
To achieve good cleaning results, the
dishwasher needs soft water. Hard
water results in calcium deposits on
dishware and in the dishwasher.
If your tap water hardness is above 4 °d
(4 gr/gal [US]), the water should be
softened.
– The water softener must be filled with
dishwasher salt for reactivation.
If using "Tab" products which include
salt, you should still add salt to the
machine to achieve optimal cleaning
results.
– Your local water authority will be able
to advise you of the water hardness
level in your area.
–The dishwasher must be
programmed to correspond to the
water hardness in your area.
If the hardness of your local supply
is constantly lower than 4 °d (4 gr/gal
[US]), you do not need to add water
softener salt. However the water
hardness level must still be
programmed.
In areas where the water hardness
fluctuates (example 37 - 50 °d [39 -
52 gr/gal]) always program the
machine to the higher value (in this
example 50 °d [52 gr/gal] ).
If there is a fault, it will help the service
technician to know the hardness of your
local water supply.
^Please note your water hardness::
°d (gr/gal)
The water hardness was programmed
to 15 °d (16 gr/gal) by factory default
Before using for the first time
11

Programming the water
softener
To exit the programming mode at
any time, turn the dishwasher off
with the "K" button.
^Turn the dishwasher off with "K".
^Press and hold the "Program" and
"Start / Stop" buttons simultaneously
turn the dishwasher on with "K". Hold
the "Start / Stop" button until the "Start
/ Stop" indicator lights.
If it does not come on, start over.
^Press the "Delay Start" button twice.
The "Delay Start" indicator flashes twice
in intervals.
"p15" flashes in the time display.
A water hardness setting of 15 °d is set
(factory default).
The set value is indicated in the time
indicator following "p" (see table).
°d gr/gal Setting in display
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37-45
46-60
61-70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
26
27
28
29
30
31
32
33
34
35
36
37
38-46
47-62
63-73
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
45
60
70
^Press the "Start / Stop" button to
select the value which corresponds
with the water hardness in your area.
With each press of the key the value
will raise. Once the highest value is
reached the values will start again
from the beginning.
Turn the dishwasher off with "K".
Before using for the first time
12

Filling the salt container
,Inadvertently filling the salt
container with dishwashing
detergent will damage the water
softener.
,Only use water softener salt
specially formulated for
dishwashers. Other salts may
contain insoluble additives which
can impair the water softener.
^Remove the lower basket and
unscrew the salt container lid.
When opening the salt container,
water will run out. Open the
container only to refill salt.
Important: The salt container must
be filled with 1 quart (1 l) of water
before adding salt for the first
time. Water does not have to be
added with subsequent refills.

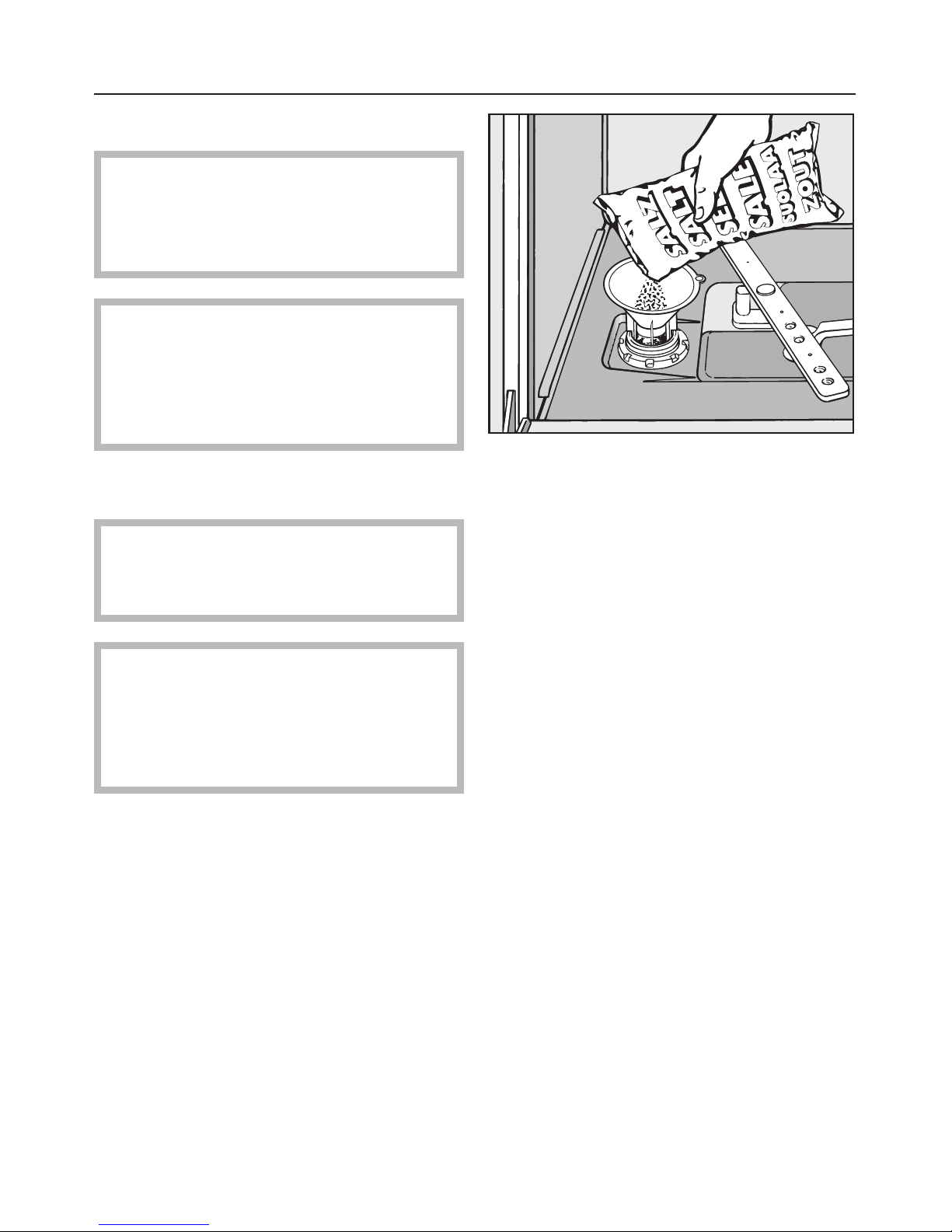

^Place the provided funnel over the
salt container. Carefully fill with salt.
The salt container holds approx.
35 lbs (1 kg) of salt. As it is filled,
water will run out.
^Clean any excess salt from the
threads of the container opening.
Screw the lid on firmly.
^If the dishwasher will not be used
immediately, run the "Express" pro-
gram (without the Turbo function).
This will remove any traces of salt
from inside the wash cabinet.
Salt indicator
^When the "Salt" indicator comes on, refill
the salt after the program has finished.
After the container has been filled, the
water softener is automatically
reactivated the next time the dishwasher
is started. The "Salt" indicator will be lit
during this process. It will go out once
the reactivation process is complete.
The "Salt" indicator will not light if the dish-
washer had been programmed for a water
hardness of below 4 °d (4 gr/gal [US]).
Before using for the first time
13

Rinse aid
Rinse aid helps to prevent spotting on
dishes and glassware.
The rinse aid is filled in the reservoir
and the set amount will be
automatically dosed.
,Filling the rinse aid reservoir with
detergent will damage the reservoir.
Only pour rinse aid formulated for
residential dishwashers into the
reservoir.
When using "Tab" detergents rinse
aid is not needed.
Adding rinse aid
^Press the button in the direction of
the arrow until the flap springs open.
^Pour liquid rinse aid into the reservoir
until it is visible on the surface of the
screen.
The rinse aid reservoir holds approx.
3.7 oz (110 ml).
^Press on the flap until you hear it
click shut. Failure to close it all the
way allows water to enter the
reservoir during the wash program.
^Clean any spilled rinse aid. The flap
will remain closed during normal
operation.
Before using for the first time
14

Rinse aid indicator
When the rinse aid indicator first comes
on, there will be enough rinse aid left
for2-3washes.
^The rinse aid indicator on the control
panel will light when the rinse aid
reservoir needs refilling.
If the "Tab" function is selected, the
rinse aid indicator will not light, see
"Additional options - Tab".
Adjusting the dosage
The dosage selector is preset to 3. This
dispenses approximately 3 ml of rinse
aid per program. It can be adjusted
from 0 to 6.
–Use a higher setting if spots appear
on dry glassware.
–Use a lower setting if streaking
appears on dishes or glasses.
^Turn the dishwasher off "s".
^Press and hold the "Start/Stop" button
and at the same time turn the
dishwasher on "s". Hold the
"Start/Stop" button until the
"Start/Stop" indicator comes on.
If it does not come on, start over.
^Press the "Delay Start" button three
times.
The "Delay Start" indicator flashes
3 times in intervals.
The time display shows "p3". A rinse
aid amount of 3 ml is selected (factory
default setting).
The set value is shown in the time
display after the "p".
^Select the desired setting with the
"Start/Stop" button. Every touch of the
button adjusts the level.
The programmed dosage is saved.
^Turn the dishwasher off "s".
Before using for the first time
15

,Do not wash items soiled with
ash, sand, wax, grease or paint in
the dishwasher.
Ash and sand do not dissolve and
will be distributed throughout the
inside of the dishwasher.
Wax, grease and paint will cause
permanent discoloration and
damage to the dishwasher.
^Scrape food from dishes before
placing them in the dishwasher,
rinsing is not necessary.
^Some foods contain natural dyes,
e.g. carrots or tomatoes. Plastic items
may discolor permanently if they
come in contact with food dyes.
^All items can be placed anywhere in
the baskets.
^Load dishes so that water can reach
all surfaces. Do not place dishes or
cutlery inside other pieces.
^Make sure that all items are securely
positioned.
^Hollow items such as cups and
glasses should be placed upside
down in the baskets.
^To ensure good water coverage,
tall, narrow and hollow items,
i.e. vases or champagne glasses,
should be placed in the center of the
basket rather than in the corners.
^Concave based items such as mugs
or bowls, should be placed at an
angle so that water does not pool.
^The spray arms must not be blocked
by items that are too tall or hang
through the baskets. Check
clearance by manually rotating the
spray arms.
^Place very small items in the cutlery
tray or basket so they do not fall to
the bottom of the wash cabinet.
^Food residue and spilled liquids
should be cleaned from the sides of
the dishwasher door. These are
outside of the wash cabinet and are
not cleaned by water from the spray
arms.
Loading the dishwasher
16

Items not recommended for
dishwashing
–Cutlery with wooden handles
–Wooden cutting boards
–Glued items such as old knives with
handles glued together around the
shank of the blade
–Handmade craft items, antique,
metal trimmed or decorative
glassware
–Plastic items that are not heat
resistant
– Copper, brass, tin or aluminum
– Dishes with color painted over the
glaze. These dishes may fade over
time
– Fine glassware and crystal items
should only be washed using the
"China & Crystal" program*.
Otherwise clouding or etching may
occur after frequent washing.
–Cast iron pots and pans
* depending on model
If unsure whether your china and
crystal are dishwasher safe, please
check with the manufacturer. The
China & Crystal program, although
extremely gentle and thorough can
cause the china and crystal to "wear"
if they are not dishwasher safe.
Glassware:
–There are no standard guidelines for
washing glassware, when in doubt
wash by hand.
–When purchasing new dishes,
glasses and cutlery, make sure they
are dishwasher safe. Only wash
items marked "dishwasher safe" in
the dishwasher.
–If fine glassware is washed in the
dishwasher select the "China &
Crystal" program*. This will reduce
the risk of clouding.
Silver and aluminum:
– Silver or aluminum items may tarnish.
– Silverware previously cleaned with a
silver polish may be damp or spotted
at the end of a program where water
has adhered to the polish. This can
be rubbed off with a soft, dry cloth.
Silver that has been cleaned in an
immersion dip is usually dry at the
end of a program, but may tarnish.
–If left to dry, foods containing sulfur
can discolor silver. These include
egg yolk, onions, mayonnaise,
mustard, fish and marinades.
–Silverware may tarnish or pit if
washed next to stainless steel.
Leave space between these metals.
–Clean aluminum items, e.g. grease
filters, with domestic dishwasher
detergent only.
Loading the dishwasher
17

Cutlery tray
^Arrange the cutlery as shown in the
cutlery tray.
For easier unloading cutlery should be
grouped in zones, one for knives, one
for forks, one for spoons, etc.
Place knives with the cutting edge
down and forks with the prongs
between the holders. Spoons should be
placed in the opposite direction with
the handles between the holders so
that water can run off more easily.
The upper spray arm must not be
blocked by tall cutlery items.
The cutlery tray insert is removable.
Spoons with thick handles may have to
be placed as knives and forks with their
heads in the holders.
Loading the dishwasher
18

Upper basket
,Always use the dishwasher with
the upper and lower basket in place.
^Load the upper basket with small,
lightweight, or delicate items such as
cups, saucers, glasses, dessert
bowls and flat pans.
^Long items such as soup ladles,
mixing spoons and long knives
should be placed lying down across
the front of the upper basket.
Adjustable cup rack
^Raise the rack to make room for tall
glasses. Lower it to double stack
smaller pieces.
Loading the dishwasher
19

Adjusting the upper basket
The upper basket can be raised or
lowered to accommodate tall items.
The basket can also be angled to fit tall
items in both, the upper and lower
baskets. The angles should not be set
to opposite extremes. This will block the
middle spray arm. Take care when
sliding the basket in and out in this
position.
^Slide out the upper basket.
^Pull up the levers at the sides of the
upper basket and adjust the basket
height.
^Release the levers and the basket will
lock in place.
Depending on the setting of the upper
basket, a variety of plate dimensions
can be accommodated.
For example: If the upper basket is in
its highest position a plate with a
diameter of 12 3/16" (31 cm) can be fit in
the lower basket.
Loading the dishwasher
20
