Miele PT 7135 C User manual

Operating and Installation
Instructions
Condenser Dryer
PT 7135 C
To prevent accidents
and machine damage
read these instructions
before
installation or use. M.-Nr. 10 037 980
en-US

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide to the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control panel ......................................................6
Display function .................................................7
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fabric care labels .................................................10
Drying tips .......................................................10
Coin mechanism ..................................................14
Canceling a program...............................................14
Adding/removing laundry during a drying program .......................14
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting/Changing a Favorite .....................................19
Low temp. .....................................................21
Saving a Favorite ...............................................21
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning the lint filters ..............................................22
Cleaning the exterior and the control panel .............................24
Cleaning the heat exchanger ........................................25
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Optional accessories ...............................................34
INSTALLATION INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
External drainage of the condensed water ..............................41
Electrical connection ...............................................42
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Settings J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Opening the menu Settings .......................................46
Language J......................................................47
Settings - Supervisor level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Contents
2

,WARNING - To reduce the risk of
fire, electric shock, or injury to
persons when using your appliance,
follow basic precautions, including
the following:
~It is essential to read all instructions
before using this appliance.
,This machine conforms to
current safety requirements.
However, inappropriate installation
and use can lead to personal injury
and property damage. Read the
operating and installation
instructions carefully before using
this machine.
The manufacturer cannot be held
responsible for damage caused by
non-observance of these Important
Safety Instructions.
Keep these operating instructions in
a safe place and pass them on to
any future user.
~The tumble dryer is only intended for
drying fabrics washed in a water
solution. Check fabric care labels to
verify materials can be machine dried.
~Before maintenance, or cleaning
and care disconnect the dryer from the
electrical supply pulling the plug or
tripping the circuit breaker.
~Make sure that no unattended
children can access the machine.
There is a potential danger that children
can be trapped in the drum. This may
cause major injuries or the death of the
child.
~Do not reach into the dryer if the
drum is moving.
~Do not install or store this appliance
where it will be exposed to the weather.
~Do not tamper with the controls.
~Do not repair or replace any part of
the appliance or attempt any servicing
unless specifically recommended in
these operating instructions. Repairs to
electrical appliances should only be
performed by qualified personnel.
Incorrectly repaired machines may
pose a considerable risk to the user.
~Clean the lint filter before or after
each load.
~Keep the area around the exhaust
opening (toe-kick) and adjacent
surrounding areas free of lint, dust and
dirt.
~The interior of the machine and
exhaust duct should be cleaned
periodically by qualified personnel.
~Only use genuine Miele accessories
and replacement parts. If other parts
are used, warranty, performance and
product liability claims may become
void.
IMPORTANT SAFETY INSTRUCTIONS
3

~To prevent the risk of fire, the
following articles must not be dried in
this tumble dryer:
–items which have not been washed.
–items, such as workwear, which have
not been thoroughly cleaned and are
still soiled with grease, oil or other
substances (such as cosmetics,
lotions, etc.).
If items have not been thoroughly
cleaned there is a danger that they
could ignite when heated, even after
they have been removed from the
dryer at the end of the program.
– items that have been previously
cleaned, washed, soaked or spotted
with gasoline, dry-cleaning solvents,
wax, wax remover, chemicals for
buffing (e.g. mops and floor cloths)
or other flammable or explosive
substances. They may give off
vapors that could ignite or explode.
– items which have been spattered
with hair spray, nail polish remover or
similar substances.
~When washing heavily soiled items
ensure that you use sufficient detergent
and select a high temperature. If in
doubt, wash the items several times.
~To prevent the risk of fire, the
following articles or items must not be
dried in this tumble dryer:
–fabrics which contain a large amount
of rubber, foam rubber or rubber-like
materials. For example, products
made from latex, shower caps,
waterproof textiles, rubberized
articles, and items of clothing and
pillows with foam rubber filling, or
similarly textured rubber-like
materials.
–which contain padding or fillings
(e.g. pillows, jackets). If these were
damaged the filling could get out
with the risk of igniting in the dryer.
~In many programs, the heating
phase is followed by a cooling down
phase to ensure that the items are not
too hot to handle when you remove
them (this also avoids the danger of the
laundry self-igniting). The program is
not finished until the cooling down
phase is complete.
Always wait until the end of the
program before removing the laundry.
~Warning: Do not switch the tumble
dryer off before the end of the drying
program. If this was done and the
laundry was then removed immediately
it could give off a great amount of heat.
~Do not use fabric softeners or
products to eliminate static unless
recommended by the manufacturer of
the fabric softener or product.
IMPORTANT SAFETY INSTRUCTIONS
4

~GROUNDING INSTRUCTIONS
This appliance must be grounded. In
the event of a malfunction or
breakdown, grounding will reduce the
risk of electric shock by providing a
path of least resistance for electric
current.
This appliance is equipped with a cord
having an equipment-grounding
conductor and a grounding plug. The
plug must be inserted into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
,WARNING – Improper
connection of the equipment
grounding conductor can result in a
risk of electric shock. Contact a
qualified electrician if you are in
doubt as to whether the appliance is
properly grounded.
~Do not modify the plug provided
with the appliance: if it will not fit the
outlet, have a proper outlet installed by
a qualified electrician.
~Before this appliance is removed for
service or discarded, remove the door
to the drying compartment.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
5

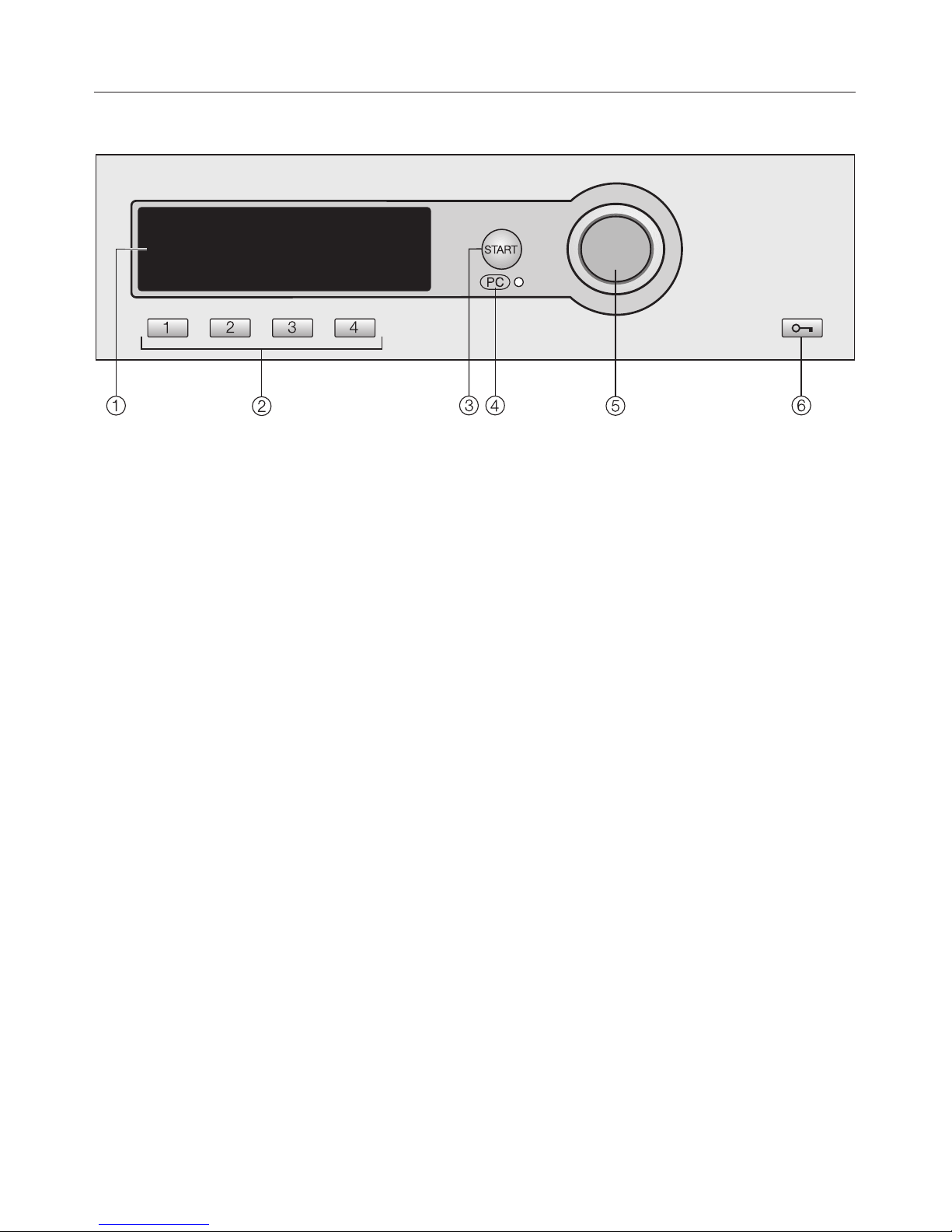

Control panel
aDisplay*
See the following pages for more
information
bDirect select buttons
To select a drying program directly.
You can also save "Favorite" drying
programs on these buttons.
c"Start" button
dOptical interface PC
Allows a service technician to check
and update the drying programs
eJog shuttle
Turn to select
Press to confirm the selection
fabutton
To open the drum door.
*Contents in the display will vary with program offering.
Guide to the dryer
6

Display function
Contents in the display will vary with program offering.
Main menu
1 Cottons Program selection ...
2 Minimum iron Settings F...
3 Woollens handcare
4 Smoothing 10:00
The display shows the main menu (with factory default
settings). "Program selection" is highlighted.
If the display is dark (in Stand-by mode) turn the jog shuttle.
Jog shuttle
Turn the jog shuttle to select a program or setting.
Press the jog shuttle to confirm the selection.
Direct select buttons
The first four programs shown in the display on the left are the
"Favorites". They can be selected with the direct select
buttons.
The Favorites can be individually set to your desire. See
"Favorites" for more information.
The direct select buttons have different functions in the other
menus. In these menus an arrow His displayed above the
respective button with the function description of the button.
Program selection possibility
–Possibility 1 Select and confirm the menu "Program
selection" in the display with the jog shuttle.
–Possibility 2 Press one of the direct select buttons
D E F G and access directly the basic menu of
the program.
Guide to the dryer
7

Menu Program selection
Program
selection
Back A
Cottons
Minimum iron
Woollens handcare H
^All pre-set programs can be selected with the jog shuttle.
Depending on the direction the jog shuttle is turned the
highlighter moves up or down.
The arrows e- at the right side of the display show that more
selections are available.
^Press the jog shuttle to open the basic menu of the
selected program.
Basic menu of a drying program
Cottons Normal
Duration 1:16 h
Low temp.
H
Timer Y
H
Save
H
Back A
H
^The "Drying level" or "Program" can be selected by turning
the jog shuttle.
– The selected component is highlighted. Press the jog
shuttle to select or adjust the component.
–Select "Low temp." or "Timer" by pressing D-E.
–Press Gto get back to the Basic menu.
All components can also be selected and confirmed using
only the jog shuttle.
Settings J
The "Settings J" menu allows you to adjust the dryer to
individual needs. See "Settings J" for more information.
Guide to the dryer
8

,The appliance must be correctly
installed and connected before the
first use. Please see the "Installation
instructions."
Welcome screen
The Welcome screen shows when the
dryer is turned on for the first time.
Once the total use time of the dryer
exceeds one hour the welcome
screen will not show again.
The display then shows the language
selection.
Language J
Select the desired language and
confirm with "OK".
Set the time of day
^Set the hour by turning the jog
shuttle, press to confirm.
^Repeat to set the minutes and
confirm.
^Press again to save the time of day.
Before using for the first time
9

Fabric care labels
Before drying, check fabric care labels
for special drying instructions.
q= Drying with normal temperature
r= Drying with low temperature
s= Do not dry in a tumble dryer
Drying tips
–Observe the maximum loads, see the
"Program guide".
Overloading the dryer will result in
poor drying and wrinkling.
– Do not place dripping wet items in
the dryer. Spin the laundry after the
wash for at least 30 seconds.
– Dry delicate fabrics (with the fabric
care symbol r) with the "Low
temperature" option.
–Open jackets to allow even drying.
–Starched laundry can be dried in
the tumble dryer. The amount of
starch should be doubled during the
wash.
–Wash new, colored items before
drying for the first time and do not
dry with light-colored items. These
fabrics can "bleed" (also onto plastic
parts of the dryer). Colored lint may
also get on the light colored items.
–Wool and wool blends tend to felt
and shrink. Dry wool and wool
blends in the "Woollen handcare"
program.
–The fine fabric of down filled items
tend to shrink. Dry these items in the
"Smoothing" program.
–Dry pure linen items only if it is
recommended on the fabric care
label. The surface of the fabric may
become "rough". Dry these items in
the "Smoothing" program.
–Knitted fabrics (e.g. T-Shirts and
underwear) tend to shrink when
washed and dried for the first time.
Do not overdry these fabrics.
–Permanent press and delicate
fabrics tend to crease more the
bigger the load size.
For better drying results reduce the
load size or select the "Shirts"
program.
Use
10

1. Sort the laundry
^Loosen up the washed laundry.
^For even drying results sort by
desired dryness, fiber/fabric, size
and residual moisture after spinning.
,Do not dry items that may melt or
ignite in the dryer such as plastics,
rubber or sneakers. They could melt
and damage the laundry.
–Check hems and seams, be sure that
no filling can come out.
– Comforter covers and pillowcases
should be fastened in order to
prevent small items from getting
trapped inside of them.
– Close zippers, hooks and eyelets.
– Tie fabric belts and apron ties.
– Remove or sew up released bra
underwires.
2. Load the laundry
^Use the abutton to open the drum
door.

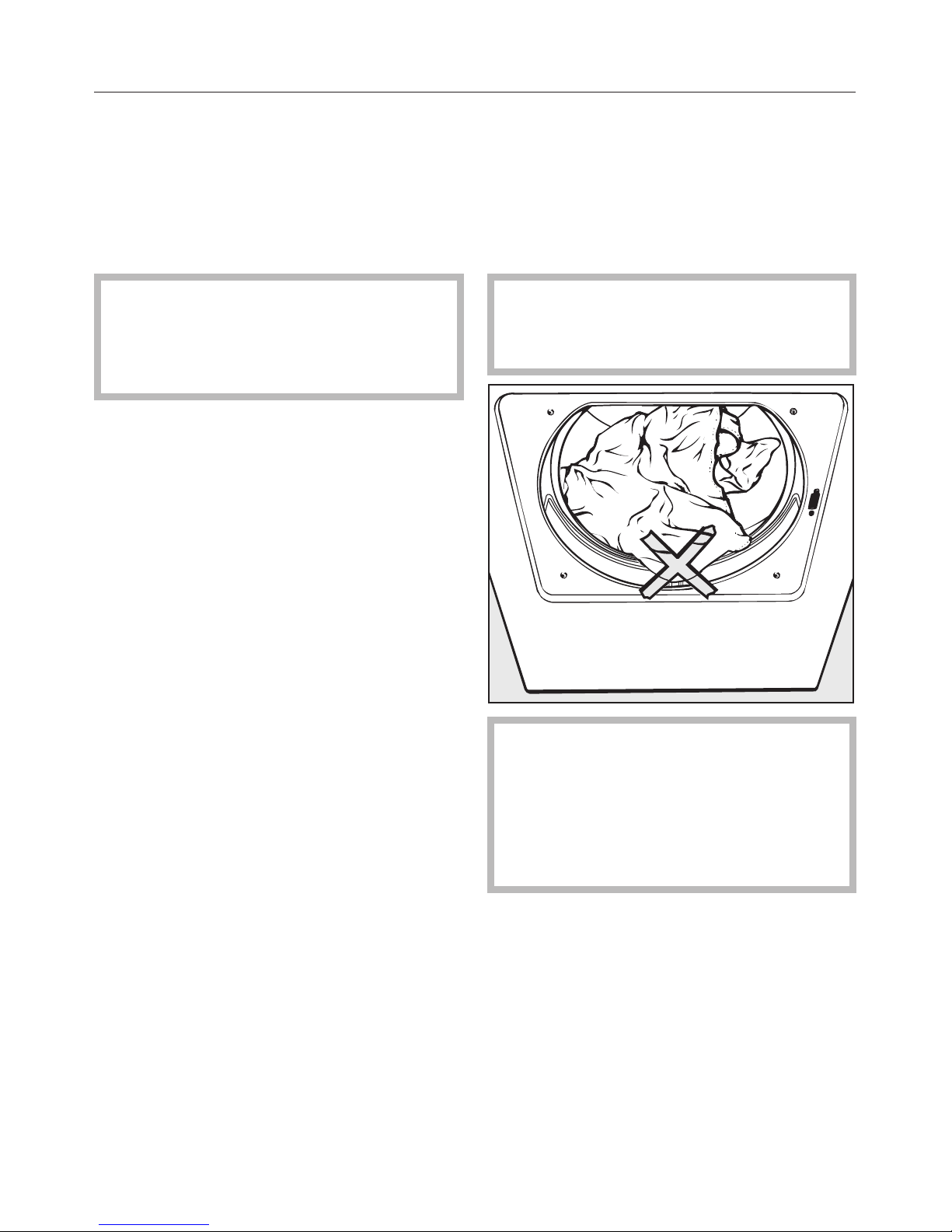

^Load the laundry loosely into the
drum.
Do not overload the drum.
Overloading strains the fabrics and
results in poor drying.
To prevent fabric damage, check
that laundry is not caught in the
closed door. Do not use softener
sheets in this dryer. Silicates
contained in these sheets could
cause the dryer to overheat.
^Close the door with a firm swing or
lean against the dryer and push it
closed.
Use
11

3. Select a program
Two program selection possibilities:
^Select a "Favorite" by pressing the
respective direct select button.
or
^Select from the "Program selection"
menu by turning the jog shuttle.
4. Select "Low temp." and/or
"Timer"
^If desired select "Low temp." and/or
"Timer" from the respective
submenus.
Note:
The displayed duration (remaining time)
can vary with every new program
selection.
5. Insert coins (if operated by
coin mechanism)
^If a coin mechanism operates the
machine, please regard the
displayed request to pay.
If the door is opened after the
program has started or if the
program is canceled the credit is
lost.
6. Starting a program
"Start" flashes when the program can
be started.
^Press the "Start" button.
The "Start" button lights.
–The display shows "Program start"
and then "Drying" with the program
duration.
–The drying levels are displayed,
e.g. machine iron, hand iron, etc.
^Press one of the following buttons
during the running program:
– Button E"Timer"
The time of day and the approximate
program end is displayed.
– Button F"Save"
The currently running program can
be saved as a "Favorite".
– Button G"Cancellation"
To cancel the currently running
program.
Use
12

Remaining time
When a program is selected, the
approximate duration is displayed. This
is the "remaining time".
The program duration can vary due to
some factors: residual moisture after
spinning, fabric, load size, room
temperature and voltage fluctuations.
The adaptive electronic adjusts to the
individual load to display the accurate
remaining time. The remaining time is
constantly checked which can lead to
leaps in time.
The "Woolens handcare" and
"Smoothing" programs can be ended
ahead of time once a certain
temperature is reached. This may be
the case with fine fabrics or if the dryer
had some residual heat from a previous
program.
Before the end of a program
After drying with hot air, the cool down
phase finishes the program. "Cooling
down" is displayed. Only after the
cooling phase has ended is the
program finished.
The programs: "Woollen handcare" and
"Smoothing" do not have a cooling
down phase.
7. At the end of a program
"Anti-crease" (if selected) and "End"
mark the end of a program in the
display. During the anti-crease phase
the drum will turn in intervals if the
laundry is not immediately removed
from the dryer to prevent the laundry
from wrinkling. Run time 1 h.
^Use the abutton to open the drum
door.
^Remove the laundry.
Check the drum for any missed
pieces of laundry. Any items left in
the dryer can be damaged because
of over-drying.
If the door stays open, the light goes off
after a few minutes (saving energy).
^Close the door.
Cleaning and care hints
^See "Cleaning and Care".
Use
13

Coin mechanism
For coin mechanism operated
machines: Money or tokens will be
lost when the door is opened after
program start or when canceling a
program.
Technical Service can set a time frame
when a program can be changed.
Canceling a program
^Press the Gbutton "Cancel".
The laundry is cooled down.
^Press G"Cancel" once more and
"End" is displayed.
^Press the abutton.
^Open and close the door.
^Select the new program.
^Press the "Start" button.
Adding/removing laundry
during a drying program
^Press the abutton.
^Open the door.
,Do not touch the rear of the
drum while adding or removing
items. Danger of burns due to high
temperatures in the drum.
^Add or remove items.
^Close the door.
Continue drying
^Press the "Start" button.
Note
When the program cycle is changed
the displayed remaining time may differ
from the actual drying time.
Use
14

Programs may vary depending on the offerings of your machine.
Cottons Load size: 15 lbs (6.5 kg)
Extra dry, Normal+, Normal
Items Single and multilayered cotton and linen laundry e.g. terry towels,
beach towels, bath robes, T-Shirts, underwear, cottons bed linens,
baby clothing, etc.
Note –Select "Low temp." for items with the fabric care symbol r.
–Select "Extra dry" for multilayered and thick items.
–The "Extra dry" program should not be selected for jersey materials.
Items may shrink.
Hand iron r, Hand iron rr, Machine iron
Items Cotton or linen fabrics to be left damp for easier ironing.
e.g. table cloths, bed linen, starched laundry, etc.
Note – Select "Low temp." for items with the fabric care symbol r.
– Roll up items until they are ironed to keep them moist.
Minimum iron Load size: 7.7 lbs (3.5 kg)
Normal+, Normal, Hand iron r
Items Permanent Press items of cotton, mixed fabrics or synthetics.
e.g. sweaters, dresses, pants, table cloths, etc.
Note – Select "Low temp." for items with the fabric care symbol r.
– Select "Hand iron r" for crease-free drying and reduce the load size
to (3.3 lbs) 1.5 kg.
–Items will be dried wrinkle free, depending on fabric and load.
The load size is the dry laundry weight.
Program guide
15

Woollen handcare Load size: 5.5 lbs (2.5 kg)
Items Woolen fabrics
Note –Woolen items will be loosened up and fluffed in a short time, but not
completely dried.
–Remove the items immediately after the program ends and allow
them to air dry.
Smoothing Load size: 6.6 lbs (3.0 kg)
Items –Cotton or linen fabrics
–Permanent Press items of cotton, mixed fabrics or synthetics.
e.g. khakis, shirts, etc.
Note –Program to reduce creasing after spinning in the washer.
–Remove the items immediately after the program end and allow to
air dry.
Cool air Load size: 15 lbs (6.5 kg)
Items To air items
Warm air Load size: 15 lbs (6.5 kg)
Items – Final drying of multi-layer fabrics, with unique drying
characteristics. e.g. jackets, pillows and large textiles.
– Drying of single items: beach towels, bathing suits, etc.
Note – Select "Low temp." for items with the fabric care symbol r.
– Do not select the longest drying for the first run. Check by testing
which time is most suitable.
Program guide
16

Jeans Load size: 7.7 lbs (3.5 kg)
Normal, Hand iron r
Items Denim fabric items, pants, jackets, skirts or shirts, etc.
Shirts Load size: 5.5 lbs (2.5 kg)
Normal, Hand iron r
Items Shirts and dress shirts.
Outerwear Load size: 7.7 lbs (3.5 kg)
Normal, Hand iron r
Items Outdoor clothing suitable to dry in a tumble dyer.
Proofing Load size: 5.5 lbs (2.5 kg)
Items For dryer suitable items, e.g. ski and outdoor clothing, tablecloths
and poplin items.
Note – This program has an additional step for water proofing.
–Water proofed items must only be treated with a water
repellant that is "Suitable for membrane textiles". These
chemicals are based on flourochemicals.
–Do not dry items which were treated with agents containing
paraffin! This is a fire hazard.
Toweling Load size: 14.3 lbs (6.5 kg)
Normal+
Items Terry laundry, e.g. towels, beach towels, bath robes.
Program guide
17

The timer allows the user to select the time of day for the
program end. The program start can be delayed from 30
minutes to 24 hours.
Select the submenu Timer
Cottons Normal+
Low temp.
Duration 1:47 h
Low temp. BTimer YSave Back A
HHHH
^Press the direct select button E. The "Timer" menu
shows.
Select the time
Cottons Normal
Low temp.
10:00 Start 10:13
Finish 12:00
^Select the desired program end time with the jog shuttle
and confirm.
The program end time is adjusted to the next full or half hour.
The program start will be delayed in accordance with the
desired program end time.
Starting the timer function
^Press the "Start" button.
The elapsed time is displayed and will count down in
minutes.
The drum turns briefly every hour to prevent creases.
Canceling the timer
^Press the Gbutton to cancel the timer.
^Press it once more to get back to the main menu.
Timer
18

The dryer has the option to save the most used drying
programs on the direct select buttons. The option "Save"
must be selected in "Settings - Supervisor level". Contact
Technical Service for access to this level.
Selecting/Changing a Favorite
^Close the door.
Main menu
1 Cottons Program selection ...
2 Minimum iron Settings F...
3 Woollens handcare
4 Smoothing 10:00
^Press the Dbutton.
Basic menu
Cottons Normal
Duration 1:16 h
Low temp.
H
Timer Y
H
Save
H
Back A
H
^Turn the jog shuttle to select the component you would like
to adjust: program ("Cottons") or the drying level ("Normal").
^Press the jog shuttle to confirm the selection.
Favorites
19

Depending on the selection the display shows one of the following
submenus
– Select a program
Program
selection
Back A
Cottons
Minimum iron
Woollens handcare H
^Select the desired program with the jog shuttle and
confirm.
Important: If no selection is made in the submenu, the
display will switch back to the basic menu after
20 seconds.
– Drying level programs
Cottons Normal+
Drying levels from c
Machine iron - Extra dry
^Select and confirm the desired drying level with the jog
shuttle.
The display shows the drying level range of each program.
– Program "Warm air", "Cool air"
Warm air 0:30 h
10:00 Finish 10:30
Duration 0:30 h
^The duration can be extended or shortened with the jog
shuttle (maximum 2 hr cold air/1hrwarm air).
The program end time is displayed.
– other programs
The defined programs have a fixed drying level and duration
and cannot be adjusted.
Favorites
20
