Miele PT 7186 Vario User manual

Operating and Installation
Instructions
PT 7186 Vario
To prevent accidents
and appliance damage
read these instructions
before
installation or use. M.-Nr. 09 146 092
en - US

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operating the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1. Sort the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2. Load the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3. Select a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Quick Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Selecting a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Selecting/changing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Low temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Saving a program as a favorite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Changing the program sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Payment system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Once a program has started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
- changing the program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
- canceling the program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Adding or removing laundry after a program has started . . . . . . . . . . . . . . . . . . . 24
Power cuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Time remaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning the lint filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Removing the filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Taking the filter apart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning the filter while dry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the lint filter with water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Replacing the filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the filter housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Quick cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Extra cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
– Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
– The cover in the door opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Contents
2

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Check and fault messages in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
An unsatisfactory drying result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Other problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Changing the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Peak load cut-out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Service interval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
View from the side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
View from above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Installation on a raised plinth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Payment system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Installing the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Moving the tumble dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Levelling the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Securing the tumble dryer against slippage . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Room ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Installation - extraction ducting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
To calculate the total duct length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Calculation example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Exhaust socket dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Venting system with plastic piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Venting system with flexible ducting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Venting more than one dryer via the same ducting system . . . . . . . . . . . . . . . . . 51
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Help protect the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Contents
3

,WARNING - To reduce the risk of
fire, electric shock, or injury to
persons when using your appliance,
follow basic precautions, including
the following:
~It is essential to read these
instructions.
,READ AND SAVE THESE
INSTRUCTIONS
This tumble dryer is only intended
for industrial or institutional use and
should not be used by anyone who
is not specially trained to operate it.
This also applies to industrial
applications performed in residential
environments.
Compliant use of the dryer has been
investigated with respect to
industrial use only (UL 1240).
Keep these operating instructions in
a safe place and pass them on to
any future user.
Read all instructions before
installation or use of the dryer to
prevent injury and machine damage.
,Installation, repair and
maintenance work should be
performed by a Miele authorized
service technician. Work by
unqualified persons could be
dangerous.
Improper use of the appliance can
lead to personal injury and material
damage.
All personnel working with this
machine must be fully trained in all
aspects of its use and safety.
Proper use of the dryer
,The dryer is only intended for
drying fabrics that were washed with
water as a cleaning agent.
~The dryer is only intended for drying
fabrics that were washed with water as
a cleaning agent. Check fabric care
labels to verify that the articles can be
machine dried.
"Dry cleaning kits" for freshening up
garments in a tumble dryer are
increasingly available on the market. If
using, do so at your own risk, and
follow the instructions provided on the
packaging.
Any other applications may be
dangerous.
~Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use the
dishwasher without supervision or
instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
4

~Do not let children play in, on or
near the dryer. Do not let them play with
the controls or operate the unit.
~If the dryer is operated in a publicly
accessible area, the operator must
ensure the safe use of the appliance.
Technical safety
~Before installation of the dryer,
check it for any externally visible
damage.
Do not install or use a damaged
appliance.
~Do not operate the appliance if the
control panel, wires or cables are
damaged.
~Do not damage, remove, or bypass
any of the safety features and controls
of the dryer.
~Do not operate the dryer when
housing parts have been removed and
the moving or electrical parts are
exposed and accessible.
~Do not make any alterations to the
dryer, unless authorized to do so by
Miele.
~Be certain this appliance is properly
installed and grounded by an
authorized technician. For electrical
safety this machine must be grounded
z. It is imperative that this basic safety
requirement be tested by a qualified
electrician. Consult a qualified
electrician if in doubt.
~Do not repair or replace any part of
the appliance or attempt any servicing
unless specifically recommended in
these operating instructions. Contact
Miele’s Technical Service Department
for assistance.
~Use only genuine Miele parts. Use
of non-Miele parts may impair
performance and void any guarantees.
~The dryer needs timely and
professional maintenance to prevent
performance loss, malfunctions and the
risk of fire.
~Before installation or service,
disconnect the power supply to the
work area.
~Repairs to electrical and gas
appliances should only be carried out
by a Miele Service Technician in
accordance with local and national
safety regulations. Unauthorized repairs
could cause injury or machine damage.
~The installation of this unit in non
stationary locations (e.g. ships) must be
performed by a qualified installer or
service agency, in strict accordance
with national and local safety
regulations and standards.
IMPORTANT SAFETY INSTRUCTIONS
5

Correct use
~Do not let anyone sit or lean on the
doors, as this can cause the dryer to
tip. Danger of injury.
~Always close the door after loading
or unloading the dryer, to prevent:
–children from climbing into the dryer,
or hiding small items in the dryer.
–small animals from climbing into the
dryer.
~Empty all pockets so that no
flammable items such as lighters,
matches, candles and cosmetics end
up in the dryer.
~Always make sure the drum is
stationary before reaching in to remove
laundry. Never put your hand into a
drum that is still moving.
~Take care not to pinch or cut your
fingers on the hinges of the drum door
or lint flap. Use the handles.
~The area necessary to open the
drum door completely must not be
obstructed by doors or other structures.
~Do not use a power washer to clean
the dryer.
~Keep the area around the exhaust
opening (toekick) and adjacent
surrounding areas free of lint, dust and
dirt.
~Operate the dryer only if an exhaust
air duct is connected and the room is
adequately ventilated.
~The ducting must not be connected
to
–a chimney or vent flue which is in
use,
–or to ducting which ventilates rooms
with fireplaces,
–or to chimneys being used by other
appliances.
Smoke or exhaust fumes can cause
poisoning.
~Check all parts of the extraction
system on a regular basis (e.g. wall
vent, external grille, bends in the
ducting etc.) and make sure they are all
free of any hindrance. A build-up of lint
will prevent a free flow of air through the
system. If the appliance is to be
connected to an existing ducting
system, this must be checked for
suitability beforehand.
~Do not operate the dryer in a room
where cleaning machines operate with
solvents containing CFC. Vapors from
combustion turn into hydrochloric acid
which damages laundry and dryer.
When operated in a separate room,
there must be no air exchange
possible. Make sure the dryer is
supplied with clean fresh air only.
IMPORTANT SAFETY INSTRUCTIONS
6

~Adequate ventilation is essential to
avoid the danger of asphyxia and toxic
fumes where another appliance which
also uses the room air (e.g. gas, oil or
coal fired heater, continuous flow or
other water heater) is installed in the
same or an adjacent room.
To ensure safe operation, and to
prevent gases given off by these
appliances being drawn back into the
room, an underpressure of 4 Pa is the
maximum permissible.
Ventilation can be maintained by:
–air inlets in the external wall which
cannot be closed or blocked, or
–by fitting a window contact switch
which ensures that the appliance
can only be operated when the
window is open.
If in doubt, contact Miele Technical Ser-
vice.
~When installing multiple dryers to
one collective exhaust duct, a
non-return flap per dryer must be
installed directly to the collective duct.
Otherwise the dryers could be
damaged and the electrical safety
affected.
~A build-up of lint will block the
airflow, heating and ventilation, which
will impair the efficiency of the dryer. Be
sure to clean the lint filter before or after
each load.
~Do not use the dryer without the
built-in lint filter in place. Fire hazard!
If the lint filter is damaged it must be
replaced immediately.
~The dryer must not be used without
the lint filters in place or if the lint filters
are damaged in any way. Damaged
filters can cause operational faults and
blockages in the airways, the heating
elements and in the ducting.
Fire hazard!
In the event of a damaged filter, turn
the appliance off and replace the filter
with a new one.
~Do not install the tumble dryer stack
in a room where there is a risk of frost
occurring. At temperatures around
freezing point the appliance may not be
able to operate properly.
The ambient room temperature should
be between +36°F (2°C) and +122°F
(50°C).
~The appliance is not intended for
outdoor use.
IMPORTANT SAFETY INSTRUCTIONS
7

~To prevent the risk of fire, the
following textiles must not be dried in
this appliance:
–items which have not been washed.
–items, such as workwear, which have
not been thoroughly cleaned and
which are still soiled with grease, oil
or other substances (such as
cosmetics, lotions etc).
If items have not been thoroughly
cleaned there is a danger that these
might ignite when heated, even after
they have been removed from the
dryer at the end of the program.
–items that have been previously
cleaned, washed, soaked or spotted
with gasoline, dry-cleaning solvents,
wax, wax remover, chemicals for
buffing (e.g. mops and floor cloths)
or other flammable or explosive
substances. They may give off
vapors that could ignite or explode.
– items which have been spattered
with hair spray, nail polish remover or
similar substances.
~When washing such heavily soiled
items ensure that you use sufficient
detergent and select a high
temperature. If in doubt, wash the items
several times.
~To prevent the risk of fire, the
following articles or items must not be
dried in this dryer:
–items which have been cleaned
using chemicals (e.g. professional
dry-cleaning agents).
–fabrics which contain a large amount
of rubber, foam rubber or rubber-like
materials. For example, products
made from latex, shower caps,
waterproof textiles, rubberized
articles, and items of clothing and
pillows with foam rubber filling, or
similarly textured rubber-like
materials.
– which contain padding or fillings
(e.g. pillows, jackets). If these were
damaged the filling could get out
with the risk of igniting in the dryer.
IMPORTANT SAFETY INSTRUCTIONS
8

~With sensitive fabrics there may be
a danger of them spontaneously
combusting if dried too long. Immedi-
ately remove the laundry at the end of
the drying program and after a power
failure.
Keep a fire extinguisher near the dryer.
The laundry must not be removed from
the dryer until the cooling down phase
has been completed.
If hot laundry items are stacked or
packed they could spontaneously
combust.
~Warning: Do not switch the
appliance off before the end of the
drying program. If this was done and
the laundry was then removed immedi-
ately it could give off a great amount of
heat.
~Fabric softrner and similar products
must be used according to the
instructions on the manufacturer's
packaging.
~Never use or store gasoline,
petroleum-based substances or other
easily flammable substances near the
machine. Fire and explosion hazard!
~Do not allow air contaminated with
chlorine, fluorine or other vapors
containing solvents to get into the
dryer. Fire hazard.
~Disinfection and cleaning agents
often contain chlorine compounds. If
these agents dry on stainless steel it
will cause it to rust. To protect the dryer
use only chlorine-free disinfection and
cleaning agents for laundering and
disinfecting, and for cleaning the
stainless steel surfaces. If in doubt
about a cleaning agent, contact the
manufacturer.
Aggressive vapors containing chlorine
can also be corrosive. Do not store
containers of these agents near the
appliance.
~Remove the door to the drying
compartment before the appliance is
removed for service or discarded
Accessories
~Only use genuine Miele original
spare parts and accessories with this
appliance. If spare parts or accessories
from other manufacturers are used, this
will invalidate the guarantee, and Miele
cannot accept liability.
Disposing of your old machine
~Before disposing of an old machine
it is important to disable the door lock.
This way you will prevent the risk of
children accidentally locking
themselves in and endangering their
lives.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
9

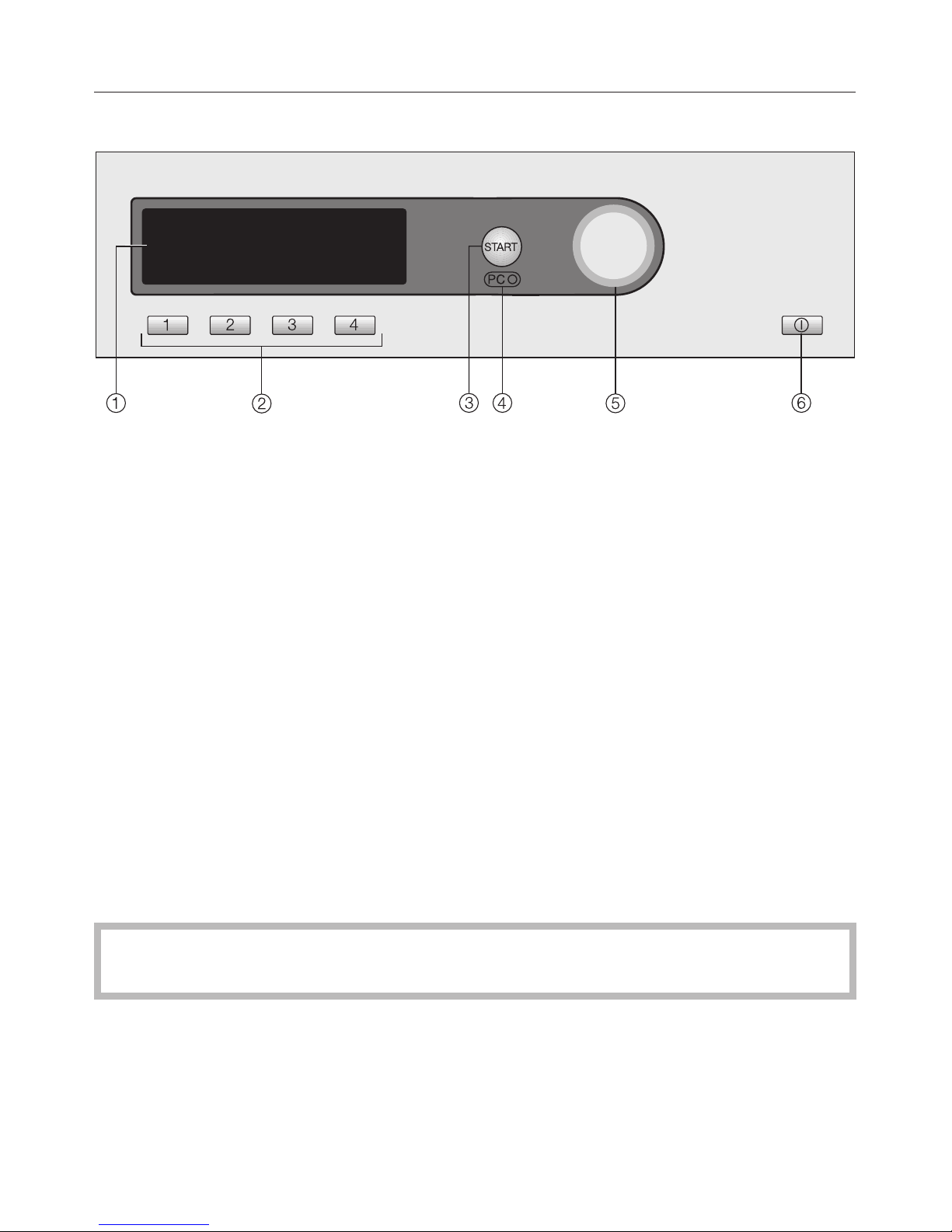

Control panel
aDisplay
See the following pages for more information.
bDirect select buttons (keys)
For selecting an individual program quickly. These buttons can be programmed
to select your own favorite drying programs.
cStart button
dPC / optical interface
This is used by service technicians to run diagnostic checks on your tumble
dryer, and can also be used to update programming data in the future.
eJog shuttle
This is used to select menu options (by turning it) and to confirm your selection
(by pressing it).
fOn/Off button K
Before using for the first time
Before using the tumble dryer for the first time, ensure that it is correctly
installed and connected. See "Installation and connection".
To commission the tumble dryer follow the instructions in the separate booklet
"Commissioning, Program chart and Settings".
Guide to the tumble dryer
10

Display
Main menu
1 Cottons Program selection ...
2 Minimum iron Settings F...
3 Woollens handcare
4 Smoothing 10:00
When the tumble dryer is switched on, the main menu (with
four favorite programs listed) appears with Program selection
highlighted.
Jog shuttle
Turning the jog shuttle moves the highlighting to the next
option.
Pressing the jog shuttle selects the highlighted option.
Direct select buttons
Pressing a shortcut button selects one of the four favorite
programs shown on the left of the display.
If you wish to change the programs shown in this list you can
do so (see "Selecting a program - Saving a program as a
favorite" for more information).
The direct select buttons have different functions in the other
menus. Where this is the case, an arrow Hwill appear in the
display above the shortcut button, together with a description
of its function .
Program selection
There are two ways of selecting a program:
–Option 1: Select the Program selection menu in the display
and confirm your selection by pressing the jog shuttle.
–Option 2: Press shortcut button D E F or G. This
will automatically take you into the main menu for that
program.
Guide to the tumble dryer
11

Program selection menu
Program
selection
Back A
Cottons
Minimum iron
Delicates H
You can use the jog shuttle to select any program. The
highlighting will move up or down depending on the direction
the jog shuttle is turned in.
The HVarrows on the right of the display, indicate further
options.
Pressing the jog shuttle takes you to the main menu of the
programme selected.
Drying program main menu
Cottons Normal
Duration 0:50 h
Low temp.
H
Timer Y
H
Save
H
Back A
H
^Turn the jog shuttle to highlight either the "Drying level" or
the "Program".
–Pressing the jog shuttle selects the highlighted option and
opens the relevant sub-menu.
–Low temperature and Timer can be selected by pressing
direct select buttons Dor E.
–To go back to the main menu press shortcut button G.
Alternatively, you can also highlight and confirm all options by
just using the jog shuttle.
Settings menu J
The Settings menu Jis used to alter the tumble dryer's
electronics to suit different requirements. See the separate
booklet "Commissioning, Program chart and Settings" for
further information.
Guide to the tumble dryer
12

Operating the tumble dryer
The main menu will vary depending on the Controls setting
selected.
^The dryer is operated either with shortcut keys D,E,
F,Gor the multi-function selector.
WS-shortcut keys, basic
1Cottons Normal+
2 Minimum iron Normal
3 Woollens handcare
4 Cool air
4 programs are available to choose from. To specify which
programs are available go to the Settings/supervisor level
menu.
WS-shortcut keys + Logo
M
PROFESSIONAL
##
H
P
H
#
H
More
H
12 drying levels and timed programs are available to choose
from. To specify which programs are available go to the
Settings/supervisor level menu.
WS-shortcut keys, ex/int time
M
PROFESSIONAL
Q
H
R
H
S
H
T
H
4 timed programs with different temperature levels are
available to choose from. To specify which programs are
available, go to the Settings/supervisor level menu.
Guide to the tumble dryer
13

1. Sort the laundry
,Not all fabrics are suitable for
drying in a tumble dryer. Check the
manufacturer’s instructions on the
fabric care label.
Garment care label symbols
Drying
qNormal/higher temperature.
rReduced temperature:
Select Low temperature
(for delicate textiles).
sDo not tumble dry.
Ironing
IVery hot.
HHot.
GWarm.
JDo not iron.
Before drying
–Wash heavily soiled items very
thoroughly, ensuring that you use
sufficient detergent and select a high
temperature. If in doubt, wash the
items several times.
–Do not put soaking wet items into the
tumble dryer. Make sure that your
laundry is thoroughly spun before
drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
–New dark-colored garments should
be washed and dried separately
from light-colored garments the first
few times they are washed, to avoid
the risk of colors running and
discoloring other garments or even
the plastic components in the tumble
dryer.
Dark-colored fibers can also settle on
light-colored garments and vice
versa.
–Starched laundry can be dried in the
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
– Check the seams of padded or
down-filled items to prevent the risk
of fillings coming out. These could
catch fire in the tumble dryer.
– Tie together textile belts and apron
ties to stop them getting tangled.
–Fasten . . .
. . . duvet covers etc. to prevent
small items from being trapped
inside them. . ., hooks and eyes etc.
–Stitch in or remove loose underwire
from bras.
–Leave jackets open and undo any
long zips so that textiles dry evenly.
–For an even drying result, it is
important to . . .
. . . spin,
. . . shake out,
. . . and sort items according to
fabric type, size, care label and the
drying level required.
Tips
14

2. Load the tumble dryer
,Using the tumble dryer
incorrectly could cause a fire. Read
the "Warning and Safety instructions"
before using the tumble dryer.
,Make sure that objects, e.g.
detergent dispensing balls, have
been removed from the laundry.
They could melt and cause damage
to the dryer or the laundry.
–Do not overload the drum.
Overloading can cause unnecessary
wear and tear to the laundry, give a
disappointing drying result and
cause more creasing.
– To save energy, always observe the
maximum load for each program
(see the separate booklet
"Commissioning, Program chart and
Settings").
–Minimum iron fabrics tend to crease
more the greater the load. This is
also the case for garments made
from very fine weave fabrics, such as
shirts or blouses.
If necessary, reduce the size of the
load for these types of fabrics.
3. Select a program
–On many programs, different drying
levels can be selected depending on
individual requirements. . .
e.g.Normal+ for laundry that you
want to fold and put away immedi-
ately after drying.
. . . e.g. Machine iron or Hand iron if
the laundry needs further processing
after drying, e.g. machine ironing.
See separate booklet
"Commissioning, Program chart and
Settings".
–For delicate fabrics with the rcare
label, select Low temperature as
well.
– Down-filled garments have linings
which have a tendency to shrink,
depending on the quality of the item.
They can be partially dried using the
Smoothing program.
– Pure linen should only be machine
dried if specified as suitable by the
manufacturer on the care label, as
the surface of the fabric may
otherwise become rough. They can
be partially dried using the
Smoothing program.
–Woollens and wool blends tend to
become matted and shrink if dried in
a tumble dryer. Only dry these
fabrics in a Woollens program.
–Loop knit materials tend to shrink.
Over-drying increases this effect. Do
not use the highest dry program for
such fabrics.
Tips
15

,It is very important to read the
"Tips" section before proceeding.
aSort the laundry
bLoad the tumble dryer
^Open the door.
^Load the drum.
,Before closing the door, check
that no items are caught in the door
opening. This may damage the
items.
^Shut the door either with a gentle
swing.
Quick Guide
16

cSelect a program
^Turn the dryer on by pressing the
On/Off Kbutton in.
Program chart
–See separate booklet
"Commissioning, Program chart and
Settings".
You can select a program either by:
1. using the appropriate shortcut button
to select one of the four programs
listed in the display ("favorites"), or
2. selecting a program from the
Program selection menu (turn Aand
press B).
Select Low temperature or Timer if
required
^If required, you can then select Low
temperature and/or the Timer (Delay
start time) from the relevant
sub-menu.
Payment system
If your tumble dryer has a payment
system, the amount of credit required
will appear in the display.
Opening the door or canceling the
program after it has started may
cause loss of credit (depending on
how the tumble dryer was set up).
dStart the program
The Start button will flash as soon as a
program can be started.
^Press the Start button.
The Start button will now light up.
–Prog. running will appear in the
display, followed by Drying and the
program duration.
– With sensor drying programs the
drying level reached e.g. Machine
iron ... Hand iron...
etc. will appear in the display later
on.
Once drying is in progress, you can
press one of the direct select buttons:
–Button ETimer to call up the
current time of day and the estimated
end time of the program.
–Button FSave to save the current
program as a favorite.
–Button GCancel to cancel the
current program.
Quick Guide
17

Program duration/Estimated time
remaining
When a program is selected, the
estimated duration will appear in the
display. Please be aware that it is only
an estimate!
The following factors all affect the
estimated time remaining: residual
moisture content after spinning; type of
fabric; size of load; room temperature;
fluctuations in power supply.
The electronics assess conditions in the
appliance and adjust the estimated
time remaining for a more accurate
reading. Because of this, the time
displayed can alter during the course of
a program.
Before the end of a program
In many programs the heating phase is
followed by the cooling down phase:
Cooling down will appear in the display.
The program is not finished until the
cooling down phase has been
completed.
Do not switch the tumble dryer off
before the drying program has
finished.
eRemove the laundry when the
program has finished
,The laundry must not be
removed from the dryer before the
drying program has finished. The
cooling down phase must be
completed.
If hot laundry items are stacked or
packed they could spontaneously
combust.
Anti-crease (if selected) and Finish will
appear in the display to indicate that
the program has finished.
During the anti-crease phase the drum
will continue to turn at intervals until the
laundry is removed. This helps to
prevent laundry creasing.
^Open the door.
Quick Guide
18

^Remove everything from the drum.
Check that all items have been
removed from the drum. If items are
left in the dryer, they could be
damaged by over drying when the
dryer is next used.
The drum lighting will come on when
the door is opened. It will go out a few
minutes later to save energy.
^Switch the dryer off by pressing the
On-Off Kbutton.
^Close the door.
Maintenance after each drying
program
^Please see "Cleaning and care" for
details.
Quick Guide
19

Selecting/changing a program
Main menu
1 Cottons Program selection ...
2 Minimum iron Settings F...
3 Woollens handcare
4 Smoothing 10:00
^Press shortcut button D.
Main menu
Cottons Normal
Duration 0:50 h
Low temp.
H
Timer Y
H
Save
H
Back A
H
^By turning the jog shuttle you can then highlight the
following options in the display: Program (Cottons) or the
drying level (Normal), and confirm your selection by
pressing the jog shuttle.
Depending on the option highlighted, the following will be displayed:
– Program selection
Program
selection
Back A
Cottons
Minimum iron
Woollens handcare H
^Use the jog shuttle to select the program you want, and
confirm your selection. The main menu will reappear.
Selecting a program
20
