Miele PT 7251 User manual

Operating Instructions
Tumble Dryer
PT 7251
PT 7331
PT 7401
PT 7501
PT 7801
To prevent accidents
and machine damage
read these instructions
before installation or use.
UV
M.-Nr. 06 578 551

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide to the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before first use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Preparing the laundry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1. Turn on the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2. Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3. Select and start a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4. Program end. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Add or remove laundry during a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Changing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Drying using the program card / Coin mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Drying using the coin mechanism C 4060 / C 4065 / C 4070 . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Extra features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Delayed start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Program stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Canceling a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Skip or repeat program sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Program information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Peak load cut-off (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Optional modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operating data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fault messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the lint filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Guide to the data plate symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Quick Guide PT 7251, PT 7331, PT 7401, PT 7501, PT 7801 . . . . . . . . . . . . . . . . . . . . . . . . . 33
Help to protect the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Contents
2

IMPORTANT SAFETY INSTRUCTIONS
3
WARNING:
For your safety the information in this manual must
be followed to minimize the risk of fire or explosion
or to prevent property damage, personal injury or
death.
–Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
–WHAT TO DO IF YOU SMELL GAS
ßDo not try to light any appliance.
ßDo not touch any electrical switch.
ßDo not use any phone in your building.
ßClear the room, building or area of all occupants.
ßImmediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
ßIf you cannot reach your gas supplier, call the
fire department.
–Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
(In Massachusetts a licensed plumber / gasfitter is
required.)

Installation, repair and maintenance work
should be performed by a Miele
authorized service technician. Work by
unqualified persons could be dangerous
and may void the warranty.
Read all instructions before installation or
use of the tumble dryer to prevent injury
and machine damage.
All personnel working with this machine
must be fully trained in all aspects of its
use and safety.
The tumble dryer is only intended for
drying fabrics washed in a water solution.
Check fabric care labels to verify
materials can be machine dried.
SAVE THESE INSTRUCTIONS AND
REVIEW THEM PERIODICALLY
Safety
Be certain this appliance is properly
installed and grounded by an authorized
technician. For electrical safety this machine
must be grounded. It is imperative that this
basic safety requirement be tested by a
qualified electrician. Consult a qualified
electrician if in doubt. The manufacturer
cannot be held responsible for damage
caused by the direct or indirect result of
incorrect installation or connection.
Before installation or service, disconnect
the power supply to the work area.
Repairs to electrical and gas appliances
should only be carried out by a Miele
Service Technician in accordance with local
and national safety regulations.
Unauthorized repairs could cause injury or
machine damage. The manufacturer cannot
be held responsible for unauthorized work.
Use only genuine Miele spare parts to
replace faulty components.
Do not repair or replace any part of the
appliance or attempt any servicing
unless specifically recommended in these
operating instructions. Contact Miele’s
Technical Service Department for
assistance.
Do not operate the dryer in a room where
cleaning machines operate with solvents
containing CFC. Vapors turn into salt acid
which damages the laundry and machine.
When operated in adjoining rooms, there
should be no air exchange possible.
Make sure only clean fresh air is
supplied to the dryer. Supply air
containing chlorine, fluorine or other solvent
vapors could ignite.
Do not block the air intake opening in the
rear of the dryer. Do not cover the
machine with blankets or sheets.
Never use or store gas, gasoline based
substances or any easily flammable
substances near the machine.
Fire and explosion hazard!
The maintain optimal drying
performance, prevent downtime and
avoid fire hazards ensure the machine is
maintained as per schedule and by qualified
personnel.
IMPORTANT SAFETY INSTRUCTIONS
4

Use
,This appliance is intended for use only
with fabrics that have been washed with
water as a cleaning agent.
To prevent fires, do not dry the
following items in the tumble dryer:
–Articles containing foam rubber, rubber or
rubber-like materials.
–Articles which have been treated with
flammable cleaning agents.
–Articles which have been splashed with
hair spray, nail polish remover, etc.
–Clothing which may be greasy, oily or
saturated with other residues, e.g. kitchen
or salon laundry.
–Do not dry mops, floor cloths etc. in this
machine if they contain substances such
as wax or chemical cleaning agents.
– Damaged padded or filled items (e.g.
jackets or cushions) should not be dried.
Loose filling could catch fire.
– Articles which are not sufficiently cleaned
and are soiled with grease or oil. Wash
extremely soiled articles with a special
detergent.
Fabric softeners may be used with this
machine. Follow the manufacturers
instructions.
Be sure to clean the lint filter before or
after each load.
Some textiles get very hot during drying
which may pose a risk of ignition.
Remove the laundry at the end of the
program and after a power failure. Keep a
fire extinguisher near the machine at all
times.
Laundry must not be removed from the
dryer before the drying program has
finished, the cooling down phase must be
completed. If hot laundry items are stacked
or packed they can spontaneously combust.
Only operate the dryer if it is connected
to proper venting ductwork and there is
sufficient air ventilation.
Do not let children play in or near the
machine. Do not let them play with the
controls or operate the unit.
Do not operate the machine if the control
panel, wires or cables are damaged.
Do not damage, remove, or bypass any
of the safety features and controls of the
washer.
Do not operate the dryer when the
casing is opened. All moving or
electrical parts must be shielded before the
machine is operated.
Do not touch the steam components.
Danger of scalding!
Make sure the drum is stationary before
removing laundry. Never put your hand
into a drum that is still moving.
IMPORTANT SAFETY INSTRUCTIONS
5

Do not use the machine without the
built-in filter in place. Fire hazard.
A damaged lint filter must be replaced
immediately. Built-up lint could block the
airflow.
Keep the area around the exhaust
opening and surrounding areas free of
accumulating lint, dust and dirt.
The interior of the appliance and exhaust
duct should be cleaned periodically by a
qualified service technician.
To protect the machine from rust
damage, only use chloride-free
disinfecting and cleaning agents for
laundering and disinfecting, and for cleaning
the machine. If in doubt about an agent
contact Miele’s Professional Department.
Chloride agent spills should be rinsed off
with water and dried with a soft cloth.
Do not use a high pressure cleaner or
water jet to clean the machine.
Only use genuine Miele parts. Use of
non-Miele parts may impair performance
and void any guarantees and product
liability claims.
Keep the dryer area clear and free from
combustible materials, gasoline and
other flammable vapors and liquids.
Remove door to the drying compartment
before the appliance is removed for
service or discarded.
Gas heated dryers
Close the gas valve and the shut-off
device at the gas meter if there is a
technical fault or for cleaning and
maintenance.
Caution! Check for gas leaks on all gas
components, from gas valve to burner
nozzle, before finishing installation,
maintenance, service and alterations. Pay
special attention to the gauge connection at
the gas valve and the burner.
Check for gas leaks with the burner turned
on and off.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
6

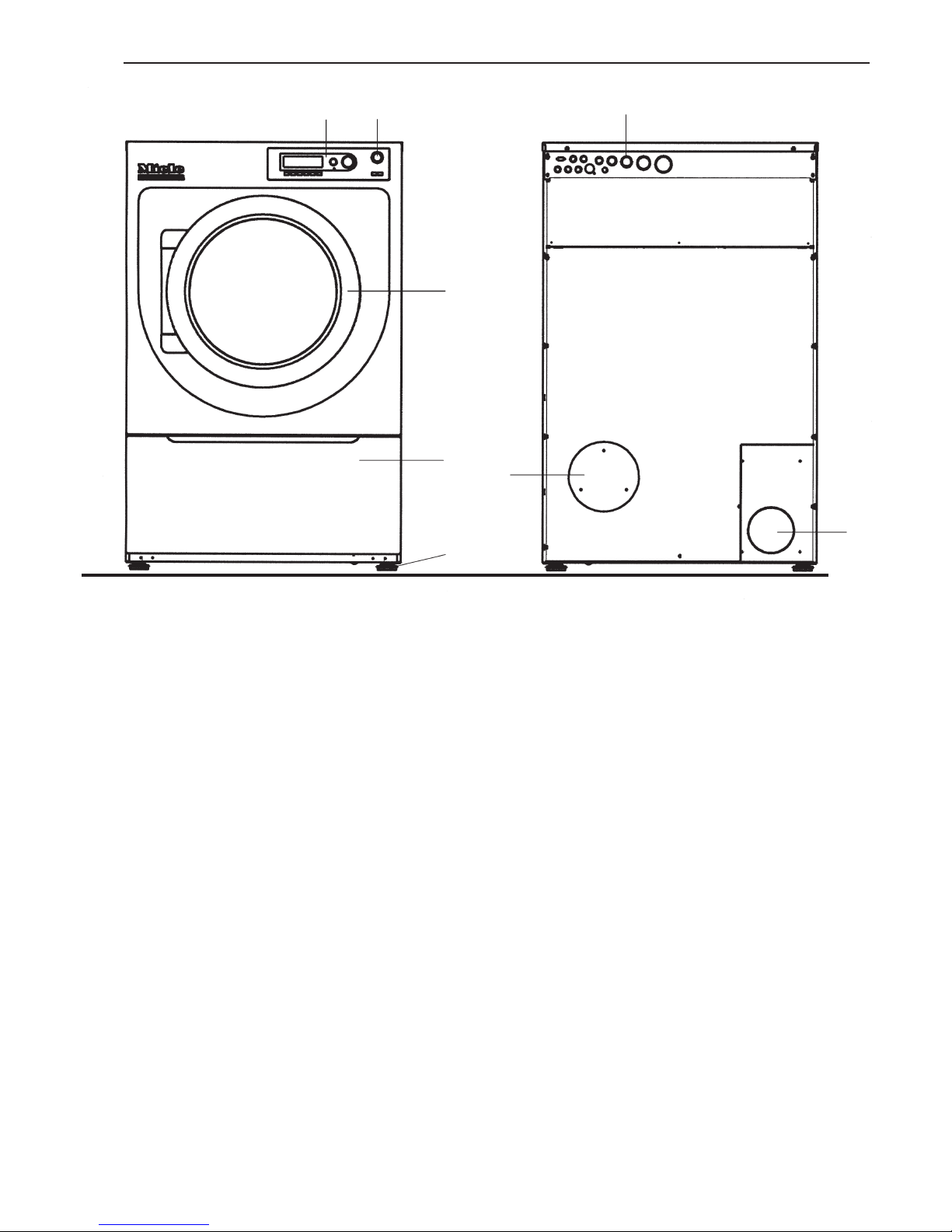

aControl panel
bEmergency Stop button
Pressing the red button turns the machine
off immediately. Only use in case of
emergency.
cDrum door
Pull the door rim to open the drum door.
dLint filter flap
eFour height adjustable feet
fElectrical connection
gAir intake opening
hVent connector
Guide to the tumble dryer
7
ab
c
d
e
f
g
h

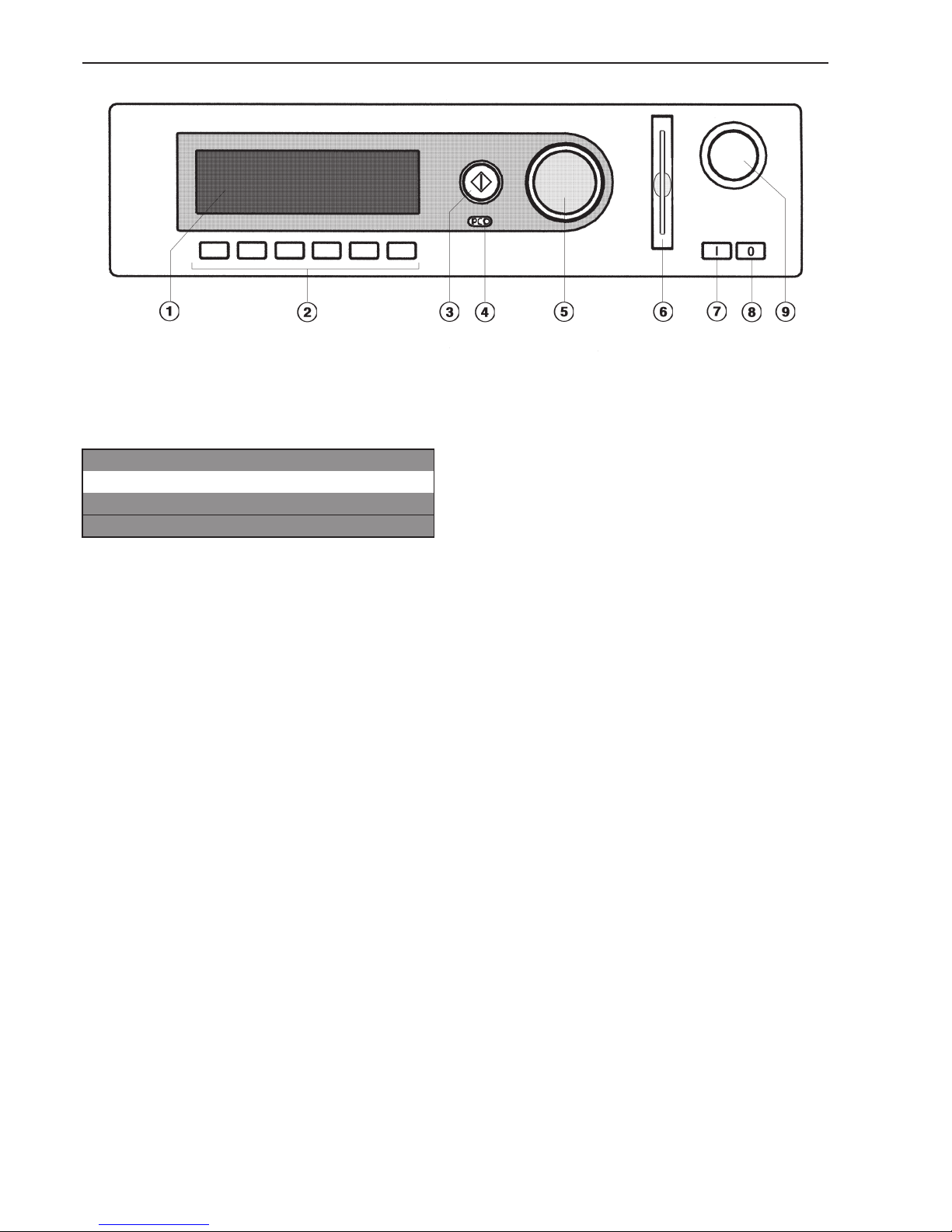

Operating panel
aDisplay*
1 Hot W. / Cot. extra dry 0%
2 Hot Wash / Cottons dry 0%
3 Hot Wash / Cottons moist 20%
FC A
bSelection buttons
The control keys have different functions
depending on the machine status. The
functions are shown in the display above the
buttons.
chStart button
The circle illumination flashes if a selected
program can be started or a selection can
be made.
Once a program has started the Start button
can be pressed to show the original display.
*Contents in the display will vary with
program offering.
dOptical interface PC
For data transfer between the machine’s
controls and a PC.
eJog shuttle
Turn the jog shuttle for display selections
and input fields.
Press the jog shuttle to confirm display
selections or changes.
fCard reader (optional)
gI On button
h0 Off button
iEmergency Stop button
Guide to the tumble dryer
8

Control keys
fStop / End
Press to stop a selected program or end an
already stopped program.
[Block plus
The respective program block (e.g.
pre-drying) will be added to the program.
FC Functions
Press this key to temporarily select another
language.
mDelay start
Press this key to select a start time in the
display.
KInformation
To show program information
üGather
Cycles of a program in progress can be
skipped or repeated.
ABack to the previous display
e/-Next or previous line
SSave
See programming manual
$Program locked
If a program has a "locked" status it cannot
be stopped or ended with the Off-button
after one minute.
%Program unlocked
\Operating data
DData transfer
Operator card
No programs are saved on this card. To
transfer the data from the control to the card
and vice versa see the programming
manual.
30 programs with 6 blocks each can be
saved on the card.
The back of the card can be labeled.
Insert the card, arrow first.
Emergency Stop
Only use in an emergency.
Do not use this button to turn off the
machine during normal operation.
^Press the red button to turn the machine
off. After clearing the danger turn the
button clockwise to unlock it.
^Press h"Start" to continue the interrupted
program.
Guide to the tumble dryer
9

Before first use
^Wipe the interior of the drum with a soft dry
cloth.
Preparing the laundry
^Sort the laundry by fabric type and color
for even drying results.
Not all fabrics are suitable for drying. Check
the manufacturer’s instructions on the wash
care label.
q= Dry at normal temperature
r= Dry at low temperature
s= Do not tumble dry
,To prevent fires, do not dry the
following:
Articles containing foam rubber, rubber or
rubber-like materials.
Articles which have been treated with
flammable cleaning agents.
Articles which have been splashed with
hair spray, nail polish remover, etc.
Clothing which may be greasy, oily or
saturated with other residues, e.g. kitchen
or salon laundry.
Mops, floor cloths, etc. if they contain
substances such as wax or chemical
cleaning agents.
Damaged padded or filled fabrics, like
jackets or cushions.
Articles which are not sufficiently cleaned
and are soiled with grease or oil. Wash
extremely soiled articles with a special
detergent.
Important
–Do not tumble dry articles made from pure
wool and wool mixtures, they may become
matted and shrink, unless they were
professionally wet cleaned.
–Pure linen may become rough with tumble
drying. Consult the manufacturer’s
instructions before drying.
–Some woven and loop knit materials shrink
with over-drying. Avoid the highest dry
program for such fabrics.
–If drying starched laundry, select a
suitable program for ironing by hand or
machine.
–Items with metal buckles, hooks, eyes,
zippers, etc. should be put into the dryer
in a cloth bag (e.g. pillow case) to protect
the drum from scratches and dents.
– Items with zippers should be dried with
the zippers open.
– Pillow cases and duvet covers should be
fastened, if possible, to avoid smaller
items getting entangled.
– Sort the laundry according to the level of
dryness required. It is not necessary to
sort according to size.
–For cost efficiency, only dry full loads. Do
not overload the dryer.
Use
10

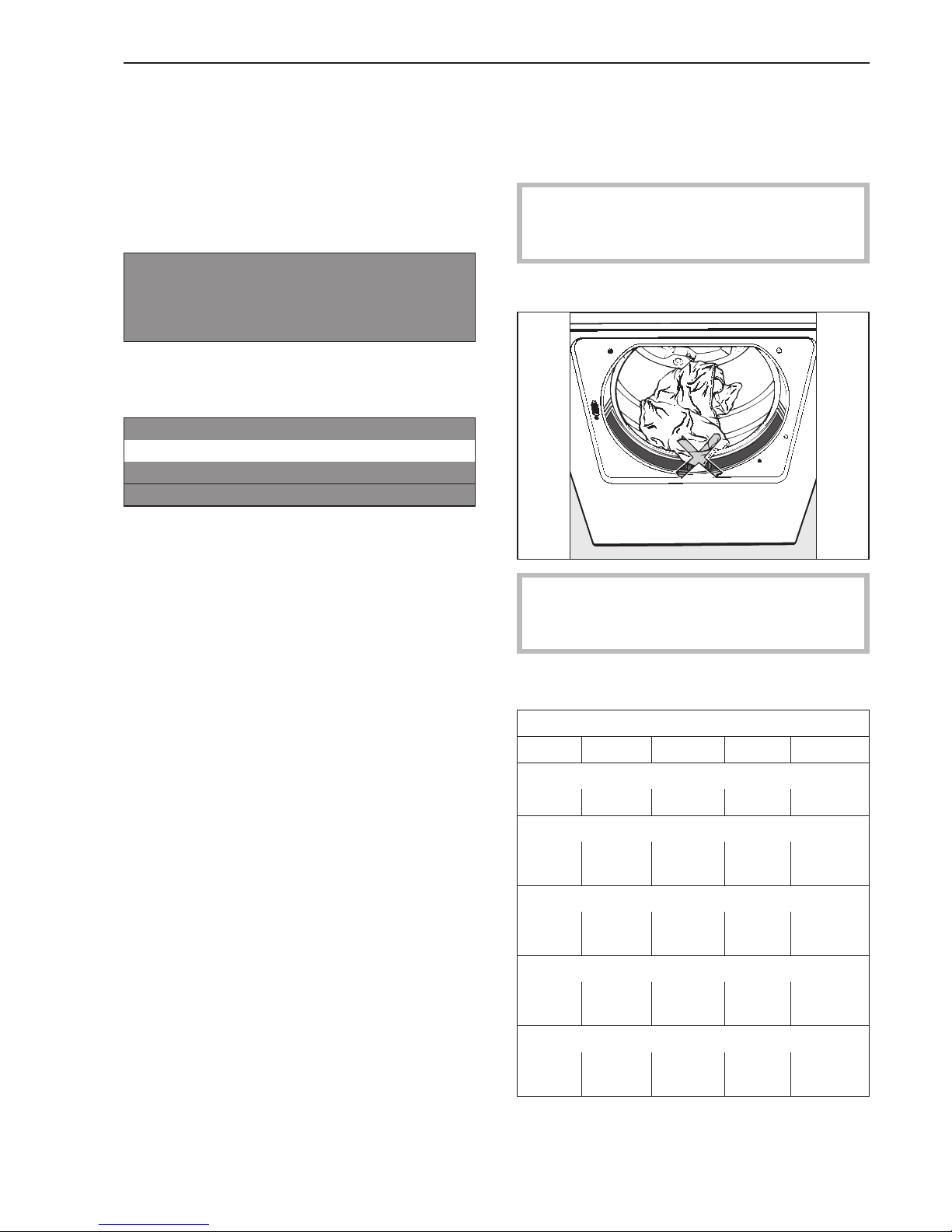

1. Turn on the dryer
^Open the gas or steam valve (on site).
^Turn on the power main (on site).
^Press the l"On" button to turn the dryer on.
The Welcome screen shows.
Miele
PROFESSIONAL
PT 7xx1
Welcome
The program list is displayed. The program
last started is highlighted.
1 Hot W. / Cot. extra dry 0%
2 Hot Wash / Cottons dry 0%
3 Hot Wash / Cottons moist 20%
FC A
2. Load the laundry
^Open the drum door.
^Load the laundry loosely into the drum.
Check that there are no foreign objects in
the drum, e.g. wash dosage containers,
coins, etc.
^Close the drum door.
To prevent fabric damage, check that
laundry will not be caught in the closed
door.
Maximum laundry weight
PT
7251 7331 7401 7501 7801
Drum in liters
250 330 400 500 800
1, 2, 3, 4, 5 Cottons
22 lb
(10 kg) 28 lb (13 kg) 35 lb (16 kg) 44 lb (20 kg) 70.5 lb (32 kg)
6, 7, 8 Wrinkle Free
11 lb
(5 kg) 14 lb (6.5 kg) 17.5 lb (8 kg) 22 lb (10 kg) 35 lb (16 kg)
9 Delicates/Synthetics
4.5 lb
(2 kg) 5.5 lb (2.6 kg) 7 lb (3.2 kg) 9 lb (4 kg) 14 lb (6.4 kg)
10 Woolens
9 lb
(4 kg) 11 lb (5 kg) 14 lb (6.5 kg) 17.5 lb (8 kg) 28 lb (12.5 kg)
See "Changing a program - Laundry weight"
for more information.
Use
11

3. Select and start a program
The dryer uses an electronic sensor system
which monitors the residual moisture in the
laundry and a timer for extra safety.
Once the required level of dryness has been
reached the laundry is cooled and the
drying program will end.
1 Hot W. / Cot. extra dry 0%
2 Hot Wash / Cottons dry 0%
3 Hot Wash / Cottons moist 20%
FC A
^Select a program by turning the jog shuttle
(e.g. Program 2Hot Wash / Cottons dry).
^See the "Program Guide" for more
information on the standard programs.
Select ["Blockplus" if needed
(Not available for standard programs)
^Confirm the selected program by pressing
the center button of the jog shuttle.
22 Hot Wash / Cottons dry 22.0 / 22.0 lb
15 % Drying 176 °F
Cool down e
[mA
^Press the ["Blockplus" button to select
a program block, e.g. pre-drying if
required.
22 Hot Wash / Cottons dry 22.0 / 22.0 lb
24 % Pre-drying
0 % Drying e
[mA
The field [is highlighted.
The function can be deselected by pressing
the button again.
^Press the h"Start" button to begin the
program.
4. Program end
2 Hot Wash / Cottons dry
Program end
Anti-crease Finish at 12:35
mFC Kf
The program end is shown in the display
and the buzzer sounds.
If the laundry is not removed from the
machine at the end of the program an
anti-crease cycle will automatically start. The
drum turns at intervals to minimize creasing
in the laundry.
,The laundry must not be removed
from the dryer before the drying program
has finished. The cooling down phase
must be completed.
If hot laundry items are stacked or packed
they could spontaneously combust.
^Open the drum door.
^Remove the laundry.
2 Hot wash / Cottons dry
Program end
CHECK LINT FILTER A
The display shows "Check lint filter" when the
lint filter needs to be cleaned.
^Clean the lint filter immediately after the
program ends.
^Close the drum door.
^Press the 0"Off" button to turn off the
machine.
^Turn off power at the power mains (on
site).
^Close the on site gas or steam valve.
Use
12

Program Guide
Program* Fabric type max. load
Drying cottons and linen
1Hot Wash / Cottons extra dry 0%
(Normal+) Multilayered cotton and linen items which are not completely
dry when using "Hot wash /
Cottons dry". PT 7251 10 kg
PT 7331 13 kg
PT 7401 16 kg
PT 7501 20 kg
PT 7801 32 kg
2Hot Wash / Cottons dry 0%
(Normal) Single and multilayered cotton and linen laundry
3Hot Wash / Cottons moist 20 %
Machine iron
Cotton and linen items which
need machine ironing
4Hot Wash / Cottons moist 25%
Machine iron
5Hot Wash / Cottons moist 40 %
Machine iron
Drying Synthetics and Fabric mixtures
6Wrinkle Free dry 0 %
(Normal)
Synthetic / mixed fabric items
which need machine ironing
PT 7251 5.0 kg
PT 7331 6.5 kg
PT 7401 8.0 kg
PT 7501 10 kg
PT 7801 16 kg
7Wrinkle Free moist 10 %
Machine iron
8Wrinkle Free moist 20 %
Machine iron
9Delicates 20 % Synthetics PT 7251 2.0 kg
PT 7331 2.6 kg
PT 7401 3.2 kg
PT 7501 4.0 kg
PT 7801 6.4 kg
10 Woolens 5 min. Predrying woolens PT 7251 4.0 kg
PT 7331 5.2 kg
PT 7401 6.4 kg
PT 7501 8.0 kg
PT 7801 12.8 kg
Airing articles PT 7251 10 kg
PT 7331 13 kg
PT 7401 16 kg
PT 7501 20 kg
PT 7801 32 kg
11 Timed program cold 15 min. To air fluff items
Drying small loads / drying single items
12 Timed program warm 20 min. Drying small loads or finish
drying single items
*Programs may vary depending on the offerings of your machine.
Use
13

Add or remove laundry during a
program
The drum door can be opened during a
program to add or remove laundry.
^Open the door.
,Make sure the drum is stationary
before removing laundry. Never put your
hand into a drum that is still moving.
2 Hot wash / Cottons dry
Program stop
Door is open. Close the door.
FC f
^Close the door.
The fan may come on as a safety measure if
the temperature in the drum is too high.
^Press the h"Start" button.
The program continues.
Changing a program
To change program settings before starting
the program:
^Confirm the selected program by pressing
the jog shuttle.
2 Hot Wash / Cottons dry 22.0 / 22.0 lb
0 % Drying 176°F
Cool down e
mA
The maximum laundry weight is shown on
the right side in the display.
Laundry weight
The laundry weight can be manually
selected.
2 Hot Wash / Cottons dry 22.0 22 lb
0 % Drying 176°F
Cool down e
mA
^Turn the jog shuttle until "Laundry weight"
is highlighted and press to confirm the
selection. Turn the jog shuttle to the
desired laundry weight and press to
confirm the selection.
Temperature
In 1 °F or °C steps from 86 °F / 30 °C to max.
203 °F / 95 °C.
^Turn the jog shuttle to "Temperature" and
press to confirm the selection.
2 Hot Wash / Cottons dry 22.0 lb
0 % Drying 176°F
Cool down e
mA
^Turn the jog shuttle to the desired
temperature and press it to confirm the
selection.
Use
14

Residual moisture
of the items in 1 % steps from -4 to 40 %.
^Turn the jog shuttle to "Residual moisture"
(0 %) and press to confirm the selection.
2 Hot Wash / Cottons dry 22.0 lb
0 % Drying 176°F
Cool down
mA
^Turn the jog shuttle to the desired
percentage and press it to confirm the
selection.
^Press the h"Start" button to begin the
program.
The program sequence is shown in the
display after the start of the program.
2 Hot Wash / Cottons dry
0 % Drying >40 %
Cool down Finish at 12:35
mKf
In the second display line, next to "Drying",
the actual residual moisture is shown
(>40%). The third line shows the following
program block.
The "Finish at 12:35" on the right side shows
the end time of the program.
The "Finish at" display has a self learn
function. Several program cycles are
necessary for an exact display.
Use
15

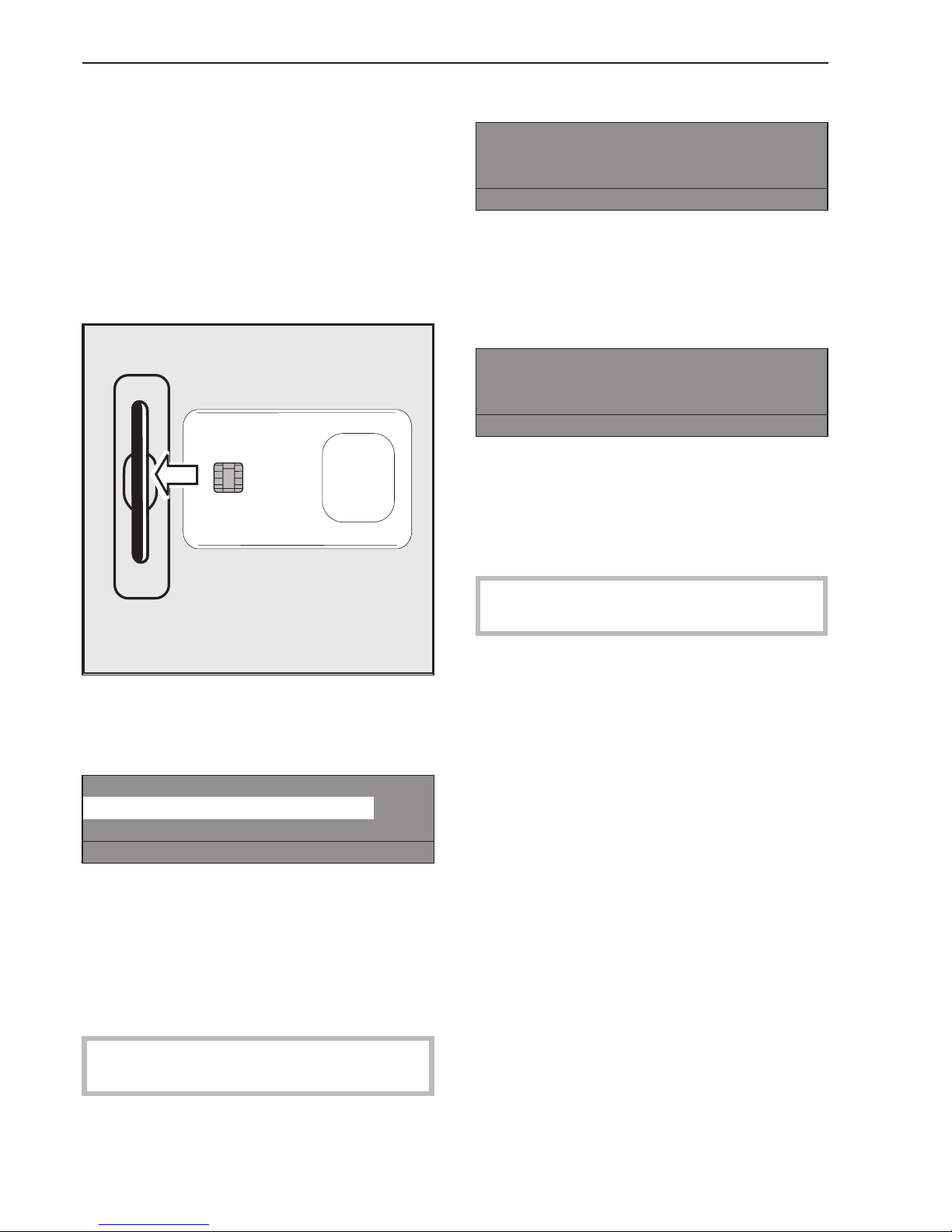

If the machine is programmed for card
operation, only the drying programs on the
card can be used.
Cards containing a program are
programmed for a machine type. Empty
cards can be programmed for any machine
type.
^Press l"On" to turn the dryer on.
The Welcome screen appears.
^Insert the card, arrow first.
The display shows the list of programs on
the card.
Card operation
17 Drying Protect. Clothing 113 °F
18 Wrinkle-free 140 °F
FC A
^Turn the jog shuttle to select a program.
Press it to confirm the selection.
^Press the h"Start" button.
^Remove the card from the card reader.
When the program is finished it will be
erased from the machines memory.
,Do not insert any other items into the
card reader.
If the card was inserted the wrong way
§Card error Reinsert card correctly in card reader.
Continue with End button.
üf
^Insert the card properly into the card
reader.
If the card is not suitable for this type of
machine
Card operation
Card programs are only applicable for
machine type PT 7251. A
^Insert a card suitable for this machine
type.
Drying using the coin mechanism
C 4060 / C 4065 / C 4070
Follow the instructions strictly or the
money / token will be lost.
1. Load the laundry and close the drum
door.
2. Press the l"On" button.
3. Select a program.
4. Insert money or tokens.
5. Press the h"Start" button.
Drying using the program card / Coin mechanism
16

Language
The display language can be temporarily
changed with the flag symbol.
1 Hot W. / Cot. extra dry 0%
2 Hot Wash / Cottons dry 0%
3 Hot Wash / Cottons moist 20%
FC A
^Press the FC function button.
Settings Back <-
Main menu Language
Operator level
FC A
^Press the jog shuttle to select "Language".
Settings svenska
Language english (USA)
Back <-
FC A
^Turn the jog shuttle to select the desired
language and press to confirm the
selection.
When the selection is confirmed the display
switches to the selected language.
The language is set back to its original
setting:
–if no activity was carried out for 5 minutes.
–5 minutes after the program has ended.
–when the door is opened.
Delayed start
Use the m"Delay start" button to start a
program at a later time.
Setting the delay start
^Select a program.
^Press m"Delay Start".
2 Hot Wash / Cottons dry 22.0 lb
Start time: 2:10 pm Start date: 2.13.2006
After selection press the Start button.
mA
The display shows the current time of day
and date. The hour entry field is highlighted.
^Turn the jog shuttle to the "Hours" entry
field. Press the jog shuttle to select the
hour. Turn the jog shuttle to the desired
hour and press it to confirm the selection.
^Turn the jog shuttle to the "Minutes" entry
field. Press the jog shuttle to select the
minutes. Turn the jog shuttle to the desired
minutes and press it to confirm the
selection.
^Turn the jog shuttle to the "Start date" entry
field. Press the jog shuttle to select the
start date. Turn the jog shuttle to the
desired date and press it to confirm the
selection.
^Press the h"Start" button.
The program will start at the selected time.
2 Hot Wash / Cottons dry 22.0 lb
0 % Drying
2:07pm -2.13.2006 Start: 2:10pm-2.13.2006
mA
The display shows the current time of day,
date and the start time.
^If the door is opened before the delay start
time has elapsed, press the h"Start"
button again.
Canceling the Delay Start
^Press the m"Delay Start" or A"Back"
button to cancel the delay start function.
Extra features
17

Program stop
^Press the f"End" button to stop the
program.
2 Hot Wash / Cottons dry
Program stop
üf
^Press the h"Start" button to continue the
program.
Canceling a program
^To cancel a program, press the f"End"
button twice.
Skip or repeat program sequences
Sequences of a program in progress can be
skipped or repeated.
^Press the f"End" button to stop the
program.
2 Hot Wash / Cottons dry
Program stop
üf
^Press the ü"Gather" button.
The display shows the current program
segment. See the programming guide
"Program structure".
Gather -> 2 Hot Wash / Cottons dry
Program stop
Area 1: Drying e
SA
Area 1: Drying
Block 1: Pre-drying
-
SA
^Turn the jog shuttle to "Area" and press it to
confirm the selection.
Area: Select 1 Drying or 2 Cooling and
confirm.
^Turn the jog shuttle to "Block" and press it
to confirm the selection.
Block: Select Drying 1-10 or Cooling 1-10
and confirm.
^Press the S"Save" and h"Start" button to
skip the program cycles.
^To go back without skipping program
cycles:
Press the A"Back" to go back to the
program stop.
Extra features
18

Program information
^Press the K"Information" button during the
program to see program information.
Examples:
2 Hot Wash / Cottons dry
Delay start: 10.7.2003
Start time: 9:47 e
mKf
Time after Start: 0 h 23 min
Time left: 0 h 11min
Program end time: 10:21 pm e
Area: 1 Drying
Block: 1 Pre-drying
Actual exhaust air temp.: 138 °F e
Actual exhaust air temp.: 165 °F
Actual supply air temperature: 257 °F
Reference supply air temperature : 302 °F e
Peak load: No
Anti-crease: 3s./87s./60min
Recirc./Exhaust air flap: Recir. air e
2 Hot Wash / Cottons dry
Block end signal: Yes -
A
^Press the A"Back" button to get back to
the program sequence.
Peak load cut-off (optional)
When activating the peak load cut-off
feature, the heating is turned off and the
program is stopped.
1 Hot W. / Cot. extra dry
Program stop - peak load function
The program continues.
üf
When the peak load functions ends the
program continues automatically.
If the door was open during the peak load
function, the program needs to be started
again.
Extra features
19

Operating data
Operating data can be read or deleted
before a program starts or after it finishes.
1 Hot W. / Cot. extra dry 0%
2 Hot Wash / Cottons dry 0%
3 Hot Wash / Cottons moist 20%
\FCA
^Press the \"Operating data" button.
Operating data module
Total data
Program data e
\A
Selections
–Total data shows all data collected and
added up from all programs.
–Program data are the data which are
recorded during a program.
–Delete data
a. Module (delete all data and program data)
b. Total data (delete only data totals)
c. Program data (delete program data only)
^Press \"Operating data" again to
deselect the function.
Full operating data memory
When the memory in the operating data is
full, the display shows, after pressing the h
"Start" button, that the operating data will be
overwritten.
If the data should not be overwritten
^Press the A"Back" button or do nothing.
The display will go back to the program
selection.
If the data should be overwritten
^Press the h"Start" button.
Total data
Operating data module
Total data
Program data e
\A
The display shows the following when "Total
data" is selected:
Operating data module ~Total data
Total operating time: 200 987 hr
Operating hours: 123456 hr e
\A
Additional selections
Total operating time: 200,987 hr
Operating hours: 123,456 hr
Active time heating: 73,456 hr
Active time motor: 93,456 hr
Program starts: 23,456
Program stops: 567
Program cancellations: 67
Load size: 1,234,567 lb
Energy: 12,345,678 kWh
Optional modules
20
