Miele T 8622C User manual

Operating instructions
for condenser tumble dryer
T 8622 C
To avoid the risk of accidents
or damage to the machine
it is essential to read these
instructions before it is installed
and used for the first time.
G
M.-Nr. 06 731 750

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
appliance with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. The plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
–Make sure that your laundry is
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
– Load according to the optimum
amount of laundry recommended for
the programme being used (see
Programme chart).
Underloading is uneconomical.
Overloading gives a poorer quality of
drying and may cause unnecessary
creasing.
–Make sure the room in which the
dryer is located is well ventilated.
–Make sure the fluff filters are clean
before using the dryer.
–Check the condenser unit from time
to time and clean it when necessary.
Caring for the environment
2

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating the tumble dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

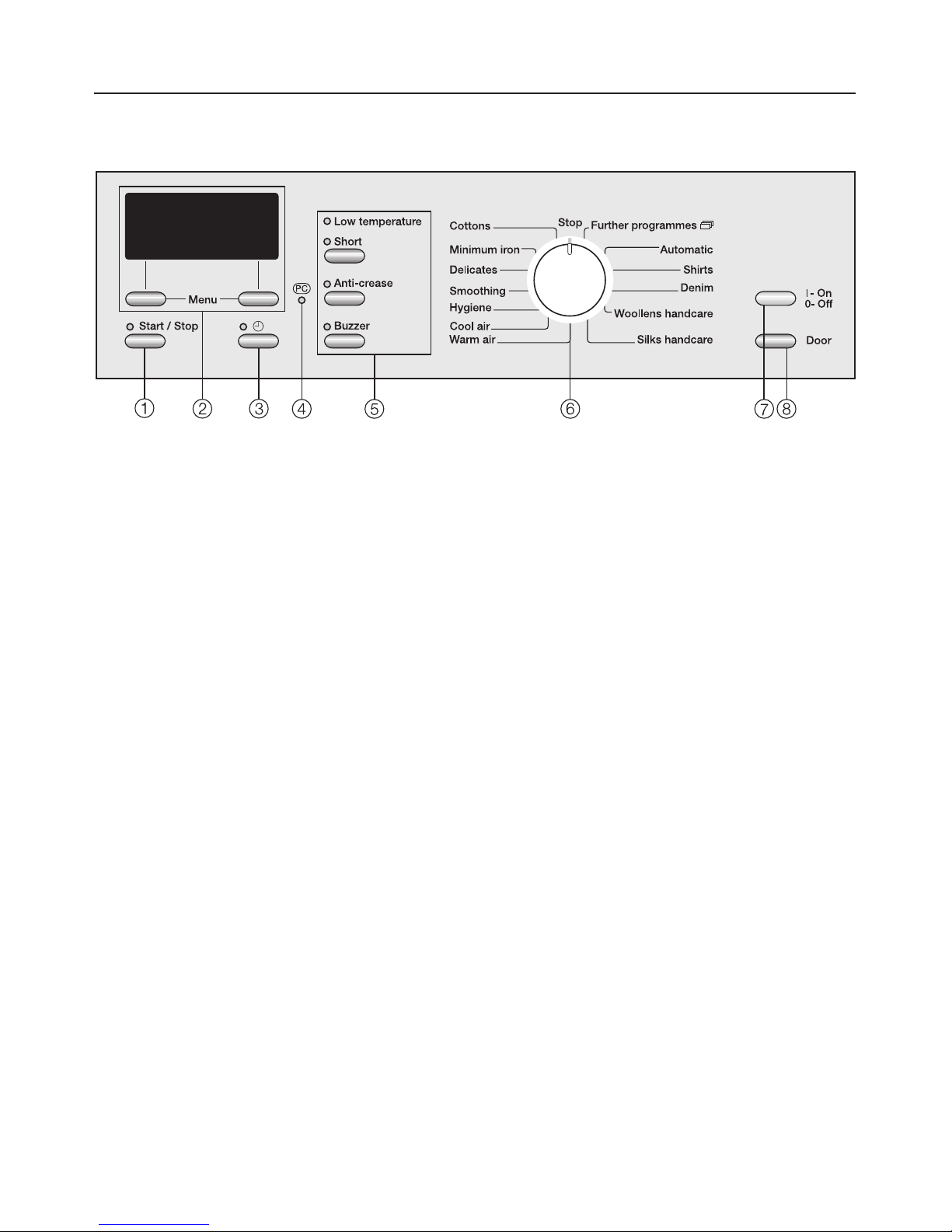

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Care symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Tips on drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Low temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Short. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Anti-crease. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Changing a programme while it is running . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cancelling a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 25
Contents
3

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Emptying the condensed water container. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the fluff filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning them whilst dry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning them with water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cleaning the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Removing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Checking the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cleaning the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Replacing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Fault messages in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Other problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Changing the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
After Sales service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Future updates (PC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Appliance guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Transporting the machine to its installation site . . . . . . . . . . . . . . . . . . . . . . . . 41
Building under a continous worktop / in a kitchen run . . . . . . . . . . . . . . . . . . . 41
Levelling the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Room in which the dryer is located . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Washer-dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Before moving the machine again
(e.g. when moving house) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
External condensed water outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Arranging the drain hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
External drainage via a sink or gully . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Installation conditions requiring a non-return valve . . . . . . . . . . . . . . . . . . . . . 44
Contents
4

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Settings menu J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
To open the Settings menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
To close the Settings menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Language J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Time (of day) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Drying levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Extended cool down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Airways indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Lock code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Keypad tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Standby display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Contents
5

To avoid the risk of accidents and
damage to the machine please read
these instructions carefully before
using it for the first time. They
contain important information on its
safety, installation, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner of the
machine.
Correct use
The tumble dryer is only intended
for drying fabrics which have been
washed in a water solution, marked on
the manufacturer's care label as being
suitable for tumble drying.
"Dry cleaning kits" for freshening up
garments in a tumble dryer are
increasingly available on the market. If
using, do so at your own risk, and
follow the instructions provided on the
packaging.
Any other applications may be
dangerous. The manufacturer is not
liable for damage resulting from
improper use or operation.
Technical safety
Before setting up the machine,
check it for any externally visible
damage.
Do not install or use a damaged
machine.
Before connecting the machine,
ensure that the connection data on
the data plate match the mains
electricity supply. If in any doubt,
consult a qualified electrician.
The electrical safety of this
machine can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with local and national safety
regulations. It is most important that this
basic safety requirement is present and
regularly tested, and where there is any
doubt the household wiring system
should be inspected by a qualified
electrician. The manufacturer cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).
Do not connect the machine to the
mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Warning and Safety instructions
6

The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in
unforeseen dangers for the user, for
which the manufacturer cannot accept
liability. Repairs should only be
undertaken by a Miele approved
technician.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.
Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.
If the connection cable is faulty it
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the machine guarantee.
Warning and Safety instructions
7

In the event of a fault or for
cleaning purposes, the machine is
only completely isolated from the
electiricty supply when:
–it is switched off at the wall socket
and the plug is withdrawn, or
–it is switched off at the mains, or
–the mains fuse is withdrawn, or
–the screw-out fuse is removed (in
countries where this is applicable).
Operation
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
The dryer must not be used without
the fluff filters in place or if the fluff
filters are damaged in any way.
The fluff filters must be thoroughly
dried after cleaning. If they are still
damp or wet when replaced there is a
risk of faults occurring when the
machine is used.
The dryer must not be used without
the condenser unit in place.
Do not install the machine in a
room where there is a risk of frost
occurring. At temperatures around
freezing point the machine may not be
able to operate properly.
There is a risk of damage if the
condensed water is allowed to freeze in
the pump, hoses and / or condensed
water container.
The ambient room temperature should
be between +2°C and +35°C.
If the water is drained externally
through the drain hose instead of
being collected in the condensed water
container, make sure the drain hose is
securely attached if you hang it in a
sink or basin to avoid the hose slipping
and the water causing damage.
Condensed water is not drinking
water. It can cause health
problems in both people and animals.
Always keep the area around the
machine free of dust and fluff. Dust
drawn into the machine can, over time,
cause blockages in the condenser unit.
Warning and Safety instructions
8

To prevent the risk of fire the
following textiles must not be
dried in this machine:
–fabrics which contain a large
proportion of rubber, foam rubber or
rubber like materials.
–items which contain damaged
padding or fillings (e.g. pillows,
jackets).
–items which have been treated with
inflammable cleaning agents.
–items which have been splashed with
hair lacquer, hair spray, nail varnish
remover or similar substances.
– items which have been soiled with
oils or residues containing grease
(kitchen oils, cosmetics etc.).
– items soiled with wax or other
chemicals (e.g. mops and floor
cloths).
– items which have not been
thoroughly cleaned and which are
still soiled with grease or oil, e.g.
workwear. Such clothing may require
a heavy duty detergent to get them
clean. If necessary consult the
detergent manufacturer for advice.
Do not let anyone sit or lean on the
door, as this can cause the
machine to tip up.
Always close the door after use.
This way you will avoid the danger
of:
–children climbing onto or into the
dryer or hiding things in it.
–pets or other small animals climbing
into it.
Safety with children
This machine is not a toy. To avoid
the risk of injury keep children
away from the machine at all times and
supervise them whilst you are using it.
Do not allow children to play on or near
it or to play with its controls. Supervise
its use by the elderly or infirm.
Using accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If non-Miele parts are used with this
machine, guarantee, performance and
product liability claims may be
invalidated.
Disposal of your old machine
Before discarding an old machine,
switch it off at the wall socket and
unplug it. Render the plug useless and
cut off the cable directly behind the
machine. This should be done by a
competent person.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

Control panel
aStart/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
The indicator light flashes while a
programme is being selected and
then is on constantly when the
programme has started.
bDisplay with Menu buttons
See the next page for more
information.
cmbutton
For selecting delay start and calling
up the time of day in the display.
dPC / Optical interface
This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.
eExtra option buttons
Various extra options can be added
to the drying programmes.
fProgramme selector
The programme selector can be
turned clockwise or anti-clockwise.
gI-On/0-Off button
To switch the machine on or off or to
interrupt a programme.
hDoor button
Pressing this button will open the
door even when the machine is
switched off at the mains.
Operating the tumble dryer
10

Display
The display is used for the following:
Selecting and displaying settings
–Selecting different drying levels (e.g.
Hand iron, Normal ... )
or the duration of the
Warm air, Cool
air
and Timed drying hygiene
programmes
–Selecting delay start
–Displaying the drying duration
(Estimated time remaining)
Note
All the display illustrations and times
given in these instructions are
examples, and can vary.
Selecting programmes via the
display
By turning the programme selector to
Further programmes , you can select
one of the following programmes:
–Standard pillows
–Large pillows
–Sportswear
–Outerwear
–Proofing
–Cottons hygiene
– Minimum iron hygiene
Operating the tumble dryer
11

Menu buttons
Various settings are made via the
Menu
buttons.
They are used to alter or confirm the
value displayed above the vertical line.
To alter a setting:
Cottons
Duration: 1:52 h
Extra dry
Pressing the right or left hand Menu
button selects the drying level.
To confirm a setting:
Further programmes
Outerwear
Continue OK
Pressing the left hand Menu button
under Continue calls up further
programmes, and you can then confirm
your selection of the highlighted
programme by pressing the right hand
Menu button under OK.
Programme duration / Estimated time
remaining
When a programme is selected, the
estimated duration (time remaining) will
appear in the display. Please be aware
that it is only an estimate!
The following factors all affect the
estimated time remaining: residual
moisture content after spinning; type of
fabric; size of load; room temperature;
fluctuations in power supply.
The electronics continually assess
conditions in the machine and adjust
the estimated time remaining for a more
accurate reading. Because of this, the
time displayed can alter during the
course of a programme.
In the same way, the Woollens
handcare, Silks handcare and
Smoothing programmes can finish
earlier than expected if a certain
temperature is reached. This can
happen with particularly fine fabrics,
very small loads or if items were partly
dry beforehand.
Operating the tumble dryer
12

When the tumble dryer is switched on
for the first time, the welcome screen
will appear.
The welcome screen will appear in the
display every time you switch the
machine on until you have run a
programme lasting longer than 1 hour.
The display for setting the language will
then appear.
Setting the language
You need to select the language you
require for the display.
You can select a different language
from the one shown.
It is possible to change the language at
any time via the
Settings menu.
Language
english
)OK
^Select the language you require by
pressing the left hand
Menu button
under ~.
^Confirm your selection by pressing
the right hand
Menu button under
OK.
The display for setting the time will then
appear.
Setting the time (of day)
12:00
Change OK
^Select the hours you want by
pressing the left hand
Menu button
under Change, and confirm this with
the right hand
Menu button under
OK.
^Then set and confirm the minutes.
The entry menu will appear.
Entry menu
The entry menu showing the current
time of day will appear after the
machine has been switched on, until
you select a programme.
10:00
Select programme
^You can now load the laundry into the
dryer and select a programme as
described in "How to dry correctly".
Before using for the first time
13

Care symbols
Before drying check the drying symbol
on the care label. If there are no
symbols, dry at your own risk!
q. . . . . . . . . Dry at normal temperature
r. . . . . . . . . . . . Dry at low temperature
s. . . . . . . . . . . . . . . Do not tumble dry
Tips on drying
–Always observe the maximum
recommended loads given in the
"Programme chart". Never overload
the drum.
Overloading can cause unnecessary
wear and tear to the laundry, give a
disappointing drying result and
cause more creasing.
– Do not put soaking wet items into the
tumble dryer. Spin them thoroughly
after washing using the appropriate
spin speed.
–For delicates and fabrics with the
following care label rselect
Low
temperature
.
–Use the
Automatic programme for
drying mixed loads of cottons and
minimum iron fabrics.
–Open jackets so that they can dry
evenly.
–Woollens and wool blends tend to
become matted and shrink if dried in
a tumble dryer. They can, however,
be partially dried using the
Woollens
handcare
programme.
–Down-filled garments have linings
which have a tendency to shrink,
depending on the quality of the item.
They can be partially dried using the
Smoothing programme.
–Pure linen should only be machine
dried if specified as suitable by the
manufacturer on the care label, as
the surface of the fabric may
otherwise become rough. They can
be partially dried using the
Smoothing programme.
–Loopknit garments (e.g. T-shirts and
underwear) tend to shrink depending
on their quality. Do not over-dry these
textiles. Be particularly careful when
using the
Hygiene programmes.
When purchasing these garments it
is advisable to take their shrinkage
properties into account.
– For garments made from very fine
weave fibres, such as shirts or
blouses, only use the
Shirts or
Delicates programme to avoid
creasing. If in doubt, reduce the load
or use the
Smoothing or Silks
handcare
programme.
–Starched laundry can be dried in the
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
–New dark coloured garments should
be washed and dried separately
from light coloured garments to avoid
the danger of colours running and
discolouring other garments or even
plastic components in the machine.
Dark coloured fibres can also settle
on light coloured garments and vice
versa.
Notes on laundry care
14

Brief instructions
The headings numbered (A,B,C...)
show the operating sequence and can
be used as a brief guide to using your
machine.
ASort the laundry
To ensure an even drying result
separate out the washed laundry and
sort it according to: . .
. . . the drying level required
. . . the type of fibre or weave
. . size
. . the moisture content after spinning.
,Make sure that objects e.g.
detergent dispensing balls have
been removed from the laundry.
They could melt, and cause damage
to the dryer or the laundry.
– Check seams and stitching to ensure
that padding and linings are intact.
– Fasten duvet covers and pillow
cases to prevent small items from
being trapped inside them.
–Fasten hooks and eyes etc.
–Tie fabric belts and apron strings.
–Sew in or remove underwiring from
bras.
BTurn on the tumble dryer
^Switch the dryer on by pressing the
I-On/0-Off button in.
The tumble dryer may be switched on
after loading, saving energy as the light
will not come on.
CLoad the tumble dryer
^Press the
Door button to open the
door.
^Load the laundry loosely into the
drum.
Do not overload the drum. See the
"Programme chart" for
recommended loads for each
programme.
Overloading can cause unnecessary
wear and tear to the laundry and
give a disappointing drying result.
^Before closing the door make sure
the fluff filter is correctly positioned.
Check the laundry is right inside the
drum so that it cannot get trapped or
damaged when the door is shut.
^Shut the door either with a gentle
swing, or lean against it and push it
shut.
How to dry correctly
15

DSelect a programme
^Turn the programme selector to the
programme you want.
The programme name will appear in the
display.
To select a drying level
(Programmes with drying levels:
Cottons, Minimum iron, Delicates, Auto-
matic, Shirts, Denim, Sportswear and
Outerwear
)
Cottons
Duration: 1:52 h
^ ^ ^ ^ ^ ^ Extra dry
^Press the left or right hand
Menu
button reapeatedly until the drying
level you want appears in the display.
–Any of the drying levels can be
selected for the
Cottons programme.
A more limited range is available
when using other programmes.
Important: Please note that the
programme duration shown in the
display will vary according to the
programme selected (see "Programme
duration / Estimated time remaining").
You cannot alter the drying level of the
Smoothing, Woollens handcare and
Silks handcare programmes.
To select the duration for the Cool air,
Warm air and Timed drying hygiene
programmes
Warm air
Duration: 0:15 h
Decrease Increase
^Press the
Menu buttons under
Increase or Decrease to lengthen or
shorten the duration of the timed
drying programmes.
– You can select a programme
duration of:
15 minutes to 2 hours for the
Warm
air
and Cool air programmes
and 1 to 2 hours for the
Timed drying
hygiene
programme.
To Select a Further programme
Further programmes
Outerwear
Continue OK
^Press the left hand
Menu button
under Continue repeatedly until the
programme you want appears.
^Confirm your selection of the
programme by pressing the right
hand
Menu button under OK.
–You can select the drying level for
the
Sportswear and Outerwear
programmes, as described in "Select
a drying level".
–You cannot alter the drying level of
the
Pillows, Proofing, Cottons
hygiene
and Minimum iron hygiene
programmes.
How to dry correctly
16

ESelect any Extra options / Delay
start
^Select any extra options or delay start
by pressing the appropriate button
(see "Extra options" and "Delay start"
for more details).
FStart the programme
The indicator light for the
Start/Stop
button will flash when a programme is
being selected. The flashing indicates
that a programme can be started.
^Press the
Start/Stop button.
The indicator light for the
Start/Stop
button will now light up constantly.
Drying will appear in the display and
the time remaining will start counting
down.
With programmes with drying levels,
e.g.
Machine iron , Hand iron etc. the
drying level reached will be shown in
the display later on.
Memory
Settings selected for a programme can
be stored in memory, so that they are
automatically selected when this
programme is chosen again. See
"Settings menu J".
Before the end of a programme
There is a cooling down phase at the
end of the drying sequence:
Cooling
down
will appear in the display. The
programme will not finish until the
cooling down phase has been
completed.
There is no cooling down phase at the
end of the Woollens handcare, Silks
handcare and Smoothing programmes.
GRemove the laundry when the
programme has finished
Anti-crease (if selected) and Finished
will appear in the display to indicate
that the programme has finished. The
buzzer (if selected) will sound at
intervals.
^Press the
Door button to open the
drum door.
^Remove the laundry.
Check that all items have been
removed from the drum. If items are
left in the dryer, they could be
damaged by overdrying when the
dryer is next used.
If the dryer is switched on at the mains
and the door is opened, the drum
lighting will come on. It will go out a few
minutes later to save energy.
^Switch the dryer off by pressing the
l-On/0-Off button.
^Clean the fluff filters.
^Close the door.
^Empty the condensed water
container (unless the dryer has been
connected for external drainage).
How to dry correctly
17

^Each press of the top button selects
the Extra option - indicator light on
(and deselects the previous option)
or no option is selected.
– It is not possible to select the
Short
and Low temperature options at the
same time.
– Not all the extra options are suitable
for use with every programme.
Low temperature
For drying delicates and fabrics with
the rsymbol on the care label at a
lower temperature.
–For all delicate or minimum iron
fabrics with the rsymbol on the
care label (e.g. acrylic garments).
–The programme duration is longer.
–On some programmes
Low
temperature
is a standard part of the
programme and so cannot be
deselected.
Short
For drying fabrics which can
withstand higher temperatures and
have qon the care label. Do not use
on minimum iron or delicate fabrics.
–The programme duration is shorter.
Anti-crease
Helps prevent creasing, if laundry is
not normally removed immediately
after the end of a programme.
– The drum will turn at intervals for up
to an hour.
Buzzer
A buzzer sounds (at intervals for a
maximum of 1 hr) to let you know the
programme has finished.
– You can change the volume of the
buzzer. See "Settings J".
–The buzzer will always sound when
there is a fault, even if it has been
switched off.
Extra options
18

With delay start you can choose when
you want the programme to end. The
start of a programme can be delayed
from 30 minutes up to a maximum of 24
hours, allowing you to make use of
night-time economy electricity rates, for
example.
To select delay start
ASelect the programme you want and
then press the mbutton.
The indicator light for the mbutton will
light up.
Delay start 10:00
From: 10:00 to: 11:29
Change Back A
The display shows the start time (From) ,
the time for the end of the programme
(to) and the current time of day.
Delay start 10:00
From: 11:01 to: 12:30
Change OK
BUse the left hand Menu button under
Change to select the time you want
the programme to end at.
The first press on the button will adjust
the programme end time to the next
half or full hour. Each subsequent
press on the button will delay the
programme end time by 30 minutes.
CConfirm the time you require by
pressing the right hand
Menu button
under OK.
To begin delay start
DPress the
Start/Stop button.
Cottons
Start in: 1:01 h
Normal
The delay start time will now count
down in minutes until the start of the
programme.
The drum will turn briefly every hour to
help prevent creasing.
To add laundry after the delay start
time has started counting down
^Open the door and add the laundry.
^Close the door and press the
Start/Stop button.
The delay start time will continue to
count down.
To alter delay start
^It is possible to change the drying
level after the delay start time has
begun to count down by pressing
one of the
Menu buttons.
You can also select a later programme
end time once the delay start time has
begun to count down if you wish:
^Press the mbutton.
^Use the left hand
Menu button under
Change to alter the time you want the
programme to end at.
^Confirm by pressing the right hand
Menu button under OK.
To cancel delay start
^Press the mbutton.
^Confirm by pressing the right hand
Menu button under Delete.
^To start the programme: Press the
Start/Stop button.
Delay start
19

Cottons Max. load: 6 kg*
Extra dry, Normal+, Normal**
Fabric type Single and multi-layered cotton fabrics such as towelling,
jerseywear, T-shirts, underwear.
Note –Select
Extra dry for multi-layered and very thick fabrics.
–Do not use
Extra dry for jersey fabrics (e.g. T-shirts,
underwear), as they have a tendency to shrink.
Extra options Low temperature (select this option for delicate fabrics with the r
symbol on the care label), Short, Anti-crease
Hand iron r, Hand iron rr**, Machine iron
Fabric type Cottons or linen fabrics, e.g.: table linen, bed linen, starched
laundry.
Note To prevent laundry from drying out, it should be rolled up until you
are ready for ironing.
Extra options Low temperature (select this option for delicate fabrics with the r
symbol on the care label), Short, Anti-crease
Minimum iron Max. load: 3 kg*
Normal+, Normal**, Hand iron r
Fabric type Minimum iron items made of cotton, synthetic or blended fabrics,
e.g.: shirts, blouses, skirts and table cloths.
Extra options Low temperature (select this option for delicate fabrics with the r
symbol on the care label), Short, Anti-crease
* Weight of dry laundry
** Note for test institutes:
Use this programme without selecting any Extra options for testing according to
EN 61121 standard.
Programme chart
20
