Miele DG 3460 Specification sheet

Operating and Installation instructions
Steam oven
DG 3450
DG 3460
To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 07 194 550
en-GB

Warning and Safety instructions .....................................4
Caring for the environment..........................................9
Guide to the appliance ............................................10
Front view........................................................10

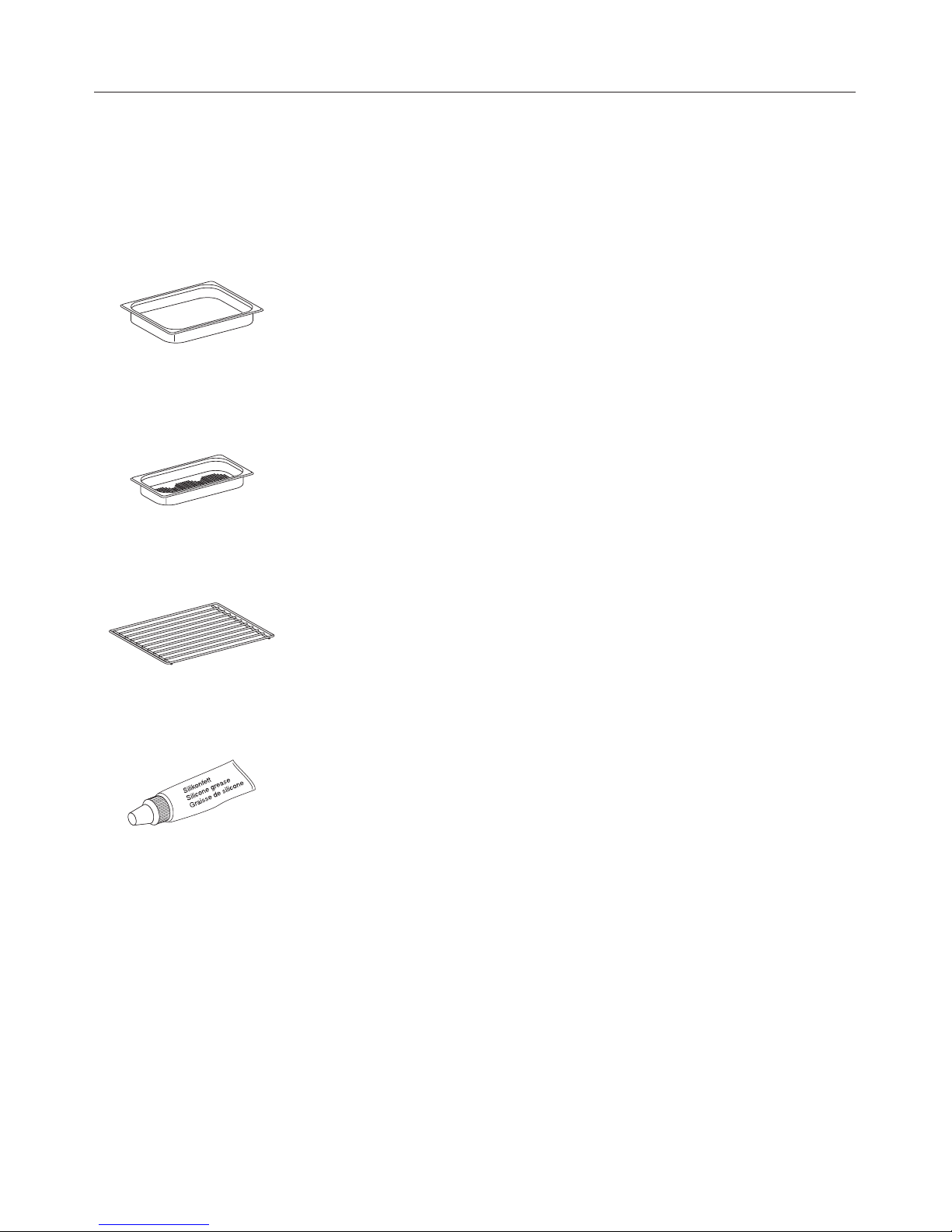

Accessories supplied ..............................................11

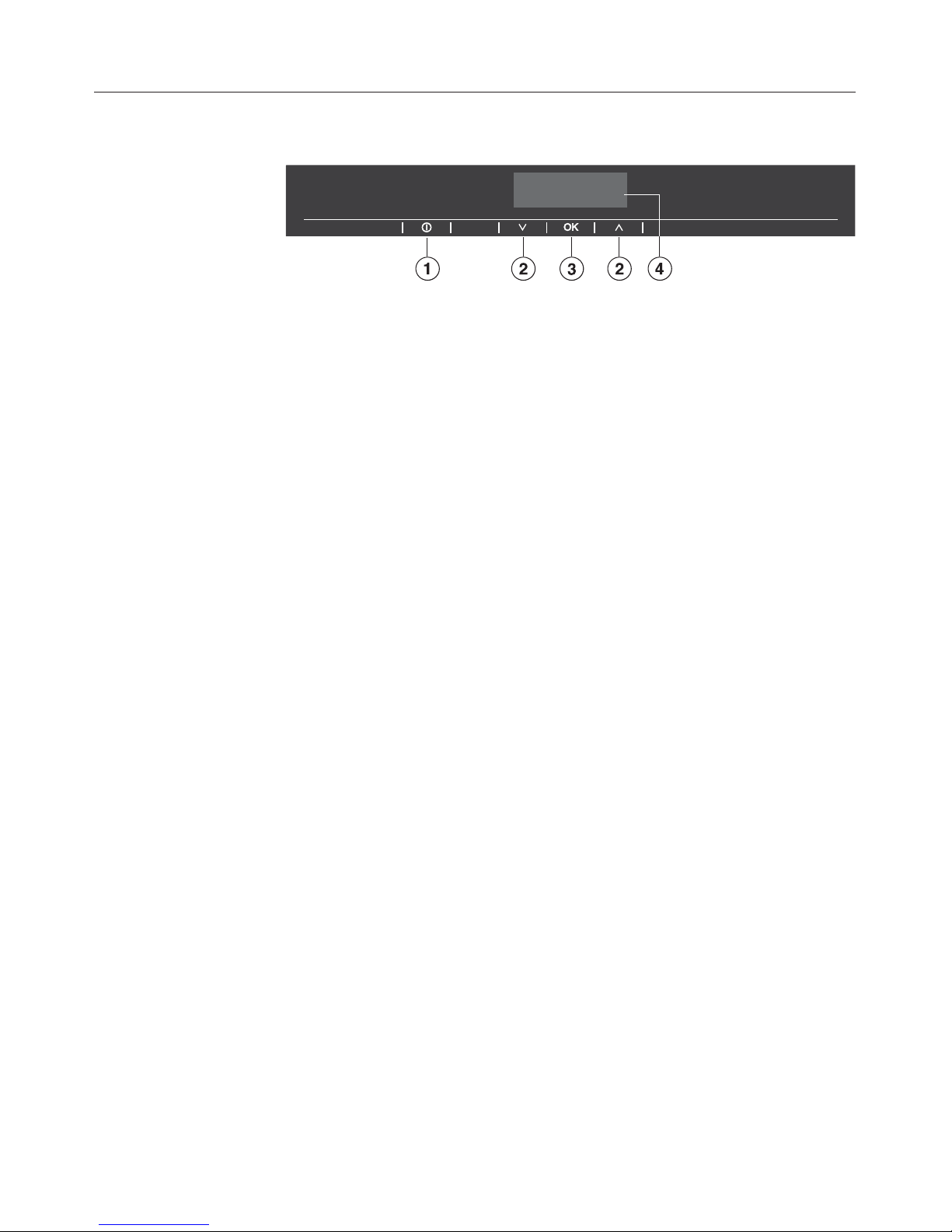

Control panel .....................................................12
Description of the functions ........................................13
Sensors .........................................................13
Display ..........................................................13
Condensate tray ..................................................14
Water container ...................................................14
Cooking duration (time) .............................................14
Noises ..........................................................14
Temperature .....................................................15
Recommended temperature.......................................15
Heating-up phase .................................................16
Cooking phase....................................................16
Before using for the first time.......................................17
Cleaning for the first time............................................17
Setting the correct boiling point for water ...............................18
Operation .......................................................19
Preparing the appliance for use ......................................19

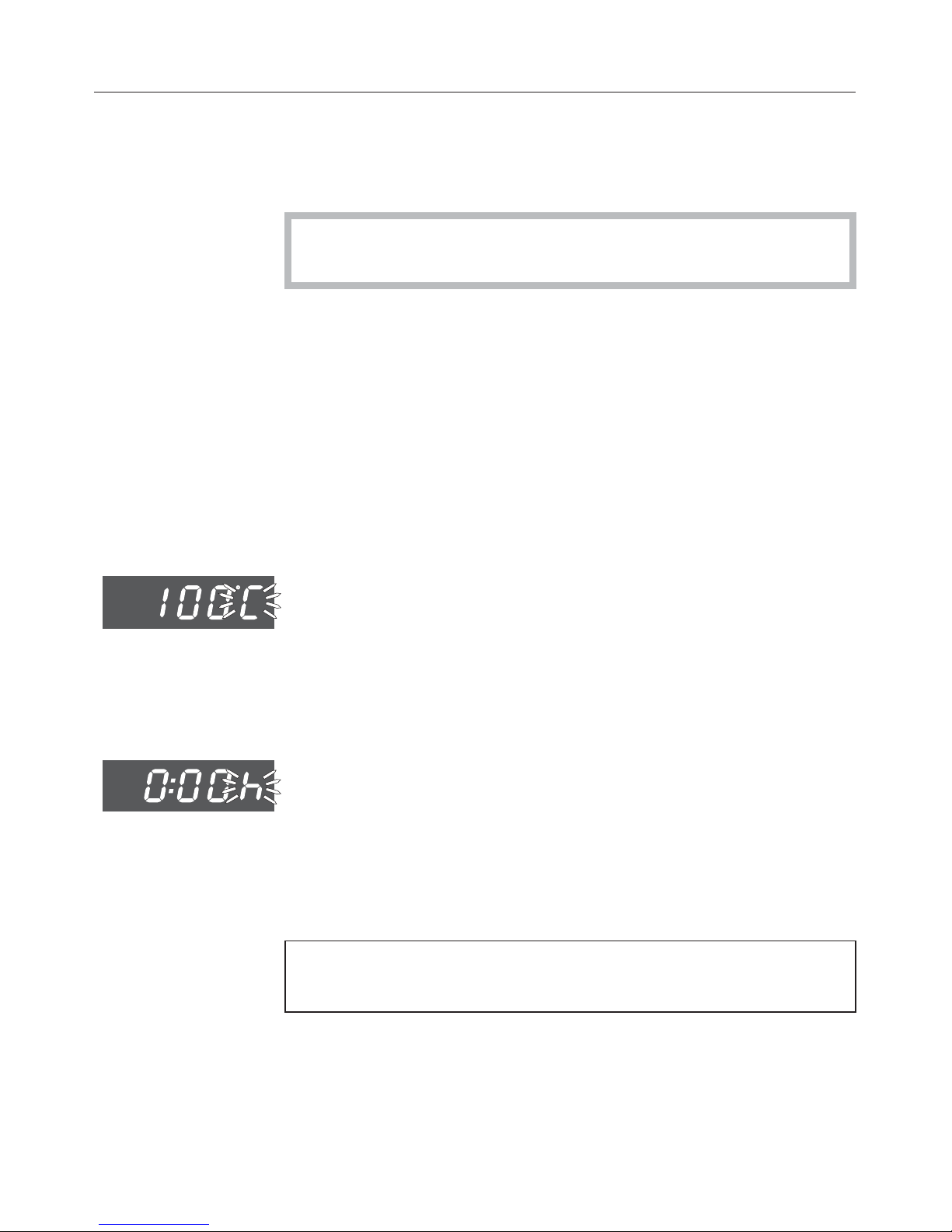

Setting the temperature and duration ..................................19
At the end of the duration ...........................................20
After use.........................................................20
During operation ..................................................21
Interrupting operation ............................................21
Changing the temperature ........................................21
Changing the duration ...........................................21
Insufficient water................................................22
Contents
2

Additional functions ..............................................23
Pre-heat .........................................................23
Programming ....................................................24
Cleaning and care ................................................26
General notes ....................................................26
Appliance front / Casing ............................................27
Oven interior .....................................................28
Condensate tray, rack and cooking containers...........................28
Water container ...................................................29
Coupling seal ..................................................30
Descaling........................................................31
Problem solving guide ............................................33
Optional accessories..............................................36
Cooking containers ................................................36
Cleaning and care products .........................................38
Miscellaneous ....................................................39
Safety instructions for installation...................................40
DG 3450.........................................................41
Appliance and building-in dimensions .................................41
DG 3460.........................................................46
Appliance and building-in dimensions .................................46
Installation ......................................................50
Fitting the feet ....................................................50
Installing the appliance .............................................51
Electrical connection..............................................52
After sales service, data plate ......................................54
Contents
3

This steam oven conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the steam oven, please
read these instructions carefully
before installation and before using
it for the first time. They contain
important notes on the installation,
safety, operation and care of the
appliance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.
Correct application
~This steam oven is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–Shops
–Offices and showrooms
and by residents in establishments
such as:
–Hostels and guest houses.
~The steam oven must only be used
as a domestic appliance as specified in
the operating and installation instruction
and user instruction manuals.
Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation of the
appliance.
~This appliance is not intended for
use by people with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge, unless
they are supervised while using it or
have been shown how to use it
correctly by a person responsible for
their safety.
Warning and Safety instructions
4

Safety with children
~Keep children away from the steam
oven at all times. It is not a toy! To
avoid the risk of injury do not allow
them to play with it or to play with the
controls. Supervise children whilst you
are using it.
~Older children may use the
appliance only when its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of incorrect
use.
~Make sure that children do not
attempt to open the door when the
appliance is in operation. To safeguard
against burning, keep children well
away from the appliance at all times.
~Do not allow children to swing on
the open oven door.
~Packaging, e.g. cling film,
polystyrene and plastic wrappings,
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.
Technical safety
~Before installation, check the steam
oven for visible signs of damage. Do
not install and use a damaged
appliance. A damaged appliance is
dangerous.
~Before connecting the appliance to
the mains supply, ensure that the
connection data on the data plate
(voltage and connected load) match
the mains supply. Consult a qualified
electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested, and
where there is any doubt, the
household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~This appliance is supplied with a
moulded plug ready for connection to a
switched socket. If you wish to connect
it to a double-pole fused spur
connection unit, or to an isolator switch
or if the appliance is supplied without a
plug, it must be installed by a suitably
qualified and competent person in strict
accordance with current local and
national safety regulations. The
manufacturer cannot be held liable for
damage caused by incorrect
installation or connection.
Warning and Safety instructions
5

~For safety reasons, this appliance
may only be used when it has been
built in. This is necessary to ensure that
all electrical components are shielded.
~Never open the casing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~If the connection cable is damaged,
it must be replaced with a special
connection cable of type H 05 V V-F
(pvc insulated), available from the Miele
Spare Parts Department.
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
–the mains fuse is disconnected,
–the screw-out fuse is removed (in
countries where this is applicable),
–it is switched off at the wall socket
and the plug is withdrawn from the
socket, or it is switched off at the
isolator.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee is invalidated.
~Do not connect the steam oven to
the mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage caused by cockroaches or
other vermin will not be covered by the
guarantee.
Warning and Safety instructions
6

Correct use
~For added protection, it is advisable
to use heat-resistant pot holders or
gloves when using the appliance. Do
not let them get damp or wet, as this
causes heat to transfer through the
material more quickly with the risk of
scalding or burning yourself.
~If the oven is still hot, steam will
escape when the door is opened.
Stand back away from the appliance
and wait until the steam has dissipated.
~When putting cooking containers or
the condensate tray into the oven or
taking them out, take care not to spill
the contents. Avoid contact with hot
steam, and do not touch the hot oven
interior walls. Danger of burning and
scalding.
~If using plastic cooking containers,
make sure that they are heat- and
steam-resistant to 100 °C. Otherwise
they may melt, distort or break.
~Do not use the appliance to heat up
food in sealed jars and tins. Pressure
will build up inside them and they can
explode causing damage to the
appliance, as well as the risk of injury
and scalding.
~Always ensure that food is
sufficiently cooked or reheated.
Some foods may contain
micro-organisms which are only
destroyed by thorough cooking at a
sufficiently high temperature for long
enough. Therefore, when cooking or
reheating food such as poultry, it is
particularly important that the food is
completely cooked through. If in doubt,
select a longer cooking or reheating
time.
~Do not leave cooked food in the
oven and do not use any cooking
containers which are susceptible to
corrosion as this could lead to
corrosion in the appliance.
~The appliance is designed in such a
way that there will always be a little
residual water left in the water container
after use. If there is no residual water,
there is something wrong. Call the Ser-
vice Department.
~Do not immerse the water container
in water, or clean it in a dishwasher.
Connecting the water container into the
appliance when wet could cause an
electric shock.
~For reasons of hygiene and to
prevent the build-up of moisture in the
appliance, the water container should
be emptied after each use.
Warning and Safety instructions
7

~Take care not to tip the water
container when taking it out of the
appliance. Hot water can scald.
~To avoid the risk of scratches, do
not use the casing of a freestanding
appliance as a resting place for items.
~When using an electrical appliance,
e.g. a hand-held food blender, near the
steam oven, ensure that the cable of
the electrical appliance cannot get
trapped by the steam oven door. The
insulation on the cable could become
damaged, giving rise to an electric
shock hazard.
~When the door is open be careful
not to hurt yourself on edges and
corners, and especially on the door
catches. Danger of injury.
Accessories
~Only use genuine Miele spare parts
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the guarantee, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
8

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Caring for the environment
9

Front view
aControl panel
bVentilation outlet
cDoor seal
dSteam channel
eCompartment for water container
fWater container (with insert)
gContact point for water container
hSide runners
iSteam inlet
jDrip channel in the oven
kFloor heater
lTemperature sensor
mSteam outlet
nDrip channel in the door
oDoor release
Guide to the appliance
10

Accessories supplied
The accessories supplied with your appliance as well as a
range of optional ones are available to order from Miele (see
"Optional accessories").
Condensate tray DGG 15
To catch excess moisture
325x265x40mm(WxDxH)
DGGL 1
2 perforated cooking containers
Gross capacity 1.5 litres / Usable capacity 0.9 litres
325x175x40mm(WxDxH)
Rack
For placing your own cooking containers on
Silicone grease
For lubricating the coupling seal on the water container
Descaling tablets
For descaling the water container
Guide to the appliance
11

Control panel
aFor switching on and off
bFor setting the temperature and cooking duration
cFor confirming an entry
dDisplay
Guide to the appliance
12

Sensors
Lightly touch the sensors to operate the appliance. An
audible tone will sound each time a sensor is pressed. You
can deactivate this, if wished (see "Programming").
s
- For switching the appliance on and off
- For calling up the descaling process
s+?
For calling up programming
?
- For setting the temperature and cooking duration
- For scrolling through the Programming settings
;
- For setting the temperature and cooking duration
- For scrolling through the Programming settings
OK
- For confirming the temperature and cooking duration
selected
- For confirming a Programming option
Display
During operation numbers and symbols will appear in the
display:
Numbers + °C = Temperature
Numbers + h = Duration
p(flashing) = no water or water container not present
Number(s) + k= the water container requires descaling
Description of the functions
13

Condensate tray
When you are using perforated containers, place the
condensate tray on the floor of the appliance to collect any
drops of liquid and allow them to be removed easily.
Water container
The maximum water level is 1.2 litres, the minimum 0.75 litres.
The water level markers are located inside and outside the
container. On no account exceed the upper or maximum
level marker.
The maximum quantity of 1.2 litres of water is sufficient to run
a cooking programme at 100 °C for approx. 2 hours, and the
minimum quantity of 0.75 litres of water is sufficient to run a
cooking programme at 100 °C for approx. 30 minutes,
providing the door is not opened.
If the psymbol is flashing, either the water container is not
sitting correctly or there is not enough water in it.
Cooking duration (time)
A duration of between 1 minute (0:01) and 9 hours 59 minutes
(9:59) can be set.
Noises
You can hear the noise of the fan when the appliance is
operating.
Noises similar to those of a kettle can be heard when steam is
being generated.
Description of the functions
14

Temperature
The steam oven has a temperature range of 40 °C to 100 °C.
The appliance is set at 100 °C when the oven is switched on.
You can alter the temperature in 5 °C steps.
Recommended temperature
100 °C:
For cooking all types of food,
Reheating,
Menu cooking (whole meals)
Bottling,
Extracting juice with steam,
........
85 °C:
For cooking fish gently.
60 °C:
For defrosting.
40 °C
For proving yeast,
Preparing yoghurt,
......
Please refer to the "User instructions" booklet supplied with
your appliance for more information on temperatures.
Description of the functions
15

Heating-up phase
During the heating-up phase the oven compartment is heated
to the set temperature. The display will show the temperature
of the cooking compartment as it rises.
The duration of the heating-up phase will depend on the
quantity and the temperature of the food. In general the
heating-up phase will last for approx. 7 minutes. The duration
will be longer if you are preparing refrigerated or frozen food.
Filling the water container with hot water will shorten the
heating-up time.
Cooking phase
The cooking phase begins when the set temperature is
reached. During the cooking phase the duration remaining
(time left) will be shown in the display.
Please refer to the "User instructions" booklet supplied with
your appliance for more information and tips on how to use
your steam oven.
Description of the functions
16

Please stick the extra data plate for the appliance supplied
with this documentation in the space provided in the "After
sales service" section of this booklet.
Cleaning for the first time
Remove any protective foil and adhesive labels.
Open the door by pressing on the left hand side of the door
release. The door will open slightly.
Water container
Take the water container out of the appliance and remove the
insert (see "Cleaning and care / Water container"). Rinse the
water container and the insert thoroughly by hand using hot
water. Do not use any washing-up liquid or detergent.
Do not clean the water container or the insert in a
dishwasher. Do not immerse the water container in water.
Accessories / Oven interior
Take all accessories out of the oven. Wash them in a mild
solution of washing-up liquid and hot water or in the
dishwasher.
The interior of the steam oven has been treated at the factory
with a conditioning agent. To remove this, clean the oven
interior with a mild solution of washing-up liquid and hot water
and then dry thoroughly with a soft cloth.
Before using for the first time
17

Setting the correct boiling point for water
Water at a high altitude above sea level will not reach the
boiling point for water at sea level. To adjust the appliance for
the altitude in your area, fill the water container with mains tap
water (see "Operation / Preparing the appliance for use") and
then run the appliance at 100 °C for 15 minutes. Proceed as
described in "Operation".
This procedure adjusts the appliance to the altitude in your
area and also flushes out the waterways.
Warning! A lot of steam will be emitted from the appliance.
If you move house, the appliance will need to be re-set for
the new altitude if this differs from the old one by more than
300 m. To do this, descale the appliance (see "Cleaning and
care / Descaling").
Before using for the first time
18

Preparing the appliance for use
^Fill the water container with mains tap water up to at least
the "min" marker. You do not need to remove the insert.
Only use mains tap water. Never use distilled or mineral
water or other liquids.
^Push the water container into the appliance until it
connects.
If the water container is not positioned correctly, the
appliance will not heat up and after a while F20 will appear in
the display (see "Problem solving guide").
^Place the food in the oven.
^Switch on the appliance s.
Setting the temperature and duration
"100 °C" will appear in the display. "°C" will start flashing.
^If you want to cook with 100 °C, confirm the setting with
"OK".
If necessary, you can reduce the temperature by touching the
?sensor. Confirm with "OK".
After confirming the temperature, 3 zeros will appear in
display and "h" will start flashing.
^Set the cooking duration you want by touching ;(from
0:00 upwards) or ?(from 9:59 downwards).
^Confirm your selection by touching "OK".
The appliance will start automatically after the duration has
been confirmed.
If you do not complete these steps within 15 minutes, the
appliance will switch itself off.
Operation
19

At the end of the duration
At the end of the set cooking duration, an audible tone will
sound, 3 zeros will appear and "h" will flash in the display.
^Switch off the appliance.
The fan will continue to run for a while after the oven has been
switched off. If you want to reduce the run-on time, you can
do so by removing the water container as soon as you have
switched the appliance off.
Steam will escape when the door is opened. Step back
from the appliance and wait until the steam has
dissipated.
When opening the appliance, take great care that hot
water which may have collected in the drip channel in the
door does not overflow.
Also when taking the condensate tray or cooking
containers out of the oven, take care not to spill the
contents. Do not come into contact with hot steam and do
not touch the hot oven sides. Danger of burning and
scalding.
After use
^Remove the condensate tray and empty it.
^Remove the water container by pushing upwards slightly
as you take it out of the appliance. Empty it.
^After each use, clean and dry the whole appliance as
described in "Cleaning and care".
^Leave the door open until the cooking compartment is
completely dry.
The appliance is designed in such a way that there will
always be a little residual water left in the water container
after use. If there is no residual water, there is something
wrong. Call the Service Department.
Operation
20
