Miele H 344-2 B User manual

Operating instructions
Ovens
H 334 B, H 334 B KAT
H 344-2 B
To avoid the risk of accidents
or damage to the appliance it is
essential to read these operating
instructions before it is installed or
used for the first time.
GZWO
M.-Nr. 05 844 950

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
H 334 B, H 344-2 B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
H 334 B KAT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Energy efficiency rating according to EN 50304. . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Baking tray, grill pan and rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Roasting filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

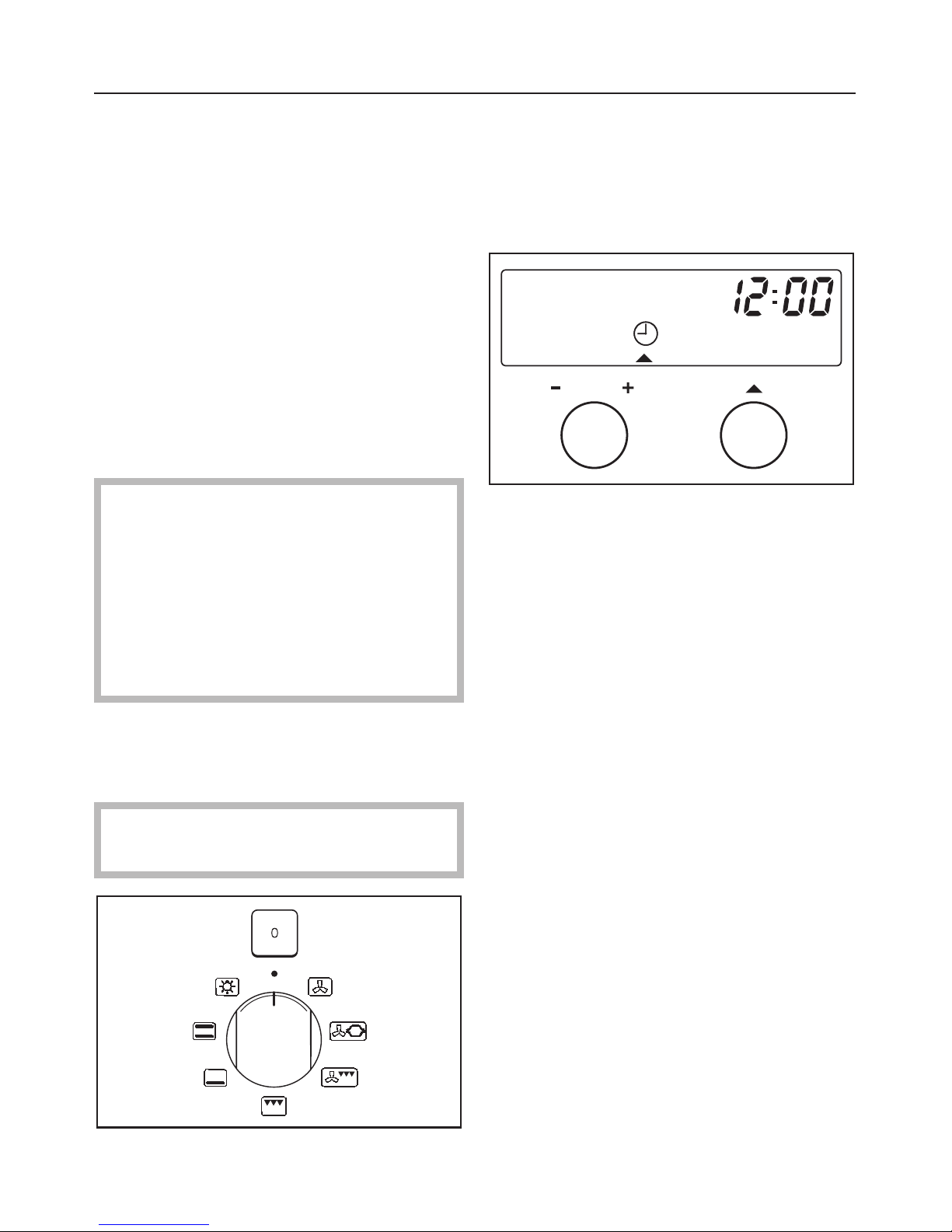

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

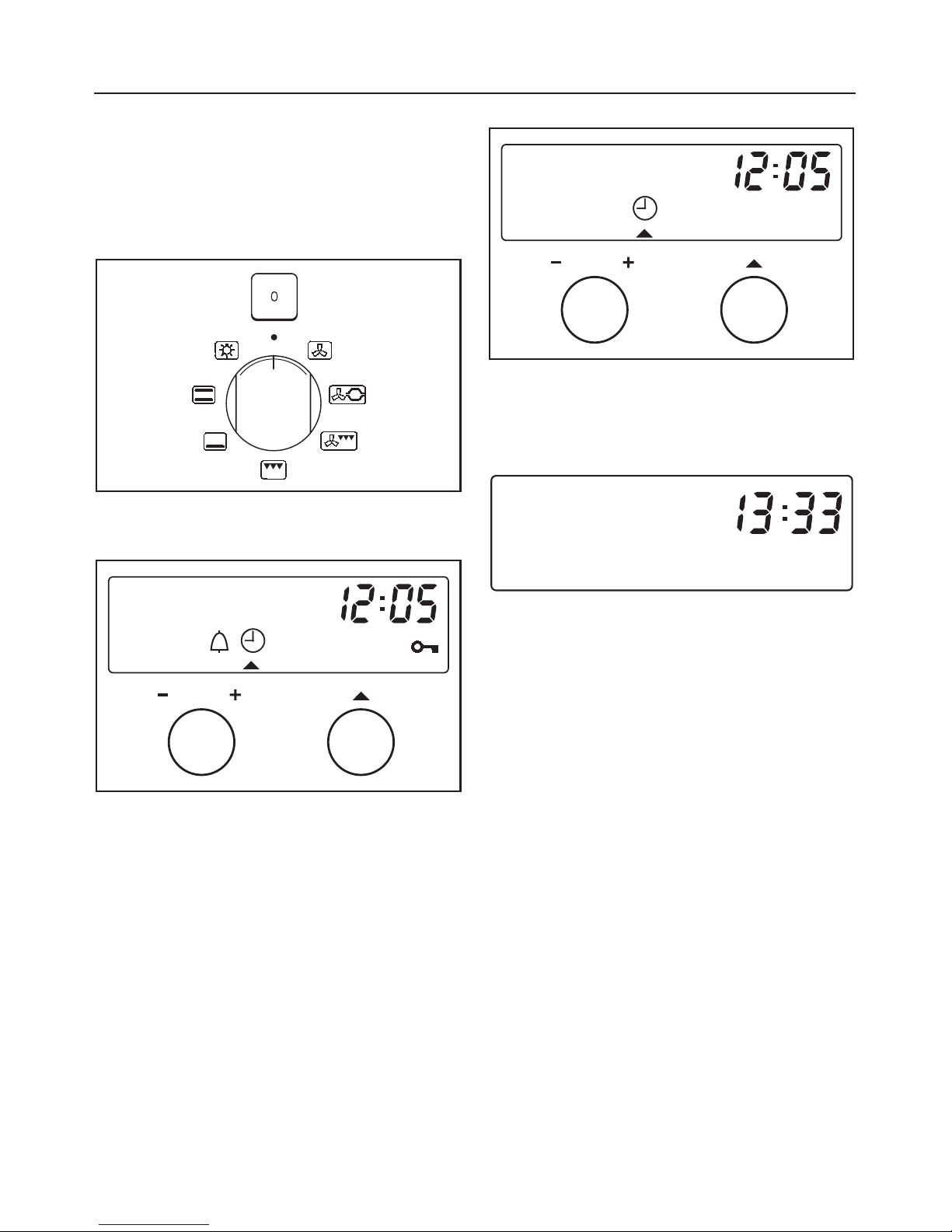

Changing the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
To show the time display all the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
To switch off the time of day display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Switching on the catalyser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning and heating up for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Programme selector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Night dimming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Rotary dials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

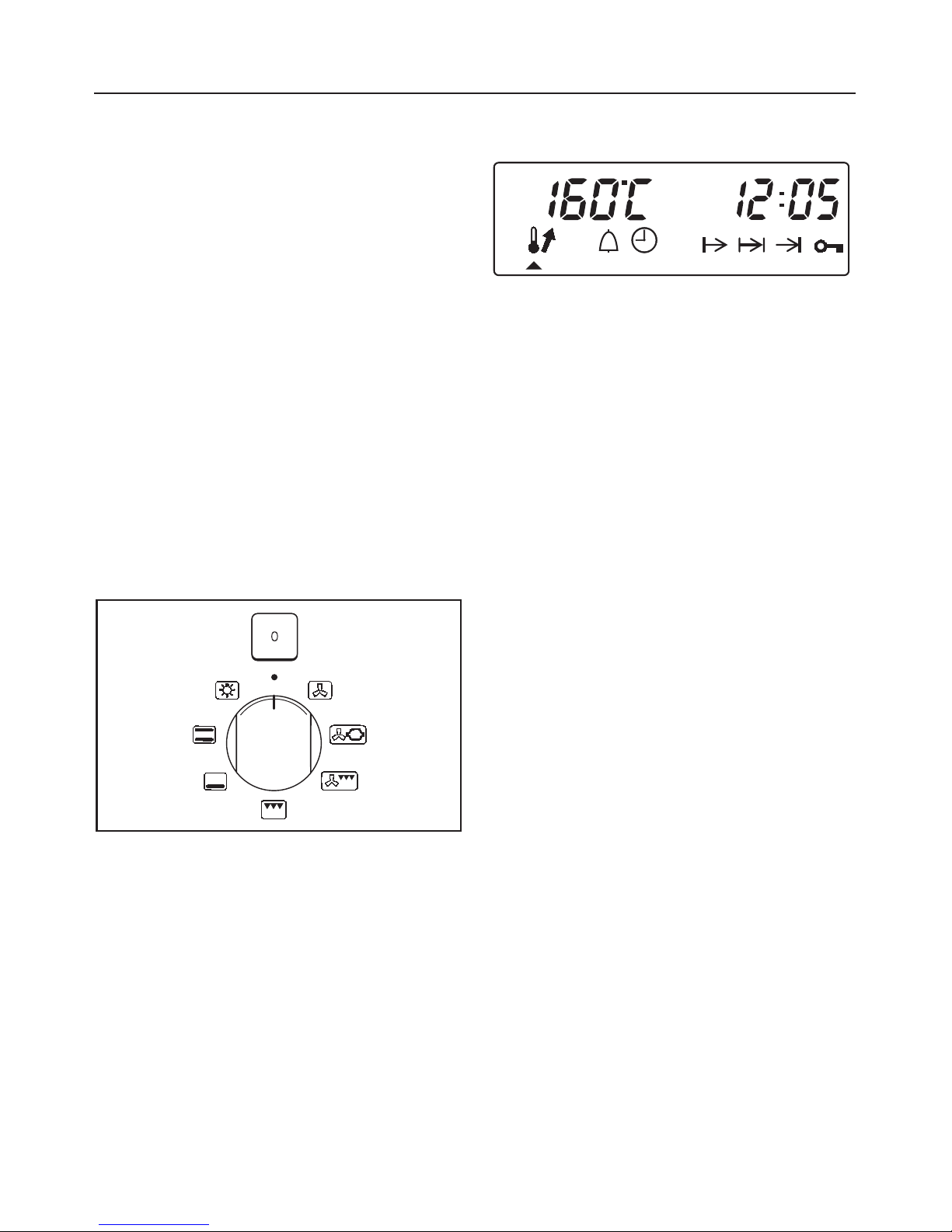

Display – functions and symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Programming sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Description of the oven systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Selecting an oven setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Selecting a temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Altering the temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using the oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Rapid heat-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
To switch off "rapid heat-up" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Pre-heating the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Programming cooking times. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Symbols in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Switching the cooking process off automatically. . . . . . . . . . . . . . . . . . . . . . . . . . 33
Switching on and off automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Contents
2

To check and change an entered time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
To delete a time entered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Using the residual heat, Energy-save function . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Setting the minute minder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

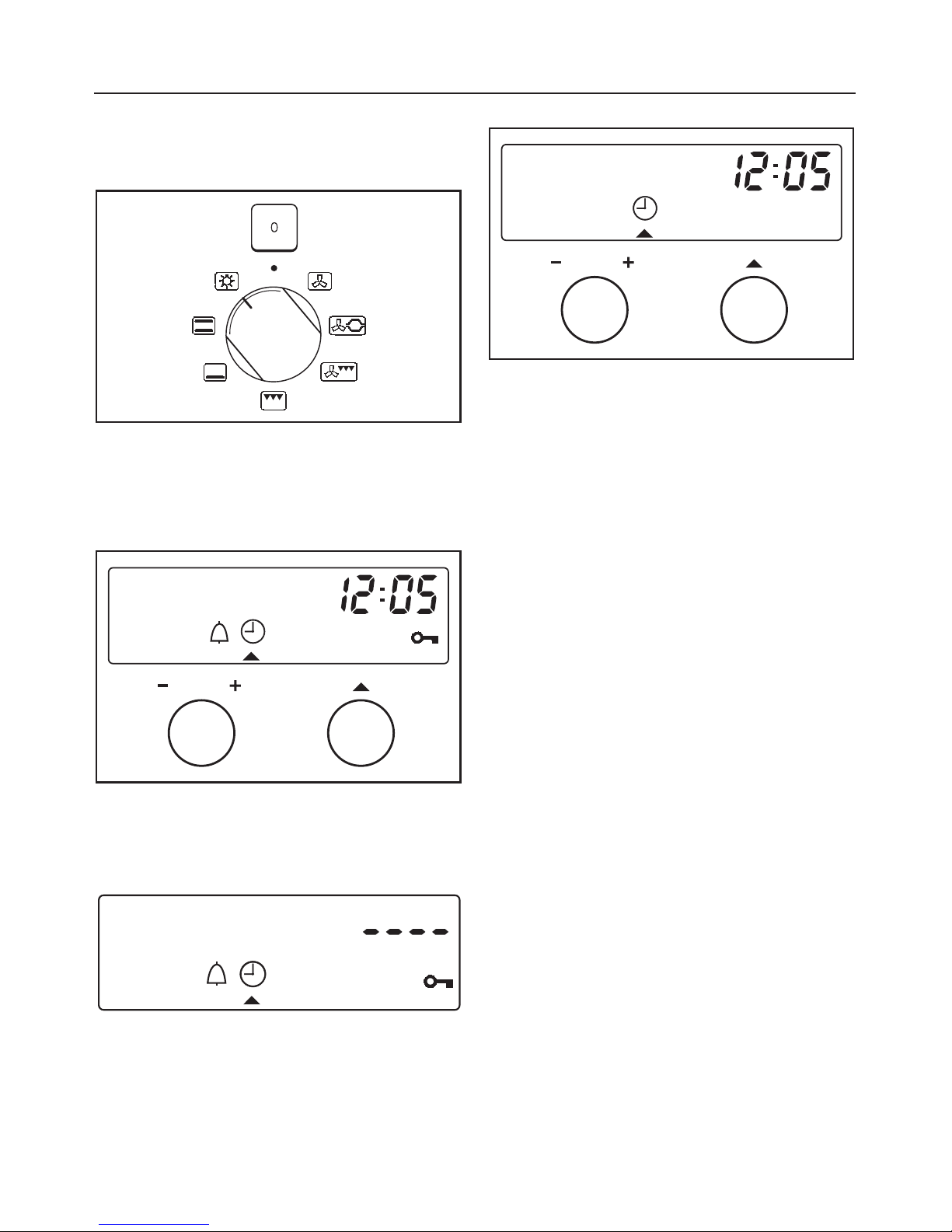

System lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
aking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
aking chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Oven roasting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Grill chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Appliance front and control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Racks and side supports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Roasting filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
PerfectClean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Catalytic enamel surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Cooking compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
To remove the oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
To dismantle the oven door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
To refit the door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
To remove the runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
To lower the upper heating element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
To remove the catalytic enamelled back panel, side liners (if fitted) and roof
liner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Problem solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Extra accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Electrical connection UK, ZA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Electrical connection AUS, NZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Installing the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Contents
3

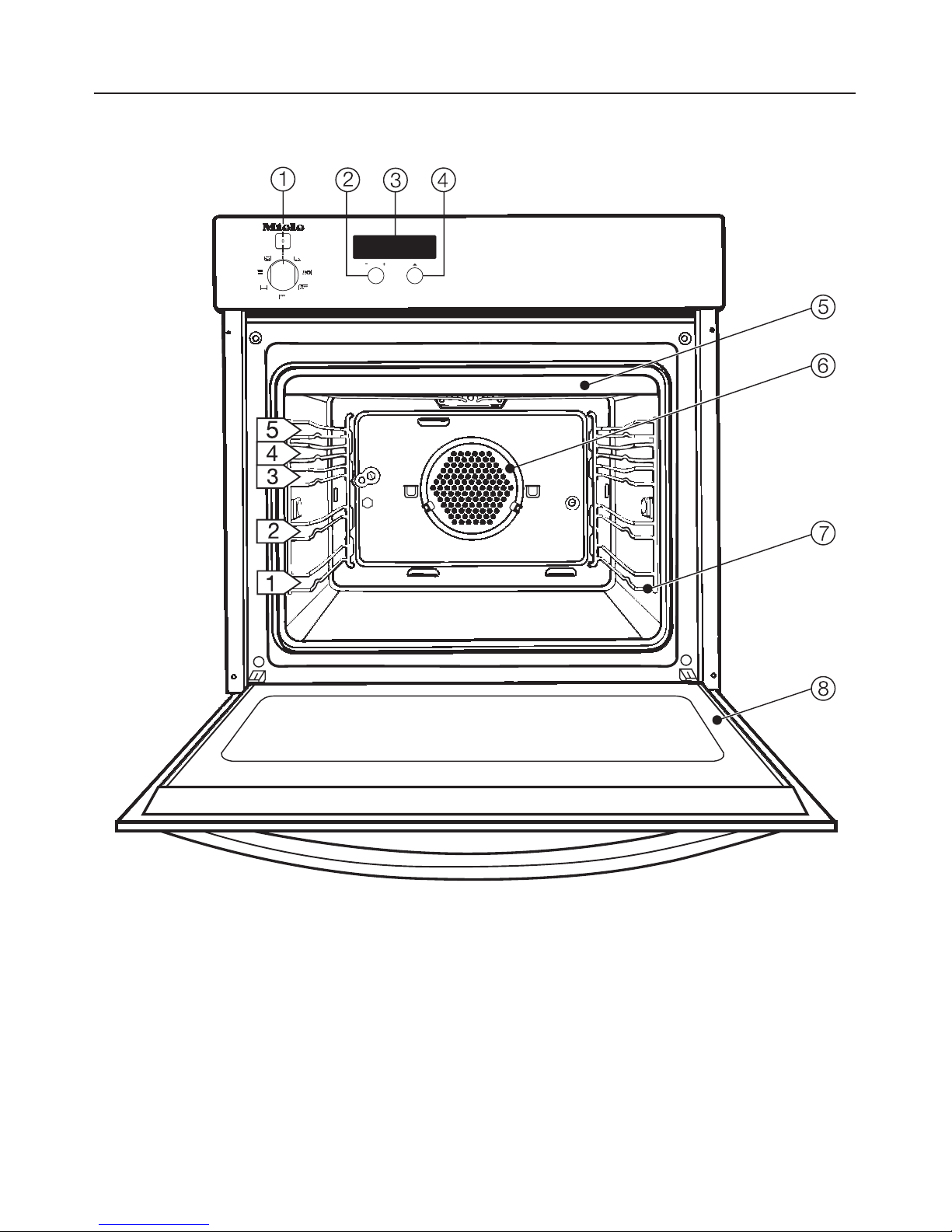

H 334 , H 344-2
Control panel *
aProgramme selector
bInput dial for entering settings
cDisplay
dFunction dial for selecting oven
functions
Oven interior
eHeating element for top heat and
grilling with roof liner
fAir inlet for fan
gRunner heights 1, 2, 3, 4, 5
hOven door
* depending on model
Description of the appliance
4

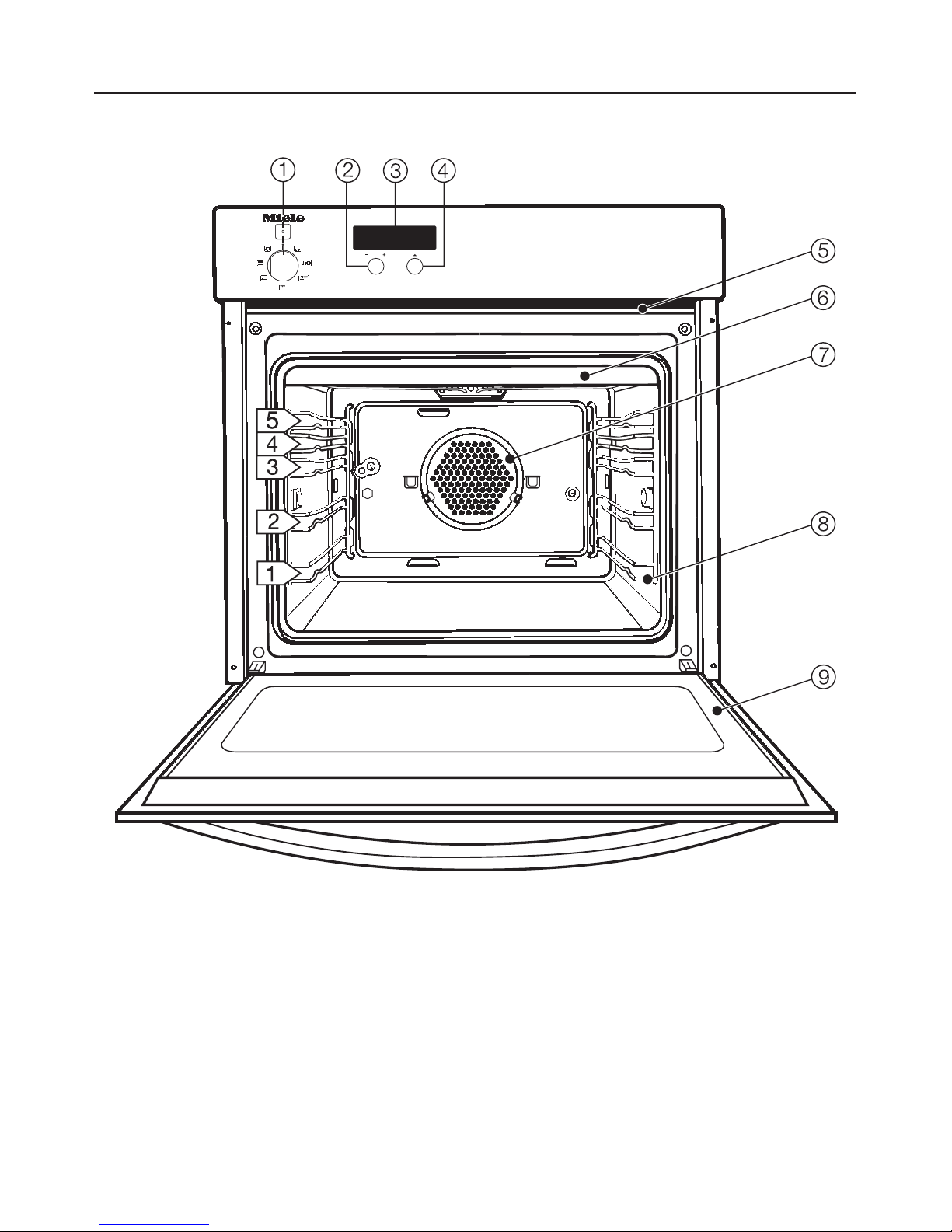

H 334 KAT
Control panel *
aProgramme selector
bInput dial for entering settings
cDisplay
dFunction dial for selecting oven
functions
Oven interior
eLever for switching the catalyser on
fHeating element for top heat and
grilling with roof liner
gAir inlet for fan
hRunner heights 1, 2, 3, 4, 5
iOven door
* depending on model
Description of the appliance
5

Features
Electronic controls
In addition to operating the various
cooking programmes to bake, roast
and grill, the electronic controls also
offer the following features:
–Clock display
–Minute minder
–Timer to automatically switch cooking
programmes on and off with auto-
matic use made of residual heat
– Programme lock, to prevent
unintentional altering of programme
settings
– System lock, to prevent the
appliance being used unintentionally
– Safety cut-out
Cooling system
As soon as the oven is switched on a
cooling fan is automatically engaged.
The cooling fan mixes hot air from the
oven cavity with cool room air before
venting it out into the kitchen through
vents located between the appliance
door and the control panel.
The controls and door handle will get
slightly warm. They are quite safe to
touch.
The cooling fan will continue to run for a
while after the oven has been switched
off to prevent any humidity building up
in the oven, on the control panel or in
the oven housing unit. When the
temperature in the oven has fallen
sufficiently the cooling fan will switch off
automatically.
Door contact switch
There is a door contact switch in the
right hand door hinge.
If the door is opened during operation,
the door contact switch causes the
oven heating, and the fan if a "Fan"
setting is being used, to be switched
off.
This helps reduce the amount of heat
lost from the oven cavity, e.g. when
basting a roast.
PerfectClean treated surfaces
The following surfaces are all treated
with PerfectClean enamelling.
– Oven interior
– Runners
– Baking tray
– Grill pan
– Anti-splash tray
– Rack
PerfectClean enamelled surfaces have
very good anti-stick properties and are
much easier to keep clean than
conventional enamel, if cleaned
regularly.
See "Cleaning and care" for more
information.
Description of the appliance
6

Catalytic enamelled surfaces
The back panel, roof liner and side
liners (if fitted) are coated with dark
grey catalytic enamel. Soiling from oil
and fat is burnt off these surfaces when
very high temperatures are used in the
oven.
This makes it easier to clean
inaccessible areas of the oven.
See "Cleaning and care" for more
information.
Catalyser
Depending on model a catalyser is
fitted into the oven’s ventilation system.
It filters fat from the escaping vapours
and thus reduces cooking smells.
Energy efficiency rating
according to EN 50304
H 334 , H 344-2
These appliances are rated energy
efficiency class in accordance with
EN 50304. Tests were carried out using
the "Fan" oven function.
H 334 KAT
These appliances are rated energy
efficiency class in accordance with
EN 50304. Tests were carried out using
the "Fan" oven function with the
catalyser switched off.
Accessories
The following accessories are supplied
with this oven.
These and other accessories are also
available to order from the Miele Spare
Parts Dept. or your Miele Dealer. See
"Extra Accessories" further on in this
booklet for more details.
aking tray, grill pan and rack
The baking tray, grill pan and rack are
fitted with non-tip safety notches which
prevent them being pulled right out
when they only need to be partially
pulled out.
When pushing the tray, pan and rack
back in, always ensure that the
safety notches are at the rear of the
oven (see illustration).
The tray, pan and rack can then only be
taken out of the oven by raising them
upwards and then pulling out.
Description of the appliance
7

Roasting filter
The roasting filter must be fitted in front
of the fan when cooking anything fatty
or where food is likely to splatter, e.g.
when open roasting or grilling meat.
The droplets of fat caught up in the
circulating air are deposited on the
roasting filter. This helps to keep the
oven and the area behind the interior
back panel cleaner.
Do not use the roasting filter when
baking. This would increase the
times needed for baking and give
uneven browning results.
See "Extra accessories" for a
description and illustration of the
handle and anti-splash tray.
Description of the appliance
8

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed safely and kept
out of the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Old appliances contain materials which
can be reclaimed or recycled. Please
contact your dealer, your local waste
collection centre or scrap merchant
about potential recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal.
See the appropriate section in the
Warning and safety instructions.
Caring for the environment
9

This appliance conforms to current
safety requirements. Incorrect use
can, however, lead to personal injury
and damage to the appliance.
Before installation and before using
for the first time, read the operating
instructions carefully.
They contain important notes on
installation, safety, operation and
care of the appliance. This way you
will avoid the risk of accidents and
damage to the appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct usage
The appliance is intended for
domestic use to cook food, and in
particular to bake, roast, defrost, cook,
dry fruit etc, and to grill.
Any other usage is at the owner’s risk
and could be dangerous. The
manufacturer cannot be held liable for
damage caused by incorrect or
improper use of the appliance.
Do not let children access the
appliance or its controls. Supervise
its use by the elderly or infirm. If
allowing older children to use the
appliance without supervision please
ensure that they are aware of how the
oven works and understand the
dangers of improper use.
Technical safety
Before connecting the appliance to
the mains supply make sure that
the voltage and frequency correspond
to the rating on the data plate,
otherwise the appliance could be
damaged.
Consult a competent person if in doubt.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system, which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is tested regularly, and if
there is any doubt the household wiring
system should be inspected by a
qualified electrician.
The manufacturer cannot be held
responsible for the consequences of an
inadequate earthing system (e.g.
electric shock).
The appliance must be built in
before operation to ensure that no
electrical components are accessible.
Never open the housing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
Warning and Safety instructions
10
