Miele H 4170 User manual

Operating instructions
Pyrolytic ovens
H 4170, H 4270
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the first time.
G
M.-Nr. 06 234 920

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Baking tray, grill pan and rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Roasting filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Anti-splash tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Safety feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting the time of day for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning and heating up for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Description of the oven systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Function selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Temperature selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Using the oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Rapid heat-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Pre-heating the oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cooking ready-meals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Clock/Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Q,Pand Obuttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
The display and triangle Vin the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Minute minder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
To set the minute minder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
To cancel the time set for the minute minder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Programming cooking durations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Switching the cooking programme off automatically . . . . . . . . . . . . . . . . . . . . 26
Switching the oven on and off automatically . . . . . . . . . . . . . . . . . . . . . . . . . . 27
The end of a cooking programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
To check and change an entered time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
To delete cooking times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Contents
2

Altering oven settings v. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Time of day display (P I) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Buzzer (P 2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Baking chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Roasting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Grill chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Cooking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Cooking ready-meals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Examples of ready-meals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Gentle bake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Appliance front and control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Baking tray, grill pan, anti-splash tray (if fitted), racks and runners . . . . . . . . . 49
Roasting filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
PerfectClean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Pyrolytic cleaning of the oven interior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
To remove the oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
To dismantle the oven door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
To refit the door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
To remove the runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
To remove the back panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Extra accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Electrical connection UK, IRL, ZA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Electrical connection AUS, NZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Installing the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Contents
3

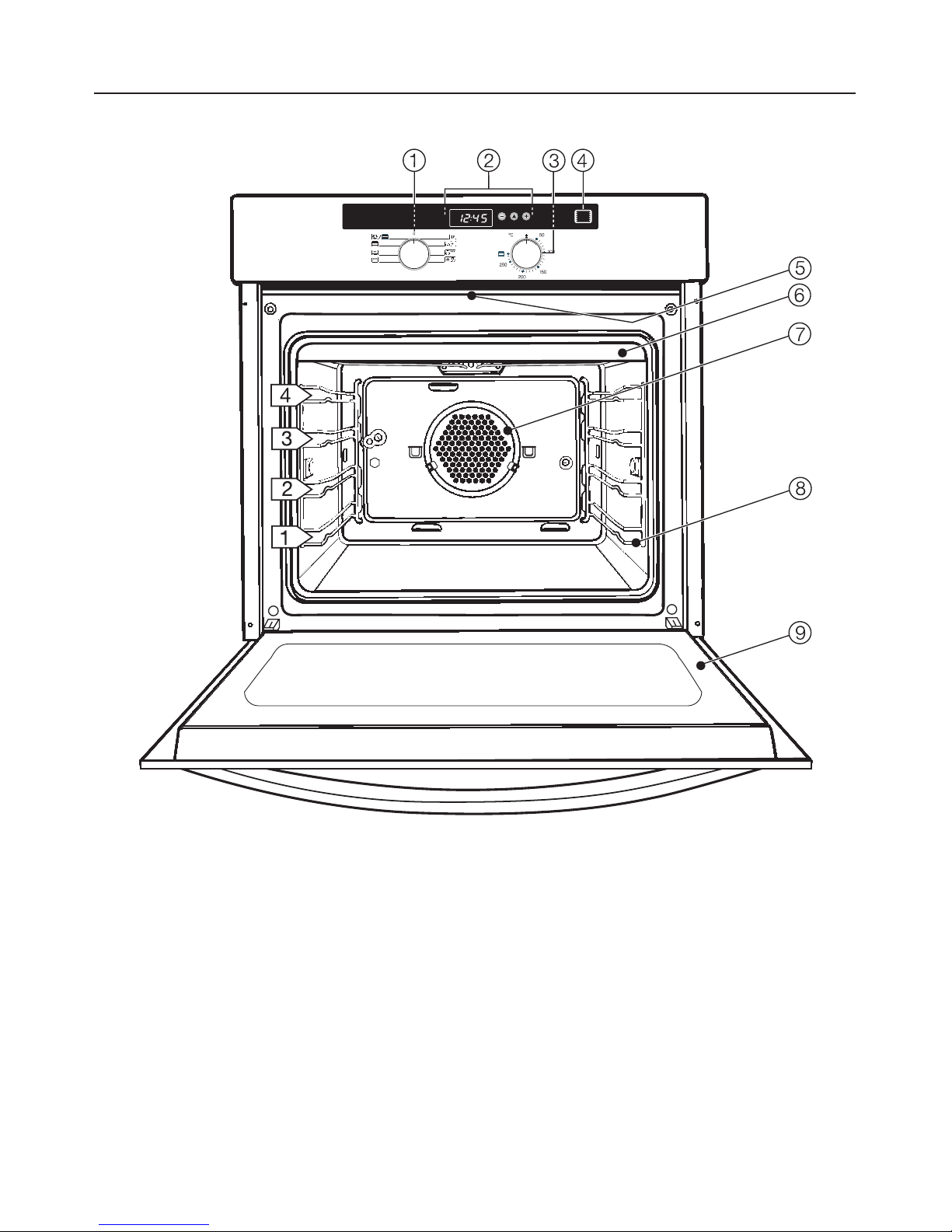

H 4170 BP, H 4270 BP
Control panel
aFunction selector
bClock/timer with O,Qand P
buttons
cTemperature selector
dTemperature indicator light y
Oven interior
eDoor contact switch,
Door lock for pyrolytic operation
fHeating element for top heat and
grilling with roof liner
gAir inlet for fan
hShelf levels 1, 2, 3, 4
iOven door
Description of the appliance
4

Features
Oven controls
In addition to operating the various
cooking programmes to bake, roast
and grill, the electronic controls also
offer the following features:
–Clock display
–Minute minder
–Timer to automatically switch cooking
programmes off, or on and off
–Settings can be customised
Cooling system
As soon as the oven is switched on, a
cooling fan is automatically engaged.
The cooling fan mixes hot air from the
oven cavity with cool room air before
venting it out into the kitchen through
vents located between the appliance
door and the control panel.
The cooling fan will continue to run for a
while after the oven has been switched
off to prevent any humidity building up
in the oven, on the control panel or on
the oven housing unit.
When the temperature in the oven has
fallen sufficiently, the cooling fan will
switch off automatically.
Pyrolytic self-cleaning programme
The oven interior can be kept clean by
using the Pyrolytic .cleaning
programme.
This programme heats the oven interior
up to 460 °C. Any residual soiling is
broken down and reduced to ash by
the high temperatures.
For safety reasons the door is locked at
the beginning of the pyrolytic
programme.
Depending on soiling levels you can
choose between two cleaning
programmes:
–PY I lasting approx. 2 hours
–PY 2 lasting approx. 2 hours 30
minutes
Once the set time has elapsed, the
heating elements will switch off
automatically.
For safety reasons the door will remain
locked until the temperature in the oven
cavity has dropped below 280 °C.
See "Cleaning and care" for more
information.
Description of the appliance
5

PerfectClean treated surfaces
The following surfaces are all treated
with PerfectClean enamelling:
–Runners
–Baking tray
–Grill pan
–Rack
PerfectClean enamelled surfaces have
very good anti-stick properties and are
much easier to keep clean than
conventional enamel, if cleaned
regularly.
See "Cleaning and care" for more
information.
Door contact switch
There is a door contact switch located
centrally underneath the control panel.
If the door is opened during operation,
the door contact switch causes the
oven heating to switch off.
This helps reduce the amount of heat
lost from the oven cavity, e.g. when
checking food.
Vented oven door
The oven door is made up of a total of
four panels. There is an opening at the
top and bottom of these.
During operation cool air is passed
through the oven door to keep the outer
panel cool and safe to touch.
If necessary the oven door can be
dismantled for cleaning. See "Cleaning
and Care".
Retractable controls
All controls are retractable at the "0"
position.
Press them to release or retract them.
Do not push them in from any other
position as this would break them.
Energy efficiency rating
according to EN 50304
These appliances are rated energy
efficiency class Bin accordance with
EN 50304.
Tests were carried out using Fan plus.
Description of the appliance
6

Accessories
The following accessories are supplied
with this oven.
These and other accessories are also
available to order from the Miele Spare
Parts Department or your Miele Dealer.
See "Extra accessories" further on in
this booklet for more details.
Baking tray, grill pan and rack
The baking tray, grill pan and rack are
fitted with non-tip safety notches which
prevent them being pulled right out
when they only need to be partially
pulled out.

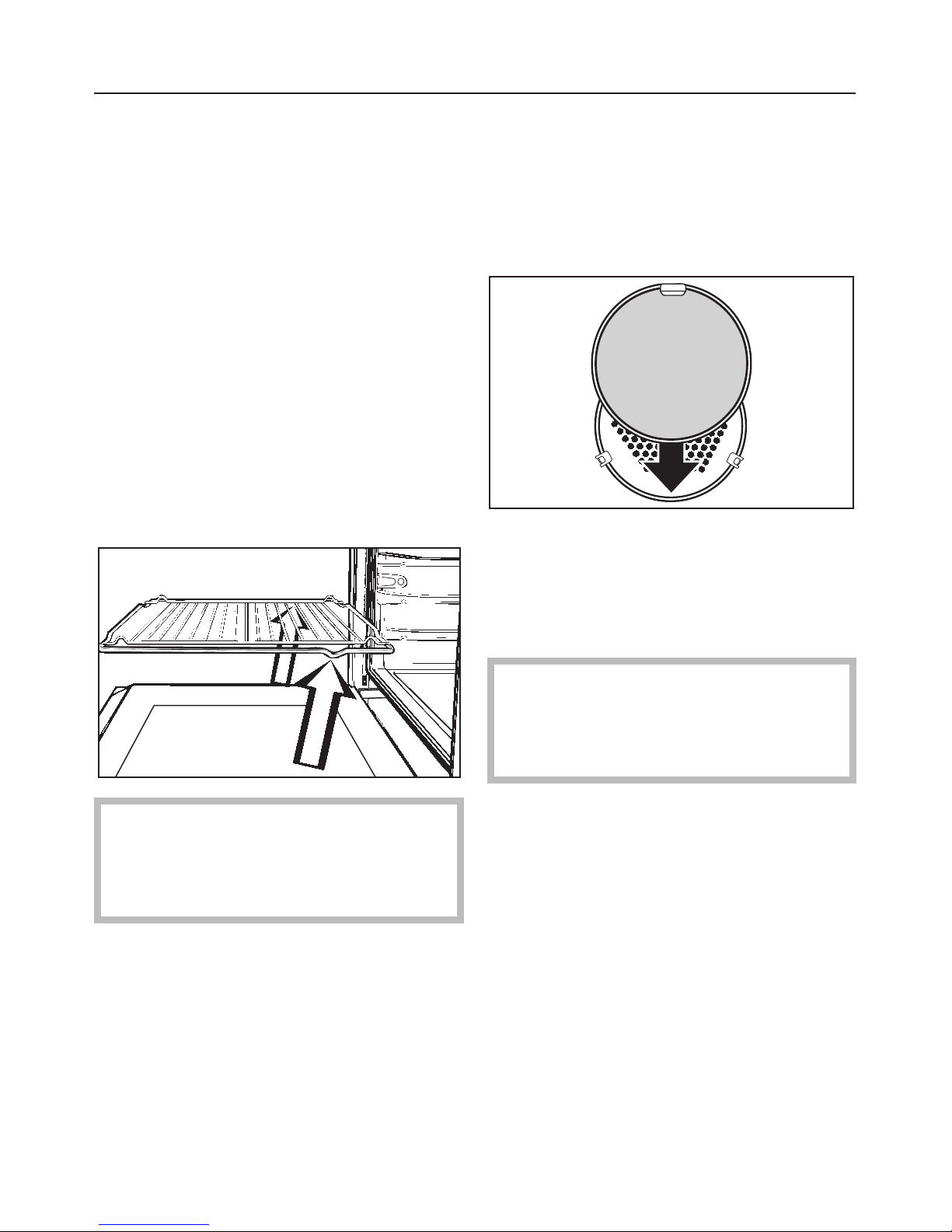

When pushing the tray, pan and rack
back in, always ensure that the
safety notches are at the rear of the
oven (see illustration).
The tray, pan and rack can then only be
taken out of the oven by raising them
upwards and then pulling them out.
Roasting filter
The roasting filter must be fitted in front
of the fan when cooking anything fatty,
or where food is likely to splatter, e.g.
when open roasting or grilling meat.
The droplets of fat caught up in the
circulating air are deposited on the
roasting filter. This helps to keep the
oven and the area behind the interior
back panel cleaner.
Do not use the roasting filter when
baking. This would increase the
times needed for baking and give
uneven browning results.
Description of the appliance
7

Anti-splash tray
(depending on model)
The anti-splash tray should be placed
in the deep-sided grill pan when grilling
or roasting.
The juices from the food being cooked
collect under the anti-splash tray. This
prevents them from spitting and making
the oven dirty. The juices can then be
used for making gravy and sauces.
Handle
(depending on model)
The handle makes it easier to take the
baking tray, grill pan and rack out of the
oven, or to put them into it.
The two prongs at the top go inside the
pan, rack or tray and the U-shaped
supports underneath.
Description of the appliance
8

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. The plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details.
Caring for the environment
9

This appliance complies with all
relevant legal safety requirements.
Improper use of the appliance can,
however, present a risk of both
personal injury and material
damage.
To avoid the risk of accidents and
damage to the appliance, please
read these operating instructions
carefully before installation and
before using it for the first time. They
contain important notes on
installation, safety, operation and
care of the appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct usage
This appliance is intended for
domestic use to cook food, and in
particular to bake, roast, defrost, cook,
dry fruit etc, and to grill.
Any other usage is at the owner’s risk
and could be dangerous. The
manufacturer cannot be held liable for
damage caused by incorrect or
improper use of the appliance.
This appliance is not a toy! To
avoid the risk of injury, do not allow
children to play on or near it or to play
with the controls. Supervise its use by
older children, the elderly or infirm. If
allowing older children to use the
appliance without supervision, please
ensure that they are aware of how the
oven works and understand the
dangers of improper use.
Technical safety
Before connecting the appliance to
the mains supply, make sure that
the voltage and frequency correspond
to the rating on the data plate,
otherwise the appliance could be
damaged. Consult a competent person
if in doubt.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with local and national safety
regulations. It is most important that this
basic safety requirement is present and
regularly tested, and where there is any
doubt the household wiring system
should be inspected by a qualified
electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
The appliance must be built in
before operation to ensure that no
electrical components are accessible.
Never open the casing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
Warning and Safety instructions
10
