Miele H 4880 BP Specification sheet

Operating and Installation instructions
Pyrolytic ovens
H 4880 BP
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the first time. M.-Nr. 07 077 690
en-GB

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Appliance overview .................................................4
Control panel ......................................................5
Features ..........................................................6
Accessories .......................................................7
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Sensors .........................................................16
Display ..........................................................16
Main menu and submenus ..........................................17
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
To set the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Selecting a function ................................................21
Adjusting the oven temperature .......................................21
Preheating .......................................................21
Duration .........................................................22
Duration ......................................................22
Start time......................................................22
End time ......................................................23
Cancelling a process...............................................23
Turning off the oven ................................................23
At the end of cooking: ..............................................23
BAKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Baking tips .......................................................24
ROAST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Roasting tips .....................................................29
Using the roast probe ..............................................30
MASTER CHEF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
GRILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Tips on grilling ....................................................34
FAVOURITES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
SABBATH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
DRYING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
PROVE DOUGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
DEFROST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Contents
2

Settings J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Language J......................................................42
Clock ...........................................................42
Recommended Temperature.........................................43
Lighting .........................................................44
Temperature °C / °F ................................................44
Buzzer tones .....................................................44
Display ..........................................................45
Factory default ....................................................45
System lock ......................................................46
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Appliance front ...................................................47
Accessories ......................................................48
Grill pan, anti-splash tray and racks.................................48
Runners.......................................................48
Roasting filter ..................................................48
Roast probe ...................................................48
Rotisserie .....................................................48
PerfectClean .....................................................49
Oven interior .....................................................51
Pyrolytic cleaning of the oven interior................................51
To remove the oven door............................................54
To refit the door ...................................................55
To remove the runners..............................................55
Lowering the upper heating element...................................56
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Extra accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Installing the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Contents
3

Appliance overview
aControl panel
bDoor lock for pyrolytic operation
cDoor contact switch
dHeating element for top heat and grilling with roof liner
eRotisserie motors
fAir inlet for fan
gConnection socket for the roast probe
hLight
iSide runners with 6 shelf levels
jData plate
kOven door
Description of the appliance
4

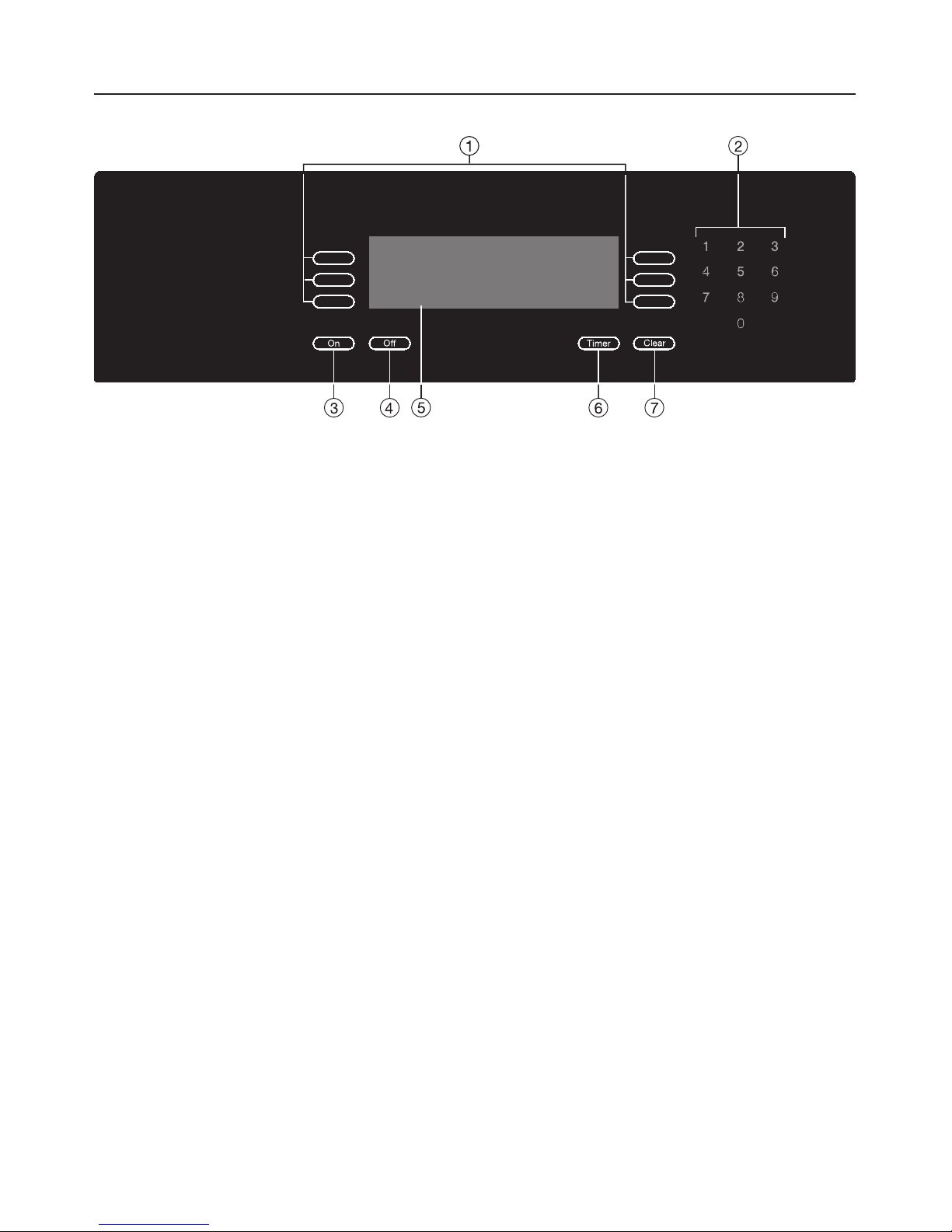

Control panel
aSensors for selecting menu options in the display
bContext sensitive numerical keypad
c"On" sensor
d"Off" sensor
eDisplay
f"Timer" sensor
g"Clear" sensor
See "Controls" for more details.
Description of the appliance
5

Features
Electronic controls
In addition to operating the various
cooking programmes to bake, roast
and grill the electronic controls also
offer the following features:
–Clock display
–Minute minder
–Timer to automatically switch cooking
programmes off, or on and off with
automatic use made of residual heat
– Favourites
– Master Chef automatic programmes
– Settings can be customised.
Safety features
You can activate a system lock,to
prevent the appliance being used
unintentionally. See "Settings - System
lock" for details.
Safety shut-off is triggered
automatically if the oven is operated for
an unusually long period of time.
The period of time will depend on the
particular oven function being used.
The oven will switch off automatically
and "Fault 55" will appear in the display.
The oven can be used again immedi-
ately after switching it off and back on.
Cooling system
As soon as the oven is switched on, a
cooling fan is automatically engaged.
The cooling fan mixes hot air from the
oven cavity with cool room air before
venting it out into the kitchen through
vents located between the appliance
door and the control panel.
The cooling fan will continue to run for a
while after the oven has been switched
off to prevent any humidity building up
in the oven, on the control panel or on
the oven housing unit.
When the temperature in the oven has
fallen sufficiently, the cooling fan will
switch off automatically.
Pyrolytic self-cleaning programme
The oven interior can be kept clean by
using the Pyrolitic cleaning programme.
This programme heats the oven interior
up to 460 °C. Any residual soiling is
broken down and reduced to ash by
the high temperatures.
For safety reasons the door is locked as
soon as a pyrolytic programme is
started.
The pyrolytic programme duration will
vary depending on the level of soiling.
For safety reasons the door will remain
locked until the temperature in the oven
cavity has dropped below 280 °C.
See "Cleaning and care" for more
information.
Description of the appliance
6

PerfectClean treated surfaces
The following surfaces are all treated
with PerfectClean enamelling:
–Grill pan
–Anti-splash tray
–Rack
PerfectClean enamelled surfaces have
very good anti-stick properties and are
much easier to keep clean than
conventional enamel, if cleaned
regularly.
See "Cleaning and care" for more
information.
Door contact switch
If the door is opened during operation,
the door contact switch automatically
switches off the heating elements, and
the fan if a "Fan" setting is being used.
This helps reduce the amount of heat
lost from the oven cavity, e.g. when
checking food.
Accessories
The following accessories are supplied
with this oven.
These and other accessories are also
available to order from the Miele Spare
Parts Department, your Miele Dealer or
via the Internet (depending on country).
See "Extra accessories" further on in
this booklet for more details.
Racks
The racks are fitted with non-tip safety
notches which prevent them being
pulled right out when they only need to
be partially pulled out.
When pushing the racks back in,
always ensure that the safety
notches are at the rear of the oven
(see illustration).
The racks can then only be taken out of
the oven by raising them upwards and
then pulling them out.
Description of the appliance
7

Grill pan
The grill pan is ideal for catching
drippings from meat or poultry roasted
or grilled directly on the rack.
Slide the roasting pan onto the rail
below the wire rack. See illustration.
It can also be used as a baking tray.
Anti-splash tray
The anti-splash tray should be placed
in the grill pan when grilling or roasting.
The juices from the food being cooked
collect under the anti-splash tray. This
prevents them from spitting and making
the oven dirty. The juices can then be
used for making gravy and sauces.
Roasting filter
The roasting filter must be fitted in front
of the fan when cooking anything fatty,
or where food is likely to splatter, e.g.
when open roasting or grilling meat.
The droplets of fat caught up in the
circulating air are deposited on the
roasting filter. This helps to keep the
oven and the area behind the interior
back panel cleaner.
Do not use the roasting filter when
baking. This would increase the
times needed for baking and give
uneven browning results.
Description of the appliance
8

Roast probe
The roast probe enables the roasting
process to be monitored simply and
reliably.
Rotisserie
For grilling thicker items such as stuffed
meat, poultry and kebabs.
The rotisserie fits into the grill pan for
grilling or roasting. The grill pan goes
into the first runner level and this
automatically engages the rotisserie.
The grill motor will then start up and
turn the rotisserie. Food is grilled evenly
on all sides as it rotates.
Slide opener
Use the slide opener for lifting off the
light cover.
Description of the appliance
9

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings, bags
etc. are disposed of safely and kept out
of the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these materials
away, please ensure they are offered for
recycling.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
Caring for the environment
10
