Miele K 11820 SD Specification sheet

Operating and installation instructions
Refrigerator with Dynamic cooling
K 11820 SD
K 12820 SD
K 12820 SD edt/cs
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 09 434 270
en-GB

Guide to the appliance .............................................4
Caring for the environment..........................................6
Warning and Safety instructions .....................................7
How to save energy ...............................................15
Switching on and off ..............................................17
Switching off for longer periods of time .................................17
The correct temperature ...........................................18
...intherefrigerator ..............................................18
Setting the temperature .............................................18
Temperature display ...............................................19
Super cool and Dynamic cooling ....................................20
Super cool .......................................................20
Dynamic cooling m...............................................20
Storing food in the refrigerator......................................22
Different storage zones .............................................22
Food which is not suitable for storing in the refrigerator ....................23
When shopping for food ............................................24
Storing food correctly ..............................................24
Fruit and vegetables .............................................24
Protein rich foods ...............................................24
Adjusting the interior fittings .......................................25
Moving the shelves ................................................25
Split shelf ........................................................25
Adjusting the door shelf/bottle shelf ...................................25
Automatic defrost ................................................27
Cleaning and care ................................................28
Cleaning the interior and accessories ..................................29
Appliance door, side panels .........................................29
Ventilation gaps ...................................................30
Door seal ........................................................30
Problem solving guide ............................................31
Noises .........................................................33
After Sales / Guarantee ............................................34
Electrical connection..............................................35
Contents

Installation ......................................................36
Side-by-side installation.............................................36
Location .........................................................36
Climate range ..................................................37
Ventilation........................................................37
Installation .......................................................37
Aligning the appliance..............................................37
Levelling the appliance door .........................................37
Appliance dimensions ..............................................38
Changing the door hinging .........................................39
Aligning the appliance door ........................................44
Building in the appliance ..........................................45
Contents

aOn/Off button
bTemperature selector button
cTemperature display
dSuper cool button and
indicator light
eDynamic cooling button and
indicator light
Guide to the appliance
4

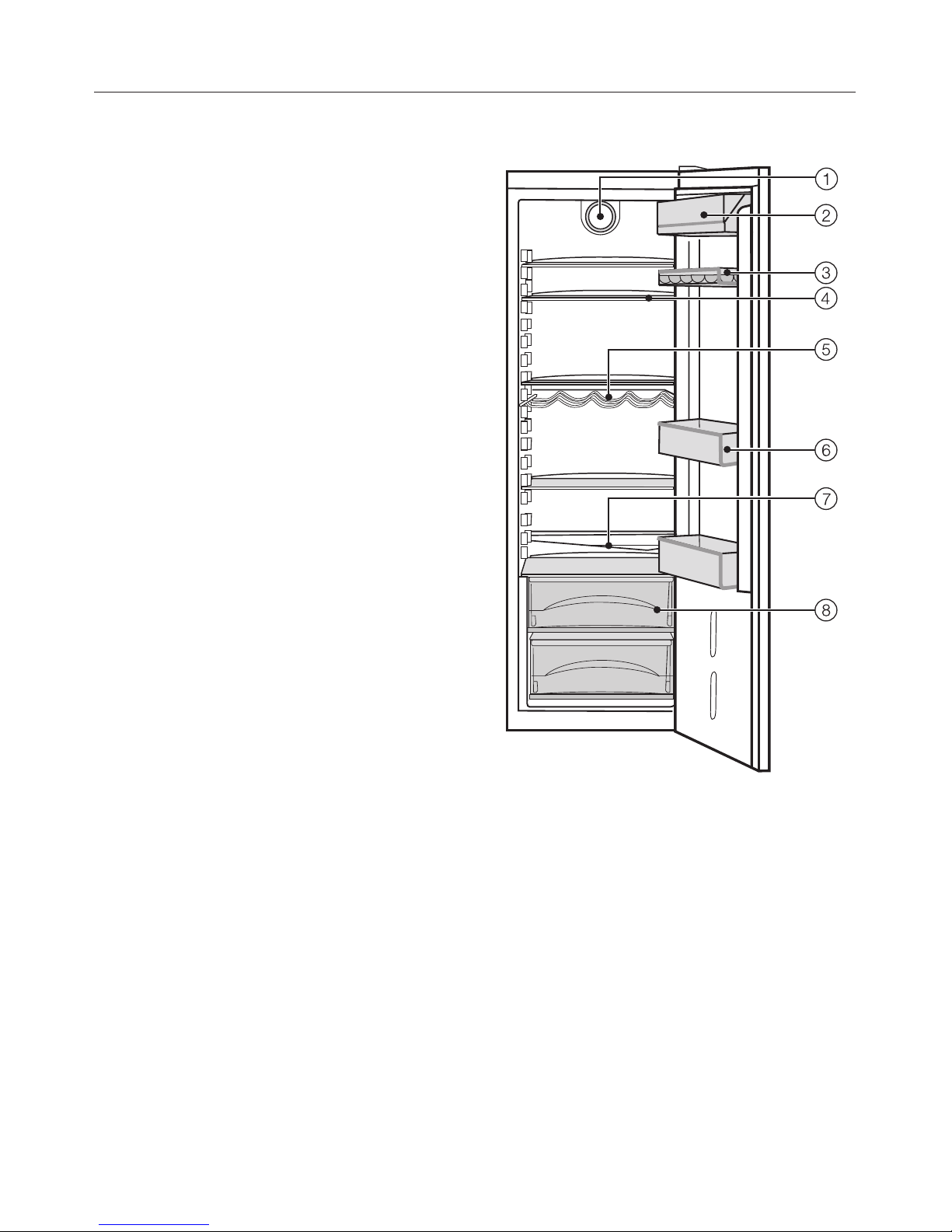

aDynamic cooling fan
bButter and cheese compartment
cEgg tray
dAdjustable shelves
eBottle rack
fBottle shelf
gCondensate channel and
drain hole
hFruit and vegetable containers
Guide to the appliance
5

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
6

This appliance complies with all relevant safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before installation and
before using it for the first time. They contain important
information on its safety, installation, use and maintenance. Miele
cannot be held liable for damage caused by non-compliance with
these Warning and Safety instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
~The appliance is not designed for commercial use. It is intended
for use in domestic households and similar working and residential
environments.
This appliance is not intended for outdoor use.
~The appliance is intended for domestic use only for the cool
storage of food and drink.
Any other usage is not supported by the manufacturer and could be
dangerous.
Warning and Safety instructions
7

~The appliance is not suitable for storing and keeping cool
medicines, blood plasma, laboratory preparations or other such
materials or products. Incorrect use of the appliance for such
purposes can cause deterioration of the items stored. The appliance
is not suitable for use in areas where there is a risk of explosion.
Miele cannot be held liable for damage resulting from incorrect or
improper use or operation.
~The appliance can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and understand the hazards
involved.
Safety with children
~Children under 8 years of age must be kept away from the
appliance unless they are constantly supervised.
~Children 8 years and older may only use the appliance without
supervision if they have been shown how to use it in a safe way and
understand the hazards involved.
~Children must not be allowed to clean or maintain the appliance
unsupervised.
~This appliance is not a toy! To prevent the risk of injury, do not
allow children to play with it or use the controls. Please supervise
children whilst you are using the appliance.
Warning and Safety instructions
8

~Danger of suffocation. Packaging, e.g. cling film, polystyrene and
plastic wrappings, must be kept out of the reach of babies and
children. Whilst playing, children could become entangled in
packaging or pull it over their head and suffocate.
Technical safety
~The coolant system is tested for leaks. The appliance complies
with the relevant safety requirements and the appropriate EU
guidelines.
~This appliance contains the coolant Isobutane (R600a), a natural
gas which is environmentally friendly. Although it is flammable, it
does not damage the ozone layer and does not increase the
greenhouse effect.
The use of this coolant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the
compressor, you might be able to hear the coolant flowing around
the system. This is unavoidable, and does not have any adverse
effect on the performance of the appliance.
Care must be taken during the transportation and installation of the
appliance that no parts of the cooling system are damaged. Leaking
refrigerant can damage the eyes.
In the event of any damage:
–avoid any flames or anything which creates a spark,
–disconnect the appliance from the electricity supply.
–ventilate the room where the appliance is located for several
minutes, and
–call the Service department.
Warning and Safety instructions
9

~The more coolant there is in an appliance, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in
a small room, there is the danger of combustible gases building up.
For every8gofcoolant at least 1 m3of room space is required. The
amount of coolant in the appliance is stated on the data plate inside
the appliance.
~To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data
plate corresponds to the household supply before connecting the
appliance to the mains supply. Check that this is the case before
connecting the appliance. Consult a qualified electrician if in any
doubt.
~The electrical safety of this appliance can only be guaranteed
when it is correctly earthed. It is most important that this basic safety
requirement is observed and regularly tested and where there is any
doubt, the household wiring system should be inspected by a
qualified electrician.
~If the electrical connection cable is faulty it must only be replaced
by a Miele approved service technician to protect the user from
danger.
~Do not connect the appliance to the mains electricity supply by a
multi-socket adaptor or extension lead . These are a fire hazard and
do not guarantee the required safety of the appliance.
~Do not use in a damp environment (e.g. garage or utility room).
Moisture could reach live components or the electrical connection
and cause a short circuit.
~This appliance must not be used in a non-stationary location (e.g.
on a ship).
Warning and Safety instructions
10

~A damaged appliance can be dangerous. Check the appliance
for visible signs of damage. Do not use a damaged appliance.
~The appliance must be disconnected from the mains electricity
supply during installation, maintenance and repair work. Ensure that
power is not supplied to the appliance until after it has been
installed or until after any maintenance or repair work has been
carried out.
~Installation, maintenance and repairs may only be carried out by
a suitably qualified and competent person in strict accordance with
national and local safety regulations.
~While the appliance is under guarantee, repairs should only be
undertaken by a service technician authorised by Miele. Otherwise
the guarantee is invalidated.
~The manufacturer can only guarantee the safety of the appliance
when original Miele replacement parts are used. Faulty components
must only be replaced by genuine Miele original spare parts.
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the guarantee.
Correct use
~The appliance is designed for use within certain climate ranges
(ambient temperatures), and should not be used outside this range.
The climate range of the appliance is stated on the data plate inside
the appliance. Installing it in a room with too low an ambient
temperature will lead to the appliance switching off for longer
periods so that it cannot maintain the required temperature.
Warning and Safety instructions
11

~Do not cover or block the air vents as this could impair the
efficiency of the appliance, increase the electricity consumption and
could cause damage to the appliance.
~If storing food which contains a lot of fat or oil, make sure that it
does not come into contact with plastic components as this could
cause stress cracks or break the plastic.
~Do not store explosive materials in the appliance or any products
containing propellants (e.g. spray cans). Thermostats switching on
may produce sparks which could present a fire hazard. Flammable
compounds could explode.
~Do not operate any electrical equipment (e.g. an electric
ice-cream maker) inside the appliance. Danger of sparking and
explosion.
~If storing alcohol with a high percentage proof, make sure it is
tightly closed and stored upright.
~Observe the manufacturer's "use-by" dates and storage
instructions given on food to avoid the risk of food poisoning.
Storage times will depend on several factors, including the
freshness and quality of the food as well as the temperature at which
it is stored.
~Only use genuine original Miele accessories with this appliance.
Using spare parts or accessories from other manufacturers will
invalidate the guarantee, and Miele cannot accept liability.
Warning and Safety instructions
12

Stainless steel appliances
~Do not use sticky notes, transparent adhesive tape, masking tape
or other types of adhesive on the surface of the door. These
damage the surface, causing it to lose its dirt-repellent protective
coating.
~The high-quality surface of the door is susceptible to scratching.
Even fridge magnets can cause scratching.
Cleaning and care
~Do not use any oils or grease on the door seal, as these will
cause the seal to deteriorate and become porous with time.
~Danger of injury.
Do not use a steam cleaning appliance to clean this appliance. The
steam could reach electrical components and cause a short circuit.
~Do not use sharp edged objects to
– remove frost and ice,
– lift food.
They will damage the evaporator, causing irreversible damage to
the appliance.
~Never place electric heaters or candles in the appliance to
defrost it. These can damage the plastic parts.
~Do not use defrosting sprays or de-icers, as they could contain
substances which could damage the plastic parts and which may
cause the build up of gases and pose a danger to health.
Warning and Safety instructions
13

Disposal of your old appliance
~Before disposing of an old appliance, first make the door latch or
lock unusable.
This way you will prevent children from accidentally locking
themselves in and endangering their lives.
~Be careful not to damage any part of the pipework whilst awaiting
disposal, e.g. by
–puncturing the refrigerant channels in the evaporator.
–bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the eyes.
Warning and Safety instructions
14

Normal energy
consumption
Increased energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated
room.
Protected from direct
sunlight.
In direct sunlight.
Not near to a heat source
(radiator, oven).
Near to a heat source
(radiator, oven).
Where the ideal ambient room
temperature is approx. 20°C.
Where there is a high
ambient room temperature.
Ventilation gaps uncovered
and dusted regularly.
Ventilation gaps covered up
or dusty.
Compressor and metal grille
(heat exchanger) dusted at
least once a year.
Dust build-up on the
compressor and metal grille
(heat exchanger).
Temperature
setting
Refrigerator section 4 to 5 °C The lower or higher the
temperature set, the higher
the energy consumption.
How to save energy
15

Normal energy consumption Increased energy
consumption
Use Drawers, shelves and racks
arranged as they were when
the appliance was delivered.
Only open the doors when
necessary and for as short a
time as possible.
Store food in an organised
way.
Frequent opening of the door
for long periods will cause a
loss of coldness. The
appliance works harder to
cool down and the
compressor runs for longer
periods.
Take an insulated cool bag
with you when shopping and
place food in the appliance as
soon as possible.
Replace any food removed
rapidly, before it begins to
thaw.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food or food at room
temperature raises the
temperature inside the
appliance. The appliance
works harder to cool down
and the compressor runs for
longer periods.
Store food covered or
packaged.
The evaporation or
condensation of liquids will
cause a loss of coldness in the
refrigerator.
Place frozen food in the
refrigerator to defrost.
Do not over-fill the appliance
to allow air to circulate.
How to save energy
16

Before using for the first time
Important:
To ensure the correct functioning of
the appliance, let it stand for 1½ to
2 hours after transporting it to its final
location before connecting it to the
mains.
Protective foil
The stainless steel trim to the interior
shelves and the door shelves has a
layer of protective foil to prevent
damage during transportation.
On stainless steel appliances, the
stainless steel door (and sides,
depending on model) have a layer of
protective foil to prevent damage
during transportation.
^Do not remove this foil until the
appliance has been positioned in its
final location.
Cleaning
^Clean the inside of the appliance and
the accessories with lukewarm water
and a little washing-up liquid, and
then dry with a soft cloth.
Switching on
^Press the On/Off button. The
temperature display will light up.
The appliance begins to cool down, and
the temperature required shows in the
temperature display. The interior light
will come on when the door is opened.
Switching off
^Press the On/Off button until the
temperature display goes out.
The cooling system is switched off.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday:
^switch the appliance off,
^disconnect it from the mains. Switch
off at the wall and withdraw the plug
from the socket, or disconnect the
mains fuse.
^clean the appliance out and
^leave the door ajar to air the appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the door is left shut,
there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
17

It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.
The temperature in the appliance will
rise:
–the more often the door is opened
and the longer it is kept open,
– the more food that is placed in it,
– the warmer the food is which is being
put into it,
– the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
...intherefrigerator
We recommend a temperature of 5°C
in the middle of the refrigerator.
Setting the temperature
^Press the temperature selector button
repeatedly until the indicator light for
the temperature you want lights up in
the display.
The first time you press the button the
indicator light for the last temperature
you set will flash in the display.
The temperature value will change up
until the setting for 9 °C is reached. It
will then drop back to the 1 °C setting.
The newly selected temperature will be
adopted automatically after a short
while.
The indicator for the temperature which
has been set for the refrigerator will
light up constantly.
The temperature can be set slightly
colder than shown in the display if
wished.
The following example shows how this
option works:
The correct temperature
18

To set the temperature between 5 and
7 °C to be slightly colder:
^Press the temperature selector button
repeatedly until the indicator for 5 °C
lights up.
^Press the button for approx. another
5 seconds to set the temperature.
The colder temperature setting within
the small temperature range is now set.
However, this is not visible in the
temperature display.
Temperature display
The temperature display on the
control panel always shows the
required temperature.
The temperature can be adjusted from
1°Cto9°C.
The correct temperature
19

Super cool
The Super cool function can be used to
rapidly reduce the temperature in the
refrigerator section to its lowest setting
(depending on the room temperature).
Switching on Super cool
Super cool is particularly
recommended for faster chilling of
large amounts of fresh food or drink.
^Press the Super cool button. The
Super cool indicator light will come
on.
The appliance will then work at full
power to lower the temperature.
Switching off Super cool
The Super cool function will switch itself
off automatically after approx. 6 hours.
The indicator light will go out and the
appliance will run at normal power
again.
To save energy, the Super cool function
can be switched off once food and
drinks are sufficiently chilled.
^Press the Super cool button. The
Super cool indicator light will go out,
and the appliance will continue to
operate at normal power.
Dynamic cooling m
When the Dynamic cooling function is
not switched on, the natural circulation
of air in the appliance will cause
different temperature zones in the
refrigerator as the cold, heavy air will
sink to the lowest section of the
appliance. You should bear this in mind
when placing food in the appliance
(see "Using the refrigerator efficiently").
However, if you are placing a large
amount of food in the refrigerator at any
one time, it is a good idea to switch on
Dynamic cooling. This way you can
distribute the temperature inside the
appliance to all areas more evenly so
that all the food will be chilled to about
the same degree.
The temperature is set as normal with
the temperature control.
Dynamic cooling should also be
selected when:
– the ambient temperature in the room
is high (above approx. 30 °C), and
–the room humidity level is high.
Switching on Dynamic cooling
^Press the Dynamic cooling button
m. The Dynamic cooling indicator
light will come on.
Super cool and Dynamic cooling
20
