Miele K 11820 SD User manual

Operating and installation instructions
Refrigerator with DynamicCooling
K 11820 SD
K 12820 SD
K 12820 SD edt/cs
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 09 433 420
en-AU

Guide to the appliance .............................................4
Caring for the environment..........................................6
Warning and Safety instructions .....................................7
How to save energy ...............................................15
Switching on and off ..............................................17
Switching off for longer periods of time .................................17
The correct temperature ...........................................18
...intherefrigerator ...............................................18
Setting the temperature .............................................18
Temperature display ...............................................18
SuperCool and DynamicCooling ....................................19
SuperCool .......................................................19
DynamicCooling m................................................19
Using the refrigerator efficiently ....................................21
Different storage zones .............................................21
Food which should not be stored in a refrigerator.........................22
When shopping for food ............................................23
Storing food correctly ..............................................23
Fruit and vegetables .............................................23
Protein rich foods ...............................................23
Adjusting the interior fittings .......................................24
Moving the shelves ................................................24
Split shelf ........................................................24
Adjusting the door shelf/bottle shelf ...................................24
Automatic defrost ................................................26
Cleaning and care ................................................27
Cleaning the interior and accessories ..................................27
Cleaning the door and side panels ....................................28
Ventilation gaps ...................................................28
Door seal ........................................................28
Rear of appliance - metal grille .......................................29
Problem solving guide ............................................30
Noises ..........................................................32
After Sales ......................................................33
Electrical connection..............................................34
Contents

Installation ......................................................35
Side-by-side installation.............................................35
Location .........................................................35
Climate range ..................................................36
Ventilation........................................................36
Installation .......................................................36
Aligning the appliance..............................................36
Supporting the appliance door .......................................36
Appliance dimensions ..............................................37
Changing the door hinging .........................................38
Aligning the appliance door ........................................43
Building in the appliance ..........................................44
Contents

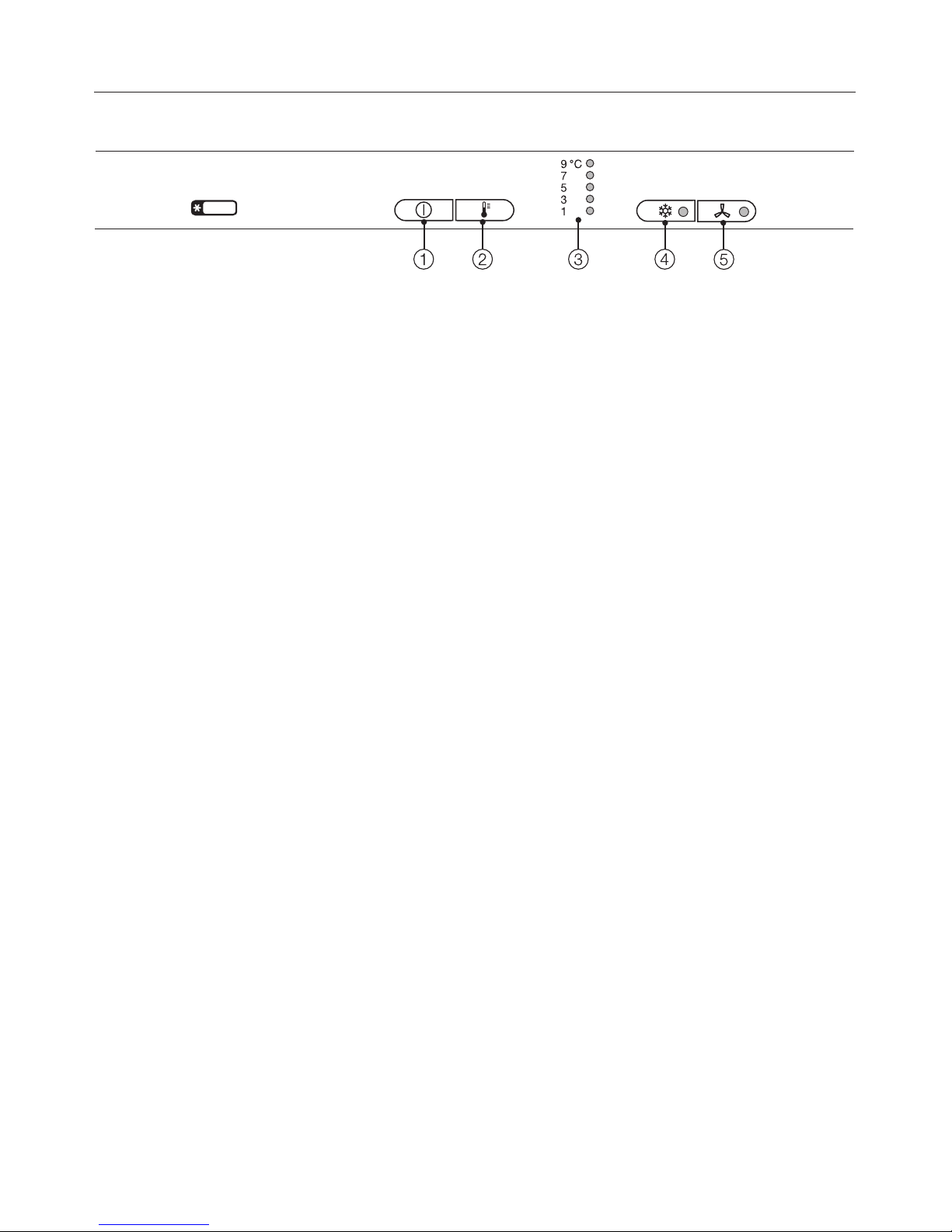

aOn/Off button
bTemperature selector button
cTemperature display
dSuperCool button and
indicator light
eDynamicCooling button and
indicator light
Guide to the appliance
4

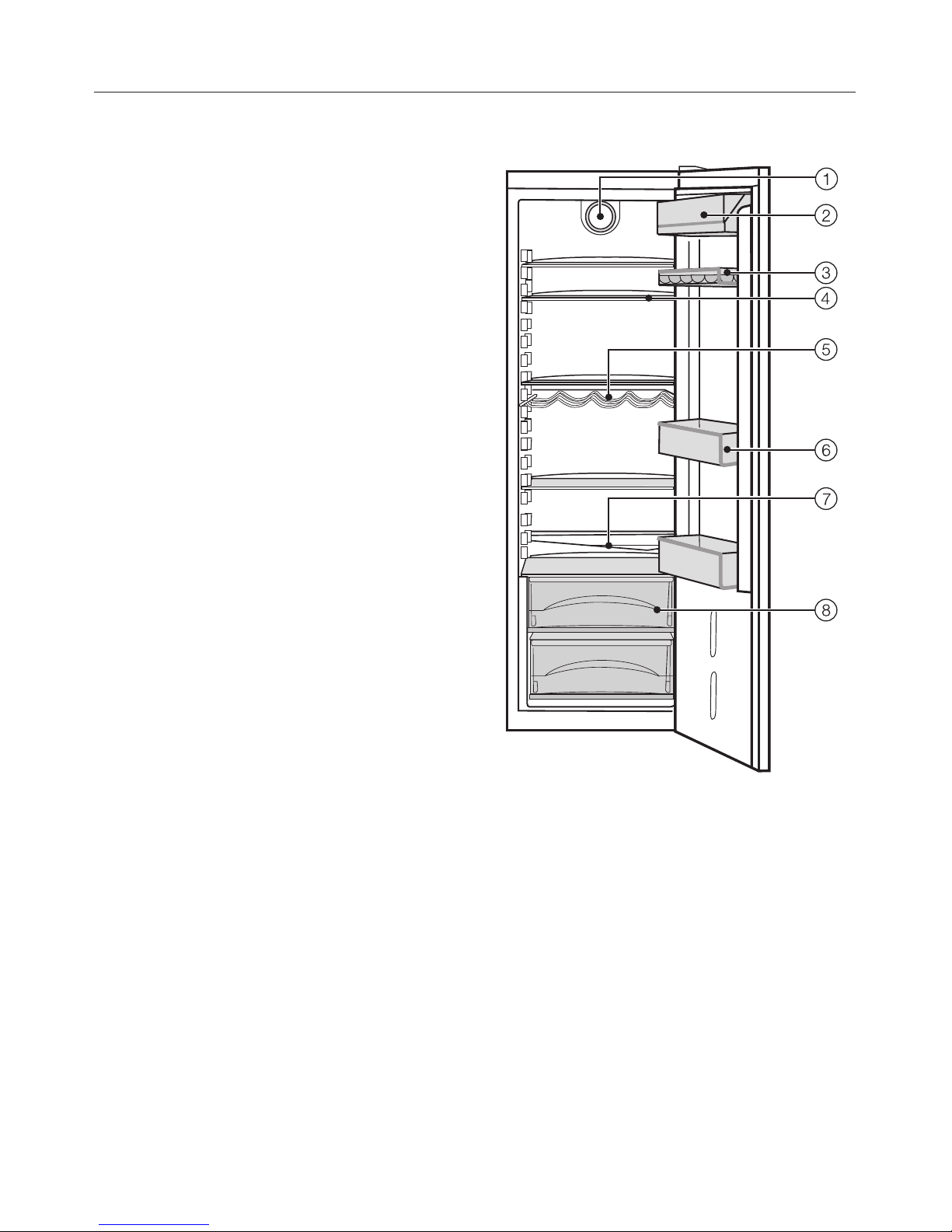

aDynamic cooling fan
bButter and cheese compartment
cEgg tray
dAdjustable shelves
eBottle rack
fBottle divider
gCondensate channel and
drain hole
hFruit and vegetable containers
Guide to the appliance
5

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposing of your old
appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse. Take care not to damage the
pipework at the back of it before or
during transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
6

This appliance complies with all relevant local and national safety
requirements. Improper use of the appliance can, however,
present a risk of both personal injury and material damage.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before installation and
before using it for the first time. They contain important notes on
the installation, safety, operation and care of the appliance. Miele
cannot be held liable for damage caused by non-compliance with
these Warning and Safety instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
~This appliance is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.
This appliance is not suitable for outdoor use.
~This appliance is intended for the cool storage food and drinks.
Any other usage is not supported by the manufacturer and could be
dangerous.
Warning and Safety instructions
7

~This appliance is not suitable for storing and refrigerating
medications, blood plasma, laboratory preparations or similar
substances or products. Incorrect use of the appliance may result in
damage to or spoiling of the food or drinks being stored.
Furthermore, the appliance must not be operated in areas where
explosions may occur.
Miele cannot be held liable for damage resulting from improper or
incorrect use of the appliance.
~This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person
responsible for their safety, and are able to recognise the dangers of
misuse.
Safety with children
~Young children must not be allowed to use this appliance.
~Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
~Cleaning and maintenance work may only be carried out by older
children under the supervision of an adult.
~Children should be supervised to ensure that they do not play
with the appliance. Keep small children away from the appliance at
all times to avoid the risk of injury.
Warning and Safety instructions
8

~Danger of suffocation! Children may be able to wrap themselves
in packing material or pull it over their heads with the risk of
suffocation. Keep children away from any packing material.
Technical safety
~The refrigerant circuit has been checked for leaks. This appliance
complies with all current local and national safety requirements.
~This appliance contains the coolant Isobutane (R600a), a natural
gas which is environmentally friendly. Although it is flammable, it
does not damage the ozone layer and does not increase the
greenhouse effect.
The use of this coolant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the
compressor, you might be able to hear the coolant flowing around
the system. This is unavoidable, and does not have any adverse
effect on the performance of the appliance.
Care must be taken during the transportation and setting up of the
appliance that no parts of the cooling system are damaged. Leaking
refrigerant can damage the eyes.
In the event of any damage:
–avoid any flames or anything which creates a spark,
–switch off at the mains and unplug the appliance,
–ventilate the room where the appliance is located for several
minutes, and
–call Miele.
Warning and Safety instructions
9

~The more coolant there is in an appliance, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in
a small room, there is the danger of combustible gases building up.
For every8gofcoolant at least 1 m3of room space is required. The
amount of coolant in the appliance is stated on the data plate inside
the appliance.
~Before connecting the appliance to the mains supply, make sure
that the rating on the data plate corresponds to the voltage and
frequency of the household supply. This data must correspond in
order to avoid risk of damage to the appliance.
Consult a qualified electrician if in any doubt.
~The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
tested regularly and, where there is any doubt, the household wiring
system should be inspected by a qualified electrician.
~If the connection cable is faulty, it must only be replaced by a
Miele approved service technician to protect the user from danger.
~Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These do not guarantee the
required safety of the appliance (e.g. danger of overheating).
~If moisture gets into electrical components, it could cause a short
circuit.
Therefore, do not operate this appliance in areas which are exposed
to moisture.
~This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Warning and Safety instructions
10

~A damaged appliance is dangerous. Check your appliance for
any visible damage. Never install or attempt to use a damaged
appliance.
~During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
–the mains fuse has been disconnected, or
–the screw-out fuse is removed (in countries where this is
applicable), or
– it is switched off at the wall socket and the plug is withdrawn from
the socket, or it is switched off at the isolator.
~Repairs and other work by unqualified persons could be
dangerous. Installation work and repairs to electrical appliances
must only be carried out by a Miele approved service technician.
~The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
~Faulty components must only be replaced by genuine Miele
Original spare parts. The manufacturer can only guarantee the
safety of the appliance when Miele replacement parts are used.
Correct use
~The appliance is designed for use within a certain climate range
(ambient temperatures), and should not be used outside this range.
The climate range of the appliance is stated on the data plate inside
the appliance. Installing the appliance in a room with too low an
ambient temperature, e.g. a garage, can lead to the appliance
switching off for longer periods so that it cannot maintain the
required temperature.
Warning and Safety instructions
11

~To ensure proper air flow in and out of the appliance, the air vents
must not be covered or blocked in any way.
Were the air vents to be blocked, it would increase the electricity
consumption and could cause damage to the appliance.
~Make sure that any oil, or foods containing oil, do not come into
contact with plastic components as this could cause stress cracks.
~Do not store explosive materials in the appliance or any products
containing propellants (e.g. spray cans). Flammable gases can
ignite if they come into contact with electrical components. Danger
of fire and explosion!
~Do not operate any electrical equipment (e.g. an electric
ice-cream maker) inside the appliance. Danger of sparking and
explosion!
~If storing alcohol with a high percentage proof, make sure it is
tightly closed and stored upright in the refrigerator. Danger of
explosion!
~Food stored for too long may present a risk of food poisoning.
Storage times will depend on several factors, including the
freshness and quality of the food, as well as the temperature at
which it is stored. Follow the instructions given on the food
manufacturer's packaging regarding storage conditions and "use
by" dates.
~Use only Miele Original spare parts. If spare parts or accessories
from other manufacturers are used, the warranty will be invalidated,
and Miele cannot accept liability.
Warning and Safety instructions
12

The following applies to stainless steel appliances:
~Do not place sticky notes, adhesive tape, masking tape or any
other adhesive agent on the treated surface of the door. The coating
will become damaged and lose its protective properties against
soiling.
~The high quality treated surface of the door is susceptible to
scratching and even magnets can cause damage to the surface.
Cleaning and care
~Do not use any oils or grease on the door seal, as these will
cause the seal to deteriorate and become porous with time.
~Do not use a steam-cleaning appliance to clean this appliance.
Pressurised steam could reach the electrical components and
cause a short circuit.
~Do not use sharp edged objects to
– remove frost and ice,
– separate frozen foods.
They will damage the evaporator, causing irreversible damage to
the appliance.
~Never place electric heaters or candles in the appliance to
defrost it. These can damage the plastic parts.
~Do not use defrosting sprays or de-icers, as they might contain
substances which could damage the plastic parts or which could
cause a build-up of gases and pose a danger to health.
Warning and Safety instructions
13

Disposal of your old appliance
~Before disposing of an old appliance, first make the door lock
unusable.
This way you will prevent children from accidentally locking
themselves in and endangering their lives.
~Be careful not to damage any part of the pipework whilst awaiting
disposal, e.g. by
–puncturing the refrigerant channels in the condenser,
–bending any pipework, or
– scratching the surface coating.
Splashes of refrigerant can harm the eyes.
Warning and Safety instructions
14

Normal energy
consumption
Increased energy
consumption
Installation/Mainte
nance
In a ventilated room. In an enclosed,
unventilated room.
Protected from direct
sunlight.
In direct sunlight.
Not situated near a heat
source (radiator, oven).
Situated near a heat source
(radiator, oven).
Where the ideal ambient room
temperature is approx. 20 °C.
Where the room temperature
is high.
Where the cross-section of
the air inlet and outlet is not
covered and kept free of
dust.
Where the air inlets and
outlets are covered or dusty.
The compressor and the
metal grille (heat exchanger)
on the rear wall of the
appliance must be dusted at
least once a year.
Dust deposits on the
compressor and metal grille
(heat exchanger) increase
energy consumption.
Temperature
settings
Refrigerator section 4 to 5 °C The lower the temperature in
the appliance, the higher the
energy consumption.
How to save energy
15

Normal energy
consumption
Increased energy
consumption
Use Do not change the
arrangement of the drawers
and shelves as when
delivered.
Only open the door when
necessary and for as short a
time as possible.
Store food in an organised
way.
Frequent opening of the door
for long periods will cause a
loss of coldness. The
appliance will try to cool down
and the running time of the
compressor will increase.
Take a cooler bag when
shopping and load food in the
appliance as quickly as
possible on your return home.
When food is taken out of the
refrigerator, be sure to put it
back before it becomes warm.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Warm food and food brought
in from room temperature add
heat to the appliance.
The appliance will try to cool
down and the running time of
the compressor will increase.
Store food covered or
packaged.
The evaporation or
condensation of liquids will
cause a loss of coldness in the
refrigerator.
Place frozen food in the
refrigerator to defrost.
Do not overfill the appliance to
allow air to circulate.
How to save energy
16

Before using for the first time
To ensure the correct functioning of
the appliance, let it stand for
between ½ and 1 hour after
transporting it to its final location
before connecting it to the mains.
Protective foil
The stainless steel strips have a layer of
protective foil to prevent scratching
during transportation.
On stainless steel appliances, the
stainless steel door and possibly the
sides are covered in a protective foil.
^Remove the protective foil only after
the appliance has been installed in
its intended location.
Cleaning
^Clean the inside of the appliance and
the accessories with lukewarm water
and then dry with a soft cloth.
Switching on
^Press the On/Off button. The
temperature display will light up.
The appliance begins to cool down, and
the temperature required shows in the
temperature display. The interior light
will come on when the door is opened.
Switching off
^Press the On/Off button until the
temperature display goes out.
The cooling system is switched off.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday:
^switch the appliance off,
^switch off at the wall and withdraw
the plug from the socket, or
disconnect the mains fuse or remove
the screw-out fuse in countries where
this is applicable,
^clean the appliance out and
^leave the door ajar to air the appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the door is left shut,
there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
17

It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.
The temperature in the appliance will
rise:
–the more often the door is opened
and the longer it is kept open,
– the more food that is stored in it,
– the warmer the food is which is being
put into it,
– the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
...intherefrigerator
We recommend a temperature of 5°C
in the middle of the refrigerator.
Setting the temperature

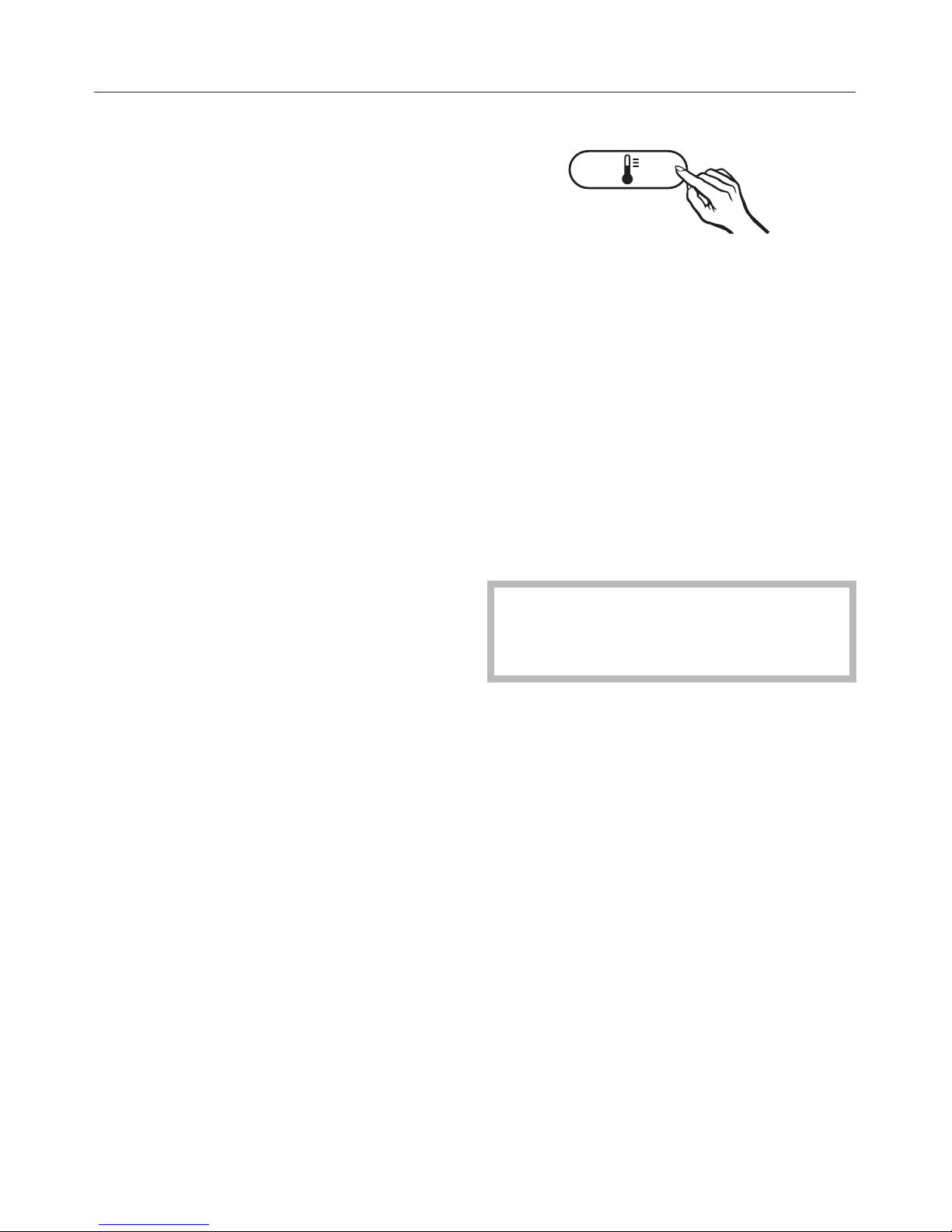

^Press the temperature button
repeatedly until the indicator light for
the temperature you want lights up in
the display.
The first time you press the button the
indicator light for the last temperature
you set will flash in the display.
The temperature value will change up
until the setting for 9 °C is reached. It
will then drop back to the 1 °C setting.
Temperature display
The temperature display on the
control panel always shows the
required temperature.
The temperature can be adjusted from:
1°Cto9°C
The correct temperature
18

SuperCool
The SuperCool function can be used to
rapidly reduce the temperature in the
refrigerator section to its lowest setting
(depending on the room temperature).
Switching on SuperCool
SuperCool is particularly recommended
for faster chilling of large amounts of
fresh food or drink.
^Press the SuperCool button. The
SuperCool indicator light will come
on.
The appliance will then work at full
power to lower the temperature.
Switching off SuperCool
The SuperCool function will switch itself
off automatically after approx. 6 hours.
The indicator light will go out and the
appliance will run at normal power
again.
To save energy, the SuperCool function
can be switched off once food and
drinks are sufficiently chilled.
^Press the SuperCool button. The
SuperCool indicator light will go out,
and the appliance will continue to
operate at normal power.
DynamicCooling m
When the DynamicCooling function is
not switched on, the natural circulation
of air in the appliance will cause
different temperature zones in the
refrigerator as the cold, heavy air will
sink to the lowest section of the
appliance. You should bear this in mind
when placing food in the appliance
(see "Using the refrigerator efficiently").
However, if you are placing a large
amount of food in the refrigerator at any
one time, it is a good idea to switch on
DynamicCooling. This way you can
distribute the temperature inside the
appliance to all areas more evenly so
that all the food will be chilled to about
the same degree.
The temperature is set as normal with
the temperature control.
DynamicCooling should also be
selected when:
– the ambient temperature in the room
is high (above approx. 33 °C), and
–the room humidity level is high.
Switching on DynamicCooling
^Press the DynamicCooling button m.
The DynamicCooling indicator light
will come on.
SuperCool and DynamicCooling
19

Switching off DynamicCooling
^Press the DynamicCooling button m.
The DynamicCooling indicator light
will go out.
The fan automatically switches off
when the door is open.
SuperCool and DynamicCooling
20
