Miele Imperial DIA 1070-2 EX Specification sheet

Operating and Installation Instructions
..............................................................................................................................
Cooker Hoods
DIA 1076-2 DIA 1076-2 EX
DIA 1070-2 DIA 1070-2 EX
Q

Contents
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operation
Main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Switching on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Run-on option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching the lighting on or off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filter operating time counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Reading the filter operating time counter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Altering the filter operating time counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning and care
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

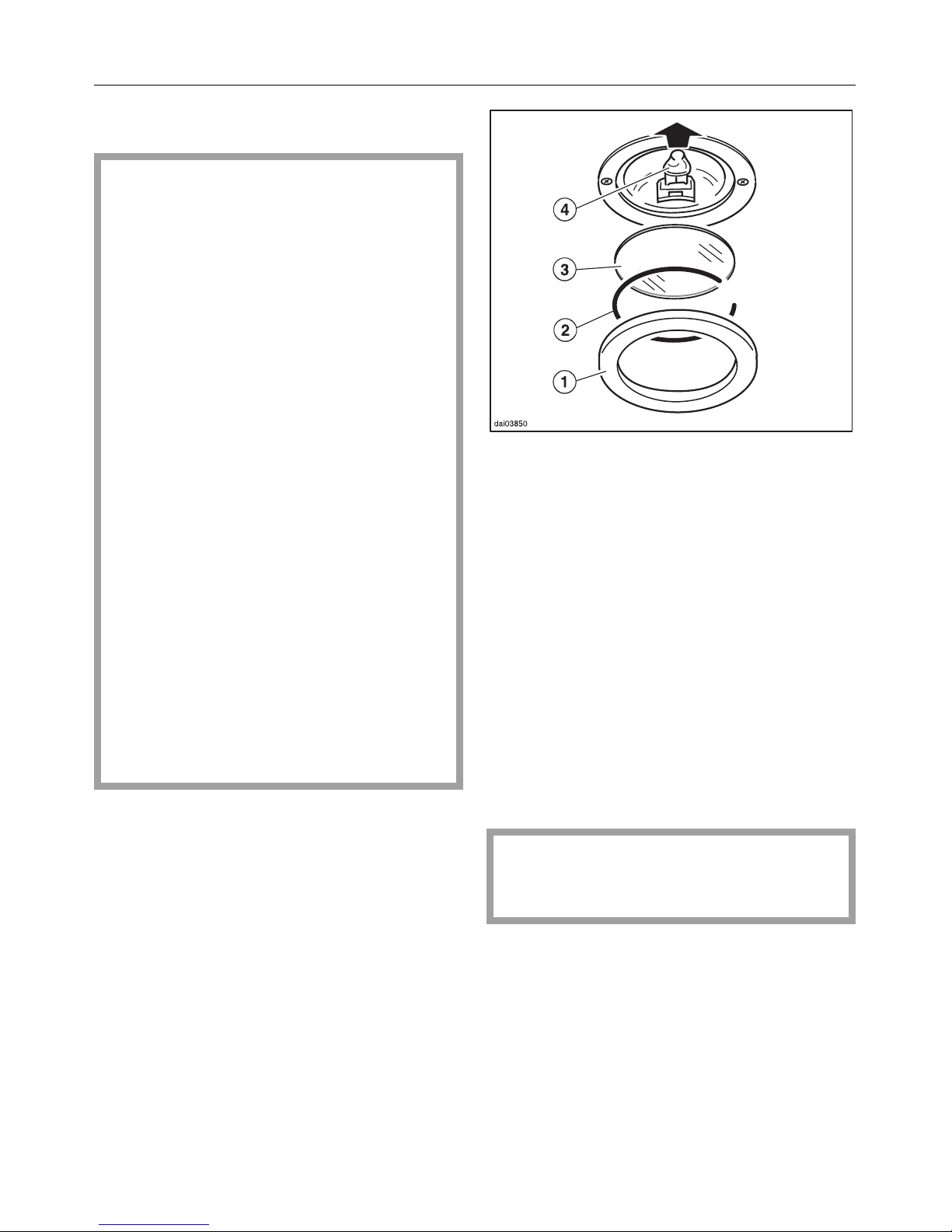

Changing a halogen light bulb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

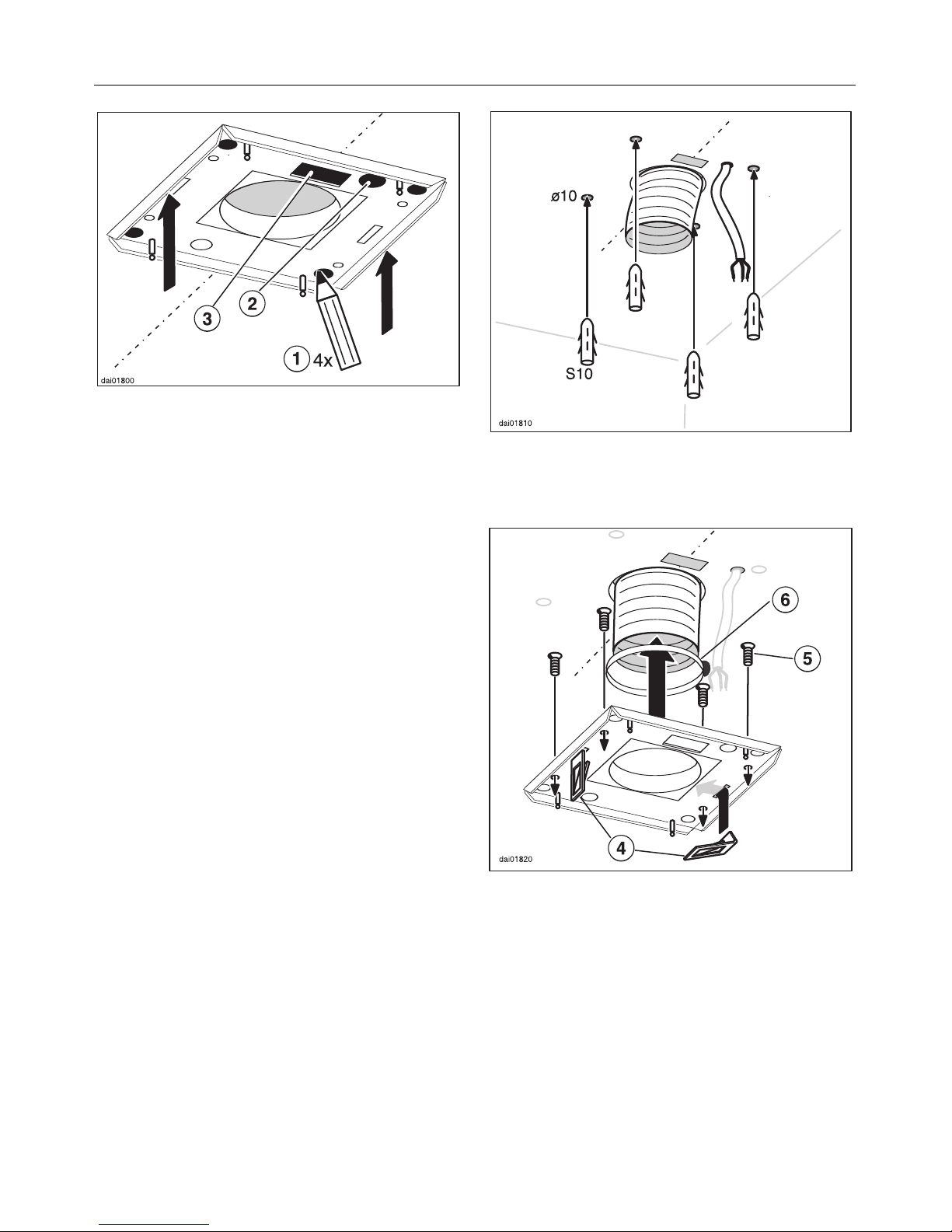

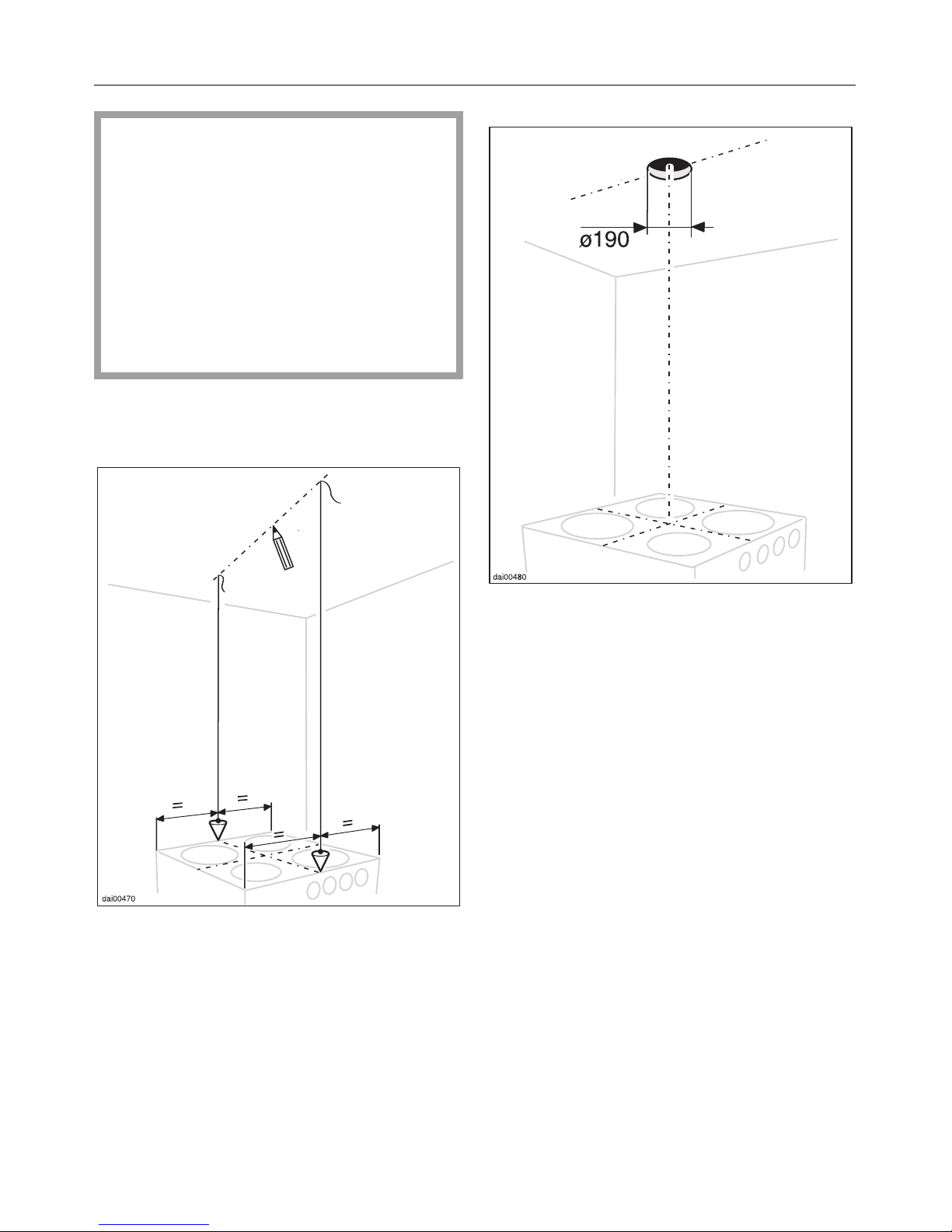

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Glass panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Installation - extraction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Connection for extraction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
External fans. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
echnical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Contents
2

Caring for the environment
Disposal of packing material
The transport and protective packa-
ging has been selected from materials
which are environmentally friendly and
can normally be recycled.
Rather than just throwing these ma-
terials away, please ensure they are of-
fered for recycling.
Disposal of your old appliance
Old machines / appliances contain ma-
terials which can be reclaimed or re-
cycled. Please contact your dealer,
your waste collection centre or scrap
merchant about potential recycling
schemes.
Ensure that the machine / appliance
presents no danger to children while
being stored for disposal.
Before discarding an old ap-
pliance render it useless. Discon-
nect the cable directly behind the ap-
pliance to prevent misuse.
Caring for the environment
3

Guide to the appliance
Guide to the appliance
4

bower
c Vapour guide (canopy)
d Glass panels
e Control panel
f Halogen lighting

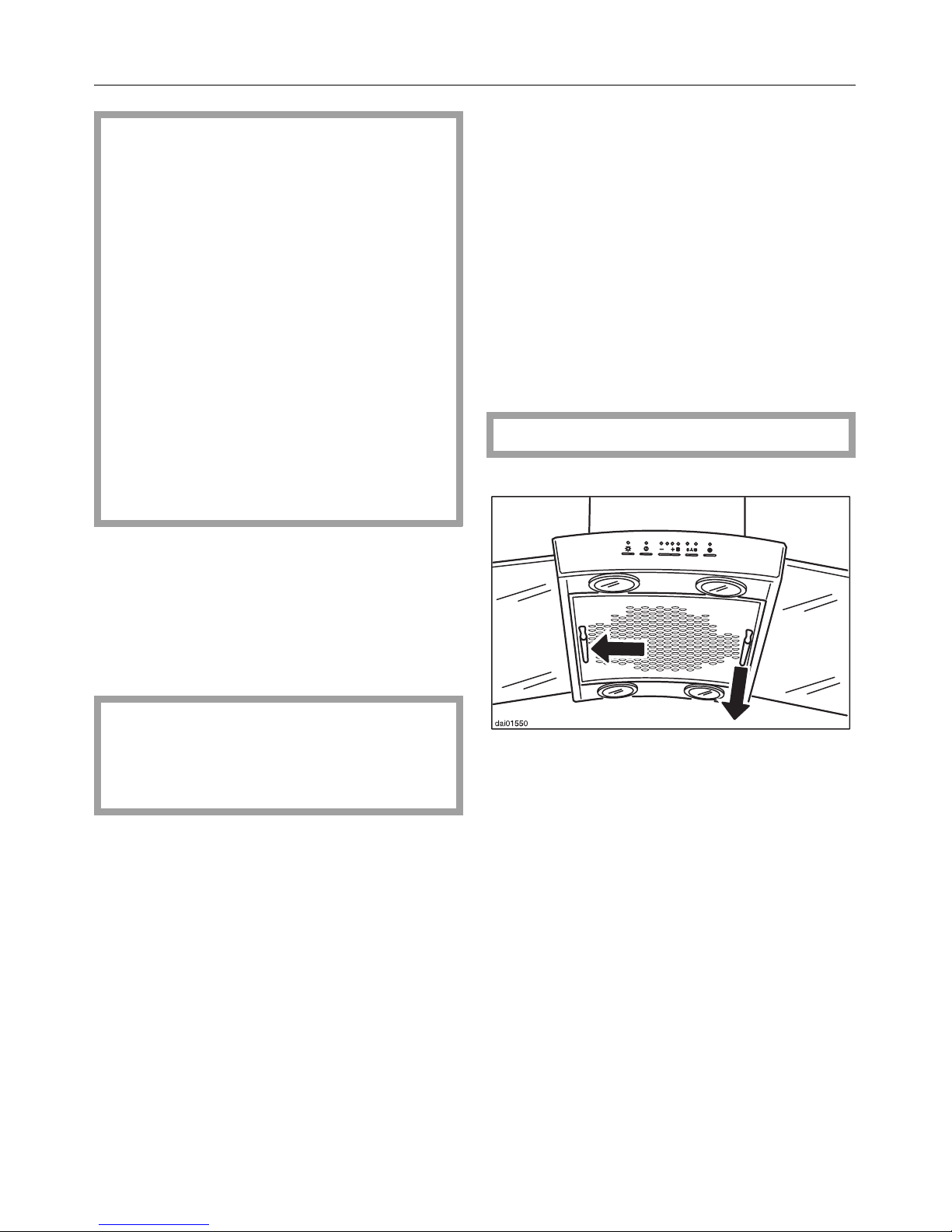

g Grease filter
h Main switch
If the cooker hood is not to be used for
any length of time (eg overnight or dur-
ing holidays), switch it off using the
main switch.
i Hob lighting control
This control is used to switch the hob
lighting on and off, and can be used
when the cooker hood is not in oper-
ation.

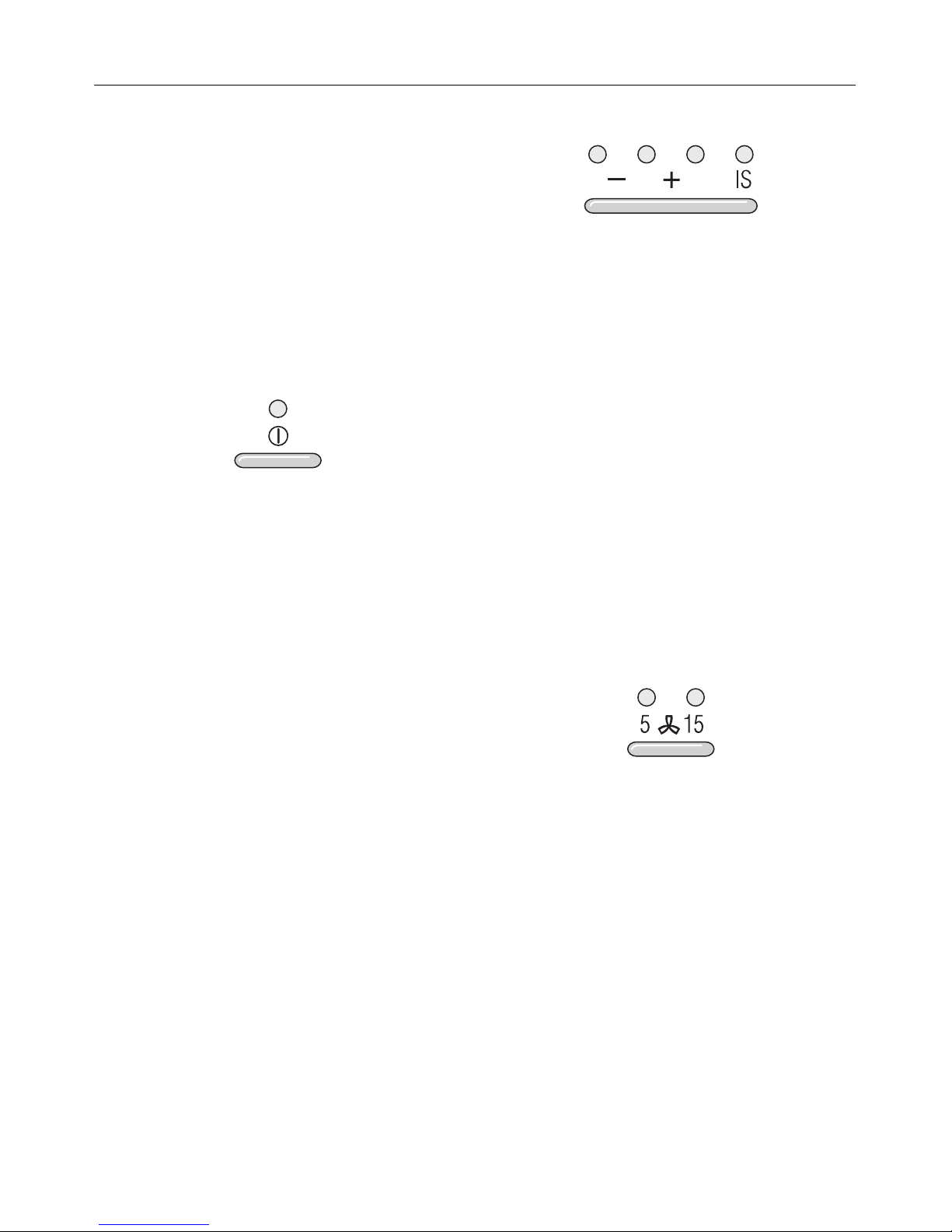

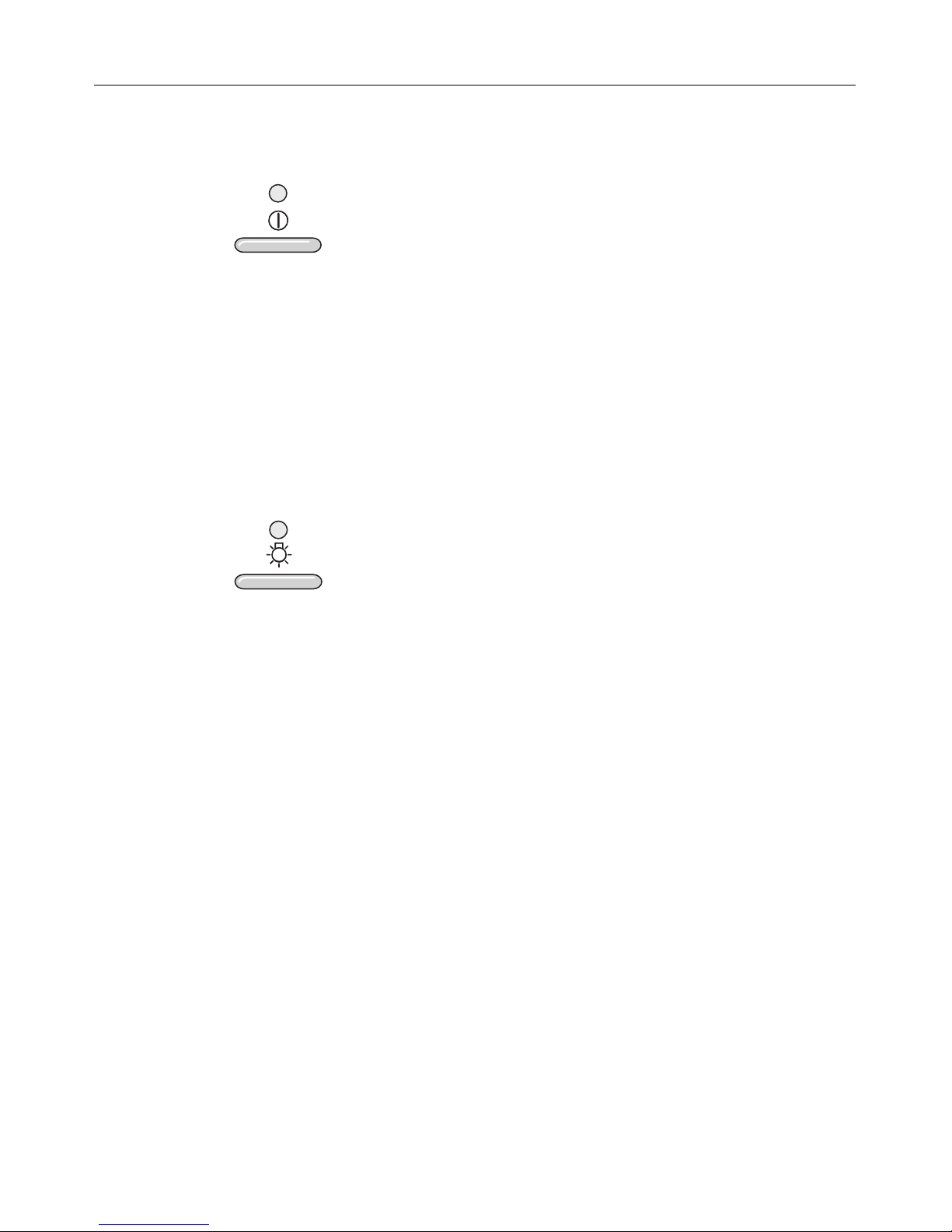

jON-OFF touch control
This control is used to switch the fan on
or off.
k – / + touch controls
You can select one of three power le-
vels or an intensive level, depending on
how much the air needs to be filtered.

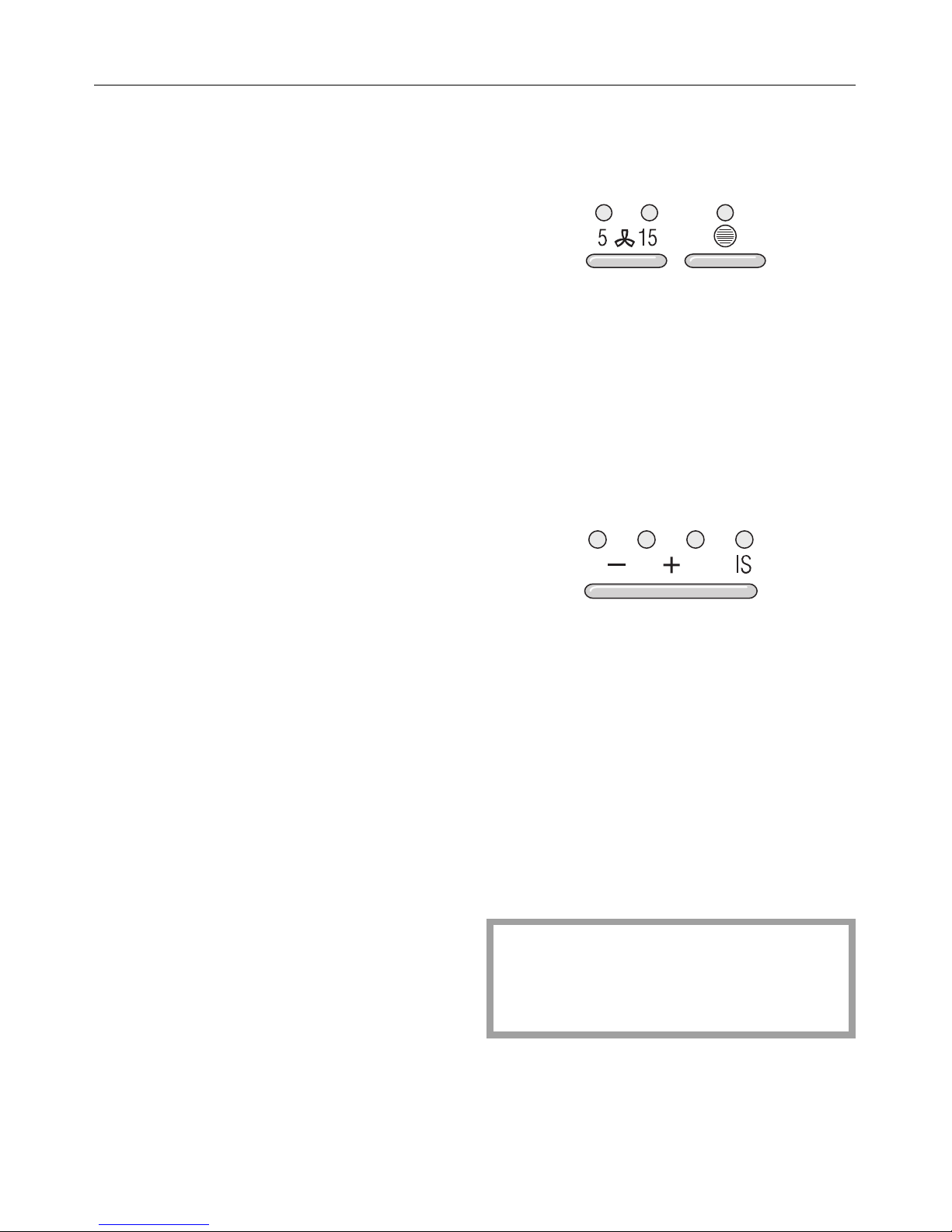

l ouch control for the
run-on option
This control activates the run-on option.
The fan is switched off automatically
after either 5 or 15 minutes.
m ouch control for the
grease filter
The indicator lamp on the grease filter
touch control lights up when the grease
filter needs to be cleaned.
The touch control is used
– to count down the time which is
shown on the filter operating hours
counter as the fan is used (see sec-
tion on ,,Operation/Filter operating
hours counter“).
– together with the run-on option touch
control to alter the number of hours
to be counted by the filter operating
hours counter (see section ,,Oper-
ation / Altering the filter operating
hours counter“).
Guide to the appliance
5

Description of the functions
The cooker hood works with
. . . Air Extraction:
The air is drawn in and cleaned by the
grease filter and directed outside.
The cooker hood is fitted with a
non-return flap.
This flap is closed when the cooker
hood is switched off. No exchange of
room air and outside air can take
place. When the cooker hood is
switched on the non-return flap opens
for the cooking smells to be blown di-
rectly outside.
. . . an External Fan:
The EX models of cooker hoods are de-
signed to be connected with an
external fan.
The external fan is connected to the
cooker hood by means of a control
cable and is operated by the control
panel on the cooker hood.
Description of the functions
6

Warning and Safety instructions
This appliance meets statutory
safety requirements. Inappropriate
use could however lead to risk of ac-
cidents to the user and damage to
the appliance.
Read the operating instructions be-
fore using this machine for the first
time. They contain important infor-
mation about the safety, installation,
use and maintenance of the ma-
chine. This will avoid the risk of acci-
dents and damage to the machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner of
the machine.
Appropriate use of the cooker
hood
The appliance is intended for do-
mestic use only.
The manufacturer cannot be held re-
sponsible for any damage caused by
improper use or by non-observance of
these instructions.
echnical safety
Before connecting the cooker
hood to the mains supply make
sure that the voltage and frequency of
the household supply correspond to
the rating on the data plate, otherwise
the appliance could be damaged. Con-
sult a competent person if in doubt.
The electrical safety of this ap-
pliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national regulations. It is most import-
ant that this basic safety requirement is
tested by a qualified electrician.
The manufacturer cannot be held re-
sponsible for the consequences of an
inadequate earthing system, (e.g. elec-
tric shock).
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to en-
sure safety.
Repairs and other work by unqualified
persons could be dangerous.
The appliance is only completely
isolated from the electricity supply
when:
–it is switched off at the fused unit or
the fuse is withdrawn, or
–it is switched off at the wall socket
and the plug removed (do not pull
on the cable, only on the plug), or
–the mains fuse is withdrawn; or the
screw-out fuse is removed, (in coun-
tries where this is applicable).
Ensure current is not restored to the ap-
pliance while maintenance or repair
work is being carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
Warning and Safety instructions
7

Use of the appliance
Never use an open flame beneath
the cooker hood. To avoid the
danger of fire do not flambéor grill
dishes. When switched on the cooker
hood could draw flames into the filters.
Fat particles drawn into the cooker
hood present a fire hazard.
When using the cooker hood over
a gas hob ensure that any burners
in use are always covered by a pan.
Otherwise flames could be drawn up
by the suction of the cooker hood,
parts of which could then be damaged.
Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
Do not use the cooker hood with-
out the grease filter in place.
This way you will avoid the risk of
grease and dirt getting into the ap-
pliance and hindering its smooth oper-
ation.
Clean or change the filter regularly.
An over-greasy filter is a fire ha-
zard.
Under no circumstances use a
steam cleaner to clean this ap-
pliance.
Pressurised steam could reach the
electrical components and cause a
short circuit.
Installation
The distance between the top of
the cooker/hob and the bottom of
the cooker hood must measure at least:
–55 cm above electric cookers/hobs
–65 cm above gas cookers/hobs.
A distance of 65 cm above electric
cookers/hobs may be preferable to en-
able the user to work more comfortably.
Safety regulations prohibit the fit-
ting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable ma-
terial. These can be obtained from the
Miele Spare Parts department or from
builders’merchants.
The appliance must not be con-
nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into a
chimney or ventilation duct no longer
used for other purposes, take profes-
sional advice.
Warning and Safety instructions
8

When using the cooker hood at the
same time as another heating ap-
pliance which depends on the air in the
room, (e.g. gas, oil or coal fired
heaters, continuous flow or other water
heaters, gas cooker, gas hob or gas
oven) special care must be taken, as
the action of the cooker hood extracts
air from the room and neighbouring
rooms, which these types of heater
need for combustion.
In order to ensure safe operation, and
to prevent the gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation simulta-
neously, an underpressure in the room
of 0.04 mbar (4 pa) is the maximum
permissible.
Ventilation can be maintained by air in-
lets which cannot be blocked, in win-
dows, doors and outside wall vents, or
by other technical measures, such as
ensuring that the extractor can only be
switched on when the heating ap-
pliance is switched off or vice-versa.
N.B.: The overall ventilation condition of
the dwelling must be taken into ac-
count.
If in any doubt, the advice of a compe-
tent builder or, for gas, a “Corgi”instal-
ler must be sought.
In countries which may be subject
to infestation by cockroaches or
other vermin, pay particular attention to
keeping the appliance and its surround-
ings in a clean condition at all times.
Any damage which might be caused
by cockroaches or other vermin will not
be covered by the appliance guaran-
tee.
only for appliances with external fans
For appliances with an external fan
motor fitted (EX models) the connection
of the two units must be made using
the connection cable and the plug con-
nectors. Make sure the correct combi-
nation of the two appliances has been
selected.
Disposal of your old machine /
appliance
Before discarding an old machine /
appliance switch off and discon-
nect from the power supply. Cut off and
render any plug useless. Cut off the
cable directly behind the appliance to
prevent misuse. This should be done
by a competent person.
The manufacturer cannot be held re-
sponsible for any damage caused
by non-observance of these Warn-
ing and Safety instructions.
Warning and Safety instructions
9

Operation
Main switch
When the main switch is set to “I”the
cooker hood is ready for operation.
When the cooker hood is switched off
using the main switch, it will retain the
most recent setting when next switched
on.
Switching on
–Press the On/Off touch control.
The indicator lamp for this touch control
lights up and at the same time the
motor switches on. The motor runs at
the setting for power level “ll”.
Selecting the power level
Depending on how much the air needs
to be filtered, there are four power le-
vels available. For normal cooking a
low to medium level is usually suffi-
cient. For frying or cooking food with a
strong aroma the highest level is recom-
mended. Depending on model, the top
setting is marked IS (Intensive Setting).
–Use the – / + touch control to select
the power level required.
Touch control +=higher setting.
Touch control – = lower setting.
The indicator lamps show which power
level has been chosen.
Run-on option
If the air still needs to be cleared after
cooking, the cooker hood can be set to
continue running.
The fan motor will then be switched off
automatically after a further 5 or 15
minutes.
–Press the run-on option touch control.
Press once = 5 minutes run-on time
Press twice = 15 minutes run-on time
Press three times = fan is switched off
The relevant indicator lamp glows to
confirm the time selected.
To deactivate the run-on option time,
press the run-on option touch control
until both control lamps go out.
Operation
10

Switching off
–Use the On/Off touch control to
switch the fan off.
Switching the lighting on or off
The lighting for illuminating the hob can
be switched on or off independently of
the fan.
–Press the lighting touch control.
When it is switched on the lighting indi-
cator lamp glows.
Operation
11

Filter operating time counter
An indicator lamp shows when the
grease filter needs to be changed. The
operating time counter for the grease fil-
ter is set at the factory for a certain
number of hours but these can be
changed.
After this set time has elapsed, the
grease filter touch control indicator
lamp glows. The grease filter must then
be cleaned.
After the grease filter has been cleaned
and put back in place, the filter opera-
ting time counter must be re-set.
–To do this press the grease filter
touch control and hold for about 4
seconds.
The indicator lamp will go out.
Reading the filter operating
time counter
Before reaching the end of the period
set, you can check the percentage of
the time set which has already passed.
–Use the On/Off touch control to
switch the fan on.
–Press the grease filter touch control.
One or several of the indicator lamps
for the – / + touch control will flash.
The number of flashing lamps shows
the percentage of the operating time
set which has already been used up.
1 lamp = 25%
2 lamps = 50%
3 lamps = 75%
4 lamps = 100%
The operating hours completed remain
in the memory, even when the machine
is switched off or there is a power cut.
Operation
12

Altering the filter operating
time counter
The operating time counter for the
grease filter is set at 30 hours. This can
be lengthened or shortened. You can
choose from 20, 30, 40 or 50 hours.
–Use the On/Off touch control to
switch the fan off.
–Press the run-on option touch control
and the grease filter touch control at
the same time.
The indicator lamp for the grease filter
touch control and one of the control
lamps for the – / + touch control will
flash.
The – / + touch control lamps show the
time which has been set:
1st lamp from left = 20 hours
2nd lamp from left = 30 hours
3rd lamp from left = 40 hours
4th lamp from left = 50 hours
–Use the – / + touch control to select
the desired time.
–Confirm the procedure by pressing
the grease filter touch control.
If the procedure is not confirmed
within 4 minutes of programming
the steps, the cooker hood will auto-
matically revert to the “old”data.
Operation
13

Cleaning and care
Before any cleaning or maintenance
work the cooker hood must be dis-
connected from the mains supply.
Ensure that, depending on the con-
nection,
–it is switched off at the fused unit
or the fuse is withdrawn, or
–it is switched off at the wall socket
and the plug removed (do not pull
on the cable, only on the plug), or
–the mains fuse is withdrawn; or
–the screw-out fuse is removed, (in
countries where this is applicable).
Ensure current is not restored to the
appliance while maintenance or re-
pair work is being carried out.
Housing
The cooker hood housing may be
cleaned using hot water to which a little
mild washing-up liquid has been
added. Dry with a soft cloth.
Never use a cleaner which scours
or contains chlorine, acids or soda.
These would damage the surface of
the cooker hood.
For stainless steel surfaces a mild non-
abrasive proprietary stainless steel
cleaner is suitable.
Grease filter
A re-usable metal grease filter is fitted
which removes solid particles (oil, dust,
etc.) from the kitchen vapours, prevent-
ing soiling of the cooker hood.
The grease filter should be cleaned
regularly to avoid a build-up of fat, (ap-
prox. 3-4 weeks on average, but
sooner if necessary). Always clean the
filter immediately the lamp for the
grease filter touch control comes on.
An over-greasy filter is a fire hazard.
–To remove the grease filter hold both
handles. Now press the handle on
the left sideways towards the outer
edge (in the direction of the horizon-
tal arrow) and use the handle on the
right to remove the filter by pulling
downwards gently.
Cleaning and care
14

Clean the filter
–by hand: with a scrubbing brush in
a mild solution of warm water and
washing up liquid.
–in a dishwasher: place the filter with
the short side upright in the lower
basket, ensuring the spray arm is
not obstructed.
Depending on the cleaning agent
used, cleaning the grease filter in a
dishwasher can cause permanent
discolouration of the surface of the
filter. However, this will not affect
the functioning of the grease filter in
any way.
–After cleaning leave the filter to dry
for a while on an absorbent surface
before putting it back in place.
–When removing the filter for cleaning
also clean off any residues of oil or
fat from the housing, to prevent the
risk of these catching fire.
–To replace the filter, insert the left-
hand side first and then push the
right-hand side upwards until the fil-
ter fits into place.
–After putting the grease filters back
in place, press the grease filter touch
control for approx. 4 seconds to re-
set the operating time counter.
Cleaning and care
15

Changing a halogen light bulb
Depending on the connection, dis-
connect the cooker hood from the
main supply by
–switching it off at the fused unit, or
–switching it off at the wall socket
and removing the plug (do not pull
on the cable, only on the plug), or
–the mains fuse is withdrawn, or
- the screw-out fuse is removed, (in
countries where this is applicable).
Ensure current is not restored to the
appliance while maintenance or re-
pair work is being carried out.
When in use the halogen bulbs
become very hot. Do not touch im-
mediately as they remain hot for
some time after being switched off.
Do not touch the bulb surface di-
rectly when changing the bulb as
this will damage it (fat particles ad-
here to the surface). Please follow
the manufacturer’s instructions.
–To change the halogen bulb first
remove the outer ring b.
–Then detach the circlip ctaking
care that the glass cover ddoes
not fall out.
–The halogen bulb eis fitted to a
push-in connection socket. To re-
place, pull out the old bulb and fit a
new one.
–Replace the glass cover dand
press the circlip ccarefully into the
holder.
–Now replace the outer ring b.
Never use the lighting without the
glass lamp cover as it has a filter de-
signed to cut out harmful rays.
Cleaning and care
16

After sales service
In the event of any faults which you can-
not remedy, please contact:
–Your dealer
or
–Your nearest Service Dept., (see ad-
dress on back page).
When contacting the Service depart-
ment, please quote the Model and Ser-
ial number of your appliance, both of
which are given on the data plate
which is visible on removing the grease
filter.
After sales service
17

Electrical connection
Electrical connection
All electrical work should only be under-
taken by a suitably qualified and com-
petent person in strict accordance with
national and local safety regulations.
The data plate gives the necessary
data for connection. This is visible
when the rear grease filter has been
removed.
The cooker hood is supplied for con-
nection to a 220-230 V single phase
50 Hz supply.
Connection should be made either by a
double pole fused spur connection
unit, or a fused plug and switched
socket. The On-Off switch should be
easily accessible after the appliance
has been built in. For extra safety it is
advisable to install a residual current
device (RCD) with a trip current of 30
mA.
Important
The wires in the mains lead are col-
oured in accordance with the following
code:
Green/yellow = earth
Blue = neutral
Brown = live.
If the appliance is to be connected via
a plug and socket, please note the fol-
lowing:
As the colours of the wires in the mains
lead of this appliance may not corre-
spond with the coloured markings ident-
ifying the terminals in your plug, pro-
ceed as follows:
The wire which is coloured green and
yellow must be connected to the termi-
nal in the plug which is marked with the
letter E or by the earth symbol zor col-
oured green or green and yellow.
The wire which is coloured blue must
be connected to the terminal which is
marked with the letter N or coloured
black.
The wire which is coloured brown must
be connected to the terminal which is
marked with the letter L or coloured red.
WARNING:
HIS APPLIANCE MUS BE
EAR HED
Non-rewireable plugs BS 1363 (UK)
If this machine or appliance is fitted
with a non-rewireable plug, the follow-
ing information applies:
If the socket outlets are not suitable for
the plug supplied with this product, it
must be cut off and an appropriate
plug fitted. The plug cut from the flex-
ible cord should be disposed of, and
on no account be inserted into any
socket elsewhere in the house (electric
shock hazard).
The fuse cover must be re-fitted when
changing the fuse and if the fuse cover
is lost the plug must not be used until a
suitable replacement is obtained.
The colour of the correct replacement
cover is that of the coloured insert in
the base of the plug (as applicable to
the design of plug fitted).
The correct fuse rating of the replace-
ment fuses that are ASTA approved to
BS 1362 should be fitted. Replacement
fuse covers may be purchased from
your local electrical suppliers or Ser-
vice agent.
Electrical connection
18

Installation
Safety regulations prevent the fitting
of this cooker hood over a solid fuel
stove.
The minimum safe distance be-
tween the top of the cooker / hob
and the bottom of the cooker hood
should be at least:
–55 cm above electric cookers /
hobs
–65 cm above gas cookers / hobs.
A distance of 65 cm may be preferable
to give more working space.
–Mark a line on the ceiling centrally
above the hob.
–Make a hole in the ceiling for the ex-
haust hose at the required position.
Installation
19

–Address the ceiling plate and posi-
tion it exactly. Mark the position of
the four holes to be drilled bfor se-
curing the plate and the position for
the gap for the mains cable c.
If the cooker hood is to be con-
nected to an external fan motor, also
mark the position of the gap for this
connection cable d.
–Lay a mains cable and an exhaust
connection in the ceiling space.
–If the cooker hood is to be con-
nected to an external fan motor, cre-
ate a gap for the connection cable to
the fan motor. Ensure that the
diameter is sufficient to be able to
feed through a 6-pole connector.
–Drill four 10 mm øholes in the ceiling
and insert S10 plugs into the holes.
–Prepare the ceiling plate for fitting.
Push up the spring clips ethrough
the slots from below. Insert the four
counersunk screws M6 x 20 finto
the recessed holes from above.
–Use the hose clip gto secure the ex-
haust hose to the ceiling plate.
Installation
20
