Miele DA 3460 User manual

Operating and Installation instructions
Rangehood
DA 3460
DA 3490
To avoid the risk of accidents
or damage to the appliance,
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 09 727 360
en - AU, NZ

Caring for the environment..........................................3
Warning and Safety instructions .....................................4

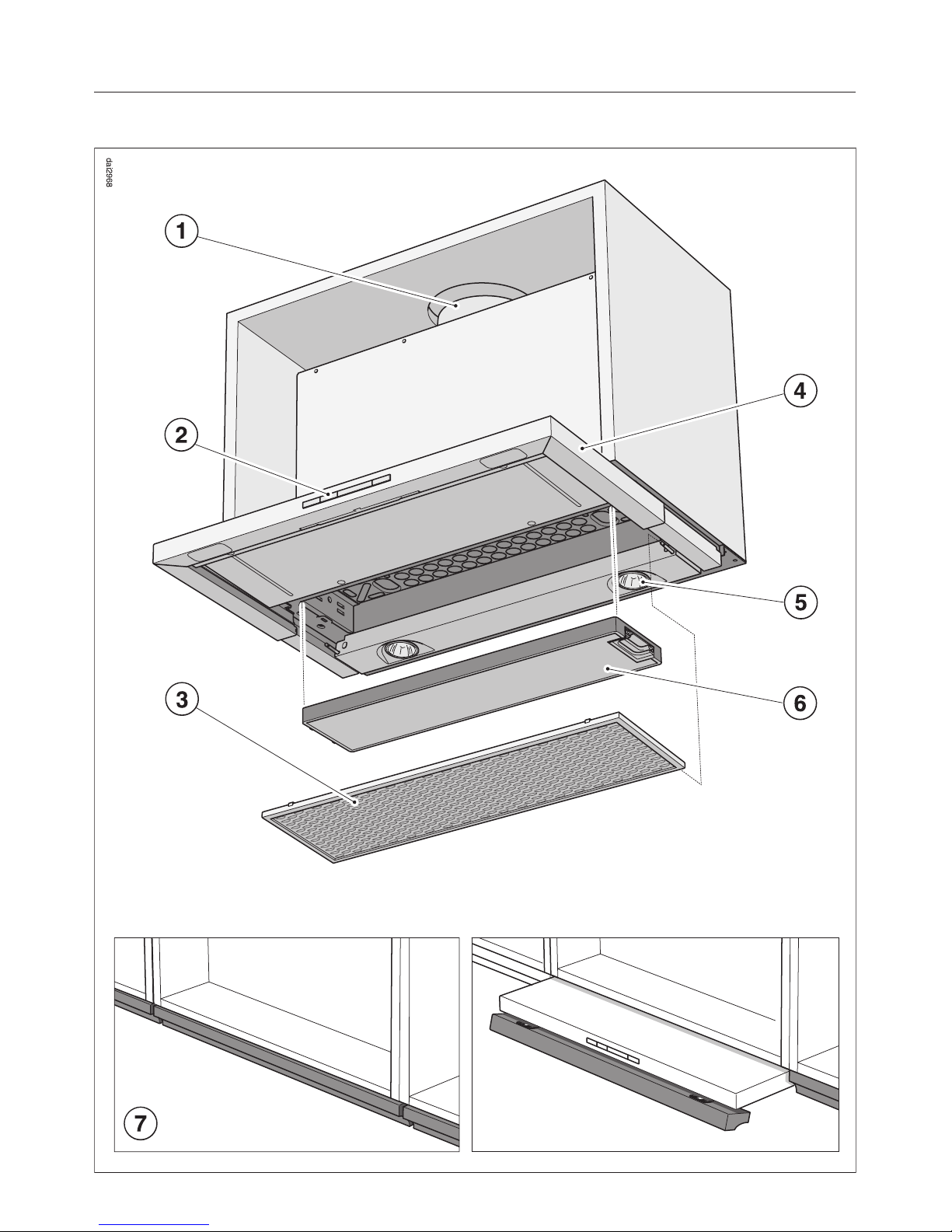

Description of the appliance........................................10
Description of the functions ........................................12
Operation .......................................................13
Cleaning and care ................................................15
Housing .........................................................15
Grease filter ......................................................16
Fitting and replacing the charcoal filter (optional accessory) ...............18

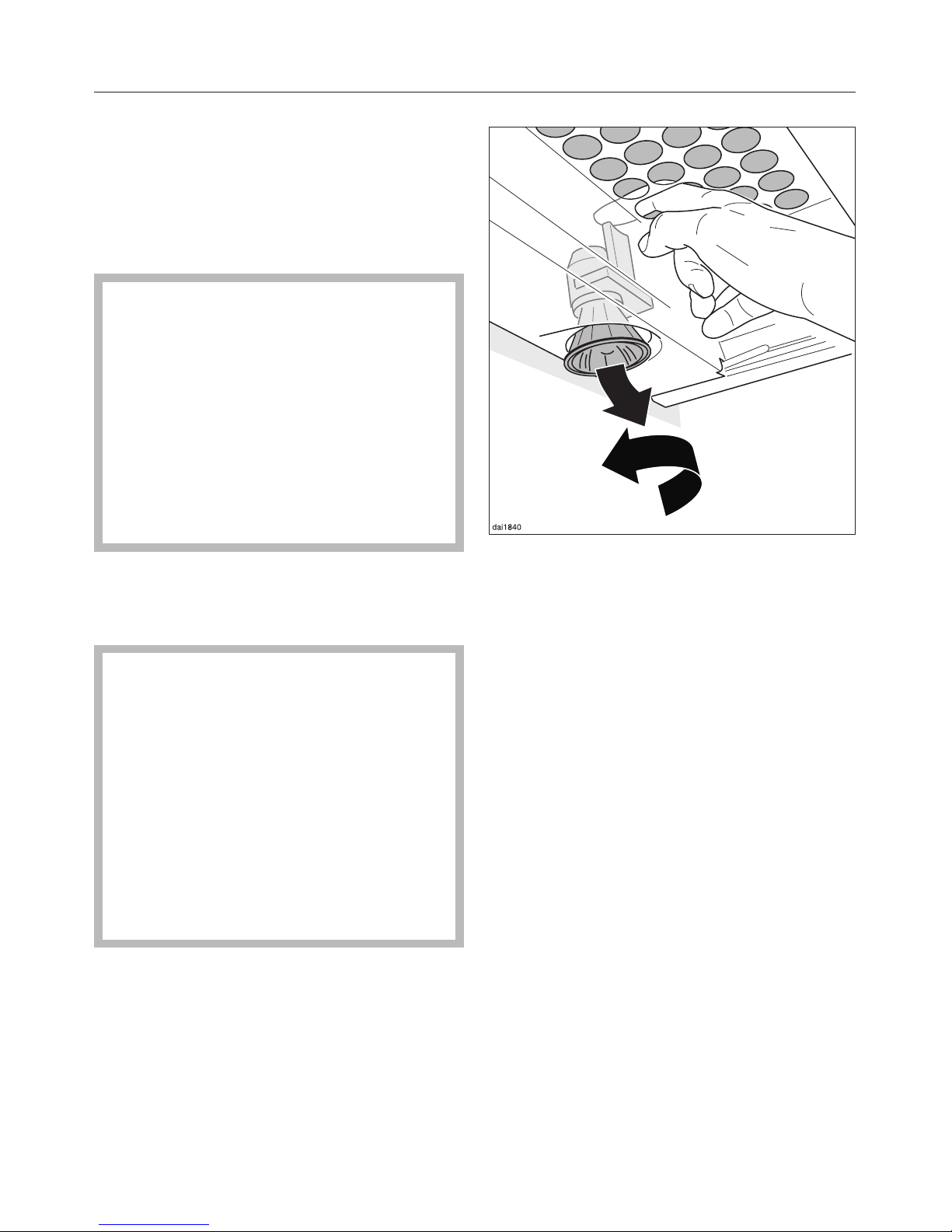

Changing a halogen lamp ...........................................19
Appliance dimensions.............................................20
Installation ......................................................22
Installation accessories .............................................22
Positioning the appliance in the wall housing unit.........................25
Attaching the lightshield ............................................29
Weight of a lightshield matching existing furniture......................29
Adjusting the building-in depth .......................................29
Fitting the grease filter ..............................................30
Set up for extraction mode ..........................................30
Set up for recirculation mode ........................................31
Electrical connection ...............................................32
Connection for air extraction .......................................33
Condensate trap ..................................................34
Silencer .........................................................35
Electrical connection..............................................36
Operation with control module DSM 400..............................37
Potential free connection .........................................37
Connection to a light switch .......................................37
After sales service ................................................38
Technical data ...................................................39
Contents
2

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Caring for the environment
3

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on the safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This rangehood is designed for
domestic use and for use in similar
environments by guests in hotel or motel
rooms, bed & breakfasts and other
typical living quarters. This does not
include common/shared facilities or
commercial facilities within hotels,
motels or bed & breakfasts.
~It must only be used to extract
vapours and remove odours from
cooking.
~This appliance is not suitable for
outdoor use.
Any other usage is at the owner's risk.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
have been given supervision or
instruction concerning its use by a
person responsible for their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions. This appliance is not a toy!
To avoid the risk of injury, keep children
well away and do not allow them to play
with it or to use the controls. They will
not understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the
rangehood only when its operation has
been clearly explained to them and
they are able to use it safely. They must
be aware of the potential dangers
caused by incorrect operation.
~Please be aware that on
rangehoods with halogen lighting, the
lamps will get very hot during use and
remain hot for some time after switching
off. To safeguard against burning, keep
children well away from the lamps at all
times.
Warning and Safety instructions
4

Technical safety
~Before installation, check the
rangehood for visible signs of damage.
Under no circumstances should you
use a damaged appliance. A damaged
appliance is dangerous.
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
Miele authorised person in accordance
with current national and local safety
regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
–it is switched off at the isolator, or
–the screw-out fuse is removed (in
countries where this is applicable), or
–the mains fuse is disconnected, or
–it is switched off at the wall socket
and the plug withdrawn.
Warning and Safety instructions
5

~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~This rangehood must not be
installed and operated in mobile
installations (e.g. on a ship).
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the warranty.
Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
~Great care should be taken when
using the rangehood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas cooktops or ovens which draw air
in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
6

There must be adequate ventilation of
the room when the rangehood is used
at the same time as appliances burning
gas or other fuels.
In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the rangehood
and the heater are in operation
simultaneously, an underpressure of
0.04 mbar (4 pa) is the maximum
permissible in the room.
Ventilation can be maintained by air
inlets which must not be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the rangehood can
only be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
qualified gas fitter must be sought.
If the rangehood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
7

Correct use
~Never use an open flame beneath
the rangehood. To avoid the danger of
fire, do not flambé or grill over an open
flame.
When switched on, the rangehood
could draw flames into the filter. Fat
particles drawn into the rangehood
present a fire hazard.
~When using the rangehood over a
gas cooktop, ensure that any burners in
use are always covered by a pan.
Switch the cooking zone off when a pan
is removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The rangehood can become damaged
when exposed to excessive heat.
~Always switch the rangehood on
when a cooking zone is in use,
otherwise condensation may collect in
the rangehood, which could cause
corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc., do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the rangehood on fire.
~Do not use the rangehood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~There is a fire risk if cleaning is not
carried out in accordance with the
instructions.
~The rangehood can get very hot
during cooking due to heat rising from
the cooktop.
Do not touch the housing or the grease
filters until the rangehood has cooled
down.
~Do not use a steam-cleaner to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
~CAUTION: Accessible parts may
become hot when used with cooking
appliances.
Warning and Safety instructions
8

Correct installation
~Refer to the cooktop manufacturer's
instructions as to whether a rangehood
may be operated above the cooktop.
~The minimum safety distances
between the top of the cooktop and the
bottom of the rangehood given in the
"Appliance dimensions" section of this
booklet must be maintained, unless the
cooktop manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is
fitted beneath the rangehood, and they
have different minimum safety
distances to the rangehood, select the
greater distance.
~Follow the cooktop manufacturer's
instructions on the use of flammable
materials over the cooktop when
installing a wood or laminate lightshield
onto the rangehood.
~Safety regulations prohibit the fitting
of a rangehood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from Miele or
from builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
~Ensure exhaust ventilation complies
with all relevant regulations.
Accessories
~Only use genuine Miele spare parts
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the warranty, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

Description of the appliance
10

aExhaust socket C150 mm
bControls
cGrease filter
dPull-out deflector plate
eCooktop lighting
fCharcoal filter
(special accessory for recirculation
mode)
gDrop-down lightshield to conceal
control panel
The front of the deflector plate can be
fitted with a lightshield to match your
kitchen furniture.
hOn/Off touch control for the fan
iTouch controls to select the fan
power setting
jTouch control for the cooktop
lighting
Description of the appliance
11

The rangehood works with
. . . air extraction:
The air is drawn in, cleaned by the
grease filter and then directed outside.
If the on-site ventilation system does
not have a non-return flap, then the
non-return flap supplied with the
appliance must be fitted in the exhaust
socket in the motor unit.
Having a non-return flap fitted in the
ducting ensures that air, once ducted
to the outside, cannot get back into the
room again.
The flap is closed when the rangehood
is switched off.
When the rangehood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
Please note, the performance of
this rangehood hinges greatly on
the installed ducting to vent the
vapours. Poor choice of ducting
results in poor rangehood
performance. For ducting
recommendations, please refer to
the relevant section in these
operating instructions or contact
a specialised installer.
. . . air recirculation:
(air recirculation conversion kit required)
The air is drawn in and cleaned first by
the grease filter and then by a charcoal
filter. The cleaned air is then recirculated
back into the kitchen.
Charcoal filters are available to order
from Miele or via the internet at
www.miele-shop.com (check availability).
See back cover for contact details and
"Technical Data" for model number.
Before using the rangehood in
recirculation mode, ensure that the
charcoal filter is in place; see
"Cleaning and care".
Description of the functions
12

The rangehood is operated by pulling
out and pushing in the deflector plate.
To switch the fan on
^Pull out the deflector plate.
The fan will come on at power setting 2.
The Ksymbol and the 2light up.
To select a power setting
^To select a lower power setting,
press the "–" symbol, or to select a
higher power setting, press the "+"
symbol.
Depending on the intensity of the
cooking vapours, levels 1to 3are
usually sufficient for normal cooking.
Intensive setting
^When frying or cooking food with a
strong aroma, you may wish to select
the Intensive setting "IS" (yellow
indicator light).
Pull the deflector plate right out to
achieve optimum extraction and to
prevent unnecessary noise levels.
To switch the fan off
^Push the deflector plate back in. The
next time the deflector plate is pulled
out, the rangehood will operate at
power setting 2again.
or
^Press the On/Off Ktouch control for
the fan.
All the indicator lights will go out.
To switch the lighting on
^Pull out the deflector plate.
or
^Press the touch control for the
lighting I.
When the lighting is switched on, the
indicator light Ilights up.
To switch the lighting off
^Push the deflector plate back in.
or
^Press the touch control for the
lighting I.
The indicator light will go out.
Operation
13

Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it always only runs for 10 minutes before
reverting automatically to setting 3.
^To set this option, both the fan and
the cooktop lighting must be
switched off and the deflector plate
pushed in.
^Press the –and +touch controls at
the same time for approx. 10
seconds until the power level
indicator light 1lights up in the
display.
^Then press in turn,
– the cooktop lighting touch control I,
– then the –touch control, and
– the cooktop lighting touch control I
again.
If Automatic switch-off is not activated,
the 1and IS indicator lights will flash.
^Press the +touch control to activate
the Automatic switch-off.
The indicator lights for fan power
levels 1and IS will now light up
constantly.
Press the –control to deactivate the
Automatic switch-off function.
^Press the On/Off control Kto
confirm.
^If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Safety switch-off
If the rangehood hasn't been operated
for 10 hours, the fan will switch off
automatically. The lighting will remain
switched on.
^Pressing the On/Off Ktouch control
will switch the fan back on again.
Operation
14

,Before any cleaning or
maintenance work is carried out,
disconnect the rangehood from the
mains supply. Ensure that
– it is switched off at the wall
socket and the plug is removed,
or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed
(in countries where this is
applicable).
,Exercise caution when changing
halogen lamps. They get very hot
during use, and remain hot for some
time after being switched off. Do not
touch the surface directly when
changing a lamp, as grease particles
from your fingers will adhere to the
surface and damage it.
The halogen lamps can also be
damaged if water is used to clean
them.
Wait several minutes after switching
off before beginning cleaning.
Housing
General notes
The surfaces and controls are
susceptible to scratches and
abrasion. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using warm water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
^Wipe the surfaces dry using a soft
cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate the electronics and cause
damage.
Do not use:
–cleaning agents containing soda,
acids, chlorides or solvents,
–abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
Important for appliances with
stainless steel housing
(This infomation does not apply to the
controls).
Stainless steel surfaces can be cleaned
with a proprietary non-abrasive
cleaning agent designed specifically
for use on stainless steel.
To prevent immediate resoiling, the
Original Miele care product for stainless
steel can be purchased from Miele or at
www.miele-shop.com (depending on
country). Apply sparingly with a soft
cloth following the instructions on the
packaging.
Cleaning and care
15

Controls
The controls may suffer
discolouration or damage if soiling is
left on them for too long.
Remove soiling straight away.
Observe the "General notes" on
cleaning earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Grease filter
The re-usable metal grease filter in the
appliance removes solid particles from
the kitchen vapours (grease, dust, etc.)
preventing soiling of the rangehood.
To avoid a build-up of fat, it should be
cleaned every 3-4 weeks on average,
or sooner if necessary.
,An oversaturated filter is a fire
hazard.
Do not pull the grease filter
downwards to remove while it is at
the back of the canopy.
^Push in the deflector plate.
^Grip the front of the deflector plate
together with the grease filter, and
pull outwards as shown.
^Then lower the filter to remove.
To avoid damaging the filter or the
cooktop below, make sure you hold
the filter securely at all times when
handling it.
^Slide the switch for the fan to position
“0”.
Cleaning and care
16

Cleaning the grease filter by hand
^Clean the filter with a soft nylon brush
in a mild solution of hot water and a
little washing-up liquid.
Do not use undiluted washing-up
liquid.
Do not use:
–cleaning agents containing
descaling agents,
–powder cleaners, cream cleaners or
abrasive all-purpose cleaning
agents,
– oven sprays.
Cleaning the grease filter in the
dishwasher
^Place the filter as upright as possible
in the lower basket. Ensure the spray
arm is not obstructed.
^Do not wash at more than 65 °C. If a
Miele dishwasher is being used,
select the Sensor wash programme.
^Use a dishwasher detergent.
Depending on the cleaning agent
used, cleaning the filter in a
dishwasher can cause permanent
discolouration to the surface.
However, this will not affect the
functioning of the filter in any way.
^After cleaning, leave the filter to dry
for a while on an absorbent surface
before putting it back in place.
^When removing the filter for cleaning,
also clean off any residues of oil or
fat from the now accessible housing
to prevent the risk of these catching
fire.
^When putting it back, make sure that
the red plastic guides are at the
front and facing upwards.
^Replace the grease filter in the front
of the deflector plate, press it
upwards and push it in together with
the deflector plate. It will slide onto
the fixing pins at the back. Finally,
push the grease filter back a little
more.
Cleaning and care
17

Fitting and replacing the
charcoal filter (optional
accessory)
If the rangehood is connected for
recirculation, a charcoal filter must be
inserted in addition to the grease filter.
This is designed to absorb cooking
odours.
It is fitted in the canopy above the
grease filter.
Replacement charcoal filters can be
obtained from Miele or via the
internet at www.miele-shop.com
(depending on country).
See back cover for contact details,
and "Technical data" for type and
reference number.
Follow the instructions supplied with the
charcoal filter when fitting it.
Replace the charcoal filter at least
every six months or more frequently if
necessary.
Used charcoal filters can be disposed
of with the normal household waste.
Cleaning and care
18

Changing a halogen lamp
^Pull out the deflector plate, and
remove the grease filter as described
earlier.
^Switch off the fan and the lighting.
,Exercise caution when changing
halogen lamps. They get very hot
during use, and remain hot for some
time after being switched off. Do not
touch the surface directly when
changing a lamp, as grease
particles from your fingers will
adhere to the surface and damage
it. Please follow the manufacturer’s
instructions.
^Remove the charcoal filter if the
rangehood is being used in
recirculation mode.
,Before any cleaning or
maintenance work, disconnect the
rangehood from the mains supply.
Ensure that
– it is switched off at the wall
socket
and the plug is withdrawn, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed
(in countries where this is
applicable).
^Push down the lighting unit slightly
via the opening in the safety panel.
^The halogen lamp is now accessible
to be unscrewed anti-clockwise.
^Replace it with a new halogen lamp
(specification: GU/GZ 10, 230 V,
50 W). Screw the lamp into the
socket and push it upwards.
Please follow the manufacturer's
instructions.
^Replace the grease filter and, if being
used in recirculation mode, the
charcoal filter.
Cleaning and care
19

DA 3460 DA 3490
Appliance dimensions
20
