Miele DA 326-1 i User manual

Operating and Installation
Instructions
Ventilation System
DA 326-1 i
DA 329-1 i
To prevent accidents
and machine damage,
read these instructions
before
installation or use.
UV
M.-Nr. 05 864 020

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Functional descri tion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
O eration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning the fan on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting the power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning the fan off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning the light on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turning the light off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Grease filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Inserting / replacing the active charcoal filters . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Changing the light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Contents
2

Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
A liance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Included parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
1. Non-return flap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2. Reducing collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3. Runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4. Hang the cabinet door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5. Position the appliance in the cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6. Align the height of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7. Installation of a lightshield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8. Align the depth of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9. Secure the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10. Install side spacers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
11. Spacer strip for the rear of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
12. Light cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
13 a. Air extraction mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
13 b. Recirculation mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
14. Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Contents
3

Read these O erating Instructions carefully before installing or
using the Ventilation System.
This appliance is intended for
residential use only. Use the
appliance only for its intended
purpose. The manufacturer cannot
be held responsible for damages
caused by improper use of the
hood.
This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
READ AND SAVE THESE
INSTRUCTIONS
CAUTION
For General Ventilating Use Only.
Do Not Use To Exhaust Hazardous
Or Explosive Materials And Vapors.
This appliance is designed to vent
cooking smoke and odors only.
Be certain your appliance is
properly installed and grounded by
a qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
can not be held responsible for
damages caused by the lack, or
inadequacy of, an effective grounding
system.
Before connecting the appliance to
the power supply make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent machine
damage. Consult a qualified electrician
if in doubt.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held
responsible.
IMPORTANT SAFETY INSTRUCTIONS
4

This equipment is not designed for
maritime use or for use in mobile
installations such as caravans or
aircraft. However, under certain
conditions it may be possible for an
installation in these applications. Please
contact the nearest Miele dealer or the
Technical Service Department with
specific requirements.
Before servicing or cleaning the
unit, switch power off at the service
panel and lock the service
disconnecting means to prevent power
from being switched on accidentally.
When the service disconnecting means
can not be locked, securely fasten a
prominent warning device, such as a
tag, to the service panel.
Before discarding an old
appliance, unplug it from the
power supply and remove the power
cord and any doors to prevent hazards.
Use
Do not allow children to play with
or operate the appliance or its
controls. Supervise its use by the
elderly or infirm.
Be careful when preparing a
flambé beneath the hood.
Flames may be drawn up into the hood
by the suction or grease filters may
catch fire.
Never operate gas burners without
pots.
Do not leave cooking surfaces
unattended while in use.
Overheated food, oil and grease can
catch fire.
Do not use the hood without the
grease filters in place.
Clean the grease filters regularly.
Dirty filters are a fire hazard.
Do not use a steam cleaner to
clean the hood. Steam could
penetrate electrical components and
cause a short circuit.
In areas subject to infestation by
cockroaches or other pest, keep
the appliance and its surroundings
clean at all times. Any damage caused
by cockroaches or other pest will not
be covered under warranty.
Always turn on the hood when
using the cooktop to prevent
damage from condensation.
IMPORTANT SAFETY INSTRUCTIONS
5

,WARNING - TO REDUCE
THE RISK OF A RANGE TOP
GREASE FIRE:
Never leave surface units
unattended at high settings.
Boilovers cause smoking and greasy
spillovers may ignite. Heat oils slowly
on low or medium settings.
Always turn the hood “ON” when
cooking at high heat or when
cooking flaming foods.
Clean ventilating fans frequently.
Grease should not be allowed to
accumulate on the fan or filter.
Use proper pan size. Always use
cookware appropriate for the size
of the surface element.
,WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:
SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal
tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
NEVER PICK UP A FLAMING
PAN - You may be burned.
DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion will result.
Use an extinguisher
ONLY if:
– You know you have a Class ABC
extinguisher, and you already know
how to operate it.
–The fire is small and contained in the
area where it started.
–The fire department is being called.
–You can fight the fire with your back
to an exit.
IMPORTANT SAFETY INSTRUCTIONS
6

Installation
,WARNING
To reduce the risk of fire only
use metal ductwork.
When installing the hood, follow the
recommended minimum safety
distances between a Miele cooktop and
the hood:
–22" (55 cm) above electric cooktops,
–26" (65 cm) above gas cooktops,
–26" (65 cm) above an open grill.
If local building codes require a greater
safety distance, follow their
requirement.
For non-Miele cooking appliances
maintain the safety distances
recommended by the appliance
manufacturer in their instructions.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
Be careful not to damage hidden
electrical wiring or plumbing when
cutting or drilling into the wall or ceiling.
Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
Do not install this hood over
cooktops burning solid fuel.
Any fittings, sealant, or materials
used to install the ductwork must
be made of approved non-flammable
materials.
Never connect an exhaust hood to
an active chimney, dryer vent, vent
flue, or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing,
inactive chimney or vent flue.
Ducted fans must always be
vented outdoors.
Make sure that the airflow in the
room is sufficient for combustion
and exhausting of all non-electric
heating appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
backdrafts may occur. Follow the
heating manufacturer’s guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA), or the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE).
If in doubt, consult an experienced
professional.
IMPORTANT SAFETY INSTRUCTIONS
7

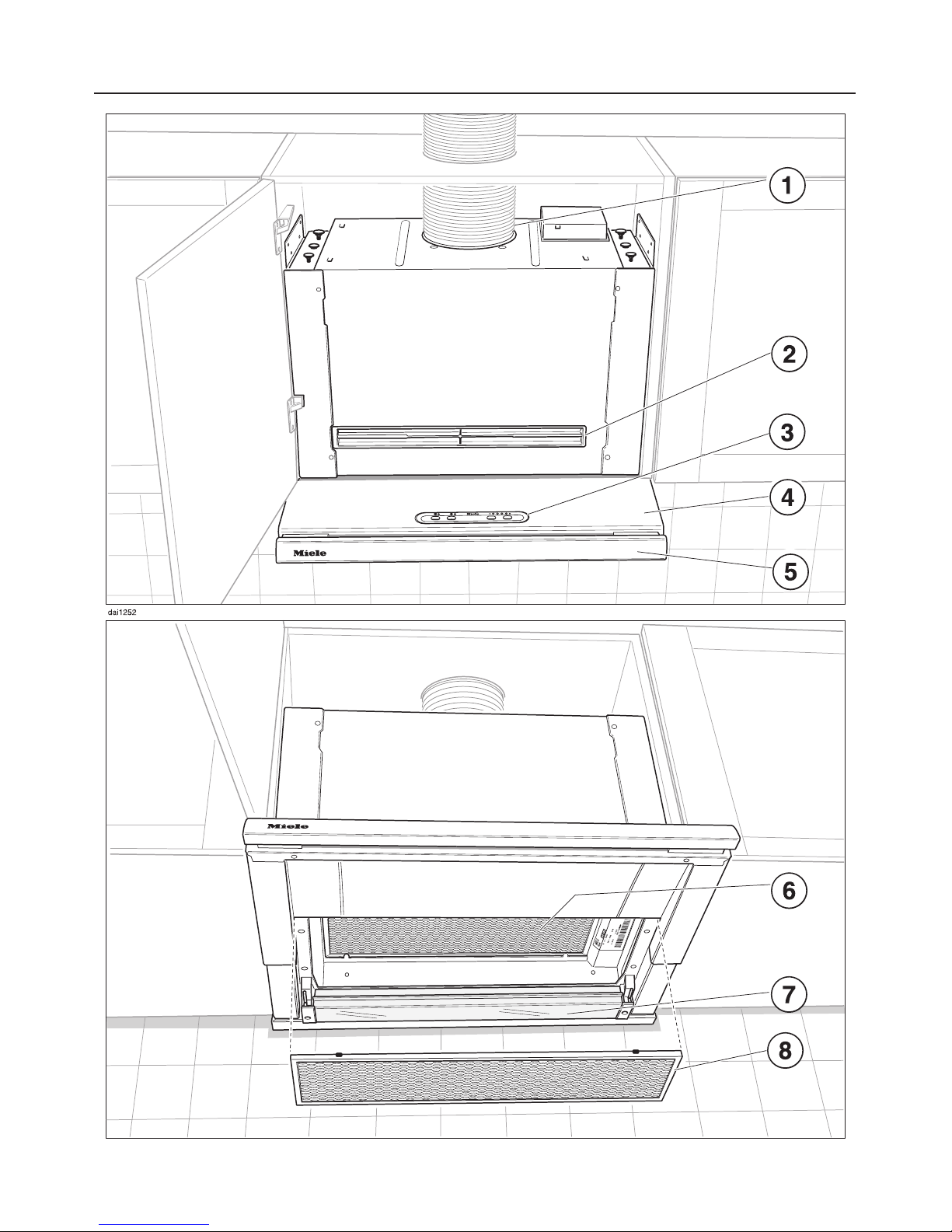

Guide to the hood
8

aVent connection
bActive charcoal filter slot
cControl anel
dPull-out
deflector late
eDFB Facia Panel
(must be ordered separately)
fInternal grease filter
gOverhead cookto light
hExternal grease filter
iLight button
jOn/Off button
kPower level buttons
Four fan speed selection
Guide to the hood
9

The hood offers two modes of
operation:
Air extraction
The air is drawn in and cleaned by the
grease filters and directed outside.
The hood comes equipped with a
non-return fla . This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the
exhaust fan automatically opens the
flap blowing the inside air and cooking
odors outside.
Recirculation mode
Air is drawn through the grease filters
and an active charcoal filter. The
filtered air is then recirculated back into
the kitchen through a vent at the top of
the hood’s chimney.
Before using the hood in
recirculation mode, ensure that the
active charcoal filters are in place,
see "Cleaning and care".
Functional descri tion
10

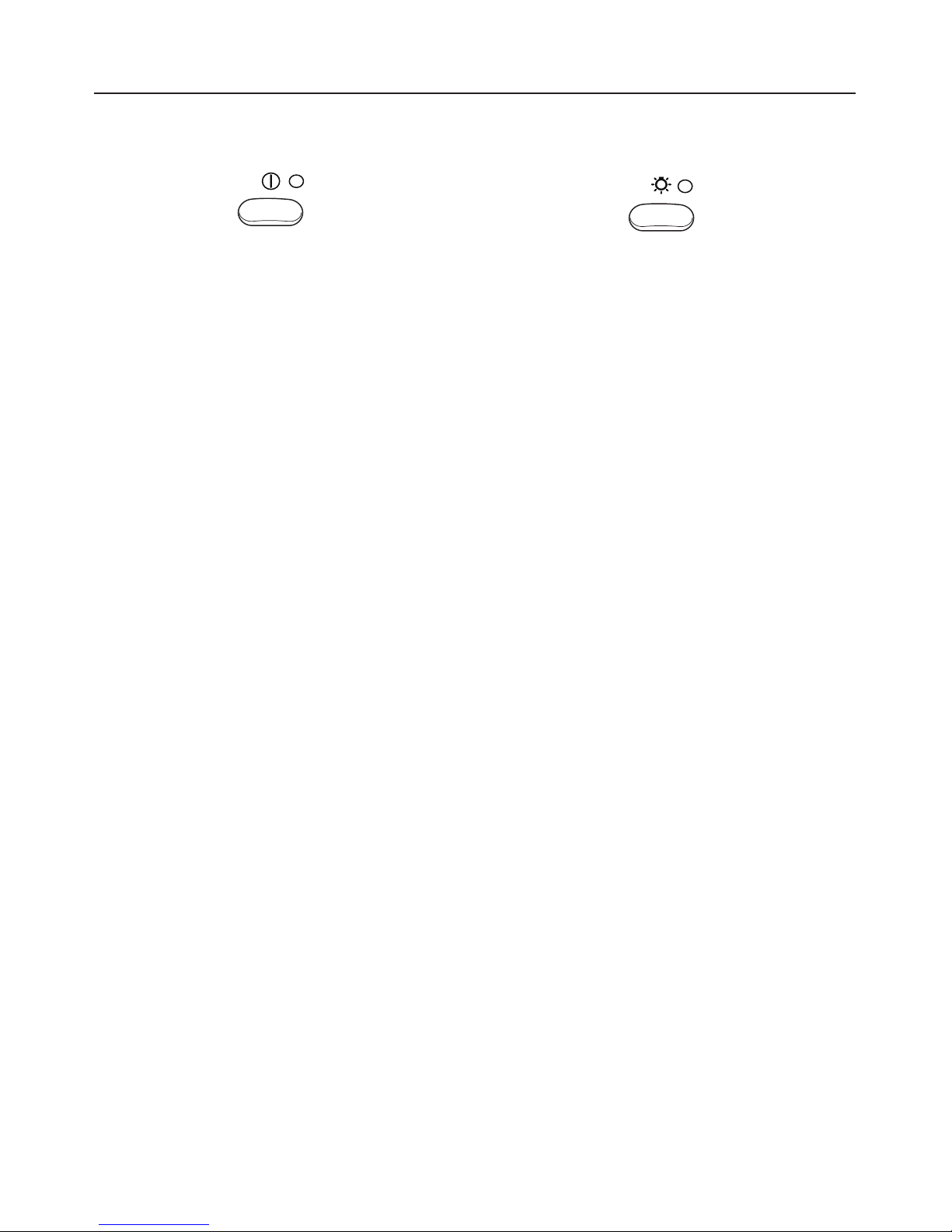

Turning the fan on
^Pull the deflector plate out about 2"
(5 cm).
The hood will operate at power level "II".
Selecting the ower level
Depending on how much the air needs
to be filtered, there are four power
levels available.
For normal cooking a low to medium
level is usually sufficient.
For frying or cooking food with a strong
aroma use the highest level.
Lower Higher
^Use the power level buttons to select
the power level required.
The indicators show which power level
has been chosen.
Fan erformance
The maximum air flow capacity is
625 cfm. Factors such as narrow duct
diameter and bends will affect this
value.
There will also be a slight decrease in
airflow for hoods operated in
recirculation mode due to the active
charcoal filter.
Level 1 operates at 40% capacity
Level 2 operates at 60% capacity
Level 3 operates at 80% capacity
Level 4 operates at 100% capacity
Turning the fan off
^Press the On/Off button to turn the
fan off.
or
^Push the deflector plate back in.
The next time the deflector plate is
pulled out the hood will operate at
power level "II".
O eration
11

Turning the light on
The light for illuminating the cooktop
can be turned on or off independently
of the fan.
^Pull the deflector plate out 1.5"
(3 cm).
^Press the light button.
^When the light is turned on the
indicator next to the button
illuminates
Turning the light off
^Press the light button again.
or
^Push the deflector plate back in.
The next time the deflector plate is
pulled out the light will come back on.
O eration
12

Before servicing or cleaning the
hood, disconnect it from the power
supply by "tripping" the circuit
breaker or unplugging it.
Make sure power is not restored to
the appliance while maintenance or
repair work is performed.
Cleaning the casing
Never use abrasive cleaners,
scouring pads, steel wool or caustic
(oven) cleaners on the hood. They
will damage the surface.
^All external surfaces and controls can
be cleaned with warm water and
liquid dish soap applied with a soft
sponge.
^Wipe dry using a soft cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate the electronics and cause
damage.
Stainless steel surfaces
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can be applied.
Grease filter
The reusable metal grease filters
remove solid particles from the vented
kitchen air like grease and dust, etc.
The hood has an external filter which
is visible from beneath. An internal
filter is situated above the external filter
within the casing.
The grease filters should be cleaned
every 3-4 weeks or whenever the
grease filter indicator lights.
Always clean both filters.
Dirty filters are a fire hazard.
Cleaning and care
13

Removing the filters
External filter
^To remove the external filter pull the
deflector plate out slightly.
^Turn the fan off.
^Holding the external filter at the front
tilt it approximately 1" (3 cm)
downwards and then pull it towards
you to remove.
Internal filter
^Pull the deflector plate out to its full
extension.
The internal filter will now be visible.
^Holding it by the handle pull it
downwards to remove.
^Cleaning the filters
–by hand: with a nylon brush in a mild
solution of warm water and liquid
soap.
–in a dishwasher: place the filters
vertically in the lower basket,
checking that the spray arm is not
blocked.
^DA 329-1 i
The external grease filter can be
folded and cleaned in the dishwasher
by turning the latches as shown.
Depending on the detergent,
cleaning the grease filters in a
dishwasher may cause permanent
discoloration of the filter surface.
Performance of the filter will not be
affected by this discoloration.
^After cleaning, the filters can be
placed on a towel to air dry.
^While the filters are removed, clean
any dirt or grease from the filter
casing to prevent the risk of fire.
Cleaning and care
14

Inserting the filters
Internal filter
^Fit the filter into the appliance so that
it hooks into position at the back then
push it up at the front and make sure
it engages in position on the left and
right hand sides.
External filter
^DA329-1 i:
Turn the grease filter latches as
shown. Unfold the grease filter and
lock the latches.
^Make sure that the red lastic
guides are at the front and facing up.
^Insert the external filter into the
extended deflector plate and hold it
in position.
^Tilt the rear of the filter up and gently
push until it snaps into place.
Cleaning and care
15

Inserting / re lacing the active
charcoal filters
For recirculation mode an active
charcoal filter must be used in addition
to the grease filters. The charcoal filters
are designed to absorb cooking odors.
The active charcoal filter is inserted into
the slot on the front of the appliance.
^Replace the filter every 6 months or
when it is no longer absorbing
cooking odors.
Replacement active charcoal filters
can be ordered from Technical
Service.
USA 1-800-999-1360
CDN 1-800-565-6435
Please quote part # 05 182 190.
Follow the instructions supplied with the
active charcoal filter.
Dispose of the charcoal filter with the
household waste.
Cleaning and care
16

Changing the light bulbs
If the light does not work the bulb may
need to be replaced or the starter could
be defective.
^Remove the external filter as
described in "Removing the filters".
^Unscrew the fixing screws on the
right and left hand sides of the light
cover. While undoing the screws hold
the cover securely so that it does not
drop on to the cooktop below.
^Lower the cover to remove it.
^Replace the fluorescent bulb or the
starter.
^Secure the cover in position with the
fixing screws.
^Return the external filter.
Cleaning and care
17

In the event of a fault which you can not
correct yourself please contact:
–Your Miele Dealer
or
–The Miele Technical Service
Department
USA 1-800-999-1360
[email protected]
CDN 1-800-565-6435
[email protected]
When contacting the Technical Service
Department, please quote the model
and serial number of your appliance.
These are shown on the data plate
which is visible when the grease filter is
removed.
After Sales Service
18

Installation Instructions

20
