Miele PW 6080 Vario User manual

Operating and installation instructions
for washer-extractor
PW 6080 Vario
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 09 622 540
en-GB

Disposal of the packing
material
The packaging is designed to protect
the machine from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposing of your old machine
Electrical and electronic machines
often contain valuable materials. They
also contain materials which, if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your machine. Please do
not therefore dispose of it with your
general waste.
Please dispose of it at your local
community waste collection/recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Energy saving tips
Energy and water consumption
–Water consumption and energy
usage are determined by the size of
the load.
To make the most out of your
machine load the maximum dry load
for the programme you are using.
Detergent
–Do not exceed the amounts of
detergent recommended by the
manufacturer on the packaging.
– Reduce the amount of detergent for
smaller loads.
When drying with a tumble dryer
Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.
Caring for the environment
2

Caring for the environment..........................................2
Warning and Safety instructions .....................................6
Operating the machine ............................................14

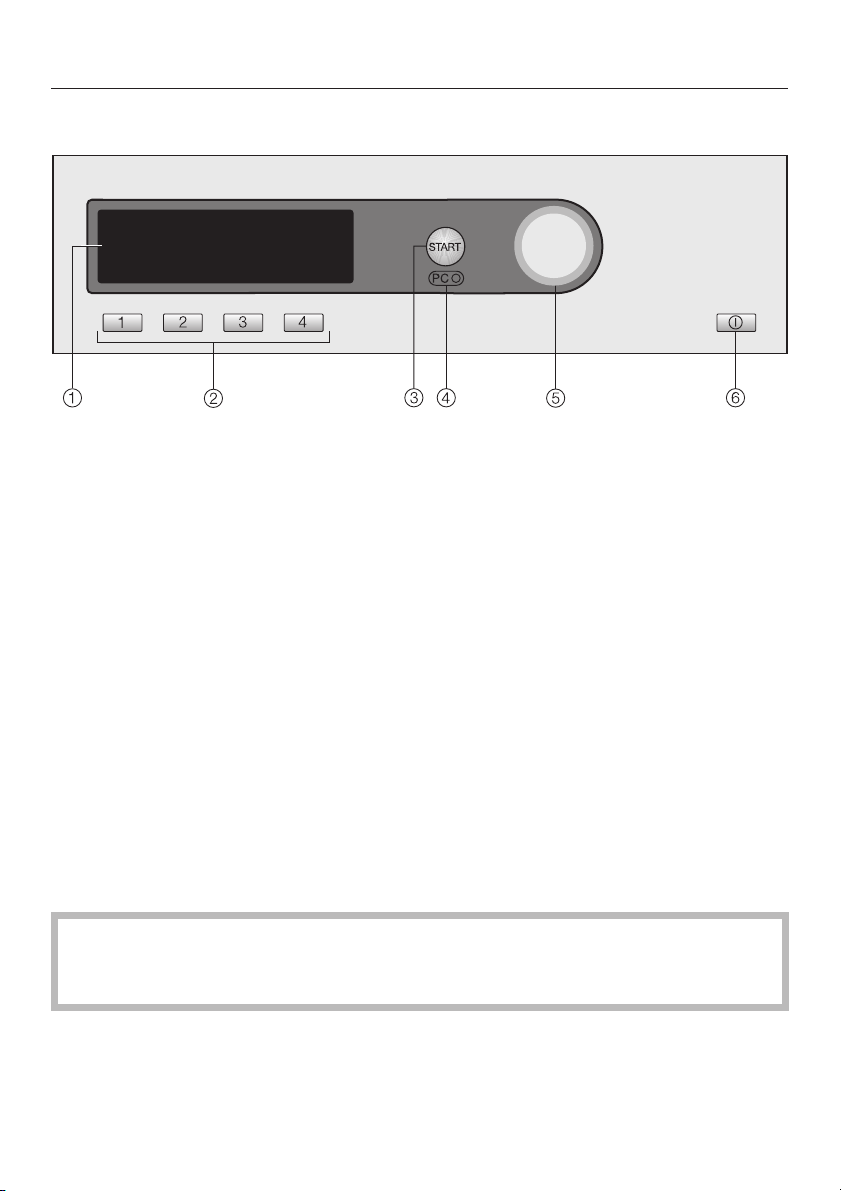

Control panel .....................................................14
Before using for the first time.........................................14
Display ..........................................................15
Operating a wash-salon machine .....................................17
Tips ............................................................18
1. Sort the laundry .................................................18
2. Load the drum ..................................................19
3. Select a programme .............................................19
Garment care label symbols ........................................20
Short instructions ................................................21
Selecting a programme ............................................25
Selecting/changing a programme .....................................25
Saving a favourite programme .......................................27
Extras ..........................................................28
Pre-wash ........................................................28
Starch stop.......................................................28
Rinse hold .......................................................29
Intensive* ........................................................29
Water plus* ......................................................29
Timer ...........................................................30
Spinning ........................................................31
Maximum final spin speed...........................................31
Rinse and interim spin ...........................................31
To omit the final spin (Rinse hold) ..................................31
To omit the spin between rinses and the final spin .....................31
Changing the programme sequence .................................32
Payment system...................................................32
Interrupting a programme ...........................................32
To cancel a programme ............................................32
Changing a programme ............................................32
Contents
3

Detergent .......................................................33
Water softeners ...................................................33
Washing with several components ....................................33
Colour run and dye removers/dyes ....................................33
Fabric conditioners, liquid starch and starch formulations ..................34
Automatic dispensing of fabric conditioner or
liquid starch to laundry at the end of a programme .....................34
Adding fabric conditioner or liquid starch separately ...................34
Adding starch separately .........................................34
Adding starch separately using Starch stop ..........................34
External dispensing system..........................................35
Empty sensor ..................................................35
Cleaning and care ................................................37
Cleaning the machine ..............................................37
Cleaning the water inlet filters ........................................40
Problem solving guide ............................................41
What to do if......................................................41
The programme does not start .......................................41
A fault message appears in the display ................................42
General problems .................................................43
An unsatisfactory wash result ........................................44
The door will not open ..............................................45
To continue a programme after a power cut .............................45
Peak load cut-out..................................................46
Service interval ...................................................46
Opening the drum door in the event of
a blocked drain outlet and/or power failure..............................47
Drain the machine. ..............................................47
... Machines with a drain filter ......................................47
Cleaning the drainage system .....................................48
... Machines with a dump valve ....................................48
Opening the drum door ..........................................49
After sales service ................................................50
Repairs..........................................................50
PC / Optical interface...............................................50
Optional accessories ...............................................50
Contents
4

Installation ......................................................51
Front view........................................................51
Rear view ........................................................52
View from the side .................................................53
View from above ..................................................53
Installing the machine ..............................................53
Installation on a raised plinth .........................................54
Coin mechanism ..................................................54
Installation surface.................................................55
Removing the transit bars ...........................................55
Re-fitting the transit bars ............................................56
Levelling the machine ..............................................57
Plumbing ........................................................58
Connection to the cold water supply ................................58
Connection to the hot water supply .................................59
Recycled water connection .......................................59
Connection to a very hot water supply ...............................59
Water drainage ...................................................60
Dump valve version .............................................60
Machines with a drain pump ......................................60
Electrical connection ...............................................61
Technical data ...................................................62
Contents
5

~It is essential to read these instructions.
This machine complies with current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the machine,
please read these instructions carefully before using it for the first
time. They contain important information on its safety, use and
maintenance.
Keep these instructions in a safe place and ensure that they are
made available to new users. They must be made aware of these
Warning and Safety instructions.
Pass these instructions on to any future users/owners of the
machine.
Correct application
~Only use the machine to wash items which are specified by the
manufacturer to be machine-washable on the wash-care label, and
textiles composed of hand-washable wool or wool blend fabrics as
well as satin, lace, silk and other hand-washable garments. Any
other applications may be dangerous. The manufacturer cannot be
held liable for damage resulting from incorrect or improper use or
operation of the machine.
Warning and Safety instructions
6

~This machine must be used as described in these instructions and
must be checked on a regular basis to make sure it is functioning
correctly. Maintenance must be carried out when necessary.
~The machine is not intended for outdoor use.
~The machine can only be used by people with reduced physical,
sensory or mental capabilities, or lack of experience or knowledge, if
they are supervised whilst using it or have been shown how to use it
in a safe way and recognise and understand theconsequences of
incorrect operation.
~Children under 8 years of age must be kept away from the
machine unless they are constantly supervised.
~Children 8 years and older may only use the machine
unsupervised if they have been shown how to use it in a safe way
and recognise and understand the consequences of incorrect
operation.
~Children must not be allowed to clean or maintain the machine
unsupervised.
~Please supervise children in the vicinity of the washing machine
and do not let them play with it.
~If the washer-extractor is used in a publically accessible room, it
is the supervisor's responsibility to ensure that suitable measures
are in place which enable operators to use it safely.
~It is the supervisor's responsiblity to ensure that the standard of
disinfection in thermal as well as chemo thermal procedures is
maintained (in accordance with local and national health and safety
regulations) by carrying out suitable validation tests. Disinfection
programmes must not be interrupted, as this can have a limiting
effect on the disinfection result.
Warning and Safety instructions
7

Technical safety
~Before setting up the machine, check it for any externally visible
damage.
Do not install or use a damaged machine.
~The electrical safety of this machine can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician. The manufacturer
cannot be held liable for the consequences of an inadequate
earthing system (e.g. electric shock).
~Unauthorised repairs could result in unforeseen dangers for the
user, for which the manufacturer cannot accept liability. Repairs
should only be undertaken by a Miele approved service technician.
If this is not done, any resultant damage will not be covered by the
guarantee.
Ensure current is not supplied to the machine until after
maintenance or repair work has been carried out.
~Do not make any alterations to the machine, unless authorised to
do so by Miele.
~The machine must be isolated from the electricity supply in the
event of a fault and during installation, maintenance and repair work.
See also "Electrical connection".
~This machine must only be connected to the on-site water supply
using a new hose kit. Old hoses must not be re-used. Check the
hose regularly for signs of wear. Change in good time to avoid the
risk of leaks and subsequent damage.
Warning and Safety instructions
8

~Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can Miele
guarantee the safety standards of the machine.
~Do not use force to open the washer-extractor drum door. The
door handle is fitted with a safety device to ensure that the door lock
functions correctly.
~If this machine is being used in a commercial environment please
ensure that all relevant health and safety regulations are observed.
~This machine must not be used in a non-stationary location (e.g.
on a ship).
Warning and Safety instructions
9

Correct use
~Do not install your machine in rooms where temperatures below
freezing may occur. Frozen hoses may burst or split. The reliability
of the electronic control unit may be impaired at temperatures below
freezing point.
~Before using the machine for the first time, check that the transit
bars at the rear of the machine have been removed (see section on
"Installation"). During spinning, a transit bar which is still in place
may result in damage to both the machine and adjacent furniture or
appliances.
~Turn off the stopcock if the machine is to be left for any length of
time (e.g. holiday), especially if there is no floor drain (gully) in the
immediate vicinity.
~Flooding danger.
If hooking the drain hose into a wash basin, check that the water can
drain off quickly enough to prevent the sink from overflowing. Make
sure the drain hose is secure, so that the force of the water flowing
out of the hose does not dislodge it.
~Take care to ensure that foreign objects (e.g. nails, pins, coins,
paper clips) do not find their way into the machine with the laundry.
Shake out wash cloths before placing them in the machine to ensure
that any coarse or harmful residues are removed. These may
damage components of the machine (e.g. suds container, drum),
which in turn can result in damage to the laundry.
~If the correct amount of detergent is dispensed, the machine
should not need to be descaled. If, however, you do wish to descale
the machine only use proprietary non-corrosive descaling agents
and strictly observe the instructions on the packaging. A special
descaling agent is available to order from the Miele Spare Parts
Department or your Miele dealer.
Warning and Safety instructions
10

~Textiles which have been pre-treated in solvent based cleaning
agents must be thoroughly rinsed in clean water before being
washed in the machine.
~Never use solvent based cleaning agents, e.g. those containing
benzine in this machine, as this may result in damage to component
parts and create toxic fumes. Such agents also pose a fire and
explosion hazard.
~Benzine, petrol, paraffin, or any easily flammable liquid must not
be stored or used near the machine. Danger of fire and explosion.
~Only use dyes specified by the manufacturer as being suitable for
use in a washing machine. Always observe the manufacturer's
instructions carefully.
~Colour run and dye removers contain sulphur compounds which
can cause damage such as corrosion. Do not use these products in
this machine.
~Avoid contact of stainless steel surfaces (front, lid, casing) with
liquid cleaning and disinfecting agents which contain chlorine or
sodium hypochlorite. These agents can have a corrosive effect on
stainless steel.
Aggressive vapours containing chlorine bleach can also be
corrosive. Do not store open containers of these agents near the
appliance.
~Do not use a high pressure cleaner or hose to clean the machine.
~It is particularly important to observe manufacturer's instructions
when using a combination of cleaning agents and special
application products. Products must only be used for applications
approved by the manufacturer to avoid any material damage or the
occurrence of strong chemical reactions.
Warning and Safety instructions
11

Chlorine and component damage
Notes on using chlorine bleach and perchlorethylene
~Frequent use of chlorine increases the risk of component
damage.
The use of agents containing chlorine, such as sodium hypochlorite
and chlorine bleach in powder form, can damage the protective
upper surface of stainless steel and cause corrosion to components.
Factors affecting this are chlorine concentration levels, contact time
and temperature. It is therefore advisable to avoid the use of such
agents. Oxygen based bleaching agents should be used instead.
If, however, chlorine based bleaching agents have to be used for
particular types of soiling, then anti-chlorine measures must also be
carried out. If this is not done irreparable damage can occur to
components in the machine and to laundry.
Anti-chlorine treatment
Anti-chlorine treatment has to be carried out immediately after
chlorine bleach has been used. The use of hydrogen peroxide or an
oxygen based cleaning or bleaching agent is recommended and
the laundry should not be drained in between.
With thiosulphate, especially when used with hard water, gypsum
can form, which can lead to incrustations on laundry or deposits in
the machine. The use of hydrogen peroxide is preferable as it aids
the chlorine neutralising process.
The exact quantity of additives and the treatment temperatures
required must be set and tested on site in accordance with the
dosage recommendations of the detergent and additive
manufacturers. The laundry must also be tested to check whether it
contains any active chlorine residues.
Warning and Safety instructions
12

Accessories
~Accessory parts may only be fitted when expressly approved by
Miele. If other parts are used, guarantee, performance and product
liability claims will be invalidated.
Disposing of your old machine
~Before disposing of an old machine it is important to disable the
door lock. This way you will prevent children from accidentally
locking themselves in and endangering their lives.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Warning and Safety instructions
13

Control panel
aDisplay
See the following pages for more information.
bShort cut buttons
For selecting an individual programme quickly. These buttons can be
re-programmed to select your favourite wash programmes instead of the
pre-set ones.
cStart button
dPC / Optical interface
This is used by service technicians for testing purposes and for uploading new
software to the machine.
eMulti-function selector
This is used to select menu options (by turning it) and to confirm your selection
(by pressing it).
fOn-Off button s
Before using for the first time
Before using the machine for the first time ensure that it is correctly installed
and connected. See "Installation". Also check that the drain filter is securely
tightened to prevent the risk of water leaks during use.
Commission the machine as described in the separate booklet supplied with the
machine.
Operating the machine
14

Display
Entry menu
1 Cottons Uni. 60°C Programme selection...
2 Minimum iron 40°C Settings F...
3 Delicates 40°C
4 Woollens H30°C 10:00
When the machine is switched on, the entry menu (with four
favourite programmes listed) appears and Programme
selection is highlighted.
Multi-function selector
Turning the multi-function selector moves the highlighting to
the next option.
Pressing the multi-function selector selects the highlighted
option.
Short cut buttons
Pressing a short cut button selects one of the four favourite
programmes shown on the left of the display.
If you wish to change the programmes shown in this list you
can do so (see "Saving a favourite programme" for more
information).
The short cut buttons have different functions in the other
menus. Where this is the case, an arrow Hwill appear in the
display above the short cut button, together with a
description of its function .
Programme selection
There are two ways of selecting a programme:
–Option 1: Select Programme selection from the display and
press the multi-function selector.
–Option 2: Press short cut button D,E,For G.
This will automatically take you into the main menu for that
programme.
Operating the machine
15

Programme selection menu
Programme
selection
Cottons Hygiene V
Cottons Uni.
Minimum iron
Delicates H
You can use the multi-function selector to select any
programme. The highlighting will move up or down
depending on the direction the multi-function selector is
turned in.
The HVarrows on the right of the display, indicate further
options.
Pressing the multi-function selector takes you to the main
menu of the programme selected.
Wash programme main menu
Cottons Uni. 60°C 1300 rpm
Duration: 0:53 h
Extras
H
Timer Y
H
Back A
H
Turn the multi-function selector to highlight programme,
temperature or spin speed. Pressing the multi-function
selector selects the highlighted option and opens the relevant
sub-menu.
The sub-menus Extras and Timer can be accessed by
pressing the short cut button directly below them.
To go back to the entry menu press short cut button G
below the word Back.
Alternatively, you can also highlight and confirm all options by
just using the multi-function selector.
Settings menu J
The Settings menu is used for altering standard settings. See
the separate booklet supplied with the machine for further
information on how to alter settings.
Operating the machine
16

Operating a wash-salon machine
The entry menu will vary depending on the Control setting
selected.
The machine is operated either with the short cut buttons
D,E,F,Gor the multi-function selector.
WS shortcut keys, basic
1 Cottons Uni. 60°C
2 Minimum iron 40°C
3 Delicates 40°C
4 Woollens H30°C
4 programmes are available to choose from. To specify which
programmes are available go to the Settings/Supervisor level
menu.
WS shortcut keys + Logo
M
PROFESSIONAL
30°C
H
60°C
H
95°C
H
More
H
12 programmes are available to choose from. To specify
which programmes are available go to the
Settings/Supervisor level menu.
Operating the machine
17

1. Sort the laundry
^Empty all pockets.
,Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to textiles and to
components in the machine.
Removing marks
^Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft, colourfast cloth. Do not rub!
Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.
,Do not use solvent-based
cleaning agents in this machine.
Sorting laundry
^Sort the laundry by colour and by
care label. Most garments have a
textile care label in the collar or side
seam.
Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load. Always wash whites and
coloureds separately.
–Curtains: Remove lead weights first
or place in a laundry bag.
–Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
– Knitted garments, trousers and
jeans, T-shirts and sweat shirts: Turn
inside out, if recommended by the
manufacturer.
– Close any zips, fasten hooks and
eyes etc before washing.
–Fasten duvet covers etc. to prevent
small items from being rolled up
inside them.
–See the separate booklet supplied
with the machine for further tips.
Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label. (hsymbol)
Items suitable for professional wet
cleaning (wgarment care label
symbol) may be washed in this
machine.
Tips
18

2. Load the drum
^Switch the machine off with the K
On/Off button.
^To open the drum door pull on the
handle.
Do not use force as it is fitted with a
safety device to prevent it being
opened by mistake. Forcing the door
handle can cause damage to the
locking mechanism (see "Problem
solving guide, The door will not
open").
^Unfold the laundry and load loosely
into the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.
The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.
^Close the drum door. Press the door
firmly to shut it and then lock the
handle in position. Do not slam the
drum door.
,Make sure that no items are
caught between the door and the
drum.
3. Select a programme
^Select the most appropriate
programme for the load being
washed.
See the separate booklet supplied with
the machine for an overview of which
programmes are available.
Tips
19

Washing
The figure quoted in the bucket is the
maximum temperature the garment
can be washed at. The number of
bars under the symbol indicate the
level of agitation permitted.
9No bar under the symbol:
= normal agitation
4One bar under the symbol:
= reduced agitation
cTwo bars under the symbol:
= much reduced agitation
/Hand wash (if no temperature
is specified use the lowest
temperature or cold)
hDo not wash
Programme selection
Programme Care label symbols
Cottons 9ö8E76
Minimum iron 54321
Delicates ac
Woollens /
Quick wash 76
Drying
The number of dots indicates the
drying temperature
qNormal temperature
rLow temperature
sDo not tumble dry
Ironing
The number of dots indicates the
ironing temperature
IHot iron (max sole plate temp.
approx. 200°C)
HMedium hot iron (max sole
plate temp. approx. 150°C)
GCool iron (max sole plate
temp. approx. 110°C). Do not
steam iron garments carrying
this symbol.
JDo not iron
Professional cleaning
fDry clean only. The letters
indicate the type of cleaning
agent required.
p
wProfessional Wet Clean only
DDo not dry clean
Bleaching
xAny oxidising bleaching
agent can be used
{Only use an oxygen based
bleach or a non-chlorine
bleach
zDo not bleach
Garment care label symbols
20
