Installation
*INSTALLATION*
Front view
aMains connection cable
bControl panel
cCondensed water container
dDoor
ePlinth filter access panel
f4height-adjustable feet
gCooling air grille
hDrain hose for condensed water

11909320-00
Installation
*INSTALLATION*

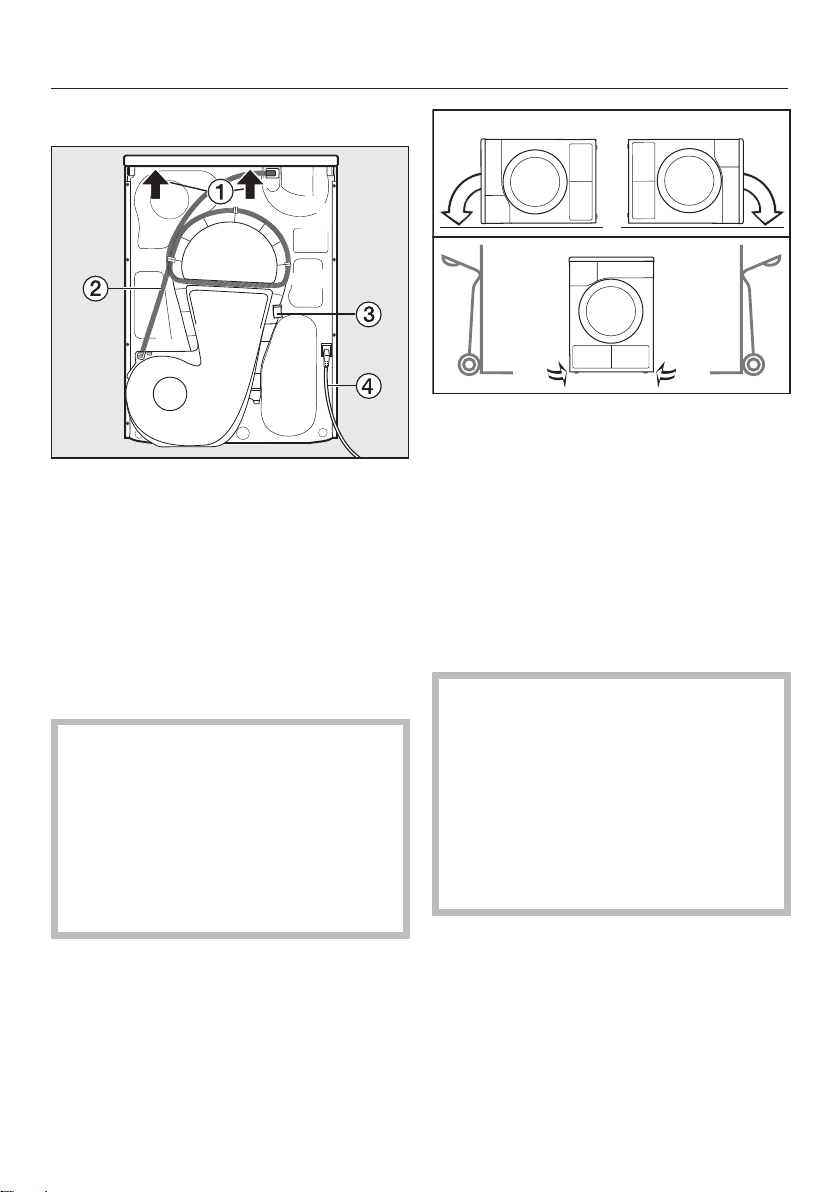

Rear view
aProtruding lid for holding when
moving the machine
bDrain hose for condensed water
cHook for winding the mains
connection cable around during
transport
dMains connection cable
Transporting the tumble dryer
Danger of injury to people and
damage to property caused by
moving the appliance incorrectly.
If the tumble dryer tips over, there is
a danger of injury to people and
damage to property.
Ensure that the tumble dryer is stable
during transportation.
If the tumble dryer is being
transported horizontally, it must only
be tipped onto its left or right side.
If the tumble dryer is being
transported upright and you are using
a handcart or trolley, you must only
transport it with its left or right side
resting on the handcart or trolley.
Transporting the tumble dryer to its
installation site
Make sure the fixings at the back
of the lid are secure.
Otherwise there is a danger of the lid
being pulled off when carrying the
appliance.
Before carrying the appliance, check
that the lid is secure where it
protrudes at the back of the
appliance.
Carry the tumble dryer by the front
feet and by the lid where it protrudes
at the back of the appliance.

11909320-00
Installation
*INSTALLATION*
Installation
Levelling the dryer
The appliance must not be installed
behind a lockable door, a sliding
door or a door with a hinge on the
opposite side to that of the tumble
dyer, in such a way that a full
opening of the tumble dryer door is
restricted.
To ensure proper operation, the tumble
dryer must stand perfectly level. The
screw feet on the tumble dryer can be
adjusted to compensate for unevenness
in the floor.
Turn the screw feet by hand or with a
flat open spanner.
Risk of fire and explosion due to
damage to the tumble dryer.
The refrigerant is flammable and
explosive.
Do not make any alterations to the
tumble dryer. Take measures to
protect the tumble dryer against
damage.
If the tumble dryer is damaged, proceed
as follows:
- Avoid naked flames or anything
which creates a spark.
- Disconnect the dryer from the
electricity supply.
- Air the room where the tumble dryer
is located.
- Contact Miele Customer Service.
Downtime after installation
Damage to the tumble dryer by
switching it on too soon.
This can damage the heat pump.
After setting up the tumble dryer,
wait for at least one hour before
switching it on.

11909320-00
Installation
*INSTALLATION*
Ventilation
The cool air intake at the front of the
tumble dryer must not be blocked or
covered. This would hinder a
sufficient intake of cool air for the
heat exchanger.
Do not block the gap between the
bottom of the tumble dryer and the
floor with plinth facings, deep pile
carpet etc. This would hinder a
sufficient flow of air to the tumble
dryer.
Adequate ventilation has to be
provided to avoid the backflow of
gases into the room from appliances
burning other fuels, including open
fires.
Air which is taken in to cool the heat
exchanger is then blown back out of the
dryer and warms up the air in the room.
Ensure sufficient ventilation of the
room, e.g. by opening a window. The
drying time will otherwise take longer
(higher energy requirement).
The heat pump that is essential to
the operation of this tumble dryer
generates a lot of heat inside its
casing. It must be possible to
dissipate this heat well.
Otherwise loads could take longer to
dry or the tumble dryer might sustain
damage in the long term.
Permanent room ventilation during
every drying programme and the
ventilation gap between the bottom
of the tumble dryer and the floor are
mandatory requirements at all times.
Before moving the tumble dryer
again (e.g. when moving house)
A small quantity of condensed water
that remains in the area around the
pump after the drying process can run
out if the tumble dryer is tilted.
Recommendation: start a programme
for approx. 1minute before transporting
the dryer. Any remaining condensed
water will then be fed into the
condensed water container (which you
will need to empty again) or out through
the drain hose.

11909320-00
Installation
*INSTALLATION*
Additional installation
requirements
Suitable for pushing under a worktop
This tumble dryer is suitable for pushing
under a worktop.
Appliance defect due to a build-up of
heat.
Make sure there is adequate room
for warm air from the dryer to be
directed away.
- The appliance lid cannot be removed.
- The electrical socket must be located
in an accessible position near the
appliance.
- Drying durations may increase
slightly.
Optional accessories
– Washer-dryer stack
The tumble dryer can also be combined
with a Miele washing machine in a
washer-dryer stack. The appropriate
Miele washer-dryer stacking kit is
required.
– Plinth
The tumble dryer can be fitted with a
plinth with drawer (please note the
plinth may not be available in all
countries).

11909320-00
Installation
*INSTALLATION*
Externally draining condensed
water
Notes
When drying is in progress,
condensed water is pumped into the
condensed water container through
the drain hose which is located at the
back of the dryer.
The condensed water can also be
drained away via the drain hose. The
condensed water container will then not
need to be emptied.
Hose length: 1.49m
Maximum delivery head: 1.00m
Maximum drain hose length: 4.00m
Drainage accessories
- Supplied: adapter (b), hose clip (c),
hose holder (e);
- Available to purchase: “Non-return
valve” kit for connection to an
external water connection. Non-
return valve (d), hose extension (a)
and hose clips (c) are supplied with
the kit.
Installation conditions requiring a
non-return valve
Danger of condensed water
backflow.
Water could flow back into the
tumble dryer or be drawn into it.
Backflow water could damage the
tumble dryer and also the room in
which it is located.
The non-return valve should be used
if the end of the hose is immersed in
water, or if other water connections
are installed.
Maximum delivery head with non-return
valve fitted: 1.00m
Installation conditions requiring the
fitting of a non-return valve:
- Drainage into a laundry tub or floor
gully where the end of the hose is
immersed in water.
- Connection to a sink drain outlet.
- Connection to a drainage system
already in use by another appliance,
e.g. a dishwasher or washing
machine.
If the non-return valve is incorrectly
fitted the appliance will not drain.
The non-return valve has to be fitted
with the arrow on it pointing in the
direction of flow.

11909320-00
Installation
*INSTALLATION*
Arranging the drain hose
Damage to the drain hose
through incorrect handling.
The drain hose can suffer damage
and leak.
Do not pull on the drain hose and do
not stretch it or allow it to become
kinked.
There will be a small amount of residual
water left in the drain hose. Have a
container ready to collect this.
Pull the drain hose off its connection
(light arrow).
Pull the hose out of the holders (dark
arrows) and unwind it.
Allow any residual water to run into a
container.
Examples
Drainage into a laundry tub or floor gully
Use the hose holder to secure the drain
hose.
Risk of water damage.
Should the end of the hose come
loose, overflowing water can cause
damage.
Secure the drain hose carefully (e.g.,
by tying it) to make sure it cannot
slip.
The non-return valve can be fitted in the
end of the hose.

11909320-00
Installation
*INSTALLATION*
Direct connection to a sink drain outlet
Use the hose holder, the hose clips
and the non-return valve (available to
purchase).
1. Adapter
2. Nut
3. Hose clip
4. End of the hose (secured with the
hose holder)
5. Non-return valve
6. Tumble dryer drain hose
Fit the adapter 1 to the sink drain
outlet using the nut 2.
The nut is usually fitted with a washer
which must be removed.
Attach the end of the hose 4 to the
adapter 1.
Use the hose holder.
Use a screwdriver to tighten the hose
clip 3 up close to the nut.
Fit the non-return valve 5 to the
tumble dryer drain hose 6.
The non-return valve 5 has to be
fitted so that the arrow points in the
direction of flow (i.e. towards the
sink).
Secure the non-return valve using
hose clips.

11909320-00
Installation
*INSTALLATION*
Changing the door hinging
You can change the door hinging on
this tumble dryer yourself.
For safety reasons, the tumble dryer
must be disconnected from the
electricity supply before changing
the door hinging.
You will need:
- a T20 and T30 Torx screwdriver
- a flat head screwdriver or pointed
pliers
- the lock catch cover supplied
- the door hinge cover supplied
- a soft surface (e.g. a tablecloth)
Changing the hinging over
1. Remove the door from the dryer
Open the door.
Use a T30 Torx screwdriver to
unscrew the two screws on the base
plate of the door hinge .
The door cannot fall off as it is held in
place by two pins.
Hold the door securely and pull it
forwards: to remove the door you will
need to pull the base plate of the
hinge with its two pins out of the
dryer.
To avoid scratching the door, place it
outer side downwards on a soft
surface (e.g. a tablecloth).

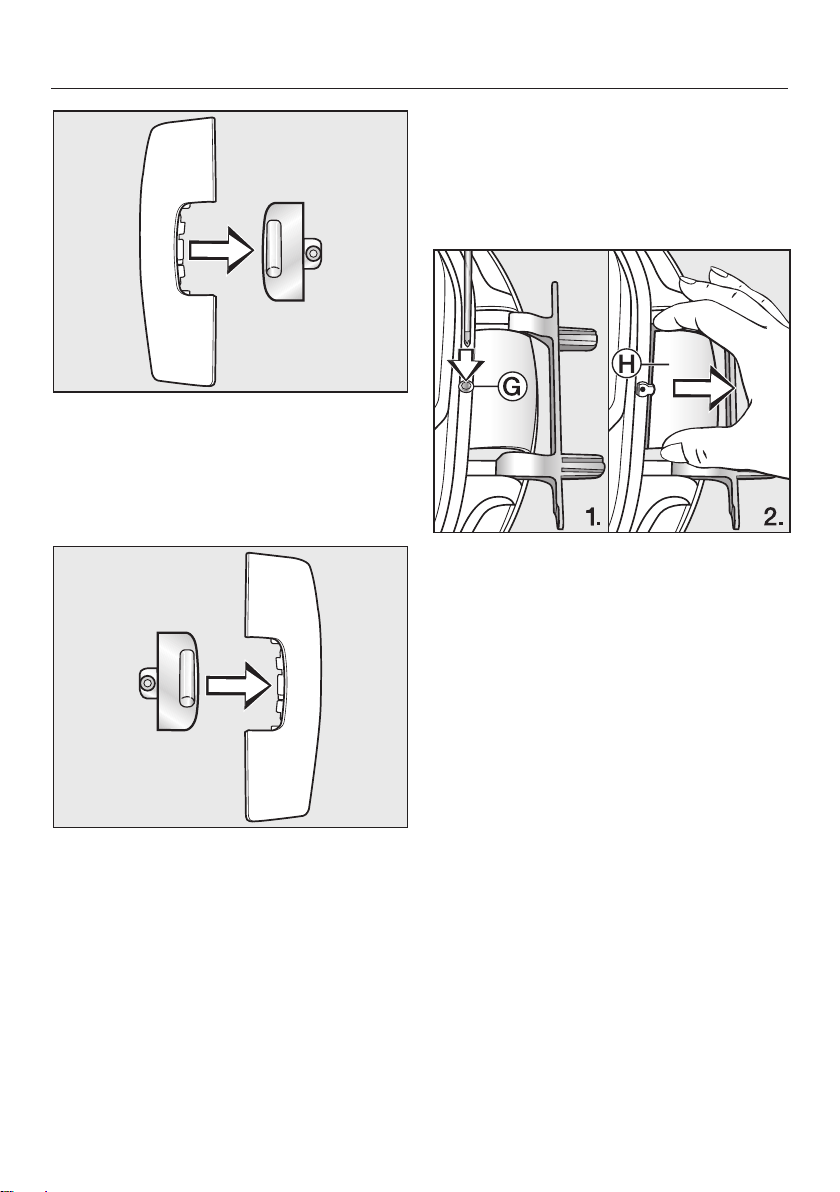

2. Change over the door lock on the
dryer
Use a T30 Torx screwdriver to
unscrew the two screws on the door
lock .
Use the screwdriver to press the door
lock upwards.
The door lock will spring out of its
position and can then be removed.

11909320-00
Installation
*INSTALLATION*
Turn the door lock through 180°.
Press the door lock into the openings
 on the opposite side of the door
opening.
Adjust the position of the door lock
so that the screw holes line up with
those in the front panel of the dryer
.
Secure the door lock with the two
Torx screws.
3. Remove the lock catch from the
door
First take the rubber seal off the door
and place this to one side.
Use a T20 Torx screwdriver to remove
the screw  on the lock catch.
Pull off the lock catch together with
the lock catch cover .

11909320-00
Installation
*INSTALLATION*
Remove the lock catch from the
cover.
This lock catch cover is no longer
needed. However, please keep it in a
safe place.
Insert the lock catch into the new
cover supplied with the dryer.
Place this new cover to one side for
now.

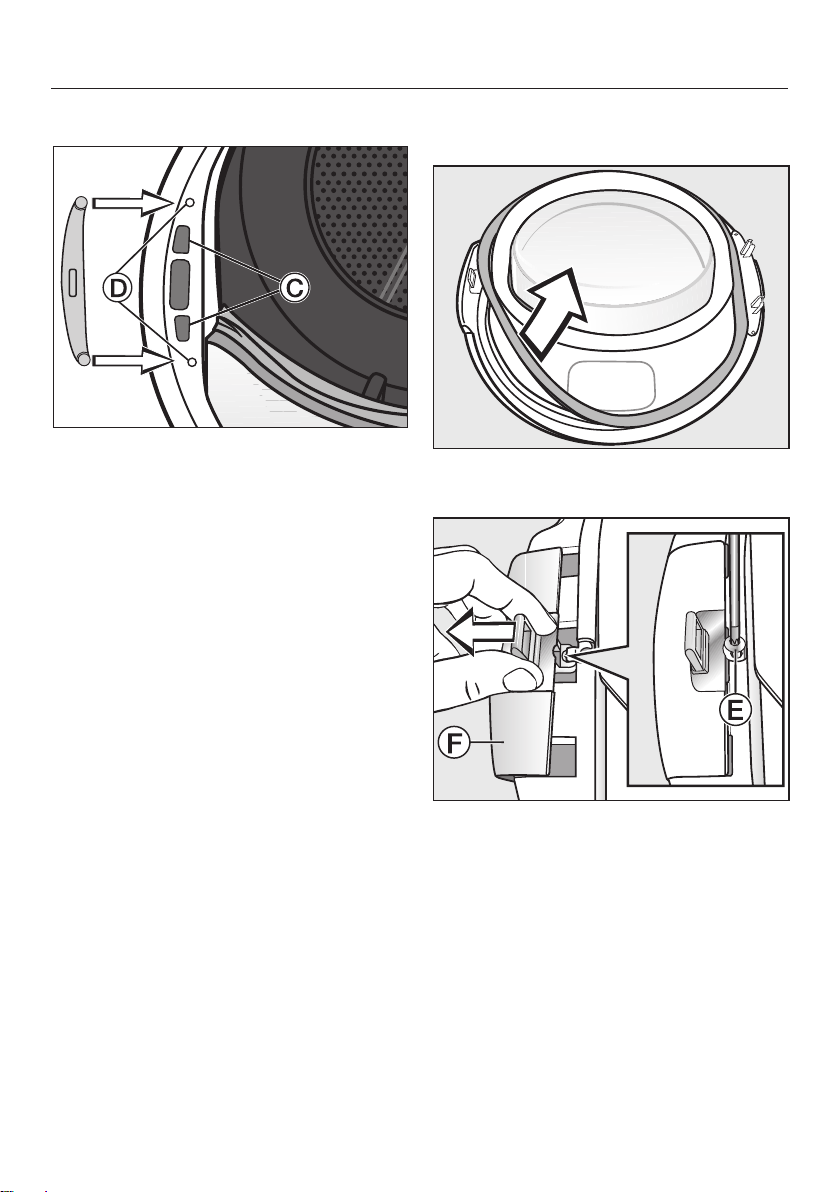

4. Dismantle the door hinge from the
door
The door hinge cover must be
unclipped from position  and then
removed.
Use a screwdriver to press down
gently on position  on the door
hinge cover.
Using a little force, pull out the door
hinge cover .
This door hinge cover is no longer
needed. However, please keep it in a
safe place.

11909320-00
Installation
*INSTALLATION*
5. Change the door hinge on the door
The door hinge is secured to the door
with 2 angled rods. These rods need
to be removed with a screwdriver or
pointed pliers.
Insert the end of the screwdriver
blade under the rod  and rotate it
so it is in an upright position. Do the
same to the other rod.
Use the screwdriver or pointed pliers
to guide first one then the other
rod to the middle until each can be
removed.
Useful tip: In some circumstances, the
rods can be difficult to dislodge.
Moving the screwdriver with a levering
action while pulling at the same time
may help to work the rods free.
Remove the door hinge and rotate it
180°.
Refit the door hinge on the opposite
side of the door.
Secure the door hinge with the two
rods .
Position the tip of the screwdriver
under the end of the rod and then
push it into its resting position.

11909320-00
Installation
*INSTALLATION*
You now need the new door hinge
cover supplied with the tumble dryer.
Fit the new door hinge cover  and
clip it into position.
6. Change the lock catch on the door
You now need the new lock catch
cover supplied with the dryer which
you have already fitted with the lock
catch.
Push the lock catch cover  with its
lock catch into position.
Tighten the screw  with a T20 Torx
screwdriver.

11909320-00
Installation
*INSTALLATION*
Refitting
7. Refit the door
Press the rubber seal back into the
groove on the door.
Position the door in front of the dryer.
Fit the base of the door hinge with its
two pins into the openings on the
dryer.
The base of the door hinge must be
flush with the front panel of the dryer.
The door cannot fall off in this position.
Screw the door securely to the dryer
at the base of the door hinge  with
a T30 Torx screwdriver.
Now that you have changed the
door hinging, the door will open from
the opposite side.
Push the orange marker round to the
other side so that you will see at
which side to pull the door open.
Note
Please keep the lock catch and
door hinge covers which were no
longer needed in a safe place. These
will be required if, for example, you
move house and need to change the
door hinging back to its original
position.

11909320-00
Installation
*INSTALLATION*
Electrical connection
The tumble dryer is supplied with a
mains cable with moulded plug ready
for connection to a socket.
The socket should be easily accessible
after the tumble dryer has been
installed. If the socket is not easily
accessible, ensure that a suitable
means of disconnection is provided on
the installation side for each pole.
Risk of fire from overheating.
Connecting the tumble dryer to a
multi-socket plug adapter or to an
extension lead can overload the
cable.
For safety reasons, do not use an
extension cable or multi-socket
adapter.
All electrical work must be carried out
by a suitably qualified and competent
person in strict accordance with
national and local safety regulations.
For safety reasons, we recommend
using a suitable residual current device
(RCD) in the relevant electrical
installation for connecting the tumble
dryer.
If the mains connection cable is
damaged, it must only be replaced with
a specific mains connection cable of
the same type (available from Miele).
For safety reasons, such replacement
may only be carried out by a suitably
qualified and competent electrician or a
Miele authorised service technician, in
order to avoid a hazard.
The data plate indicates the nominal
power consumption and the connection
data. Compare this information with the
data of the on-site electrical
connection.
If in any doubt, consult a qualified
electrician.
Temporary or permanent operation with
a self-sufficient or non-mains
synchronous energy supply system
(e.g. isolated networks, back-up
systems) is possible. A requirement for
the operation is that the energy supply
system complies with all current local
and national requirements that apply to
stand-alone, solar and/or battery
systems.
The protective measures provided in
the domestic installation and in this
Miele product must also be assured in
their function and operation in isolated
operation or in non-mains synchronous
operation, or replaced with equivalent
measures in the installation.
