感谢您购买本公司的 MIG-21X系列 DVI 分配器。希望您能够尽情体验该产品的
卓越性能。该视频切换台的设计符合国际、行业标准，但如果操作不当，仍然可能造
成人身伤害和财产损失。为了避免设备可能带来的危险，并尽可能从您的设备中获益，
在安装、操作产品时，请遵守本手册中的相关使用说明。
关于软件
不得对本产品上安装的软件进行更改、反编译、反汇编、解密或者进行反向工程，
以上行为均属违法。
特性
MIG-21X有两路输入(二选一)，4或8路输出，每路输出均相同
设备带宽最大为 165MHz
支持 EDID 学习功能
支持输入 EDID 管理
输入自动热备份功能
支持上位机操作，通信方式为 USB 转串行通信，波特率为 256000
对输入信号自动增强，良好的支持无损级联功能
简介

2
随附配件
启用指南
说明书
电源线×1
合格证
DVI 线×1
光盘×1
USB 线×1

3
本产品电源的输入电压范围是 100～240VAC，50/60Hz，请您使用正确的电源
当您要连接或者拔除任何信号线或者控制线时，请确认所有的电源线已事先拔掉
当您要加入硬件设备到本产品中或者要去除本产品中的硬件设备时，请确认所有
的信号线和电源线已事先拔掉
在进行任何硬件操作之前，请事先关闭设备电源，并通过触摸接地表面来释放您
身上的静电
请在干净、干燥、通风的环境中使用，不要将本产品放入高温、潮湿等环境中使
用
本产品为电子类产品，请远离火源、水源以及易燃、易爆的危险品
本产品内有高压部件，请不要打开机箱或者自行对本设备进行维修
如发现有冒烟、异味等异常情况，请立刻关掉电源开关，并与经销商联系
安全须知

4
概述
功能介绍
MIG-21X系列产品是针对显示系统开发的 DVI 分配器，本系列含有两款型号，
分别是 MIG-214 和MIG-218，其中 MIG-214 具有 2路DVI 信号输入，4路DVI 信
号输出，MIG-218 具有 2路DVI 信号输入，8路DVI 信号输出；可实现在不同安装
位置上多个屏幕同时显示，也可实现热备份，从而满足多路高质量的视频播放需求。

5
MIG-214
MIG-218
技术规格
输入信号指标
端口类型
数量
分辨率规格
DVI
2
VESA 标准
输出信号指标
端口
数量
分辨率规格
DVI
4
VESA 标准
输出信号指标
端口
数量
分辨率规格
DVI
8
VESA 标准
输入信号指标
端口类型
数量
分辨率规格
DVI
2
VESA 标准
电气规格
输入电源
100～240VAC，50/60Hz
整机功耗
15W(MIG-214) 25W(MIG-218)
工作温度
0-45℃
外形尺寸(L×W×H)
482.0×250.5×44.5mm
包装尺寸(L×W×H)
525.0×290.0×110.0mm
净重
2.7KG
毛重
3.5KG

6

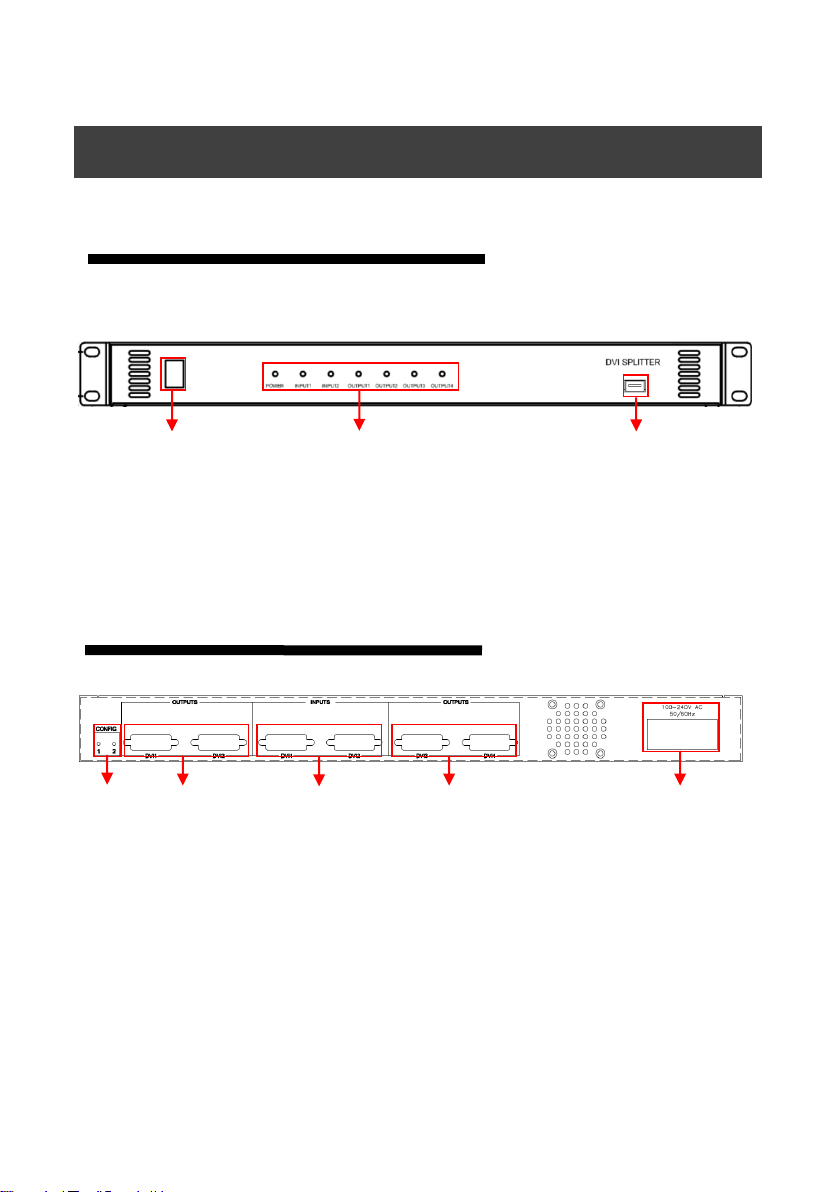

MIG-214 前面板介绍
1- 信号切换键：当有两路信号输入时，可用于切换输入信号
2- 信号指示灯：输入输出有信号时对于指示灯亮
3- USB 接口：用于连接上位机软件
MIG-214 后面板介绍
4- 复位及功能按键：实现某些特定操作
5- DVI1 和DVI2 输出口
6- DVI1 和DVI2 输入口
7- DVI3 和DVI4 输出口
8- 电源接口
MIG-21X系列前后面板介绍
8
7
6
5
4
1
2
3

7

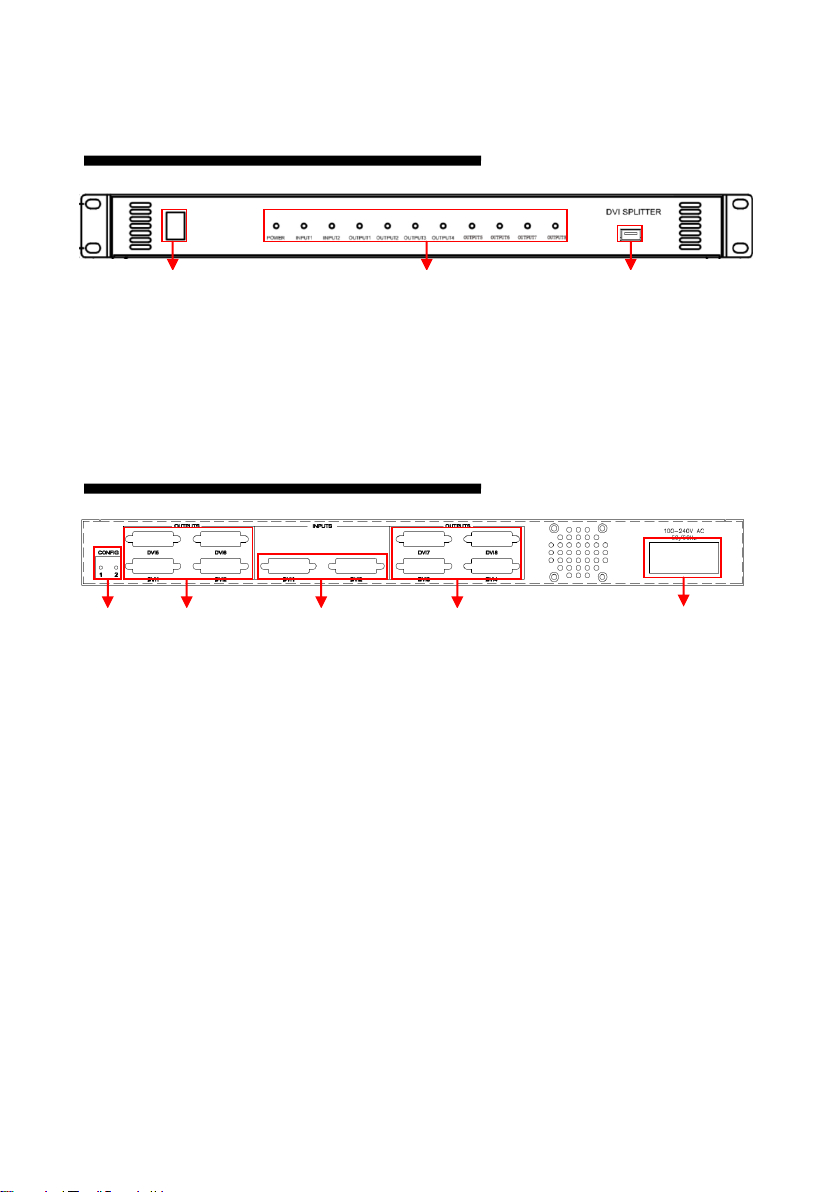

MIG-218 前面板介绍
1- 信号切换键：当有两路信号输入时可用于切换输入信号
2- 信号指示灯：输入输出有信号时对于指示灯亮
3- USB 接口：用于连接上位机软件
MIG-218 后面板介绍
4- 复位及功能按键：实现某些特定操作
5- DVI 输出口
6- DVI1 和DVI2 输入口
7- DVI 输出口
8- 电源接口
1
2
3
4
5
6
7
8

8
本产品只有一个输入源切换按钮已经两个复位按钮，以及相对应输入输出的指示
灯，以下将为您详细介绍如何使用本产品按键以及按键和指示灯功能。
如何使用按键
MIG-21X系列前面板只有一个输入源切换按钮，用于切换输入信号源；背面板
有两个复位按钮功能键，用于实现某些特定操作。
当分配器有两个信号源输入时，若需要切换信号，可按前面板输入源切换键，即
可达到切换目的。但是需要注意的是，分配器的切换是智能信号切换，具体情况如下：
a.手动切换到另一路输入时，如果该路输入没有信号，则不切换当有信号时，则
自动切换过去。当两路都没有信号时，可以切换过去。
b.信号丢失后，如果另一路有信号输入， 则自动切换到另一路。当信号恢复后，
则又自动切换回来
c.选中的输入端口无信号时，信号指示灯会闪烁
在机器后面板左下角有一个 CONFIG 区域，里面有两个复位按钮键，分别为按键
1和按键 2，在某些特定操作下可以实现特定功能，具体如下：
功能一：模式切换
当开机的同时按键 1(靠近板子边上的)表示第一路输入模式改变(三种模式循环切
换)；当开机的同时按键 2表示第二路输入模式改变(三种模式循环切换)；
功能二：恢复出厂设置
开机时同时按下按键 1和2表示恢复出厂设置，此时两路输入的 EDID 都恢复到
默认的 DVI 模式；
功能三： COPY 输出端口的 EDID
当设备工作在学习模式时候，长按按键 1约10S 钟会 COPY 输出端口的 EDID 到
输入端口 1，长按按键 2约10S 钟会 COPY 输出端口的 EDID 到输入端口 2。
MIG-21X系列按键及指示灯功能介绍
输入源切换键
复位按钮功能键

9
如何识别指示灯功能
以MIG-218 按键指示灯为例，如下表所示：
Power
IN1
IN2
O1
O2
O3
O4
O5
O6
O7
O8
上表中共11 个指示灯，包括一个电源指示灯(Power), 两个输入口指示灯
(IN1,IN2), 八个输出口指示灯(O1~O8)，各个指示灯功能如下:
1. Power 亮表示电源打开
2. IN1，IN2 在正常工作时，灯亮亮表示输入连接正常，闪烁表示无信号
3. O1~O8，在正常工作时，灯亮表示对应输出口连接正常
4. 工作模式指示:开机时，O1~O3 指示输入口 1的工作模式(仅O1 亮表示
DVI 模式， 仅O1 和O2 亮表示 HDMI 模式， O1~O3 全亮表示为学习
模式)，同理 O5~O7 指示输入口 2的工作状态
5. 当某些操作(如恢复出厂设置，模式切换，COPY EDID 等)成功时， 指示
灯会从时 I1~O8 顺序跑一遍， 失败时 I1~O8 会全亮全灭闪烁三次

10
本设备可使用上位机对其进行操作，下面将详细介绍软件具体操作以及实现功能。
如何使用上位机
连接设备

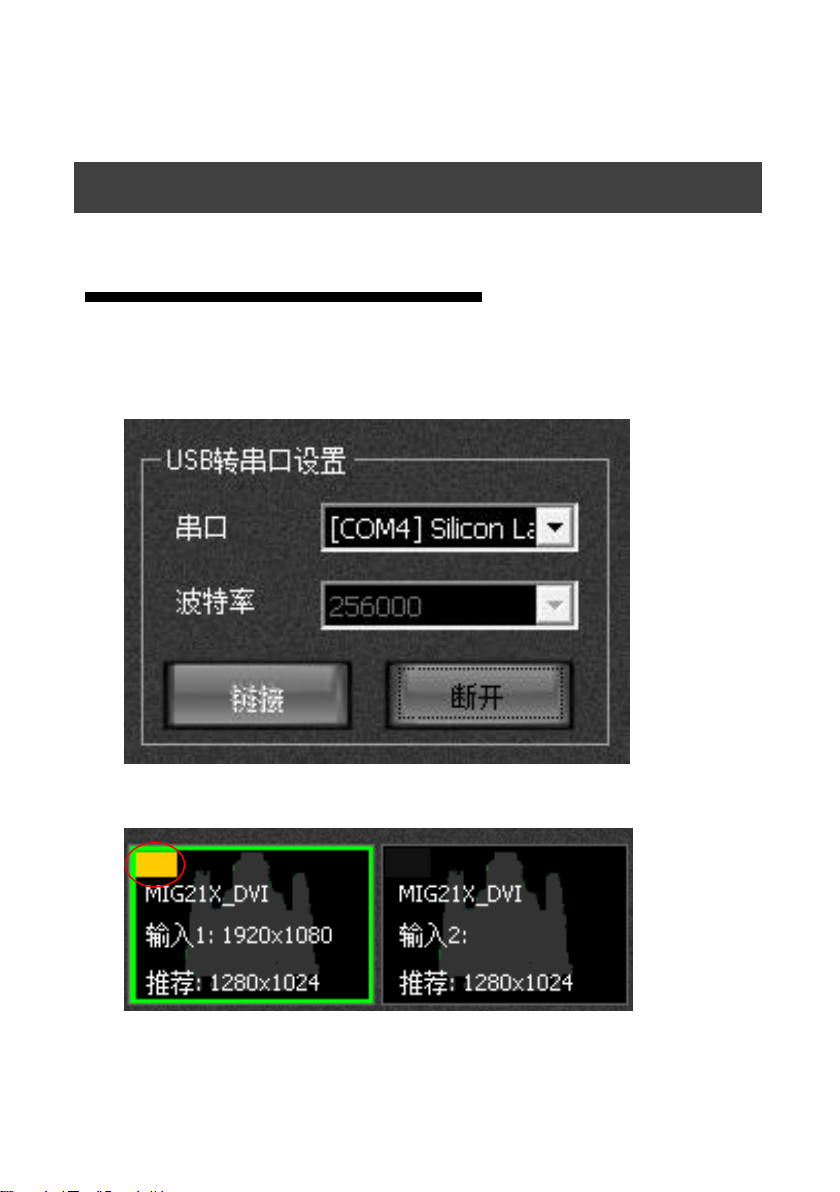

将设备的串口和电脑通过串口线连接，打开软件，选择合适的串口，选择波特率
为256000，点击连接。连接成功后会获取到设备的状态信息，连接界面如下图所示。
选择要操作的输入口
如下图标记处表示当前选中的某一输入口， 可直接点击输入口进行选择
软件介绍

11
自定义输入分辨率
设置好参数后点击“设置”，然后重启机器生效。自定义分辨率定制的为输入
DVI 分辨率。
模式切换
点击三个按钮来进行切换，黄色高亮是表示当前选中的模式， 当输入口选择变化
时， 黄色高亮按钮也会跟随指示。
当要切换到学习模式时候， 会弹出对话框，以确认是否要重新使用新的 EDID，
点击确定进行学习， 点击取消则使用之前复制过得 EDID，如下图所示：

12
注意：学习时只连接一路输入，否则会从 O1~O8，按顺序开始检测连接，最先
检测到的被复制，后面有连接的不复制。
恢复出厂设置，刷新
如下如所示，点击相应的按钮来操作， 其中，刷新是指手动刷新设备状态信息
设备状态信息

13
语言选择
在主菜单中完成

14
整机保修期
自用户购机发票日期起 36 个月；
如果用户购机发票丢失，以此产品的生产日期后的第 60 天，为该产品的保修起
始日期。
非保修规定
机器浸水，碰撞，使用后所产生的污渍或表面划伤等其它非正常使用原因造成的
故障或损坏；
非经我司同意的拆机，改装；
非产品所规定的工作环境下使用，造成的故障或损坏（例如温度过高，过低或电
压不稳定等）；
由于不可抗拒（如火灾，地震等）或自然灾害（如雷击等）所造成的故障或损坏；
产品超出保修期。
保修说明
