INSTRUCTION MANUAL
FOR
DISPLAY COOLER
Model No.: C-04RM
MADE IN CHINA
Warning
◆This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved
◆Children shall not play with the appliance
◆Cleaning and user maintenance shall not be made by
children without supervision
Please read this manual carefully, and
make sure to keep this manual in the
place accessible by the user at any time

◆-The instructions concerning persons (including children)
with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge and children playing
with the appliance are not required.
◆- Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
◆-- Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
◆-- If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

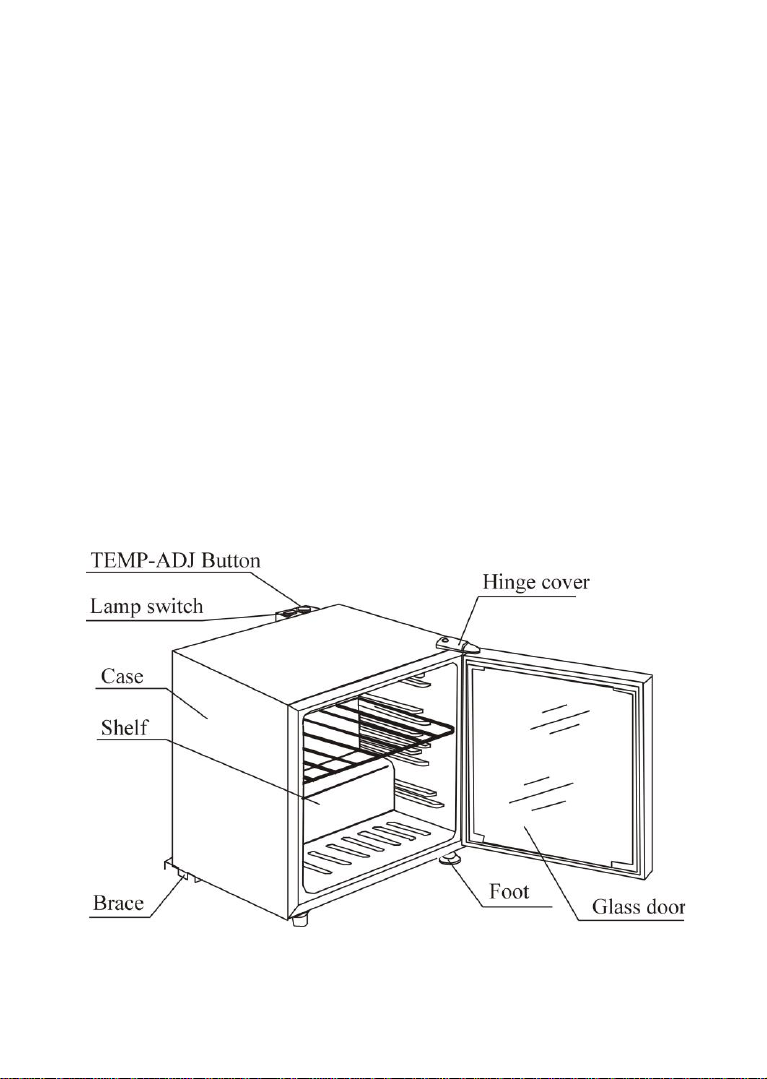

1.Structural diagram
The above picture only for reference, refer to the real product.

2 Specifications.
Model name
C-04RM
Climatic Class
N
Anti-shock
protection Class
I
Storage
Temperature (℃)
0~10
Capacity (L)
98
Rated Voltage
AC110-120V/60Hz
Input power
94
Refrigerant
R600a
Vesicant
C5H10
The above specifications are subject to improvements.
3. Safety Cautions
1.This unit uses AC220~240V/50Hz or AC110V-120V/60Hz power,
there should be a 500va stabilizer if the voltage luctuation exceed
AC187～242V or 98V-127V/60Hz respectively.
2.The user should hold the plug when the power is on/off, dragging or
pulling the power cord is prohibited.
3.Do not remove the power cord or plug

4.Must use dependent socket and reliable ground wire. Ground wire
must not connect with the null line of the gas pipe, warm gas pipe,
water pipe and must be single power
5.Never splash water on the unit directly.
6.Keep away from explosive, hazardous goods such as ether, gas,
alcohol, bonding agents, gunpowder etc.
7. Keep away from spray of inflammables such as paints, coating
materials etc.
8.After the unit is switched off, it should not be restarted within 5
minutes.
9.Do not leave the power cord under any heavy objects including the
unit itself.
10.Do not drill holes or install other objects on the casing.
11.This cooler is not suitable for storage pharmaceutical products.
4. Portage and storage
1.Keep the unit vertical when carrying the unit, the angle to the
horizontal line should not be
over 50 °，otherwise it will damage the compressor and affect
normal operation of the unit.
2.The unit should be place on a solid and firm ground, take away the
bottom pack to lower
the shock and noise.
3.Leave at least 20 cm of distance between the back of the unit and the
wall for ventilation and leave a space with an open angle of 160 ° for
the door.
4.Keep the unit away from heat sources and avoiding direct sunlight.
5.Never place the unit on a location where water can reach or with high
moisture. Splashed water and dirt should be wiped off in time by
using a soft cloth.

6.Do not place the unit in the environment cold enough to be iced.
5. Preparation
1.Remove the carton and packing foam (including the bottom foam)
before using.
2.Clean the unit before using.
3.After moving the unit, place the unit for 30 minutes before switching
it on. Running: close the door and connect the power, turn on the
lamp switch on the control panel, the lamp is on. Half an hour later,
the temperature inside the case lower apparently, it indicates the unit
on be normally used
4.After connecting the power, the unit should be kept empty for one
hour.
6. Setting and adjustment of temperature
1.Adjust the storage temperature through the temperature controller
located in the internal of the case(see the picture), adjust the
temperature according to the ambient temperature and the foodstuff.

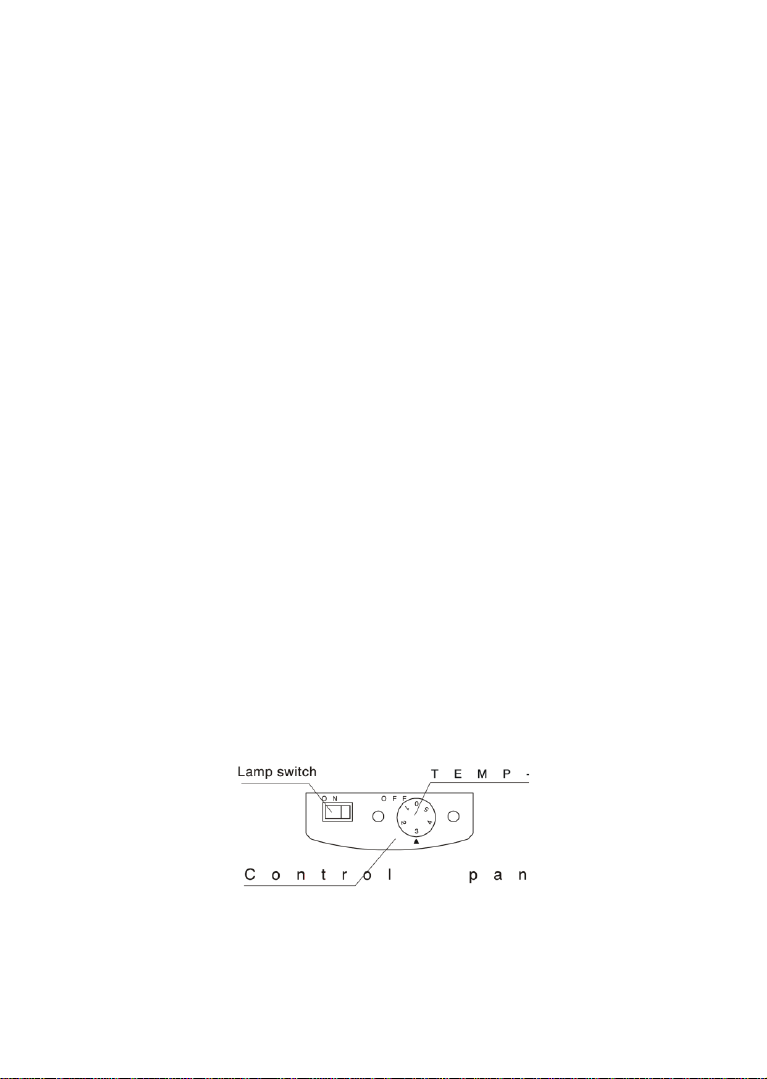

2.See the following picture about the knob scale. The temperature
adjustable capacity is from “1”-“5”, adjust the storage temperature by
turning the temperature controller clockwise. The higher of the
number shows the lower of the storage temperature. The knob can
turn freely but can’t turn clockwise from “5”to “1”. Factory setting
position is on “3”.
3.Check if the scale is on an appropriate position before using, frequent

adjustment is not appropriate when using. Normally in summer, the
ambient temperature is high, anti clockwise turn the knob to “5”,
while in winter, the ambient temperature is low, clockwise turn the
knob to “1”.
4.Position “0” represent stop running.
7. Storage of articles
1.Do not put large amount of articles into the unit at one time, you should
leave some space around the foodstuff to let cold air inside the cabinet
counter to flow. Keep bottled articles away from the walls of interior
cabinet so as not to freeze it until broken.
2.Do not put warm food into the unit directly until they are cooled under
normal temperature, it will facilitate to lower its energy consumption
and prolong service life of the compressor.
8. Maintenance
Disconnect the power supply before maintenance for the machine!
1.Keep the door gasket clean, remove it from the door and wash it. Dry
and seal it as before. Putting some talcum powder on the magnetic
surface would prolong its service life.
2.Bulb replacement: remove the lamp shade, take out the bulb, replace
with a new bulb, then mount it again.
3.If there is heavy frost on the evaporator after long usage, take out the
stuff inside the case, disconnect the power, the frost will melt

automatically, clean up the water and connect the power again.
4.Use a soft cloth and dip some water or soap (Non-caustic, neutral
detergent is also available) to clean the unit. Dry the unit after
cleaning to avoid rust.
5.Do not use organic liquid, boiled water, washing powder or acid stuff
to clean the unit. Rinsing the case by water is not allowed, don’t use
hard brush, steel brush to clean the case.
6.If the unit will not be used for a long time, disconnect the power, clean
it by following the above steps, wipe off the water inside the case with
a soft cloth.
9.Caution
1.The unit is not suitable for storage of blood, pharmaceutical products
and biological products
2.Do not place heavy articles on the top of the unit.
3.In case of trouble, please ask professional person for service, do not
dismantle the unit without prior authority to avoid hazard.
10.Normal Phenomena
1.Sometime hear light sound of water flowing in the unit, this is the
sound of refrigerant flowing inside the pipe.
2.the top ,and the two sides of the casing will be warm, even too hot.
3.In a humidity place, there is dew on the casing or the door, it can dry

by dry cloth.
11.Troubleshooting guide
problems
Possible cause
Ways to solve
problems
The units does not
work
Bad connection of
plug or fuse burn
out
Unplug the plug
and re-connect the
plug to power
supply or replace
with a new fuse
Abnormal
operation of the
compressor or has
buzz sound
The power voltage
is out of the rated
range.
Disconnect the
power supply
immediately and
reconnect with it
after normal
voltage. It is
necessary to have a
voltage stabilizer in
case of poor power
supply.
Compressor
operates too long
time and no frost
on the surface of
the evaporator
Refrigeration
system is at fault
(leakage or
blocked)
Send the unit to
service department
for repair

There is frost or ice
on the walls of the
inner cabinet and
too low internal
temperature, the
compressor
operates never stop
Thermostat does
not work
Ask service
department for
repair
The internal
temperature is too
high and the
compressor
operates
never stop
Bad heat
dissipation and
ventilation of
casing, the ambient
temperature is too
high
Improve ventilation
and lower the
ambient
temperature.
Too much warm
food was put in at
one time
Take out some food
Door open
frequently and long
time door opening
Decrease number
and time of door
opening.
Too high noise
The unit is not level
Adjust the
adjustable legs
The fastener of the
unit is loose
Fasten the loose
fastener

Pipes are touching
the compressor
Careful separate the
touched pipes
Lamp is not on
The bulb is burned
out
Replace the bulb
Warning: Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
Warning: Do not use mechanical devices, or other means to accelerate
the defrosting process.
Warning: Do not use electrical appliances inside the food storage
compartments of the appliance.
Caution: Dismantling the unit by non-professional
staff is prohibited, it will cause hazard.
Please keep the products away from the fire or similar
glowing substance before you dispose the refrigerator.
REQUESTING ASSISTANCE OR SERVICE
If the problem is not due to one of the items listed in
Troubleshooting, Contact the dealer or authorized Service
Company.
Correct Disposal of this product：
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the
return and collection systems or contact the retailer where the

product was purchased. They can take this product for
environmental safe recycling.
