Milesight DS3604 User manual

3. Power Button and Buzzer Patterns
4. Configuration Guide
DS3604
1. Download “Milesight ToolBox” App on an NFC-supported smartphone.
DS3604 equips with power button inside to switch on/off the device for
emergency use. Usually users can use NFC to complete all steps.
Press and hold the power button
for more than 3 seconds.
Press and hold the power button
for more than 10 seconds.
Off→Buzz Slowly
Buzz Quickly
Power On/Off
Reset to Factory
Default
Function Action Buzzer Status
1 × Warranty Card
1 × DS3604 Device 1 × 3M Double-Sided Tape
1 × Quick Start Guide
Screen Button：tap to receive downlink commands like screen content update,
device reboot, etc.

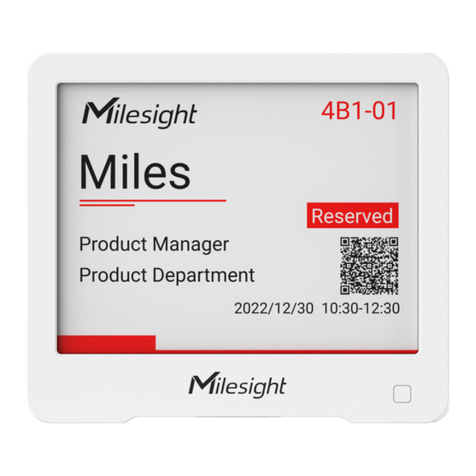

E-Ink Screen
NFC Area
Screen Button
IoT E-INK DISPLAY
FEATURING LoRaWAN®
1. Packing List
2. Hardware Introduction
All Software & files can be downloaded from
https://www.milesight-iot.com/documents-download/
Cloud App Quick Start Guide
Milesight IoT Co., Ltd. www.milesight-iot.com
iOSAndroid
Building C09, Software Park Phase III, Xiamen 361024, Fujian, China

5. Installation
6. FCC Statement
Installation Note
Fixed by 3M Tape
Paste 3M tape to the back of the device, then tear the other side and place it on a
flat surface. Please note the screen direction when installing.
2. Open “Milesight ToolBox” App and attach the smartphone with NFC area to
read/write the device until App shows a successful prompt. It’s suggested to
configure a device password for security. (Default password: 123456)
2. Fix the back cover with two M3 screws and install back the device, then fix the
bottom of device to back cover with the fixing screw.
If the installation location is a metal surface or includes metal materials, please
leave the upper part of device 3 to 4 cm away from the surface to avoid the
signal problem.
Fixed by Screws
1. Release the screw on the bottom of device and remove the back cover, mark
the installing holes to the wall according to the holes on the back cover.
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator& your body. This transmitter
must not be co-located or operating in conjunction with any other antenna or
transmitter.
