Milestone pro MPTP-T70-WPT-4K User manual

MPTP-T70-WPT-4K
4K Wallplate HDBaseT Transmitter
All Rights Reserved
Version: MPTP-T70-WPT-4K_2021V1.0
User Manual

4K Wallplate HDBaseT Transmitter
Preface
Read this user manual carefully before using this product. Pictures shown in this
manual are for reference only, different model and specifications are subject to real
product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till February, 2020. Any changes of
functions and parameters since then will be informed separately. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

4K Wallplate HDBaseT Transmitter
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
⚫Unpack the equipment carefully and save the original box and packing material for
possible future shipment
⚫Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
⚫Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
⚫Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
⚫Refer all servicing to qualified service personnel.
⚫To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
⚫Do not put any heavy items on the extension cable in case of extrusion.
⚫Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
⚫Install the device in a place with fine ventilation to avoid damage caused by
overheat.
⚫Keep the module away from liquids.
⚫Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
⚫Do not twist or pull by force ends of the optical cable. It can cause malfunction.
⚫Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
⚫Unplug the power cord when left unused for a long period of time.
⚫Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

4K Wallplate HDBaseT Transmitter
Table of Contents
1. Introduction .................................................................................................................1
1.1 Product Introduction ..........................................................................................1
1.2 Features ............................................................................................................1
1.3 Package List ......................................................................................................1
2. Panel Description........................................................................................................2
2.1 Front Panel ........................................................................................................2
2.2 Rear Panel.........................................................................................................3
3. System Connection.....................................................................................................4
4. Button Control.............................................................................................................5
5. RS232 Control ............................................................................................................6
5.1 RS232 Control Connection ................................................................................6
5.2 RS232 Control Software....................................................................................7
5.3 RS232 Commands ............................................................................................8
5.3.1 Control Mode Switching...........................................................................8
5.3.2 Signal Switching ......................................................................................8
5.3.3 VGA Scaling Configuration ......................................................................8
5.3.4 HDCP Compliance ..................................................................................9
5.3.5 VGA Image Adjusting...............................................................................9
5.3.6 EDID Configuration................................................................................11
5.3.7 Device Configuration.............................................................................11
6. Specification .............................................................................................................12
7. Panel Drawing ..........................................................................................................13
8. Troubleshooting & Maintenance ...............................................................................14
9. Customer Service .....................................................................................................15

4K Wallplate HDBaseT Transmitter
1
1. Introduction
1.1 Product Introduction
Connect, switch and extend HDMI and 1 VGA+ audio input to displays or projectors in
conference rooms, classrooms and control centers. Inputs are automatically switched
(or manually selected) to permit seamless transfer from one source to the next. Extend
signal up to 70 meters (230ft) over a single Category cable. Certified HDBaseT
technology for a complete professional installation including HD video, power, RS232
control. This device uses Power over HDBaseT (PoH) to provide the flexibility for
powering the transmitter from the receiver at the display over the same Category cable.
This product is used with HDBaseT 70M extender Receiver.
1.2 Features
⚫HDBaseT Alliance certified.
⚫Dual gang Decora form factor with matte anodized aluminum finish.
⚫Delivers full uncompressed HD video 3D and 4Kx2K (VESA resolutions up to
1920x1200@60Hz, and HDTV resolutions up to 2160p) over single Category cable
up to 70m (230ft).
⚫Supports key features of HDMI 1.4 including EPG, EDID, and HDCP.
⚫Built-in scaling function to automatically match signals to display native resolution.
⚫PoH (power over HDBaseT) allows powering from the receiver at the display end.
⚫Locking features for input connectors.
1.3 Package List
⚫1 x 4K Wallplate HDBaseT Transmitter
⚫4 x Mounting Screws
⚫1 x 2-pin Pluggable Terminal Block
⚫1 x 4-pin Pluggable Terminal Block
⚫1 x Top Cover
⚫1 x Power Adaptor (12V DC 2A)
⚫1 x User Manual
Note: Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.

4K Wallplate HDBaseT Transmitter
2
2. Panel Description

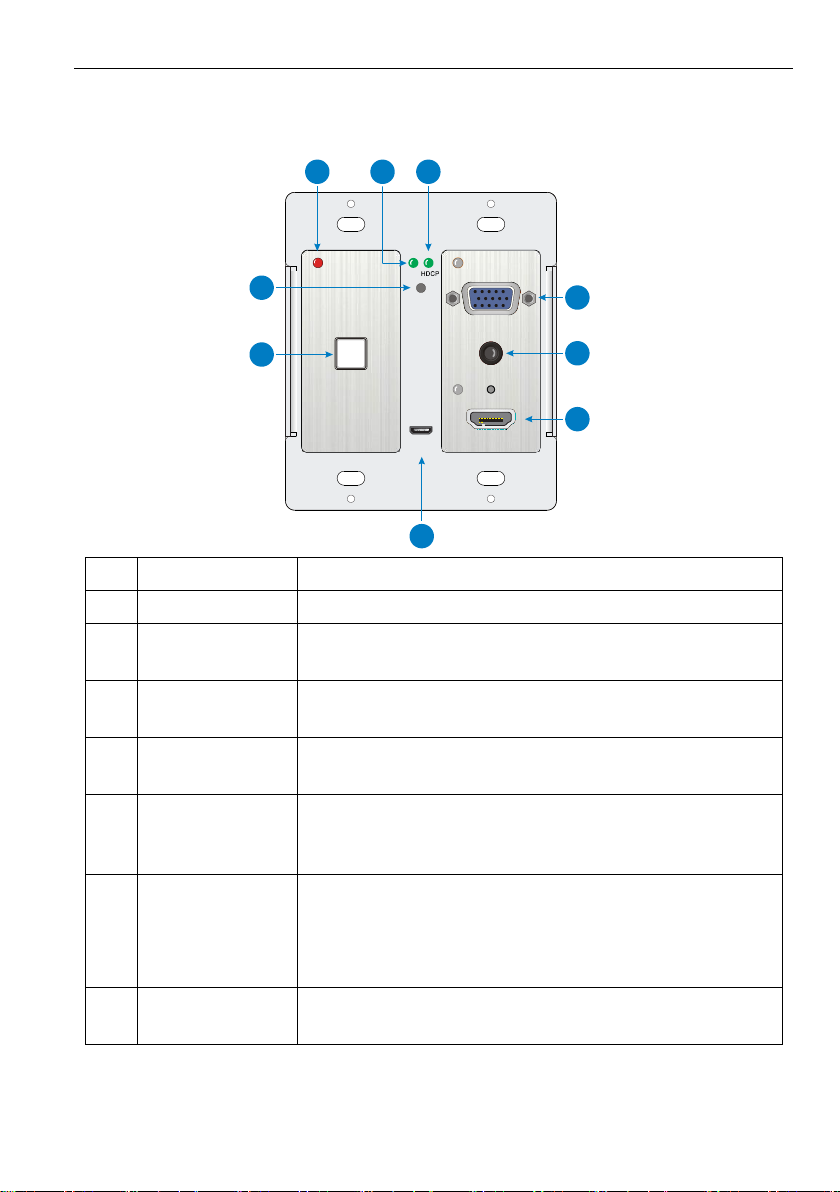

2.1 Front Panel
No.
Name
Description
①
POWER
LED indicator glows red when power is applied.
②
LINK
LED indicator glows green when an HDBaseT link is
established.
③
HDCP
LED indicator glows green when an HDCP link is
established.
④
RESET
This button performs a soft reboot of the 4K Wallplate
HDBaseT Transmitter.
⑤
SOURCE/AUTO
Button switches sources and upon push and hold
changes mode between Auto and Manual source select.
LED indicator glows green when in Auto mode.
⑥
VGA & VGA IN
⚫VGA – LED indicator glows green when the VGA input
is active, amber when a source is available, and does
not light when there is no source connected.
⚫VGA IN – HD 15 connector.
⑦
AUDIO IN
3.5mm stereo audio connector supplies audio for the VGA
input.
LINK
RESET
FIRMWARE
SOURCE/AUTO
POWER
VGA IN
VGA
AUDIO IN
HDMI
HDMI IN
123
9
57
8
6
4

4K Wallplate HDBaseT Transmitter
3
⑧
HDMI & HDMI IN
⚫HDMI - LED indicator glows when HDMI input is
active, amber when a source is available, and does
not light when there is no source connected.
⚫HDMI IN – HDMI connector with locking feature.
⑨
FIRMWARE
Micro-USB connector used to update firmware.
2.2 Rear Panel
No.
Name
Description
①
HDBT OUT
HDBaseT output, connects with HDBaseT Receiver over a
single Category cable to deliver AV signals, support PoC.
②
IN
12V input, connects with power adapter.
③
OUT
12V output, connects with Control Panel to energize it.
④
RS232
Serial port for control MPTP-T70-WPT-4K and the third-party
device via RS232 commands. Please refer to the 5. RS232
Control for more details.
12V Tx Rx
OUT
RS232
HDBT OUT
1
2
3
4

4K Wallplate HDBaseT Transmitter
4
3. System Connection
Usage Precautions
⚫System should be installed in a clean environment and has a prop temperature and
humidity.
⚫All of the power switches, plugs, sockets and power cords should be insulated and
safe.
⚫All devices should be connected before power on.
Overview:
Installation
①If installing in a back-box, it is recommended that the4K Wallplate HDBaseT
Transmitter be installed in a 4-5/8” square box at a minimum. The 4-5/8” square
box has sufficient space to terminate the cables with jacks behind the unit when
fully installed.
②Run one twisted pair cable from the4K Wallplate HDBaseT Transmitter location to
the location where the HDBaseT Receiver will be located (somewhere near the
display device).See the installation instructions for the 70M HDBaseT Receiver.
③If using the Control Panel, run another twisted pair cable from the 4K Wallplate

4K Wallplate HDBaseT Transmitter
5
HDBaseT Transmitter location to the location that the Control Panel will be
mounted.
④All twisted pair cables should be terminated with jacks. This allows the permanent
link between the two devices to be tested.
⑤Use the appropriate category rated patch cable to connect the HDBaseT link to
the HDBT OUT connector.
⑥If using the Control Panel, use the supplied adapter cable to connect with the
second cable and follow the installation instructions for the HDBaseT Receiver
and Control Panel.
Note: We recommends Category 6A cabling with alien crosstalk prevention technology
for the performance of HDBaseT link.
4. Button Control
SOURCE/AUTO Button
Press and hold the SOURCE/AUTO button for approximately 3 seconds. When the
button lights up green the 4K Wallplate HDBaseT Transmitter is in AUTO mode. This
mode automatically selects the last video source connected to the 4K Wallplate
HDBaseT Transmitter and outputs it to the display. Press and hold again for
approximately 3 seconds, the light will go out, and the device will be in Manual mode
which will allow the user to momentarily press the button to toggle between the two
sources.

4K Wallplate HDBaseT Transmitter
6
5. RS232 Control
5.1 RS232 Control Connection
There are two RS232 control modes switching via sending 50779% or 50780%.
①Control this Wallplate HDBaseT Transmitter and far-end third-party device (such
as Projector) device by local PC, and the connection diagram shown as below:
②Control the Wallplate HDBaseT Transmitter by the remote PC which is connected
with Receiver
The RS232 control mode can be chosen via RS232 commands, please refer to the
5.3.1 RS232 mode switching for more details.

4K Wallplate HDBaseT Transmitter
7
5.2 RS232 Control Software
⚫Installation: Copy the control software file to the control PC.
⚫Uninstallation: Delete all the control software files in corresponding file path.
Basic Settings:
First, connect 4K Wallplate HDBaseT Transmitter with all input devices and output
devices needed, then to connect it with a computer which is installed with RS232
control software. Double-click the software icon to run this software.

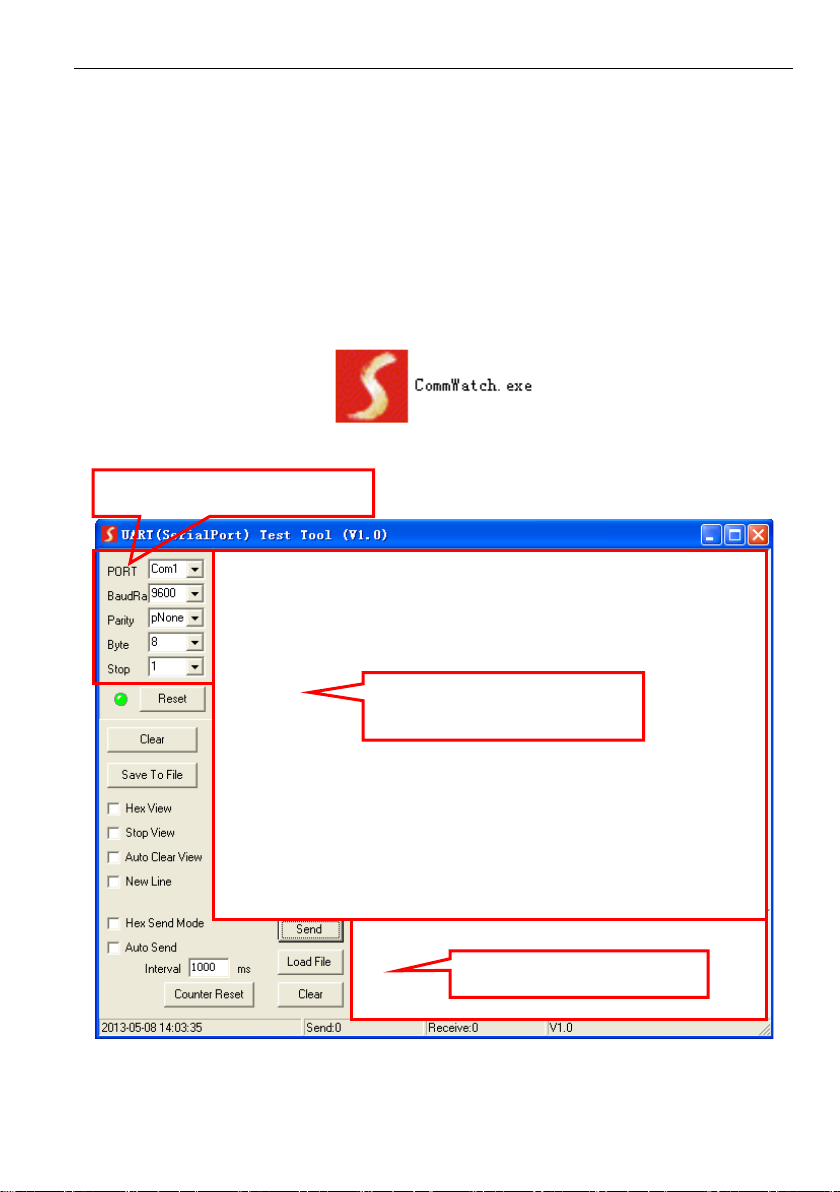

Here we take the software CommWatch.exe as example. The icon is showed as
below:
The interface of the control software is showed as below:
Please set the parameters of COM number, bound rate, data bit, stop bit and the parity
bit correctly, and then you are able to send command in Command Sending Area.
Parameter Configuration area
Monitoring area, indicates if
the command sent works.
Command Sending area

4K Wallplate HDBaseT Transmitter
8
5.3 RS232 Commands
Communication protocol: RS232 Communication Protocol
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
5.3.1 Control Mode Switching
Command
Function
Feedback Example
50779%
Switch to RS232 mode 1（Default）,
control scaler switcher and the far-end
third-party device.
RS232 Mode 1: RS232
Control Scaler & Remote.
50780%
Switch to RS232 mode 2, control the
scaler switcher from remote.
RS232 Mode 2:RS232 &
Remote Control Scaler
5.3.2 Signal Switching
Command
Function
Feedback Example
50770%
Enable auto-switching
Auto Switching
50771%
Disable auto-switching
Manual Switching
50701%
Switch to HDMI input
Switch to HDMI
50704%
Switch to VGA input
Switch to VGA
5.3.3 VGA Scaling Configuration
The default output resolution for VGA is 1920x1080. Below is a list of the output
resolutions the built-in scaler can output.
Command
Function
Feedback Example
50632%
Check the output resolution
Resolution: xx
50619%
Change the resolution to 1360X768 HD
Resolution: 1360x768
50626%
Change the resolution to 1024X768
XGA
Resolution: 1024x768
50627%
Change the resolution to 1280X720
720P
Resolution: 1280x720
50628%
Change the resolution to 1280X800
WXGA
Resolution: 1280x800
50629%
Change the resolution to 1920X1080
1080P
Resolution: 1920x1080

4K Wallplate HDBaseT Transmitter
9
50620%
Change the resolution to1920X1200
WUXGA
Resolution: 1920x1200
50621%
Change the resolution to1600X1200
UXGA
Resolution: 1600x1200
5.3.4 HDCP Compliance
Command
Function
Feedback Example
50790%
Set the HDCP status of HDMI output
socket to Active
HDCP Active
50791%
Set the HDCP status of HDMI output
socket to On
HDCP On
50792%
Set the HDCP status of HDMI output
socket to Off
HDCP Off
50793%
Check HDCP status
HDCP Off/ HDCP On/
HDCP Active (default)
5.3.5 VGA Image Adjusting
Command
Function
Feedback Example
50636%
Check the brightness
Brightness: xx (xx=00～99)
502xx%
Set the brightness to xx.
Brightness: xx (xx=00～99)
50637%
Check the contrast
Contrast: xx (xx=00～99)
503xx%
Set the contrast to xx.
Contrast: xx (xx=00～99)
50638%
Check the saturation
Saturation: xx (xx=00～99)
504xx%
Set the saturation to xx.
Saturation: xx (xx=00～99)
50639%
Check sharpness
Sharpness: xx (xx=00～99)
505xx%
Set the sharpness to xx.
Sharpness: xx (xx=00～99)
50606%
Auto-adjust the input parameter
VGA Input Auto

4K Wallplate HDBaseT Transmitter
10
50640%
Check the color temperature
Color Temperature: xx (xx
can be medium, warm,
user, or cool.)
50607%
Adjust the color temperature
Color Temperature: xx (xx
can be medium, warm,
user, or cool.)
50635%
Check the image aspect ratio
Aspect Ratio: xx (xx can be
16:9, 4:3, or auto.)
50608%
Set the aspect ratio
Aspect Ratio: xx (xx can be
16:9, 4:3, or auto.)
50633%
Check the picture mode
Picture Mode: xx (xx can
be dynamic, standard, mild,
or user.)
50614%
Set the picture mode
Picture Mode: xx (xx can
be dynamic, standard, mild,
or user.)
50707%
Check the present resolution and
polarity
1920x1080
Hpolarity:1
Vpolarity:0
50705%
Change the horizontal polarity to the
opposite
Hpolarity:0/1
50706%
Change the vertical polarity to the
opposite
Vpolarity:0/1
50678%
Enable screen output adjusting
Enter Output Position
Adjust
50679%
Disable screen output adjusting
Exit Output Position Adjust
50670%
Move the image to left
Output Position Adjust X xx
50671%
Move the image to right
Output Position Adjust X xx
50672%
Move the image up
Output Position Adjust Y xx
50673%
Move the image down
Output Position Adjust Y xx

4K Wallplate HDBaseT Transmitter
11
50674%
Pull left from right side (decrease image
width)
Output Width Adjust xx
50675%
Stretch right from right side (increase
image width)
Output Width Adjust xx
50676%
Stretch upwards from bottom side
(decrease image height)
Output Height Adjust xx
50677%
Stretch downwards from bottom side
(increase image height)
Output Height Adjust xx
5.3.6 EDID Configuration
Command
Function
Feedback Example
50772%
EDID pass-through (default)
EDID: bypass mode
50773%
Set EDID data to 1080P PCM 2.0ch
EDID:1080P&PCM 2ch
50774%
Set EDID data to 1080P Dolby 5.1
EDID:1080P&5.1ch
50775%
Set EDID data to 1080P3D Dolby 5.1
EDID:1080P3d&5.1ch
50776%
Set EDID data to 1080i PCM 2.0ch
EDID:1080i&PCM 2ch
50777%
Set EDID data to 4Kx2K PCM 2.0ch
EDID:4K&PCM 2ch
50778%
Check EDID data
EDID: bypass mode
EDID:1080P&PCM 2ch
EDID:1080P&5.1ch
EDID:1080P3d&5.1ch
EDID:4K&PCM 2ch
50799%
Program EDID file, send EDID data
within 10s
Waiting for edid within 10
secs!
Note: EDID commands are for HDMI sources only.
5.3.7 Device Configuration
Command
Function
Feedback Example
50698%
Software upgrading
50699%
Check the software version
Version Vx.x.x
50617%
Restore factory default

4K Wallplate HDBaseT Transmitter
12
6. Specification
Input & Output
Input
(1) HDMI, (1) VGA, (1) AUDIO, (1) 12V POWER
Input Connector
(1) 19-pin Type A female HDMI, (1) HD-15 VGA,
(1) 3.5mm mini jack, (1) 2-pin Pluggable Terminal Block
Output
(1) HDBaseT, (1) 12V POWER
Output Connector
(1) RJ45, (1) 2-pin Pluggable Terminal Block
Transmission Mode
HDBaseT
Control Parts
Control Ports
(1) FIRMWARE, (1) RS232
Control Connector
(1) Micro USB, (1) 3-pin Pluggable Terminal Block
General
Video Resolution
VGA - up to 1920 x 1080@60Hz;
HDMI - up to 4Kx 2K
Audio Impedance
>10KΩ
Frequency Response
20Hz~20KHz
SNR
>85db@20Hz~20KHz
Transmission Distance
1080p ≤ 70m; 4Kx2K ≤ 40m
Bandwidth
10.2Gbps
HDMI Standard
HDMI 1.4 and HDCP 1.4
Power Supply
Input:100V~240V AC; Output: 12VDC 2A
Max Consumption
9.6W
Work Temperature
-10 ~ +40℃
Reference Humidity
10% ~ 90%
Dimension (W*H*D)
104.5mm x 89.0mm x 44.0 mm
Net Weight
238g

4K Wallplate HDBaseT Transmitter
13
7. Panel Drawing
LINK
RESET
FIRMWARE
SOURCE/AUTO
POWER
VGA IN
VGA
AUDIO IN
HDMI
HDMI IN
12V Tx Rx
OUT
RS232
HDBT OUT
104.5 mm
89.0 mm
66.0 mm
32.0mm
69.0 mm
47.0 mm

4K Wallplate HDBaseT Transmitter
14
8. Troubleshooting & Maintenance
Problems
Causes
Solutions
Color losing or no video
signal output in HDMI
display
The connecting cables
may not be connected
correctly or it may be
broken
Check whether the cables
are connected correctly
and in working condition.
No HDMI signal output in
the device while local
HDMI input is in normal
working state
Output image with
snowflake
POWER indicator doesn’t
work or no respond to any
operation
Loose or failed power
cord connection
Ensure the power cord
connection is good
Static becomes stronger
when connecting the
video connectors
bad grounding
Check the grounding and
make sure it is connected
well.
Cannot be controlled by
front panel buttons
The unit may have
already been broken
Send it to authorized
dealer for repairing.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.

4K Wallplate HDBaseT Transmitter
15
9. Customer Service
The return of a product to our Customer Service implies the full agreement of the terms
and conditions hereinafter. There terms and conditions may be changed without prior
notice.
1) Warranty
The limited warranty period of the product is fixed three years.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized distributor only.
3) Warranty Exclusions:
⚫Warranty expiration.
⚫Factory applied serial number has been altered or removed from the product.
⚫Damage, deterioration or malfunction caused by:
✓Normal wear and tear.
✓Use of supplies or parts not meeting our specifications.
✓No certificate or invoice as the proof of warranty.
✓The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
✓Damage caused by force majeure.
✓Servicing not authorized by distributor.
✓Any other causes which does not relate to a product defect.
⚫Shipping fees, installation or labor charges for installation or setup of the
product.
4) Documentation:
Customer Service will accept defective product(s) in the scope of warranty
coverage at the sole condition that the defeat has been clearly defined, and upon
reception of the documents or copy of invoice, indicating the date of purchase, the
type of product, the serial number, and the name of distributor.
Remarks: For further assistance or solutions, please contact your local distributor.
