Kramer SID-X1N User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
SID
-X1N
Step
-in Commander
P/N: 2900-300302 Rev 5

SID-X1N – Contents i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 About the Power Connect Plus™ Feature 3
2.4 Shielded Twisted Pair/Unshielded Twisted Pair 3
2.5 Recycling Kramer Products 3
3Overview 4
4Defining the SID-X1N Step-in Commander 6
5Connecting the SID-X1N 8
5.1 Connecting the Remote Step-In Switch and LED 9
5.2 Connecting the Remote Select Switch and LED 10
5.3 Connecting the Remote Input Selection LEDs 11
6Principles of Operation 12
6.1 Video Input Selection 12
6.2 Audio Signal Control 13
6.3 Automatic Output Shutdown 13
7Operating the SID-X1N 14
7.1 Manually Selecting an Input 14
7.2 Taking Control of the Switcher Input 15
7.3 Locking the EDID 15
7.4 Adjusting the UXGA Input Phase 15
8Configuring and Maintaining the SID-X1N 16
8.1 Setting the Configuration DIP-switch 16
9Wiring the Twisted Pair RJ-45 Connectors 18
10 Technical Specifications 19
10.1 Supported Resolutions 20
11 Default EDID 22
11.1 HDMI, DisplayPort and DVI 22
11.2 PC-UXGA 24
12 Remote Commands 26
12.1 Kramer Protocol 2000 Syntax 26
12.2 Kramer Protocol 2000 Instruction Codes 27
12.3 RS-232 Hardware Interface 28
Figures
Figure 1: SID-X1N Step-in Commander Front Panel 6
Figure 2: SID-X1N Step-in Commander Rear Panel 7
Figure 3: Connecting the SID-X1N Step-in Commander 8
Figure 4: Remote Step-In Switch and LED Wiring 9
Figure 5: Remote Select Switch and LED Wiring 10
Figure 6: Remote Input Indicator LED Connections 11
Figure 7: Remote Input Indicator LED Wiring 11
Figure 8: The Configuration DIP-switch 16
Figure 9: TP Pinout Wiring 18

SID-X1N - Introduction 1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; and GROUP 13: Audio, and
GROUP 14: Collaboration.
Thank you for purchasing the Kramer MegaTOOLS®SID-X1N Step-in
Commander which is ideal for:
•Display systems requiring simple input selection
•Remote monitoring of computer activity in schools and businesses
•Rental/staging applications
•Multimedia and presentation source selection

2 SID-X1N - Getting Started
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
•Review the contents of this user manual
2.1 Achieving the Best Performance
To achieve the best performance:
•Use only good quality connection cables (we recommend Kramer high-
resolution, high-quality cables) to avoid interference, deterioration in signal
quality due to poor matching, and elevated noise levels (often associated
with low quality cables)
•Do not secure the cables in tight bundles or roll the slack into tight coils
•Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
•Position your Kramer SID-X1N away from moisture, excessive sunlight and
dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning: Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning: Disconnect the power and unplug the unit from the wall
before installing
!
!

SID-X1N - Getting Started 3
2.3 About the Power Connect Plus™ Feature
The Power Connect Plus™ feature means that only the SID-X1N needs to be
connected to a power source when the SID-X1N and receiver are within 60m
(197ft) of each other. The Power Connect Plus™ feature applies as long as the
cable can carry power and the distance does not exceed 60m on standard TP
cable. (Heavier gauge cable may be used to extend the Power Connect Plus™
range).
2.4 Shielded Twisted Pair/Unshielded Twisted Pair
Kramer engineers have developed special twisted pair cables to best match our
digital twisted pair products; the Kramer BC-DGKat623 (CAT 6 23 AWG cable),
and the Kramer BC-DGKat7a23 (CAT 7a 23 AWG cable). These specially built
cables significantly outperform regular CAT 6 and CAT 7a cables.
2.5 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility.

4 SID-X1N - Overview
3 Overview
The SID-X1N accepts an HDMI, DisplayPort, DVI and PC graphics video input, as
well as an unbalanced stereo audio input (which is embedded into the output
signal), and transmits the signal via TP (Twisted Pair) cable to a compatible
switcher or DGKat receiver, (for example, the VP-81SIDNor PT-572+).
The SID-X1N also provides an unbalanced, stereo audio output. When the
SID-X1N is connected to a switcher, it also controls the input and output selection
of the switcher.
In particular the SID-X1N: features:
•HDTV support
•HDMI with x.v.Color™ and 3D
•HDCP compliancy—works with sources that support HDCP repeater mode
Note: When using a MacBook as a source and the content is protected
using HDCP, if the display does not support HDCP, no video is transmitted
•Input signal detection based on video clock presence
•Automatic input selection based on manual selection or last connected input
•Automatic analog audio detection and embedding
•Automatic output shutdown when the input signal is lost (with a configurable
delay)
•Installation up to 50m (164ft) from the switcher, (30m with the TP-574)
•I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID
handling & processing algorithm ensures Plug and Play operation for HDMI
systems
•A lockable EDID
•VGA phase adjustment

SID-X1N - Overview 5
•PowerConnectPlus – A single connection to the receiver powers both units.
The higher voltage PowerConnectPlus also powers regular PowerConnect
devices via auto-negotiation
•Equalization and reclocking of the data
•A maximum data rate of 4.95Gbps (1.65Gb per graphics channel)
•Support for digital audio formats
•A MegaTOOLS®sized enclosure. Two devices can be mounted in a rack
using the optional RK-T2B adapter
You can control the SID-X1N using the front panel buttons or remotely via contact
closure switches.

6 SID-X1N - Defining the SID-X1N Step-in Commander
4 Defining the SID-X1N Step-in Commander

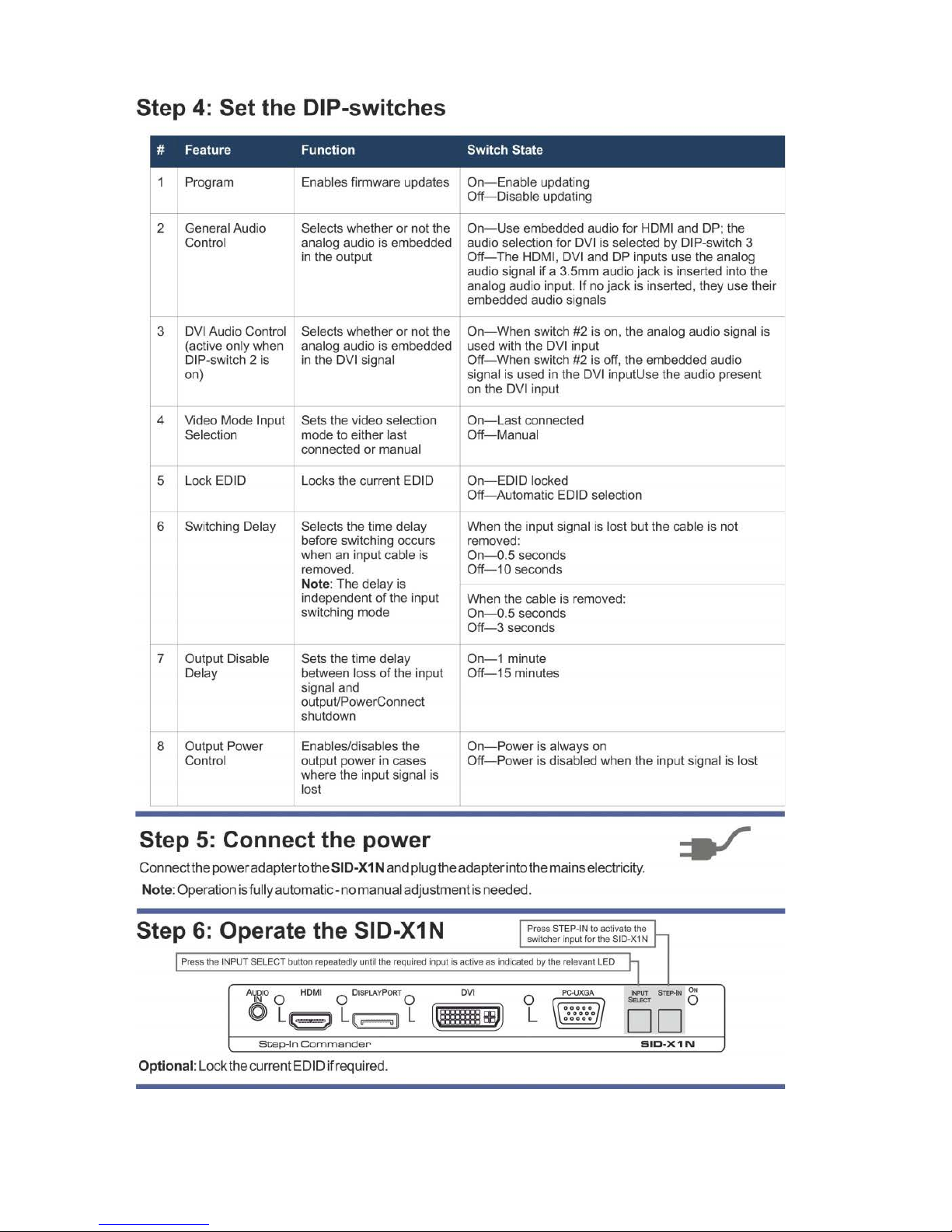

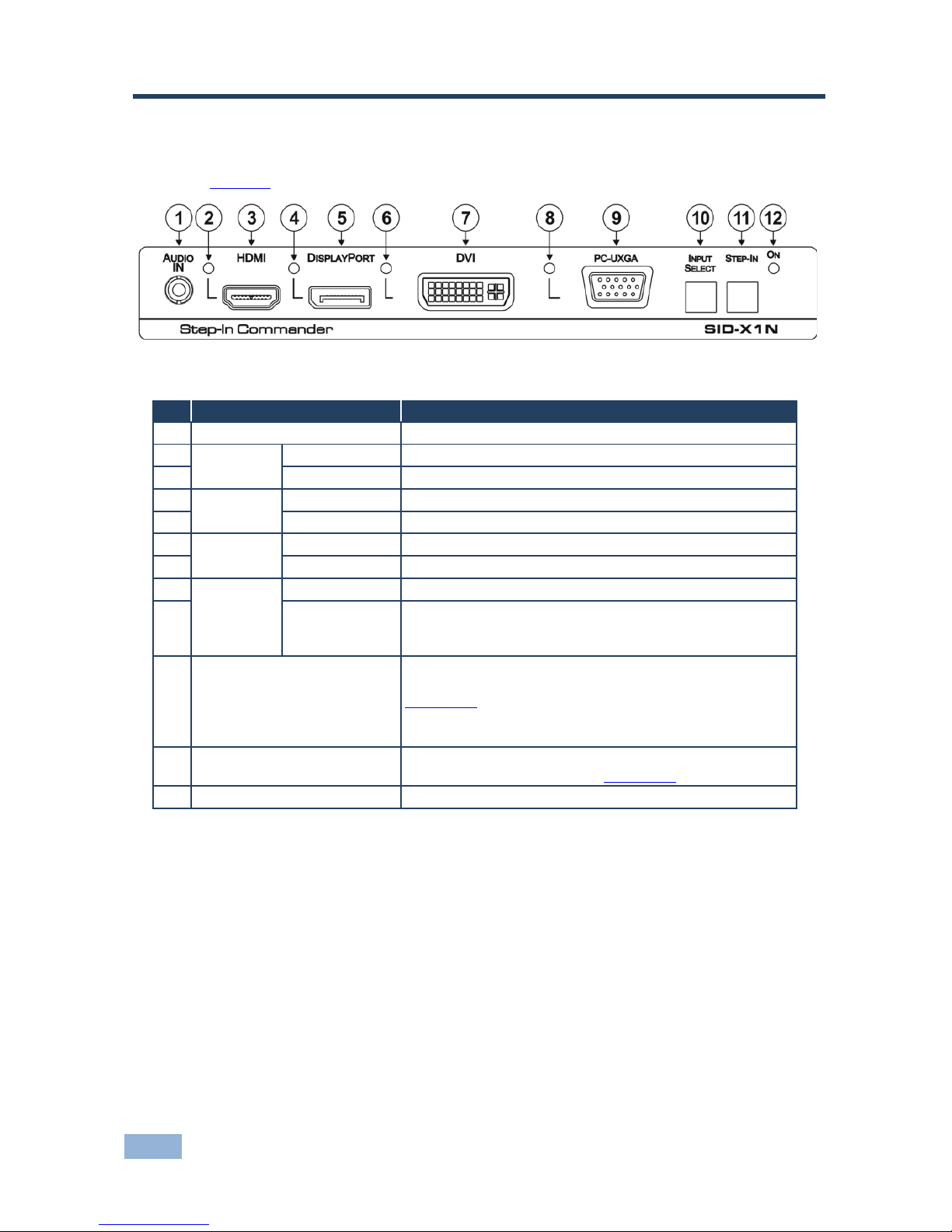

Figure 1 defines the front panel of the SID-X1N.
Figure 1: SID-X1N Step-in Commander Front Panel
#
Feature
Function
1 AUDIO IN 3.5mm Mini Jack Connect to an unbalanced stereo audio source
2
HDMI
LED
Lights green when the HDMI input is selected
3
HDMI Connector
Connect to an HDMI source
4
DisplayPort
LED
Lights green when the DisplayPort input is selected
5
DP Connector
Connect to a DisplayPort source
6 DVI LED Lights green when the DVI input is selected
7
DVI Connector
Connect to a DVI source
8
PC-UXGA
LED
Lights green when the PC-UXGA input is selected
9
PC-UXGA
15-pin HD
Connector (F)
Connect to a PC graphics source
10
INPUT SELECT Button
Press repeatedly to cycle through the inputs manually to
select an input, (overrides automatic selection, see
Section 7.1).
Note: When the button is lit it is inactive and pressing the
button will not activate the input
11
STEP-IN Button
Press to activate the input on the switcher that the
SID-X1N is connected to, (see Section 7.2)
12
ON LED
Lights green when the device is powered on
