Miller Electric Big 40 Diesel User manual

Processes
CC and CC/CV Models
Stick (SMAW)
TIG (GTAW)
Air Carbon Arc (CAC-A)
(Rated) 5/16 (7.9 mm) Carbons
(Capable) 3/8 (9.5 mm) Carbons
Stud Welding
CC/CV Model Only
MIG (GMAW)
Flux Cored (FCAW)
AC TIG (Deluxe Model)
Output Range
CC: DC Stick 55–500 A DC/TIG 55–500 A
CC/CV: DC Stick 40–550 A DC/TIG 20–350 A
AC TIG 15–375 A MIG/FCAW 14–40 V
Generator Output Rated at 104˚F (40˚C)
5500 Watts Peak—4000 Watts Continuous
15,000 Watts 3-Phase/ 12,000 Watts 1-Phase (Deluxe Model)
Heavy Industrial
Applications
Petro Chemical Piping
Structural Steel Work
Maintenance and Repair
Quick
Specs
Big 40®Diesel Diesel Engine-Driven
Welder/Generator
Issued September 2010 • Index No. ED/8.5
Simplified control panel provides
easy set-up with fewer controls—
less training is required.
GFCI receptacle as required on
most job sites to protect operators
from electrical hazards.
CSA, IEC, and NEMA compliant for
welders. Degree of protection
provided by enclosure IP23.
Hot Start™provides positive Stick electrode
starts to make it easy to start all types of
electrodes, and works great for bead tie-ins.
Automatic idle saves fuel and prolongs
engine life along with reducing the
sound level.
Arc-Drive™makes welding easy.
Automatically enhances Stick
welding, especially on pipe, by
focusing the arc and preventing
the electrode from going out.
The Power of Blue® .
Miller Electric Mfg. Co.
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Web Site
www.MillerWelds.com
International Headquarters
Phone: [phone]
USA FAX: [phone]
Canadian FAX: [phone]
International FAX: [phone]
Heavy-duty low-speed industrial diesel
engine is designed to operate over 10,000
hours before the first basic overhaul. Backed
by worldwide CAT support and service.
Silenced. Only 65 dB (90 Lwa) at idle.
73.2 dB at 23 ft (98.7 Lwa) maximum
output. Improves work site communications.
Enclosed base and case protects
internal components from corrosive
environments and reduces sound levels.
Welder/generator is warranted for 3 years, parts and labor.
The CATERPILLAR engine is warranted for 2 years by CATERPILLAR.
Quick and easy maintenance with
single-side access to oil level check,
oil fill, oil filter, fuel filter and air cleaner.
Remote toolless oil drain that allows oil to
be drained without getting under the engine
and reduces the chance of oil spillage.
AC TIG weld aluminum with deluxe model.
The most AC weld output on any engine
drive. (High-frequency unit required.)
More welding amperage!
400 amps at 100% Duty Cycle
450 amps at 60% Duty Cycle
500 amps at 40% Duty Cycle
Engine gauges standard on all
models indicate engine oil pressure
and coolant temperature.
CC/CV Models: The Vault—ultimate
control board reliability. See page 4.
Meter maintenance displays
• Fuel gauge
• Hour meter function
• Oil change interval
• High coolant temperature and
low oil pressure shutdowns
• Low fuel shutdown — engine
shuts down before system runs
out of fuel, making restarts easy.
Accu-Rated
™
–Not Inflated
Generator Power
EPA Tier 4i
Compliant
EPA Tier 4i
Compliant
EPA Tier 4i
Compliant
EPA Tier 4i
Compliant
Big 40 CC/CV Deluxe Model shown.

2

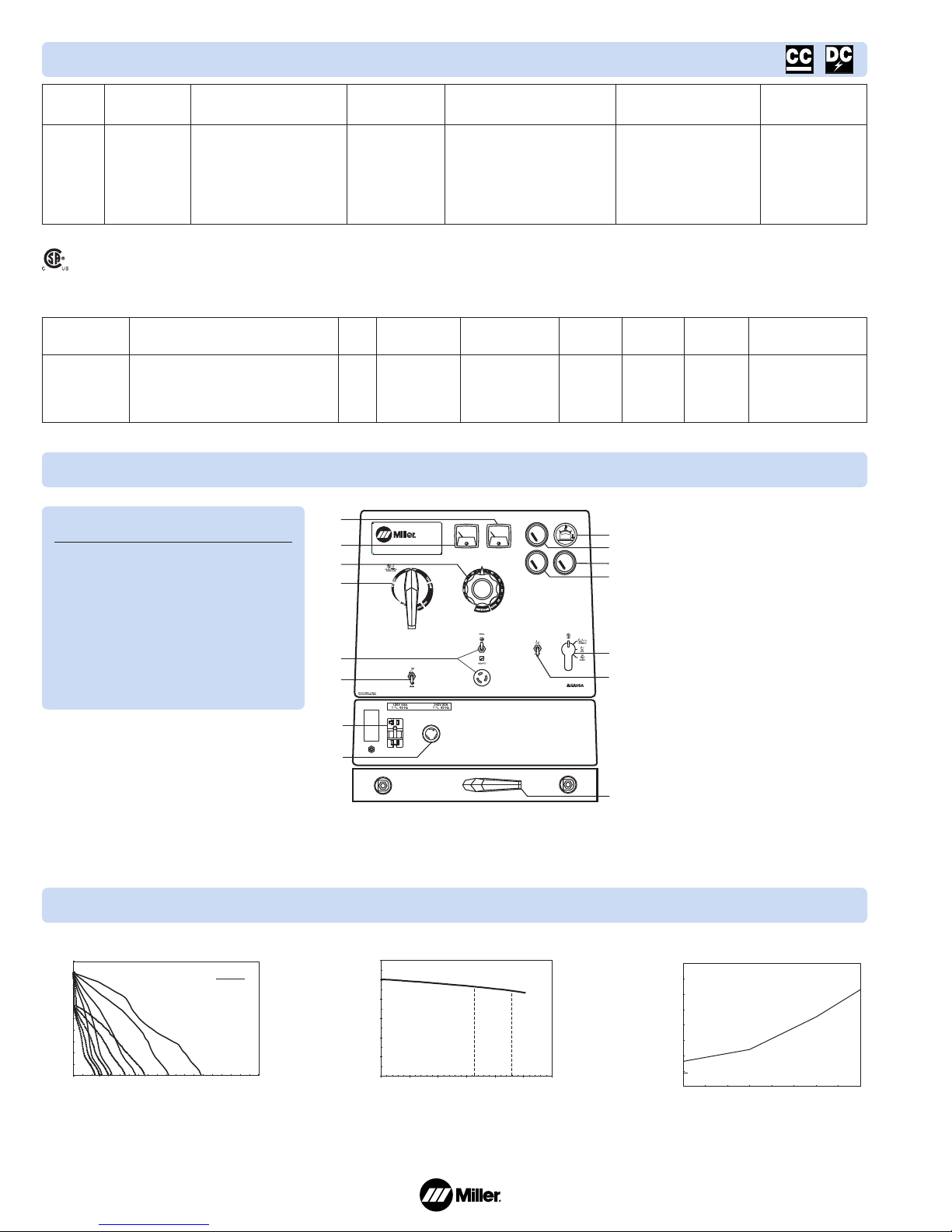

Big 40®Diesel CC Control Panel
Welding
Mode
CC/DC
Big 40®Diesel CC Specifications (Subject to change without notice.)
Max. Open-
Circuit Voltage
95
Weld Output
Range
55–500 A
Weld Output Rated
at 104˚F (40˚C)
400 A at 36 VDC (14.4 kW),*
100% Duty Cycle
450 A at 38 VDC (17.1 kW),*
60% Duty Cycle
500 A at 30 VDC (15 kW),
40% Duty Cycle
Generator Output Rated
at 104˚F (40˚C)
Peak: 5500 watts
Continuous: 4000 watts,
34/17 A, 120/240 VAC, 60 Hz
while welding
Net Weight
(without fuel)***
1540 lb (697 kg)
Dimensions**
H: 43 in (1092 mm)
W: 28-1/2 in (724 mm)
D: 65-1/8 in (1654 mm)
*Meets NEMA and IEC ratings. **Additional 7 in (178 mm) to top of exhaust. ***Additional 190 lb (86 kg) when fuel tank is full.
Big 40®Diesel CC Performance Data
100
80
60
40
20
00 100 200 300 400 500 600 700 800 900 1000
DC AMPERES
DC VOLTS
Ranges
170 – 365
230 – Max
110 – 225
55 – 85
70 – 130
0.00
0.25
0.50
0.75
1.00
1.25
1.50
1.75
2.00
0 50 100 150 200 250 300 350 400
DC WELD AMPERES
AT 100% DUTY CYCLE
US Gal./Hr.
0.00
0.95
1.89
2.84
3.79
4.73
5.68
6.62
7.57
US Liters/Hr.
IDLE
CC/DC VOLT/AMP CURVES FUEL CONSUMPTION CURVE
4 kW 5.5 kW
302520151050
6050403020100
AC AMPERES IN 240 V MODE
AC AMPERES IN 120 V MODE
50
0
100
150
200
250
300
AC VOLTS
0
25
50
75
100
150
125
GENERATOR POWER CURVE
Engine
Brand
CATERPILLAR
C2.2
HP
32.6
Type
Four-cylinder,
industrial,
liquid-cooled
diesel
Engine
Speeds
Run: 1850 RPM
Idle: 1250 RPM
Fuel
Capacity
25 gal
(95 L)
Coolant
Capacity
9 qt
(8.5 L)
Automatic Engine
Shutdown
Low Oil Pressure,
High Coolant
Temperature,
Low Fuel Level
Oil
Capacity
9 qt
(8.5 L)
Features
EPA Tier 4i compliant, indirect-injected,
liquid-cooled engine. Right-side service
access with intervals of 500 hours for
oil and filters.
Engine Specifications (Subject to change without notice.)
9
10
12
11
13
14
15
4
6
3
1
2
5
7
8
Additional Features
Proven, rugged rheostat control technology
that has been in Miller engine drives for
over 60 years. Contains no printed control
boards.
Provisions are provided to plug a
RHC3GD34A remote control that will allow
precise adjustment of amperage without
walking back to the machine.
1. DC Ammeter*
2. DC Voltmeter*
3. Amperage Adjust Control
4. Amperage Range Switch
5. Amperage Adjust Switch and
Remote Amperage Adjust
Receptacle
6. Stick/TIG Selector Switch
7. 120 VAC, 20 A GFCI Duplex
Receptacle
8. 240 VAC, 30 A TwistLock
Receptacle (NEMA L6-30)
9. Fuel Gauge/Hour Meter/Oil Change
Interval/Engine Shutdown Indicator
10. Engine Oil Pressure Gauge
11. Battery Voltmeter*
12. Engine Coolant Temperature Gauge
13. Engine Control Switch
14. Starting Aid Switch
15. Polarity Switch*
*Optional on select models.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.

3
Big 40®Diesel CC/CV Control Panel
W elding
Mode
CC/DC
CV/DC
CC/AC
(Deluxe
Model)
Big 40®Diesel CC/CV Specifications (Subject to change without notice.)
Max. Open-
Circuit Voltage
95
56
65
W eld Output
Range
20–550 A
14–40 V
15–375 A
Weld Output Rated
at 104˚F (40˚C)
400 A at 36 VDC (14.4 kW),*
100% Duty Cycle
450 A at 38 VDC (17.1 kW)*,
60% Duty Cycle
500 A at 34 VDC (17 kw),
40% Duty Cycle
300 A at 32 VAC (9.6 kW),
100% Duty Cycle
335 A at 33 V (11.1 kW),
60% Duty Cycle
375 A at 35 V (13.1 kW),
40% Duty Cycle
Generator Power Output Rated
Peak: 5000 watts
Continuous: 4000 watts, 34/17 A,
120/240 VAC, 60 Hz while welding
Deluxe Model Additional Power Plant:
1-phase, 12 kW, 50 A, 120/240 VAC, 60 Hz; or
3-phase, 15 kW, 36 A, 240 VAC, 60 Hz while
not welding
Net Weight
(without fuel)***
1545 lb
(701 kg)
Dimensions**
H: 43 in
(1092 mm)
W: 28-1/2 in
(724 mm)
D: 65-1/8 in
(1654 mm)
Additional Features
A multi-colored process selector control
allows quick and easy process changes
without having to use multiple switches.
Heavy-Duty Design — The Vault design
provides enhanced arc characteristics that
include more dig in the Stick mode with
smoother and lower amperage in the TIG
mode. Along with the superior welding
performance, the Vault provides the ultimate
reliability in the harshest of environments.
A hermetically-sealed vault protects Miller
control boards from dust, moisture, and
tough environmental elements. Extreme
conditions will not cause the output to
change, eliminating the need to periodically
turn up the heat.
15,000 watt generator option for stand-by
power generation adds 15 kW, three-phase,
240 volt power to CC/CV units. 12 kW,
120/240 volt, single-phase power from a
50 amp receptacle while not welding.
Big 40®Diesel CC/CV Performance Data
DC VOLTS
DC AMPERES
100
80
60
40
20
00 100 200 300 400 500 600 700 800 900 1000
Ranges
155 – 450
Max
115 – 320
40 – 90
75 – 195
0 100 200 300 400 500
Ranges
35 – 250
60 – 365
25 – 155
15 – 75
DC AMPERES
20
0
40
60
80
100
DC VOLTS
0
20
40
60
80
100
0 50 100 150 200 250 300 350 400 450 500
Ranges
55 – 350
35 – 205
25 – 105
15 – 45
AC AMPERES
AC VOLTS
CC/CV VOLT/AMP CURVES
STICK MODE CC/CV VOLT/AMP CURVES
TIG MODE
CC/CV VOLT/AMP CURVES
AC TIG MODE
DC VOLTS
DC AMPERES
100
80
60
40
20
00 100 200 300 400 500 600 700 800 9001000
MAX
MIN
CC/CV VOLT/AMP CURVES
MIG MODE
4
5
9
10
12
11
13
15
16
17
18
14
6
7
8
3
1
2
19
5
Process/Contactor Selector Switch
1. DC Ammeter*
2. DC Voltmeter*
3. Amperage/Voltage Adjust Control
4. Ampere Range Switch
5. Amperage/Voltage Adjust Switch
and Remote Amperage/Voltage
Adjust Receptacle
6. Process/Contactor Selector Switch
7. 120 VAC, 20 A GFCI Duplex
Receptacle
8. 240 VAC, 30 A TwistLock
Receptacle (NEMA L6-30)
9. Fuel Gauge/Hour Meter/Oil Change
Interval/Engine Shutdown Indicator
10. Engine Oil Pressure Gauge
11. Battery Voltmeter*
12. Engine Coolant Temperature Gauge
13. Engine Control Switch
14. Starting Aid Switch
15. 3-Phase Power Generator Option*
16. Strain Relief*
17. 50 A, 3-Phase Circuit Breaker
18. 50 A, 120/240 V Receptacle
(NEMA 14-50)*
19. AC/DC Polarity Switch*
*Optional on select models.
NEMA EWI (ANSI C87.1) Class (1) output ratings.
*Meets NEMA and IEC ratings. **Additional 7 in (178 mm) to top of exhaust. ***Additional 190 lb (86 kg) when fuel tank is full.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.

4
Big 40®Diesel CC Options
Weld Ammeter and Voltmeter Kit
#195 131 Field
Panel-mounted analog meters monitor
welding output.
Installation time: 35 minutes
Cold Weather Starting Aid Kit
#195 056 Field
Includes 120 V block heater.
Note: All models come standard with glow plugs.
Battery Voltmeter
#195 454 Field
Monitors battery charging circuit.
DC Polarity Reversing Switch Kit
#043 942 Field
Changes DC polarity without the use of
tools.
Installation time: 35 minutes
Big 40®Diesel CC/CV Options
Weld Ammeter and Voltmeter Kit
#195 131 Field
Panel-mounted analog meters monitor
welding output.
Deluxe Model comes
standard with weld meters.
Installation time: 35 minutes
AC/DC Polarity Reversing Switch Kit
#195 095 Field
Changes DC+/AC/DC- without the use
of tools.
Deluxe Model comes standard
with AC/DC polarity switch.
Installation time: 35 minutes
Battery Voltmeter
#195 454 Field
Monitors battery charging circuit.
Cold Weather Starting Aid Kit
#195 056 Field
Includes 120 V block heater.
Note: All models come standard with glow plugs.
15,000 Watt Generator Plant
12,000 Watts, 1-phase, 120/240 V
15,000 Watts, 3-phase, 240 V
The panel is protected by a 50 amp
on/off circuit breaker. It includes a 50 A,
1-phase receptacle and strain relief for
direct hard-wiring. This power is only
available while NOT welding.
Comes
standard with Deluxe Model.
Note: Available as factory option.
See Ordering Information on back page.
5
The Vault
Superior Circuit Board Design
Miller’s critical circuit boards are engineered
to carry low power and low heat to reduce
thermal stress and minimize expansion and
contraction. In contrast, our competitor’s
boards carry
high power and high heat ,
making them more vulnerable to failure.
“The Vault” Makes Upgrading to Miller
CC/CV Units Worry-Free
Concerns with circuit board reliability have
resulted in some operators steering clear of
CC/CV welder/generators — even though they
offer a superior arc and multiple welding
processes. Miller’s circuit board reliability isn’t
a concern since all Big Blue multiprocess
industrial engine drives feature the Vault.
Created out of two aluminum halves sealed
with silicone, as well as watertight harness
connections, the Vault provides a clean circuit
board environment, protecting the electronics
— and controlling output — in heavy industrial
applications. No other competitor protects their
electronics with a sealed vault, leaving critical
circuit boards exposed to harsh elements that
can disrupt the machine’s electronics, and
therefore, its operation.

Genuine Miller Accessories (Continued)
Engine Filter Kit #246 985 Field
Includes all filters required for proper
engine maintenance. Oil filter, primary and
secondary fuel filter, and primary air filter.
Spark Arrestor
Muffler Kit
#195 012 Field
Prevents particles
from leaving the muffler that could
potentially start a fire. Mandatory when
operating on California grasslands, brush,
or forest-covered land, and in all National
Forests. For other areas, check your state
and local laws. Meets US Forest Service
standard 5100-1B.
FA-1D Lockable Flame Arrestor
Fuel Cap #043 947 Field
Fuel cap can be padlocked to
prevent vandalism. A built-in
flame arrestor prevents flames or
sparks from entering the fuel tank.
Vandalism Lockout Kit
#195 118 Field
Lockable hinged steel
panels cover and protect
name plate gauges and
ignition switch (padlock
included). Also includes
engine compartment door
lock and key.
Cable Holder #043 946
Saddle-bag-style cable
holder. Convenient wrap-
around storage of coiled
cable for transportation.
Stores 100 ft of 2/0 cable
on each side.
Note: For best results do not weld when cable is coiled!
Canvas cover cannot be used with cable holder.
Protective Cover
#194 683 Field
Blue water-resistant
canvas cover resists
stains and mildew,
and protects the
finish of your welder.
Note: Protective cover cannot be used with cable holder.
Stick (SMAW) Welding
Weld Leads
2/0 Stick Cable Set, 50 ft (15 m)
#173 851
Consists of 50 ft (15 m) 2/0 electrode cable
with holder, and 50 ft (15 m) work cable
with clamp. 350 A, 100% duty cycle.
2/0 Stick Cable Set, 100/50 ft (30.5/15 m)
#043 952
Consists of 100 ft (30.5 m) 2/0 electrode
cable with holder, and 50 ft (15 m) work
cable with clamp. 300 A, 100% duty cycle.
Plasma Cutting
Spectrum®375 X-TREME™#907 339
See Lit. Index No. PC/9.2.
Spectrum®625 X-TREME™#907 404
See Lit. Index No. PC/9.6.
Spectrum®875 #907 390-01-1
See Lit. Index No. PC/9.8.
The Spectrum 375 X-TREME and 625
X-TREME come complete with protective
X-CASE™(not shown).
MIG (GMAW) or Flux Cored (FCAW)
SuitCase®X-TREME™8VS Wire Feeder
#951 182
SuitCase®X-TREME™12VS Wire Feeder
#951 184
Lightweight, voltage-sensing wire feeders
include secondary contactor, gas valve and
drive roll kit. See Lit. Index No. M/6.41.
SuitCase®8RC Wire Feeder #951 186
SuitCase®12RC Wire Feeder #951 188
Lightweight and flexible enough to run a
variety of wires up to .062 in diameter.
Includes remote voltage control and drive
roll kit. See Lit. Index No. M/6.5.
MIG (GMAW)/Flux Cored (FCAW) Guns
Miller produces a complete line of
dependable MIG guns. See Lit. Index Nos.
AY/15.0, AY/16.0 and AY/17.0.
Spoolmatic®30A
Spool Gun
#130 831
Air-cooled, 200-amp,
1-lb spool gun for
aluminum MIG. See Lit. Index No. M/1.73.
WC-24 Control #137 549
Use with Spoolmatic 30A.
XR™Wire Feeders and Guns
Push-pull system designed to handle
difficult-to-feed soft alloy wires such as
aluminum. See Lit. Index No. M/1.7,
M/1.71, and M/1.73.
TIG (GTAW) Welding
Dynasty®200 Series
For premium portable
AC/DC TIG arc quality.
See Lit. Index No.
AD/4.8.
HF-251 Series
#042 388
HF-251D-1, 115 VAC
#042 387
HF-251D-2, 230 VAC
High-frequency arc
starter and stabilizer.
See Accessory Lit. Index No. AY/5.0.
5

6
Genuine Miller Accessories (Continued)
Remote Controls (CC models only)
RHC-3GD34A Remote
Hand Control #041 122
Allows for precise adjustment
of amperage. Includes 20 ft
(6 m) cord.
Remote Controls (CC/CV models)
RHC-14 Hand Control
#242 211 020
Miniature hand control for
remote current, voltage and
contactor control. Dimensions:
4 x 4 x 3-1/4 in (102 x 102 x 82 mm).
Includes 20 ft (6 m) cord and 14-pin plug.
RFCS-14 HD Foot
Control #194 744
Heavy-duty foot
control for current,
voltage and
contactor control.
Includes 20 ft (6 m) cord and 14-pin plug.
RMLS-14 #129 337
Fingertip momentary- and maintained-
contact rocker switch for contactor control.
Push forward for maintained contact and
back for momentary contact. Includes 20 ft
(6 m) cord and 14-pin plug.
RCC-14 Remote
Contactor and Current
Control #151 086
14-pin plug. Rotary-motion fingertip control
fastens to TIG torch using two Velcro®straps.
Includes 28 ft (8.5 m) control cord.
RCCS-14 Remote
Contactor and Current
Control #043 688
Up-and-down rotary-motion fingertip control
fastens to TIG torch using two Velcro®
straps. Includes 28 ft (8.5 m) control cord.
Extension Cords for 14-Pin
Remote Controls or 24 VAC Wire Feeders
#242 208 025 25 ft (7.6 m)
#242 208 050 50 ft (15.2 m)
#242 208 080 80 ft (24.4 m)
4 West Four-Wheel Steerable
Off-Road Trailer #042 801
A heavy-duty 2570 lb (1166 kg) capacity
trailer designed for use in mines, quarries,
and other rough terrain. Has narrow 22 ft
(6.7 m) turning radius. Includes 3 in (76 mm)
lunette eye, universal hitch and safety chains.
Note: Trailer is shipped unassembled.
HWY-224 Trailer
#043 805 For highway use.
OFR-224 Trailer
#043 802 For off-road use.
A 2650 lb (1202 kg) capacity trailer. Welded
steel tubing frame, heavy-duty axle with roller
bearing hubs and leaf-spring suspension.
Includes jack stand, 2 in (50 mm) ball hitch.
HWY-224 also includes fenders and lights.
Note: Trailer is shipped unassembled.
Cable Tree #043 826
Provides an area to conveniently wrap weld
cables and extension cords.
Dual Hitch #300 831
2 in (50 mm) ball hitch
and 3 in (76 mm)
lunette eye in one
reversible assembly.
Trailers and Hitches (For both models.)
Trailer Specifications (Subject to change without notice.)
Gross Vehicle
Weight Rating
3000 lb
(1361 kg)
2960 lb
(1343 kg)
Gross Axle
Weight Rating
2000 lb/axle
(907 kg/axle)
3500 lb
(1588 kg)
Height
of Bed
21-1/4 in
(540 mm)
18-1/2 in
(470 mm)
Road
Clearance
8 in
(203 mm)
7-1/2 in
(191 mm)
Net
Weight
430 lb
(195 kg)
320 lb
(145 kg)
Track (Center
to center of
tires)
55-1/4 in
(1403 mm)
52 in
(1321 mm)
Standard Tires
(Standard rating
or P-size rating)
B78-13
B78-13
Dimensions
Length: 91 in (2311 mm)*
Width: 61-1/4 in (1556 mm)
Length: 105 in (2667 mm)
Width: HWY– 59-1/2 in (1511 mm)**
OFR–58-7/16 in (1484 mm)
*Does not include tongue. **Width at outside of fenders.
Model
4-West
HWY-224
OFR-224
Net
Payload
2570 lb
(1166 kg)
2650 lb
(1202 kg)
4 holes
H
Front Panel
E
F
G
D
AB
C
Height: 50 in (1270 mm) (to top of exhaust)
Width: 28-1/2 in (724 mm)
(mounting brackets turned in)
30-3/4 in (781 mm)
(mounting brackets turned out)
Depth: 65-1/8 in (1654 mm)
*With mounting brackets in center position.
Dimensions vary with location of mounting brackets.
A. 29-13/16 in (757 mm)
B. 27-1/2 in (699 mm)
C. 1 in (25 mm)
D. 9-5/8 in (244 mm)*
E. 46-1/2 in (1181 mm)*
F. 56 in (1422 mm)*
G. 65-1/8 in (1654 mm)
H. 9/16 in (14 mm) dia.
Mounting Specifications

7
MIG Gun
Work
SuitCase
8RC/12RC
Work
Stick Electrode
Work
Flux Cored Gun
Aluminum MIG with
Spoolmatic 30A Gun
Work
Cutting Torch
W
o
rk
Spectrum
14-Pin
14-Pin WC-24
TIG
Torch
Work
14-Pin
HF-251D-1
X-TREME 8VS/
X-TREME 12VS
Feeder
Plasma Basic Equipment
Spectrum®375 X-TREME™#907 339
Spectrum®625 X-TREME™ #907 404
Spectrum®875 #907 390-01-1
Stick (SMAW) Basic Equipment
Flux-Cored (FCAW) Basic Equipment
SuitCase®X-TREME™ 8VS #951 182
SuitCase®X-TREME™12VS #951 184
MIG (GMAW) Basic Equipment
SuitCase®8RC #951 186
SuitCase®12RC #951 188
Aluminum MIG (GMAW) Basic Equipment
Spoolmatic®30A #130 831
WC-24 #137 549
TIG (GTAW) Basic Equipment
Dynasty®200 Series
HF-251D-1 #042 388*
*TIG power cable adapter required
Typical Installations

Litho in USA
Distributed by:
Power Source and Factory Options Stock No. Description Qty. Price
Big 40®Diesel CC #907 171 CSA Model with Engine Gauges and Automatic Idle
Big 40®Diesel CC/CV #907 170 CSA Model with Engine Gauges and Automatic Idle
#907 170-03-1 CSA Deluxe Model with Engine Gauges, Automatic Idle, Welding Meters,
AC/DC Polarity Switch and High kW Option
Field Accessories
Weld Ammeter and Voltmeter Kit #195 131 Standard on Deluxe model
Battery Voltmeter #195 454
Polarity Reversing Switch Kit #043 942 For CC model. DC polarity switch
#195 095 For CC/CV model. AC/DC polarity switch. Standard on Deluxe model
Cold Weather Starting Aid Kit #195 056 120 V block heater
Engine Filter Kit #246 985 Includes air, oil and fuel filters
Spark Arrestor Muffler Kit #195 012 Horizontal externally mounted
Lockable Fuel Cap Flame Arrestor Kit #043 947 Padlock not included
Vandalism Lockout Kit #195 118 Lockable front control panel and engine compartment
Cable Holder #043 946 Saddle-bag-style. Fastens to machine
Protective Cover #194 683 For all models. Will not work with cable holder accessory
Stick Welding Leads See page 5
Plasma Cutting
Spectrum®375 X-TREME™#907 339 Includes X-CASE™. See Lit Index No. PC/9.2
Spectrum®625 X-TREME™#907 404 Includes X-CASE™. See Lit Index No. PC/9.6
Spectrum®875 #907 390-01-1 See Lit Index No. PC/9.8
MIG/Flux Cored Accessories
SuitCase®X-TREME™8VS #951 182 See Lit Index No. M/6.41
SuitCase®X-TREME™12VS #951 184 See Lit Index No. M/6.41
SuitCase®8RC #951 186 See Lit Index No. M/6.5
SuitCase®12RC #951 188 See Lit Index No. M/6.5
MIG (GMAW)/Flux Cored (FCAW) Guns See Lit Index Nos. AY/15.0, AY/16.0 and AY/17.0
Spoolmatic®30A Spool Gun #130 831 Requires WC-24 Control. See Lit. Index No. M/1.73
WC-24 Control #137 549 See Lit. Index No. M/1.5
XR™Wire Feeder Control and Guns See Lit. Index No. M/1.7, M/1.71, and M/1.73
TIG Accessories
Dynasty®200 Series See Lit Index No. AD/4.8
High Frequency Arc Starters See Lit. Index No. AY/5.0
Remote Controls and Switches See page 6
Trailers and Hitches
4-West Trailer #042 801 4-wheel steerable implement trailer
HWY-224 Trailer #043 805 Trailer with lights, fenders and 2 in (50 mm) ball hitch
OFR-224 Trailer #043 802 Trailer with 2 in (50 mm) ball hitch
Cable Tree #043 826 Trailer mounted cable holder for HWY-224 or OFR-224
Dual Hitch #300 831 Combination 2 in (50 mm) ball hitch and 3 in (76 mm) lunette eye in one reversible
assembly. For HWY-224 or OFR-224
Date: Total Quoted Price:
Ordering Information
