Miller MIGRunner 195 445 User manual

OWNER’S MANUAL OMĆ207 132 October 2001
Mig Runner Cart (195 445)
WARNING
ELECTRIC SHOCK can kill.
•Do not touch live electrical parts.
•Turn Off welding power source and input disconnect
device.
•Disconnect input plug or power conductors from
deenergized supply BEFORE moving welding
power source.
CYLINDERS can explode if damaged.
•Keep cylinders away from welding and other
electricalcircuits.
•Never touch cylinder with welding electrode.
•Always secure cylinder to running gear, wall, or
other stationary support.
FALLING EQUIPMENT can cause injury
and damage, OVERSIZED CYLINDER
can cause tipping.
•Properly install and secure all equipment onto cart
beforeusing cart.
•Always secure or remove any tools stored on cart
beforemoving unit.
•Do not lift cart in any manner when equipment and
cylinder(s)are installed – use handles to move cart.
•Do not overload handles with cables – use standard
10 to 15 foot cables as maximum lengths.
•Do not move cart where two wheels are at diffrent
heightsand cart could tip – avoid tipping.
•Be careful when moving unit over uneven surfaces.
803 117
1
21 Handles
Installhandles with the rubber grips
pointing downward and outward as
shown using supplied 3/8–16 nuts
bolts.
2 CylinderChain
Installthe center clip of the cylinder
chain to the center hole of the bottle
mountingbracket as shown.
.The bottle mounting bracket
can be moved to the middle
shelf to accommodate two
small bottles or one small and
one large bottle.
3 Lag Bolts
Remove the six lag bolts from the
skid, slide the cart forward, remove
front skid support. Roll cart off skid.
.The power source may or may
not be already mounted in the
Mig Runner Cart
Tools Needed:
5/16, 9/16 in
9/16 in
3
Figure 1. Installing Running Gear/Cylinder Rack

OM-207 132 Page 2
803 115 / 803 116
1
3
2
.For hooking up the power
source, the wire feeder,
weldingguns, accessories
etc., see the Owner’s
Manual for the individual
unit.

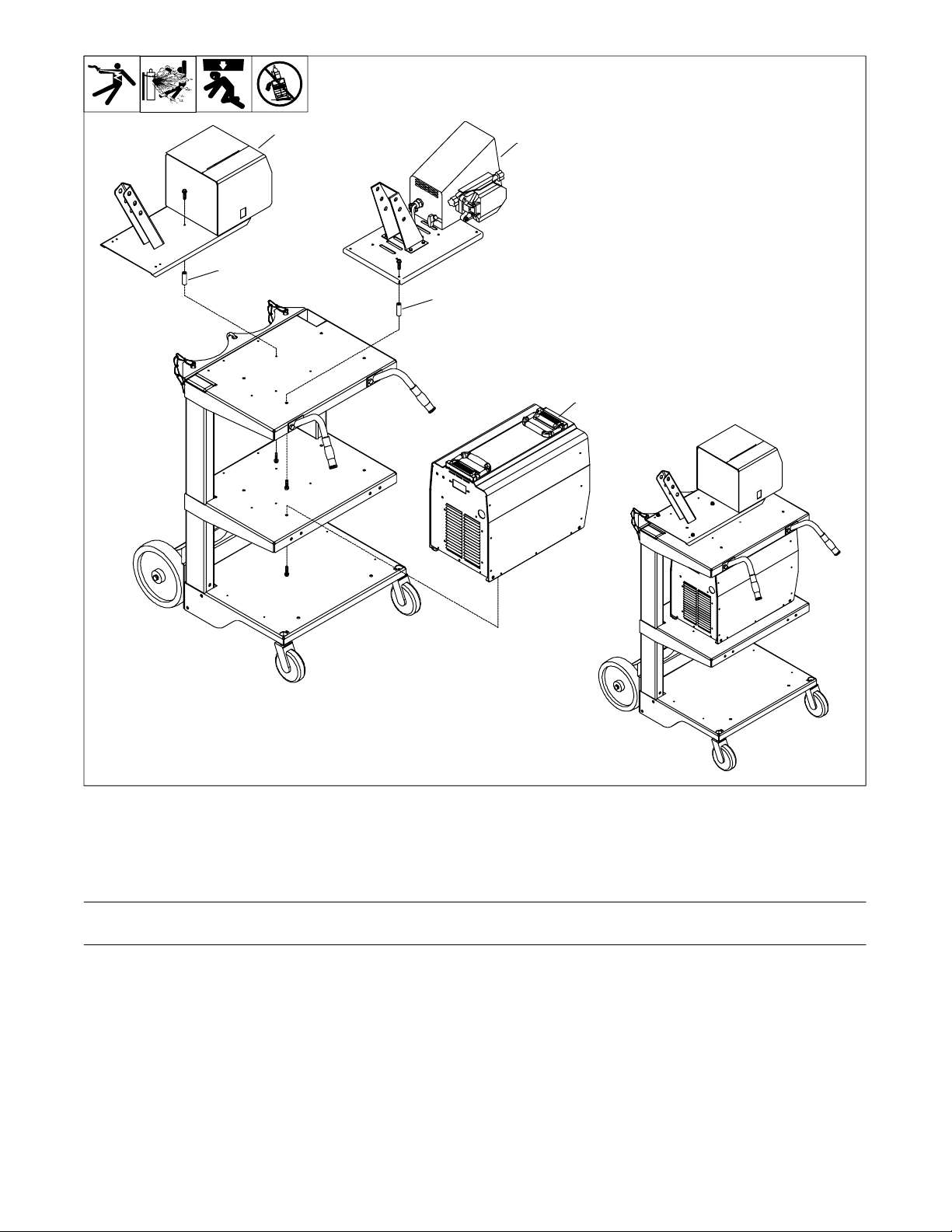

1 Power Source
Mountthe power source to the cart
as shown using the 4 supplied
1/4–20screws.
.The power source may or may
not be already mounted in the
Mig Runner Cart
2 Wire Feeders
3 Stand Off Supports
Install the stand off supports to the
top of the cart (use 3 stand off sup-
ports for the 22A feeder, use 4
stand off supports for the 714D
feeder) as shown using the sup-
plied 10–24 screws. Attach the
feederto the stand off supports us-
ing the supplied 10–24 screws.
YEnsure that all components
are securly fastened to the
cart before moving.
2
3
.The bottom shelf of
the Mig Runner cart
is designed to fit the
Coolmate 3 water
cooler.
Figure 2. Installing Power Source/Wire Feeder
Description
Part
No.
195 445
Dia.
Mkgs.
Mig Runner Cart
Quantity
206910 Base Assembly, Cylinder Cart 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
206916 Shelf Assembly, Cylinder Cart 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
206920 Bracket, Cylinder Mounting 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
163463 Wheel, Rubber Tire 10.000 Od X 2.000 Wide X .750 Bore 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
206986 Caster, Swivel 5.00 In Rubber/Poly Hub X 1.250 X .500–13 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
206814 Label, Caution Falling Equipment 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
202063 Label, Caution Do Not Lift 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
207133 Kit, Mig Runner Accessory (Consisting Of) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
206921 Handle Assembly, Left Hand 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
206925 Handle Assembly, Right Hand 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
146295 Stand–Off, Nylon 10–24 x 1.562 lg 1/2 dia 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
207164 Kit, Mig Runner Hardware (Consisting Of) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
206117 Chain, Double Cylinder 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
