Milnor COSHM 111 Manual

Published Manual Number/ECN: MPICOSHMCE/2015122A
• Publishing System: TPAS2
• Access date: 03/26/2015
• Document ECNs: Latest
Installation and Service
Shuttle Conveyors:
COSHM,COSHP,COSHQ 111 &112
COLFM,COLFP,COLFQ 111 &112
PELLERIN MILNOR CORPORATION POST OFFICE BOX 400, KENNER, LOUISIANA 70063-0400, U.S.A.

Table of Contents
MPICOSHMCE/15122A
Page Description Document
1 1. Safety Information
2 Safety—Shuttle BIUUUS27VS/20051111
7 Proximity Safeguarding for Automatic Shuttle Conveyors BISUUI01/20080206
11 Understanding the Tag Guidelines BIUUUI02VS/20120126
14 Safety Placard Use and Placement, All elevating Conveyors BMP070024/2007215V
16 Safety Placard Use and Placement ISO, All Elevating
Conveyors BMP070025/2007215V
19 2. Installation
20 Attention Installers: Dryers, Shuttles B2T2007003/2013125A
21 Shuttle & Rail Installation - COSHP, COSHM,
COSHQ111/112, COLFP, COLFM, COLFQ111/112 MIQCOSHMCE/2012333A
32 Installation of the Laser Positioner for Traversing Shuttles BIVSVI01/20110301
41 How to Test Traversing Shuttle Stop Positions BIVSRC01/20110301
45 3. Service and Maintenance
46 Shuttle Preventive Maintenance BIVUUM01aa/20070306
51 Fastener Torque Requirements BIUUUM04/20080506
59 Parts Identification COSHM, COSHP, COSHQ 111/112, &
COLFM, COLFP, COLFQ111/112 MGQCOSHMCE/2015122A
70 Low Headroom Double Chain Hoist Option BMP140055/2015026A
77 Parts List MLQCOSHMCE/2002423V
85 4. Dimensional Drawings
87 Dimensional Drawing - COSHM111, 112 (60K Cakes) BDCOSHM2EE/2010306D
88 Dimensional Drawing - COSHM,P,Q111/112 Double Chain
Hoist Option BDCOSHM2EB/2015122D
89 Dimensional Drawing - COSHP111,112 (60K Cakes) BDCOSHP2CE/2010306D
91 Dimensional Drawing - COSHQ111,112 (60K Cakes) BDCOSHQ2BE/2010306D
93 Dimensional Drawing - COLFM111 (60K cakes) BDCOLFM1AE/2013343D
94 Dimensional Drawing - COLFM112 (60K cakes) BDCOLFM2AE/2013343D
95 Dimensional Drawing - COLFP111 (60K cakes) BDCOLFP1AE/2013343D
96 Dimensional Drawing - COLFP112 (60K cakes) BDCOLFP2AE/2013343D
97 Dimensional Drawing - COLFQ111 (60K cakes) BDCOLFQ1AE/2013343D
98 Dimensional Drawing - COLFQ112 (60K cakes) BDCOLFQ2AE/2013343D
99 Dimensional Drawing - Minimum Clearance Cart Shuttle Rail BDCTRAILAE/2011336D
100 Dimensional Drawing - Cart Rail Installation BDCTRAILAB/2007096D

Safety Information 1
1

Safety—Shuttle
PELLERIN MILNOR CORPORATION
BIUUUS27 (Published) Book specs- Dates: 20051111 / 20051111 / 20060323 Lang: ENG01 Applic: VIP VSR VSL VSE VST VGU
Safety—Shuttle
1. General Safety Requirements—Vital Information for
Management Personnel [Document BIUUUS04]
Incorrect installation, neglected preventive maintenance, abuse, and/or improper repairs, or
changes to the machine can cause unsafe operation and personal injuries, such as multiple
fractures, amputations, or death. The owner or his selected representative (owner/user) is
responsible for understanding and ensuring the proper operation and maintenance of the machine.
The owner/user must familiarize himself with the contents of all machine instruction manuals.
The owner/user should direct any questions about these instructions to a Milnor® dealer or the
Milnor® Service department.
Most regulatory authorities (including OSHA in the USA and CE in Europe) hold the owner/user
ultimately responsible for maintaining a safe working environment. Therefore, the owner/user
must do or ensure the following:
• recognize all foreseeable safety hazards within his facility and take actions to protect his
personnel, equipment, and facility;
• work equipment is suitable, properly adapted, can be used without risks to health or safety,
and is adequately maintained;
• where specific hazards are likely to be involved, access to the equipment is restricted to those
employees given the task of using it;
• only specifically designated workers carry out repairs, modifications, maintenance, or
servicing;
• information, instruction, and training is provided;
• workers and/or their representatives are consulted.
Work equipment must comply with the requirements listed below. The owner/user must verify
that installation and maintenance of equipment is performed in such a way as to support these
requirements:
• control devices must be visible, identifiable, and marked; be located outside dangerous zones;
and not give rise to a hazard due to unintentional operation;
• control systems must be safe and breakdown/damage must not result in danger;
• work equipment is to be stabilized;
• protection against rupture or disintegration of work equipment;
• guarding, to prevent access to danger zones or to stop movements of dangerous parts before
the danger zones are reached. Guards to be robust; not give rise to any additional hazards; not
be easily removed or rendered inoperative; situated at a sufficient distance from the danger
zone; not restrict view of operating cycle; allow fitting, replacing, or maintenance by
restricting access to relevant area and without removal of guard/protection device;
• suitable lighting for working and maintenance areas;
• maintenance to be possible when work equipment is shut down. If not possible, then
protection measures to be carried out outside danger zones;
• work equipment must be appropriate for preventing the risk of fire or overheating; discharges
of gas, dust, liquid, vapor, other substances; explosion of the equipment or substances in it.
2

Safety—Shuttle
PELLERIN MILNOR CORPORATION
1.1. Laundr
y
Facilit
y
—Provide a supporting floor that is strong and rigid enough to support–with
a reasonable safety factor and without undue or objectionable deflection–the weight of the fully
loaded machine and the forces transmitted by it during operation. Provide sufficient clearance fo
r
machine movement. Provide any safety guards, fences, restraints, devices, and verbal and/or
posted restrictions necessary to prevent personnel, machines, or other moving machinery from
accessing the machine or its path. Provide adequate ventilation to carry away heat and vapors.
Ensure service connections to installed machines meet local and national safety standards,
especially regarding the electrical disconnect (see the National Electric Code). Prominently post
safety information, including signs showing the source of electrical disconnect.
WARNING 1 : Collision, Crushing and Pinch Hazards—Serious bodily injury or death
can result to personnel in proximity to machinery/systems that traverse, elevate, extend, pivot,
and/or tilt. The following mandatory minimum safety requirements must be installed with the
machinery system: • Safety fence inclosing machine movement areas, • Lockable electrical
interlocks on all gates, properly interfaced as shown on machine schematics, to disable machine
movement when any gate is opened, • Signs to alert personnel to these hazards, placed
prominently around the fenced area. Local codes may require additional precautions.
1.2. Personnel—Inform personnel about hazard avoidance and the importance of care and
common sense. Provide personnel with the safety and operating instructions that apply to them.
Verify that personnel use proper safety and operating procedures. Verify that personnel
understand and abide by the warnings on the machine and precautions in the instruction manuals.
1.3. Safety Devices—Ensure that no one eliminates or disables any safety device on the machine
or in the facility. Do not allow machine to be used with any missing guard, cover, panel or door.
Service any failing or malfunctioning device before operating the machine.
1.4. Hazard Information—Important information on hazards is provided on the machine safety
placards, in the Safety Guide, and throughout the other machine manuals. Placards must be kept
clean so that the information is not obscured. They must be replaced immediately if lost or
damaged. The Safety Guide and other machine manuals must be available at all times to
the appropriate personnel. See the machine service manual for safety placard part numbers.
Contact the Milnor Parts department for replacement placards or manuals.
1.5. Maintenance—Ensure the machine is inspected and serviced in accordance with the norms of
good practice and with the preventive maintenance schedule. Replace belts, pulleys, brake
shoes/disks, clutch plates/tires, rollers, seals, alignment guides, etc. before they are severely
worn. Immediately investigate any evidence of impending failure and make needed repairs (e.g.,
cylinder, shell, or frame cracks; drive components such as motors, gear boxes, bearings, etc.,
whining, grinding, smoking, or becoming abnormally hot; bending or cracking of cylinder, shell,
frame, etc.; leaking seals, hoses, valves, etc.) Do not permit service or maintenance by
unqualified personnel.
2. Safety Alert Messages—Internal Electrical and Mechanical
Hazards [Document BIUUUS11]
The following are instructions about hazards inside the machine and in electrical enclosures.
WARNING 2 : Electrocution and Electrical Burn Hazards—Contact with electric powe
r
can kill or seriously injure you. Electric power is present inside the cabinetry unless the main
machine power disconnect is off.
• Do not unlock or open electric box doors.
3

Safety—Shuttle
PELLERIN MILNOR CORPORATION
• Do not remove guards, covers, or panels.
• Do not reach into the machine housing or frame.
• Keep yourself and others off of machine.
• Know the location of the main machine disconnect and use it in an emergency to remove
all electric power from the machine.
WARNING 3 : Entangle and Crush Hazards—Contact with moving components normally
isolated by guards, covers, and panels, can entangle and crush your limbs. These components
move automatically.
• Do not remove guards, covers, or panels.
• Do not reach into the machine housing or frame.
• Keep yourself and others off of machine.
• Know the location of all emergency stop switches, pull cords, and/or kick plates and use
them in an emergency to stop machine motion.
3. Safety Alert Messages—External Mechanical Hazards [Document
BIUUUS12]
The following are instructions about hazards around the front, sides, rear or top of the machine.
CAUTION 4 : Strike and Crush Hazards—A traveling machine such as a shuttle can strike,
crush, or entrap you if you ride on it or enter its path. Traveling machines or their components
can move automatically in any direction. Placing a system machine on line by energizing the
machine control may immediately summon a shuttle or other traveling machine.
• Keep yourself and others off of machine.
• Keep yourself and others clear of movement areas and paths.
• Understand the consequences of placing a system machine on line.
• Know the location of all emergency stop switches, pull cords, and/or kick plates and use
them in an emergency to stop machine motion.
• Know the location of the main machine disconnect and use it in an emergency to remove
all electric power from the machine.
CAUTION 5 : Crush and Entrap Hazards—A traveling machine such as a shuttle can
crush or entrap you if the bed or bucket descends while you are under it. The bed or bucket can
descend with power off or on.
• Keep yourself and others clear of movement areas and paths.
WARNING 6 : Fall, Entangle, and Strike Hazards—Machine motion can cause you to fall
or become entangled in or struck by nearby objects if you stand, walk, or ride on the machine.
Shuttles and conveyor belts move automatically.
• Keep yourself and others off of machine.
4

Safety—Shuttle
PELLERIN MILNOR CORPORATION
4. Safety Alert Messages—Unsafe Conditions [Document BIUUUS14]
4.1. Damage and Malfunction Hazards
4.1.1. Hazards Resulting from Inoperative Safety Devices
WARNING 7 : Multiple Hazards—Operating the machine with an inoperative safety device
can kill or injure personnel, damage or destroy the machine, damage property, and/or void the
warranty.
• Do not tamper with or disable any safety device or operate the machine with a
malfunctioning safety device. Request authorized service.
WARNING 8 : Electrocution and Electrical Burn Hazards—Electric box doors—
Operating the machine with any electric box door unlocked can expose high voltage conductors
inside the box.
• Do not unlock or open electric box doors.
WARNING 9 : Entangle and Crush Hazards—Guards, covers, and panels—Operating the
machine with any guard, cover, or panel removed exposes moving components.
• Do not remove guards, covers, or panels.
4.1.2. Hazards Resulting from Damaged Mechanical Devices
WARNING 10 : Multiple Hazards—Operating a damaged machine can kill or injure
personnel, further damage or destroy the machine, damage property, and/or void the warranty.
• Do not operate a damaged or malfunctioning machine. Request authorized service.
WARNING 11 : Crush Hazards—Chain and hoist—A broken chain or a malfunctioning
hoist can permit the belt/bucket assembly to fall or descend.
• Do not operate the machine with any evidence of damage or malfunction.
4.2. Careless Use Hazards
4.2.1. Careless Operation Hazards—Vital Information for Operator Personnel
(
see also
operator hazards throughout manual)
WARNING 12 : Multiple Hazards—Careless operator actions can kill or injure personnel,
damage or destroy the machine, damage property, and/or void the warranty.
• Do not tamper with or disable any safety device or operate the machine with a
malfunctioning safety device. Request authorized service.
• Do not operate a damaged or malfunctioning machine. Request authorized service.
• Do not attempt unauthorized servicing, repairs, or modification.
• Do not use the machine in any manner contrary to the factory instructions.
• Use the machine only for its customary and intended purpose.
• Understand the consequences of operating manually.
CAUTION 13 : Goods Damage and Wasted Resources—Entering incorrect cake data
causes improper processing, routing, and accounting of batches.
• Understand the consequences of entering cake data.
5

Safety—Shuttle
PELLERIN MILNOR CORPORATION
WARNING 14 : Strike and Crush Hazards—Carelessly moving the machine with manual
controls can cause it to strike, crush, entrap, or entangle personnel. You have total control of
machine movement immediately after setting the Manual/Automatic switch to manual.
• Keep yourself and others clear of movement areas and paths.
• Understand the consequences of operating manually.
4.2.2. Careless Servicing Hazards—Vital Information for Service Personnel (see also
service hazards throughout manuals)
WARNING 15 : Electrocution and Electrical Burn Hazards—Contact with electric
power can kill or seriously injure you. Electric power is present inside the cabinetry unless the
main machine power disconnect is off.
• Do not service the machine unless qualified and authorized. You must clearly understand
the hazards and how to avoid them.
• Abide by the current OSHA lockout/tagout standard when lockout/tagout is called for in
the service instructions. Outside the USA, abide by the OSHA standard in the absence of
any other overriding standard.
WARNING 16 : Entangle and Crush Hazards—Contact with moving components
normally isolated by guards, covers, and panels, can entangle and crush your limbs. These
components move automatically.
• Do not service the machine unless qualified and authorized. You must clearly understand
the hazards and how to avoid them.
• Abide by the current OSHA lockout/tagout standard when lockout/tagout is called for in
the service instructions. Outside the USA, abide by the OSHA standard in the absence of
any other overriding standard.
WARNING 17 : Crush and Entrap Hazards—A traveling machine such as a shuttle can
crush or entrap you if the bed or bucket descends while you are under it. The bed or bucket can
descend with power off or on.
• Secure both red safety pins in accordance with the instructions furnished, then lock out
and tag out power at the main machine disconnect before working under bed or bucket.
WARNING 18 : Strike and Crush Hazards—A traveling machine such as a shuttle can
strike, crush, or entrap you if you ride on it or enter its path. Traveling machines or their
components can move automatically in any direction. Placing a system machine on line by
energizing the machine control may immediately summon a shuttle or other traveling machine.
• Lock out and tag out power to the traveling machine at the main machine disconnect if
you must work in the path of the traveling machine.
— End of BIUUUS27 —
6

PELLERIN MILNOR CORPORATION
BISUUI01 (Published) Book specs- Dates: 20080206 / 20080206 / 20080206 Lang: ENG01 Applic: SUU
Proximity Safeguarding for Automatic Shuttle Conveyors
Proximity safeguarding—a means of preventing personnel from entering the path of a machine,
such as an industrial robot, that moves within a large area.
1. Applicability
This document—
applies to Milnor®automated laundering systems with shuttle conveyors that move without
operator intervention (automatic operation),
does not apply to shuttles that require operator input continually, such as directing all shuttle
movements (manual operation).
2. References for Proximity Safeguarding
ANSI Z8.1-2006 “American National Standard for Commercial Laundry and Drycleaning
Equipment and Operations - Safety Requirements”
OSHA Standard 29 CFR § 1910.212 “General Requirements for All Machines”
OSHA Directive STD 01-12-002 - Pub 8-1.3 “Guidelines for Robotic Safety”
ANSI/RIA R15.06-1999 “American National Standard for Industrial Robots and Robot
Systems—Safety Requirements”
ANSI/ASME B15.1-2000 “Safety Standard for Mechanical Power Transmission Apparatus”
OSHA Publication 3067 “Concepts and Techniques of Machine Safeguarding”
European Standard prEN-ISO/DIS 10472-1 “Safety Requirements for Industrial Laundry
Machinery”
3. Hazards To Personnel in Proximity to Shuttle Conveyors
Milnor automated laundering systems use automatic shuttle conveyors to transport goods among
the processing machines in the system. Depending on model, an automatic shuttle conveyor may
move in any of the following ways, in addition to running its conveyor belt(s):
• It may travel along (traverse) a line of machines (typically dryers).
• Its conveyor bed(s) may ascend and descend (elevate) within the machine frame.
• Its conveyor bed(s) may extend and retract within the machine frame.
• The conveyor bed and frame may pivot.
• Wet goods shuttles have a bucket that elevates and tilts.
These motions pose strike, crush, sever, and entrapment hazards to personnel in proximity to the
shuttle. For the safety of personnel, owner/users must provide proximity safeguarding that
protects personnel from the moving shuttle.
7

Proximity Safeguarding for Automatic Shuttle Conveyors
PELLERIN MILNOR CORPORATION
A common method of proximity safeguarding is safety fencing with interlocked gates that disable
the shuttle when a gate is opened. When a shuttle is disabled, this will eventually cause other
machines in the system to hold (wait for action from another machine), but it will not necessarily
cause them to immediately stop moving. In the case of a tunnel system, the press or centrifugal
extractor can pose additional hazards to personnel in proximity to the equipment. Hence, the
safeguards must also disable any presses or extractors. Tunnels and dryers do not pose a
significant hazard to personnel merely because they are in proximity to the equipment, and need
not be automatically disabled.
WARNING 1 : Multiple Hazards—Proximity safeguarding provides only partial protection
and only against injury resulting from entering the shuttle path. It is not a substitute for proper
lockout/tagout procedures and good safety practices.
• Always lockout/tagout any individual machine (or follow the published maintenance
procedures) when performing maintenance or clearing a fault on that machine.
• Ensure that all personnel understand the safeguards and do not attempt to defeat them.
• Inspect safeguards weekly to ensure that they are not mechanically or electrically
circumvented.
4. How Milnor Accommodates Proximity Safeguarding
Milnor provides connection points on shuttles, presses and centrifugal extractors for interfacing
with devices such as gate interlock switches. These connection points are tagged for easy
identification. When Milnor provides equipment layout drawings for an automated laundering
system, it indicates on the drawing, the perimeter of the shuttle movement area that must be
guarded. The following hazard statement is displayed on connection point tags as well as
equipment layout drawings prepared by Milnor:
WARNING 2 : Strike, Crush, Sever, and Entrapment Hazards—Serious bodily injury
or death can result to personnel in proximity to machinery/systems that traverse, elevate, extend,
pivot, and/or tilt. The following mandatory minimum safety requirements must be installed with
the machinery system (local codes may require additional precautions):
• Safety fence enclosing machine movement areas,
• Lockable electrical interlocks on all gates, properly interfaced as shown on machine
schematics, to disable machine movement when any gate is opened,
• Signs to alert personnel to these hazards, placed prominently around the fenced area.
Although the objectives of proximity safeguarding are the same anywhere, design requirements
vary with local codes (which occasionally change) and with the plant layout. For this reason,
Milnor does not provide detailed designs or materials for proximity safeguarding. If the necessary
expertise does not exist within the owner/user's organization, consult appropriate sources such as
local engineers or architects specializing in industrial facility design.
5. Examples of Safety Fencing With Interlocked Gates
Fencing with interlocked gates like that depicted in Figure 1 and Figure 2, may be used to meet
the proximity safeguarding requirement. Should the owner/user choose this method, the following
information may be useful. However, this information may not satisfy current or local code
requirements. The owner/user must determine its suitability for his particular facility.
8

PELLERIN MILNOR CORPORATION

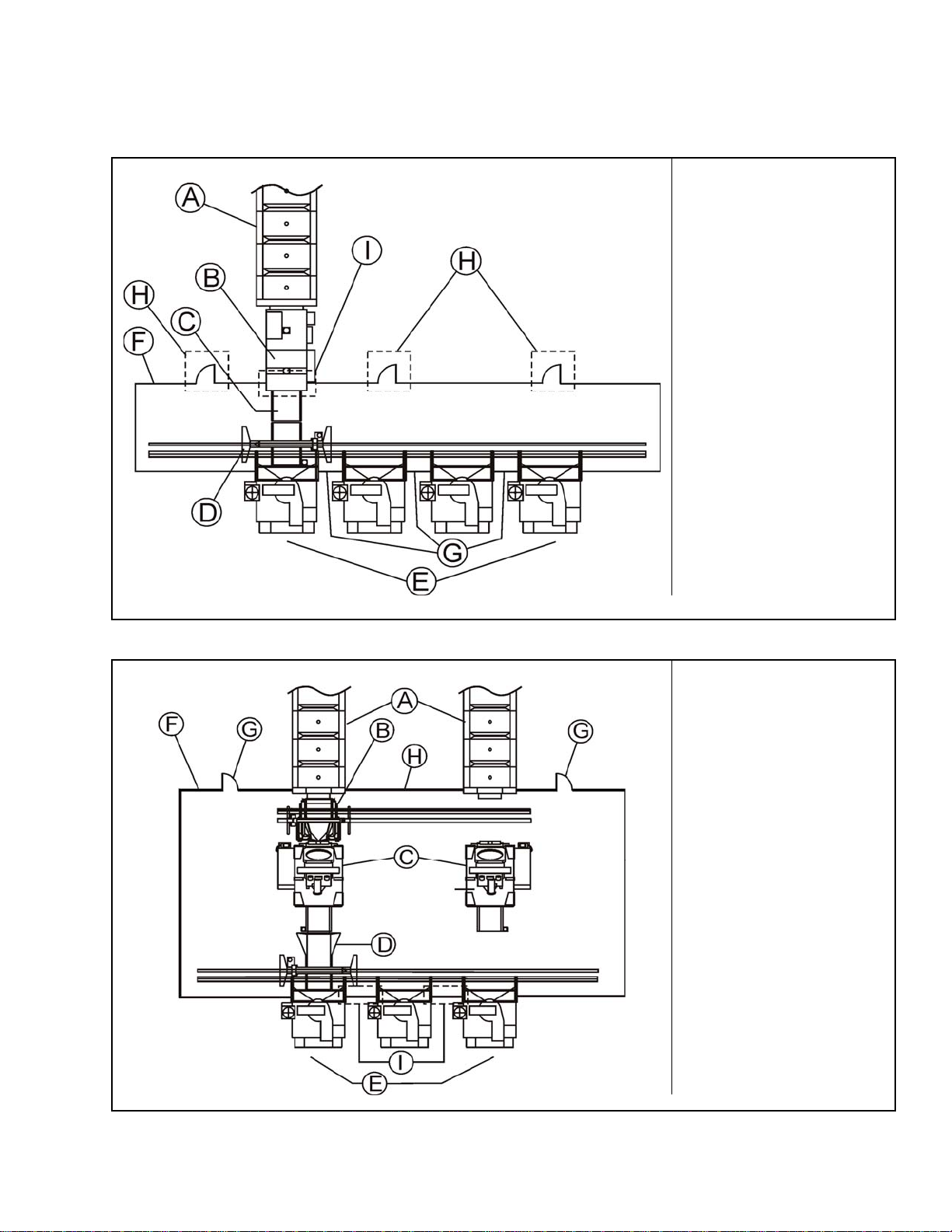

Figure 1: Example Fence Layout for Automated Laundering System Where One Tunnel Serves a Bank of Dryers
Plan View of Laundering System Legend
.
A. Continuous Batch Washer
(tunnel)
B. Press extractor
C. COINC inclined conveyor
D. Traversing and elevating
shuttle conveyor for
pressed cakes
E. Bank of dryers
F. Fence enclosing path of
shuttle
G. Fence segments between
dryers
H. Electrically interlocked
gates. Gates swing
outward at least 90
degrees and swing area is
marked on floor. Provide
multiple gates for long
fence runs.
I. Fence restricts access to
unload end of press, but
does not obstruct access
to press controls.
Figure 2: Example Fence Layout for Automated Laundering System Where Two Tunnels Serve a Bank of Dryers
Plan View of Laundering System Legend
.
A. Continuous Batch
Washers (tunnels)
B. Traversing and elevating
shuttle conveyor for wet
goods
C. Centrifugal extractors
D. Traversing and elevating
shuttle conveyor for loose
goods
E. Bank of dryers
F. Fence enclosing paths of
both shuttles and both
centrifugal extractors
G. Gates interlocked with
both shuttles and both
centrifugal extractors.
H. Fence segment between
tunnels.
I. Fence segments between
dryers.
9

Proximity Safeguarding for Automatic Shuttle Conveyors
PELLERIN MILNOR CORPORATION
5.1. Fence Dimensions—The fence must discourage climbing over and prevent crawling under.
5.2. Fence Materials and Setback—The fence must be constructed of materials and located so
as to prevent personnel from reaching through gaps in the fence and contacting the enclosed
machinery.
5.3. Gates—Personnel gates must be held firmly closed but permit personnel to easily pass through
when necessary. Gates must be equipped with a positive latching arrangement to prevent
accidental opening. Adequate floor space must be provided to allow the gate to swing at least 90
degrees when fully open. Gates must open outward; that is, away from the fenced perimeter. The
floor must be permanently marked to show the gate’s swing area, to discourage obstructing its
movement.
5.4. Control Circuitry—All gates must be electrically interlocked with any shuttle conveyors
within the fenced area and with any presses or centrifugal extractors that the fence either encloses
or intersects. Opening any gate must have the following effects:
1. Shuttle(s), press(es), and/or centrifugal extractor(s) stop moving immediately.
2. An audible alarm sounds.
3. Shuttle(s), press(es), and/or centrifugal extractor(s) cannot be restarted merely by closing the
gate(s), but must be restarted at the machine control panel once the gate(s) are closed.
Milnor shuttles, presses and centrifugal extractors provide such functionality when properly
interfaced with gate interlock switches.
5.5. System Emergency Stop Switches—The laundry must establish rules and procedures
that prohibit personnel from remaining within the fenced area with machine(s) enabled, except in
accordance with published maintenance procedures. System emergency stop switches (panic
buttons) should be provided inside and outside the fenced perimeter. Emergency stop switches
should be located so that personnel anywhere inside the fenced perimeter are only a short
distance from a switch, and they should be clearly marked as to their locations and function.
Connect switches in series with the gate interlocks so that pressing an emergency stop switch
performs the same control function as opening a gate.
5.6. Isolating Individual Machine Controls—The interlock circuitry for each machine must
be electrically isolated from that of the other machines. Hence, each gate interlock switch must
provide as many pairs of dry contacts as there are machines to interface to. A pair of switch
contacts must never be shared by two or more machines.
5.7. Recommended Signage—Safety placards should be posted along the fence and at each
gate, alerting personnel to the hazards within. At minimum, the size of lettering and distance
between placards should be such that anyone contemplating entering the fenced area will likely
see and read the placard first. Wording should be provided in each native language spoken by
laundry personnel.
— End of BISUUI01 —
10

PELLERIN MILNOR CORPORATION
BIUUUI02VS (Published) Book specs- Dates: 20120126 / 20120126 / 20120126 Lang: ENG01 Applic: VSU
Understanding the Tag Guidelines for the Models Listed Below
COELD111 COELF111 COELF112 COELF113 COELF121 COELF122 COLFB111
COLFB112 COLFK111 COLFK112 COLFM111 COLFM112 COLFP111 COLFP112
COLFQ111 COLFQ112 COLFR111 COLFR112 COSAT111 COSAT112 COSAT121
COSHA111 COSHA112 COSHA113 COSHA114 COSHA121 COSHA122 COSHB111
COSHB112 COSHE122 COSHJ112 COSHJH12 COSHK111 COSHK112 COSHM111
COSHM112 COSHP111 COSHP112 COSHQ111 COSHQ112 COSHR111 COSHR112
COSTA112 COSTA113 COSTA114 COSTA121 COSTA122 COSTA123 COSTA124
COSTE112 COSTE113 COSTE114 COSTE122 COSTE123 COSTE124 COSTQ114
COSTR112
Several installation guidelines and precautions are displayed symbolically, on tags placed at the
appropriate locations on the machine. Some are tie-on and others are adhesive tags. Tie-on tags
and white, adhesive tags may be removed after installation. Yellow adhesive tags must remain on
the machine.
11

Understanding the Tag Guidelines for the Models Listed Below
PELLERIN MILNOR CORPORATION
Most tags contain only symbols (no words). A few are worded. The explanations below, start
with the tag part number (displayed on the tag). If a tag contains no words, the meaning of the tag
is explained below. If the tag contains words, the explanation below simply repeats the wording.
Display or Action Explanation
Read the manual before proceeding. This symbol appears on
most tags. The machine ships with a complete set of manuals.
The safety, installation, and electrical schematic manuals are
particularly important to installers.
B2TAG88005: This carefully built product was tested and
inspected to meet Milnor
®
performance and quality standards by
B2TAG94078: Do not forklift here; do not jack here; do not step
here—whichever applies.
B2TAG94079: Rig for crane lifting (either 3-point or 4-point,
depending on the number of lifting eyes provided) using a steep
angle on the chains (closer to vertical than horizontal).
B2TAG94084: Do not lift from one corner of the machine, as
this can cause the frame to rack, damaging it.
B2TAG94089: Do not attempt to balance the shuttle on the
lower shipping brackets. Always suspend and lift the shuttle
from the lifting eyes at the top of the machine.
B2TAG94118: Do not strike shipping container during fork-
lifting. Fragile components inside.
12

PELLERIN MILNOR CORPORATION
Display or Action Explanation
B2T2001028: Look for tags inside the machine. These tags may
identify shipping restraints to be removed or components to be
installed. Do not start the machine until these actions are
completed.
B2T2002013: Do not start the machine until shipping restraints
are removed. This tag will appear on the outside of the machine
to alert you to the presence of internal shipping restraints. A tag
will also appear on the restraint to help identify it. Most, but not
all shipping restraints display the color red. Some shipping
restraints are also safety stands. Do not discard these.
B2T2007003: Install the shuttle rail in accordance with this
instruction and the installation manual.
B2T2010001: Mount festoon tow bar this way. (Used only on
COSHM, COSHP, COSHQ & COSHR models.)
— End of BIUUUI02 —
13

RPellerin Milnor CorporationPellerin Milnor Corporation
P. O. Box 400, Kenner, LA 70063-0400 Litho in U.S.A.
BMP070024/2007215B
(Sheet 1 of 2)

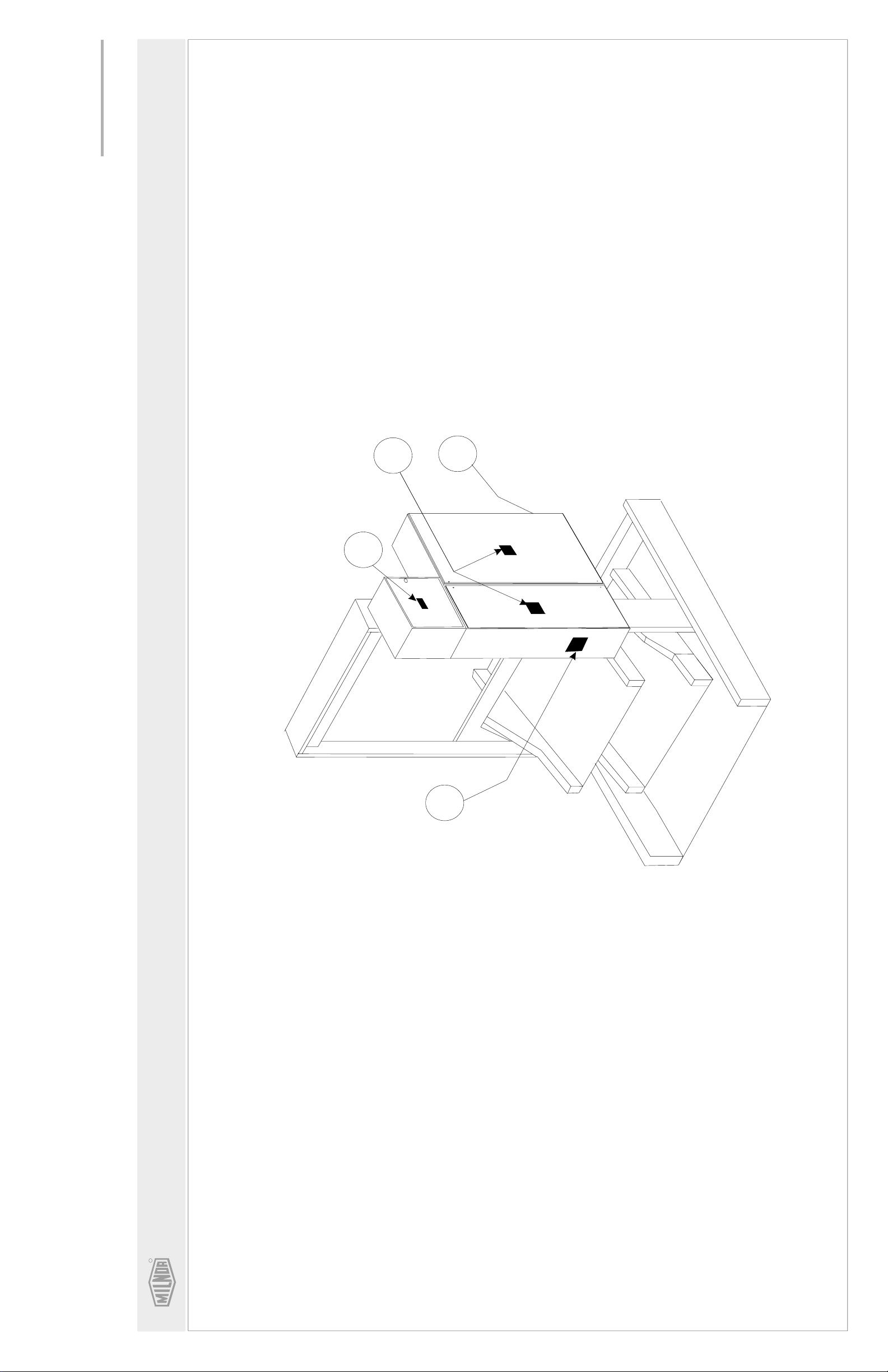

Safety Placard Use and Placement
Notes: 1
. Approximate locations of placards are shown.
Mounting holes are provided on machine. Use #8 self-tapping screws.
. Replace placard immediately, if removed or
unreadable.
2
ALL ELEVATING CONVEYORS
10 10
20
40
30
14

RPellerin Milnor CorporationPellerin Milnor Corporation
P. O. Box 400, Kenner, LA 70063-0400 Litho in U.S.A.
Item
Part Number Description Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to
assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item
numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.
Parts List—Safety Placard Placement
BMP070024/2007215B
(Sheet 2 of 2)
.
---------------------------------------------------------------------ASSEMBLIES------------------------------------------------------------------
none
-------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 10 01 10564A NPLT:COSHA HAZARDS-TCATA
all 20 01 10377A NPLT:ELEC HAZARD LG-TCATA
all 30 01 10699A NPLT:SERV HZRD-PLYEST-TCATA
all 40 01 10375B NPLT:ELEC HAZARD SMALL-TCATA
15

RPellerin Milnor CorporationPellerin Milnor Corporation
P. O. Box 400, Kenner, LA 70063-0400 Litho in U.S.A.
BMP070025/2007215B
(Sheet 1 of 2)
Safety Placard Use and Placement ISO
Notes: 1
. Approximate locations of placards are shown.
Mounting holes are provided on machine. Use #8 self-tapping screws.
. Replace placard immediately, if removed or
unreadable.
2
ALL ELEVATING CONVEYORS
ISO Placards shown on this page
10 10
20
30
16
