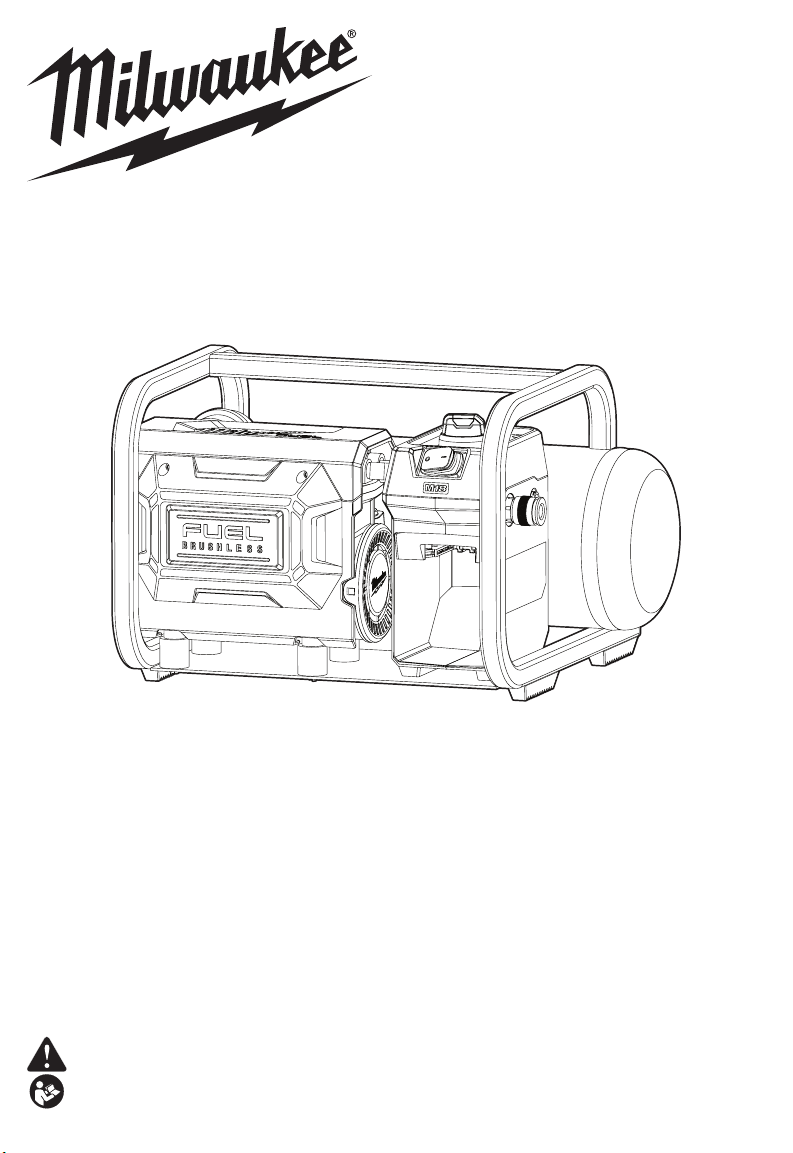

Milwaukee M18 FUEL 2840-20 User manual

Cat. No. / No de cat.
2840-20
M18 FUEL™ 2 GAL. COMPACT QUIET COMPRESSOR
COMPRESSEUR SILENCIEUX COMPACT DE 7,6 L (2 GAL.)
M18 FUEL™
M18 FUEL™ DE 7,6 L (2 GAL.) COMPRESOR SILENCIOSO
COMPACTO
OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR
WARNING To reduce the risk of injury, user must read and understand operator's manual.
AVERTISSEMENT An de réduire le risque de blessures, l'utilisateur doit lire et bien
comprendre le manuel.
ADVERTENCIAPara reducir el riesgo de lesiones, el usuario debe leer y entender el manual.
WARNING To reduce the risk of injury, user must read and understand operator's manual.
AVERTISSEMENT An de réduire le risque de blessures, l'utilisateur doit lire et bien
comprendre le manuel.
ADVERTENCIAPara reducir el riesgo de lesiones, el usuario debe leer y entender el manual.

2
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING
Read all safety warnings, instruc-
tions, illustrations and specica-
tions provided with this power tool. Failure to
follow all instructions listed below may result in
electric shock, re and/or serious injury. Save all
warnings and instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-oper-
ated (cordless) power tool.
WORK AREA SAFETY
•Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
•Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
• Keep children and bystanders away while operat-
ing a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
•Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
•Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the
risk of electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
•If operating a power tool in a damp location is
unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of an GFCI reduces
the risk of electric shock.
PERSONAL SAFETY
•Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
• Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
•Prevent unintentional starting. Ensure the switch
is in the o󰀨-position before connecting to power
source and/or battery, picking up or carrying
the tool. Carrying power tools with your nger on
the switch or energizing power tools that have the
switch on invites accidents.
• Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
•Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
•Dress properly. Do not wear loose clothing or
jewelry. Keep your hair and clothing away from
moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
•If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
POWER TOOL USE AND CARE
•Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for which
it was designed.
•Do not use the power tool if the switch does not
turn it on and o󰀨. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
•Disconnect the plug from the power source
and/or remove the battery, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
•Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
•Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If damaged,
have the power tool repaired before use. Many
accidents are caused by poorly maintained power
tools.
•Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations di󰀨erent from those intended could
result in a hazardous situation.
•Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
• Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one
type of battery may create a risk of re when used
with another battery.
• Use power tools only with specically designated
battery. Use of any other battery may create a risk
of injury and re.

3
• When battery is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that
can make a connection from one terminal to
another. Shorting the battery terminals together
may cause burns or a re.
• Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact ac-
cidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
• Do not use a battery or tool that is damaged or
modied. Damaged or modied batteries may exhibit
unpredictable behavior resulting in re, explosion or
risk of injury.
• Do not expose a battery or tool to re or exces-
sive temperature. Exposure to re or temperature
above 265°F (130°C) may cause explosion.
•Follow all charging instructions and do not charge
the battery or tool outside the temperature range
specied in the instructions. Charging improperly
or at temperatures outside the specied range may
damage the battery and increase the risk of re.
SERVICE
• Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
• Never service damaged battery. Service of battery
should only be performed by the manufacturer or
authorized service providers.
SPECIFIC SAFETY RULES FOR
AIR COMPRESSOR
•
WARNING
Risk of Fire or Explosion. Do not
spray ammable liquid in a con-
ned area. Spray area must be well ventilated.
Do not smoke while spraying or spray where
spark or ame is present. Keep compressors as
far from spraying area as possible.
•
WARNING
Risk of injury. Do not direct air
stream at body.
•
WARNING
Use a minimum of 25 ft of hose
when connecting the spray gun
to the compressor.
•
CAUTION
Do not expose to rain. Store in-
doors.
•
CAUTION
Risk of Bursting. Do not adjust
regulator to result in output pres-
sure greater than marked maximum pressure of
attachment. Do not use at pressure greater than
135 psi.
•Know your air compressor. Read operator’s manual
carefully. Learn its applications and limitations, as
well as the specic potential hazards related to this
product. Do not alter or modify the unit from the
original design or function. Misuse and improper
handling can cause injury.
•Always follow all safety rules recommended by
the manufacturer of air tools and accessories.
•Never direct a jet of compressed air toward
yourself, others, or animals. Dust and debris
can cause eye and lung injuries.
•Do not use compressed air for breathing as-
sistance.
•Always wear proper eye protection marked to
comply with ANSI Z87.1.
•Do not exceed the pressure rating of any com-
ponent in the system.
•When used for inating, do not overinate. Follow
all manufacturer's instructions for the item being
inated.
•Check air hose and couplers for wear or damage
before each use. Ensure connections are secure.
Do not use if air leaks. Keep hose away from sharp
objects, chemical spills, oil, solvents, and wet oors.
Do not pull or carry the air compressor by the hose.
Replace or repair all damaged parts before use.
•Make sure the hose is free of obstructions or
snags. Entangled or snarled hoses can cause loss
of balance or footing and may become damaged.
•Never attempt to block or plug the air outlet
during operation.
•Never leave the air compressor unattended with
the air hose attached.
•Before making adjustments, servicing, trans-
porting, or storing: always turn OFF the air
compressor, remove the battery pack, release
all pressure, disconnect air hose and air tools,
allow unit to cool to the touch, and drain the tank.
•Never adjust, service, transport, or store an air
tool with air connected. Unexpected starting and
possible serious personal injury could occur.
•Air powered tools may require more air con-
sumption than this air compressor is capable
of providing. Check the tool manual to avoid
damage to the tool or risk of personal injury.
•
WARNING
To reduce the risk of injury, when
working in dusty situations, wear
appropriate respiratory protection or use an
OSHA compliant dust extraction solution.
•Do not use this air compressor to spray chemicals
or paint. The toxic fumes can damage lungs.
•Avoid use an environment that is dusty or otherwise
contaminated. Using the air compressor in this type
of environment may cause damage to the unit.
•
WARNING
Air tanks are under high pressure.
Keep face and other body parts
away from outlet when relieving pressure or drain-
ing the tank.
•Follow proper procedures for relieving pressure and
draining the tank. Release all pressures within the
system slowly.
•Drain tanks of moisture after each day’s use. When
storing, leave drain valve open to allow moisture to
completely drain out and help prevent corrosion on
the inside of tank.
•Inspect tank yearly for rust, pin holes, or other
imperfections that could cause it to become unsafe.
Never weld or drill holes in the air tank.
• Always use common sense and be cautious when
using tools. It is not possible to anticipate every
situation that could result in a dangerous outcome.
Do not use this tool if you do not understand these
operating instructions or you feel the work is beyond
your capability; contact Milwaukee Tool or a trained
professional for additional information or training.
•Maintain labels and nameplates. These carry
important information. If unreadable or missing,
contact a MILWAUKEE service facility for a free
replacement.

4

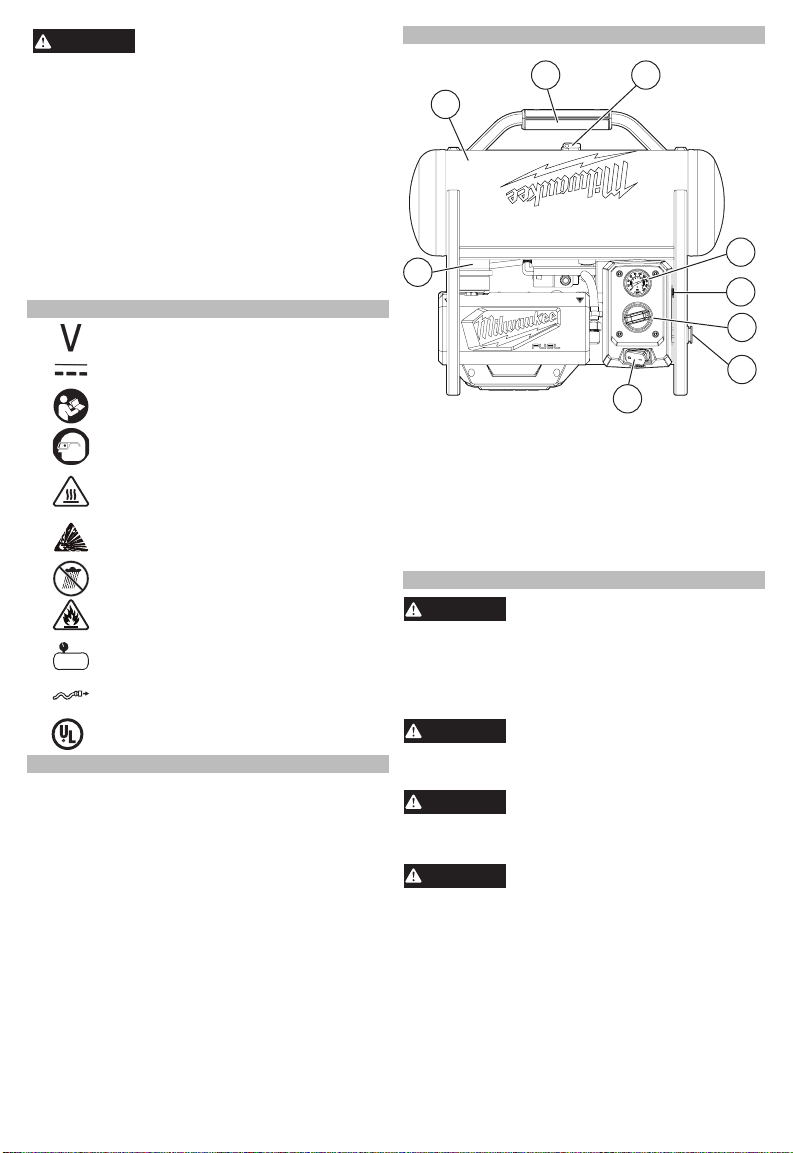

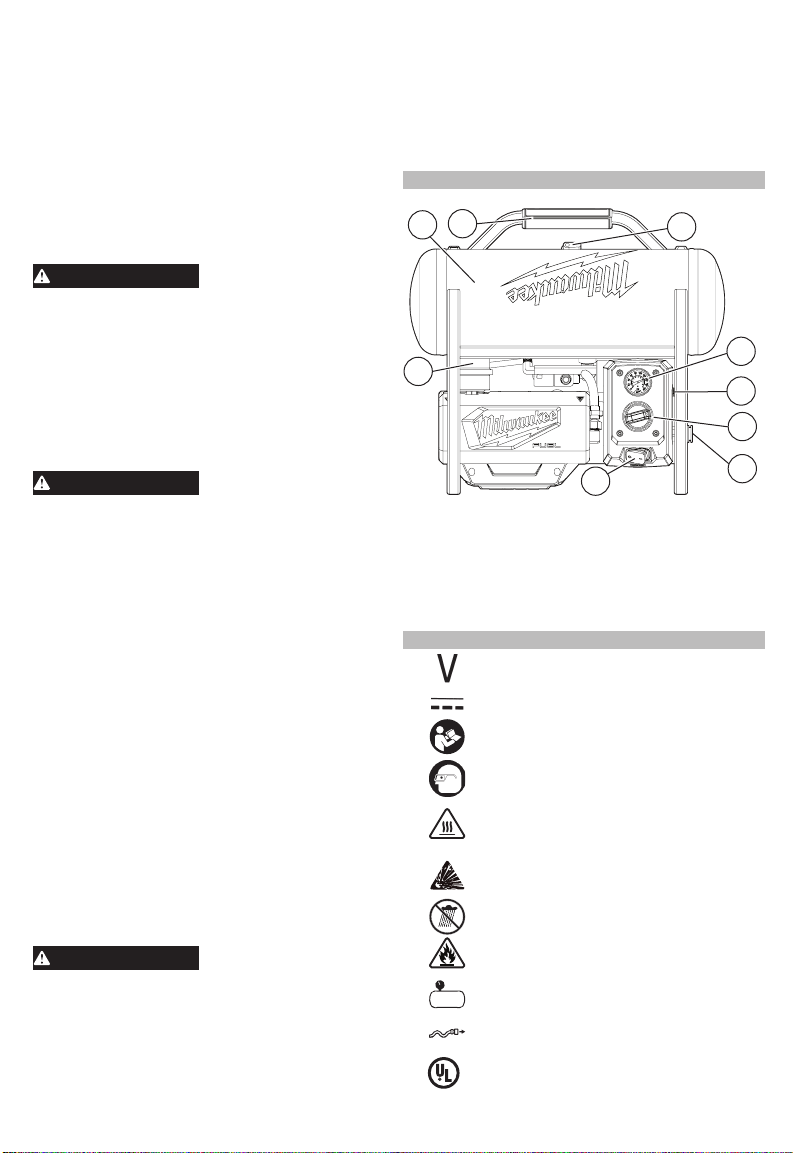

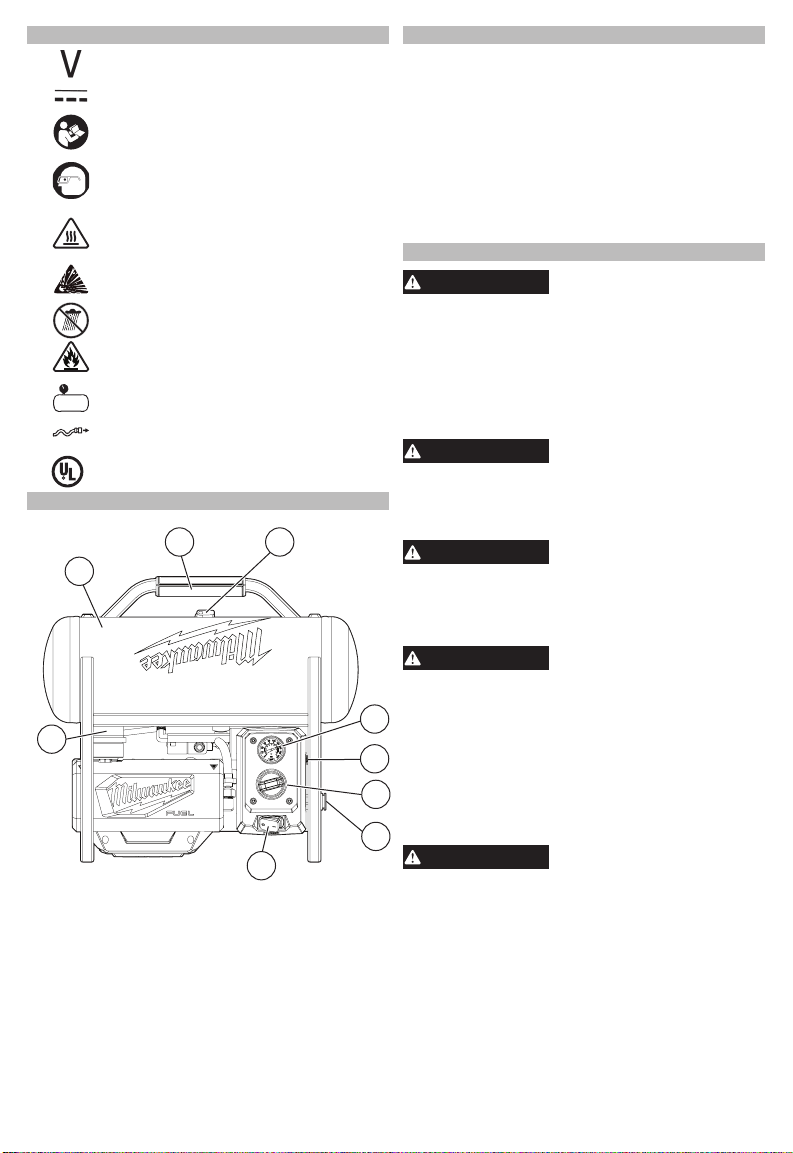

FUNCTIONAL DESCRIPTION
1
5
2 3
4
6
7
8
1. Tank
2. Carry handle
3. Drain valve
4. Tank pressure gauge
5. Release valve
6. Regulator knob
7. Quick-connect coupler
8. Auto On/O󰀨 Switch
9. Intake lter
9
ASSEMBLY
WARNING
Recharge only with the charger
specied for the battery. For spe-
cic charging instructions, read the operator’s
manual supplied with your charger and battery.
Removing/Inserting the Battery
To remove the battery, push in the release buttons
and pull the battery away from the tool.
WARNING
Always remove battery before
changing or removing accessories.
To insert the battery, slide the pack into the body
of the tool. Make sure it latches securely into place.
WARNING
Only use accessories specically
recommended for this tool. Others
may be hazardous.
Installing the Intake Filter
WARNING
The intake lter must be installed
for optimal performance.
1. Turn o󰀨 the air compressor and remove the battery
pack.
2. Remove the clear plastic mu󰀪er tube from the
intake lter cap.
3. Unscrew the intake lter cap.
4. Insert the intake lter until it is fully seated.
5. Reinstall the intake lter cap and mu󰀪er tube.
•
WARNING
Some dust created by power sand-
ing, sawing, grinding, drilling, and
other construction activities contains chemicals
known to cause cancer, birth defects or other repro-
ductive harm. Some examples of these chemicals
are:
•lead from lead-based paint
•crystalline silica from bricks and cement and other
masonry products, and
•arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to
lter out microscopic particles.
SYMBOLOGY
Volts
Direct Current
Read Operator's Manual
Wear Eye Protection
Hot Surface - To reduce the risk of
burns, do not touch
Risk of Bursting
Do not expose to rain
Risk of Fire or Explosion
Tank pressure
Outlet pressure
CUS
UL Listing for Canada and U.S.
SPECIFICATIONS
Cat. No...................................................... 2840-20
Volts.............................................................. 18 DC
Battery Type .................................................M18™
Charger Type................................................M18™
Recommended Ambient
Operating Temperature ......................0°F to 125°F
Air Tank Capacity ........................................2 gallon
Air Pressure ........................................ 135 psi max.
Air Delivery ............................. 40 psi @ 1.7 SCFM
90 psi @ 1.2 SCFM
Noise level ...................................................68 dBA
Quick connect type ........................................... 1/4"

5
OPERATION
WARNING
To reduce the risk of injury, always
wear proper eye protection marked
to comply with ANSI Z87.1.
When working in dusty situations, wear appro-
priate respiratory protection or use an OSHA
compliant dust extraction solution.
Turning the Air Compressor On/O󰀨
1. Connect the hose and accessories to the air com-
pressor.
2. Install the battery pack.
3. To start the compressor, move the Auto On/O󰀨
switch to the AUTO ON (I) position.
When in the AUTO ON (I) position, the air com-
pressor will automatically turn back on when the
designated tank air pressure drops below the
preset pressure limit. It will also shut o󰀨 again
when the cut-o󰀨 pressure is reached.
4. To turn the air compressor o󰀨, move the Auto On/
O󰀨 switch to the OFF (O) position. Release pres-
sure from the tank before
making adjustments,
servicing, transporting, or storing.
Using the Air Compressor
WARNING
Risk of Bursting. Do not adjust
regulator to result in output pres-
sure greater than marked maximum pressure of
attachment. Do not use at pressure greater than
135 psi.
Air powered tools may require more air consump-
tion than this air compressor is capable of provid-
ing. Check the tool manual to avoid damage to
the tool or risk of personal injury.
1. Run the daily check of the release valve (see
"Checking the Release Valve").
2. Turn o󰀨 the air compressor and remove the bat-
tery pack.
3. Attach a properly rated air hose to the air compres-
sor (see "Connecting an Air Hose").
4. Use the correct ttings to connect the air tool or
accessory to the hose.
5. Install the battery pack.
6. Move the Auto On/O󰀨 switch to the AUTO ON
(I) position.
7. Set the air pressure using regulator knob. Turn the
knob clockwise to increase or counterclockwise to
decrease the air pressure.
8. Following all safety precautions in this manual
and the manufacturer’s instructions in the air tool
manual, begin using the air tool or accessory.
NOTE: The air compressor will shut o󰀨 during an
electrical overload. To reset the internal overload
switch, turn o󰀨 the air compressor and allow the
unit to cool. Remove and then reinstall the battery
before resuming operation.
9. When nished, move the Auto On/O󰀨 switch to the
OFF (O) position, remove the battery, release all
pressure, disconnect air hose and air tools, allow
unit to cool to the touch, and drain the tank. Never
leave the unit on and/or running unattended.
Releasing Tank Pressure
WARNING
Air tanks are under high pressure.
Keep face and other body parts
away from outlet when relieving pressure. Always
wear proper eye protection marked to comply
with ANSI Z87.1.
1. Turn o󰀨 the air compressor and remove the battery
pack.
2. Pull the ring on the release valve to release air
until tank pressure gauge reads less than 20 psi.
3. Release the ring.
Connecting an Air Hose
(Hose Not Provided)
WARNING
Never exceed the air hose or air
tool's pressure rating as recom-
mended by the manufacturer. When using this
air compressor as an ination device, always
follow the maximum ination guidelines stated
by the manufacturer of the item being inated.
1. Turn o󰀨 the air compressor and remove the battery
pack.
2. Rotate pressure regulator knob fully in the counter-
clockwise direction so that the outlet pressure is
at zero (0) psi. WARNING! Just because the air
compressor is not running does not mean there
is no pressure in the tank.
3. Attach a properly rated air hose with quick connect
air tting to 1/4" quick coupler on the air compres-
sor. Push the hose adaptor onto the coupler until
the sleeve springs forward to lock it in place.
Disconnecting an Air Hose or Air Tool
WARNING
Always turn OFF (O) the air com-
pressor and ensure the regulator
pressure gauge reads zero before changing air
tools or disconnecting the hose from the air
outlet. Failure to do so could result in possible
serious personal injury.
1. Turn o󰀨 the air compressor and remove the battery
pack. Conrm that the outlet pressure is at zero (0)
psi. WARNING! Just because the air compressor
is not running does not mean there is no pressure
in the tank.
2. To remove the air hose from the air compressor,
grasp the release end of the hose securely and
pull back on the release sleeve on the 1/4" quick
coupler on the air compressor. Pull the hose tting
away from the coupler.
3. To remove an air tool from the air hose, according
to the manufacturer's instructions.
APPLICATIONS
Air compressors are utilized in a variety of air system
applications. Match hoses, connectors, air tools, and
accessories to the capabilities of the air compressor.
You may use this product for purposes listed below:
• Operating light-to-medium duty air-powered tools
• Operating air accessories such as air nozzles and
automotive tire chucks
