mimsafe CARRIER 71100 User manual

www.mimsafe.com
CARRIER
car roof box - small A
INSTALLATION, USER AND SAFETY INSTRUCTIONS
71100
EN71100-MA

GENERAL
MIMsafe’s Carrier roof box is designed to securely carry
different types of luggage on the car’s roof. The box comprises a
double-walled shell and is equipped with the Energy Absorbing
TEAS safety system. We have developed this technology to
reduce the risk of the roof box becoming detached from the
roof in the event of a collision.
Our Carrier roof box is delivered together with the TEAS
safety system pre-assembled in the box so as to t the majority
of car models. In some cases, the TEAS parts may have to be
set individually depending on the roof design and car model.
The roof box is also tted with lighting that switches on
automatically when the box is opened. The oor of the box is
lined with a washable and hard wearing mat that helps to keep
the luggage rmly in place. The box is also equipped with load
loops developed in conjunction with the TEAS safety system for
safe lashing of the cargo.
CRASH TEST
This roof box is crash-tested at a crash pulse in
accordance with ECE R17, with a load of 26g, as
required by the United Nations for approval of
automotive seats, anchorages and head restraints. The
test is performed with a pay load of 75 kg /165 lb at a
speed of 50 km/h (31 mph).
Test results are available from the manufacturer upon
request.
BEFORE YOU BEGIN
• Make sure that the car’s crossbars are correctly mounted
according to the manufacturer’s instructions.
• Carefully read the installation instructions for the roof box.
• Follow the instructions step by step for accurate assembly.
• Get help from a friend. Generally you need to be two when
mounting the box on the roof.
CLEANING
Use a soft cloth with water and mild soap.
To ensure long service life, vacuum clean the box if necessary.
RECOMMENDED AREA OF USE
This roof box is designed for mounting on the car’s roof,
using crossbars recommended by the car manufacturer. The story of MIMsafe
For more than 35 years, MIMsafe has worked with
functional design and manufacturing of safety
products for the modern automotive industry.
Building on our wealth of experience, with
documentation from hundreds of crash tests and in
close collaboration with the major car manufacturers,
we have developed safe products. Under the well-
known brand name MIMsafe, we have grown to
become the leading manufacturer of crash tested and
crush proofed non-whiplash dog cages all over the
world.
You will nd our innovative world-leading products
in many markets. MIMclip is a safety system used
in equestrian sports that prevents rotational falls
that can seriously injure horses and riders in eld
competition. MIMsafe dog cages with brands such
as VarioCage, VarioGate, VarioBarrier, MultiCage
and Care² have all become world-leading products
that save lives and are all crash-tested in ECE R17.
With the introduction of our Carrier roof box, we are
further expanding the product range and creating
safe means of transport for cargo on car roofs.
MANUFACTURER
MIM Construction AB
Myren 125
SE-462 94 Frändefors
Sweden
[phone]
[email protected]
www.mimsafe.com
DAILY INSPECTION
• Check that the roof box is securely fastened according
to the installation instructions.
• Inspect the box for visible damage and ensure that the
roof box is intact.
• Check that the locking mechanism and lighting work
satisfactorily.
IMPORTANT

Pull this label out
4X 2X
RATCHET STRAPS
4X
QUICK GRIP
Art.no. 70114
LOCK KEYS

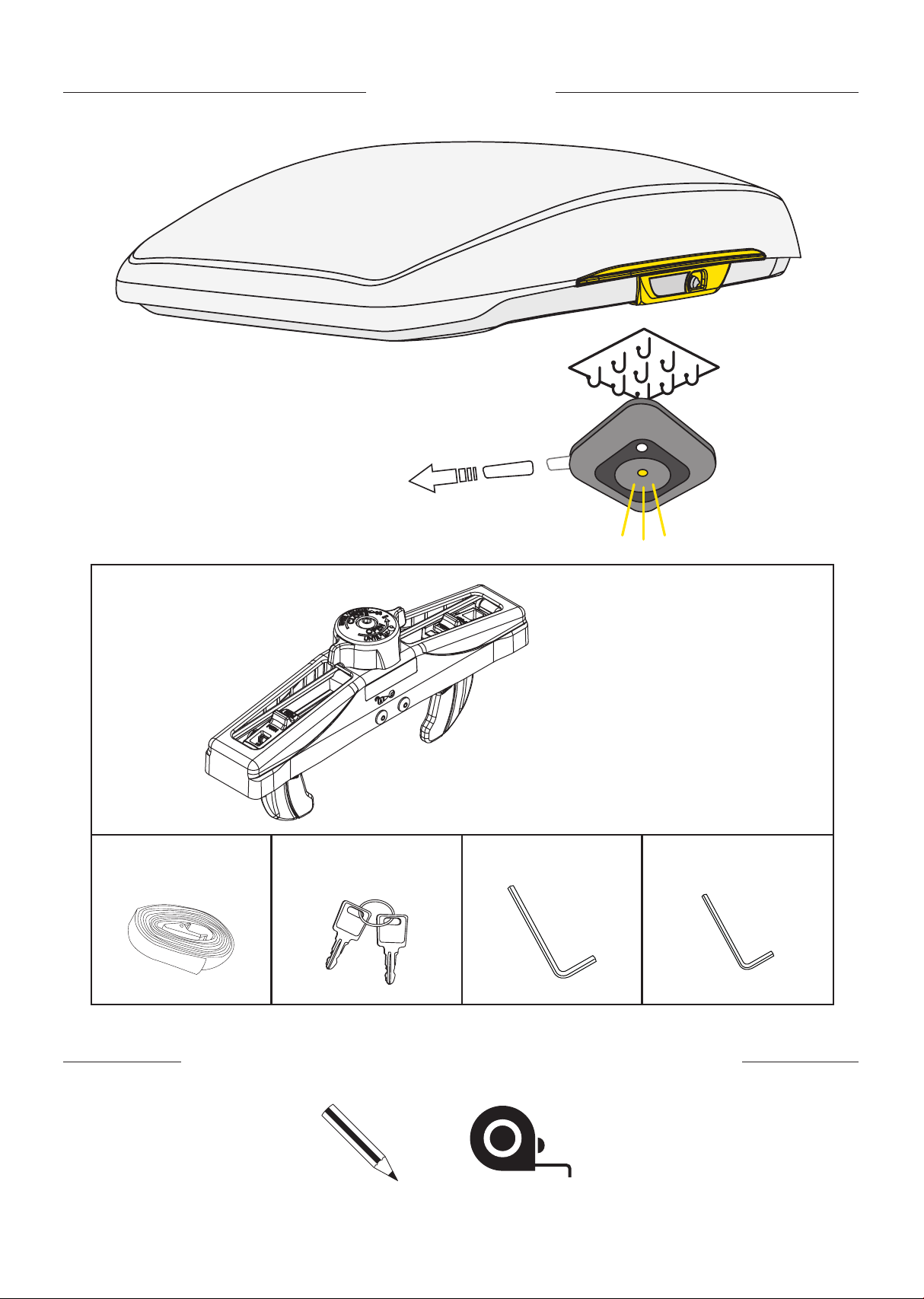

PARTS INCLUDED
RECOMMENDED TOOLS FOR THE ASSEMBLY (not included)
1X 1X
ALLEN KEY 4ALLEN KEY 5
PEN MEASURING TAPE

1
STEPSTEP
H
H
W
W
W
H
CHECK ALL THESE MEASUREMENTS
13.8 in
9.13 in 21.65 in
1 in
0.6 in
36.61 in
3.74 in
1.18 in
19.2 in
350 mm
232 mm 550 mm
25 mm
15 mm
930 mm
95 mm
30 mm
-
-
-
-
-
-
MIN MINMIN
MIN
MIN
MAX
MAX
MAX
13 in
330 mm
38.58 in
980 mm
490 mm760 mm
1600 mm
30 in
63 in
FACTORY SETTINGS

ADJUSTABLE
CROSSBARS
FIXED POINT
CROSSBARS

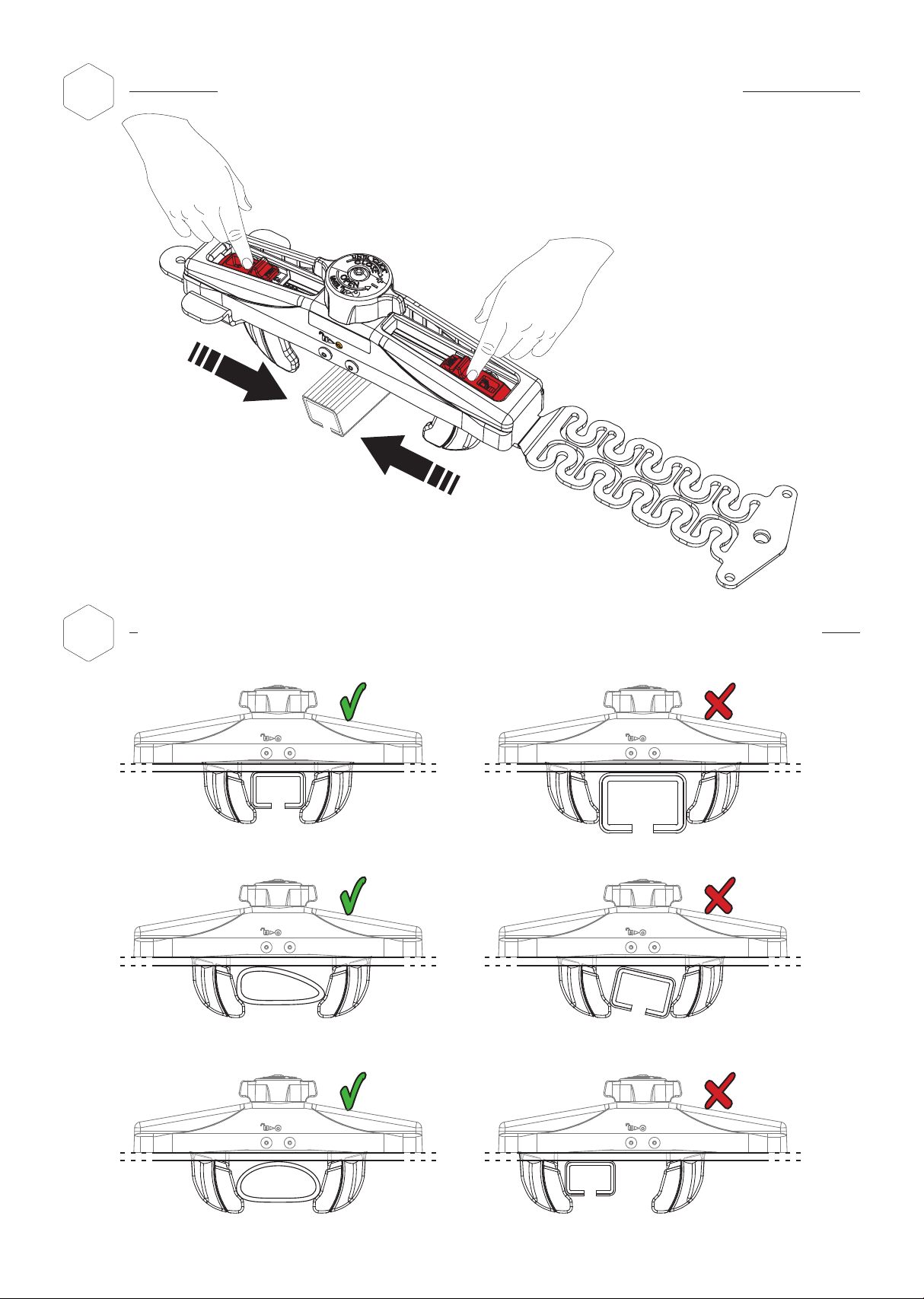

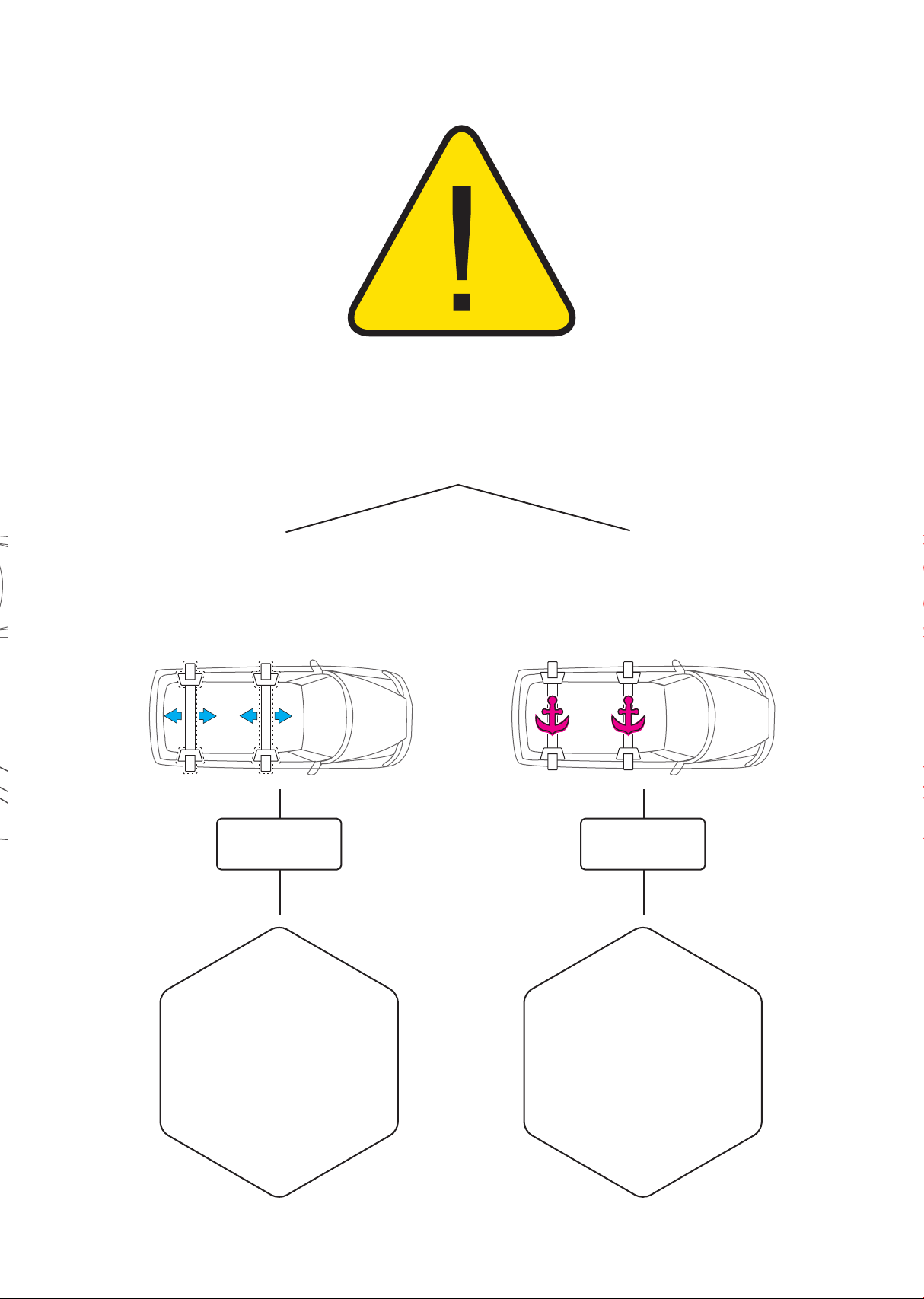

Choose the right option regarding whether
your crossbars are adjustable or point xed
Go to Go to
IMPORTANT
2
STEPSTEP
3
STEPSTEP

INSTALL AND/OR ADJUST THE CROSSBARS
2
STEPSTEP
FOR ADJUSTABLE CROSSBARS ONLY
760±5 mm
30±0.2 in
MARGIN
ALLOW AT LEAST
350 mm (13.8 in)
OF MARGIN
Go to
4
STEPSTEP

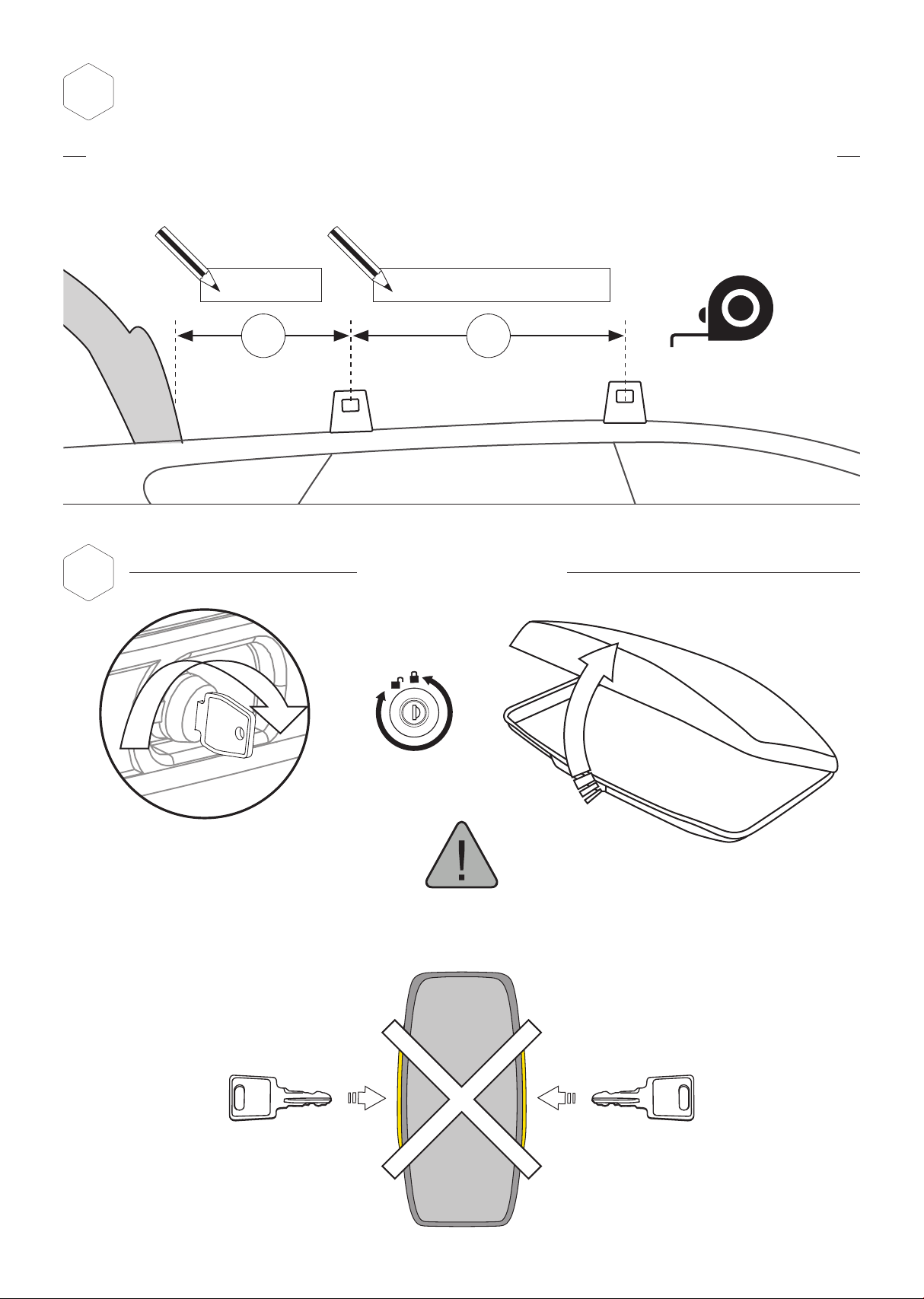

MEASURE THE DISTANCES BELOW AND WRITE THEM DOWN IN THE BLANKS
3a
STEPSTEP
3b
STEPSTEP
FOR FIXED POINT CROSSBARS ONLY
MARGIN
M A
OPEN THE CARRIER
IMPORTANT
NEVER OPEN BOTH SIDES OF THE CARRIER AT THE SAME TIME.

3c
STEPSTEP

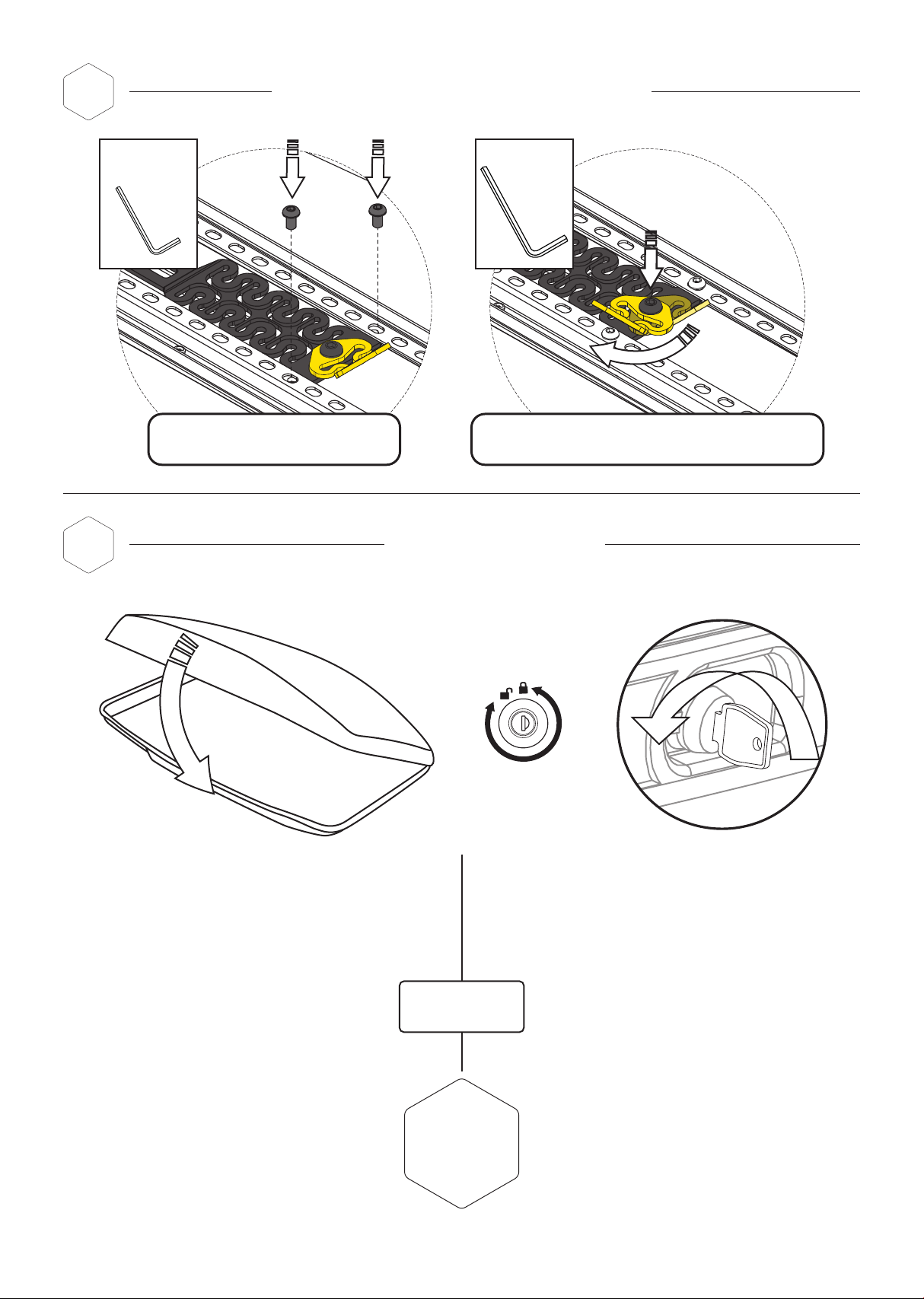

DISASSEMBLE THE TEAS SYSTEM UNITS
DISASSEMBLE THE TEAS SYSTEMS BY
LOOSENING THE MARKED SCREWS
LOOSEN THE MARKED SCREW AND TURN THE ANCHOR
UNTIL THE SCREWS ON ITS SIDES ARE REACHABLE
1X
ALLEN KEY 5
1X
ALLEN KEY 4
3d
STEPSTEP
ADJUST THE TEAS SYSTEM UNITS TO YOUR EARLIER MEASUREMENTS
FRONT
A
SLIDE THE TEAS UNIT SYSTEMS TO THE MEASURED POSITIONS
ATTENITON
THIS DISTANCE
NEEDS TO BE
SMALLER THAN M
M
MARGIN

3e
STEPSTEP
REASSEMBLE THE TEAS SYSTEM UNITS
1X
ALLEN KEY 5
1X
ALLEN KEY 4
3f
STEPSTEP
CLOSE THE CARRIER
TURN THE ANCHOR TO ITS ORIGINAL ANGLE (facing inwards to
the roof box) AND TIGHTEN THE MARKED SCREW AGAIN
ASSEMBLE THE TEAS SYSTEM UNITS AGAIN
MATCHING THE CLOSEST SET OF HOLES
Go to
4
STEPSTEP

4
STEPSTEP
5
STEPSTEP

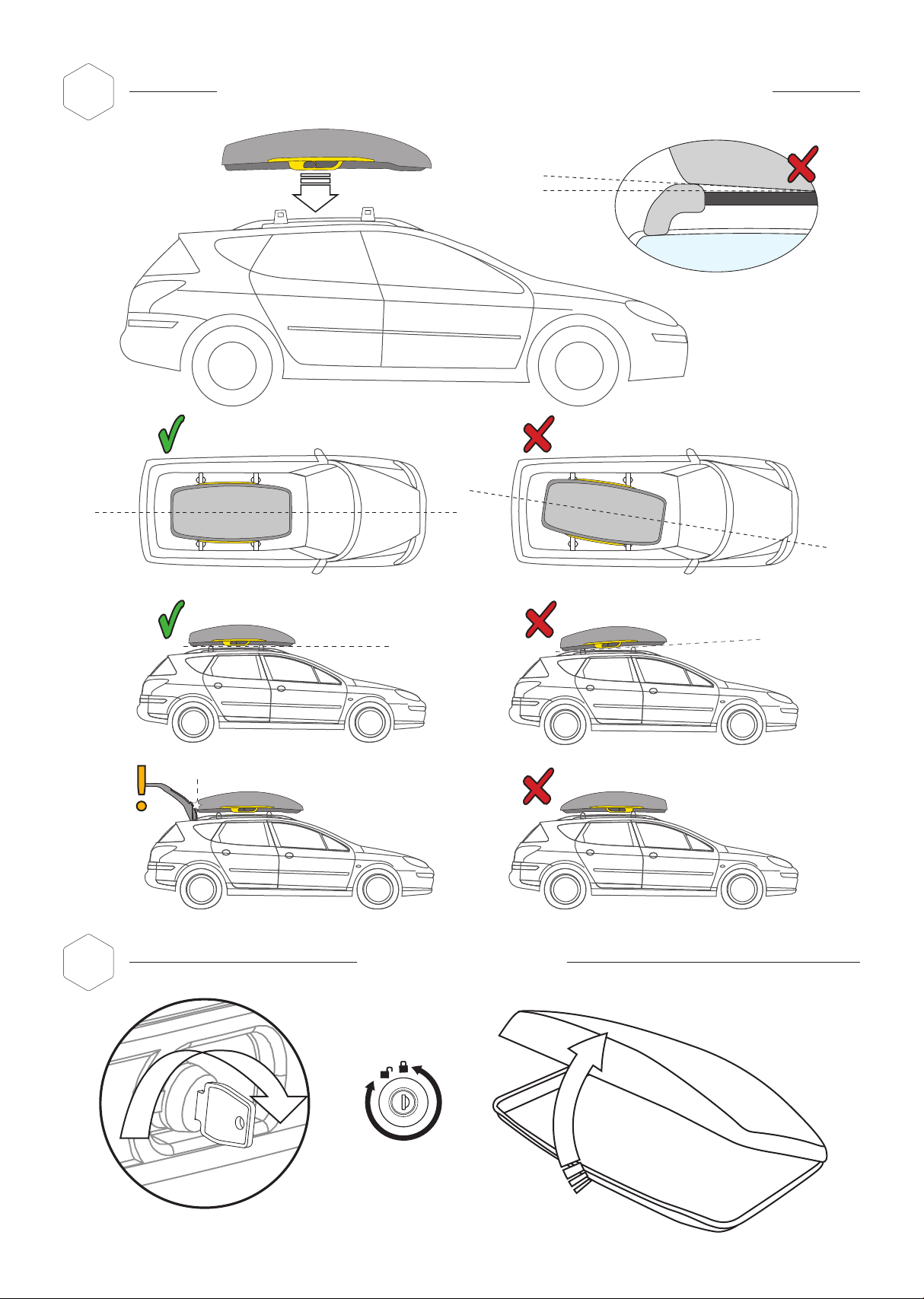

PLACE AND CENTER THE CARRIER ONTO THE CROSSBARS
OPEN THE CARRIER
CROSSBAR
WINDSHIELD
CARRIER

6
STEPSTEP
7
STEPSTEP
*TURN
THE KNOB
ANTICLOCKWISE
UNTIL THE
ORANGE
INDICATOR IS
VISIBLE
SPREAD THE QUICK GRIP’S CLAWS TO THEIR MAXIMUM DISTANCE
LOWER THE QUICK GRIPS
VISIBLE
MAKE SURE THE ORANGE
INDICATOR IS VISIBLE*

7
STEPSTEP
CHECK THE QUICK GRIP’S POSITIONS

8
STEPSTEP
9
STEPSTEP
AFFIX THE QUICK GRIP’S CLAWS TO THE CROSSBARS
MAKE SURE THE CLAWS ARE CORRECTLY CLAMPED TO THE CROSSBARS

10
STEPSTEP
11
STEPSTEP
LOCK BY ROTATING THE KNOB UNTIL YOU HEAR A “CLICK”
CLOSE THE ROOF BOX AND COVER THE LOCK
NO CLICK?
REVIEW
STEPS 6 AND 9

DISTRIBUTE THE LOAD AS ILLUSTRATED
FASTEN ALL THE LOAD USING THE HOOKS (YELLOW) AND STRAPS INCLUDED
1/4 1/4
2/4
25 kgkg max 75 kg see your
car’s manual
++ <
Empty CarrierCrossbars Load MAX roof load
MAX
THE MAXIMUM PAY LOAD FOR THE ROOF BOX IS 75 kg.
However, the added weight of the crossbars, Carrier and the pay load may
not exceed the maximum allowed roof load for your car.
IMPORTANT
AVOID STRAPPING AROUND
SHARP EDGES

www.mimsafe.com
Carrier Edition 2021-12
SAFETY
CHECK
500 km
intervals
Take into account the effect the
load may have on the way your
car handles.
10 km
• Check that all Quick Grips,
TEAS system units and load
loops, are rmly mounted
after installation.
• Repeat after rst 10 km and
then in 500 km intervals.
• Store the quick-grips in a clean
environment when not in use.
• Check for dirt before use.
Store away from the sunlight
• The roof box is water resistant, i.e. not completely
waterproof.
• Be aware of the difference in height of the car with roof box
mounted.
• Before you start driving, check that the box is properly closed,
locked and the key is removed.
• If you put the car through an automatic carwash remove the
roof box from the car.
• Please note that wind noise may occur when driving with a
roof box mounted on the car.
• The roof box must always be kept in lying at when not in use.
• Keep your manual together with the car’s instruction manual.
• Installation and handling that deviate from this manual will
render the warranty void and can cause damage to the car
and the surrounding environment.
• Tighten all the screws and fasteners at the end of the
installation, even the ones used with the TEAS system units.
• All the loads have to be secured and correctly fastened with
the straps.
H2O
Don’t expose to direct heat sources
min 1 meter
SPEED
LIMIT
mph
80
M
A
X
S
P
E
E
D
k
m
/
h
Store in horizontal position
P
REMEMBER
