miniJOULE MJI-1500-01 User manual

USB Output
USB Output
ACO utput ACO utput
DCOutputDCOutput
Manual
Handbuch
GB
DE
Manuel
Manual
FR
ES
Manuale
IT
MJI-1500-01

Manual
GB
MJI-1500-01

Misuse of MJI-1500-01 may result in danger to the user. We urge you to pay special
attention to all CAUTION and WARNING statements.
CAUTION statements identify conditions or practices that may result in damage to
MJI-1500-01 or to other equipment. WARNING statements identify conditions that may
result in personal injury or loss of life.
This chapter contains important safety and operating instructions. Read and keep this
Owner’s Guide for future reference.
Before installing and using the MJI-1500-01, read all instructions and cautionary
markings on the MJI-1500-01 and all appropriate sections of this guide.
MJI-1500-01 generates the same potentially lethal AC power as a normal household
wall outlet. Please use it carefully like using a normal AC socket on the wall.
Do not insert any foreign objects into MJI-1500-01’s AC outlets, its DC Power
Socket, or the ventilation holes. Do not remove the covers on the High Power DC
Terminals, unless connecting cables. Do not expose MJI-1500-01 to water
Do not, under any circumstances, connect the MJI-1500-01’s AC receptacle to power
utility AC distribution wiring.
Failure to follow the above safety instructions may result in personal injury and/or
damage to MJI-1500-01.
Do not use MJI-1500-01 where there are flammable fumes or gases, such as in the
bilge of a gasoline powered boat, or near propane tanks. Do not use MJI-1500-01 in
an enclosure containing automotive-type lead acid batteries. These batteries, unlike
the sealed battery pack in the MJI-1500-01, vent explosive hydrogen gas, which can
be ignited by sparks from electrical connections.
When working on electrical equipment always ensure someone is nearby to help you
in an emergency.
MJI-1500-01’s internal inverter components may become uncomfortably warm,
reaching 140oF(60oC) under extended high power operation. Ensure at least 15 cm (6
in) of air space is maintained on all sides and on top of MJI-1500-01.
During operation, keep away from materials that may be affected by high
temperatures such as blankets, pillows and sleeping bags.
The MJI-1500-01 is not intended for use in connection with life
support systems or other medical equipment or devices.
WARNING: Limitations on use
WARNING: Shock or fire hazard
WARNING: Electric Shock Hazard
WARNING: Heat Hazard
Important Safety Instructions
i

CAUTION
Do not connect any AC load whose neutral conductor is connected to ground, to
MJI-1500-01.
This system should not be exposed to a place where the ambient temperature is over
40oC.
ii
Important Safety Instructions
Please keep observed safety notes before use.
To comply with the published safety standards, the following must be observed
when using this UPS product.
The output power taken from the supply must not exceed the rating given on
the UPS (Uninterruptible Power Supply) product.
The UPS product is intended to be repaired by service personnel in case of failure
or component defect.
The disconnection from line voltage is made by pulling the mains plug.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
The AC Input Wire must be connected to an earthed mains socket outlet for
safety reasons.
Pluggable power cords are normally 2m in length or less.
DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material resources.
To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
Note: Instructions manual are subject to change without notices.

Important Safety Instructions.........................................................................i
Contents
1 Introduction of miniJOULE Island (MJI-1500-01)
1 Specification.........................................................................................1-1
2 Delivery Contents..................................................................................1-2
2 Feature
3 Operation
4 Error Codes and Troubleshooting.............................................................4-1
5 Specifications........................................................................................
1 Inverter.............................................................................................5-1
2 Built-in Charger..................................................................................5-2
3 Solar Charge......................................................................................5-3
1-2..........................................................................1
2 Output Panel......................................................................................2-4
3 Input Panel.................................................................................. 2-5
4 Back Panel.................................................................................... .2-6
1 Working Mode............................................................................... 3-1
1.1 Single Inverter Mode.....................................................................3-1
1.2 Single Charging Mode...................................................................3-2
1.3 Charging and Inverter Mode..................................................... 3-3
1.4 DC Output....................................................................................3-4
2 Jump start.................................................................................... 3-4
3 Recharging MJI-1500-01............................................................................3-5
3.1 Charging Options .........................................................................3-5
3.2 Battery Self-discharge and Shelf Life .............................................3-5
3.3 Charging with the Built-in AC Charger ............................................3-6
3.4 Charging with Solar Panels ...........................................................3-6
3.5 How to Expand the Solar Panel ......................................................3-7
System Control Panel
.......
....
.....
......
.....
Contents
v

vi
4 Mechanical..................................................................................... 5-3
6 Replacement & Installation of The Battery............................................ .6-1
Battery Operating Times............................................................................................6-3
Waste Disposal and Environmental Protection..........................................................6-4
....
....
7 Guarantee ........................................................................................ .7-1
....
8 Declaration of Conformity ................................................................. .8-1
....

Thank you for your purchase of the miniJOULE Island 1500W (MJI-1500-01) off-grid System.This
system is a solar powered system which can supply continuous electrical power up to
1500W (peak power). This mobile workhorse operates a wide variety of roles including
recreational power, emergency power and productivity power.
3
Specification
1200W continous, 1500W peak pure-sine-wave inverter
Provides 2 0 VAC, 12 VDC and 5VDC power supply anywhere
Solar charge controller for connecting up to 240Wp of solar power
Sealed, non-spillable 100 amp-hour AGM battery included
Telescopic handle for convenient mobility
Waterproof designed for the outdoors
High temperature, overload and short-circuit protection
Low battery alarm and automatic shutdown
4” LCD displays clear information
(2x) 12V DC car lighter outlets
(2x) 230V AC outlets
(2) 5V DC USB outlets
Jump starter terminal
Safety automotive fuses
Introduction of miniJOULE Island 1500W
1-1
RCD protection

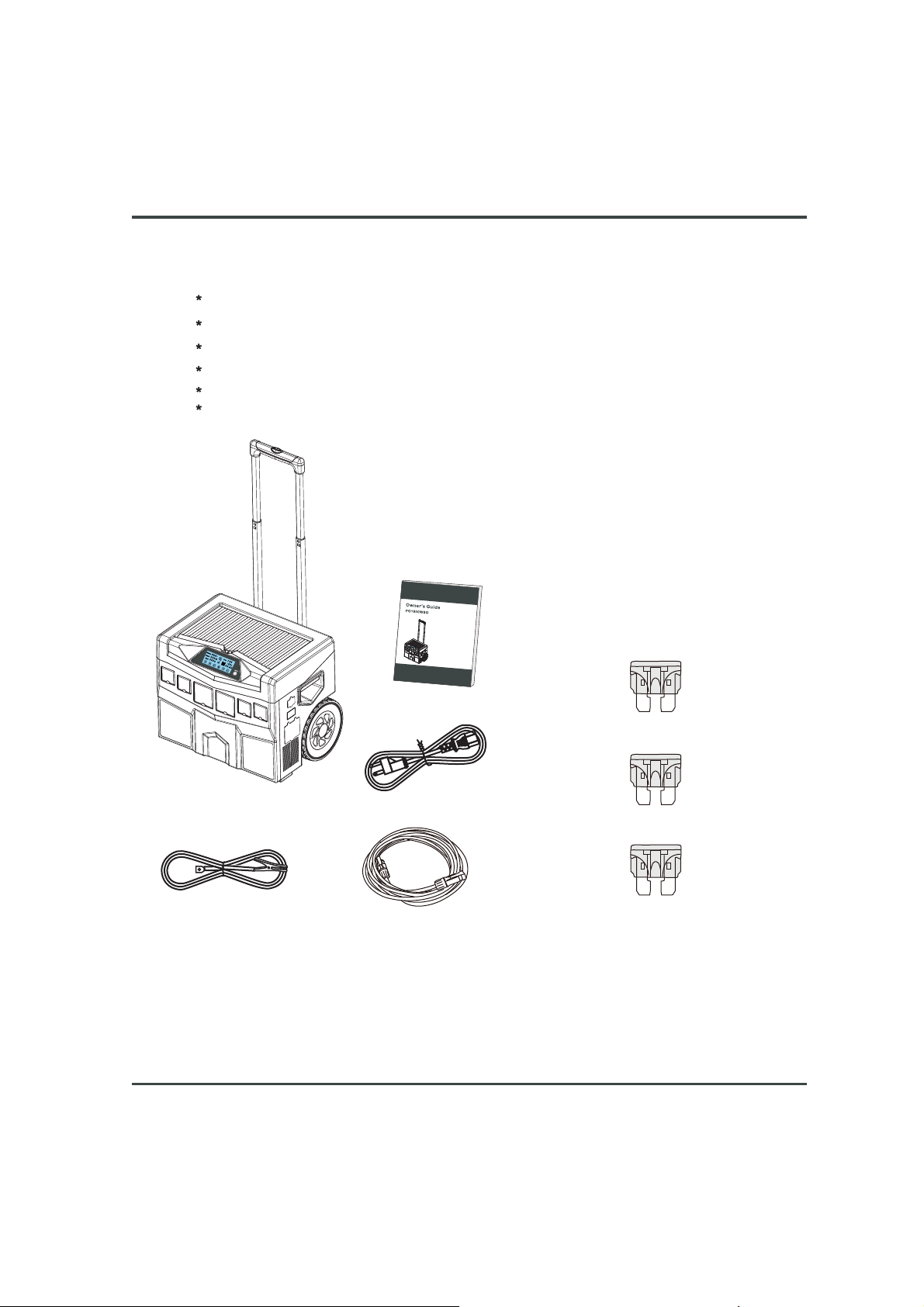

Delivery Contents
Unpack the equipment and check whole unit contains below parts.
)edisnidelbmessa-erpsi(MJI-1500-01
Manual
Dispose of the packaging material in a proper manner.
AC Input Wire
Sealed 100Ah AGM battery
MJI-1500-01
(Internal 100 A h battery)
Figure 1-1 Delivery Contents
1-2
A C I nput
Wi re
Fuse（2x15A, 1x20A, 7x30A）
ump start cable
J
Owner’s
Guide
2 x Jump start cable 2 x Solar extension cable
2 x Fuse (15A)
1 x Fuse (20A)
7 x Fuse (30A)

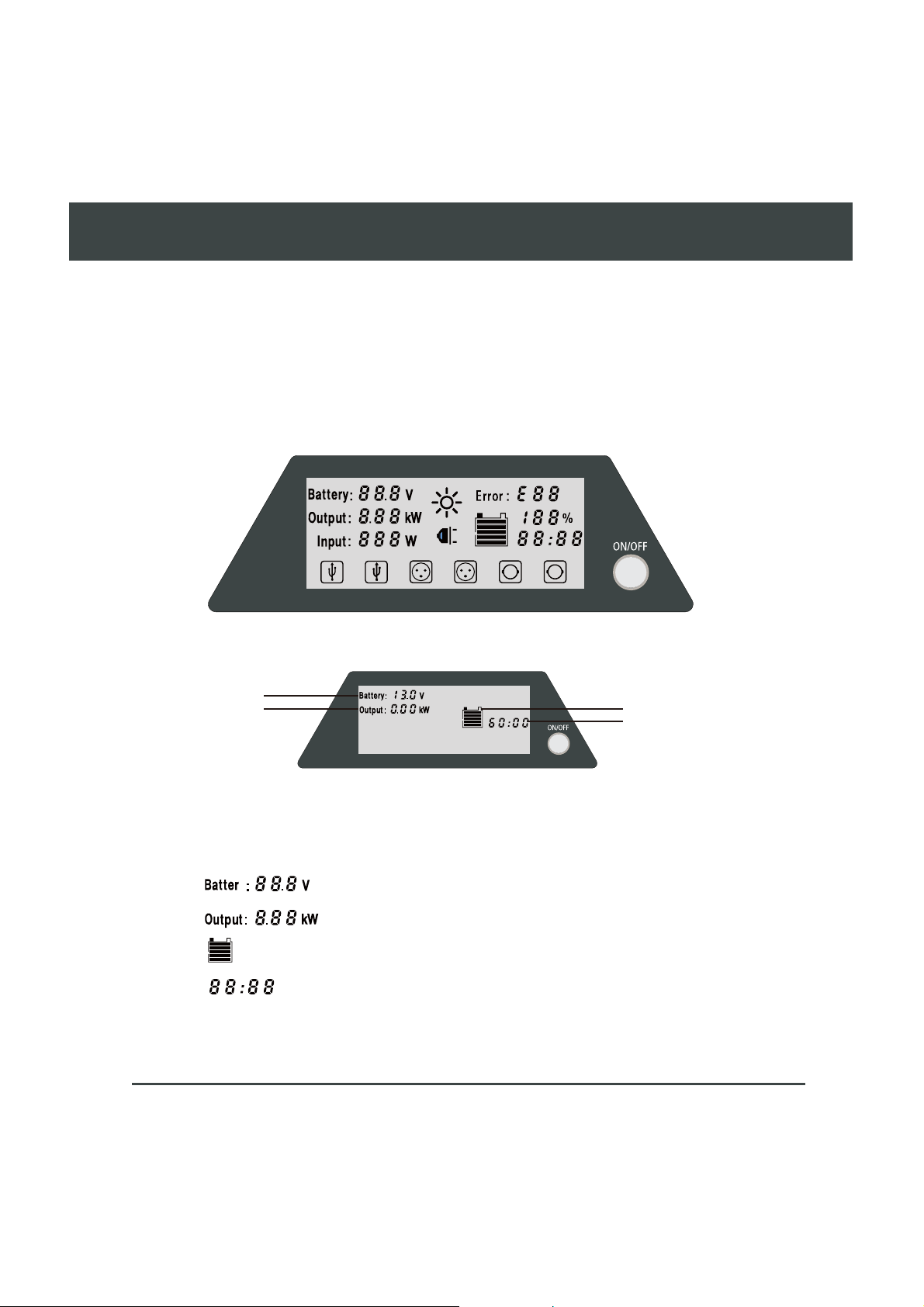

1. System Control Panel
1.1 Power On and Off
How to turn on the inverter?
How to turn off the inverter?
Press and hold the ON/OFF power button for approximately 0.5 second, release when
buzzer beeps. The inverter will be turned on and LCD display will show the self-test
process, all indicators will be illuminated at the same time. After self-test, the working
indicator will be illuminated, backlight will be turn on, and turn off after 10 seconds
automatically.
Press and hold the ON/OFF power button for approximately 0.5 second, release when
buzzer beeps. The inverter will be turned off, AC outlets are unworkable and the USB and
car lighter outlets are workable.
Feature

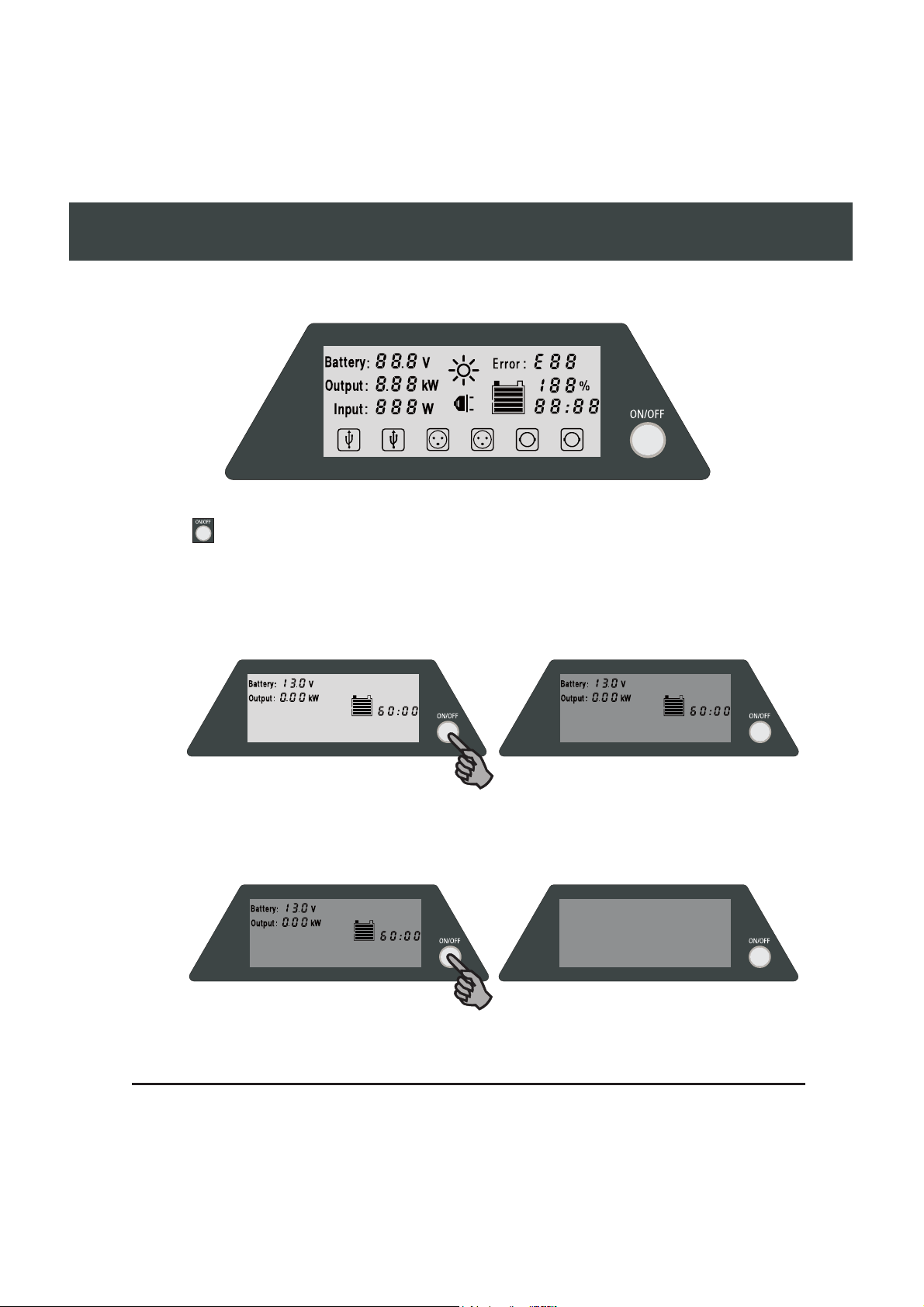

Press 0.5 second: Self-test (Note: Real color of display is blue.)
Press 0.5 second: Turn on the inverter
(Note: Real color of display is blue.) Backlight off after 10 seconds automatically
Press 0.5 second: Turn off the inverter
2-1
(Note: Please turn off the unit after using it to minimize any unnecessary own
consumption.)

The backlight will turn off automatically, how to set the backlight?
Press and hold the ON/OFF power button for approximately 3 seconds, all indicators will
be illuminated or off (The status will be changed to opposite) when buzzer beeps. After
that, the display is set to turn off the backlight manually.
( Self-test shows 88.8V
test shows 888W instantaneously. After completing self-test, the total charging power will be
displayed at charge mode. However, it will not be displayed at inverter mode.)
When connecting to the solar panel, the indicator will be illuminated, the backlight will be
illuminated for 5 seconds and the buzzer beeps.
1.2 : Battery voltage will be displayed.
1.3 : Total output power of AC inverter and DC terminal will be
displayed. ( Self-test shows 8.88 KW instantaneously. After completing self-test,
1.4 : Total input power of solar and AC charger will be displayed. (
1.5 : Error code will be displayed. (see “Trouble Shooting on page 4-2”)
1.6 : Remaining working time of the battery will be displayed.
Remaining time is calculated based on 100Ah battery. There will be
discrepancy between the display and the actual working time if you used other
kind of Lead-acid battery.
1.7 : Percentage of battery capacity will be displayed.
Please charge the battery immediately, if one of following conditions
happened.
If solar input power is not available, the remaining time is not so much.
If the percentage of battery capacity is low.
If Error code “E05” is displayed.

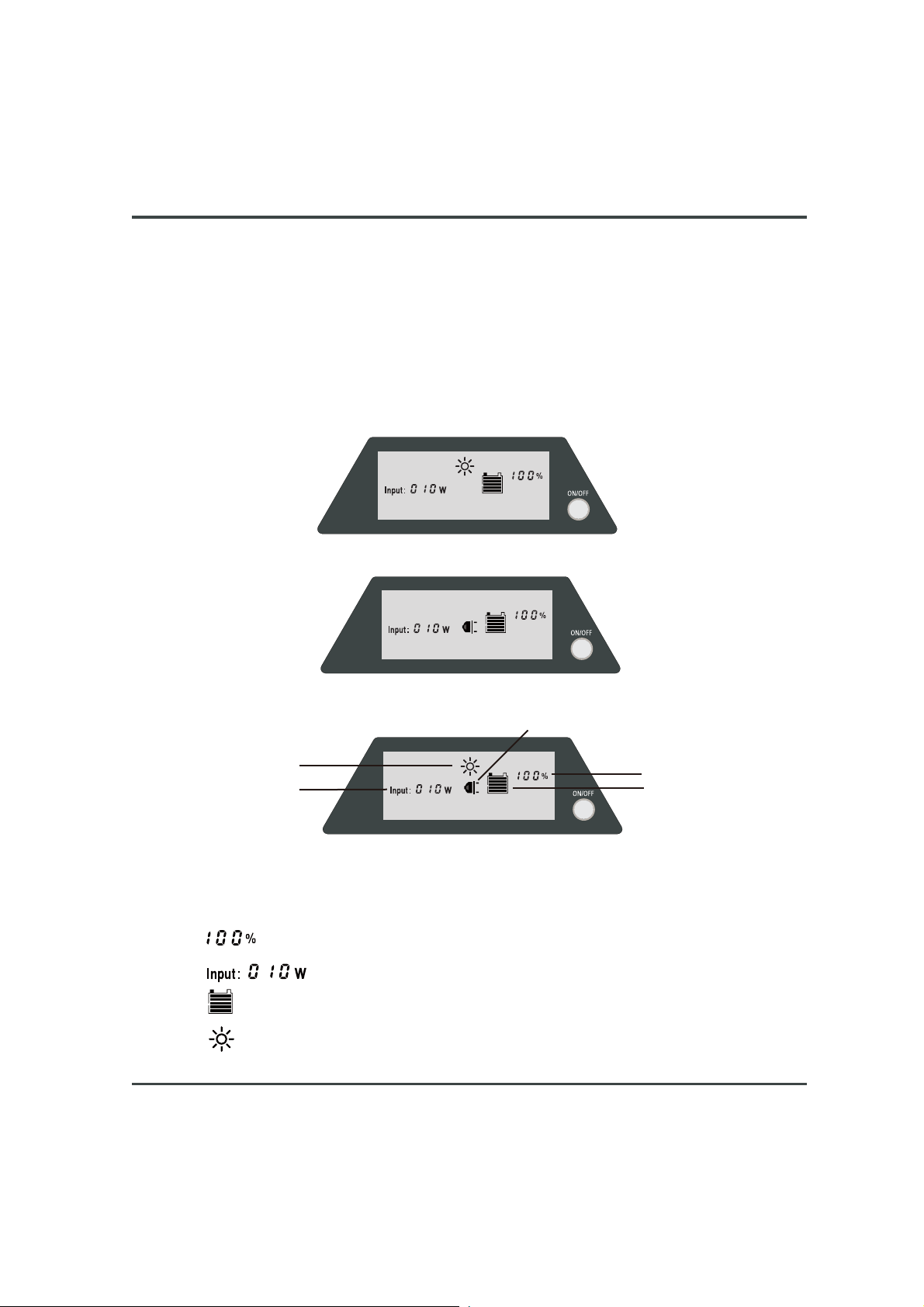

1.8 : Solar charging indicator
Battery: v
Output: kW
Input: w
Error:
instantaneously After completing self-test the internal battery actual voltage will be displayed
when the inverter is turned on. However, it will not be displayed at single charge mode.)
the total AC & DC output power will be displayed when the inverter is turned on.
However, it will not be displayed at charge mode)
Self-
NOTICE
NOTICE
:
:
%
Press 3 second: Turn on the backlight
(Note: Real color of display is blue.)
Press 3 second: Turn off the backlight
2-2

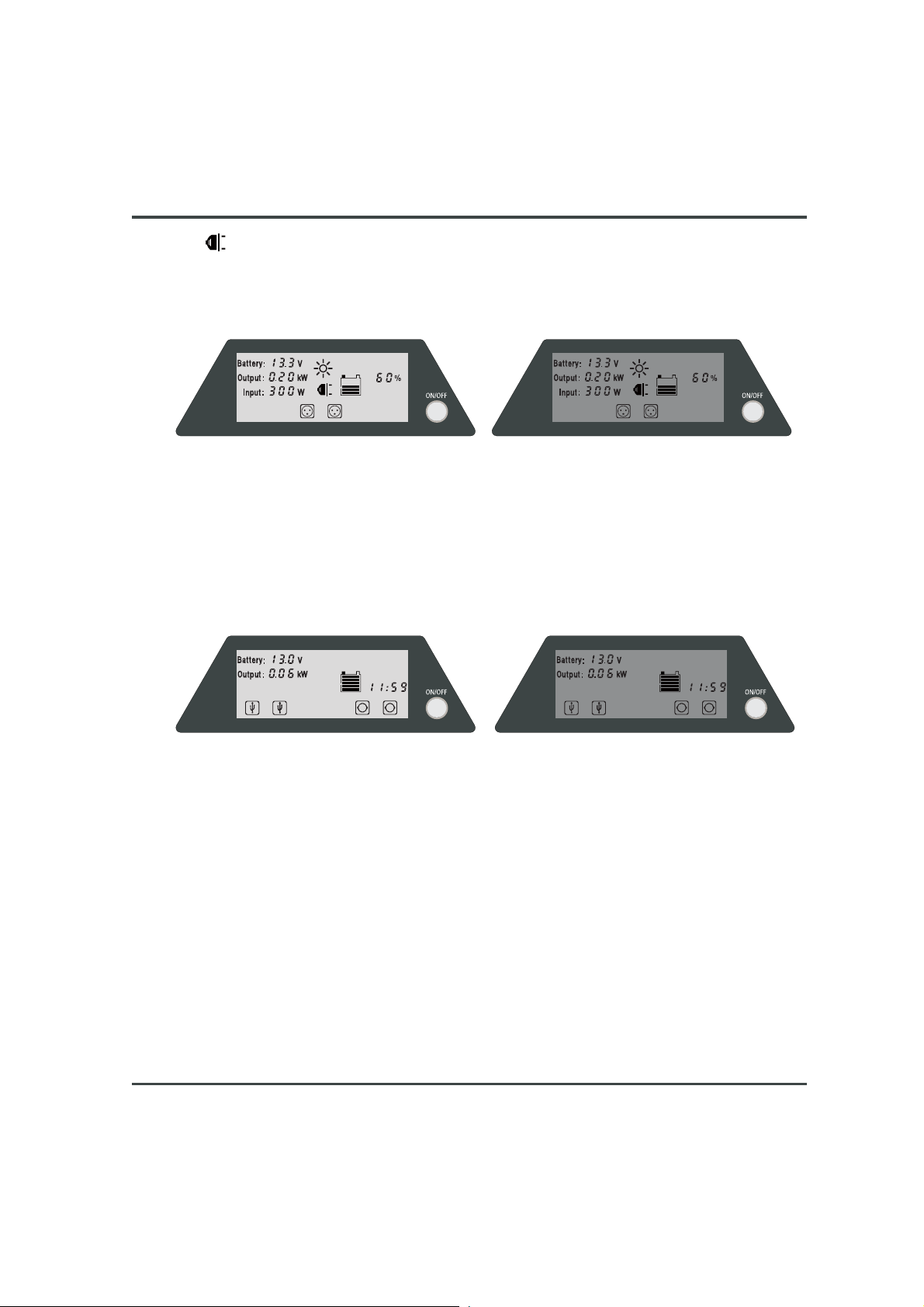

When disconnecting the solar panel, the indicator will be shaded, the backlight will be
illuminated for 5 seconds and the buzzer beeps.
When connecting to any sources of AC power, the indicator will be illuminated, the
backlight will be illuminated for 5 seconds and the buzzer beeps.
When disconnecting the input of AC power, the indicator will be shaded, the backlight will
be illuminated for 5 seconds and the buzzer beeps.
If any input power isavailable and no loads are connected to the system, the indicator will
be dynamic displayed.
If no input power is available and loads are connected tothe system, the indicator will be
static status displayed.
When input power is available and loads are connected to the system, the indicator willbe
dynamically displayed upwards if the input power is larger than output power. Otherwise,
the percentage of battery capacity will be static status displayed.
If loads are connected to the USB output, the indicator will be illuminated, the backlight
will be illuminated for 5 seconds and thebuzzer beeps.
If no loads are connected to the USB output, the indicator will be shaded, the backlight will
be illuminated for 5 seconds and the buzzer beeps.
If loads are connected to the AC output, the indicator will be illuminated, the backlight will
be illuminated for 5 seconds and the buzzer beeps.
If no loads are connected to the AC output, the indicator will be shaded, the backlight will
be illuminated for 5 seconds and the buzzer beeps.
1.9 : AC charging indicator
1.10 : Battery indicator
1.11 : USB output indicator
1.12 : AC output indicator
There is no AC output power if the inverter is not turned on.NOTICE:
1.13 : DC car lighter output indicator
When the inverter is turned off, the devices will be charged by
connecting to the DC car lighter output if the battery is under working condition.
It will not be displayed on the LCD screen.
Output power includes the outputs of inverter and DC car lighter;
Input power includes solar and AC charging power.
In the process of opening or charging of the inverter:
If loads are connected to the DC car lighter output, the indicator will be illuminated, the
backlight will be illuminated for 5 seconds and the buzzer beeps.
If no loads are connected to the DC car lighter output, the indicator will be shaded the
backlight will be illuminated for 5 seconds and the buzzer beeps.
NOTICE:
2-3
Feature

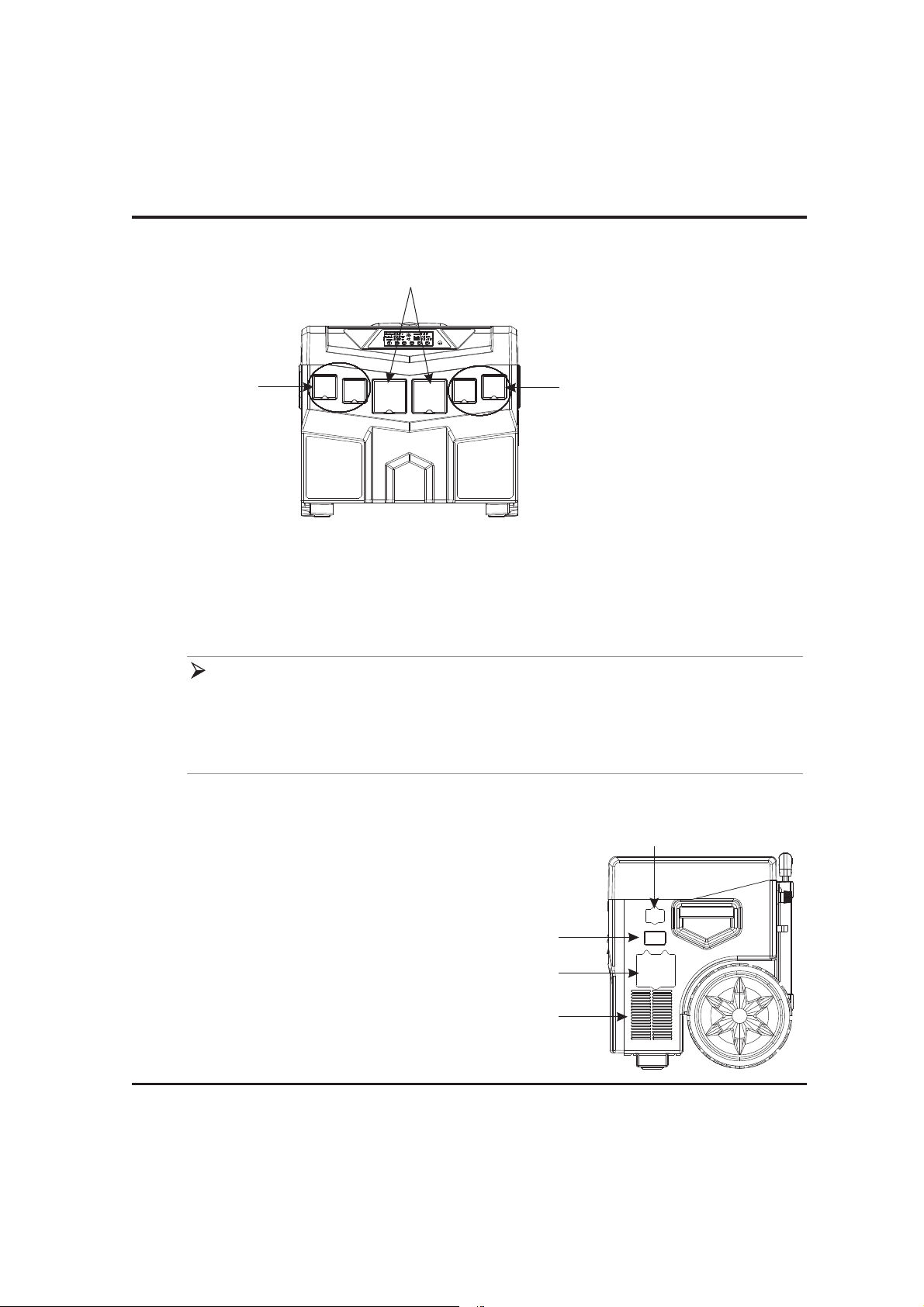

2. Output Panel
.secivedehtotVDC5sedivorpti1.2
2.2 it provides 230 V/50 Hz pure sine wave power to the
AC appliances when the inverter is turned on.
.secnailppaCDehtotVDC21sedivorpti3.2
AC output is available only when the inverter is turned on.
The USB and car lighter outlets are still working whatever the inverter is on or
off, they will consume the power but not so much.
If the battery voltage is lower than 10.2 V, the USB outputs will be shut down
automatically.
5 V DC USB outlets:
230 VAC outlets:
12 V DC car lighter outlets:
NOTICE:
230V AC Output Outlets
12V DC Output
5V DC USB
Outlets
USB Output DC Output
AC Output
USB Output
AC Output
DC Output
2-4

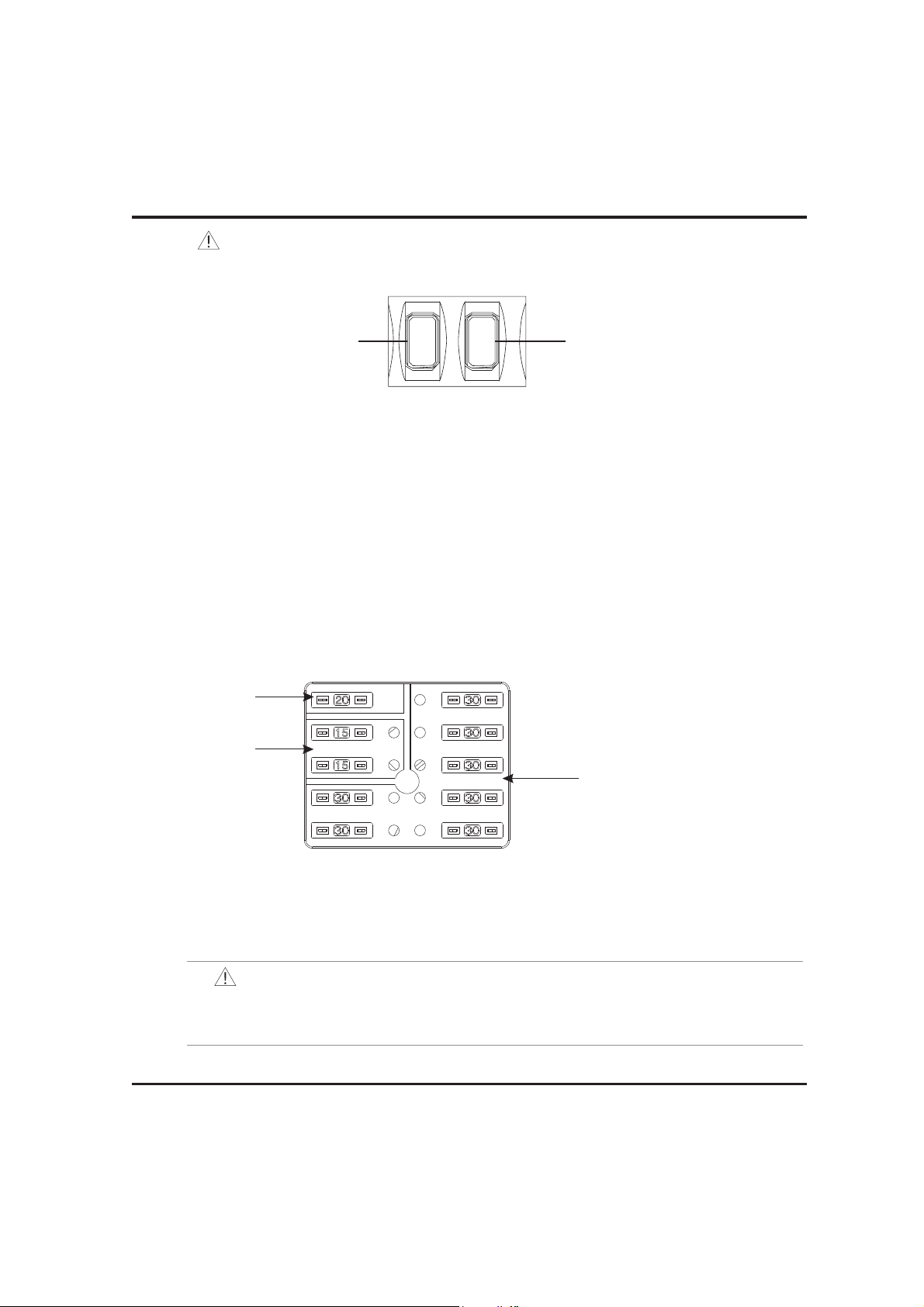

3. Input Panel
AC
Input
Socket
Fuses
3.1
3.3
3.2
3.4
3.1
3.2 RCD:
The RCD devices provide protection against
electric shock, in the event of a fault developing
within the appliance or an accident such as
cutting through the mains lead.
The double pole device within the unit provides
complete isolation from the mains when tripped.
This socket of MJI-1500-01 has been designed
for storage and use between -5°C and +40°C
and at an altitude of no greater than
2000 metres above sea level.
A
connect to any sources of AC power.
C charging interface:

The RCD should be tested (as below) each time before use.
Testing Procedure
1) Switch off the device
2) Press the reset button
3) According to the test, to see whether the release of the reset button
4) If trip, you can use it. Please press the reset button once again.
Note: If you are in any doubt on how to proceed, consulta qualified electrician.
3.3
3.3.1
3.3.2
3.3.3
3.43 the vent for inner fan
:
When this system is working, the internal temperature may rise higher, please
keep enough space at least 15cm for heat emission. Keep it away from any
flammable materials, such as blanket, pillow and sleeping bag.
Fuse set:
Solar input fuse:
DC car lighter output fuses:
Jump start fuses:
Vent:
WARNING
20A/32V DC
2*15A/32V DC
7*30A/32VDC
3.3.1
3.3.2
3.3.3
2-5
Feature
RESET
TEST
TEST BUTTON RESET BUTTON
FRONT VIEW
Please note that RCD should be disconnected from the circuits prior to carrying out
any insulation tests.
WARNING:

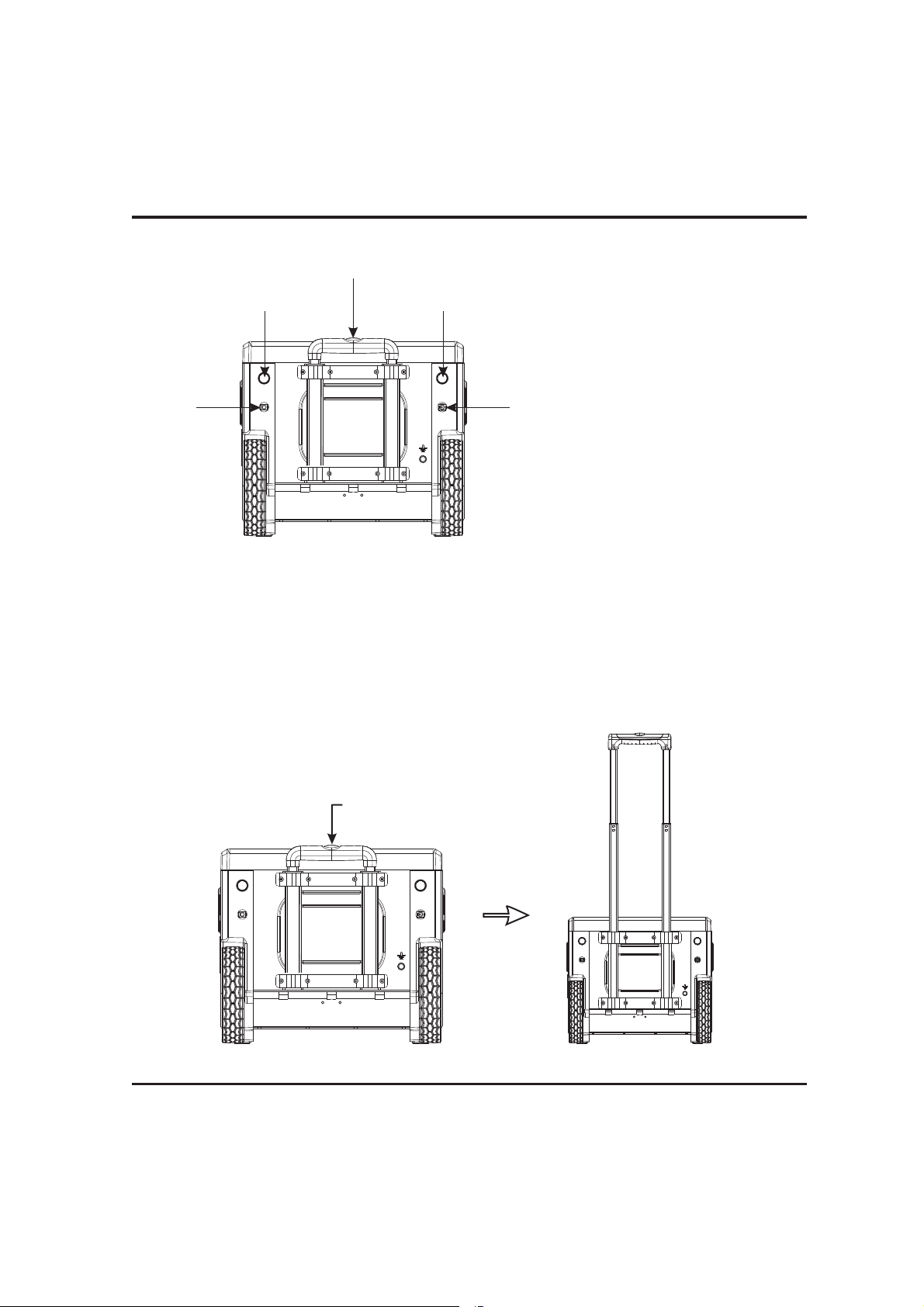

4. Back Panel:
4.1/4.2
4.3/4.4
4.5
Telescopic handle contraction button:
Jump start terminals:
Solar charging input:
Telescopic handle:
Jump start the car by connecting the red positive (+) and
black negative (-) terminals to the battery of the car.
Charging the battery by connecting the red positive (+) and
black negative (-) terminals to the solar panel.
Use
thumb to press contraction button, then pull and
contract the telescopic handle. Please see the
following picture.
2.41.4
4.43.4
4.5
Pulling rod
contraction
button
2-6

1. Working mode
1.1 Single Inverter Mode - no input power is available and loads are connected to the
system:
Press and hold the ON/OFF power button for approximately 0.5 second, release when
buzzer beeps.The inverter will be turned on and the screen display will show the self-test
process, all indicators will be illuminated at the same time.After self-test, the working
indicator will be illuminated, backlight will turn on, and turn off after 10 seconds
automatically.
Undersingle inverter mode, following indicators will be displayed:
a. Battery voltage
b. Output power
c. Battery indicator
d. Remaining working time
Once the load is plugged in or unplugged, related output indicator will be illuminated or
shaded, the backlight will be illuminated for 5 seconds and the buzzer beeps
When inverter alarms, the screen flashes pink and displays error code, buzzerbeeps every
Operation
Press 0.5 second: Self-test (Note: Real color of display is blue.)
Press 0.5 second:
(Note: Real color of display is blue.)
Inverter Mode
Figure 3.1.1 Single Inverter Mode
3-1
y
a
bc
d

one second, the inverter is still in working status.
When the inverter faults, screen flashes red and displays error code, the related indicators
will be shaded, buzzer beeps every 0.5 second.The buzzer and backlight will be turned off
after 60 seconds, the screen flashes error code only. If the battery voltage is lower than
10.5V, the display will be turned off.
any input power is available and no loads are connected to the
system.
When connecting to the solar panel or any sources of AC power, the buzzer beeps and all
shaded indicators will be illuminated for approximately 3 seconds, the backlight will be
illuminated for 10 seconds and then turned off.
Under single charging mode, following indicators will be displayed:
a. Battery capacity
b. Input power
c. Battery indicator
d. Solar charging indicator
-1.2 Single Charging Mode
Solar Charging (Backlight)
(Note: Real color of display is blue.)
Figure 3.1.2 Single Charging Mode
AC Charging (Backlight)
(Note: Real color of display is blue.)
Solar and AC Charging (Backlight)
(Note: Real color of display is blue.)
3-2
a
c
d
b
e

-3.1
1.4 - USB and car lighter output.
e. AC charging indicator.
the input power is available and loads are connected to
the system.
Under this mode, following indicators will be displayed:
As long as the battery voltage is higher than 11.0VDC, the USB and car lighter output will
continue to deliver DC power to the loads connected to it whatever the inverter is turned on
or not.The indicator display only when the inverter is working or the input power is
available.The maximum outputcurrent of USB port is 1.5A, and the maximum output
current of car lighter port is 15A.
Charging and Inverter Mode
DC Output
Charging and Inverter Mode
3-3
USB and Car lighter output
Operation
Figure 3.1.3 Charging and Inverter Mode
Figure 3.1.4 DC Output
(Note: Real color of display is blue.)
(Note: Real color of display is blue.)

2.Jump Start:
Jump start in this system could start 12V vehicle and boat battery, please use cable we
supplied or the standard cables in the market.
Jump right in by reading any of the following steps:
1) Make sure the vehicle/boat is in park and turned off.
2) Make sure all loads are unplugged, all the input power are unplugged.
3) Study all battery manufacturers' specific precautions.
4) Clean the oil spot on the terminals before connecting. Be careful to keep corrosion
from coming into contact with eyes.
5) Locate the system as far away from battery as the cable permit. Never allow clamps
to touch each other or other conducting parts.
6) Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has a
larger diameter post than NEGATIVE (NEG, N, -)post
7) Connect POSITIVE (RED) clamp to POSITIVE (POS, P, +) ungrounded post of
battery. Do not connect clamp to carburetor, fuel lines or sheet metalbody parts.
8) Connect the cable (RED) to the jump start terminal (RED)
9) Connect NEGATIVE (BLACK) clamp to vehicle chassis or engine block away from
battery. Do not connect clamp to carburetor, fuel lines or sheet metal body parts.
10) Connect the cable (BLACK) to the jump start terminal (BLACK).
11) Start the engine.
12) If the engine could not be started, please disconnect the cables according to the step
(6) to step (11). Make sure there is no block for connection, and then reconnect the
cables and clamps according to the step (6) to step (11).
13) When the engine is started, it could charge the battery of our system for 5 minutes.
When finishing the charging, disconnect and remove the cables and clamps from the
step (11) to step (6).
WARNING:
WARNING: SHOCK HAZARD
It may cause the phenomenon of sparking discharge.
Jump starting a battery can crank huge surge current through the system, which
is the possibility to cause a fire.
Connect only in the following order and make sure the polarity is correct. The
battery’s positive terminal is identified as being larger in diameter than the
negative terminal. In most vehicles it has a red wire connected to it, Do not
proceed until you are sure you have identified the positive terminal.
3-4

3-5
Operation
Connect battery
Connect car
Figure 3.2 Jump-starting directly to the battery
3.Recharging MJI-1500-01
Charging Options
Battery Self-discharge and Shelf Life
CAUTION: Risk of damage to battery
CAUTION: Risk of damage to battery
Charging with the Built-in AC Charger
These charging options are possible with MJI-1500-01:
Charging with the built-in AC Charger.
Charging with solar panels.
All rechargeable batteries gradually discharge when left standing. Periodic
charging is necessary to maintain maximum battery capacity. The AC Charger
built in MJI-1500-01 is designed to regulate the charging process,
ensuring the battery pack is always fully charged, but never overcharged.
To use the built-in AC charger, follow these steps:
1. Disconnect any 12-volt DC accessories and turn the AC Outlets Switch off.
2. Insert the AC charging cable into AC charging interface.
3. Plug the AC charging cable into a standard 230-volt AC receptacle.
4. While the system is charging, the AC charging indicator will be illuminated,
the backlight will be illuminated for 5 seconds and the buzzer beeps. A full
Due to inherent self-discharge, lead acid batteries must be charged at least every 3
months, especially in a warm environment. Leaving a battery ina discharged state, or
not recharging every 3 months, will risk permanent damage.
Do not attempt to charge MJI-1500-01's battery if it is frozen. A frozen battery should
be gradually warmed to 32°F (0°C) before charging.

recharge will take up to 24 hours.
5. The battery indicator will be dynamically displayed the battery level during
charging stage.
12/24V solar panels rated to produce a maximum of 20 amps can be used to
charge MJI-1500-01 via the solar charging input. To charge with solar panel,
follow these steps:
1. Disconnect any 12-volt DC accessories and turn the AC Outlets Switch off.
2. Plug the provided 25' solar cables into the solar charging inputs correctly.
3. Plug the other end of the solar cable into the output of the provided 60W solar
panels.
4. While the system is charging, the solar charging indicator will be illuminated,
the backlight will be illuminated for 5 seconds and the buzzer beeps. With
direct sunlight, a typical 3.5 Amp solar panel (60W foldable panel)
will take up to 40 hours*.
5. The battery indicator will be dynamically displayed the battery level during
charging stage.
Note: Battery Level Indicator readings will not be accurate until the batteries have
“rested” for 15 minutes after charging.
Charging with Solar Panels
Note: Anti-reverse connectors will make sure the polarity is correct.
A solar panel (PV panel) is made of the natural element, silicon, which becomes
charged electrically when subjected to sun light. The intensity of the Sun's radiation
changes with the hour of the day, time of the year and weather conditions. Measurement
conditions under irradiance level of 1000W/m , air mass 1.5 Spectrums, cell
temperature of 77°F (25°C). Defined as standard deviation of thousands measurements.
Absolute power values depend on the measuring system. They can differ by +/- 5% from
one measuring system to another. The measured charging time is for reference only.
3-6
