Zeversolar Zeverlution 3680 User manual

Installation and Operating Instructions V00 I
Table of Contents
1 Notes on this document ...................................................................................... 1
1.1 Validity ............................................................................................ 1
1.2 Target group .................................................................................. 1
1.3 Symbols used in this document..................................................... 2
2 Safety ................................................................................................................. 3
2.1 Intended use................................................................................... 3
2.2 Safety standards........................................................................... 3
2.3 Important safety information....................................................... 4
2.4 Symbols on the type label............................................................ 7
2.5 Basic safety protection................................................................. 8
3 Unpacking ........................................................................................................... 9
3.1 Scope of delivery ........................................................................... 9
3.2 Checking for transport damage.................................................... 9
4 Mounting............................................................................................................10
4.1 Ambient conditions .......................................................................10
4.2 Selecting the mounting location ..................................................12
4.3 Mounting the inverter with the wall bracket...............................13
5 Electrical connection ........................................................................................15
5.1 Safetyduring Electrical Connection .............................................15
5.2 System layout ofunits without integrated DC switch.................16
5.3 Overview of the connection area.................................................17
5.4 AC connection...............................................................................18
5.4.1 Conditions for the AC connection..........................................................18

Installation and Operating Instructions V04 II
5.4.2 Grid connection........................................................................................19
5.4.3 Grounding connection ............................................................................22
5.4.4 Residual current protection...................................................................23
5.4.5 Overvoltage category............................................................................24
5.4.6 Rating of AC circuit breaker ..................................................................24
5.5 DC connection...............................................................................25
5.5.1 Requirements for the DC connection ...................................................25
5.5.2 Assembling the DC connectors............................................................26
5.5.3 Disassembling the DC connectors .......................................................28
5.5.4 Connecting the PV array........................................................................29
6 Communication ................................................................................................30
6.1 System monitoring via RS485......................................................30
6.2 System monitoring via Ethernet..................................................33
6.3 System monitoring via WiFi.........................................................35
6.4 Inverter demand response modes (DRED)..................................37
6.5 Active power control with smart meter & ComBox ...................39
6.6 Communication with third-party devices ....................................40
7 Commissioning ..................................................................................................41
7.1 Electrical checks ...........................................................................41
7.2 Mechanical checks........................................................................42
7.3 Start-up ........................................................................................43
8 Disconnecting the inverter from voltage sources ........................................ 44
9 Operation.......................................................................................................... 46
9.1 Overview of the control panel......................................................46
9.1.1 Display........................................................................................................47
9.1.2 Control button..........................................................................................49
9.1.3 LEDindicators ...........................................................................................49

Installation and Operating Instructions V00 III
9.2 Display messages ........................................................................50
9.3 Language and safety regulation settings....................................52
9.3.1 Language setting .....................................................................................52
9.3.2 Safety regulation setting .......................................................................53
10 Technical Data ................................................................................................54
10.1 DC input data................................................................................54
10.2 AC output data............................................................................55
10.3 General data................................................................................56
10.4 Safety regulations......................................................................57
10.5 Efficiency ....................................................................................59
10.6 Power reduction .........................................................................61
10.7 Tools and torque.........................................................................63
11 Troubleshooting ..............................................................................................64
12 Maintenance ....................................................................................................66
12.1 Cleaning the contacts of the DC switch ......................................66
12.2 Cleaning the heat sink .................................................................66
13 Dismantling the Inverter ................................................................................ 67
14 Disposing the Inverter ....................................................................................68
15 EU Declaration of Conformity .......................................................................68
16 Warranty.........................................................................................................69
17 Contact ............................................................................................................69

1 Installation and Operating Instructions V04
1 Notes on this document
1.1 Validity
This document describes the mounting, installation, commissioning and maintenance
of the following solar inverters:
•Zeverlution 3680
•Zeverlution 4000
•Zeverlution 5000
Observe all documentation that accompanies the inverter. Keep them in a convenient
place and available at all times.
1.2 Target group
This document is for qualified electriciansonlywho must perform the tasks exactly
as described.
All persons installing inverters must be trained and experienced in general safety
which must be observed when working on electrical equipments. Installation
personnel should also be familiar with local requirements, rules and regulations.

Installation and Operating Instructions V04 2
1.3 Symbols used in this document
The following safety precautions and general informationare used in this document.
DANGER indicates a hazardous situation which, if not avoided, will result in death
or serious injury.
WARNING indicates a hazardous situation which, if not avoided, can result in death
or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, can result in minor
or moderate injury.
NOTICE indicates a situation which, if not avoided, can result in property damage.
INFORMATION provides tips which are valuable for the optimal installation and
operation of the inverter.

3 Installation and Operating Instructions V04
2 Safety
2.1 Intended use
1. Zeverlutionconverts the direct current from PV arrays into grid-compliant
alternating currentand feeds it into the utility grid.
2. Zeverlution must only be operated by qualified persons with the appropriate skills
who have already read and understood all documentation relating to its
installation, commissioning, operation and maintentance.
3. Zeverlutionis suitable for indoor and outdoor use.
4. Zeverlutionmust only be operated with PV arrays (PV modules and cabling) of
protection class II, in accordance with IEC 61730, application class A.
Do not connect any sources of energy other than PV modules to the inverter.
5. PV modules with a high capacity to ground mustonlybe used if their coupling
capacitydoes not exceed 1.0μF.
6. When exposed to sunlight,the PV array generates dangerous DC voltage which is
present in the DC conductors and the live components of the inverter. Touching the
DC conductors or the live components can lead to lethal electric shocks.
7. All components must remain within their permitted operating ranges at all times.
2.2 Safety standards
Zeverlutioncomplieswith the EU Low-Voltage Directive 2006/95/EC and the EMC
Directive 2004/108/EC.
Zeverlution also complies with the requirements for safety and EMC in Australia and
NewZealand markets.
The inverter is labeled with the CE mark and RCM mark.
For more information about certificates in other countries and regions, please visit
website(http:// www.zeversolar.com).

Installation and Operating Instructions V04 4
2.3 Important safety information
• All work on the inverter must only be carried out by qualified personnel who
have read and fully understood all safety information contained in this
document.
• Children must be supervised to ensure that they do not play with this device.
Danger to life due to high voltages of the PV array
When exposed to sunlight, the PV array generates dangerous DCvoltage which
is present in theDC conductors and the live components of the inverter.
Touching the DC conductors or the livecomponents can lead tolethal electric
shocks. If you disconnect the DC connectors from theinverter under load, an
electric arc may occur leading to electric shock and burns.
•Do not touch non-insulated cable ends.
•Do not touch the DC conductors.
•Do not touch any live components of the inverter.
•Have the inverter mounted, installed and commissioned only by qualified
persons with theappropriate skills.
•If an error occurs, have it rectified by qualified persons only.
•Before assembling the DC connectors, please first cover the PV modules
with opaque material..
•
Prior to performing any work on the inverter, disconnect it from all voltage
sources asdescribed in this document (see Chapter 8).

5 Installation and Operating Instructions V04
Risk of injury due to electric shock and fire caused by high leakage
current
• The inverter must be reliably grounded in order to protect property and
personal safety.
Risk of injury due to hot heat sink
• The heat sink may get hot during operation. Do not touch!
Possible damage to health as a result of the effects of
electromagnetic radiation
• Please maintain a distance of at least 20cm from the inverter when it is
inoperation.
Grounding the PV array
• Comply with local regulations for grounding the PV array.
We suggest the frames of PV modules must be reliably grounded.
•Do not ground any of the terminals of the PV strings.

Installation and Operating Instructions V04 6
Damage to the seal of the cover in sub-zero conditions
•If you open the cover in sub-zero condition,the sealing of the cover can be
damaged. This can lead moisture entering the inverter.
• Do not open the inverter at ambient temperatures lower than -5℃.
• If a layer of ice has formed on the seal of the cover in sub-zero conditions,
remove it prior to opening the inverter(e.g. by melting the ice with warm
air).Observe the applicable safety regulation.
Damage to the inverter due to electrostatic discharge
•Touching electronic components can cause damage to or destroy the inverter
through electrostatic discharge.
• Ground yourself before touching any component.

7 Installation and Operating Instructions V04
2.4 Symbols on the type label
Icon
Explanation
Risk of danger, warning and caution
Safety information important for human safety.Failure to observe the
safetyinformation in this document mayresult in injury or death.
Danger to life due to electric shock
The product operates at high voltages. Prior to performing any workon the
product, disconnect the product from all voltage sources. Allwork on the
product must be carried out by electrically qualified personsonly.
Risk of burns due to hot surfaces
The product can get hot during operation. Avoid contact during operation.
Allow the product to cool down sufficiently before carrying out anywork.
WEEE designation
Do not dispose of the product together with the household waste
butinaccordance with the disposal regulations for electronic waste
applicableat the installation site.
CE marking
The product complies with the requirements of the applicable EUdirectives.
Certified safety
The product is TUV-tested and complies with the requirements of the EU
Equipment and Product Safety Act.
Capacitors discharge
Danger to life due to high voltages in the inverter, observe the waiting
time of five minutes. Prior to performing any work on theinverter,
disconnect it from all voltage sources as described in Section 8.
Observe the documentation
Observe all documentation supplied with the product.

Installation and Operating Instructions V04 8
2.5 Basic safety protection
We provide the following safety protection:
1) Overvoltage, undervoltage protection
2) Overfrequency, underfrequency protection
3) Overtemperature monitoring
4) Residual current monitoring
5) Isolationmonitoring
6) Anti-islanding protection
7) DC feed-in monitoring

9 Installation and Operating Instructions V04
3 Unpacking

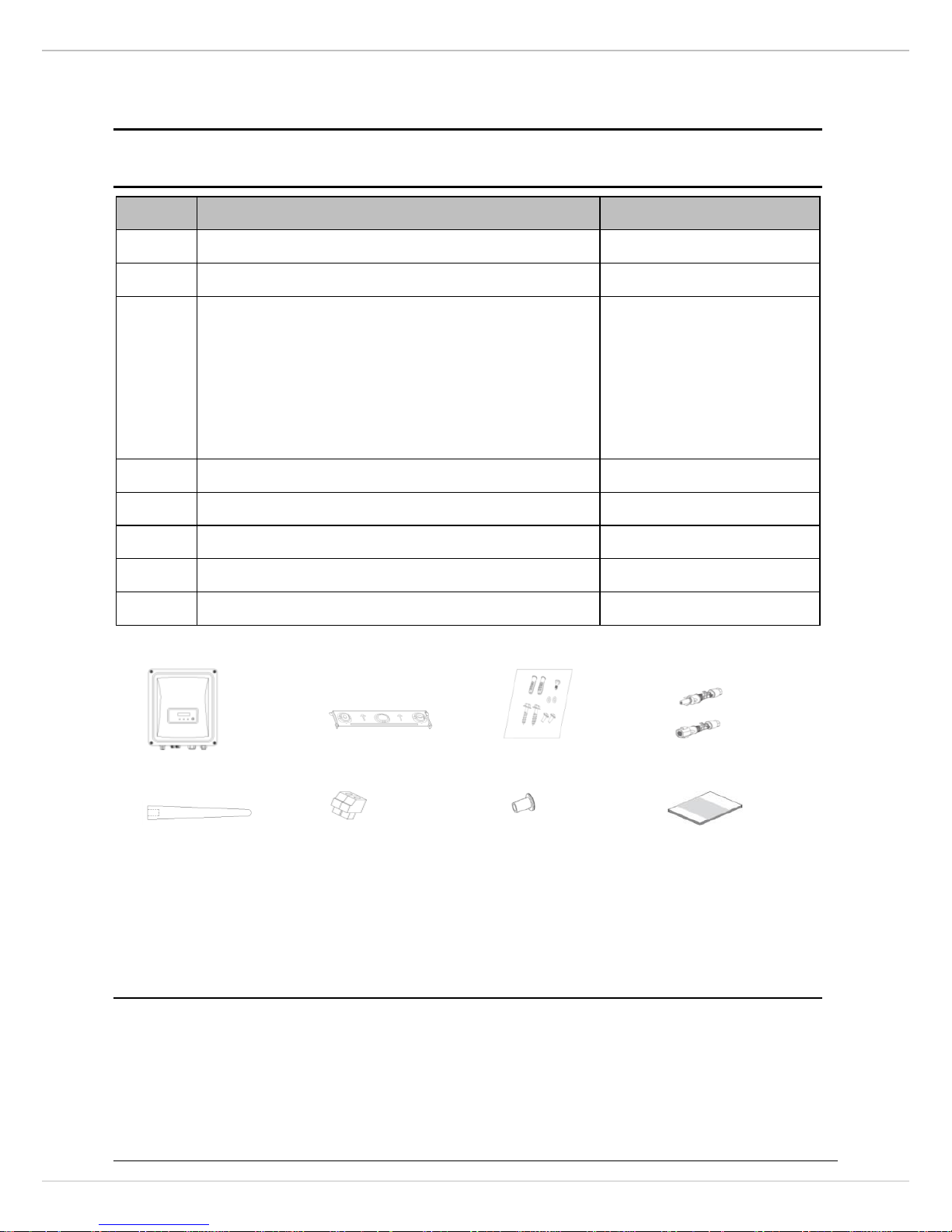

3.1 Scope of delivery
Object
Description
Quantity
A
Inverter
1
B
Wall bracket
1
C
Mounting accessory kit:
Wall anchors and hexagon bolts (2×)
M5×12 pan head screw (2×)
*M5×14 pan head screw (1×)
*Ground washer (2×)
1
D
Positive and negativeDC plug connector
2
E
WiFi antenna
1 (optional)
F
Smart meter connector
1 ( optional )
G
Sealing plug
2
H
Documentation
1
* One spare part for cover mounting
Please carefully check all of the components in the carton. If anything is missing,
contact your dealer at once.
3.2 Checking for transport damage
Thoroughly inspect the packaging upon delivery. If you detect any damage to the
packaging which indicates the inverter may have been damaged, inform the
responsible shipping company immediately.
A B C D
E F G H

Installation and Operating Instructions V04 10
4 Mounting
4.1 Ambient conditions
1. Be sure the inverter is mountedout of the reach of children.
2. Mount the inverter in areas where it cannot be touched inadvertently.
3. Ensure good access to the inverter for installation and possible service.
4. Ambient temperature should be below 40°C to ensure optimal operation.
5. Observe the recommended clearances to walls, other inverters, or objects as
follows to ensure sufficient heat dissipation.

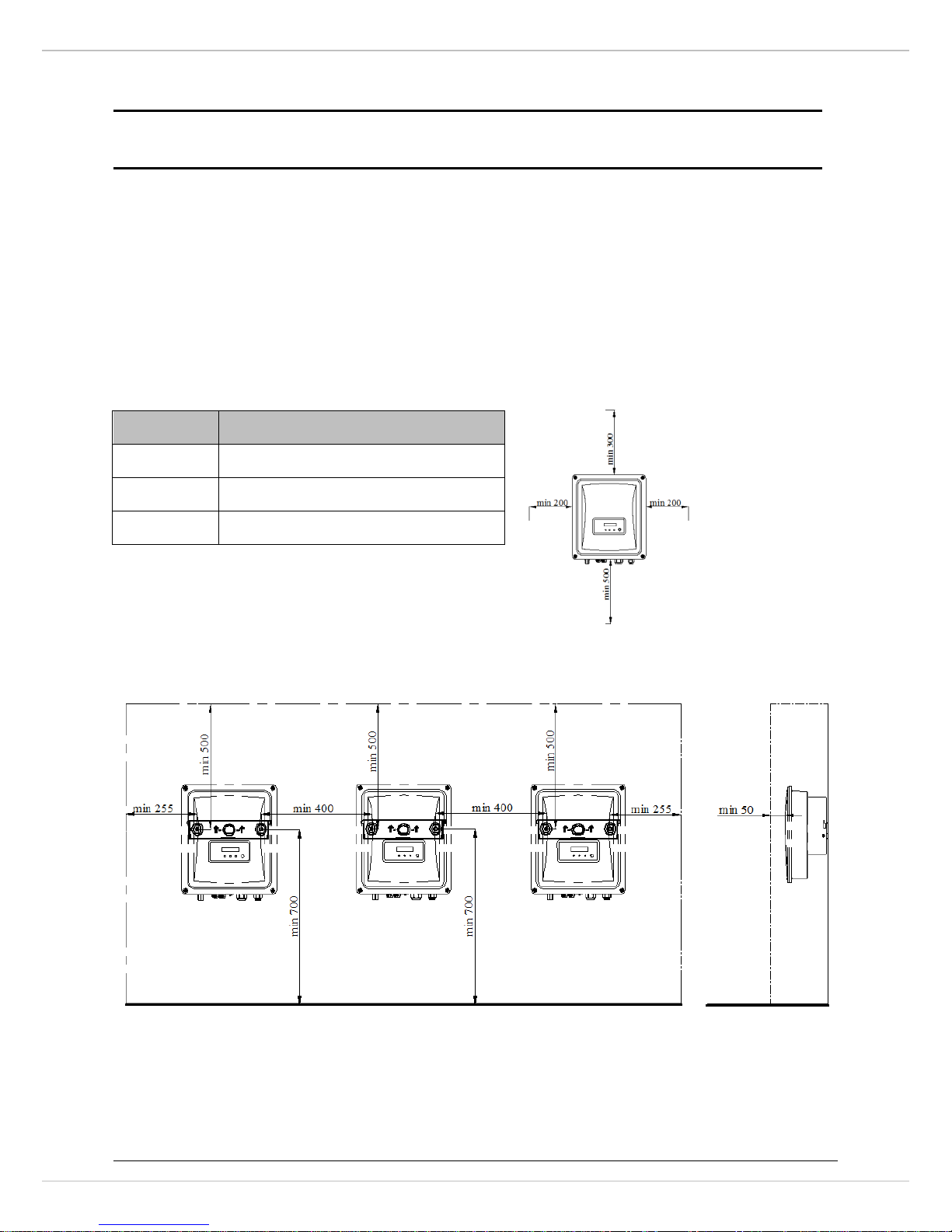

Clearances for multiple inverters
6. In order to avoid power reduction caused byoverheating,do not mountthe
inverter in a location that allowslong-term exposure to direct sunlight.
Direction
Recommended clearance（mm）
above
300
below
500
sides
200
Clearances for one inverter

11 Installation and Operating Instructions V04

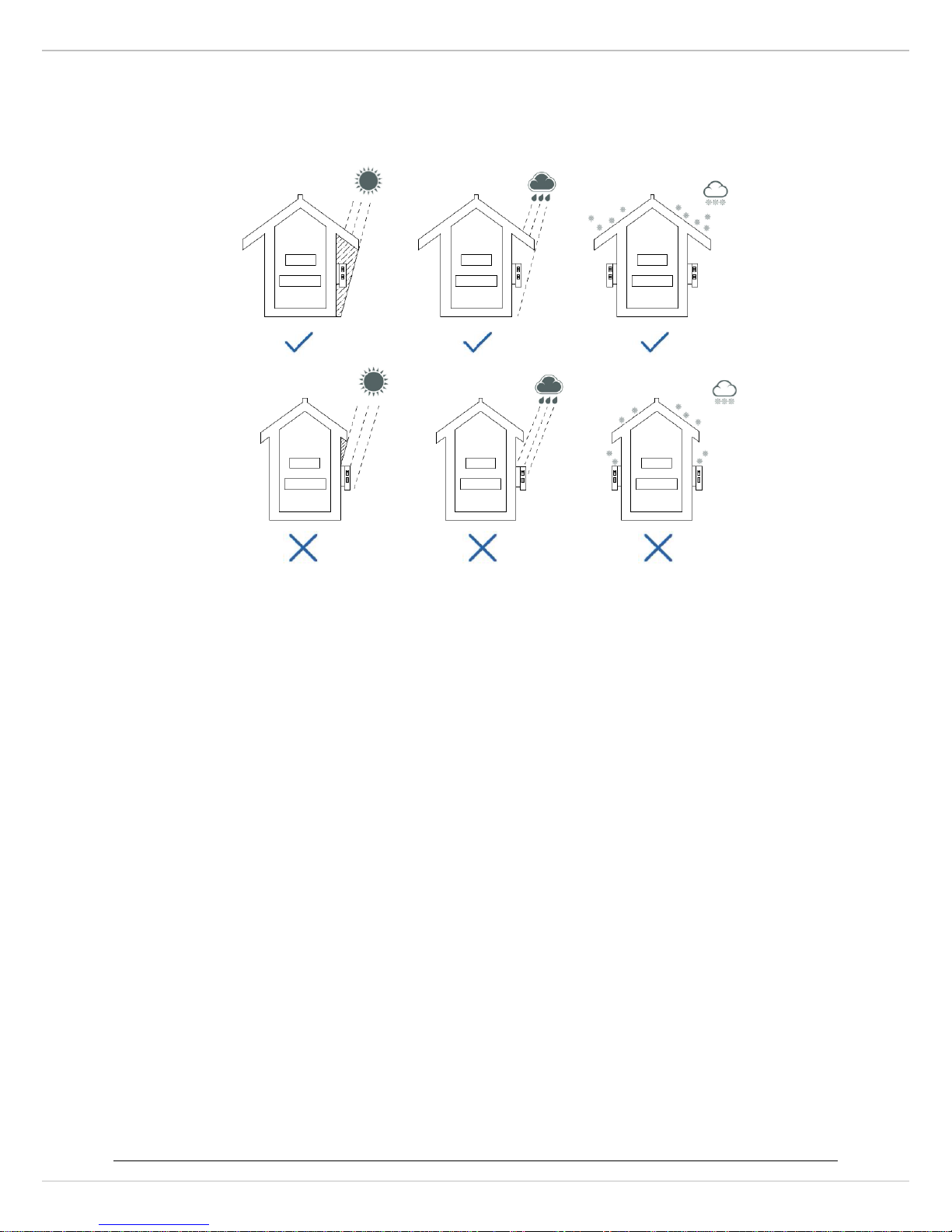

7. Ensure optimum operation and extend service life by avoiding
exposingtheinverterto direct sunlight, rainand snow.
8. The mounting method, location and surface must be suitable for the inverter's
weight and dimensions.
9. If mounted in a residential area, we recommendmounting the inverter on a solid
support surface.Drywallandsimilarmaterialsare not recommended due to
audible vibrationsduring operation which could be perceived as annoying.
10. Do not put any objects on the inverter.
11. Do not cover the inverter.

Installation and Operating Instructions V04 12
4.2 Selecting the mounting location

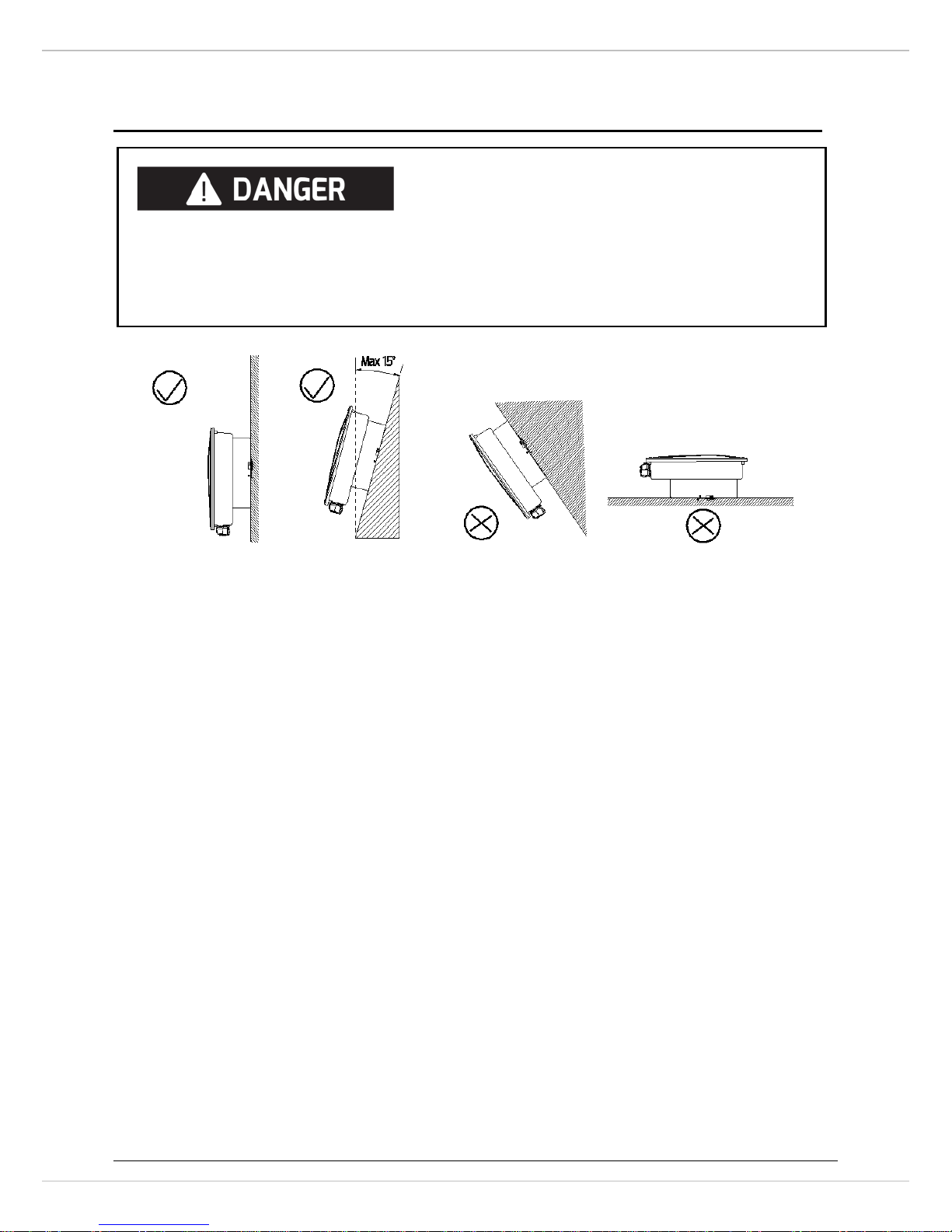

1. Never mount the inverter tilted forward.
2. Never mount the inverter tilted sideways.
3. Never mount the inverter horizontally.
4. Mount the inverter vertically or tilted backwardby a max of 15°.
5. Mount the inverter at eye level to make it easy to operate andread the display.
6. The electrical connection area must point downwards.
Danger to life due to fire or explosion
• Do not mount the inverter in areas whereflammablematerialsarestored.
• Do not mount the inverter in areas where there is a risk of explosion.

13 Installation and Operating Instructions V04
4.3 Mounting the inverter with the wall bracket
Mounting procedures:
1. Use the wall bracket as a drilling template and mark
the positions of the drill holes, then drill 2 holes (Φ10)
to a depth about 70mm. During operation, keep the
drill vertical to the wall, and hold the drill steady to
avoid tilted holes.
2.After cleaning the holes, place the 2 wall anchors into the holes, then attach the
wall bracket to the wall using the hexagon head screw delivered with the inverter.
Risk of injury when lifting the inverter, or if it is dropped
The inverter weighs approximately 11kg. There is risk of injury if the inverter is
lifted incorrectly or dropped while being transported or when attaching it to or
removing it from the wall bracket.
• Transport and lift the inverter carefully
Risk of injury due to damaged cables
There may be power cables or other supply lines (e.g. gas or water) routed in the
wall.
• Ensure that no lines are laid in the wall which could be damaged when drilling
holes.

Installation and Operating Instructions V04 14

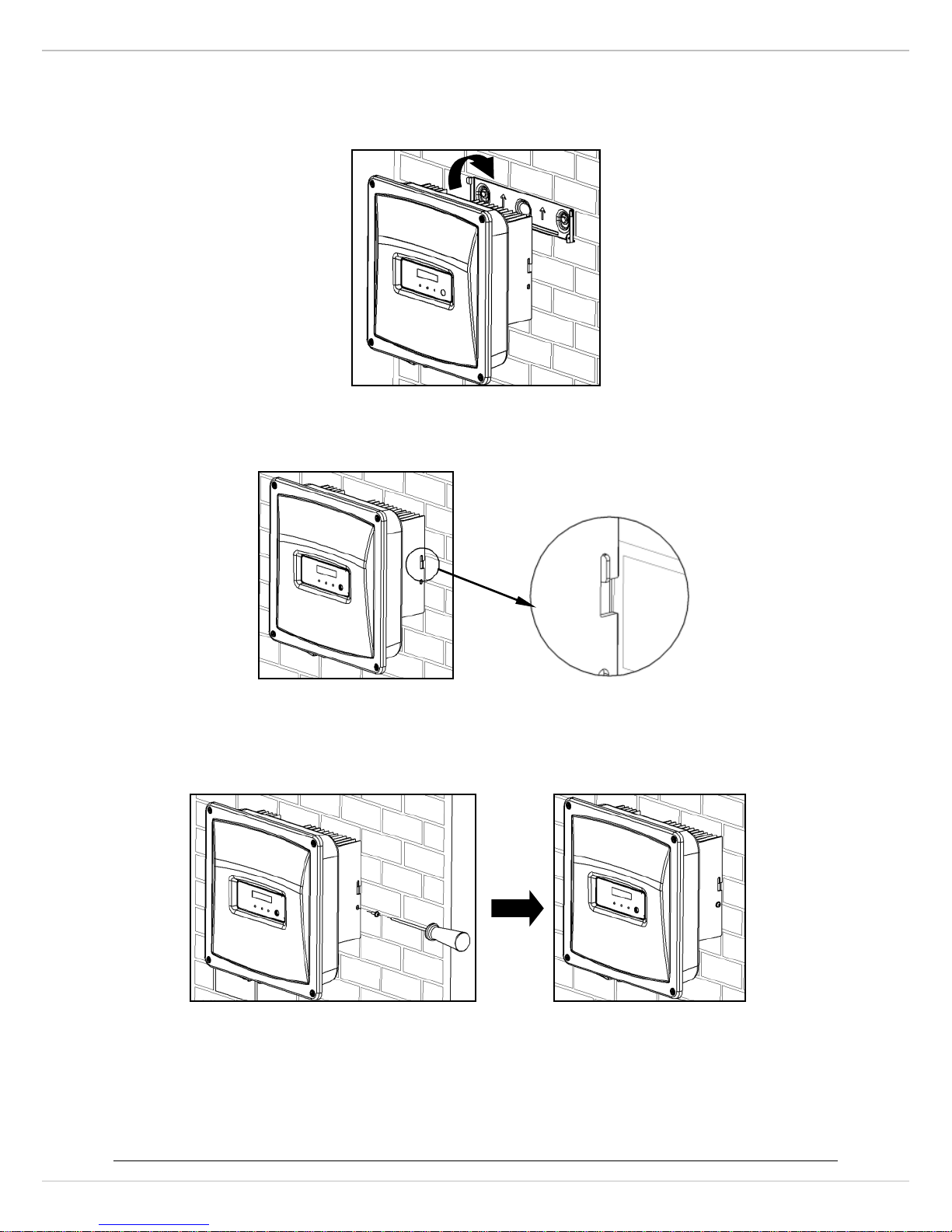

3.Hold the inverter using the housing side edges and attach it onto the wall bracket
tilted slightly downwards.
4. Check both sides of the heatsink to ensure that it is securely in place.
5.Pushthe inverter inwards as far as possible and attach it to both sides of the wall
bracket using the M5 screws(screwdriver type: T25,torque: 2.2Nm).

15 Installation and Operating Instructions V04
5 Electrical connection
5.1 Safetyduring Electrical Connection
Danger to life due to high voltages of the PV array
When exposed to sunlight, the PV array generates dangerous DC voltage which
is present in theDC conductors and the live components of the inverter.
Touching the DC conductors or the livecomponents can lead tolethal electric
shocks. If you disconnect the DC connectors from theinverter under load, an
electric arc may occur leading to electric shock and burns.
• Do not touch non-insulated cable ends.
• Do not touch the DC conductors.
• Do not touch any live components of the inverter.
• Have the inverter mounted, installed and commissioned only by
qualifiedpersons with the appropriate skills.
• If an error occurs, have it rectified by qualified persons only.
• Before assembling the DC connectors, please first cover the PV modules with
apaque material.
• Prior to performing any work on the inverter, disconnect it from all
voltagesources as described in Section 8.
