INSTRUCTION MANUAL WARRANTY CERTIFICATE

U.S. Patent: 7,008,192

CONCEPT I WET

This product is protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.

Patents, Trademark, and/or Copyright Laws.

The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.

This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs

excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling

fan (excluding wall controls and electrical components), to the original purchaser or user.

* The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc…

* The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.

* The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific) other than the hanger bracket supplied & installed

with this specific fan.

Date Purchased Store Purchased Model Number Serial Number

F476L

Warranty Service Information

To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of

purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty

claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a

limited warranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.

To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267, or

contact Minka-Aire® through www.minkagroup.net and select FAQ to answer any questions or if you require additional assistance submit the

question form found there.

CONTENTS

BLADE INSTALLATION..........................................................................

INSTALLING THE LED LIGHT KIT & GLASS SHADE .................

OPERATING THE REMOTE CONTROL/WALL CONTROL......

CARE OF YOUR FAN..............................................................................

TROUBLESHOOTING............................................................................

SPECIFICATIONS.....................................................................................

SAFETY RULES....................................................................................

PACKAGE CONTENTS.....................................................................

INSTALLING THE FAN.....................................................................

HANGING THE FAN.........................................................................

ELECTRICAL CONNECTIONS.......................................................

INSTALLING THE WALL TRANSMITTER................................

FINISHING THE INSTALLATION................................................

1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267

LISTED

E75795

SAFETY RULES

1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.

2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.

3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a

do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.

4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the

floor and 18 inches from the tip of the blades to the wall.

5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure the

box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds) Do

not use a plastic box.

6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.

7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).

8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.

9. Do not insert anything into the fan blades while the fan is operating.

10. Turn the fan off and wait for the blades to stop completely before proceeding with maintenance or cleaning. SUITABLE FOR USE IN

WET LOCATIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED

ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE

FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED.

CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT

INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE CFR-3T SOLID-STATE SPEED CONTROL WITH TR111A-1 WALL CONTROL ONLY.

NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may

occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be

supplied by the person (s) installing, caring for and operating the unit.

NOTE: READ AND SAVE ALL INSTRUCTIONS!

1. Fan blades (3)

2. Hanger bracket

3. Canopy

4. Coupling cover

5. Downrod ass'y

6. Fan motor/housing ass'y

7. 14W LED light kit

8. Glass Shade

9. Metal light cover (for optional use)

10. Receiver (includes 6 wire nuts)

11a.Wall transmitter Incl. 2 mounting

screws and 3 wire nuts

11b. Wall plate w/2 mounting screws

12. Extra Wall Plate w/2 Mounting

screws

13. Balancing kit

A. Mounting hardware:

#10 x 1.5" Wood screws (2 PCs.)

#8 x 3/4" Machine screws (2 PCs.)

Lock washers (2 PCs.)

4mm star washers (2 PCs.)

Wire nuts (3 PCs.)

Washers (2 PCs.)

B. Downrod Rubber Cover

C. Blade removal tool

PACKAGE CONTENTS

Unpack your fan and check the contents. You should have the following items:

11a

11b

Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.

INSTALLING THE FAN

MOUNTING OPTIONS

If there isn't an existing mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and building

materials. The outlet box and its support must be able to fully support the moving weight of

the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.

Figure 1, 2 and 3 are examples of different ways to mount the outlet box.

Note:You may need a longer downrod to maintain proper blade clearance when installing on a

steep, sloped ceiling. Longer downrods are available from your Minka-Aire®dealer.

To hang your fan where there is an existing fixture but no ceiling joist, you may need to install

a hanger bar as shown in Fig. 4 (available at your Minka-Aire®dealer).

FIG. 1

FIG. 3

FIG. 2

FIG. 4

CROSS BRACE

CEILING

JOIST

CEILING

jOIST

CEILING

JOIST

OUTLET BOX

PARALLEL WOOD BRACE

(MIN. 2" THICK)

OUTLET

BOX

OUTLET BOX

CEILING JOIST OR

CROSS BRACE

ANGLED CEILING

MAXIMUM 20°ANGLE PROVIDE

STRONG

SUPPORT

RECESSED

OUTLET BOX

HANGER

OPENING

must be

FACING

UPSIDE

HANGER BAR

(OPTIONAL)

HANGER

BRACKET

WARNING: All of the parts, hardware and components such as the

hanger bracket and hanger ball have been provided for your safety and

the proper installation of your new ceiling fan. The use of other parts,

hardware or components not supplied by Minka Aire®with the fan will

void the Minka Aire®Warranty.

REMEMBER to turn off the power. Follow the steps below to hang your

fan properly:

Step 1. Secure the hanger bracket to the ceiling outlet box using screws

included with your outlet box, lock washers included with the fan. (Fig.5)

Step 2. Loosen the two set screws and remove the hitch pin and lock pin

from the top coupling of the motor assembly. (Fig. 6)

Step 3. Remove hanger ball from downrod assembly by loosening set

screw, removing the cross pin, and sliding ball off rod. (Fig.7)

Step 4. Carefully feed fan wires up through the downrod. (Fig. 8)

Thread the rod into the coupling, next line up holes and replace lock

pin and hitch pin. Tighten set screws.

Step 5. Slip coupling cover, and canopy onto downrod. (Fig. 9) Carefully

reinstall hanger ball onto rod being sure that cross pin is in the correct

position, set screws are tighten and wires are not twisted.

Step 6. Place downrod rubber cover onto the hanger ball. (Fig. 9)

Step 7. Now lift motor assembly into position and place hanger ball

into hanger bracket. Rotate until the check groove has dropped into the

registration slot and seats firmly. (Fig. 10) Rod should not rotate if this

is done correctly.

HANGING THE FAN

Fig. 7 Fig. 8Fig. 6 Fig. 10

Fig. 9

DOWNROD

SUPPLY

WIRES REGISTRATION

SLOT

CROSS PIN

HANGER

BALL

DOWNROD

HITCH

PIN LOCK

SET SCREWS

SET SCREW

DOWNROD

CANOPY

SET SCREWS

HITCH PIN

LOCK PIN

COUPLING COVER

DOWNROD

RUBBER COVER

OUTLET BOX

HANGER BRACKET

Fig. 5

WARNING: To avoid possible electrical shock be sure electricity is

turned off at the main fuse or breaker box before wiring.

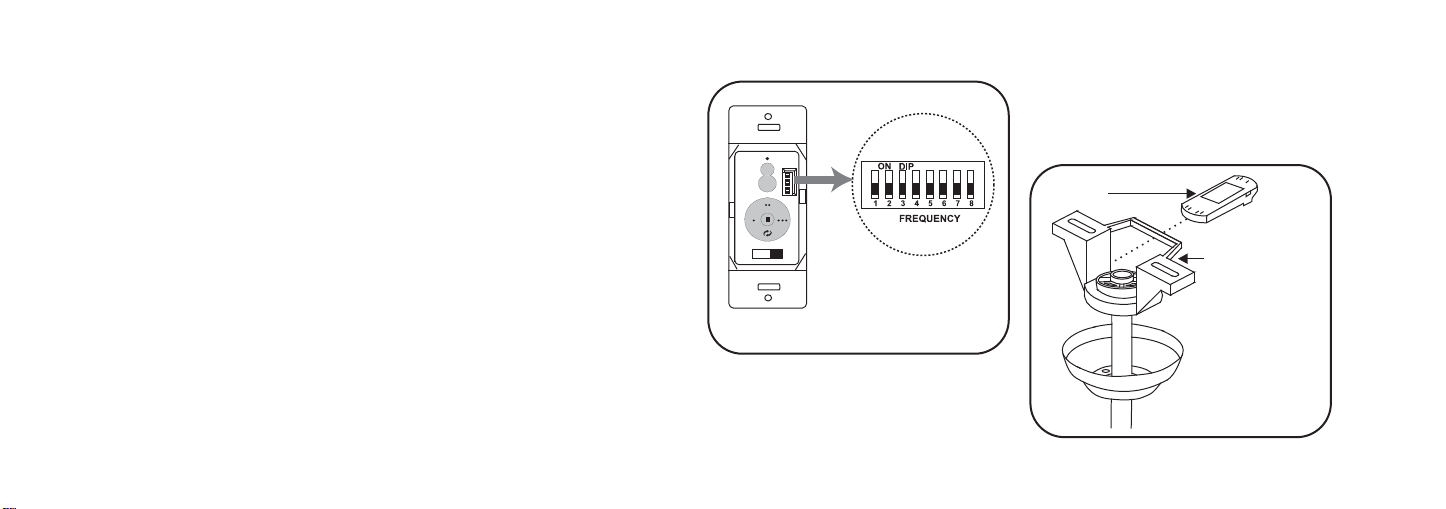

NOTE: The Aire Control®System is equipped with a learning frequency

function which has 256 code combinations to prevent potential

interference from other remote units. The frequency on your Receiver

and Transmitter units have been preset at the factory. (Fig. 11) No

frequency change is necessary, should you desire to install another fan

within the same home or area with a seperate frequency code please

see the "frequency interference" troubleshooting section of this

instruction manual to learn how to change the frequency.

Step 1. Insert Receiver into Hanger Bracket with the flat side of the

Receiver facing the ceiling. (Fig. 12)

Step 2. Motor to Receiver Electrical Connections: Connect the WHITE

wire from the fan to the WHITE wire marked "TO MOTOR N" from the

Receiver. Connect the BLACK wire from the fan to the BLACK wire

marked "TO MOTOR L" from the Receiver. Connect the BLUE wire from

the fan to the BLUE wire marked "For Light" from the Receiver.

NOTE: If your ceiling fan features an UP Light: Connect the ORANGE wire

from the fan to the ORANGE wire marked "For Up Light" from the

Receiver. Otherwise disregard this step and proceed to secure all wire

connections with the plastic wire nuts provided. (Fig. 13 & 14)

Note: Fan must be installed at a maximum distance of 40 feet from the

transmitting unit for proper signal transmission between the

transmitting unit and the fan's receiving unit.

ELECTRICAL CONNECTIONS

Fig. 11

Step 3. Receiver to House Supply Wires Electrical Connections:

Connect the WHITE wire (Neutral) from the outlet box to the WHITE

wire marked "AC in N" from the receiver. Connect the BLACK wire

(Hot) from the outlet box to the BLACK wire marked "AC in L" from

the receiver. Secure all wire connections with the plastic wire nuts

provided. (Fig. 13 & 14)

Step 4. If your outlet box has a GROUND wire (Green or Bare Copper)

connect this wire to the Hanger Ball and Hanger Bracket Ground

wires. If your outlet box does not have a Ground Wire, then connect

the Hanger Ball and Hanger Bracket Ground Wires together. Secure

wire connection with the plastic wire nut provided. (Fig. 13 & 14)

After all splices are made, check to make sure there are no loose

strands. As an additional precaution we suggest to secure the plastic

wire connectors to the wires with electrical tape.

Fig. 12

RECEIVER

HANGER BRACKET

Fig. 13 Fig. 14

WALL

CONTROL

BLACK

WHITE

BLUE

GROUND

ORANGE

GREEN

INPUT

AC120V

AC SUPPLY

WHITE (NEUTRAL)

GREEN OR BARE

COPPER (GROUND)

WHITE ("AC IN N")

WHITE ("TO MOTOR N")

GROUND-

(GREEN) (CONNECT TO

GROUND WIRE ON

HANGER BRACKE

IF NO HOUSE

GROUND WIRE

EXISTS.)

OUTLET BOX

BLACK (HOT)

BLACK ("AC IN L")

BLACK ("TO MOTOR L")

RECEIVER

BLUE (FOR LIGHT)

ORANGE

(FOR UPPER LIGHT)

BLACK (MOTOR)

ORANGE

(FOR UPPER LIGHT)

BLACK

WHITE

ORANGE

WHITE

GREEN

Fig. 15

WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF

ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE

TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.

Step 1. Remove the existing wall plate and switch from the wall outlet box.

Step 2. Make the electrical connections as shown in Fig.14. If your outlet box has a ground

wire (Green or Bare Copper) connect the Transmitter's ground wire directly to one of the

screws from the outlet box. Secure all wire connections with the plastic wire nuts

provided.

Step 3. Carefully tuck the wire connections inside the outlet box. Use the screws provided

to secure the wall transmitter and wall plate to the outlet box. (Fig. 15)

NOTE: Your Aire Control™ System includes two sets of face and decorative plate color

options. The wall control comes with standard white faceplate attached. If you desire to

replace it with the Ivory color faceplate included, use a small flat screw driver and gently

pry it apart from the top or bottom of the plate.

INSTALLING THE WALL TRANSMITTER

FINISHING THE INSTALLATION

Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half

a turn from the screw head.

Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the

screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes.

(Fig. 16)

Step 3. Align the circular hole on canopy with the remaining hole on the hanger bracket, secure by

tightening the two set screws.

Note: Adjust the canopy screws as necessary until the canopy are snug.

Fig. 16

OUTLET BOX

HANGER

BRACKET

HANGER

BALL

CANOPY

BLADE

SLOT

Fig 17

THE FOLLOWING OPERATION MUST BE ACCOMPLISHED BEFORE INSTALLING THE GLASS

SHADE.

Step 1. Insert the blades into the motor housing blade slots, push blade until it stops. You

should be able to hear the inside safety pin drops into the blade hole to secure the blade in

place. (Fig. 17)

CAUTION: Re-check each blade to make sure all blades are secured to the motor by holding

the blade from the tip and gently pulling it outwards. The blades should be snug to the

motor housing without any up, down or sideways play.

All blade sets are grouped by weight. Because plastic injection varies in density, the fan may

wobble even though the blades are weight matched.

BLADE REMOVAL

In the event that the blades need to be removed, use the blade removal tool included with

your fan. Remove the rubber cover by remove the 2 screws on the motor housing. Remove

the blades by pulling the safety pin via the opening above the blade in the motor housing as

shown. (Fig. 18)

BLADE INSTALLATION

Fig 18

SCREWS

RUBBER COVER

REMOVAL TOOL

BLADE

REMOVAL TOOL

Fig. 19

CAUTION: Before starting installation, make sure power is turned off at the circuit breaker.

If you do not plan to install the light kit with your fan at this time, skip step 1, 2 & 3.

1. Remove 1 of 3 screws from the mounting plate and loosen the other 2 screws. (Do not remove)

2. While holding the LED light kit under the fan motor assembly, make the 2-pin wire connections:

- White to white

- Black to black

3. Place the key holes in the LED light kit over the two mounting screws previously loosened from the

mounting plate. Turn the LED light kit until the LED light kit locks in place at the narrow section of

the key holes. Secure by tightening the two screws previously loosened and the one previously

removed. (Fig. 19)

4. Raise the glass shade (or metal light cover) up against the mounting plate and secure it to the fan

by turning the glass shade clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 19)

NOTE: The metal light cover included with your fan is an option to replace the glass for the light in

the event that you prefer not to use the light feature of your fan. The metal light cover is not

necessary for the light operation; it can be saved for later use if desired.

INSTALLING THE LED LIGHT KIT & GLASS SHADE

GLASS

SHADE

SCREWS

MOUNTING

PLATE

LED LIGHT KIT

OPERATING THE REMOTE CONTROL/WALL CONTROL

Restore Power to Ceiling Fan.

A. Buttons:

These buttons are used to set the fan speeds as follows;

= Low Speed

= Medium Speed

= High Speed

B. Button:

This button turns the fan off.

C. Button:

These buttons turn the light ON or OFF and also control

the brightness settings of the light. The following

instructions apply to ceiling fans that feature a DOWN

light ( button) only or ceiling fans that feature an UP

light ( button) and a DOWN light ( button) that are

controlled independent of each other;

Press and release the button for the desired light to turn

the light ON or OFF. Press and hold the button to set the

desired light brightness. The light will cycle between

bright and dim settings as long as the button is pressed.

The light key has an automatic auto-resume feature that

allows the light to remain at the same brightness as the

last time it was turned off.

D. OFF-ON Slide Button (Wall Control Fans Only)

This button turns the power Off and On to the Fan and

Light(s).

E. Button: (Full Function Remote Control Units Only)

This button is used to change the direction of the

rotation of the blades; forward for warm weather or

reverse for cool weather.

NOTE: If your Remote Control or Wall Control does not

have a " " button, Please look for a slide reverse

switch on the motor housing.

Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time.

This manual suits for next models

Table of contents
