SAFETY RULES
1
1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the
floor and 18 inches from the tip of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure the
box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds) Do
not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. Turn the fan off and wait for the blades to stop completely before performing any maintenance or cleaning.

NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person (s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!
ATTENTION:
ATTENTION:
The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the
ceiling fan's light kit will shut off automatically.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE
FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED.
CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

2
1. Fan blades (3)
2. Hanger bracket
3. Canopy
4. Canopy cover
5a. Standard downrod assembly
5b. Minimum-length downrod (for
close to ceiling mounting only)
6. Coupling cover
7. Upper docorative housing
8. Fan motor/housing assembly
9. Docorative housing
10. Light plate
11. Glass shade
12. Receiver with 6 wire nuts
13a. Wall transmitter Incl. 2 mounting
screws and 3 wire nuts
13b. Wall plate w/2 mounting screws
14. Extra Wall Plate w/2 Mounting screws
15. 75W Halogen bulb
16. Balancing kit
A. Mounting Hardware:
#14 x 3.5" Wood sscrews (2 PCs.)
Lock washers (2 PCs.)
Washers (2PCs.)
Wire nuts (3 PCs. )
B. Blade attachment hardware:
3/16" x 12.3 mm Screws (10PCs.)
Rubber washers (10PCs.)
PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items:
3
2
5a
5b
4
6
7
8
10
11
9
14
15
12
1
A
16
13a
13b
B

3
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.
INSTALLING THE FAN
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and building
materials. The outlet box and its support must be able to fully support the moving weight of
the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.
Figure 1, 2 and 3 are examples of different ways to mount the outlet box.
Note:You may need a longer downrod to maintain proper blade clearance when installing on a
steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer.
To hang your fan where there is an existing fixture but no ceiling joist, you may need to install
a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer).
R
R
FIG. 1
FIG. 3
FIG. 2
FIG. 4
CROSS BRACE
CEILING
JOIST
CEILING
jOIST
CEILING
JOIST
OUTLET BOX
PARALLEL WOOD BRACE
(MIN. 2" THICK)
OUTLET
BOX
OUTLET BOX
CEILING JOIST OR
CROSS BRACE
ANGLED CEILING
MAXIMUM 24°ANGLE PROVIDE
STRONG
SUPPORT
RECESSED
OUTLET BOX
HANGER
OPENING
must be
FACING
UPSIDE
HANGER BAR
(OPTIONAL)
HANGER
BRACKET

4
Step 1. (Fig. 5) Remove the metal plate and
metal cover by remove the six screws from
the coupling.
Step 2. (Fig. 6) Insert the blade through the
access window from the blade holder. Align
holes from the blade and motor and secure
with 3 screws and rubber washers. Repeat
process with the other blades.
Step 3. (Fig. 7) Replace the metal plate and
metal cover to the motor and secure with the
six screws and washers previously removed.
Step 4. (Fig. 7) Carefully place the upper
decorative housing to the metal cover on top
of the motor housing.
Fig. 5 Fig. 6
SCREWS
METAL
PLATE
METAL
COVER
COUPLING
METAL
PLATE
METAL
COVER
UPPER
DECORATIVE
HOUSING
SCREWS
BLADE INSTALLATION
SCREWS
RUBBER
WASHERS
BLADE
BLADE HOLDER
Fig. 7

5
HANGING THE FAN
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety and
the proper installation of your new ceiling fan. The use of other parts,
hardware or components not supplied by Minka Aire®with the fan will
void the Minka Aire®Warranty.
REMEMBER to turn off the power. Follow the steps below to hang your
fan properly:
Step 1. Secure the hanger bracket to the ceiling outlet box using screws
included with your outlet box, lock washers included with the fan. (Fig. 8)
Step 2. Loosen the two set screws and remove the hitch pin and lock pin
from the top coupling of the motor assembly. (Fig. 9)
Step 3. Remove hanger ball from downrod assembly by loosening set
screw, removing the cross pin, and sliding ball off rod. (Fig. 10)
Step 4. Carefully feed fan wires up through the downrod. (Fig. 11)
Thread the rod into the coupling, next line up holes and replace lock
pin and hitch pin. Tighten set screws.
Step 5. Slip coupling cover, canopy cover and canopy onto downrod.
(Fig. 12) Carefully reinstall hanger ball onto rod being sure that cross
pin is in the correct position, set screws are tighten and wires are not
twisted.
NOTE: DO NOT INSTALL THE COUPLING COVER IF YOU PLAN TO USE
THE MINIMUM LENGTH DOWNROD.
Step 6. Now lift motor assembly into position and place hanger ball
into hanger bracket. Rotate until the check groove has dropped into the
registration slot and seats firmly. (Fig. 13) Rod should not rotate if this
is done correctly.

CANOPY COVER
DOWNROD
CANOPY
SET SCREWS
HITCH PIN
LOCK PIN
Fig. 8
Fig. 10 Fig. 11
Fig. 12
Fig. 9 Fig. 13
OUTLET BOX
HANGER BRACKET
DOWNROD
SUPPLY
WIRES REGISTRATION
SLOT
CROSS PIN
HANGER
BALL
DOWNROD
HITCH
PIN LOCK
PIN
SET SCREWS
SET SCREW
COUPLING
*OMIT COUPLING
COVER WHEN USING
DOWNROD
THE MINIMUM-LENGTH

6
WARNING: To avoid possible electrical shock be sure electricity is
turned off at the main fuse or breaker box before wiring.

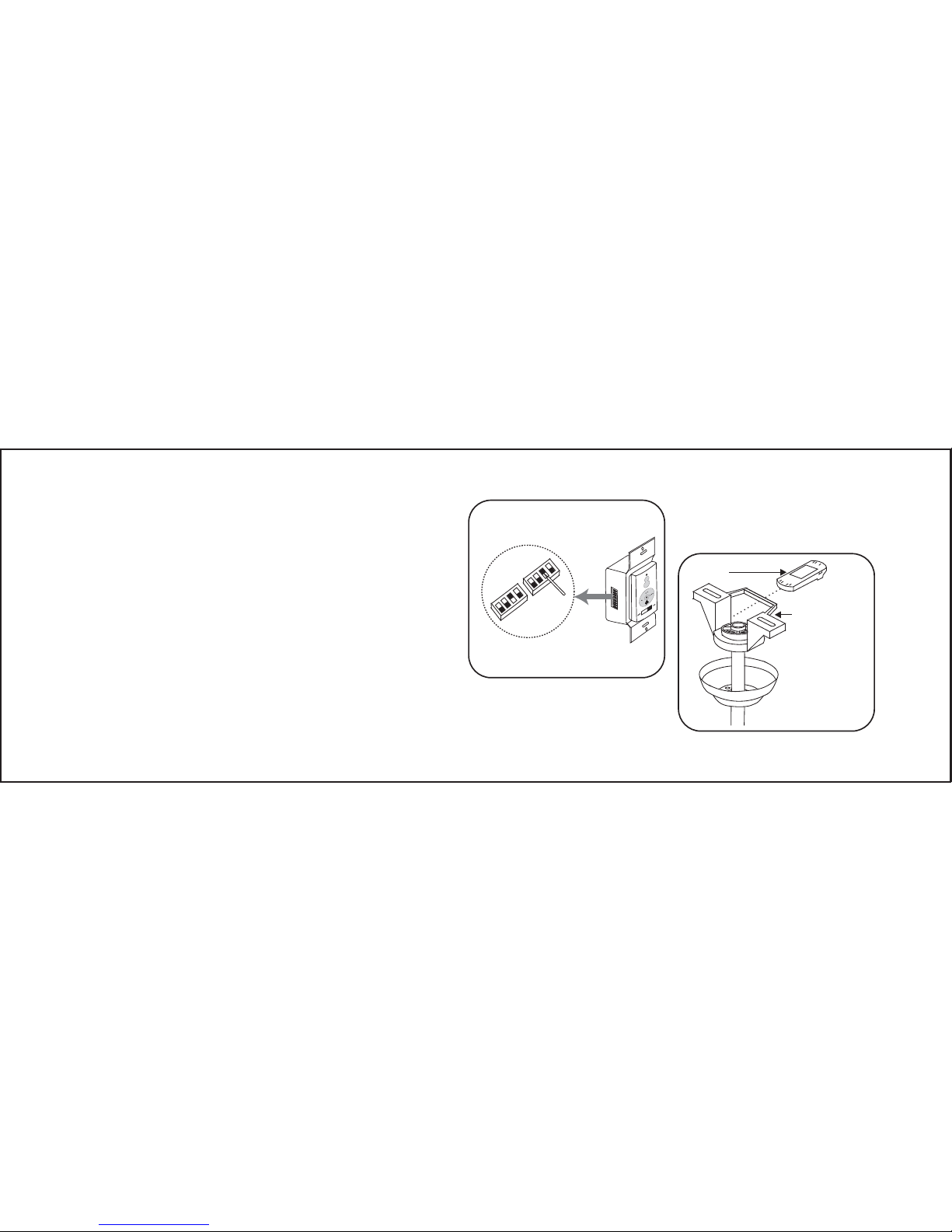

NOTE: The Aire Control® System is equipped with a learning frequency
function which has 256 code combinations to prevent potential
interference from other remote units. The frequency on your Receiver
and Transmitter units have been preset at the factory. (Fig.
14) No
frequency change is necessary, should you desire to install another fan
within the same home or area with a seperate frequency code please
see the "frequency interference" troubleshooting section of this
instruction manual to learn how to change the frequency.
Step 1. Insert Receiver into Hanger Bracket with the flat side of the
Receiver facing the ceiling. (Fig. 15)
Step 2. Motor to Receiver Electrical Connections: Connect the
WHITE wire from the fan to the WHITE wire marked "TO MOTOR N"
from the Receiver. Connect the BLACK wire from the fan to the BLACK
wire marked "TO MOTOR L" from the Receiver. Connect the BLUE wire
from the fan to the BLUE wire marked "For Light" from the Receiver.
NOTE: If your ceiling fan features an UP Light: Connect the ORANGE wire
from the fan to the ORANGE wire marked "For Up Light" from the
Receiver. Otherwise disregard this step and proceed to secure all wire
connections with the plastic wire nuts provided. (Fig. 16 & 17)
Note: Fan must be installed at a maximum distance of 40 feet from the
transmitting unit for proper signal transmission between the transmitting
unit and the fan's receiving unit.
ELECTRICAL CONNECTIONS

Step 3. Receiver to House Supply Wires Electrical Connections:
Connect the WHITE wire (Neutral) from the outlet box to the WHITE
wire marked "AC in N" from the receiver. Connect the BLACK wire
(Hot) from the outlet box to the BLACK wire marked "AC in L" from
the receiver. Secure all wire connections with the plastic wire nuts
provided. (Fig. 16 & 17)
Step 4. If your outlet box has a GROUND wire (Green or Bare Copper)
connect this wire to the Hanger Ball and Hanger Bracket Ground
wires. If your outlet box does not have a Ground Wire, then connect
the Hanger Ball and Hanger Bracket Ground Wires together. Secure
wire connection with the plastic wire nut provided. (Fig. 16 & 17)
After all splices are made, check to make sure there are no loose
strands. As an additional precaution we suggest to secure the plastic
wire connectors to the wires with electrical tape.
Fig. 14
Fig. 15
RECEIVER
HANGER BRACKET

Fig. 16 Fig. 17
WALL
CONTROL
BLACK
BLACK
BLACK
BLACK
BLACK
WHITE
BLUE
BLUE
GROUND
GROUND
ORANGE
GREEN
INPUT
AC120V
AC SUPPLY
WHITE (NEUTRAL)
WHITE (NEUTRAL)
GREEN OR BARE
COPPER (GROUND)
WHITE ("AC IN N")
WHITE ("TO MOTOR N")
GROUND-
(GREEN)
(CONNECT TO
GROUND WIRE ON
HANGER BRACKE
IF NO HOUSE
GROUND WIRE
EXISTS.)
OUTLET BOX
BLACK (HOT)
BLACK ("AC IN L")
BLACK ("TO MOTOR L")
RECEIVER
BLUE (FOR LIGHT)
BLUE (FOR LIGHT)
ORANGE
(FOR UPPER LIGHT)
BLACK (MOTOR)
ORANGE
(FOR UPPER LIGHT)
BLACK
BLACK
BLACK
WHITE
WHITE
ORANGE
WHITE
GREEN

7
Fig. 18
WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF
ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE
TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.
Step 1. Remove the existing wall plate and switch from the wall outlet box.
Step 2. Make the electrical connections as shown in Fig.17. If your outlet box has a ground
wire (Green or Bare Copper) connect the Transmitter's ground wire directly to one of the
screws from the outlet box. Secure all wire connections with the plastic wire nuts
provided.
Step 3. Carefully tuck the wire connections inside the outlet box. Use the screws provided
to secure the wall transmitter and wall plate to the outlet box. (Fig. 18)
NOTE: Your Aire Control
™ System includes two sets of face and decorative plate color
options. The wall control comes with standard white faceplate attached. If you desire to
replace it with the Ivory color faceplate included, use a small flat screw driver and gently
pry it apart from the top or bottom of the plate.
INSTALLING THE WALL TRANSMITTER

8
Step 1. Tuck connections neatly into ceiling outlet box.
Step 2. Slide the canopy up to ceiling and over the two screws on hanger bracket. Rotate
canopy clockwise, next, while holding the canopy with one hand, slide the canopy cover
over the screws and rotate clockwise until tight.
Note: Adjust the canopy screws as necessary until the canopy and canopy cover are snug.
(Fig. 19)
Fig. 19
FINISHING THE INSTALLATION
OUTLET BOX
HANGER
BRACKET
HANGER
BALL
CANOPY
CANOPY
COVER

Fig. 20
9
Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not
remove)
Step 2. Place the key holes from the docorative housing over the 2 screws previously loosened from
the mounting ring, turn docorative housing until it locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws previously loosened and the one previously removed. (Fig.
20)
INSTALLING THE DOCORATIVE HOUSING
MOUNTING
RING
SCREWS DECORATIVE HOUSING

10
Fig. 21
NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or
removing the fuse at fuse box.
Step 1. Remove 1 of 3 screws from the docorative housing and loosen the other 2 screws. (Do
not remove)
2. Raise and hold the light plate close to the docorative housing and proceed to do the wire
connections. Connect the white wire connectors from the light plate and fan, follow the same
procedure with the black wire connectors. (Fig. 21)
3. Place the key holes from the light plate over the 3 screws previously loosened from the
docorative housing, turn light plate until it locks in place at the narrow section of the key holes.
Secure by tightening the 2 screws previously loosened and the one previously removed. (Fig. 21)
INSTALLING THE LIGHT PLATE
LIGHT PLATE
CONNECTORS
SCREWS

11
Fig. 22
WARNING: Shut of the power supply before removing or replacing lamp. In handling of halogen
bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the
halogen bulb. If you accidentally come into contact, wipe thoroughly with a clean, lint-free, cotton
cloth. Allow the bulb to cool off for 10 minutes before changing the bulb. Use light bulb in accordance
with the fan's specification. TO REDUCE THE RISK OF FIRE DO NOT EXCEED MAXIMUM WATTAGE
RATING.
ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting
device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically.
1. Install 1 x 75W halogen bulb (included) into bulb sockets. (Fig. 22)
2. Raise glass shade up against bottom of fan housing and secure it to the fan by turning the glass
shade clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 22)
GLASS
SHADE
75 W
HALOGEN
BULB
INSTALLING THE LIGHT BULB & GLASS SHADE
