CONTENTS
INSTALLING THE LIGHT BULB AND GLASS SHADE...........................
ADJUSTING THE TILT ANGLE........................................................................
OPERATING YOUR REMOTE CONTROL/WALL TRANSMITTER...
CARE OF YOUR FAN.........................................................................................
TROUBLESHOOTING.......................................................................................
SPECIFICATIONS................................................................................................
1
2
3
4
5
6
7
8
9
10
11
12
13
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267
SAFETY RULES....................................................................................
PACKAGE CONTENTS.....................................................................
INSTALLING THE FAN.....................................................................
HANGING THE FAN.........................................................................
ELECTRICAL CONNECTIONS.......................................................
INSTALLING THE WALL TRANSMITTER.................................
FINISHING THE INSTALLATION................................................

SAFETY RULES
1
1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 10 feet from
the floor and 18 inches from the tip of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support of 22.7 kg
(50 lbs.) Or Less". Secure the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the
fan (at least 50 pounds) Do not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. Turn the fan off and wait for the blades to stop completely before proceeding with maintenance or cleaning.

NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person (s) installing, caring for and operating the unit.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE
FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED.
CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
NOTE:READ AND SAVE ALL INSTRUCTIONS!
ATTENTION:
ATTENTION:
The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the
ceiling fan's light kit will shut off automatically.

2
1. Fan motor assembly
2. Hanger bracket
3. Canopy
4. Canopy cover
5a. Standard downrod assembly
5b. Minimum-length downrod (for close to
ceiling mounting only)
6. Decorative ring
7. Coupling cover
8. Glass shade
9. 100W halogen bulb
10. Metal light cap
11. Receiver with 6 wire nuts
12a. Wall transmitter Incl. 2 mounting
screws and 3 wire nuts
12b. Wall plate w/2 mounting screws
13. Extra Wall Plate w/2 Mounting screws
A. Mounting hardware:
#10 X 1.5" Wood screws (2 PCs.)
#8 X 3/4" Machine screws (2 PCs.)
Lock washers (2 PCs.)
4mm Star washers (2 PCs.)
Wire nuts (3 PCs. )
Washers (2 PCs.)
PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items:
5a
5b
12a
12b
11
13
1
4
3
2
6
A
7
8
9
10

3
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.
INSTALLING THE FAN
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and building
materials. The outlet box and its support must be able to fully support the moving weight of
the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.
Figure 1, 2 and 3 are examples of different ways to mount the outlet box.
Note:You may need a longer downrod to maintain proper blade clearance when installing on a
steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer.
To hang your fan where there is an existing fixture but no ceiling joist, you may need to install
a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer).
R
R
FIG. 1
FIG. 3
FIG. 2
FIG. 4
CROSS BRACE
CEILING
JOIST
CEILING
jOIST
CEILING
JOIST
OUTLET BOX
PARALLEL WOOD BRACE
(MIN. 2" THICK)
OUTLET
BOX
OUTLET BOX
CEILING JOIST OR
CROSS BRACE
ANGLED CEILING
MAXIMUM 20°ANGLE PROVIDE
STRONG
SUPPORT
RECESSED
OUTLET BOX
HANGER
OPENING
must be
FACING
UPSIDE
HANGER BAR
(OPTIONAL)
HANGER
BRACKET

4
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety and
the proper installation of your new ceiling fan. The use of other parts,
hardware or components not supplied by Minka Aire®with the fan will
void the Minka Aire®Warranty.
REMEMBER to turn off the power. Follow the steps below to hang your

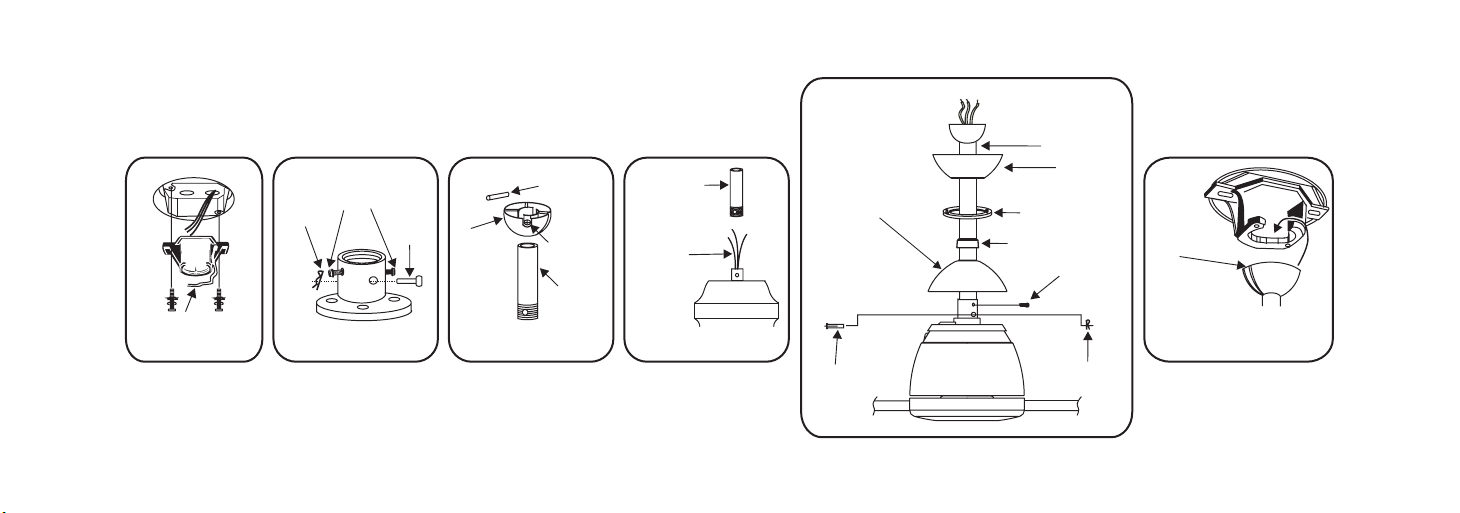

fan properly:
Step 1. Secure the hanger bracket to the ceiling outlet box using screws
included with your outlet box, lock washers included with the fan. (Fig.5)
Step 2. Loosen the two set screws and remove the hitch pin and lock pin
from the top coupling of the motor assembly. (Fig. 6)
Step 3. Remove hanger ball from downrod assembly by loosening set
screw, removing the cross pin, and sliding ball off rod. (Fig.7)
Step 4. Carefully feed fan wires up through the downrod. (Fig. 8)
Thread the rod into the coupling, next line up holes and replace lock
pin and hitch pin. Tighten set screws.
Step 5. Slip coupling cover, decorative ring, canopy cover and canopy
onto downrod. (Fig. 9) Carefully reinstall hanger ball onto rod being
sure that cross pin is in the correct position, set screws are tighten and
wires are not twisted.
Step 6. Now lift motor assembly into position and place hanger ball
into hanger bracket. Rotate until the check groove has dropped into the
registration slot and seats firmly. (Fig. 10) Rod should not rotate if this
is done correctly.
HANGING THE FAN

Fig. 5
Fig. 7 Fig. 8Fig. 6 Fig. 10
Fig. 9
CANOPY COVER
DECORATIVE RING
OUTLET BOX
HANGER BRACKET
DOWNROD
SUPPLY
WIRES REGISTRATION
SLOT
CROSS PIN
HANGER
BALL
DOWNROD
HITCH
PIN LOCK
PIN
SET SCREWS
SET SCREW
DOWNROD
CANOPY
SET SCREWS
HITCH PIN
LOCK PIN
COUPLING
*OMIT COUPLING
COVER WHEN USING
DOWNROD
THE MINIMUM-LENGTH

5
WARNING: To avoid possible electrical shock be sure electricity is
turned off at the main fuse or breaker box before wiring.
NOTE: The Aire Control® System is equipped with a learning frequency
function which has 256 code combinations to prevent potential
interference from other remote units. The frequency on your Receiver
and Transmitter units have been preset at the factory. (Fig. 11) No
frequency change is necessary, should you desire to install another fan
within the same home or area with a seperate frequency code please
see the "frequency interference" troubleshooting section of this
instruction manual to learn how to change the frequency.
Step 1. Insert Receiver into Hanger Bracket with the flat side of the
Receiver facing the ceiling. (Fig. 12)
Step 2. Motor to Receiver Electrical Connections: Connect the WHITE
wire from the fan to the WHITE wire marked "TO MOTOR N" from the
Receiver. Connect the BLACK wire from the fan to the BLACK wire
marked "TO MOTOR L" from the Receiver. Connect the BLUE wire from
the fan to the BLUE wire marked "For Light" from the Receiver.
NOTE: If your ceiling fan features an UP Light: Connect the ORANGE wire
from the fan to the ORANGE wire marked "For Up Light" from the
Receiver. Otherwise disregard this step and proceed to secure all wire
connections with the plastic wire nuts provided. (Fig. 13 & 14)
Note: Fan must be installed at a maximum distance of 40 feet from the
transmitting unit for proper signal transmission between the
transmitting unit and the fan's receiving unit.
ELECTRICAL CONNECTIONS

Step 3. Receiver to House Supply Wires Electrical Connections:
Connect the WHITE wire (Neutral) from the outlet box to the WHITE
wire marked "AC in N" from the receiver. Connect the BLACK wire
(Hot) from the outlet box to the BLACK wire marked "AC in L" from
the receiver. Secure all wire connections with the plastic wire nuts
provided. (Fig. 13 & 14)
Step 4. If your outlet box has a GROUND wire (Green or Bare Copper)
connect this wire to the Hanger Ball and Hanger Bracket Ground
wires. If your outlet box does not have a Ground Wire, then connect
the Hanger Ball and Hanger Bracket Ground Wires together. Secure
wire connection with the plastic wire nut provided. (Fig. 13 & 14)
After all splices are made, check to make sure there are no loose s
trands. As an additional precaution we suggest to secure the plastic
wire connectors to the wires with electrical tape.
Fig. 11
Fig. 12
RECEIVER
HANGER BRACKET

Fig. 13 Fig. 14
WALL
CONTROL
BLACK
BLACK
BLACK
BLACK
BLACK
WHITE
BLUE
BLUE
GROUND
GROUND
GREEN
INPUT
AC120V
AC SUPPLY
WHITE (NEUTRAL)
WHITE (NEUTRAL)
GREEN OR BARE
COPPER (GROUND)
WHITE ("AC IN N")
WHITE ("TO MOTOR N")
GROUND-
(GREEN) (CONNECT TO
GROUND WIRE ON
HANGER BRACKE
IF NO HOUSE
GROUND WIRE
EXISTS.)
OUTLET BOX
BLACK (HOT)
BLACK ("AC IN L")
BLACK ("TO MOTOR L")
RECEIVER
BLUE (FOR LIGHT)
BLUE (FOR LIGHT)
BLACK (MOTOR)
BLACK
BLACK
BLACK
WHITE
WHITE
WHITE
GREEN
GRAY
(FOR CENTER MOTOR)
GRAY
(FOR CENTER MOTOR)
GRAY
GRAY

6
Fig. 15
WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF
ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE
TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.
Step 1. Remove the existing wall plate and switch from the wall outlet box.
Step 2. Make the electrical connections as shown in Fig.14. If your outlet box has a ground
wire (Green or Bare Copper) connect the Transmitter's ground wire directly to one of the
screws from the outlet box . Secure all wire connections with the plastic wire nuts
provided.

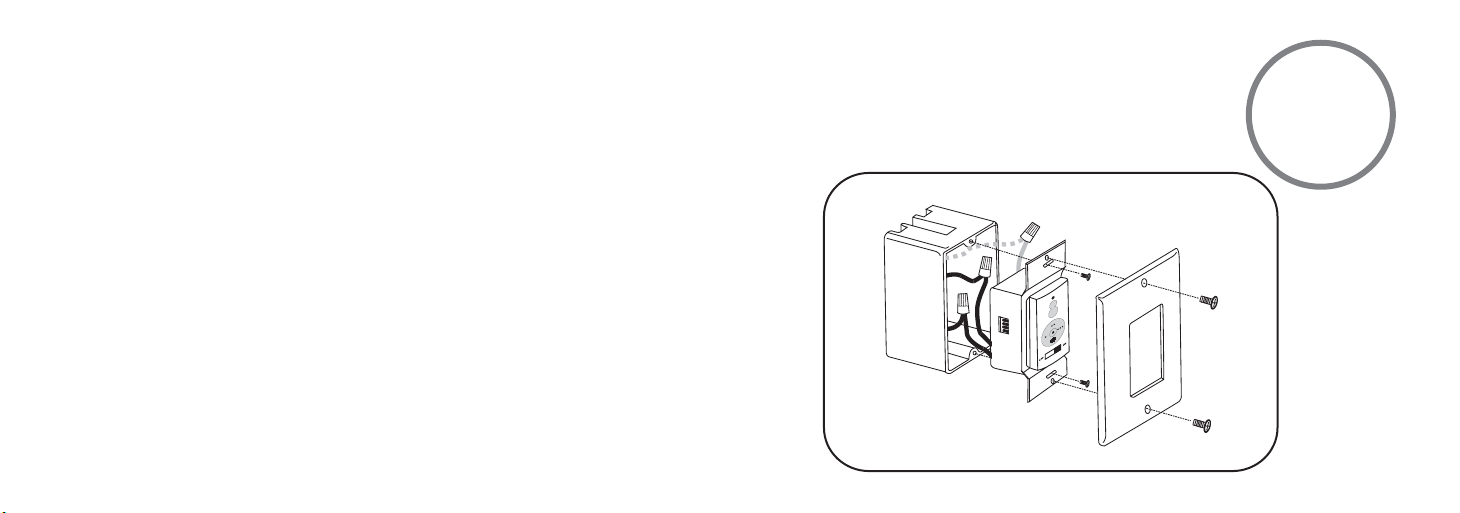

Step 3. Carefully tuck the wire connections inside the outlet box. Use the screws provided
to secure the wall transmitter and wall plate to the outlet box. (Fig. 15)
NOTE: Your Aire Control
TM
System includes two sets of face and decorative plate color
options. The wall control comes with standard white faceplate attached. If you desire to
replace it with the Ivory color faceplate included, use a small flat screw driver and gently
pry it apart from the top or bottom of the plate.
INSTALLING THE WALL TRANSMITTER

7
Fig. 16
FINISHING THE INSTALLATION
OUTLET BOX
HANGER
BRACKET
HANGER
BALL
CANOPY
CANOPY
COVER

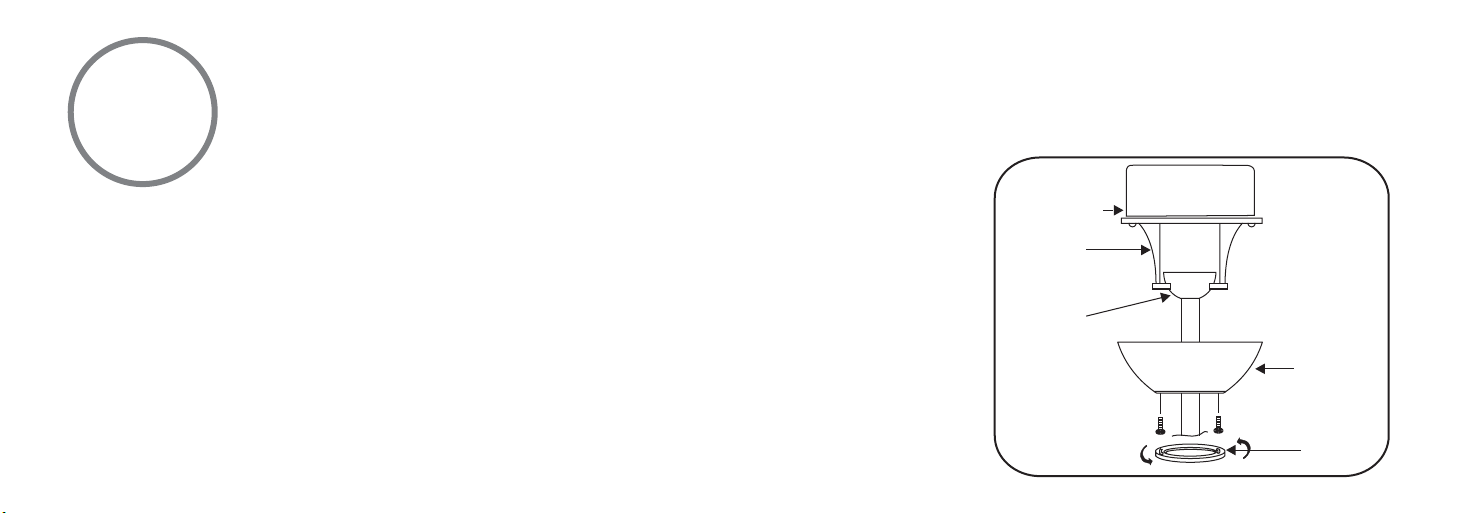

Step 1. Slide the canopy up to ceiling and over the two screws on hanger bracket. Rotate
canopy clockwise, next, while holding the canopy with one hand, slide the canopy cover over the
screws and rotate counter-clockwise until tight.
Note; adjust the canopy screws as necessary until the canopy and canopy cover are snug. (Fig. 16)

8
INSTALLING THE LIGHT BULB AND GLASS SHADE
WARNING: Shut of the power supply before removing or replacing lamp. In handling of halogen bulb, care should be taken not to touch it with
your bare hands. Oil residue will shorten the life of the halogen bulb. If you accidentally come into contact, wipe thoroughly with a clean, lint-free, cotton
cloth. Allow the bulb to cool off for 10 minutes before changing the bulb. Use light bulb in accordance with the fan's specification. TO REDUCE THE RISK OF
FIRE DO NOT EXCEED MAXIMUM WATTAGE RATING.
ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan's
light kit will shut off automatically.

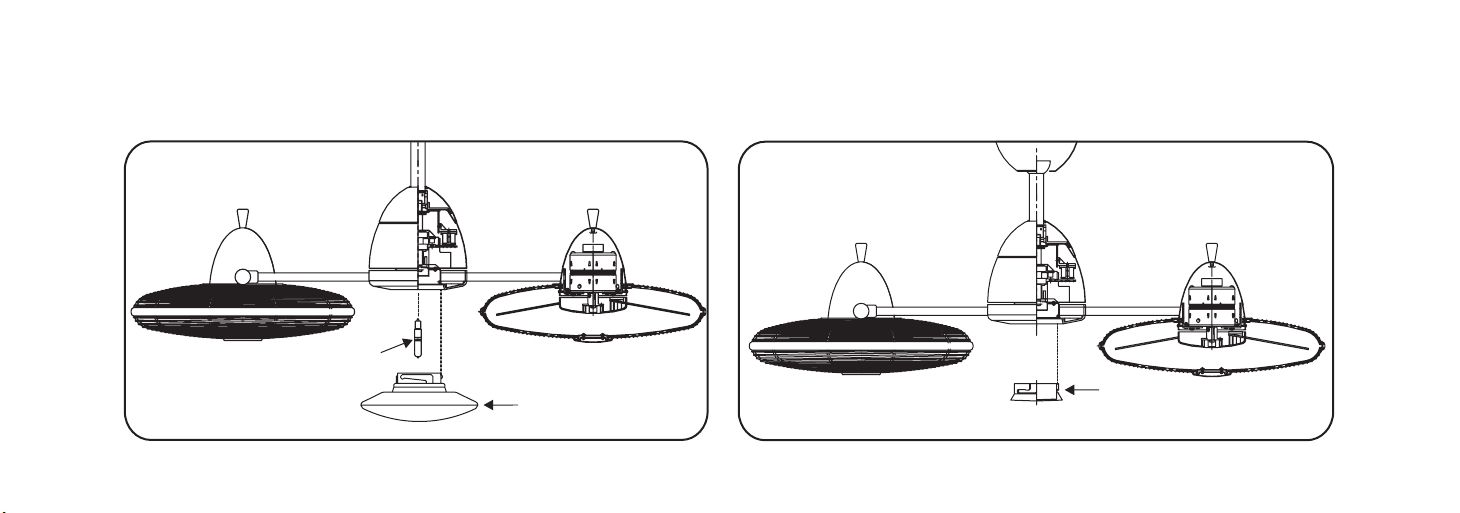

1. Install the 100w halogen bulb (included). (Fig. 17)
2. Place glass shade into light plate, align the three flat sections from the glass neck with the three raised dimples from the light plate. Press glass into light
plate and gently turn clockwise until it stops and feels snug, do not over tighten. (Fig. 17)
CAUTION; hold the edges of the glass with both hands and very gently wiggle it up and down to make sure is properly secured and it won't come off easily.
(Fig. 17)
NOTE: A metal light cap has been included with your fan as an option to replace the glass in the event that you prefer not to use the light feature of your fan.
This metal light cap is not necessary for the light operation. It can be saved for later use if desired.

Fig. 17 Fig. 18
METAL
LIGHT CAP
To install the metal light cap follow Step 2. above. To remove the metal light cap, you must first press and then turn counterclockwise, the custom
built in spring mechanism inside the light plate will push the metal light cap out of the light plate. (Fig. 18)
GLASS
SHADE
100 W HALOGEN
BULB

Fig. 19

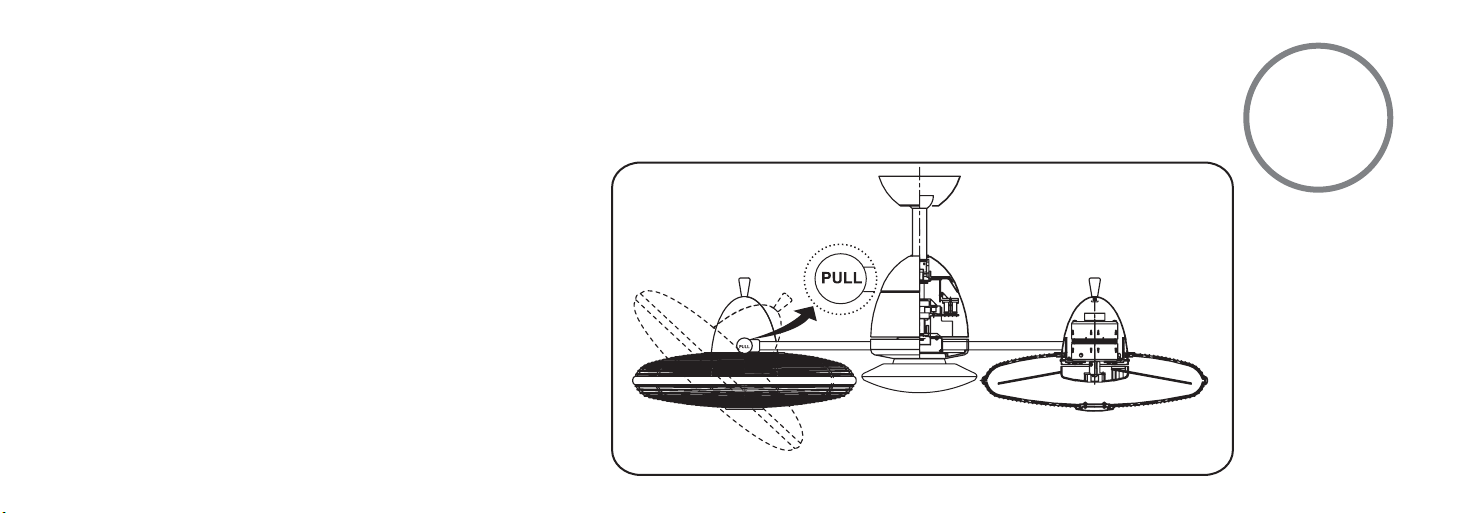

Step 1. Pull the "PULL" knob out to unlock the fan, tilt the fan
body to desired location, push back the "PULL" knob to lock
the fan. (Fig. 19)
ADJUSTING THE TILT ANGLE
9

10
OPERATING THE REMOTE CONTROL/WALL TRANSMITTER
Restore Power to Ceiling Fan.
A. Buttons:
These buttons are used to set the fan speeds as follows;
= Low Speed
= Medium Speed
= High Speed
B. Button:
This button turns the fan off.
C. Button:
These buttons turn the light ON or OFF and also control
the brightness settings of the light. The following
instructions apply to ceiling fans that feature a DOWN
light ( button) only or ceiling fans that feature an UP
light ( button) and a DOWN light ( button) that are
controlled independent of each other;
Press and release the button for the desired light to turn
the light ON or OFF. Press and hold the button to set the
desired light brightness. The light will cycle between
bright and dim settings as long as the button is pressed.
The light key has an automatic auto-resume feature that
allows the light to remain at the same brightness as the
last time it was turned off.
D. OFF-ON Slide Button (Wall Control Fans Only)
This button turns the power Off and On to the Fan and
Light(s).
E. Button: This button rotates the fan assembly at 3
RPM.
NOTE: The complete fan assembly is designed to rotate
in one direction however, when blocked it will
automatically turn to the opposite direction. The
rotation change will not have any effect on the
performance of the fan.
