INSTRUCTION MANUAL WARRANTY CERTIFICATE
READ AND SAVE ALL INSTRUCTIONS
WELKIN

2
© 2019 Minka Lighting, Inc. Manual design and all elements of manual design areprotected byU.S. Federal and/or State Law,
including Patent, Trademark and/or Copyrightlaws.
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267

3
Date Purchased Store Purchased Model Number 04638
Serial Number
CONTENTS
SAFETY RULES............................................................................
PACKAGE CONTENTS...................................................................
INSTALLING THE FAN...................................................................
ATTACHING THE FAN BLADES......................................................
HANGING THE FAN-STANDARD CEILING MOUNTING....................
ELECTRICAL CONNECTIONS.........................................................
FINISHING THE INSTALLATION...............................................
INSTALLING THE LED LIGHT KIT............................................
OPERATING THE REMOTE CONTROL.....................................
CARE OF YOUR FAN...............................................................
TROUBLESHOOTING..............................................................
SPECIFICATIONS...................................................................
4
5
6
7
8
9
10
11
12
14
15
16
The Aire warranty is for one (1) year from the date of purchase from an authorized Aire dealer. This warranty is only
valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1)
full year. Additionally, Aire warrants the motor only for the lifetime of the Aire ceiling fan (excluding wall controls and
electrical components), to the original purchaser or user.
To obtain warranty service during the warranty period, the purchaser should return the fan with the original sales
receipt to the original place of purchase. Replacement is subject to availability of the same model. This is a limited
warranty; the original purchaser or user is responsible for the cost of removal and re-installation of repaired or
replacement product. Outdoor nishes are speci cally excluded from the terms of this warranty since they are subject
to environmental and maintenance damages beyond our control.
Fan warranty registration should be mailed as addressed on the warranty card.
The warranty is void with the use of any non-Aire electrical devices; e.g., wall controls or electrical dimmer switches,
etc.
The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original
point of installation.
The warranty is void with the use of any hanger bracket (non-Aire or non-fan c) other than the hanger bracket
supplied in the box.
The warranty is void if installed in an environment other than its intended use (Indoor fans installed outdoors or in a
covered outdoor patio area, or subjected to environmental conditions: salt air, humidity, direct sun exposure, etc.).
Outd es are speci cally excluded from the terms of this warranty since they are subject to environmental
and maintenance damages beyond our control.
WARRANTY SERVICE INFORMATION
WARRANTY

SAFETY RULES
1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a quali ed licensed electrician.
3. The outlet box and support structure must be securely mounted and capable of reliably supporting a minimum of 35
lbs. Use only UL-listed outlet boxes marked “FOR FAN SUPPORT.”
or.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will
be suitable for most cleaning.
8. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on the other side of the outlet box.
9. All setscrews must be checked and retightened where necessary before installation.
10. Turn the fan off and wait for the blades to stop completely before performing any maintenance or cleaning.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER PERSONAL INJURY, MOUNT FAN ONLY ON AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT OF 35 LBS (15.9 KG) OR LESS AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX. MOST OUTLET BOXES COMMONLY USED FOR THE SUPPORT OF LIGHTING
FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN
IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE
BLADES OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE CR-400T REMOTE CONTROL ONLY.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible
conditions and situations that may occur. It must be understood that common sense, caution and care are factors which
cannot be built into this product. These factors must be supplied by the person (s) installing, caring for and operating
the unit.
4

5
PACKAGE CONTENTS
Unpack your fan and check the contents. You should have the following items:
1. Hanger bracket
2. Canopy
3. Canopy cover
4. Standard downrod assembly (6”)
5. Coupling cover
6. Fan motor
7. LED Light Kit
8. Receiver
9. Blade(4)
10. Remote control with holder
and 2 mounting screws
11. Balancing kit
12. 12V MN21/A23 battery
A.Mounting hardware:
10#1x 1.5” Woody screws(2 pcs)
3#d5D19 1mm Washer (2 pcs)
8#-32 3/4”Electrical box screws (2 pcs)
Spring washers (2 pcs)
8# Star washers (2 pcs)
Wire nuts (3 pcs)
B.1/4”x 5/8’+s Upper Motor screws (9 pcs)
C.1/4”x 3/8’+s Lower Motor screws (5 pcs)
D.Extending wires (40” with pin connector)
10
11
12
1
2
3
4
5
6
9
8
7

6
INSTALLING THE FAN
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses
or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet
box and its support must be able to fully support the moving weight of the fan (at least 50 lbs.). Use a UL Listed metal
outlet box. Do not use a plastic outlet box.
Figure 1, 2 and 3 are examples of different ways to mount the outlet box.
Note: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling.
Longer downrods are available from your Aire dealer.
To hang your fan where there is an existing xture but no ceiling joist, you may need to install a hanger bar as shown
in Fig. 4 (available at your Aire dealer).
CEILING
JOIST
FIG. 1
CROSS
BRACE
CEILING
JOIST
CEILING
jOIST
OUTLET BOX
OUTLET BOX
FIG. 2
PARALLEL WOOD BRACE
(MIN. 2" THICK)
OUTLET
BOX
CEILING JOIST OR
CROSS BRACE
FIG. 3 FIG. 4
ANGLED CEILING
MAXIMUM 18° ANGLE PROVIDE
STRONG
SUPPORT
RECESSED
OUTLET BOX
HANGER
OPENING
MUST BE
FACING
UPSIDE
HANGER BAR
(OPTIONAL)
HANGER
BRACKET

7

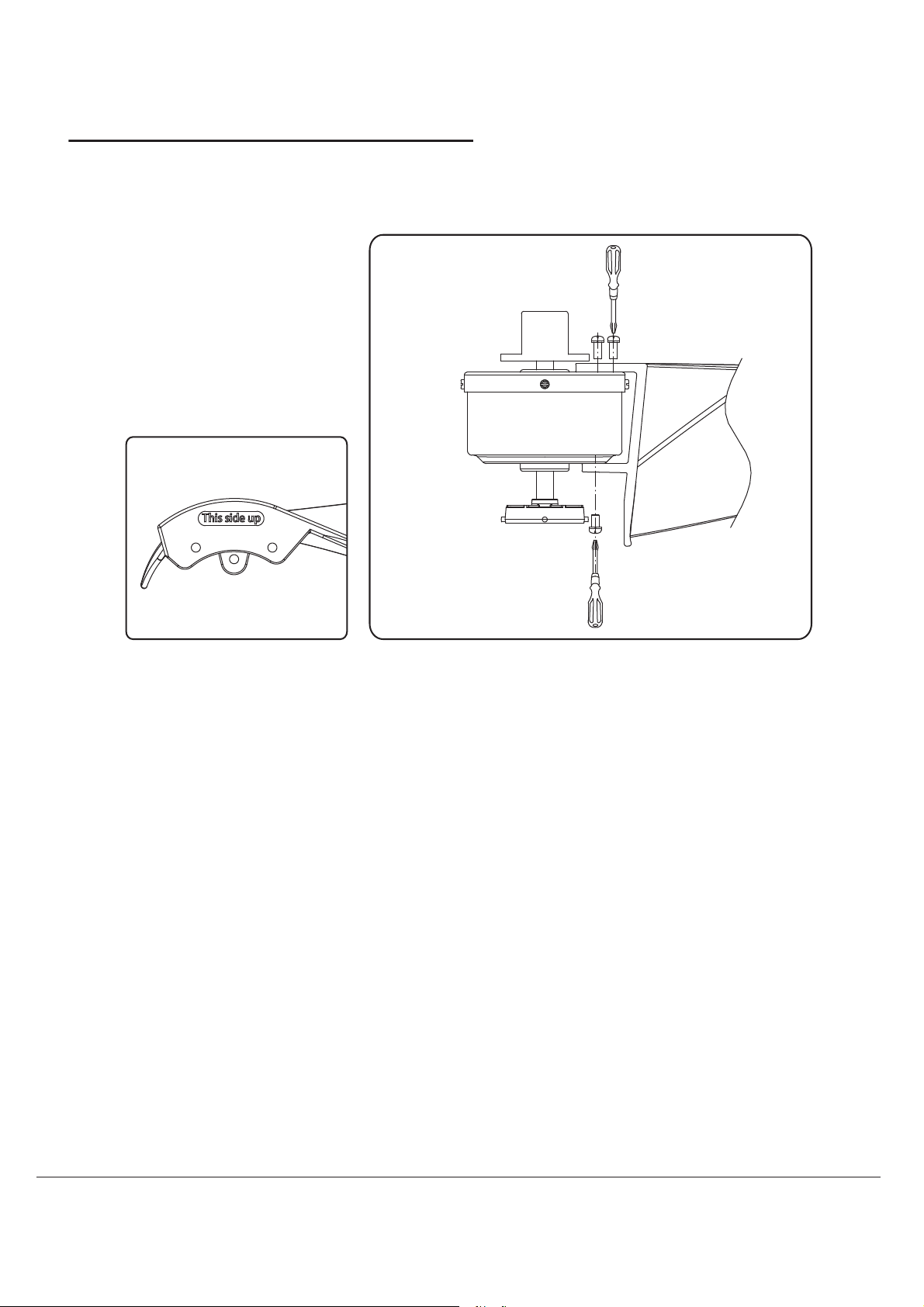

ATTACHING THE FAN BLADES
Attach the blades and tighten the blades with the upper motor screws and lower motor screws provided.
Same procedure to assemble all 4 blades. (Figure 5)
Notice 'THIS SIDE UP' label on fan blades. The blade are not reversible. (Figure 5-1)
FIG.5-1 FIG.5

8

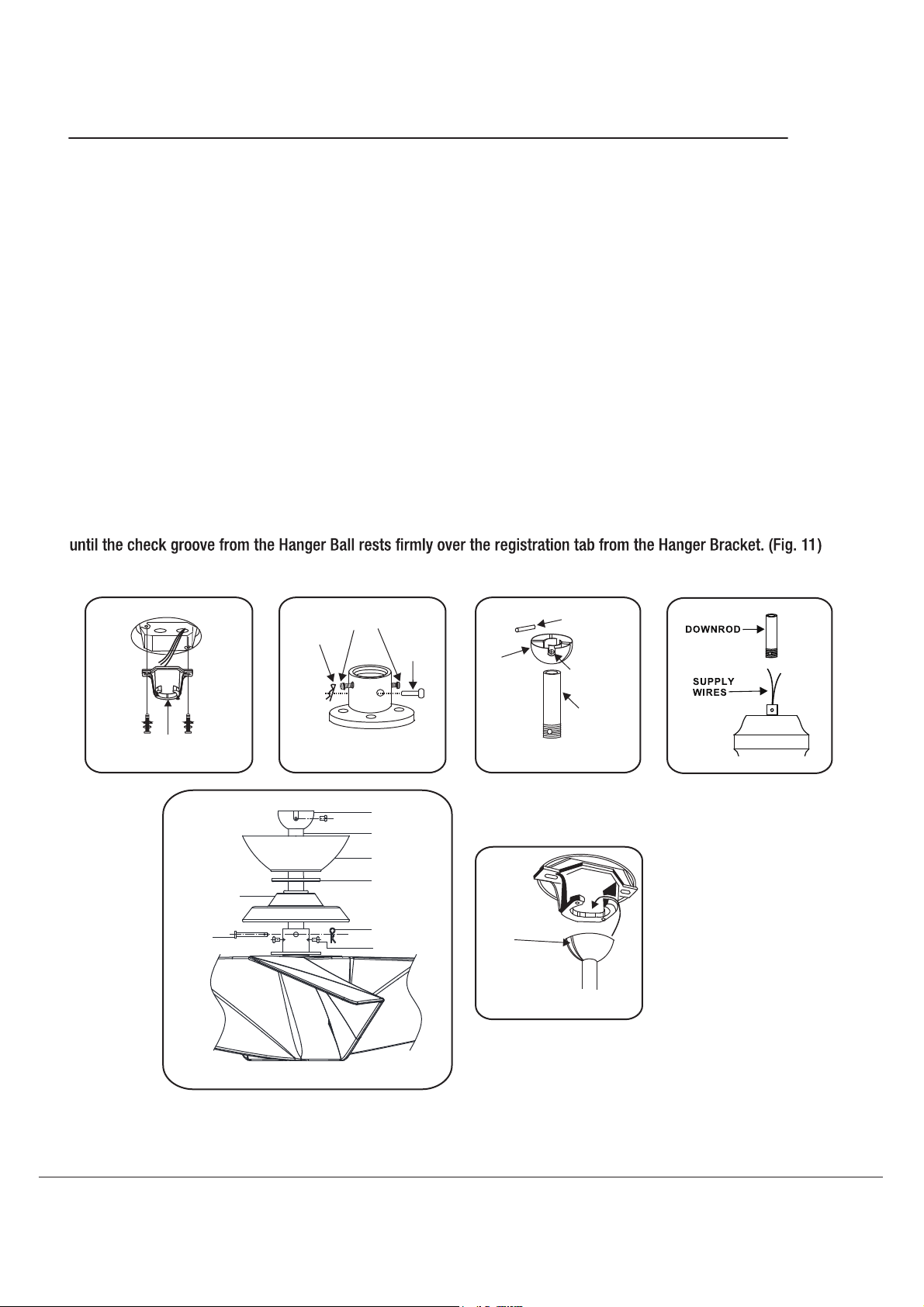

HANGING THE FAN-STANDARD CEILING MOUNTING
WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been
provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or
components not supplied by Aire with the fan will void the Aire Warranty.
REMEMBER to turn off the power. Follow the steps below to hang your fan properly:
Step 1. Secure the Hanger Bracket to the ceiling outlet box using the screws provided with your outlet box in
conjunction. (Fig. 6)
Step 2. Loosen the two Set Screws and remove the Hitch Pin and Lock Pin from the coupling located on the top of the
Motor Assembly. (Fig. 7)
Step 3. Remove the Hanger Ball from the Downrod Assembly by loosening the Set Screw and removing the Cross Pin.
(Fig. 8)
Step 4. Carefully feed fan wires up through the downrod. (Fig. 9) Thread Downrod into the Coupling until the holes are
lined up and secure with the Lock Pin and Hitch Pin previously removed, tighten Set Screws. (Fig. 10)
Step 5. Slip coupling cover, canopy cover and canopy onto downrod. (Fig. 10) Carefully reinstall hanger ball onto rod being
sure that cross pin is in correct position, set screws are tighten and wires are not twisted.
Step 6. Lift the Motor Assembly and place the Hanger Ball into the Hanger Bracket. Rotate the Motor Assembly as needed
FIG. 6
FIG. 11
FIG. 10
OUTLET BOX
HANGER BRACKET
REGISTRATION
SLOT
CROSS PIN
HANGER
BALL
DOWNROD
HITCH
PIN LOCK
PIN
SET SCREWS
SET SCREW
FIG. 7 FIG. 8 FIG. 9
DOWNROD
CANOPY
CANOPY
COUPLING
COVER
SCREWS
HITCH PIN
LOCK
PIN
HANGER
BALL

9
ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock be sure electricity is turned off at the main fuse or breaker box before
wiring.
NOTE. The Aire Control System for this DC motor fans is equipped with a learning frequency function which has 32
code combinations to prevent potential interference from other remote units.
The frequency on your Receiver and Transmitter units have been preset at the factory (Fig.12) No frequency change is
necessary, should you desire to install another Aire DC motor fan within the same home or area with a separate
frequency code please see the frequency interference' troubleshooting section of this instruction manual to learn how
to change the frequency.
Step 1. Receiver to House Supply Wires Electrical Connections Connect the WHITE wire (Neutral) from the outlet box to
the WHITE wire marked 'AC in N' from the receiver Connect the BLACK wire (Hot) from the outlet box to the BLACK
wire marked 'AC in L'from the receiver. Secure all wire connections with the plastic wire nuts provided.(Fig.13)
Step 2.If your outlet box has a GROUND wire Green or Bare Copper) connect this wire to the Hanger Ball and Hanger
Bracket Ground wires. If your outlet box does not have a Ground Wire, then connect the Hanger Ball and Hanger
Ground Wires together Secure wire connection with the plastic wire connector provided. (Fig. 14)
Step 3.Motor to receiver wires electrical connections Connect the 4P-4P for motor/ 2P-2P for light/ Gray-gray for
signal from motor to receiver.(Fig. 15) After all splices are made.check to make sure there are no loose strands. As an
additional precaution we suggest to secure the plastic wire connectors to the wires withelectrical tape.
Fig.12 Fig.13
Fig.14 Fig.15

10
FINISHING THE INSTALLATION
STANDARD CEILING MOUNTING
Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the
screw head.
Step 2. Slide the canopy up towards the hunger bracket and place the key hole on the canopy over the screw on the
hanger bracket turn canopy until it locks in place at the narrow section of the key holes. (Fig. 16)
Step 3. Align the circular hole on canopy with the remaining hole on the hanger bracket, secure by tightening the
two set screws.
Note: Adjust the canopy screws as necessary until the canopy and canopy cover are snug.
Fig. 16

11
ATTACHING THE LIGHT
Step.2 Attach the 20W LED assembly to the switch box by twistitghtly.(Fig.17)
Note: This is a integrated LED light lit assembly and can not be disassembled to prevent electronic shock.
FIG. 17

OPERATING THE REMOTE CONTROL / WALL CONTROL
11
Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not
used for long periods of time.
Your DC brushless motor is equipped with a self learning frequency function remote control.
Restore power to ceiling fan and test the transmitter as below for proper operation:
A. 1, 2, 3, 4, 5 and 6 button:
These six buttons are used to set the fan speed as follows:
1 = minimum speed
2 = low speed
3 = medium low speed
4 = medium speed
5 = medium high speed
6 = high speed

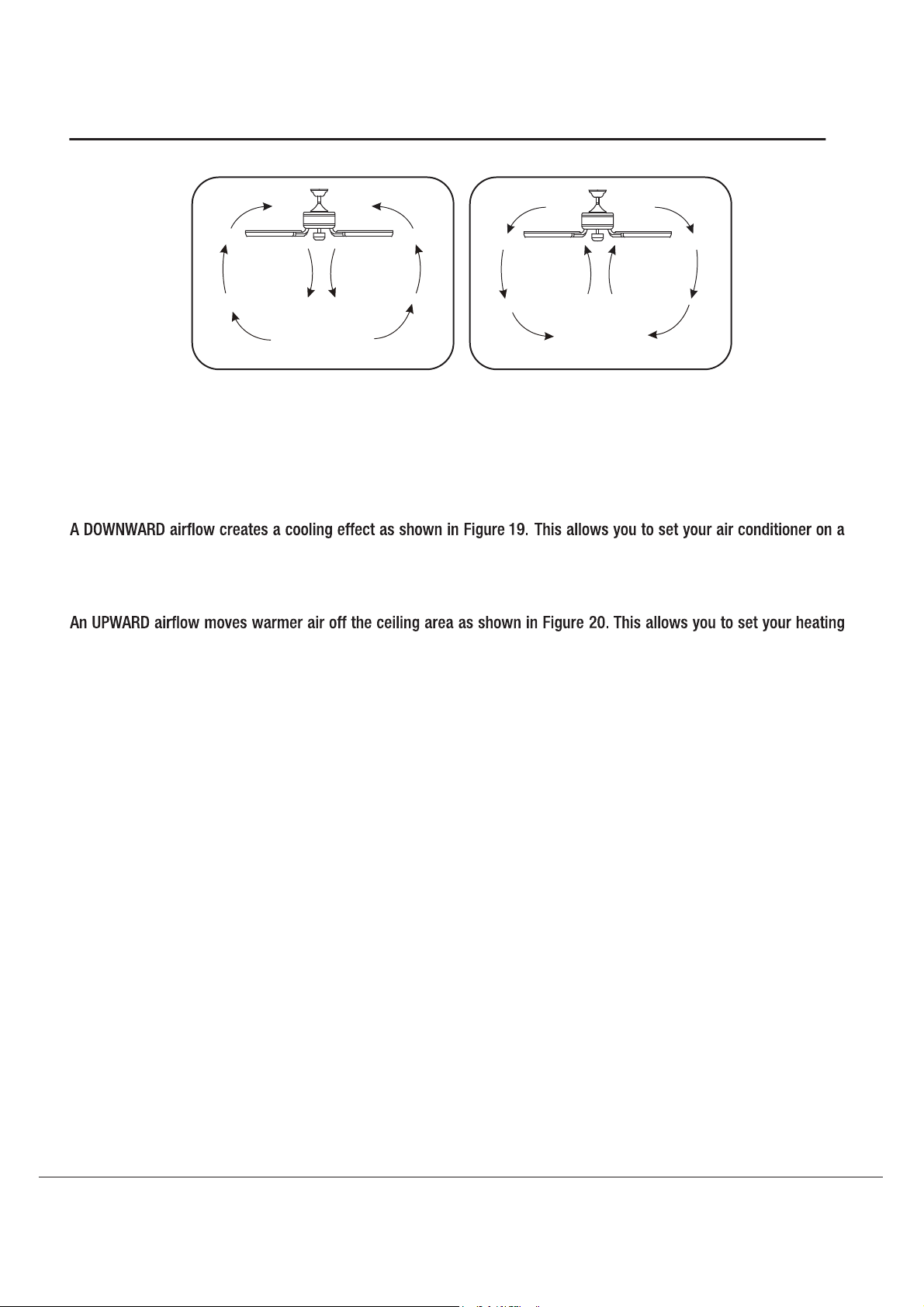

B. Reverse button:
This button is used to change the direction of the rotation of the blades; forward for warm weather or reverse for cool
weather.
C. button:
This button turns the power Off to the Fan.
D. Button:
These buttons turn the light ON or OFF and also control the brightness settings of the light. The following instructions
apply to ceiling fans that feature a DOWN light.
( button) only or ceiling fans that feature an UP light ( button) and a DOWN light ( button) that are controlled
independent of each other;
Press and release the button for the desired light to turn the light ON or OFF. Press and hold the button to set the desired
light brightness. The light will cycle between bright and dim settings as long as the button is pressed. The light key has
an automatic auto-resume feature that allows the light to remain at the same brightness as the last time it was turned
off.

OPERATING THE REMOTE CONTROL / WALL CONTROL
12
Note: The auto learning function will only mandate within 60 seconds when
turning the fan's AC power ON.

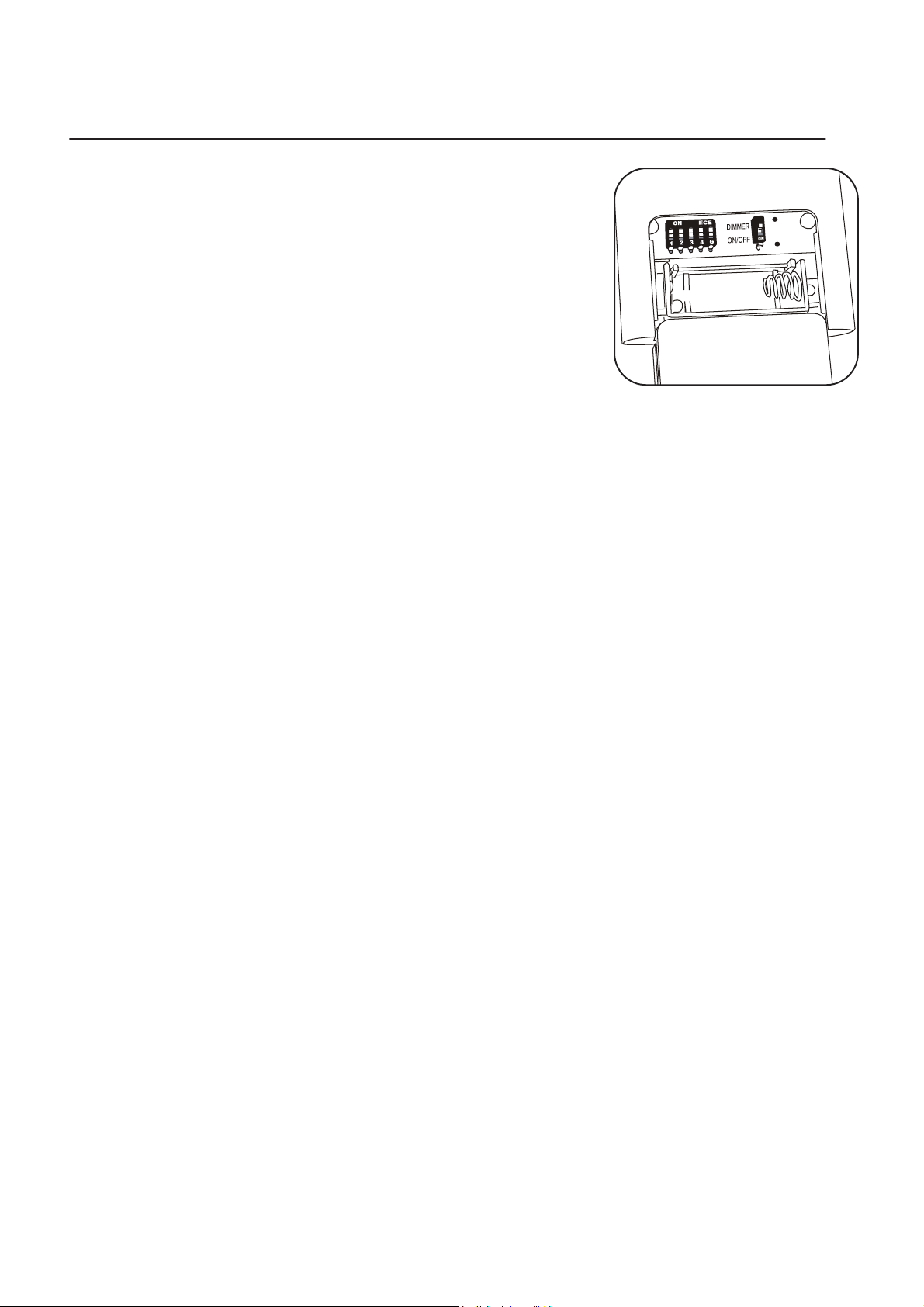

1. Select desired frequency from the back of transmitter.
2. Press the transmitter's “Off” button, and hold the “Off” button for over 10
seconds. Once the receiver has detected the frequency, the down light of
your fan if applicable will blink twice. (There is no indication if your fan is not
equipped with a light).
Note: The learning frequency function will continue to retain the last set
frequency even when the AC power is shut off.
The DC motor has a built in safety feature against obstruction during operation,
if the fan motor senses a obstruction for 60 seconds or more it will get locked
and will not rotate until the obstruction has been removed and the power has
been disconnected for 5 seconds.
3. Over 60W protection: When the receiver detects motor power consumption
which is greater than 60W, the receiver's power will stop and operation will
be immediately discontinued. if you want to re-start the fan, Please remove
obstacles and disconnect the power by turning off the circuit breaker . And
turn the power on after 5 seconds.
4. “DIMMER” and “ON/OFF” dip switch:
The “DIMMER” selection is the light dimmable selection and is to be used
with all bulbs except for CFL bulbs. The“ON/OFF” selection is For CFL bulbs.
Fig. 18

OPERATING THE REMOTE CONTROL / WALL CONTROL
13
Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans.
NOTE: to change the direction of the rotation of the blades the fan must be in operation mode.
Warm Weather (forward)
warmer setting without affecting your comfort.
Cool Weather (Reverse)
unit on a cooler setting without affecting your comfort.
Fig. 20
WINTER OPERATION
Fig. 19
SUMMER OPERATION

14
CARE OF YOUR FAN
Here are some suggestions to help maintain your fan.
1. Because of the fan's natural movement some connections may become loose. Check the support connections,
brackets and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from the
ceiling).
2. Clean your fan periodically to help maintain its new appearance over the year.CAUTION: many common household
cleaning products contain chemicals that could dam sh of your fan. Use only a soft lint free cloth and soapy
water.
3. If your fan is provided with wood veneer blades; you can apply a light coat of furniture polish for additional protection
and enhanced beauty. Cover small scratches with a light application of shoe polish.
4. Use a lint free lightly damp cloth or duster to remove dust from the blades.
5. There is no need to oil your fan. The motor has permanently lubricated bearings.
6. If your fan is provided with glass shades, clean with lukewarm soapy water and a soft cloth or sponge. DO NOT
IMMERSE GLASS SHADES IN HOT WATER. DO NOT PUT GLASS SHADES INTO AN AUTOMATIC DISHWASHER.
WARNING!
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO
THE SECTION, "ELECTRICAL CONNECTIONS".

15
TROUBLESHOOTING
Check to make sure the wall switch is turned on.
Check circuit fuses or breakers.
Caution! Make sure the power is turned off before performing the following steps.
Remove canopy and check wire connections.
Check wall control transmitter connections (if applicable).
Note: Fan must be installed at a maximum distance of 40 feet from the transmitting unit
for proper signal transmission between the transmitting unit and the fan's receiving unit.
Allow a 24-hour "break in" period. Most noises associated with a new fan will go away
during this time.
Make sure the screws that attach the fan blade holder to the motor hub is tight.
Make sure outlet box is secured to building structure, if necessary use the wood screws
provided to further secure outlet box to joist.
Make sure hanger bracket is secure to the outlet box, screws are tight.
NOTE: All blade sets are grouped by weight. Because wood and plastic blades vary in
density, the fan may wobble even though blades are matched.
Make sure outlet box is secured to building structure, if necessary use the wood screws
provided to further secure outlet box to joist.
Make sure hanger bracket is secure to the outlet box, screws are tight.
If a Balancing kit is provided follow the instructions included with the balancing kit to
help correct any excessive wobble.
This is caused by interference, Please see "Frequency interference" for steps to change
the frequency.
Fan will not start
Fan Sounds Noisy
Fan Wobble
Frequency
Interference
Fans/Light Turn On
and Off Unexpectedly
SOLUTION
SYMPTOM
᥎Turn the power off to your ceiling fan.
᥎Please use a small size tool to change the frequency settings on the control system.
᥎Return power to the unit.
᥎NOTE: After the AC power is on, do not press any other button on the transmitter before
pressing the“Stop” button, doing so will cause the procedure to fail.
᥎Within 60 seconds of turning the Fan's AC power ON, Press the transmitter's “Stop” button
and hold the “Stop” button for 10 seconds.
᥎Once the receiver has detected the set frequency, the down light of your fan if applicable
will blink twice. (There is no indication if your fan is not equipped with a light).
᥎The receiver has now learn the frequency which has been selected on the transmitter. After
completing the steps above, you should be able to operate the ceiling fan and light. If the
fan is not responding to the transmitter, please turn the power off to the receiver, and
repeat the process.

16
SPECIFICATIONS
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267
For any additional information about your Aire Ceiling fan, please write to:
These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the light(s).
PERFORMANCE AND ENERGY INFORMATION
85,003
Speed Volts Amps Watts RPM N.W. G.W. C.F.Fan Size
56”
120
120
120
0.15
0.44
6.03
24.4
52
111
0.62 41.99 139 Kgs Kgs
Low
Medium
High
2.5027.25 8.97
