1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267

1
SAFETY RULES
1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the
floor and 18 inches from the tip of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure the
box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds) Do
not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. Turn the fan off and wait for the blades to stop completely before proceeding with maintenance or cleaning. SUITABLE FOR USE IN
WET LOCATIONS

WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM
MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS
PROVIDED WITH THE FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND
NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE CFR-3T SOLID-STATE SPEED CONTROL WITH TR111A-1 WALL CONTROL ONLY.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person (s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!

2
1. Fan Blades (3)
2. Mounting bracket
3. Fan motor/housing ass'y
4. 14W LED light kit
5. Glass shade
6. Metal light cover (for optional use)
7a. Wall transmitter Incl. 2 mounting
screws and 3 wire nuts
7b. Wall plate w/2 mounting screws
8. Extra Wall Plate w/2 Mounting
screws
9. Balancing kit
A. Mounting hardware:
#10 x 1.5" Wood screws (2 PCs.)
#8 x 3/4" Machine screws (2 PCs.)
Lock washers (2 PCs.)
4mm star washers (2 PCs.)
Wire nuts (3 PCs.)
Washers (2 PCs.)
B. Blade removal tool
PACKAGE CONTENTS
1
2
3
4
5
7a
7b
8
9
Unpack your fan and check the contents. You should have the following items:
A
B
6

3
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters;
electrical tape.
INSTALLING THE MOUNTING BRACKET
WARNING: All of the parts, hardware and components have been provided for your
safety and the proper installation of your new ceiling fan. The use of other parts,
hardware or components not supplied by Minka Aire®with the fan will void the
Minka Aire®Warranty.
REMEMBER to turn off the power. Follow the steps below to hang your fan properly:
Step 1. Attach the mounting bracket to the outlet box with two screws provided with
your outlet box. Make sure the bracket is firmly secured. (Fig. 1)
Step 2. Lift fan into position by secure the safety cable onto the hook from the ceiling
mounting bracket. (Fig. 1)
FIG. 1
OUTLET BOX
MOUNTING BRACKET MOTOR
SAFETY CABLE

4
ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock be sure electricity is
turned off at the main fuse or breaker box before wiring.
NOTE: The Aire Control®System is equipped with a learning frequency
function which has 256 code combinations to prevent potential
interference from other remote units. The frequency on your Receiver
and Transmitter units have been preset at the factory. (Fig. 2) No
frequency change is necessary, should you desire to install another fan
within the same home or area with a separate frequency code please see
the "frequency interference" troubleshooting section of this instruction
manual to learn how to change the frequency.
Caution! The dip switches on the receiving unit are covered with a
rubber cover, remove the rubber cover and then have it replaced after
making any changes to the dip switches.
Step 1 Connect the fan supply (black) wire to the black household supply
wire as shown in Figure 3 & 4.
Step 2. Connect the neutral fan (white) wire to the white neutral
household wire.
Step 3 Connect the fan ground wire (green) to the household ground
wire.
Step 4. After all splices are made, check to make sure there are no loose
strands. As an additional precaution we suggest to secure the plastic wire
connectors to the wires with electrical tape.

Fig. 3 Fig. 4
WHITE (NEUTRAL)
GREEN OR BARE
COPPER (GROUND)
WHITE ("AC IN N")
OUTLET BOX
BLACK (HOT)
BLACK ("AC IN L")
RECEIVER
WALL
CONTROL
BLACK
BLACK
BLACK
BLACK
BLACK
WHITE
GROUND
INPUT
AC120V
AC SUPPLY
BLACK
WHITE
GREEN
GROUND
GREEN
Fig. 2

5

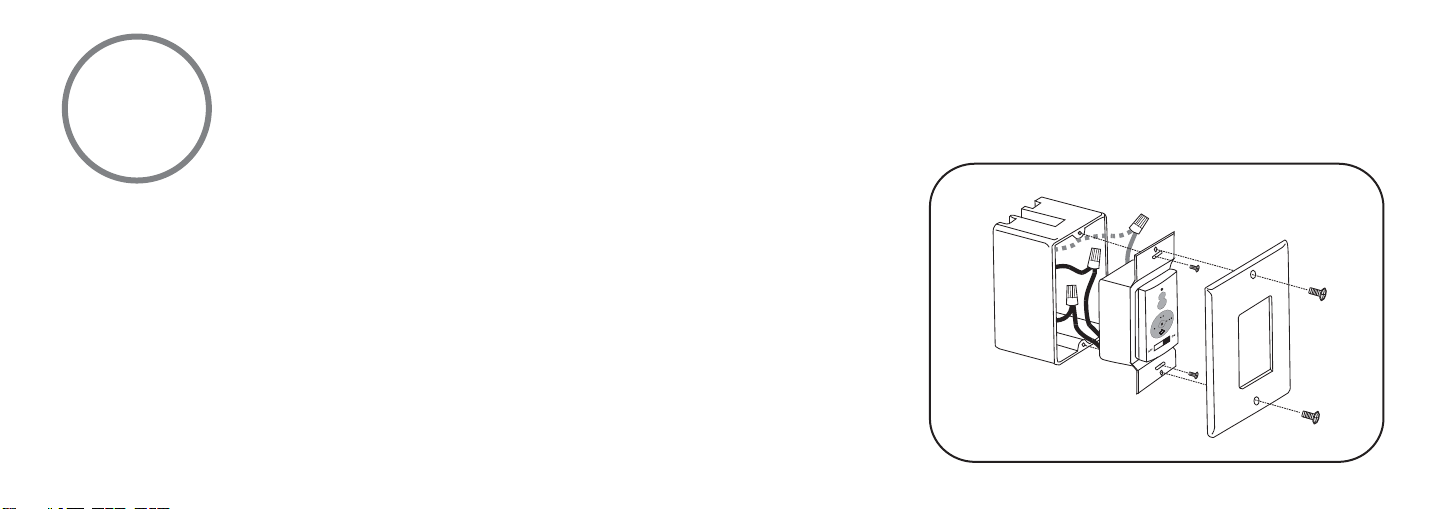

Fig. 5
WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF
ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE
TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.
Step 1. Remove the existing wall plate and switch from the wall outlet box.
Step 2. Make the electrical connections as shown in Fig.4. If your outlet box has a ground
wire (Green or Bare Copper) connect the Transmitter's ground wire directly to one of the
screws from the outlet box. Secure all wire connections with the plastic wire nuts provided.
Step 3. Carefully tuck the wire connections inside the outlet box. Use the screws provided
to secure the wall transmitter and wall plate to the outlet box. (Fig. 5)
NOTE: Your Aire Control™ System includes two sets of face and decorative plate color
options. The wall control comes with standard white faceplate attached. If you desire to
replace it with the Ivory color faceplate included, use a small flat screw driver and gently
pry it apart from the top or bottom of the plate.
INSTALLING THE WALL TRANSMITTER

6
FINISHING THE INSTALLATION
Step 1. Remove the four plastic plugs from top of the fan
body.
Step 2. Loosen two of the four screws from the
mounting bracket and remove the other two.
Step 3. Install the motor assembly to the mounting
bracket and engage the key holes to the two screws
previously loosened.
Step 4. Install the two screws previously removed and
tighten all four screws.
Step 5. Re-install the plastic plugs previously removed.
SCREWS
PLASTIC PLUGS
Fig. 6

7
Step 1. Insert the blades into the motor housing blade slots, push blade until it stops. You should
be able to hear the inside safety pin drop into the blade hole to secure the blade in place. (Fig. 7)
CAUTION: Re-check each blade to make sure all blades are secured to the locking mechanism by
holding the blade from the tip and gently pulling it outwards. The blades should be snug to the
motor housing without any up, down or sideways play.
All blade sets are grouped by weight. Because plastic injection varies in density, the fan may wobble
even though the blades are weight matched.
BLADE REMOVAL
In the event that the blades need to be removed, use the blade removal tool included with your fan.
Remove the two screws, washers and rubber covers from the motor housing. Remove the blades by
pulling the safety pin via the opening above the blade in the motor housing as shown.
IMPORTANT! Make sure to replace the rubber covers and screws. (Fig. 8)
BLADE INSTALLATION
Fig 7

Fig 8
SCREWS
RUBBER COVER
REMOVAL TOOL
REMOVAL
TOOL
BLADE

8
Fig. 9
GLASS
SHADE
SCREWS
MOUNTING
PLATE
LED LIGHT KIT
CAUTION: Before starting installation, make sure power is turned off at the circuit breaker.
If you do not plan to install the light kit with your fan at this time, skip step 1, 2 & 3.
1. Remove 1 of 3 screws from the mounting plate and loosen the other 2 screws. (Do not remove)
2. While holding the LED light kit under the fan motor assembly, make the 2-pin wire connections:
- White to white - Black to black
3. Place the key holes in the LED light kit over the two mounting screws previously loosened from the
mounting plate. Turn the LED light kit until the LED light kit locks in place at the narrow section of the
key holes. Secure by tightening the two screws previously loosened and the one previously removed.
(Fig. 9)
4. Raise the glass shade (or metal light cover) up against the mounting plate and secure it to the fan by
turning the glass shade clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 9)
NOTE: The metal light cover included with your fan is an option to replace the glass for the light in the
event that you prefer not to use the light feature of your fan. The metal light cover is not necessary for
the light operation; it can be saved for later use if desired.
INSTALLING THE LED LIGHT KIT & GLASS SHADE

9
OPERATING THE REMOTE CONTROL/WALL CONTROL
Restore Power to Ceiling Fan.
A. Buttons:
These buttons are used to set the fan speeds as follows;
= Low Speed
= Medium Speed
= High Speed
B. Button:
This button turns the fan off.
C. Button:
These buttons turn the light ON or OFF and also control
the brightness settings of the light. The following
instructions apply to ceiling fans that feature a DOWN
light ( button) only or ceiling fans that feature an UP
light ( button) and a DOWN light ( button) that are
controlled independent of each other;
Press and release the button for the desired light to turn
the light ON or OFF. Press and hold the button to set the
desired light brightness. The light will cycle between
bright and dim settings as long as the button is pressed.
The light key has an automatic auto-resume feature that
allows the light to remain at the same brightness as the
last time it was turned off.
D. OFF-ON Slide Button (Wall Control Fans Only)
This button turns the power Off and On to the Fan and
Light(s).
E. Button: (Full Function Remote Control Units Only)
This button is used to change the direction of the
rotation of the blades; forward for warm weather or
reverse for cool weather.
NOTE: If your Remote Control or Wall Control does not
have a " " button, Please look for a slide reverse
switch on the motor housing.
Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time.

Speed settings for warm or cold weather
depend on factors such as room size, ceiling
height and number of fans.
NOTE: To change the direction of the rotation of
the blades the fan must be in operation mode.
Warm Weather (forward)
A DOWNWARD airflow creates a cooling effect
as shown in Figure 10. This allows you to set
your air conditioner on a warmer setting
without affecting your comfort.
Cool Weather (Reverse)
An UPWARD airflow moves warmer air off the
ceiling area as shown in Figure 11. This allows
you to set your heating unit on a cooler setting
without affecting your comfort.
FIG. 10 FIG. 11
WINTER OPERATION
(CLOCKWISE DIRECTION)
SUMMER OPERATION
(COUNTERCLOCKWISE DIRECTION)

10
Here are some suggestions to help maintain your fan.
1. Because of the fan's natural movement some connections may become
loose. Check the support connections, brackets and blade attachments
twice a year. Make sure they are secure. (It is not necessary to remove
fan from the ceiling).
2. Clean your fan periodically to help maintain its new appearance over
the years. Use only a soft brush or lint free cloth to avoid scratching the
finish. Plated finishes are sealed with lacquer to minimize discoloration
or tarnishing.
3. Use a lint free lightly damp cloth or duster to remove dust from the
blades.
4. There is no need to oil your fan. The motor has permanently lubricated
bearings.
5. If your fan is provided with glass shades, clean with lukewarm soapy water
and a soft cloth or sponge. DO NOT IMMERSE GLASS SHADES IN HOT WATER.
DO NOT PUT GLASS SHADES INTO AN AUTOMATIC DISHWASHER.
CARE OF YOUR FAN
WARNING!
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT
ANY REPAIRS. REFER TO THE SECTION,
"ELECTRICAL CONNECTIONS".

11
TROUBLESHOOTING
SYMPTOM
Fans/Light Turn On
and Off Unexpectedly
SOLUTION
This is caused by
interference, change the
code frequency from the
transmitter, and follow
the instructions from
Section 5 again to
operate your transmitter
and fan.
SYMPTOM
Fan Sounds Noisy
SOLUTION
Allow a 24-hour "break in" period.
Most noises associated with a
new fan will go away during this
time.
Make sure the screws that attach
the fan blade holder to the motor
hub is tight.
Make sure outlet box is secured
to building structure, if
necessary use the wood screws
provided to further secure
outlet box to joist.
Make sure hanger bracket is
secure to the outlet box, screws
are tight.
SYMPTOM
Fan will not start
SOLUTION
Check to make sure the wall switch is
turned on.
Check circuit fuses or breakers.
Caution! Make sure the power is turned
off before performing the following steps.
Remove canopy and check wire
connections.
Check wall control transmitter connections
(if applicable).
Note: Fan must be installed at a maximum
distance of 40 feet from the transmitting
unit for proper signal transmission
between the transmitting unit and the
fan's receiving unit.
SYMPTOM
Fan Wobble
SOLUTION
NOTE: All blade sets are grouped by
weight. Because wood and plastic blades
vary in density, the fan may wobble
even though blades are matched.
Make sure outlet box is secured to
building structure, if necessary use the
wood screws provided to further secure
outlet box to joist.
Make sure hanger bracket is secure to
the outlet box, screws are tight.
If a Balancing kit is provided follow the
instructions included with the balancing
kit to help correct any excessive wobble.
