Minka Group minkaAire Sundance F572-ORB User manual

INSTRUCTION MANUAL WARRANTY CERTIFICATE
SUNDANCE TM
BY

Minka-Aire®warrants to the original owner that this fan will be free from defects in material and workmanship for one
year from the date of purchase, excluding the motor. Minka-Aire®warrants to the original owner that the motor in this fan
shall be free from defects in This is a limited warranty. Minka-Aire®only obligation under this limited warranty is to replace
or repair, or refund the purchase price, in Minka-Aire®sole discretion without charge to the original owner, of the fan once Minka-Aire®confirms that
the fan has a defect covered by this limited warranty.
Call our customer service department at 1-800-307-3267 to obtain the name of the Minka-Aire®authorized dealer closest to your location, or
contact us through our web site, www.minkagroup.net and write to: Ask Mr. Minka if you have any questions or require further assistance.
To obtain warranty service, the owner should return the fan along with proof of purchase to a Minka-Aire®authorized dealer. The Minka-Aire®
authorized dealer shall then, at its sole discretion: repair the fan, replace the fan, refund the purchase price less the amount directly attributable to
the consumer's prior usage of the fan, or if necessary instruct the consumer to contact Minka-Aire®directly for warranty service. Minka-Aire®will be
responsible for the cost of any repair, or replacement for any warranty service provided by a Minka-Aire®authorized dealer for product under
warranty.
You may also at your preference obtain warranty service by returning the fan directly to Minka-Aire®along with proof of purchase, your name
and return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire®will be the
original owner's responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that
proves to be defective during the warranty period to the following address:
Minka-Aire®- Warranty Service, 1151 W. Bradford Court, Corona, CA 92882

This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal
of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the
fan was not designed. The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan, or any other costs.
This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and
Minka-Aire®shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or
limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. We encourage you to promptly
complete and return the enclosed warranty registration card. However, return of the warranty registration card is not a condition of this warranty.
Date Purchased Store Purchased Model No. F571/F572 Serial No.

CONTENTS
1151W. Bradford Court, Corona CA 92882 For Customer Assistance Call: 1-800-307-3267 LISTED
SAFETY FIRST 1
PACKAGE CONTENTS 2
BEGIN INSTALLATION 3
HANGING THE FAN 4
ELECTRICAL CONNECTIONS 5
FINISHING THE INSTALLATION 6
ATTACHING THE FAN BLADES 7
INSTALLING THE SWITCH CAP 8
OPERATING YOUR FAN 9
MAINTENANCE 10
TROUBLESHOOTING 11
SPECIFICATIONS 12

1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2.Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from
the floor and 18 inches from the tip of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked Acceptable for Fan Support. Secure the
box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds)
Do not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10.Turn the fan off and wait for the blades to stop completely before performing any cleaning or maintenance.
1
SAFETY FIRST
SUITABLE FOR USE IN
WET LOCATIONS

WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLYTO A U.L. LISTED OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN
CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF
LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN
DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
NOTE:The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person (s) installing, caring for and operating the unit.
This Fan is suitable for Use In Wet Locations When Installed In A GFCI Protected Branch Circuit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!

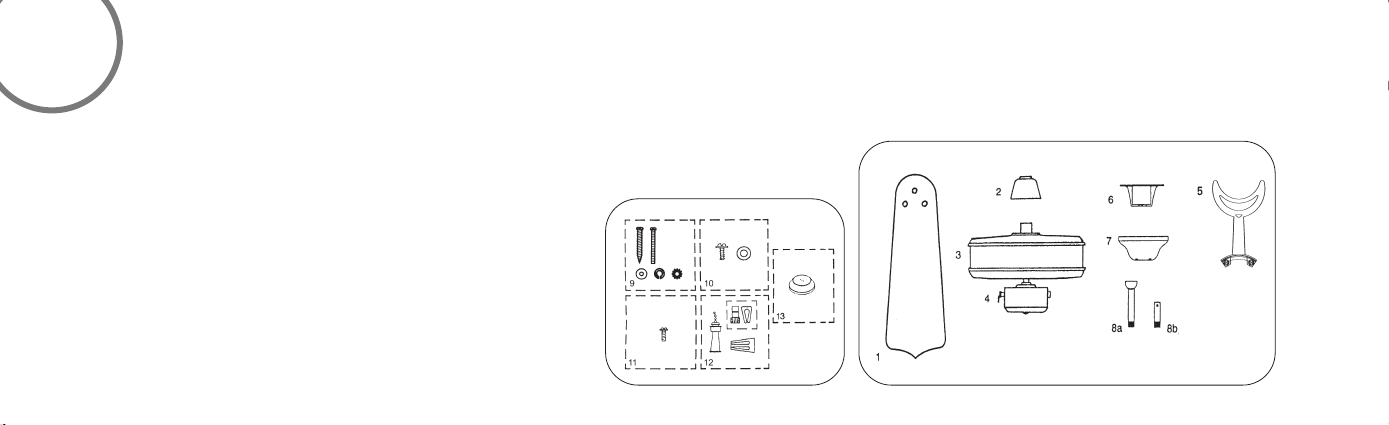

1. Fan blade
2. Coupling cover
3. Fan motor/housing ass'y
4. Switch Cup
5. Blade bracket
6. Mounting bracket with
Rubber pad attached
7. Canopy
8a. Standard downrod ass'y
with rubber cap
8b. Minimum-length
downrod (for close to
ceiling mounting only)
9. Mounting Hardware :
#8-32X38mm machine
screws (2 pcs)
#10-12X38mm wood
screws (2 pcs)
Spring washers (2 pcs)
Star washers (2 pcs)
Flat washers (2 pcs)
10. Blade Attachment Hardware:
3/16X9mm screws (16
pcs)
5X13mm rubber washers
(16 pcs)
11. Bracket Attachment
Hardware:
1/4"X11mm screws (11 pcs)
12. Switch Cup Hardware:
Pull Chain Fb (1pc.)
Wire Nuts (3 pcs.)
Balancing Kit
13. Rubber Cap (1pc.)
2
PACKAGE CONTENTS
Unpack your fan and check the contents. You should have the following items:

BEGIN INSTALLATION
MOUNTING OPTIONS
If there isn't an existing outlet box, then read the following instructions. Shut the
power off at the circuit breaker or fuse box.
Secure the outlet box directly to the building structure. Use appropriate fasteners and
building materials. The outlet box and its support must be able to fully support the
moving weight of the fan (at least 50 lbs.). Use a U.L. Listed metal outlet box marked
"Acceptable for ceiling fan support". Do not use a plastic outlet box.
Figures 1,2 and 3 are examples of different ways to mount the outlet box.
Note:You may need a longer downrod to maintain proper blade clearance when
installing on a steep,sloped ceiling. Longer downrods are available from your Minka-
Aire®dealer.
To hang your fan where there is an existing fixture but no ceiling joist,you may need
to install a hanger bar as shown in Fig. 4 (available at your Minka-Aire®dealer).
Tools Required: Phillips screw driver; slotted screw driver;pliers;wire cutters; electrical tape. 3
CEILING JOIST
CEILING JOIST
OUTLET BOX
CROSS BRACE
PARALLEL WOOD BRACE
(MIN. 2" THICK)
OUTLET
BOX
CEILING JOIST
OR CROSS BRACE
Fig.1 Fig.2
Fig.3 Fig.4
ANGLED CEILING
MAXIMUM 29
ANGLE
PROVIDE
STRONG
SUPPORT
HANGER
OPENING
MUST
BE FACING
UP-SIDE OUTLET BOX
HANGER BAR
(OPTIONAL)
CEILING
JOIST
HANGER
BRACKET

HANGING THE FAN
4
REMEMBER to shut the power off at the circuit breaker or fuse box.
Step 1. Secure the hanger bracket to the ceiling outlet box using screws
provided with the outlet box and flat washers included with the fan.
(Fig. 5) Note: Optional wood screws are provided for mounting of
hanger bracket directly to buliding structure.
Step 2. Loosen the two set screws in the top coupling of the top
housing assembly. (Fig. 6)
Step 3. Remove downrod hanger ball by loosening set screw, removing
the cross pin, and sliding ball off rod. Remove the hitch pin and lock
pin.(Fig. 7)
Step 4. Carefully feed fan wires up through the downrod and then
through the holes in the rubber cap on the top of the downrod. Insert
the rod into the coupling and tighten onto fan until the holes are
aligned. Next, replace lock pin and hitch pin. Tighten the set screws.(Fig.
8)
Step 5. Slip coupling cover, and canopy onto downrod. Let canopy rest
on top of the coupling cover.Carefully reinstall hanger ball onto rod
being sure that cross pin is in correct postition, set screw on hanger ball
is tight and wires are not twisted.(Fig.8)
Step 6. Now lift motor assembly into position and place downrod ball
into hanger bracket. Rotate until the check groove has dropped into the
registration slot and seats firmly. Rod should not rotate if this is done
correctly.(Fig.9)
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety
and the proper installation of your new ceiling fan. The use of other parts,
hardware or components not supplied by Minka Aire with the fan will
void the Minka Aire Warranty.

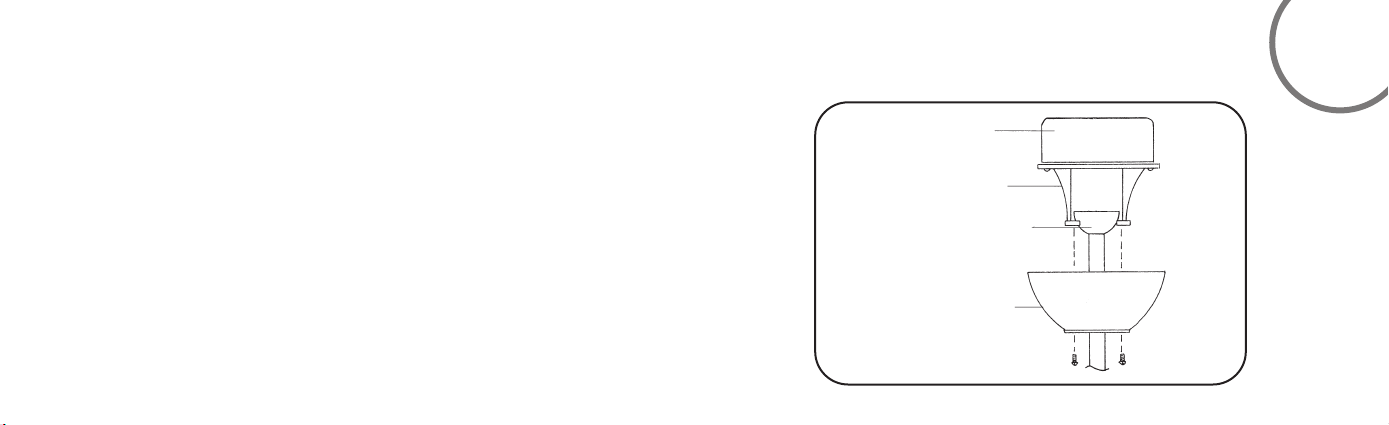

Fig.5
SET SCREW
Fig.6 Fig.7
Fig.8
Fig.9
HITCH PIN
SET SCREW
CROSS
PIN
DOWNROD
LOCK PIN
OUTLET BOX
HANGER BRACKET
SET SCREW
HITCH PIN
LOCK PIN
RUBBER CAP
CANOPY
COUPLING
COVER
REGISTRATION
SLOT

REMEMBER to shut the power off at the circuit breaker or fuse
box.
Follow the steps below to connect the fan to your house supply wires.
Use the wire nuts supplied with your fan. Secure the wire nuts by
wrapping the connection with electrical tape.
Step 1. Connect the black(hot)wire from the ceiling to the black and the
blue wires from the fan. Connect the white(Neutral)wire from the
ceiling to the white wire from the fan.(Fig 10)
Step 2. If your outlet has a ground wire(Green or Bare Copper)connect
the fan ground wires (on hanger ball and hanger bracket)to it;otherwise,
connect the fan ground wire on hanger ball directly to hanger bracket.
Step 3. After the splices are made, spread the wires apart so that the
green and white wires are one side of the outlet box and the black wire
(and the blue wire if light kit is installed)are on the other side of the
outlet box. Turn splices upward and tuck them carefully into outlet box.
Figure 11 & 12 Illustrate the wiring connections using optional wall unit.
(Available at your Minka-Aire®Retailer.)
NOTE: If a light kit is not included with your fan, one can be purchased
at your Minka-Aire®Retailer. Use only with light kits marked "Suitable
for use in wet location."
ELECTRICAL CONNECTIONS
5

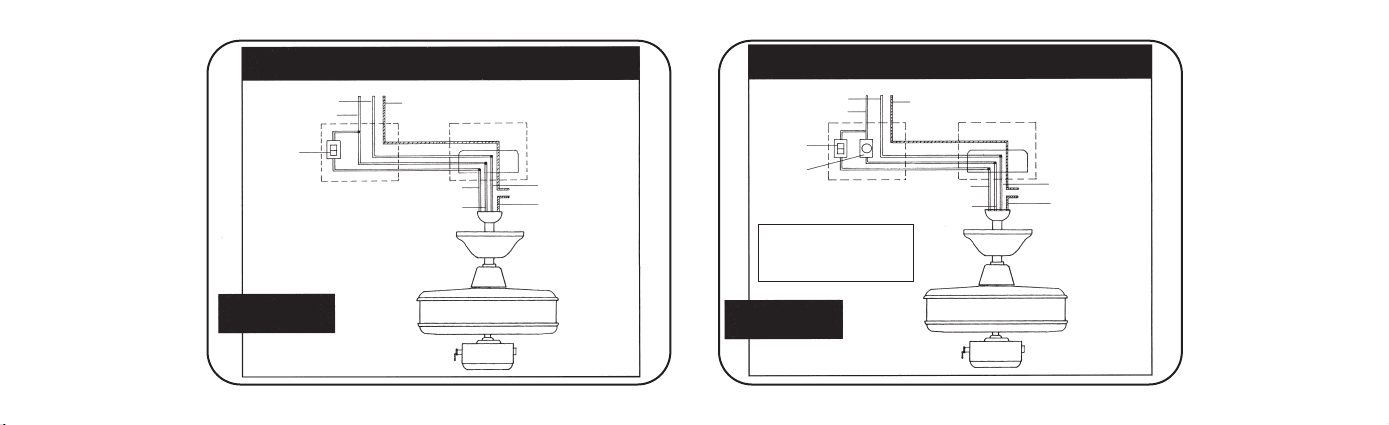

Fig.10
HOUSE WIRE SUPPLY
FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY PULL CHAIN.
GREEN (GROUND)
CEILING
WALL
WHITE (NEUTRAL)
WHITE (NEUTRAL)
GROUND-
(CONNECT TO
GROUND WIRE
ON HANGER
BRACKET IF NO
HOUSE GROUND
WIRE EXISTS.)
BLACK (HOT)
BLUE (OPTIONAL LIGHT)
BLACK (MOTOR)

Fig.12
Fig. 11
HOUSE WIRE SUPPLY
GREEN (GROUND)
CEILING
WALL
WHITE (NEUTRAL)
WHITE (NEUTRAL)
GROUND-
(CONNECT TO
GROUND WIRE ON
HANGER
BRACKET IF NO
HOUSE GROUND
WIRE EXISTS.)
BLACK (HOT)
LIGHT
SWITCH
BLUE (OPTIONAL
LIGHT)
BLACK (MOTOR)
HOUSE WIRE SUPPLY
GREEN (GROUND)
CEILING
WALL
WHITE (NEUTRAL)
WHITE (NEUTRAL)
GROUND-
(CONNECT TO
GROUND WIRE ON
HANGER
BRACKET IF NO
HOUSE GROUND
WIRE EXISTS.)
BLACK (HOT)
LIGHT
SWITCH
FAN WALL
CONTROL BLUE (OPTIONAL
LIGHT)
BLACK (MOTOR)
FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH. FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH.
WIRING
OPTION 1 WIRING
OPTION 2
NOTE: SOME WALL UNITS
INCRPORATE BOTH LIGHT
SWITCH AND FAN WALL
CONTROL IN ONE HOUSING.

6
Step 1. Slide canopy up against ceiling. Align key holes in canopy with screws on
hanger bracket and rotate canopy clockwise to lock it into place. Secure canopy to
hanger bracket by tightening the two screws. (Fig. 13)
FINISHING THE INSTALLATION
Fig.13
HANGER
BRACKET
HANGER
BALL
CANOPY
OUTLET BOX

Step 1. Attach the fan blade to the blade
bracket using rubber washer and screws provided.
Tighten screws securely. Repeat for remaining
blades. (Fig. 14)
Step 2. Remove and discard the rubber stops from
the motor.Align holes in blade bracket and motor
and secure with proper screws. Repeat process
with the other blade brackets.(Fig. 15)
ATTACHING THE FAN BLADES
7
Fig.14
RUBBER WASHERS
FAN BLADE
BLADE BRACKET
Fig.15
FAN MOTOR
FAN BLADE
BLADE BRACKET

8
Step 1. Remove the screws from the switch housing.
Step 2. Insert the switch cap into the switch housing, align slot from switch cap
with the slide switch in the switch housing and push firmly in place.
Step 3. Secure the switch cap to the switch cup using the screws previously
removed. (Fig. 16)
INSTALLING THE SWITCH CAP
Fig.18 SWITCH CUP CAP
SWITCH HOUSING
OPTONAL
LIGHT KIT
WIRING
(SEE
INSTRUCTIONS
INCLUDED
WITH THE
LIGHT KIT.)
SLIDE
SWITCH
SLOT

Restore power to ceiling fan and test for
proper operation.
Speed settings for warm or cool weather
depend on factors such as the room
size,ceiling height, number of fans,etc.
The slide switch, on the switch cup,controls
the forward or reverse direction of the fan.
Down or to the left is for warm weather
operation. Up or to the right is for cool
weather operation.
NOTE
Wait for fan to stop before changing
thesetting of the SLIDE SWITCH.
Warm weather- (Forward)
A downward air flow creates a cooling effect
as shown in Figure 17.This allows you to set
your air conditioner on a warmer setting
without affecting your comfort.
Cool weather- (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fighre 18.This allows you to set your
heating unit on a cooler setting without
affecting your comfort.
The pull chain on your fan controls the speed
settings as follows:
1st pull-High Speed
2nd pull-Medium Speed
3rd pull-Low Speed
4th pull-Turns Fan Off
9
OPERATING YOUR FAN

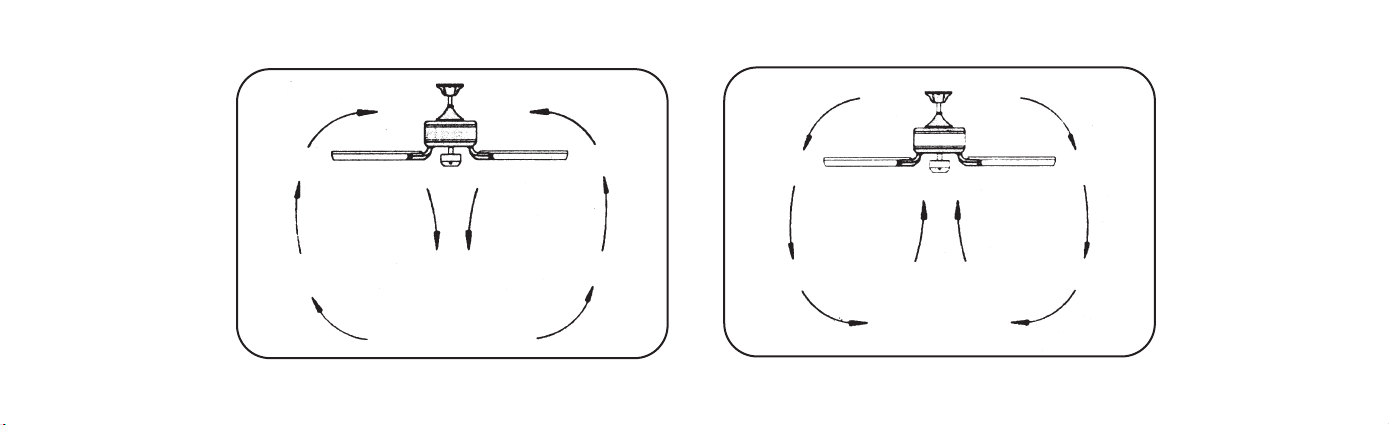

Fig.17 Fig.18
SUMMER OPERATION WINTER OPERATION

Here are some suggestions to help you maintain your fan.
1. Because of the fan's natural movement, some connections may
become loose. Check the support connections, brackets, and blade
attachemets twice a year. Make sure they are secure. (It is not necessary
to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance ovetr
the years.
3. Use only a soft brush or lint-free cloth to aviod scratching the finish.
The plating is sealed with a lacquer to minimize discoloration or
tarnishing.
4. There is no need to oil your fan. The motor has permanently
lubricated bearings.
10
MAINTENANCE
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION,
"MAKING ELECTRICAL CONNECTIONS".
