Miraclebox 9 Twin HD PVR User manual

Usermanual / Användarmanual

3
INDEX
INDEX...................................................................................................................................3
Precautions .........................................................................................................................5
1. Important Safety Instructions......................................................................................................5
2. Notice .........................................................................................................................................5
3. Copyright....................................................................................................................................6
4. Disclaimer...................................................................................................................................6
5. Trademarks ................................................................................................................................6
Before You Begin................................................................................................................7
1. Main Features ............................................................................................................................7
2. Accessories................................................................................................................................8
Hardware Description.........................................................................................................9
1. Front Panel Configuration ..........................................................................................................9
2. VFD(Vacuum Fluorescent Display)............................................................................................9
3. Rear Panel Configuration.........................................................................................................10

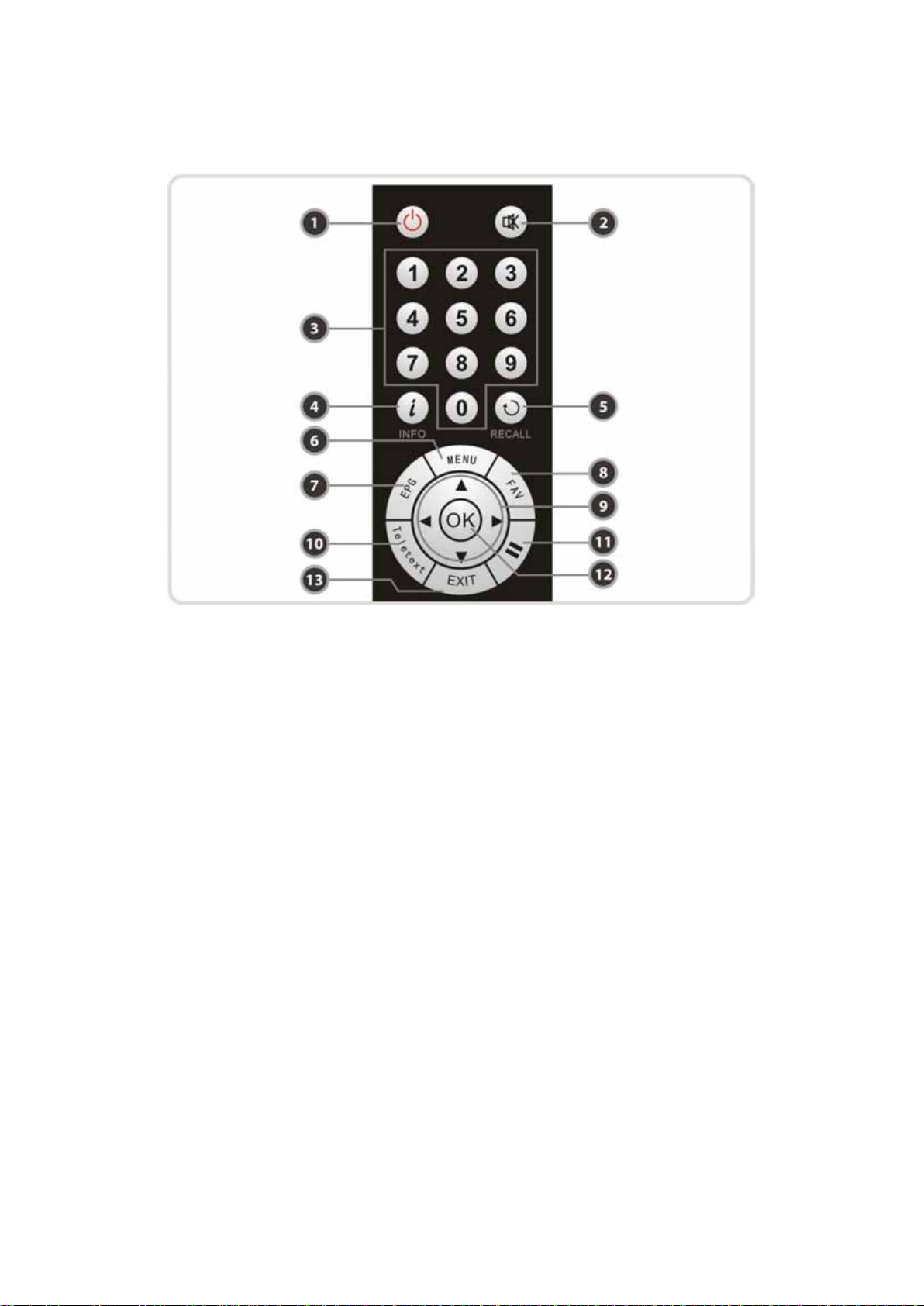

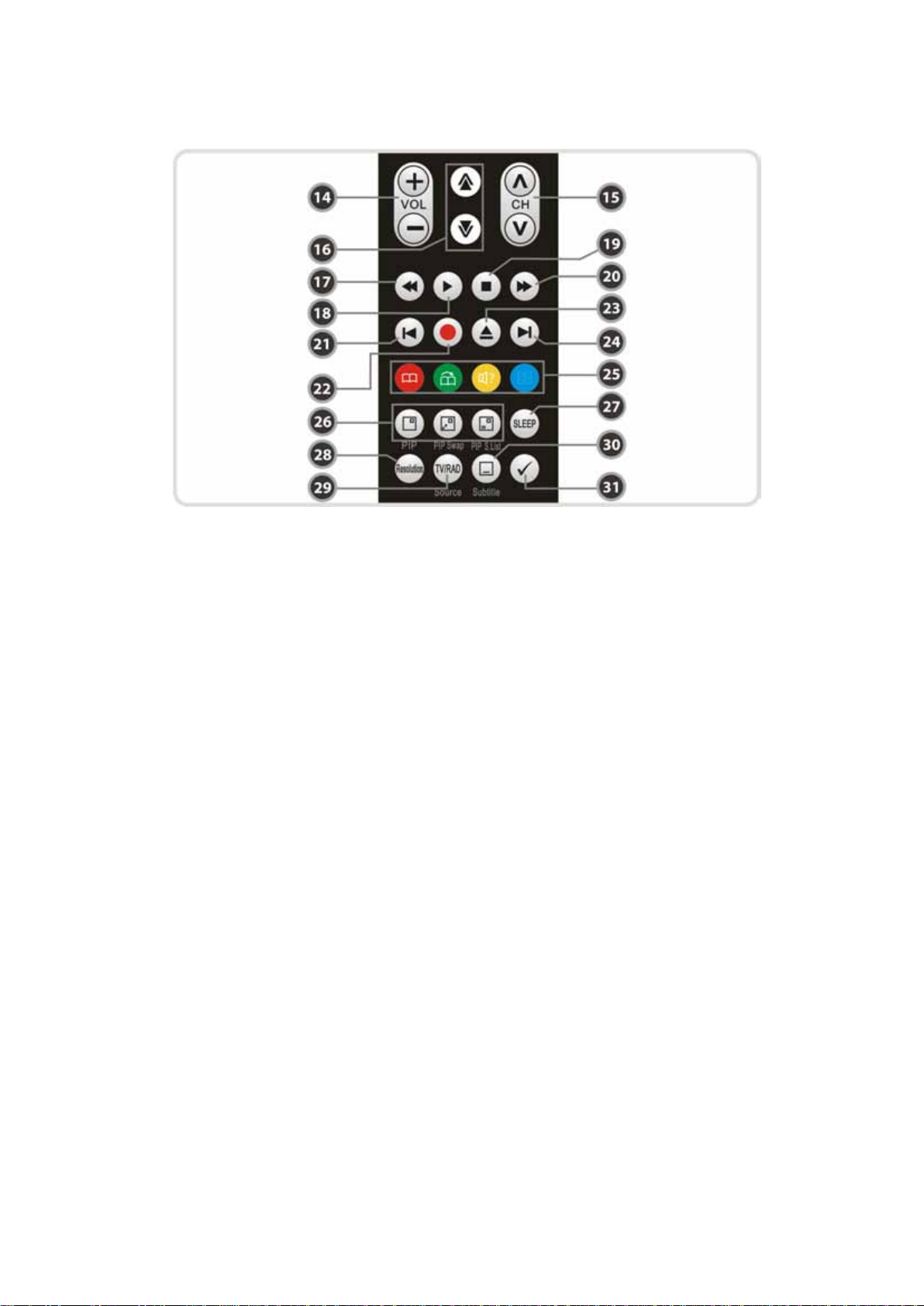

4. Remote Control Unit.................................................................................................................13
Connecting diagram .........................................................................................................16
1. Receiver to A/C power..............................................................................................................16
2. Receiver to TV with Digital A/V Output.....................................................................................16

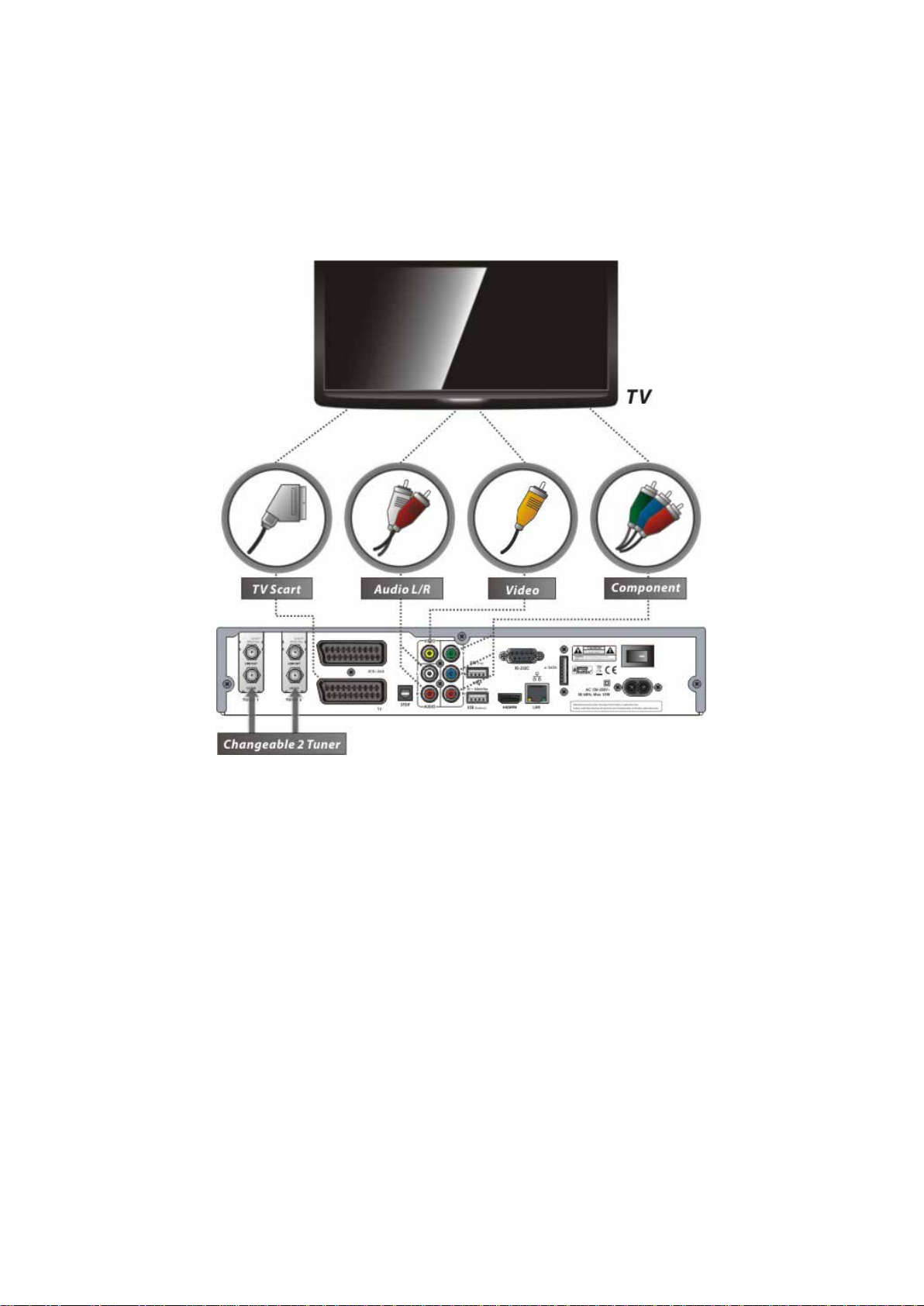

3. Receiver to TV with Analog A/V Output....................................................................................17
4. Receiver to TV and VCR..........................................................................................................18
5. Connecting to Antenna Cable ..................................................................................................19
5.1 In case of S2 + S2 (Satellite + Satellite) tuners................................................................19
5.2 In case of T(T2) + T(T2) (Terrestrial + Terrestrial) tuners.................................................20
5.3 In case of C + C (Cable + Cable) tuners..........................................................................20
5.4 In case of S2 + T(T2) (Satellite + Terrestrial) tuners ........................................................21
5.5 In case of S2 + C (Satellite + Cable) tuners.....................................................................21
5.6 In case of T(T2) + C (Terrestrial + Cable) tuners .............................................................21
Guide of Functions ...........................................................................................................22
1. Selecting a Service...................................................................................................................22
1.1 Using CH UP/DOWN buttons..............................................................................................22
1.2 Using Service List ...............................................................................................................22
1.3 Using Simple Service List ...................................................................................................22
1.4 Using Recent Service List...................................................................................................23
2. Information Window..................................................................................................................23
3. Multi-Picture Display.................................................................................................................23
4. Electronic Program Guide (EPG).............................................................................................23
5. Favorite Group .........................................................................................................................24
6. Volume Control.........................................................................................................................24
7. Pause .......................................................................................................................................24
8. Subtitle......................................................................................................................................25
9. Audio Control............................................................................................................................25
10.Teletext.....................................................................................................................................26
11. PIP (Picture in Picture).............................................................................................................26

4
PVR (Personal Video Recorder) Function.......................................................................28
1. Recording.................................................................................................................................28
1.1 Recording methods.............................................................................................................28
1.2 Recording Edit.....................................................................................................................30
1.3 Long Time recording ...........................................................................................................30
1.4 Pause during recording.......................................................................................................30
2. Time Shifting.............................................................................................................................32
3. Playback (Play List)..................................................................................................................33
3.1 Recorded Files....................................................................................................................33
3.2 Imported Files .....................................................................................................................34
3.3 Music...................................................................................................................................34
3.4 Photo...................................................................................................................................34
4. Bookmark .................................................................................................................................35
5. Trick mode................................................................................................................................35
Menu Map..........................................................................................................................36
Main Menu of Guide..........................................................................................................37
1. System Tools............................................................................................................................37
1.1 Storage Manager.................................................................................................................37
1.2 Timer Settings .....................................................................................................................38
1.3 Service List Manager ..........................................................................................................38
1.4 Data Transfer.......................................................................................................................40
2. Configuration............................................................................................................................41
2.1 Recording Option ................................................................................................................41
2.2 Parental Control ..................................................................................................................42
2.3 Display Setting ....................................................................................................................42
2.4 Time Setting........................................................................................................................43
2.5 Language Setting................................................................................................................43
2.6 A/V Output Setting ..............................................................................................................44
3. Installation ................................................................................................................................45
3.1 Dish Setting.........................................................................................................................46
3.2 Positioner Setting................................................................................................................47
3.3 Service Search....................................................................................................................48
3.4 Network Setting...................................................................................................................51
3.5 System Recovery................................................................................................................52
3.6 System Information.............................................................................................................52
4. Utility.........................................................................................................................................53
4.1 Calculator............................................................................................................................53
4.2 Calendar..............................................................................................................................53
4.3 CAS (Conditional Access System)......................................................................................53
4.4 Plugin ..................................................................................................................................54
4.5 YouTube..............................................................................................................................55
Troubleshooting................................................................................................................57
Specifications....................................................................................................................58

5
Precautions
1.Important Safety Instructions
lRead these instructions.
lKeep these instructions.
lHeed all warnings.
lFollowall instructions.
lDo not use this apparatus nearwater.
lClean only with dry cloth.
lDo not block anyventilation openings. Install in accordance with the manufacturer’s instructions.
lDo not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
lDo not reverse the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacementof the obsolete outlet.
lProtect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where theyexit from the apparatus.
lOnly use attachments/accessories specified by the manufacturer.
lUse only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
lUnplug this apparatus during lightning storms or whenunused for long periods of time.
lRefer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled orobjects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, orhas been dropped.
WARNING: ToPreventfireorshockhazarddonotexposethesettorainormoisture.
2.Notice
lThese servicing instructions are for use by qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.
lThe apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such asvases, shall be placed on the apparatus.
lThe mains plug is used as the disconnectdevice. The disconnect device shall remain readily operable.

6
To reduce the risk of electric shock, do not remove
the cover (or back).
No user serviceable partsare inside.
Refer servicing to qualified service personnel.
The Lightning Flash with arrowhead symbol
within an equilateral triangle, is intended to
alert the user to the presence of un-insulated
"dangerous voltage" within the product
enclosure thatmay be of sufficient magnitude
to constitute a risk of shock to persons
The exclamation point within an
equilateral triangle is intended to alert
the userto the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the product
3.Copyright
Thismanual is protected by copyright laws.
Copy, use and reproduction of this manual in part or whole without Manufacturer’s prior written
approval are prohibited.
4.Disclaimer
The manufacturers, distributors and agents are not liable to any kind of damage caused by the
use of the information contained in this manual.
The instruction and descriptions which this manual contains are based on the time of this
manual's production.
The manufacturer constantly updates it with new functions and technology.
All the specifications are subject to change withoutprior notice.
5.Trademarks
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.

7
Before You Begin
1.Main Features
For the feature of DVB-S/S2, Satellite tuner only
üSupports MPEG4 /MPEG2 -HD/SD and Fully DVB-S2 /DVB-SCompliant
üIntelligentBlind Scan for both SD and HD TV &Multi-Satellite Search
üMulti-LNB Controlled by DiSEqC Control Version 1.0, 1.1, 1.2 and USALS
For the feature of DVB-C, Cable tuner only
üSupports MPEG4 /MPEG2 -HD/SD and Fully DVB-CCompliant
For the feature of DVB-T, Terrestrial tuner only
üSupportsMPEG4 /MPEG2 -HD/SD and Fully DVB-T Compliant
For the feature of DVB-T2, Terrestrial tuner only
üSupports MPEG4 /MPEG2 -HD/SD and Fully DVB-T2Compliant
Common features for all types of DVB receivers
üTwin Tuner HDTV PVR Receiver (H.264/ MPEG4 HD )
üEmbedded Linux OS
üTime Shifting, Recording & Playback with Internal HDD (SATA) / External HDD (E-SATA orUSB2.0)
üSimultaneously Records of 3 Services and allows Watching 2 others (PIP)
üPowerful Extended EPGsupports and Event Recording
üThree USB 2.0 Host ports (MP3 Player &JPEG Viewer)
üXvid file play back supported
üEthernet port Supported
üPremium Grade White VFDDisplay(12DigitAlphanumeric)
üPremium Grade Universalremote control unit
üOn-Screen DisplaywithFull Color & Resolution
üFavorite Groups
üPowerful ServiceList Manager for Favorites, Lock, Skip, Move, Edit andDelete
üService Sorting byAlphabet, Transponder andCAS
üUserFriendly & Multi-language Supported (OSD &Menu)
üTeletext / Subtitle Supported
üMaximum 10,000 Services(TV & Radio) Programmable
üPicture-in-Picture (PIP)& Multi-picture Display
üParental Lock / System Lock / Installation Lock
üHDMIVideo & AudioOutput(576i, 576p, 720p,1080i, 1080p)
üSupportsY/Pb/Pr(component) Output in HD
üCVBS(composite) Video & Audio Output via RCA
üCVBS, RGB, Y/C Video &Audio Output via TV SCART
üOptical Output for Digital Audio(SPDIF)
üSoftware & Service channelDatabase upgrade viaUSB& RS-232C port
ü2 Smart card reader and 2 Common Interface Slots
ü1W Stand-by Power Consumption

8
2.Accessories
NOTE : If any accessories listed above are missing, contact the sales representative where you
purchased this unit.
User's Manual
AAAsizeBatteriesX2
LoopthroughCable
RemoteControl
HDMICable
ACPower Cord

9
Hardware Description
1.Front Panel Configuration
1. POWER BUTTON : Press to switch between STANDBY and POWERON modes.
2. Vol Up/Down BUTTON :Press to change audio volume in normal mode or to navigate menu in
menu mode.
3. CH Up/Down BUTTON :Press to change services in normal mode, or to move highlighted-bar in
menu mode.
4. RemoteSensor : Receives signal from remote controller.
5. VFD Display : The VFD consists of 12-digit letter. These letters display the current status of receiver
such asservice name, service information and so on.
6. USB(Front): Use itwhen connecting to external USB storage device.
7. SMART CARD READER : Insert smart card for encrypted service access.
8. PCMCIA : To receive other pay-tv service you need a CA-Module(Viaccess, Irdeto, Nagravison, etc.)
and a smart card from the service provider.
2.VFD(Vacuum Fluorescent Display)
1. Remote Indication LED : The LED lights on when a
key on the Remote Controller is pressed.
2. Information : Display information including service
name and otherinformation.

10
3.Rear Panel Configuration
1. VCR SCART : Connects to the VCR or DVD using aVCR SCART cable.
2. TV SCART : Connects to the TV input using a TV SCART cable.
3. SPDIF : Connects to the audio system using a S/PDIF cable.(digital audio)
4. VIDEO : Connects to theTV orVCR using a RCAcable. (Composite video output /Yellow)
5. AUDIOL/R : Connects to theTV orVCR usinga RCA cable. (Stereo audio output / White, Red)
6. Component : Connects to the TV orVCR using a component cable. (YPbPr)
7. USB : Use it when connecting to external USB storage device.
8. HDMI : Connects to theTV by usinga HDMI cable for the best quality picture and audio.
9. RS-232C : Serial port for firmware update and data transfer.
10. Ethernet : Local area network port for direct computer connection.
11. e-SATA : Connects to the external HDD viae-SATA cable.
12. A/C Switch : Power switch
13. A/C power cablesocket : Connects to A/C power cord.
Two tuners can beinstalled in differentcombination as follows.
For the professionalinstallation of these tuners, please ask your local agent
or dealers forfurther assistance.

11
ØIncaseof S2 + S2
[TUNER 1 ]
1. LNBIN(Caution:Socket on theleftbottom)
Satellite broadcasting signal input socket for the first tuner
(TUNER 1). Connects a satellite antenna LNB cable.
2. LNBOUT
Satellite broadcasting signal output socket through the
first tuner (TUNER 1). Connects to a second tuner (TUNER
2) forloop-through.
[TUNER 2 ]
3. LNBIN(Caution : Socket on theright bottom)
Satellite broadcasting signal input socket for the second
tuner (TUNER 2). Connects a satellite antenna cable or from the first tuner (TUNER 1) LNB OUT
connector.
4. LNBOUT
Satellite broadcasting signal output socket through the second tuner (TUNER 2). Connects to another
STB for loop-through.
ØIncaseof T(T2)+ T(T2)
[TUNER 1 ]
1. ANTIN
Terrestrial broadcasting signal input socket for the first
tuner (TUNER 1). Connects an aerial antenna.
2. LOOPOUT
Terrestrial broadcasting signal output socket through the
first tuner (TUNER 1). Connects to second tuner (TUNER 2)
forloop-through.
[TUNER 2 ]
3. ANTIN
Terrestrial broadcasting signal input socket for the second
tuner (TUNER 2). Connects a aerial antenna cable or loop-
through cable from the first tuner (TUNER 1).
4. LOOPOUT
Terrestrial broadcasting signal output socket through the second tuner (TUNER 2). Connects to
anotherSTB for loop-through.
ØIncaseof C+C
[TUNER 1 ]
1. CABLEIN
Cable broadcasting signal input socket for the first tuner
(TUNER 1). Connects a cable antenna.
2. CABLEOUT
Cable broadcasting signal output socket through the first
tuner (TUNER 1). Connects to second tuner (TUNER 2) for
loop-through.
[TUNER 2 ]
3. CABLEIN
Cable broadcasting signal input socket for the second
tuner (TUNER 2). Connects a cable antenna or loop-
through cable from the first tuner (TUNER 1).
4. CABLEOUT
Cable broadcasting signal output socket through the second tuner (TUNER 2). Connects to another
STB for loop-through.

12
ØIncaseof S2+ T(T2)
[ TUNER 1 ]
1. LNBIN(Caution : Socket on theleftbottom)
Satellite broadcasting signal inputsocket for the first tuner
(TUNER 1). Connects a satellite antenna LNB cable.
2. LNBOUT
Satellite broadcasting signal output socket through the
first tuner (TUNER 1). Connects to another STB for loop-
through.
[TUNER 2 ]
1. ANTIN
Terrestrial broadcasting signal input socket for the second
tuner (TUNER 2). Connects a aerial antenna cable.
2. LOOPOUT
Terrestrial broadcasting signal output socket through the
second tuner (TUNER 2). Connects to another STB for loop-through.
ØIncaseof S2+ C
[TUNER 1 ]
1. LNBIN(Caution : Socket on theleftbottom)
Satellite broadcasting signal input socket for the first tuner
(TUNER 1). Connects a satellite antenna LNB cable.
2. LNBOUT
Satellite broadcasting signal output socket through the
first tuner (TUNER 1). Connects to another STB for loop-
through.
[TUNER 2 ]
3. CABLEIN
Cable broadcasting signal input socket for the second
tuner (TUNER 2). Connects a cable antenna.
4. CABLEOUT
Cable broadcasting signal output socket through the
second tuner (TUNER 2). Connects to another STB for loop-through.
ØIncaseof T(T2)+C
[TUNER 1 ]
1. ANTIN
Terrestrial broadcasting signal input socket for the first
tuner (TUNER 1). Connects a aerial antenna.
2. LOOPOUT
Terrestrial broadcasting signal output socket through the
first tuner. Connects to another STB for loop-through
signal.
[TUNER 2 ]
3. CABLEIN
Cable broadcasting signal input socket for the second
tuner (TUNER 2). Connects a cable antenna.
4. CABLEOUT
Cable broadcasting signal output socket through the second tuner (TUNER 2). Connects to another
STB for loop-through.

13
4.Remote Control Unit
1. POWER :Turns the STB On/Off.
2. MUTE :Turns the sound On/Off.
3. Numeric: Controls the numerical operation and service numbers directly.
4. Information : Shows the information box of the current program. If you press one more time, a detail
information box will be shown.
5. Recall: Moves to previous service.
6. Menu :To enter the mainmenu or to move to the previous menu.
7. EPG(ElectronicProgram Guide): Show the TV/Radio program guide.
8. Favorite :To display the satellites programmed into the receiver and the favorite groups.
9. ARROW Buttons
a. Up & Down Key :To change the value of a selected item with preprogrammed values in menu.
b.Left & Right Buttons :To move the cursor left and right in menu.
10.Teletext:To show the digital teletext.
11.Pause :This key is used to pause the video. Press once more to resume the video.
12.OK or Service List : Show the service list in non-menu mode and select an item or confirm in menu
mode.
13.EXIT : Exit from the menu or pop-up window.

14
14.VolumeUp &Down:To change theVolume.
15.Channel Up&Down:To change theTV or Radio service channel.
16.Page Up& Down : Move to the next or previous page if more than one page is available. This button
also is change the location of sub picture in PIP.
17.Rewind : Rewinds at high speed. Eachtime you press this button the rewind speed is increased.
18.Play / Time shift : Display the progress bar of playback when no progress bar is displayed. Start
playback with normal speed. Return to normal speed from trick mode.
19.STOP:To stop time shifting, play back or recording.
20.FastForward : Fasts forward at high speed. Each time you press this button the speed is increased.
21.Previous File : To play the previous MP3 file in MP3 play mode. This button is also used to jump back
to beginning of recording during a playback.
22.Recording :To start Recording.
23.Play List :To show the file list in the SATA HDD or USB Storage Device.
24.Next File :To play the next file.This button is also used to jump to end ofrecording duringa playback.
25.Color Buttons
a. RED : Used for special function in menu. RED key is used to sort lists in service list or go to previous
day search in EPG or make/delete the current position as a bookmark.
b.GREEN : Used for special function in menu. GREEN key is used to set favorites setting in service list
or go to the next bookmark position.
c. YELLOW : Used for special function in menu. YELLOW key is used to find service in service list or
change the audio track.
d.BLUE : Used for special function in menu. BLUE key is used to set service listoption in service list or
display Multi-Picture.

15
26.PIPButtons
a. PIP(Picture in Picture) : To open the PIP window.
b.PIPSwap : Switching between main-picture and sub-picture
c. PIP(Picture in Picture) Service List :To shown the sub-picture service list.
27.Sleep :To adjust sleep timer.
28.Resolution : To select the resolution format. Each time you press the Resolution button, the
resolution changes in the following sequence: 576i>576p>720p> 1080i>1080p
29.TV/RADIO : Switches between TV and Radio.
30.Subtitle:To show multilingual subtitle.
31.Repetition (*):This key is used to play back a recording repeatedly.
NOTE : (*) This button(Repetition) will be supported later, by new s/w version by upgrading.
Please refer to your local dealer / distributor.

16
Connecting diagram
1.Receiver to A/C power
lConnect the A/C power cord between A/C power cord socket of receiver and A/C outlet.
2.Receiver to TV with Digital A/V Output
lConnect the HDMI Cable to the HDMI Connector of the TV.
lConnect SPDIF to Digital audio input of the equipment(Digital Audio)
NOTE : Depending on the A/V equipment you own, there are various ways you can connect
the STB. To choose the best connection option, please refer to the manual of the
equipment you would like to connect to. To get High Definition playback of High
Definition content, we recommend that you connect your high definition display
with a HDMI cable. HDMI supports standard, enhanced or high-definition video
and multichannel audio in a single cable.

17
3.Receiver to TV with Analog A/V Output
lConnect the TV SCART to the SCART input of theTV.
lConnect the Component to the Component input ofthe TV.
lConnect the RCA to the RCA inputof theTV.
NOTE : The component connection(YPbPr) is recommended for Digital TV.
The SCART cable connection is recommended for analogue TV or VCR
The composite connection(RCA cable) is recommended for analogue TV
You cannot view high definition video with the SCART and the composite video
connector.

18
4.Receiver to TV and VCR
lConnect the TV SCART to the SCART input of theTV.
lConnect the VCR SCART to the SCART inputof the VCR.

19
5.Connecting to Antenna Cable
5.1 In case of S2 + S2(Satellite + Satellite) tuners
lConnecting one dishto both tuners by Loopthrough
lConnecting each Dish to each Tuner
lConnecting Antenna cable to each Tuner using DiSEqC SW (Recommend)

20
5.2 In case of T(T2) + T(T2)(Terrestrial + Terrestrial) tuners
lConnecting one aerial antenna to both tuners by Loop through
lConnecting two aerial antenna to eachTuner
5.3 In case of C + C (Cable +Cable) tuners
lConnecting one broadcasting cable to both tuners by Loop through
lConnecting two broadcasting cable to each Tuner
