miseno MH00436G User manual

Installation, Use and Care Guide
2014.SEP
READ AND SAVE THESE INSTRUCTIONS
MODEL #.
MH00436G

www.build.com

1
SAFETY NOTICE ................................................................. 2-3
LIST OF MATERIALS....................................................... 4
INSTALLATION
Ducting Calculation Sheet....................................... 5
Mounting Height & Clearance................................ 6
Ducting Options ........................................................... 7
Hood Specifications ................................................... 8
Mounting the Hood..................................................... 9-11
Ductless Recirculating .............................................. 12
FEATURES & CONTROLS

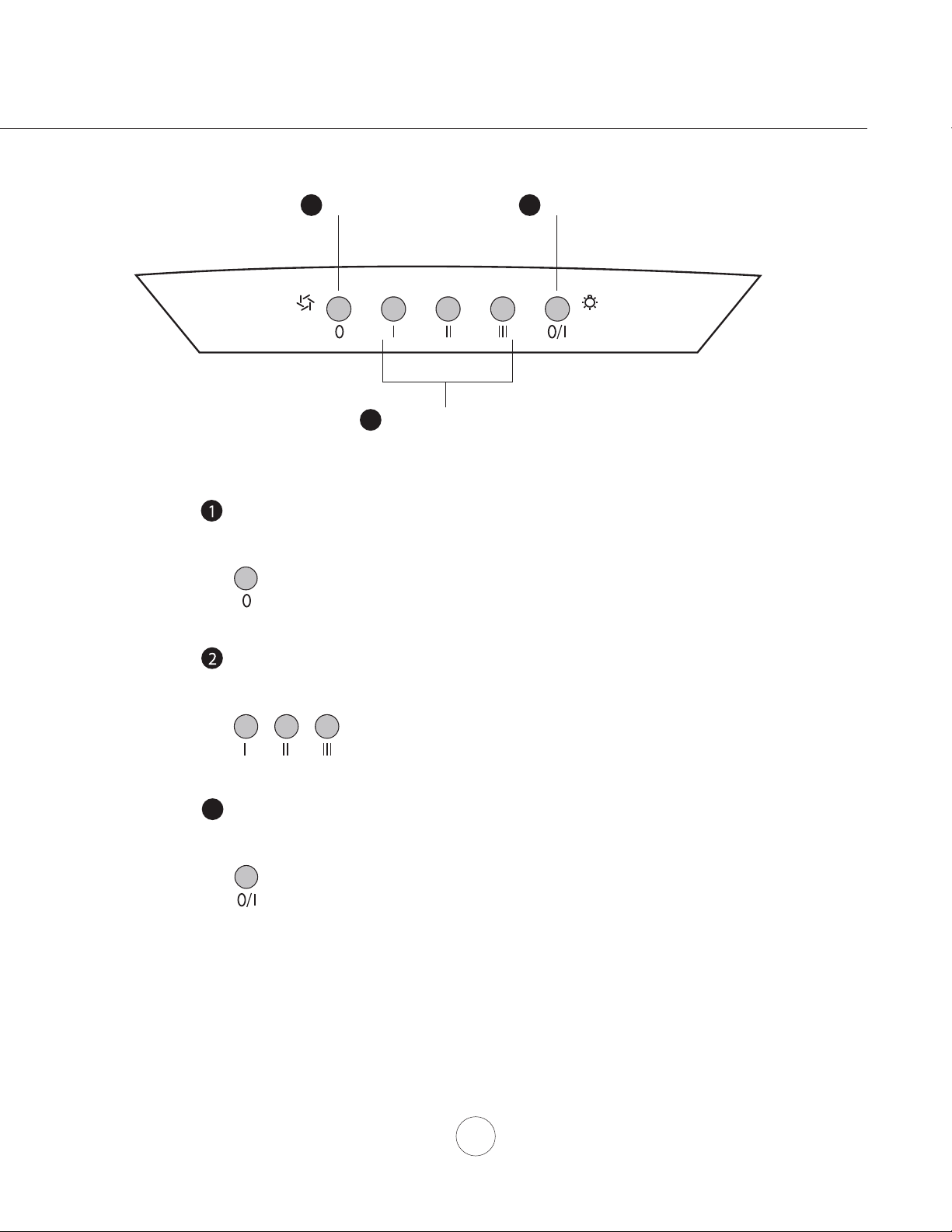

Mechanical Controls .................................................. 13
MAINTENANCE

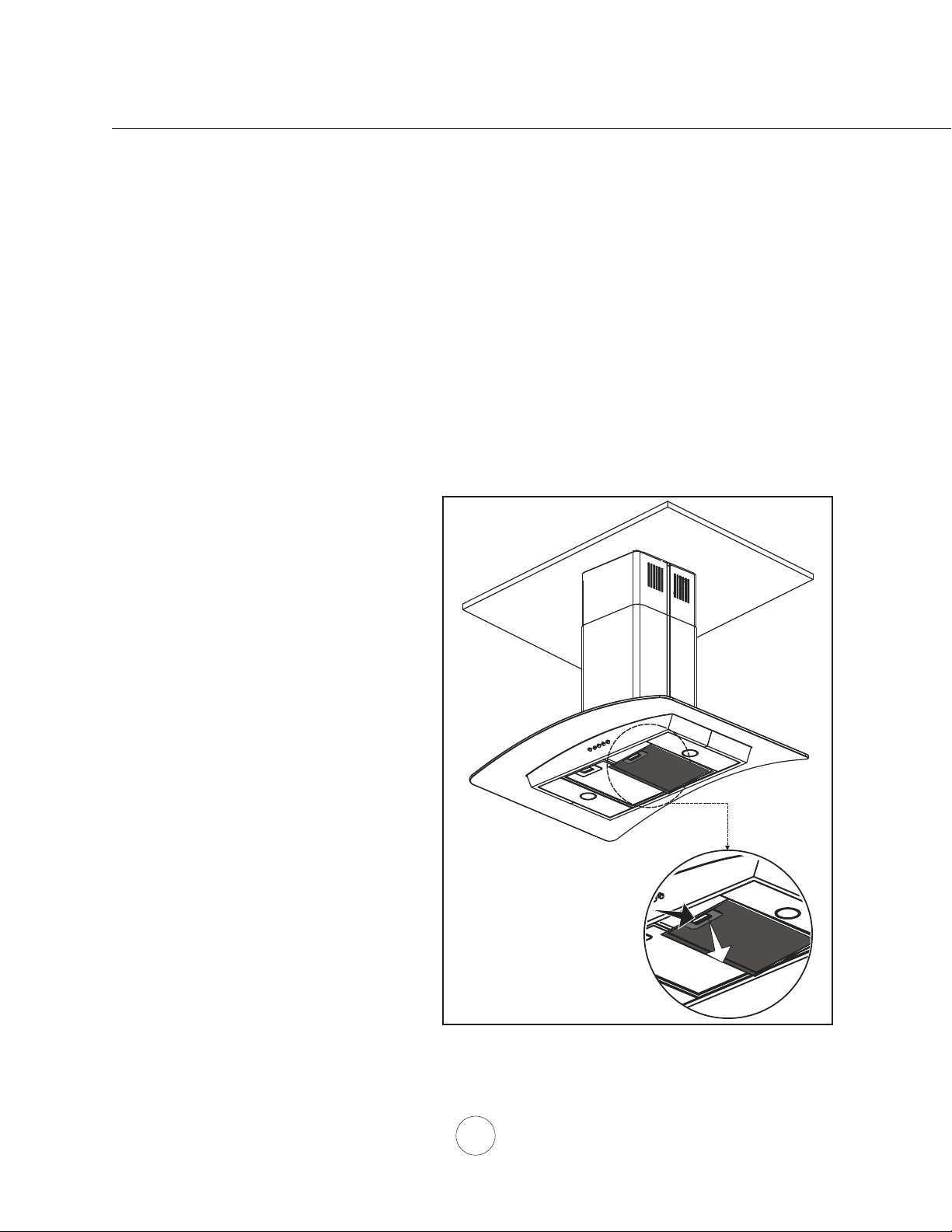

Hood and Filter Cleaning......................................... 14
Lights................................................................................ 15
TROUBLESHOOTING................................................................ 16
WIRING DIAGRAMS................................................................... 17
LIST OF PARTS AND ACCESSORIES .............................. 18
Table of Contents

Important Safety Notice
READ AND SAVE THESE INSTRUCTIONS
2
www.build.com
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE.
WARNING
TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.
b. Before servicing or cleaning unit, switch power off at service panel and lock panel to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
CAUTION
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning
agents or detergents. Suitable for use in household cooking area.
WARNING
TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:
a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly
on low or medium settings.
b. Always turn hood ON when cooking at high heat or when flaming food
c. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d. Use proper pan size. Always use cookware appropriate for the size of the surface element.
e. Keep fan, filters and grease laden surfaces clean.
f. Use high setting on hood only when necessary.
g. Don’t leave hood unattended when cooking.
h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:
a. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards.
Including fire-rated construction.
b. Sufficient air is needed for power combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent
back-drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National
Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and
the local code authorities.
c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
e. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFI
(Ground Fault Interrupter protected branch circuit).
g. NEVER place a switch where it can be reached from a tub or shower.
h. Make sure the power is off before installing, wiring or maintenancing.

Important Safety Notice
3
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
NOT FOR USE IN OUTDOOR COOKING ENVIRONMENTS.
CAUTION
To reduce risk of ¿ re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings,
attics, crawl spaces or garages.
OPERATION
Always leave safety grilles and ¿ lters in place. Without these components, operating blowers could catch onto hair, ¿ ngers
and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
ELECTRICAL REQUIREMENTS
Important:
Observe all governing codes and ordinances.
It is the customer’s responsibility:
- To contact a quali¿ ed electrical installer.
- To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70
latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and
all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a quali¿ ed electrician determine that the
ground path is adequate.
Do not ground to a gas pipe.
Check with a quali¿ ed electrician if you are not sure the range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit
protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to
Electrical Diagram on product.
A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase
and install appropriate connector if necessary.
MH00436G - MAX 426 Watts, 3.5 Amps

List of Materials
4
www.build.com
(3) Wire Nuts
(1) Light Bulb Removal
Suction Cup
(4) 6 x 1-1/2”
(wood screws)
(2) M4 x 8
(top support
frame screws)
(1) M4 x 12
(safety screw)
(12) M3 x 6
(duct cover screws)
1 - Hardware package
2 - Thick trim pieces
2 - Thin trim pieces
1 - Top support frame
1 - Bottom support frame
2 - Top duct covers
2 - Bottom duct covers
1 - Hood body w/ blower (pre-installed)
1 - Canopy, glass
2 - Aluminum mesh filters
2 - 50W GU-10 halogen lights
1 - 6” round damper (pre-installed)
MODELS: MH00436G
PARTS SUPPLIED
HARDWARE PACKAGE CONTENTS
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
- Cable connector (if required by local codes)
- Duct cover extension accessory
- Recirculating kit accessory
(4) 3/16 x 8
(canopy screws)
A
B
Front of Hood
CL
/
Cut-Out Shaded Area
1 - Paper ceiling
template
(4) ø12 OD / ø5 ID
Washers

5

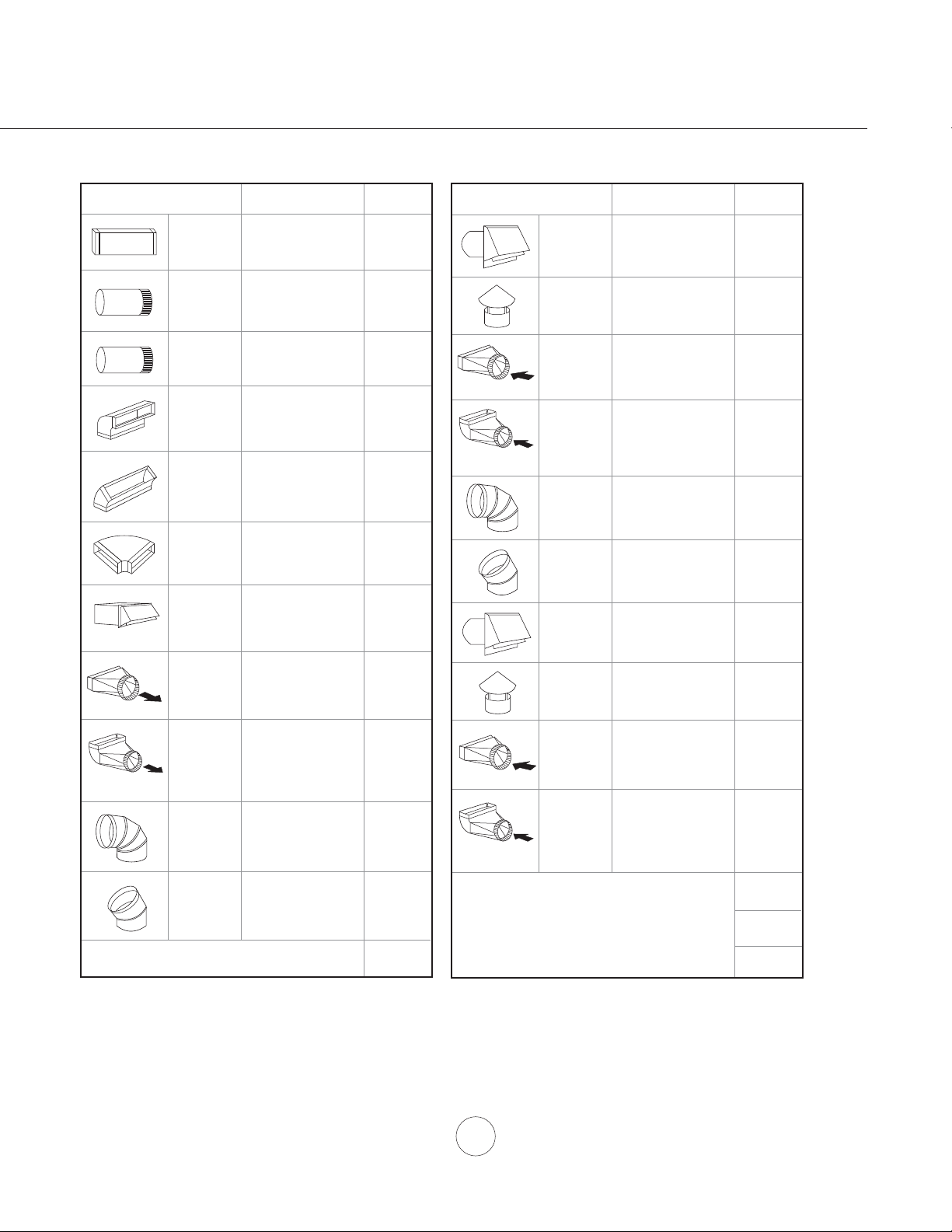

Duct pieces To t a l
Equivalent number
length x used =
3-1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) = Ft.
8” Round,
straight
1 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
elbow
15 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.450
elbow
9 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
flat elbow
24 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
5 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
900 elbow
20 Ft. x ( ) = Ft.
6” Round,
900 elbow
15 Ft. x ( ) = Ft.
6” Round,
450 elbow
9 Ft. x ( ) = Ft.
Ft.
7” Round,
straight
1 Ft. x ( ) = Ft.
Subtotal column 1 =
Duct pieces To t a l
Equivalent number
length x used =
6”- 8”Round
wall cap
with damper
30 Ft. x ( ) = Ft.
Round
wall cap
with damper
30 Ft. x ( ) = Ft.
7” or 8”
Round,
900elbow
15 Ft. x ( ) = Ft.
7” or 8”
7” or 8”
Round,
450
elbow
9 Ft. x ( ) = Ft.
Ft.
Ft.
Ft.
6”- 8” Round,
roof cap
30 Ft. x ( ) = Ft.
7” or 8”
Round,
roof cap
30 Ft. x ( ) = Ft.
Subtotal column 2 =
Subtotal column 1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length of a 3 1/ 4” x 10” rectangular 6” or 7”
diameter round duct should not exceed 100 equivalent feet.
6” round to
3-1/ 4” x 10”
rect.
transition
1 Ft. x ( ) = Ft.
6” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) = Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) = Ft.
7” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) = Ft.
Installation – Ducting Calculation Sheet

Installation – Mounting Height & Clearance
6
www.build.com
DUCTING
A minimum of 6” round duct must be used to
maintain maximum air flow efficiency.
Always use rigid type metal ducts only. Flexible
ducts could restrict air flow by up to 50%.
Use calculation worksheet to compute total duct
work (Page 5).
ALWAYS, when possible, reduce the number of
transitions and turns. If a long duct run is required,
increase duct size from 6” to 7” or 8”.
If turns or transitions are required: Install as far
away from duct opening and as far apart between
the two transitions as possible.
Minimum mount height between range top to hood
bottom should be no less than 26”.
Maximum mount height should be no higher than
34”.
It is important to install the hood at the proper
mounting height. Hoods mounted too low could
result in heat damage and fire hazard; while hoods
mounted too high will be hard to reach and will
loose its performance and efficiency.
If available, also refer to range manufacturer’s
height clearance requirements and recommended
hood mounting height above range. Always check
your local codes for any differences.
Duct cover extension kit available for ceiling heights
up to 12 feet. Turn to page 18 for part number and
ordering information.
DAMAGE-SHIPMENT / INSTALLATION:
• Please fully inspect unit for damage before
installation.
• If the unit is damaged in shipment, return the
unit to the store in which it was bought for
repair or replacement.
• If the unit is damaged by the customer, repair
or replacement is the responsibility of the
customer.
• If the unit is damaged by the installer (if other
than the customer), repair of replacement must
be made by arrangement between customer
and installer.
36"
Min 26" - Max 34"
Min. ducted 28”
Min. recirc. 28”
Max. 38”

7
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating option.
Use single wall rigid Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.
Some Ducting Options
Installation – Ducting Options
side wall cap
w/ gravity damper
Soffit or crawl space
Roof Pitch w/
Flashing & Cap
ductless
recirculating
(blower
housing)
(blower
housing)
(blower
housing)

8
www.build.com
Installation – Hood Specifications
FRONT SIDE
TOP of HOOD TOP SUPPORT FRAME
(top view)
10 3/8”
23 15/16”
35 3/16”25 9/16”
24 1/2”
39/16”
10 3/4”
2 3/4”
11 5/8”
4 3/8”
Min. Ducted - 28”
Min. Recirc. - 28”
Maximum - 38”
(top of electrical box)
13 3/4”
5/16”
C/L
6”
elec. k/o
8
3/4
”
3
3/4 ”
4
3/16 ”
5/8
”
8”
8 1/4”

9
Installation – Mounting the Hood
Hood is intended to be mounted to a finished ceiling.
1. Ceiling Preparation: Determine hood mounting location and temporarily tape paper template (incluided with the
hood) to the ceiling. Cut-out internal shaded area of template to allow the ductng and electrical to pass through
(approx. 7”W x 7-1/2”D). Add wood blocking (min. 2” x 4”) onto ceiling joists to refinforce ceiling above the drywall.
(FIG. A, #1) Secure (2) 1-1/2” wood screws into points A and B of the paper template (FIG. B). Do not completely
tighten screws, leave approx. 1/4” exposed.
2. Hood Preparation: Remove screws securing top and bottom support frames together. Adjust support frame to
accomodate the desired hood height and re-assemble the frame using the previously removed screws (2 screws
for each support frame arm). (FIG. A, #2)
3. Lift support frame assembly up to the ceiling making sure the the word “front” on the top support frame faces the
front of the hood where the controls will be located (FIG. C). The key-holes on the top support frame should cover
the wood screws previously installed in the ceiling. Slide support frame towards narrow end of key-holes to lock
the frame in place.
4. Install the last (2) 1-1/2” wood screws into the two remaining corners of the top support frame to secure it to the
ceiling. Tighten all screws.
3
1
2
6
5
4
Ceiling Joists
Wood Blocking
Top Support Frame
Bottom Support Frame
Hood Body/Canopy
front
A
B
Front of Hood
CL
/
Cut-Out Shaded Area
FIG. A FIG. C
FIG. B
FRONT
WARNING: Electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards. This range hood must be
properly grounded. Turn off electrical power at service entrance before wiring.
!
PAPER TEMPLATE

10
www.build.com
Installation – Mounting the Hood
5. Remove tape securing electronics mounting bracket to hood. (FIG. D, #1) Remove (3) screws from top of hood
body and set screws aside. Position electronics mounting bracket as show in (FIG. D, #2) and secure to hood body
using the (3) previously removed screws.
6. Remove stainless steel mesh filters from hood. Place canopy over blower housing located on top of hood and
secure it to hood body using (4) 3/16” x 8 screws.(FIG E)
7. Lift hood body and align the (4) pre-installed mounting screws on top of blower housing (FIG. A, #5 on Page 9) with
the (4) key holes on the bottom of the support frame. (FIG. F) Slide hood towards the narrow end of key holes to lock
in place. Hand tighten each of the (4) screws to secure hood to bottom of support frame. Install (1) 4mm x 12mm long
safety screw into bottom support frame to further secure the hood. (FIG. F, #1) Reinstall mesh filters.
8. Install electrical and duct work. Seal duct work with aluminum duct tape.
9. Power up hood, verify all functions and check for leaks around duct tape.
FIG. D
ELECTRONICS
MOUNTING
BRACKET
FIG. E
1
2
BLOWER
HOUSING
FIG. F
1
CAUTION: At least two installers are
required due to the weight and size of the
hood.
!

11
FIG. G
2
1
3
5
4
Top duct covers
Top support frame
Bottom duct covers
Bottom support frame
Thick trim piece (top)
Thin trim piece (bottom)
cut trim piece
if necessary
10. *Secure top duct covers (with louver holes) to top support frame using (2) M4 x 8 screws. (FIG. G, #1). Note: If using
hood in “ducted mode” the top duct covers may be turned upside-down to hide the louver holes.
11. Assemble top duct covers together using (3) M3 x 6 screws on each side. (FIG. G, #2). Larger screw hole openings
should overlap the smaller holes.
12. Assemble bottom duct covers together over top duct covers using (3) M3 x 6 screws on each side. Bottom duct
covers will rest on top of the hood body. (FIG. G, #3)
13. Insert the (2) thin trim pieces into left and right seams of bottom duct covers. (1 on each side)
(FIG. G, #4)
14. Insert the (2) thick trim pieces into left and right seams of top duct covers. (1 on each side) (FIG. G, #5) Note:
Because less of the top duct covers will be exposed, it may be necessary to measure and cut the thick trim
pieces before installing them into the top duct covers.
* If using hood in recirculating mode you must install the air diverter plate before assembling the duct covers.
Turn to page 12 for instructions.
Installation – Mounting the Hood

12
www.build.com
Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed.
When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust
from cooking are drawn and ¿ ltered by a set of optional charcoal ¿ lters. The air is then puri¿ ed and re-circulated
back within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct work,
if possible. The hood is most effective and ef¿ cient as an exhaust hood. Only when the exhaust option is not
possible should you recourse to converting the hood into a recirculating hood.
When converted to be a recirculating hood, a set of charcoal ¿ lters are required on top of its standard Metal
Filter set. Order according to its Part number below. The standard Metal Filters are intended to capture residue
from cooking and the optional charcoal ¿ lters help to purify fumes exhausted from cooking for re-circulation.
RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED)
Kit includes charcoal ¿ lters, charcoal ¿ lter brackets and air diverter plate.
Hood Model Part No. Filters in Pkg.
MH00436G RHRK004S 2
1. Purchase recirculating kit per the part number above

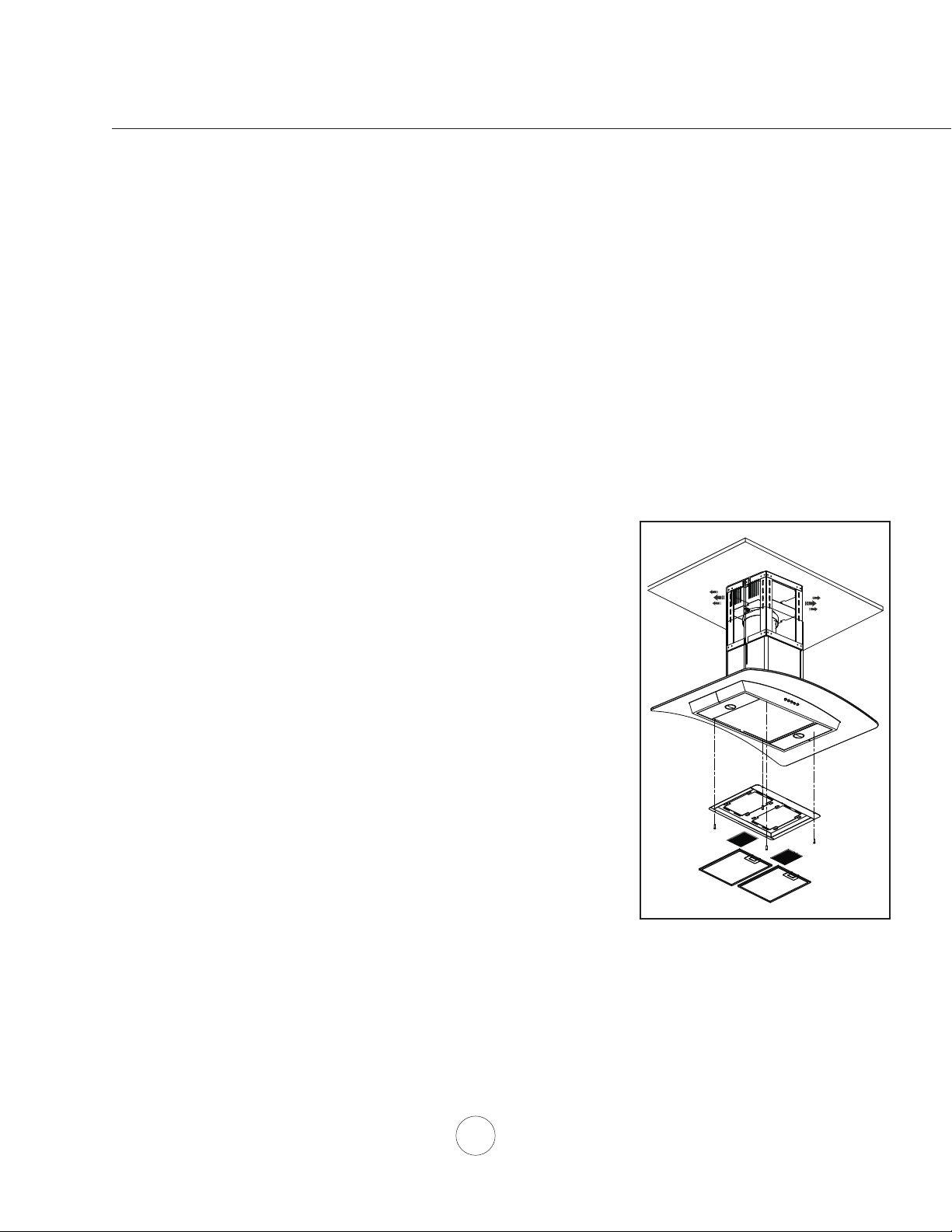

2. Secure air diverter plate to top support frame. (FIG. H) Run 6” ducting
from top of hood and secure to air diverter plate.
3. Remove mesh ¿ lters from hood. Secure the charcoal ¿ lter bracket to the
inside of the hood behind mesh ¿ lters with (4) M3.5 x 8 screws. Clip
charcoal ¿ lters into each charcoal ¿ lter bracket opening. (FIG. H)
4. Re-install mesh ¿ lters.
5. Charcoal ¿ lters must be replaced after every 120 hours of use (or
approximately every 3 to 4 months based on the average of 1 - 2 hrs. of
daily cooking time).
Note: Refer to manual included with recirculating kit for more detailed
installation instructions.
Charcoal Filter Replacements
Hood Model Part No. Qty to Order
MH00436G RHCF001 2
DO NOT WASH CHARCOAL FILTERS. Charcoal ¿ lters may need
to be changed more often depending on cooking habits.
Installation – Ductless Recirculating
FIG. H

13
Blower Off Lights On/Off
13
2Blower Speed Selection
Blower Off
The blower will be powered off by pressing:
Blower Speed Selection
Select one of three speed levels by pressing:
Lights On/Off
Power lights on and off by pressing:
3
Features & Controls - Mechanical Controls

14
www.build.com
SURFACE MAINTENANCE:
Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent,
or steel wool/scouring pads which will scratch and damage surface.
For heavier soil use liquid degreaser.
After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff
out the stainless luster and grain. Always scrub lightly, with clean cotton cloth, and with the grain.
Do not use any product containing chlorine bleach. Do not use “orange” cleaners.
Stainless Steel Mesh Filters
The stainless steel mesh filters installed by the factory are intended to filter out residue and grease from
cooking. They need not be replaced on a regular basis but are required to be kept clean.
Remove and clean by hand or in dishwasher on low heat. Spray degreasing detergent and leave to soak if
heavily soiled.
Dry filters and re-install before using hood.
Removing Stainless Steel Mesh Filters
1. Push in on spring loaded handle
2. Pull down on filter hande to remove filter
Maintenance – Hood and Filter Cleaning

15
REPLACING LIGHT BULBS
CAUTION: Light bulb becomes extremely hot when turned on.
DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns.
Make sure all power is turned off and bulbs are not hot.
Remove by turning bulb counter clockwise. Note: Bulb does not unscrew; it turns 60 degrees,
stops and falls out.
If bulbs are difficult to turn due to prolonged use, firmly attach a glass suction cup approximately the diameter
of the bulb or use a rubber/latex glove and turn counter clockwise.
Replacement bulbs are available at specialty lighting stores. Purchase type GU-10 50W halogen.
For part numbers please turn to page 18 of the manual.
Maintenance – Lights

16
www.build.com
Troubleshooting
TROUBLESHOOTING PROCEDURES FOR MH00436G
od ot tahWesuaCeussI
After installation,
the unit doesn’t
work.
1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s
power is ON.
2. The power line and the cable locking connector
is not connecting properly.
2. Check the power connection with the unit is
connected properly.
3. The switch wirings are disconnected. 3. Make sure the wirings between the switch are
connected properly.
.hctiws eht egnahC .4.evitcefed si hctiws ehT .4
Light works, but
blower is not
turning.
1. The blower wire is not connected. 1. Make sure the blower wire is plugged into the
molex connector.
2. Blower molex plug pin is not making contact. 2. Disconnect the blower molex plug, check pins
inside plug to see if pin is pushed inside the
plug too far. Reseat pin if needed.
3. The blower is defective, possibly seized. 3. Change the blower.
4. The thermally protected system detects if the
blower is too hot to operate and shuts the blower
down.
4. The blower will function properly after the
thermally protected system cool down.
.roticapac eht egnahC .5.ro
ticapac degamaD .5
.hctiws eht egnahC .6.evitcefed si hctiws ehT .6
The unit is
vibrating.
1. The blower is not secure in place. 1. Tighten the blower in place.
.rewolb eht ecalpeR .2.leehw re
wolb degamaD .2
3. The hood is not secured in place. 3. Check the installation of the hood.
The blower is
working, but the
lights are not.
1. The light bulb plug is disconnected. 1. Connect the light bulb plug.
.blub negolah eht egnahC .2.blub negolah evitcefeD .2
.blub thgil eht nethgiT .3.
esool si blub thg
il ehT .3
The hood is
not venting out
properly.
1. The hood might be hanging to high from the
cook top.
1. Adjust the distance between the cook top and
the bottom of the hood within 26” and 34”
range.
2. The wind from the opened windows or opened
doors in the surrounding area are affecting the
ventilation of the hood.
2. Close all the windows and doors to eliminate
the outside wind À ow.
3. Blockage in the duct opening or ductwork. 3. Remove all the blocking from the duct work or
duct opening.
4. The direction of duct opening is against the wind. 4. Adjust the duct opening direction.
5. Using the wrong size of ducting. 5. Change the ducting to at least 6” or higher.
Mesh Filter is
vibrating.
era eldnah eht ni spilc latem eht erus ekaM .1.esool
si retl ¿ hseM .1
not stuck. Or replace the mesh ¿ lter.

17
Wiring Diagrams
MH00436G

List of Materials
18
www.build.com
DESCRIPTION PART#
Replacement Parts
Light Bulb GU-10 50W (each) Z0B-0020
Optional Accessories
Recirculating Kit RHRK004S
Replacement Charcoal Filter RHCF001
Duct Cover Extension (up to 12’ ceiling) RHEX004S
To order parts, email us at [email protected] or call us at 1.888.750.1698
