miseno MH80120AS User manual

Installation, Use and Care Guide
READ AND SAVE THESE INSTRUCTIONS
2017.APR
READ AND SAVE THESE INSTRUCTIONS
MH80120AS
MODEL #.

1
SAFETY NOTICE ................................................................. 2-3
LIST OF MATERIALS....................................................... 4
INSTALLATION
Ducting Calculation Sheet....................................... 5
Mounting Height & Clearance................................ 6
Ducting Options ........................................................... 7
Specications ............................................................... 8
Electrical ......................................................................... 9
Installing the Power Pack........................................ 10
FEATURES & CONTROLS
Slide Controls ............................................................... 11
MAINTENANCE
Cleaning and Installing Filters ............................... 12
Recirculating Kit........................................................... 13
Lights................................................................................ 14
TROUBLESHOOTING................................................................ 15
LIST OF PARTS AND ACCESSORIES .............................. 16
WARRANTY.................................................................................... 17
Table of Contents

Important Safety Notice
READ AND SAVE THESE INSTRUCTIONS
2
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE.
WARNING
TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.
b. Before servicing or cleaning unit, switch power off at service panel and lock panel to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
CAUTION
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning
agents or detergents. Suitable for use in household cooking area.
WARNING
TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:
a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly
on low or medium settings.
b. AlwaysturnhoodONwhencookingathighheatorwhenamingfood
c. Cleanventilatingfansfrequently.Greaseshouldnotbeallowedtoaccumulateonfanorlter.
d. Use proper pan size. Always use cookware appropriate for the size of the surface element.
e. Keepfan,ltersandgreaseladensurfacesclean.
f. Use high setting on hood only when necessary.
g. Don’t leave hood unattended when cooking.
h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:
a. SMOTHERFLAMESwithaclose-ttinglid,cookiesheet,ormetaltray,thenturnofftheburner.BECAREFULTOPREVENTBURNS.
Iftheamesdonotgooutimmediately,EVACUATEANDCALLTHEFIREDEPARTMENT.
b. NEVER PICK UP A FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. Thereissmallandcontainedintheareawhereitstarted.
3. Theredepartmentisbeingcalled.
4. Youcanghttherewithyourbacktoanexit
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Installationworkandelectricalwiringmustbedonebyqualiedperson(s)inaccordancewithallapplicablecodesandstandards.
Includingre-ratedconstruction.
b. Sufcientairisneededforpowercombustionandexhaustingofgasesthroughtheue(chimney)offuelburningequipmenttoprevent
back-drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National
FireProtectionAssociation(NFPA)andtheAmericanSocietyforHeating,RefrigerationandAirConditioningEngineers(ASHRAE)and
the local code authorities.
c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
e. NEVER place a switch where it can be reached from a tub or shower.
f. Make sure the power is off before installing, wiring or maintenancing.

Important Safety Notice
3
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
Toreduceriskofreandtoproperlyexhaustairoutside-Donotventexhaustairintospaceswithinwalls,ceilings,
attics, crawl spaces or garages.
OPERATION
Alwaysleavesafetygrillesandltersinplace.Withoutthesecomponents,operatingblowerscouldcatchontohair,ngers
and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
ELECTRICAL REQUIREMENTS
Important:
Observe all governing codes and ordinances.
It is the customer’s responsibility:
- Tocontactaqualiedelectricalinstaller.
- To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70
latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and
all local codes and ordinances.
Ifcodespermitandaseparategroundwireisused,itisrecommendedthataqualiedelectriciandeterminethatthe
ground path is adequate.
Do not ground to a gas pipe.
Checkwithaqualiedelectricianifyouarenotsuretherangehoodisproperlygrounded.
Do not have a fuse in the neutral or ground circuit.
*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit
protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to
Electrical Diagram on product.
Acablelockingconnector(notsupplied)mightalsoberequiredbylocalcodes.Checkwithlocalrequirements,purchase
and install appropriate connector if necessary.
GROUNDING INSTRUCTION: The appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current. The appliance is equipped with a
cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed
andgrounded.WARNING:Impropergroundingcanresultinariskofelectricshock.Consultaqualiedelectricianifthe
grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.
Donotuseanextensioncord.Ifthepowersupplycordistooshort,haveaqualiedelectricianinstallanoutletnearthe
appliance.

List of Materials
4
MODELS: MH80120AS
PARTS SUPPLIED
1 - Power Pack
1-Aluminummeshlter
2-Halogenlightbulbs(pre-installed)
1-Singleinternalblower(pre-installed)
1 - Hardware package
HARDWARE PACKAGE CONTENTS
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
- Cable connector (if required by local codes)
- Optional stainless steel liner (AK084xAS)
-OptionalRecirculatingKit(ZRC-8400A)
Suction Cup (1)
M4 x 1” (4)
M4 x 1-1/2” (4)

5
Installation – Ducting Calculation Sheet
Duct pieces To tal
Equivalent number
length x used =
3-1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
5 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
900 elbow
20 Ft. x ( ) =Ft.
6”, 7”, 8”, 10”
Round,
900
15 Ft. x ( ) =Ft.
6”, 7”, 8”, 10”
Round,
450
9 Ft. x ( ) =Ft.
Ft.
6”, 7”, 8”, 10”
Round,
straight
1 Ft. x ( ) =Ft.
Subtotal column 1 =
Duct pieces To tal
Equivalent number
length x used =
6”, 7”, 8”, 10”
Round, wall
cap with
damper
30 Ft. x ( ) =Ft.
Ft.
Ft.
Ft.
6”, 7”, 8”, 10”
Round
roof cap
30 Ft. x ( ) =Ft.
Subtotal column 2 =
Subtotal column 1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length
should not exceed 100 equivalent feet.
6” round to
3-1/ 4” x 10”
rect.
transition
1 Ft. x ( ) =Ft.
6” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) =Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) =Ft.
7” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) =Ft.
elbow
elbow
7” to 6” or
8” to 7” Round
tapered
reducer
25 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect.900
elbow
15 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect.450
elbow
9 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect.900
flat elbow
24 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) =Ft.
Ft. x ( ) =Ft.
15
6”, 7“, 8”
Round
in-line
damper

Installation – Mounting Height & Clearance
6
DUCTING
A minimum of 6” round or 3-1/4” x 10” rectangular
ductmustbeusedtomaintainmaximumairow
efciency.
Always use rigid type metal ducts only. Flexible
ductscouldrestrictairowbyupto50%.
Alsousecalculation(onpage5)tocomputetotal
available duct run when using elbows, transitions
and caps.
ALWAYS, when possible, reduce the number or
transitions and turns. If long duct run is required,
increase duct size.
If turns or transitions are required; install as far
away from hood duct output and as far apart,
between the two as possible.
Minimum mount height between range top to hood
bottom should be no less than 26”.
Maximum mount height should be no higher than
34”.
It is important to install the hood at the proper
mounting height. Hoods mounted too low could
resultinheatdamageandrehazard;whilehoods
mounted too high will be hard to reach and will
loseitsperformanceandefciency.
If available, also refer range manufacturer’s height
clearance requirements and recommended hood
mounting height above range.
Vertical Ducting:
6” round minimum
Horizontal Ducting:
N/A
DAMAGE-SHIPMENT / INSTALLATION:
• Pleasefullyinspectunitfordamagebefore
installation.
• Iftheunitisdamagedinshipment,returnthe
unit to the store in which it was bought for
repair or replacement.
• Iftheunitisdamagedbythecustomer,repair
or replacement is the responsibility of the
customer.
• Iftheunitisdamagedbytheinstaller(ifother
thanthecustomer),repairofreplacementmust
be made by arrangement between customer
and installer.
36"
Min 26” - Max 34”

7
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside.
Use metal ductwork only.
FastenallconnectionswithsheetmetalscrewsandtapealljointswithcertiedSilverTapeorDuctTape.

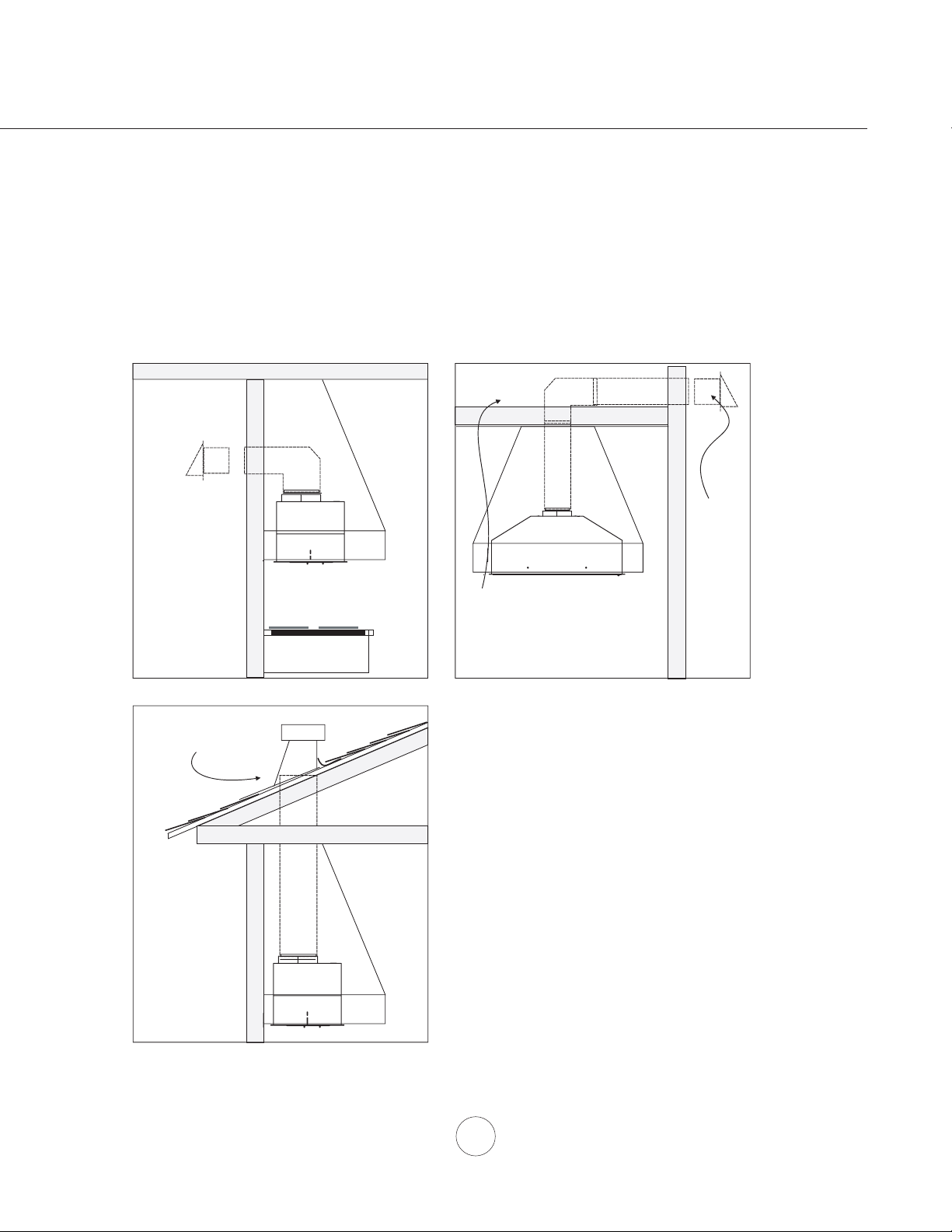

Some Ducting Options
Installation – Ducting Options
side wall cap
w/ gravity damper
side wall cap
w/ gravity dampe
r
Soffit or crawl space
Roof Pitch w/
Flashing & Cap

8
Installation – Specications
top
bottom side
20-9/16”
10-5/8”
3-1/4”
1-5/16”
19-1/2”
12-1/8”
11”
4”
6”
5-1/16”
1-5/8”
14-3/16”
1-15/16”
6-7/16”
16-9/16”
9-15/16”
1-3/16”9-11/16”
11-3/16”
front

9
ELECTRICAL
WARNING
All Electrical work must be performed by qualied electrician or person with similar technical know
how and background.
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use
extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
Electrical Supply:
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded
branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/
ground. Please also refer Electrical Diagram labeled on product.
Grounding
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an excape wire for the electrical current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded.
Position the electrical outlet within the space covered by or above the decorative canopy housing as space
permits and as to not interfere with the round duct. Make sure the outlet is no further than 28” from the top of
the hood body.

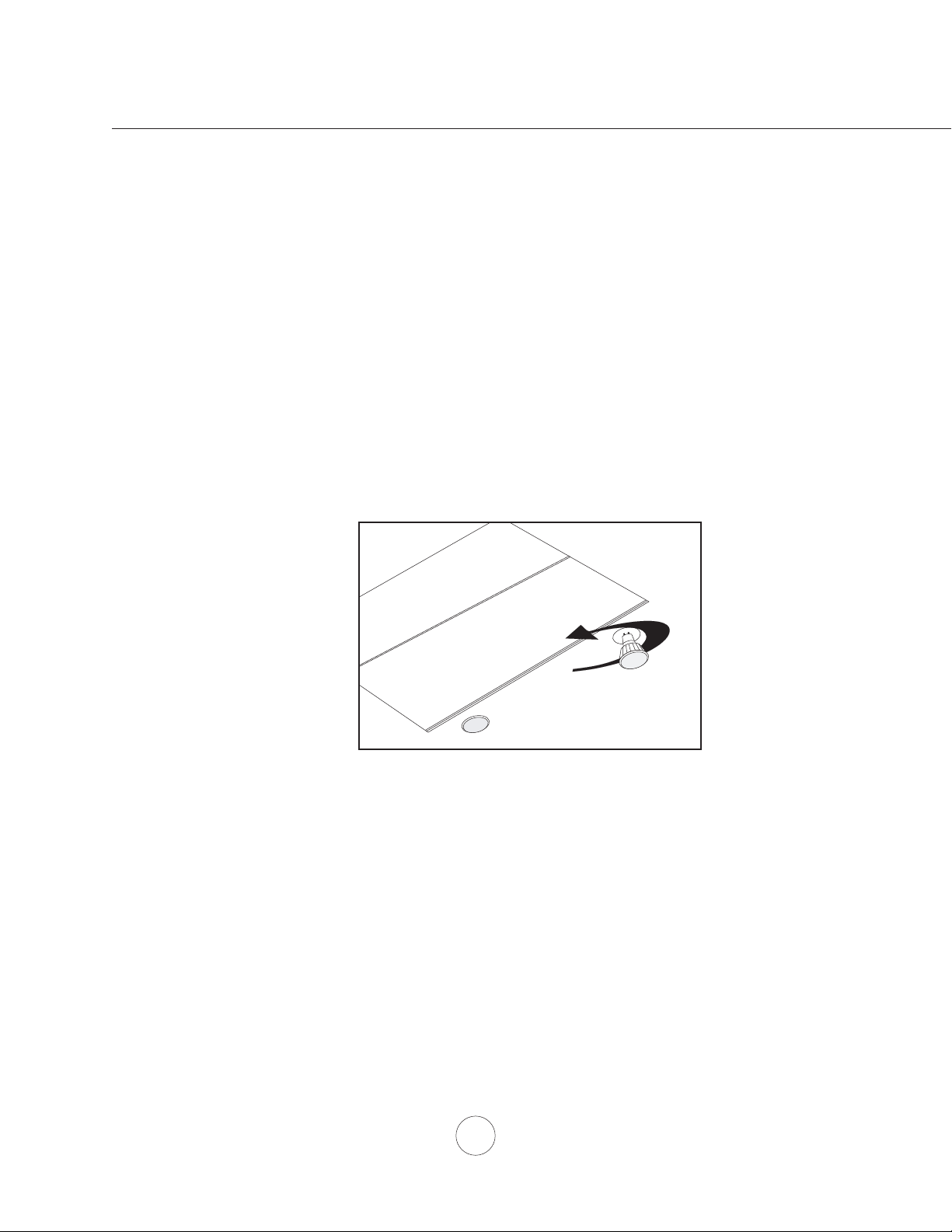

Installation – Electrical
28” Max.

10
Installation – Installing the Power Pack
1. Install optional AK084xAS Stainless Steel Liner. Review
manual included with liner for more details.
2. If no liner is used cut out an opening in the bottom of the
cabinet by following the dimensions in FIG 1.
3.Removealuminummeshlter.
4. Lift Power Pack into opening and ensure locking clip has
lockedintoposition.(lockingclipislocatedonleftsideof
Power Pack. FIG 2
5.Fasten(2)M4screwsintotherearlongsideofPower
Pack. If a liner is used the screws will go through the
Power Pack mounting holes, then the liner and into the
wood base. note: Wood blocking may need to be added
to cabinet base if additional support is needed. see FIG 3
and FIG 4
6. Remove 4 screws from Power Pack face plate. The face
plate will drop down and hang by internal chains. Access to
frontlongsideofPowerPackisnowavailable.Fasten(2)
M4 screws into the front long side of Power Pack.
7.Re-installPowerPackfaceplateby(4)previously
removed screws.
8. Install duct work and seal with duct tape.
9. Install electrical.
10. Remove all packing materials before using Power
Pack. Switch power on and check for leaks around duct
tape.
11.Installaluminummeshlter.
CAUTION: At least two installers ar
e
required
due to the weight and size of
the
hood.
!
Ductwork
wood base
wood base
2” minimum
secure (2) M4 screws to mounting
holes on each long side of Power Pack
metal or other non
combustible material
D
uctwor
k
w
ood
base
w
ood
base
2”
minimu
m

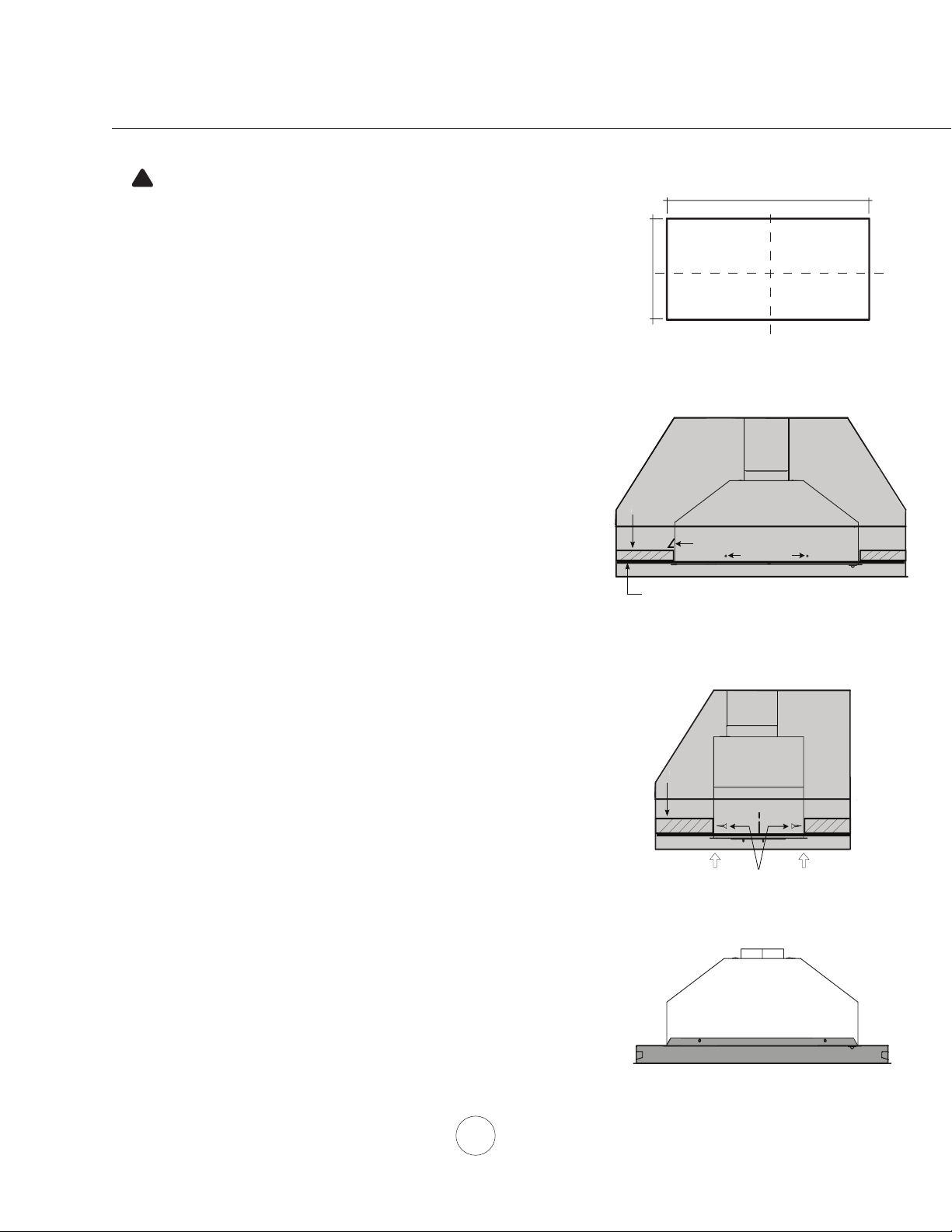

FIG 1
FIG 2
FIG 3
FIG 4
locking clip
mounting holes
front view
right side view
Ductwork
cabinet bottom cut-out size
19 3/4 ”
10
1/4
”
Power Pack
Stainless Steel Liner
C/L
C/L

11
17
0 I II III
Blower On/Off Speed Selection
1Lights Bright/Dim/Off
2
0 I II
Features & Controls – Slide Controls
BLOWER ON/OFF/SPEED SELECTION
0 is off, I is low speed, II is medium speed and III is high speed.
LIGHTS BRIGHT/DIM/OFF
0 is off, I is dim, and II is bright.
1
2

12
SURFACE MAINTENANCE:
Do not use corrosive detergents, abrasive detergents or oven cleaners.
Do not use any product containing chlorine bleach or any product containing chloride.
Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.
Cleaning Stainless Steel
Cleanperiodicallywithwarmsoapywaterandcleancottonclothormicrobercloth.Alwaysrubinthedirectionofthe
stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent.
After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain.
Alwaysscrublightly,withcleancottonclothormicroberclothandbuffinthedirectionofthestainlesssteelgrain.
Aluminum Mesh Filters
Thealuminummeshltersinstalledbythefactoryareintendedtolteroutresidueandgreasefromcooking.Theyneed
not be replaced on a regular basis but are required to be kept clean.
Remove and clean by hand or in dishwasher on low heat. Spray degreasing detergent and leave to soak if heavily soiled.
Dryltersandre-installbeforeusinghood.
Removing Aluminum Mesh Filter
1.Pushinlterlatch.
2. Tiltlterdownandremovefromhood.
Hood Model: Part No. Qty. to Order
MH80120AS 50200054 1
1
2
Maintenance – Cleaning and Installing Filters

13
DUCTLESS RECIRCULATING
Ductless recirculating is intended for applications where an exhaust duct work is not possible to be installed.
When converted, the power pack functions in air “purifying” mode rather than exhausting the air. Fumes and
exhaustfromcookingisdrawnandlteredbyacharcoallter.Theairisthenpuriedandrecirculatedback
into the kitchen.
We recommend to always exhaust air outside of the home by employing existing or installing new duct work, if
possible.Thepowerpackismosteffectiveandefcientasanexhaustunit.Onlywhentheexhaustoptionis
not possible should you use the power pack in recirculating mode.
Whenconvertedtorecirculatingmode,acharcoallterisrequiredtobeinstalledontopofthestandardmetal
meshlterandareturnairventisneededtodirectairbackintothekitchen.Thestandardmetalmeshlteris
intendedtocaptureresiduefromcookingandtheoptionalcharcoallterhelpstopurifyfumesexhaustedfrom
cooking in recirculating mode.
Purchase recirculating kit as follows,
Hood Model: Part No. Qty. to Order
MH80120AS ZRC-8400A 1
Charcoalltersmustbereplacedapproximatelyevery3monthsbasedoffanaverageusageof1houraday.
Orderreplacementcharcoalltersasfollows:
Hood Model: Part No. Qty. to Order
MH80120AS Z0F-C084 1
For detailed installation instructions please refer to manual included with recirculating kit.
Installing Charcoal Filter, FIG 6:
1.Placecharcoallterontopofbacksideofaluminummeshlter
2.Securecharcoallterby4CclipsfromZRC-8400Arecirculation     
kit,2Cclipsforeachenlongatedsideofcharcoallter.

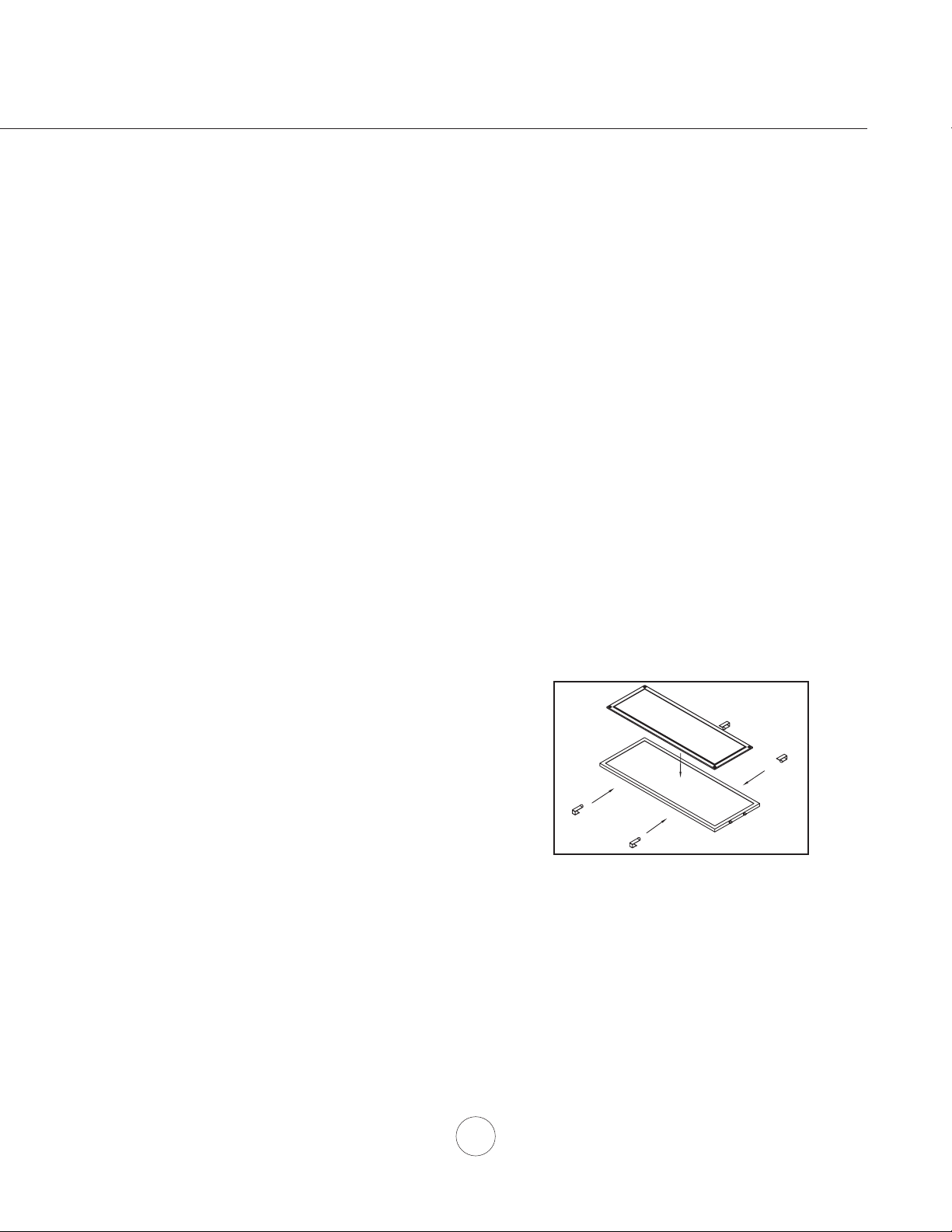

FIG 6
Maintenance – Recirculating Kit

14
REPLACING LIGHT BULBS
CAUTION: Light bulb becomes extremely hot when turned on.
DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns.
Make sure all power is turned off and bulbs are not hot.
Remove by turning bulb counter clockwise. Note: Bulb does not unscrew; it turns 60 degrees, stops and
falls out.
Ifbulbsaredifculttoturnduetoprolongeduse,rmlyattachaglasssuctioncupapproximatelythe
diameter of the bulb or use a rubber/latex glove and turn counter clockwise.
Replacementbulbsareavailableatspecialtylightingstores.PurchasetypeMR16(GU-10)35Whalogen.
For part numbers please turn to page 16 of the manual.
Maintenance – Lights
Bottom View

Troubleshooting
15
TROUBLESHOOTING PROCEDURES
Issue Cause What to do
After installation,
the unit doesn’t
work.
1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s
power is ON.
2. The power line and the cable locking connector
is not connecting properly.
2. Check the power connection with the unit is
connected properly.
3. The switch board and control board wirings are
disconnected.
3. Make sure the wirings between the switch
board and control board are connected
properly.
4. On the switch board, Black/White wire or White
wire is disconnected.
4. Make sure the Black/White wire or White wire
connects properly.
5. The switch board or control board is defective. 5. Change the switch board or control board.
Light works,
but motor is not
turning.
1. The blower is defective, possible seized. 1. Change the blower.
2. The thermally protected system detects if the
motor is too hot to operate and shuts the motor
down.
2. The motor will function properly after the
thermally protected system cool down.
3. Damaged capacitor. 3. Change the capacitor.
The unit is
vibrating.
1. The blower is not secure in place. 1. Tighten the blower in place.
2. Damaged blower wheel. 2. Change the blower.
3. The hood is not secured in place. 3. Check the installation of the hood.
The motor is
working, but the
lights are not.
1. Defective halogen bulb. 1. Change the halogen bulb.
2. The light bulb is loose. 2. Tighten the light bulb.
The hood is
not venting out
properly.
1. The hood might be hanging to high from the
cook top.
1. Adjust the distance between the cook top and
the bottom of the hood within 26” to 34” range.
2. The wind from the opened windows or opened
doors in the surrounding area are affecting the
ventilation of the hood.
2. Close all the windows and doors to eliminate
theoutsidewindow.
3. Blocking in the duct opening or duct work. 3. Remove all the blocking from the duct work or
duct opening.
4. The direction of duct opening is against the wind. 4. Adjust the duct opening direction.
5. Using the wrong size of ducting. 5. Change the ducting to at least 6” or higher.
Metallteris
vibrating.
1. Metallterisloose. 1. Changethemetallter.
2. Spring clip is broken. 2. Change the spring clip.

16
DESCRIPTION PART #
Replacement Parts
LightBulbMR16(GU10)35W(each) Z0B-0023
AluminumMeshFilter(each) 50200054     
CharcoalFilter(each) Z0F-C084
Optional Accessories
Liner, 30” AK0840AS
Liner, 36” AK0846AS
Recirculating Kit ZRC-8400A
LightBulbMR16GU-10LED(each) Z0B-0040
To order parts, call us at 1.888.750.1698
List of Parts and Accessories

17
Warranty
1-888-750-1698
STAPLE YOUR RECEIPT HERE
TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call:
Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as
“you” or “your”) of range hoods (the “Products”) that such Products will be free from defects in materials or workmanship
as follows:
One Year Limited Warranty for Parts: For one year from the date of your original purchase of the Products, we will
provide, free of charge, Products or parts to replace those that failed due to manufacturing defects. We may choose, in
our sole discretion, to repair or replace parts before we elect to replace the Products.
One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will
provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to
manufacturing defects. After the first year from the date of your original purchase, you are responsible for all labor costs
associated with this warranty.
Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts
and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and
service required for the Products and consumable parts such as light bulbs, metal and carbon filters and fuses; (b) any
Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installa-
tion contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commer-
cial use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Prod-
ucts or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner
products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach
you how to use the Products; or (g) damage to the Products caused by accident, fire, floods or act of God. If you are
outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service
locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Prod-
ucts. After the first year from the date of your original purchase, you are also responsible for all labor costs associated
with this warranty.
Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE
AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSE-
QUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF
THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRAN-
TIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING
THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not
allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential dam-
ages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclu-
sion of implied warranties, the duration of any applicable implied warranty is limited to the same one-year period
described above. Any oral or written description of the Products is for the sole purpose of identifying the Products and
shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall
determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in
connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned
parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the
original purchaser and applies in the United States and Canada.
To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or
telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and part identifi-
cation number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the
request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase
date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documenta-
tion to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services.
Venting Services PO Box 6188 Oakland, CA 94603 | 1-888-750-1698 | [email protected]
Limited Warranty
MAY10.0101
Proof of the original purchase
date is needed to obtain
service under warranty
