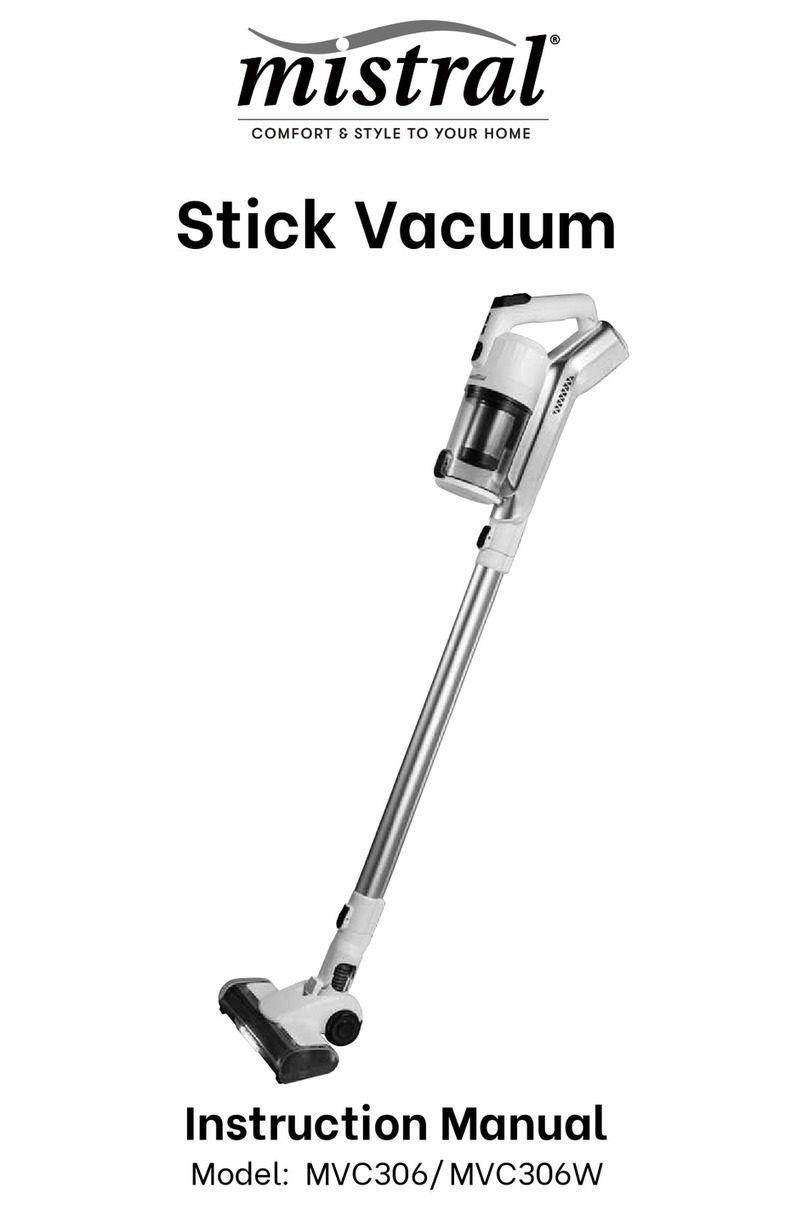

Mistral MVC306 User manual

Model: MVC306
Stick Vacuum
Instruction Manual

2
Important Safeguards
When using electrical appliances, in
order to reduce the risk of re, electric
shock and/or injury, these basic
safety precautions should always be
followed:
For Your Safety
Read all instructions carefully, even if you are
familiar with the appliance.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory and mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
• This appliance is for household use only. Do
not use this appliance for anything other
than its intended use. Do not use in moving
vehicles or boats. Do not use outdoors. Misuse
may cause injury.
• Do not allow this appliance to be used as a
toy. Close attention is necessary when used
nearby children.
• Use only as described in this manual and
only use manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug.
• Do not handle charger or appliance with wet
hands.
• Do not put any object into openings. Do not
use with any opening blocked. Keep free of
dust, lint, hair and anything that may reduce
airow.
• Keep hair, loose clothing, ngers and all parts
of body away from openings and moving
parts.
• Do not vacuum the following objects:
toxic substances, ammable and explosive
dangerous material, corrosive material
and burning ash, matches, cigarette and
combustible liquids, such as gasoline.
• Do not use the appliance to vacuum any
dust harmful to health.
• Do not use without container and lter in
place. Clean container and lter after picking
up any perishable food items.
• Use only Handheld Vacuum Cleaner
accessory, lter and charger.
• Do not vacuum water, liquids or other sharp
objects like nails or drawing pins as they may
damage the appliance.
• Do not pick up any objects which are
smoking or burning, such as matches,
cigarettes or hot ashes.
• Do not unplug the charger by pulling on the
cord.
• Never carry the charger by the cord or to
disconnect from an outlet; instead, grasp the
charger and pull to disconnect. Do not pull
cord around sharp edges or corners.
• Do not immerse the appliance, charger and
cord in water or any other liquid.
• Always switch the appliance off when
charging.
• Do not attempt to use the charger with any
other product.
• The use of an extension cord is not
recommended. Only plug the charger into
a standard electrical outlet (230V or 240V
outlet).
• Do not operate with a damaged charger
and cord, or after the appliance has
malfunctioned or been damaged in any
manner.

3
Warning
Use only the charger supplied with this
appliance to recharge this appliance.
If the power cord is damaged, the power cord
must be replaced by the manufacturer, its
service agent or similarly qualied persons in
order to avoid a hazard.
The Product uses a Lithium-ion Battery. Take care
when removing an old Battery from the Main
Body of the Stick Vacuum.
Ensure that old, used Batteries are disposed of in
the correct manner. These should not be put in
the domestic waste. Contact your local authority
for indication of a suitable method of disposal or
to locate your nearest collection point.
This product has not been designed for any uses
other than those specied in this booklet.
Save These Instructions

4
Features of Your Stick Vacuum
Handheld vacuum
Main unit Battery pack Extension tube Motorized brush
head
2-in-1
upholstery nozzle
1 1 1 1 1
Charger Carpet brush roller Hard oor
brush roller
Wall mount
charger
1 1 1 1
Motorized
brush head
LED lights
Wall mount
charger
Removable
Battery pack
Carpet brush roller
Hard oor brush roller
2-in-1 Upholstery nozzle
Extension
tube
Part list
Charger

5
Main unit
1. Battery
2. Charging Socket
3. Battery Locker
4. ON/OFF Button
5. Speed Control Button
6. Power Indicator Light
7. Dust Cup Release Button
8. Dust Cup
9. Filter Cover Button
10. Filter Cover

6
Accessories
Motorized brush
There are two brush rollers
Roller for hard oor
Roller for carpet oor
How to replace the rollers:
1. There is a locking tab on the brush head, push
it to Unlock position, the cover will pop out.
Locking tab Cover
Push the locking tab
leftward to unlock
The cover pops up
Remove the cover Remove the roller
2. Angle the geared end of the roller into brush
holder cavity and align with gear of the brush
holder, push the opposite end of the roller
downwards into the locker cavity, place the
cover back and push downwards until it clicks
in position to lock it.
Geared end of roller
Align the gear on the brush to
the gear on the roller head
Slide it into the slot on the roller
holder
Place the cover back, push it
downward to lock
Other end of roller
Gear on the brush head
Getting to Know Your
Stick Vacuum
Congratulations on the purchase of your new
Stick Vacuum.
Before using this product for the rst time. It is
extremely important that you read and follow
the instructions in this use and care booklet,
even if you feel you are familiar with this type of
appliance.
Your attention is drawn particularly to the section
dealing with IMPORTANT SAFEGUARDS. Find a
safe and convenient place to keep this booklet
handy for future reference.
This appliance has been designed to operate
from a standard domestic power outlet. It is not
intended for industrial or commercial use.

7
Before First Use
1. Carefully unpack appliance and remove all
packaging materials.
2. Please retain all packaging until you have
checked and count all the parts and the
content against the parts list.
3. Charge the battery for 5 hours until fully
charged.
How to Assemble
Assemble the battery pack
Align the slots of the battery pack to its holder on
the Vacuum motor head, slide it forward, push it
rmly until your hear it click to indicate it is locked
into position.
Holder for battery
pack
Slide-in the battery pack Push the battery pack
to lock in position
Slots of battery pack
To remove the battery pack, slide locking tab
downwards and slide/pull battery out to remove
it.
Push battery locking tab
into the direction (as
shown in photo above)
to unlock and slide
battery out to remove
Locking Tab
Slide battery pack out to
remove
How to assemble each part together
There is a rib on one part, a slot on another part,
align the rib to the slot, insert them together rmly
until you hear click and is secured in position.
Rib on one part Slot on other part
How to separate each part
The female (Slotted) connectors have a lock
release button.
Press this button down whilst holding the part
and pull with other hand on the mating part to
separate.
Release button on one part
Assemble handheld vacuum with
extension tube and motorized brush
Can be used to clean carpets and hard oors.
Tips: Please always turn off hand vacuum before
attaching to parts.
1. How to assemble extension tube to the vacuum
motor head
Align the rib of the connector on the extension
tube with the slot of the connector on vacuum
motor head, push in until you hear it click in
position and it is secured.
2. How to assemble the motorized brush to the
extension tube
Insert connector on the extension tube to the
connector on the motorized brush, by aligning
rib with slot, push in until your hear click and
brush head is secured.
To remove brush head, press the release button
on the connector of the extension tube to
unlock, with other hand, pull brush head to
remove.

8
3. How to assemble vacuum motor head
directly to the motorized brush head
This combination without the extension tube
allows you get easier access to surfaces
where use with extension tube is impractical,
staircases, chairs etc.
Remove the extension tube from both
vacuum motor head and the motorized brush
head, by pressing the release buttons of the
connectors and pulling extension tube out.
You can now connect brush head directly
to the vacuum motor head until it clicks into
position to secure.
Assemble vacuum motor head with
2-in-1 upholstery nozzle
1. The 2-in-1 upholstery nozzle accessory can
be used with or without the extension tube
to get into more difcult to reach places and
connects/disconnects to extension tube or
vacuum motor head direct in the same way
as the motorized brush.
2. The 2 in 1 nozzle itself can be adapted as a
brush style or micro vacuum head to suit your
needs.
Simply press the release buttons with thumb and
fore nger to unlock and slide the brush section
forward over the micro vacuum head and lock
in position.
To reverse simple press release buttons and slide
it back.
Release button
Press release button and
slide brush head forward
Pull as far forward until it
locks over the micro head
Press the release button to
unlock and slide back
How to use
After you are familiar with the assembly of this
appliance and the use of the various accessories
and their functions, you can now put this appliance
to use.
With the battery pack fully charged and the
desired accessory selected and attached,
press the ON/OFF Button on the vacuum motor
head to start the appliance. The power indicator
light illuminates.
Press the Speed Control Button to select either
Low or High speed. At Low speed the operating
time is approximately 45 Minutes, at High speed 20
minutes.
When power indicator light starts ashing, switch
the appliance OFF, it is time to recharge the
battery.
Warning: Never use this appliance to
vacuum up liquids or water, it may
damage this machine.

9
How to Charge
Tips: Please charge the product around 5 hours
until fully charged before rst use.
• Before charging, ensure to only use the
charging adapter that was supplied with the
vacuum cleaner.
• Position the vacuum head onto the wall
mount charger.
When it is charging, the LED charge indicator
light continuously ashes until it is fully
charged, it then illuminates without ashing.
• When using the vacuum cleaner and battery
is nearly drained, the vacuum LED indicator
light will start ashing, prompting the user to
place the vacuum back into the wall mount
charging cradle to recharge.
Align the vacuum head with
the contact point in the wall
mounted charging cradle.
Push the vacuum head
inwards to secure to the
charging cradle.
• The battery pack can also be removed from
the vacuum head and be charged with just
the charging adapter directly, away from the
charging cradle, this will require the charging
adapter to be separated from the charging
cradle.
When charging in this manner the LED
indicator light illuminates Red and changes to
Green when fully charged.
How to separate the charging adapter from the
wall mount cradle.
Remove the two screws
Remove this cover
Take out the charging plug to
remove it.
Place the adapter into a standard domestic
power outlet, insert the charging plug into the
battery pack‘s charging socket, the indicator
light will keep ashing red during charging.
Indicator light
After fully charged, the indicator light will
illuminate green. Remove the charging plug from
the battery pack, and unplug the adapter from
the power outlet.

10
Care and Maintenance
Main Unit, Floor Brush or Turbo Brush
Head
Use a damp cloth to wipe of any dirt deposits
from the external brush head enclosure if need
arises.
Do not use abrasive cleaning agents (scouring
agents, diluting agents) because they can
damage the synthetic surface of the device.
Warning: Don’t let water enter into the
motorized brush head as there are
electrical terminations contained within
and may irreparably damage.
Clean dust cup and lter
In order to achieve the best performance, empty
the dust cup
and clean lter screen after each use.
1. Turn off the vacuum cleaner.
2. Hold dust cup release button and take the
dust cup out from vacuum cleaner.
3. Push lever to release bottom lid and debris
will empty.
4. Take out the stainless steel lter screen and
clean it with water.
5. Take white fabric lter and black foam lter
out and clean them with water monthly.
6. Reassemble once completely dry.
Clean brush roller
1. Place motorized brush head upside down.
2. Push the Lock button to unlock position to
take out the brush roller.
3. Use ngers and stiff brush to remove hair or
debris.
4. Clean brush roller separately with water if
needed.
Warning: Depending on use, over time the roller
may have excessive hair or debris attached that
need to be removed more regularly in order
for the appliance to work efciently, so check
regularly and clean.
Specication
Rating Voltage: 22.2V
Working time 20-45mins
Noise <=75db
Suction 10Kpa
Battery Adapter: input 100-240V 50/60Hz 0.5A
Battery Adapter: output DC 26.5V 0.5A
Battery type: Lithium battery
Battery capacity 22.2V 2200mAh
Charging time: Approx. 5 Hours
Note: As a result of continual
improvements, the design and
specications of the product within may
differ slightly to the unit illustrated from
the packaging.

11
Disposal
If the device is to be disposed of, it is best to
remove the battery. Used batteries should not
be disposed of with household waste; it should
always be taken to the recycling center of the
local authority. If you are unable to disassemble
the product yourself, the local authorities
recycling center will dispose of the product
for you in an environmentally sound manner.
In the event of product failure or damage, all
inspections and repairs must be performed by a
qualied electrician or technician.
Troubleshooting
Problem Solution
Vacum will not
work
1. The vaccum may have
run out of battery power,
make sure it is fully charged.
2. Push charger securely into
electrical outlet, try another
outlet or check circuit
breaker.
Vacuum will
not pick up
dust or suction
power is weak
1. Empty dust cup and clean
or change lters.
2. Make sure cleaner is fully
powered, charge battery.
3. Remove clogs that restrict
the airow.
The power
button does
not work while
charging
It is normal when the
vacuum is in charging
mode, the power button
will be locked for power off
protection.

12
Cat. No. MVC306
October 2020
