Mitsubishi Electric Mr.SLIM PEAD-M100JA User manual

ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
Mitsubishi Electric PEAD-M100JA/PU-P100YHA

Packaged Air-Conditioners
INDOOR UNIT
PEAD-M35,50,60,71,100,125,140JA
PEAD-M35,50,60,71,100,125,140JAL
English
OPERATION MANUAL
For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit.
FOR USER
Deutsch
BEDIENUNGSHANDBUCH
Zum sicheren und einwandfreien Gebrauch der Klimaanlage dieses Bedienungshandbuch vor Inbetriebnahme
gründlich durchlesen.
FÜR BENUTZER
Français
MANUEL D’UTILISATION
Pour une utilisation correcte sans risques, veuillez lire le manuel d’utilisation en entier avant de vous servir du
climatiseur.
POUR L’UTILISATEUR
Español
MANUAL DE INSTRUCCIONES
Lea este manual de instrucciones hasta el final antes de poner en marcha la unidad de aire acondicionado para
garantizar un uso seguro y correcto.
PARA EL USUARIO
Italiano
ISTRUZIONI DI FUNZIONAMENTO
Leggere attentamente questi istruzioni di funzionamento prima di avviare l’unità, per un uso corretto e sicuro
della stessa.
PER L’UTENTE
Nederlands
BEDIENINGSHANDLEIDING
Voor een veilig en juist gebruik moet u deze bedieningshandleiding grondig doorlezen voordat u de
airconditioner gebruikt.
VOOR DE GEBRUIKER
Svenska
DRIFTSMANUAL
Läs denna driftsmanual noga för säkert och korrekt bruk innan luftkonditioneringen används.
FÖR ANVÄNDAREN
Dansk
DRIFTSMANUAL
Læs venligst denne driftsmanual grundigt før airconditionanlægget betjenes af hensyn til sikker og korrekt brug.
TIL BRUGER
Português
MANUAL DE OPERAÇÃO
Para segurança e utilização correctas, leia atentamente o manual de operação antes de pôr a funcionar a
unidade de ar condicionado.
PARA O UTILIZADOR
Ελληνικά
ΕΓΧΕΙΡΙ∆ΙΟ Ο∆ΗΓΙΩΝ ΧΡΗΣΕΩΣ
Για ασφάλεια και σωστή χρήση, παρακαλείστε διαβάσετε προσεχτικά αυτό το εγχειρίδιο χρήσεως πριν θέσετε σε
λειτουργία τη μονάδα κλιματισμού.
ΓΙΑ ΤΟΝ ΧΡΗΣΤΗ
Türkçe
İŞLETME ELKİTABI
Emniyetli ve doğru biçimde nasıl kullanılacağınıöğrenmek için lütfen klima cihazınıişletmeden önce bu elkitabını
dikkatle okuyunuz.
KULLANICI İÇİN
<ORIGINAL>
KJ79H015H01_cover.fm 1 ページ ２０１６年１１月２日 水曜日 午前１１時３８分

2

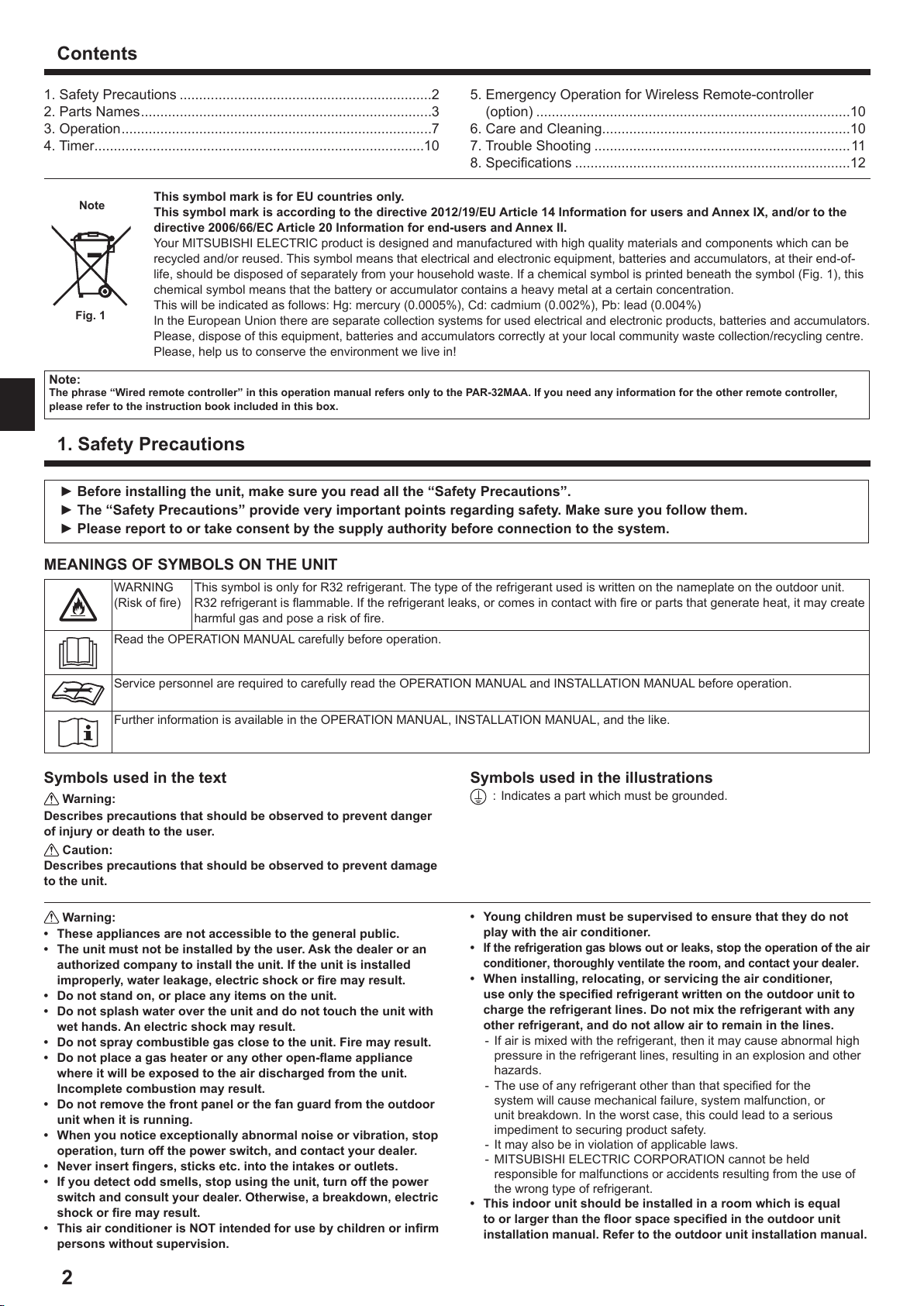

Contents
1. Safety Precautions .................................................................2
2. Parts Names...........................................................................3
3. Operation................................................................................7
4. Timer.....................................................................................10
5. Emergency Operation for Wireless Remote-controller
(option) .................................................................................10
6. Care and Cleaning................................................................10
7. Trouble Shooting ..................................................................11
8. Specications .......................................................................12
Note
Fig. 1
This symbol mark is for EU countries only.
This symbol mark is according to the directive 2012/19/EU Article 14 Information for users and Annex IX, and/or to the
directive 2006/66/EC Article 20 Information for end-users and Annex II.
Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be
recycled and/or reused. This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-
life, should be disposed of separately from your household waste. If a chemical symbol is printed beneath the symbol (Fig. 1), this
chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration.
This will be indicated as follows: Hg: mercury (0.0005%), Cd: cadmium (0.002%), Pb: lead (0.004%)
In the European Union there are separate collection systems for used electrical and electronic products, batteries and accumulators.
Please, dispose of this equipment, batteries and accumulators correctly at your local community waste collection/recycling centre.
Please, help us to conserve the environment we live in!
Note:
The phrase “Wired remote controller” in this operation manual refers only to the PAR-32MAA. If you need any information for the other remote controller,
please refer to the instruction book included in this box.
1. Safety Precautions
►Beforeinstallingtheunit,makesureyoureadallthe“SafetyPrecautions”.
►The“SafetyPrecautions”provideveryimportantpointsregardingsafety.Makesureyoufollowthem.
►Please report to or take consent by the supply authority before connection to the system.
MEANINGSOFSYMBOLSONTHEUNIT
WARNING
(Risk of re)
This symbol is only for R32 refrigerant. The type of the refrigerant used is written on the nameplate on the outdoor unit.
R32 refrigerant is ammable. If the refrigerant leaks, or comes in contact with re or parts that generate heat, it may create
harmful gas and pose a risk of re.
Read the OPERATION MANUAL carefully before operation.
Service personnel are required to carefully read the OPERATION MANUAL and INSTALLATION MANUAL before operation.
Further information is available in the OPERATION MANUAL, INSTALLATION MANUAL, and the like.
Symbols used in the text
Warning:
Describes precautions that should be observed to prevent danger
of injury or death to the user.
Caution:
Describes precautions that should be observed to prevent damage
to the unit.
Symbols used in the illustrations
: Indicates a part which must be grounded.
Warning:
• Theseappliancesarenotaccessibletothegeneralpublic.
• Theunitmustnotbeinstalledbytheuser.Askthedealeroran
authorized company to install the unit. If the unit is installed
improperly,waterleakage,electricshockorremayresult.
• Donotstandon,orplaceanyitemsontheunit.
• Donotsplashwaterovertheunitanddonottouchtheunitwith
wethands.Anelectricshockmayresult.
• Donotspraycombustiblegasclosetotheunit.Firemayresult.
• Donotplaceagasheateroranyotheropen-ameappliance
whereitwillbeexposedtotheairdischargedfromtheunit.
Incomplete combustion may result.
• Donotremovethefrontpanelorthefanguardfromtheoutdoor
unitwhenitisrunning.
• Whenyounoticeexceptionallyabnormalnoiseorvibration,stop
operation,turnoffthepowerswitch,andcontactyourdealer.
• Neverinsertngers,sticksetc.intotheintakesoroutlets.
• Ifyoudetectoddsmells,stopusingtheunit,turnoffthepower
switchandconsultyourdealer.Otherwise,abreakdown,electric
shockorremayresult.
• ThisairconditionerisNOTintendedforusebychildrenorinrm
personswithoutsupervision.
• Youngchildrenmustbesupervisedtoensurethattheydonot
playwiththeairconditioner.
• Iftherefrigerationgasblowsoutorleaks,stoptheoperationoftheair
conditioner, thoroughly ventilate the room, and contact your dealer.
• Wheninstalling,relocating,orservicingtheairconditioner,
useonlythespeciedrefrigerantwrittenontheoutdoorunitto
chargetherefrigerantlines.Donotmixtherefrigerantwithany
otherrefrigerant,anddonotallowairtoremaininthelines.
- If air is mixed with the refrigerant, then it may cause abnormal high
pressure in the refrigerant lines, resulting in an explosion and other
hazards.
- The use of any refrigerant other than that specied for the
system will cause mechanical failure, system malfunction, or
unit breakdown. In the worst case, this could lead to a serious
impediment to securing product safety.
- It may also be in violation of applicable laws.
- MITSUBISHI ELECTRIC CORPORATION cannot be held
responsible for malfunctions or accidents resulting from the use of
the wrong type of refrigerant.
• Thisindoorunitshouldbeinstalledinaroomwhichisequal
toorlargerthantheoorspacespeciedintheoutdoorunit
installation manual. Refer to the outdoor unit installation manual.

3
1. Safety Precautions
• Onlyusemeansrecommendedbythemanufacturertoaccelerate
the defrosting process or to clean.
• Thisindoorunitshallbestoredinaroomthathasno
continuously-operatingignitiondevicesuchasopename,gas
appliance, or electrical heater.
• Donotpierceaholeinorburnthisindoorunitorrefrigerant
lines.
• Beawarethattherefrigerantmaybeodour-free.
Caution:
• Donotuseanysharpobjecttopushthebuttons,asthismay
damage the remote controller.
• Never block or cover the indoor or outdoor unit’s intakes or outlets.
Disposing of the unit
When you need to dispose of the unit, consult your dealer.
2. Parts Names
■Indoor Unit
PEAD-M·JA(L)
Fan steps 3 steps
Vane –
Louver –
Filter Normal
Filter cleaning indication –

4
2. Parts Names
■Wired Remote Controller
Controller interface
The functions of the function buttons change depending on the
screen.
Refer to the button function guide that appears at the bottom of the
LCDforthefunctionstheyserveonagivenscreen.
When the system is centrally controlled, the button function guide
thatcorrespondstothelockedbuttonwillnotappear.
Main display Main menu
Function guide
Fri
Room
Set temp.
Mode Temp. Fan
Cool
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
⑦ ⑧ ⑨ ⑩ ⑦ ⑧ ⑨ ⑩
Function buttons
④ ③ ② ①
⑤
⑥
⑦ ⑧ ⑨ ⑩
▌①[ON/OFF] button
Press to turn ON/OFF the indoor unit.
▌②[SELECT]button
Press to save the setting.
▌③[RETURN] button
Press to return to the previous screen.
▌④[MENU] button
Press to bring up the Main menu.
▌⑤BacklitLCD
Operation settings will appear.
When the backlight is off, pressing any button turns the backlight on
and it will stay lit for a certain period of time depending on the screen.
When the backlight is off, pressing any button turns the backlight on
and does not perform its function. (except for the [ON/OFF] button)
▌⑥ON/OFF lamp
This lamp lights up in green while the unit is in operation. It blinks while
the remote controller is starting up or when there is an error.
▌⑦Function button [F1]
Main display: Press to change the operation mode.
Main menu: Press to move the cursor down.
▌⑧Function button [F2]
Main display: Press to decrease temperature.
Main menu: Press to move the cursor up.
▌⑨Function button [F3]
Main display: Press to increase temperature.
Main menu: Press to go to the previous page.
▌⑩Function button [F4]
Main display: Press to change the fan speed.
Main menu: Press to go to the next page.

5
2. Parts Names
Display
The main display can be displayed in two different modes: “Full” and “Basic”. The factory setting is “Full”. To switch to the “Basic” mode, change the
setting on the Main display setting. (Refer to operation manual included with remote controller.)
<Full mode>
* All icons are displayed for explanation.
<Basic mode>
Fri
Mode Temp. Fan
Room
Cool Set temp.
②
①
⑤
⑥
⑦⑧
⑨⑩
⑪
③
⑳
④
㉑
⑰
㉒
⑫⑬⑭⑮⑯ ⑱ ⑲
Fri
Cool
Mode Temp. Fan
Set temp.
④
③
②
①
⑤
▌①Operation mode
Indoor unit operation mode appears here.
▌②Preset temperature
Preset temperature appears here.
▌③Clock (See the Installation Manual.)
Current time appears here.
▌④Fan speed
Fan speed setting appears here.
▌⑤Buttonfunctionguide
Functions of the corresponding buttons appear here.
▌⑥
Appears when the ON/OFF operation is centrally controlled.
▌⑦
Appears when the operation mode is centrally controlled.
▌⑧
Appears when the preset temperature is centrally controlled.
▌⑨
Appears when the lter reset function is centrally controlled.
▌⑩
Indicates when lter needs maintenance.
▌⑪Room temperature (See the Installation Manual.)
Current room temperature appears here.
▌⑫
Appears when the buttons are locked
Most settings (except ON/OFF, mode, fan speed, temperature) can be made from the Menu screen.
(Refer to operation manual included with remote controller.)
▌⑬
Appears when the On/Off timer, Night setback, or Auto-off timer
function is enabled.
appears when the timer is disabled by the centralized control
system.
▌⑭
Appears when the Weekly timer is enabled.
▌⑮
Appears while the units are operated in the energy-save mode. (Will
not appear on some models of indoor units)
▌⑯
Appears while the outdoor units are operated in the silent mode.
▌⑰
Appears when the built-in thermistor on the remote controller is
activated to monitor the room temperature ( ⑪).
appears when the thermistor on the indoor unit is activated to
monitor the room temperature.
▌⑱
Appears when the units are operated in the energy-save mode with 3D
i-see Sensor.
▌⑲
Indicates the vane setting.
▌⑳
Indicates the louver setting.
▌㉑
Indicates the ventilation setting.
▌㉒
Appears when the preset temperature range is restricted.

6
2. Parts Names
■ Wireless Remote-Controller (option)
CLOCK
CHECK
RESET SET
TEST RUN
MODE
FAN
VANE
LOUVER
min
h
AUTO START
AUTO STOP
ON/OFF
TEMP
NOT AVAILABLE
MODEL SELECT
TEST RUN CHECK
ON/OFF button
Pushing button starts operation.
Pushing again stops operation.
MODESELECTbutton
This button is used to change
between auto, cooling, heating
and drying operation modes.
SET TEMPERATURE button
SET TEMPERATURE button
sets and any desired room
temperature.
AUTO STOP/AUTO START button
Used for selecting timed starting
or stopping.
h button
Used for setting the current time.
VANECONTROLbutton
Used to change the airow
direction.
FAN SPEED button
This button is used to set fan
speed to low, medium or high.
CHECKbutton
TEST RUN button
min button
Used for setting the current time.
LOUVERbutton
Used for adjusting the airow
direction.
■ When using the wireless remote controller, point it towards the receiver on the indoor unit.
■If the remote controller is operated within approximately two minutes after power is
supplied to the indoor unit, the indoor unit may beep twice as the unit is performing the
initial automatic check.
■ The indoor unit beeps to conrm that the signal transmitted from the remote controller has
been received. Signals can be received up to approximately 7 meters in a direct line from
the indoor unit in an area 45° to the left and right of the unit. However, illumination such
as uorescent lights and strong light can affect the ability of the indoor unit to receive
signals.
■ If the operation lamp near the receiver on the indoor unit is ashing, the unit needs to be
inspected. Consult your dealer for service.
■Handle the remote controller carefully! Do not drop the remote controller or subject it to
strong shocks. In addition, do not get the remote controller wet or leave it in a location
with high humidity.
■To avoid misplacing the remote controller, install the holder included with the remote
controller on a wall and be sure to always place the remote controller in the holder after
use.
Batteryinstallation/replacement
1. Remove the top cover, insert two AAA batteries,
and then install the top cover.
①
②
③
Top cover Two AAA batteries
Insert the negative
(–) end of each
battery rst. Install the
batteries in the correct
directions (+, –)!
2. Press the Reset button.
Press the Reset
button with an object
that has a narrow end.

7
3. Operation
■Abouttheoperationmethod,refertotheoperationmanualthatcomeswitheachremotecontroller.
3.1. Turning ON/OFF
3.1.1. Forwiredremotecontroller
[ON] [OFF]
Press the [ON/OFF] button.
The ON/OFF lamp will light up in green,
and the operation will start.
Press the [ON/OFF] button again.
The ON/OFF lamp will come off, and
the operation will stop.
■Operation status memory ■Settable preset temperature range
Remote controller setting Operation mode Preset temperature range
Operation mode Operation mode before the power was turned off Cool/Dry 19 – 30 °C
Preset temperature Preset temperature before the power was turned off Heat 17 – 28 °C
Fan speed Fan speed before the power was turned off Auto 19 – 28 °C
Fan/Ventilation Not settable
3.1.2. Forwirelessremotecontroller
[ON]
■Press the ON/OFF button ①.
Note:
●Whentheunitisrestarted,initialsettingsareasfollows.
Remote Controller settings
Mode Last operation mode
Temperature setting Last set temperature
Fan speed Last set fan speed
Airow up/down Mode
COOL or DRY Horiz. outlet
HEAT Last setting
FAN Horiz. outlet
[OFF]
■ Press the ON/OFF button ①again.
Note:
EvenifyoupresstheON/OFFbuttonimmediatelyaftershuttingdowntheoperationisprogress,theairconditionerwillnotstartforaboutthreeminutes.
This is to prevent the internal components from being damaged.
AAA
AAA
CLOCK
CHECK
RESET SET
TEST RUN
MODE
FAN
VANE
LOUVER
min
h
AUTO START
AUTO STOP
ON/OFF
TEMP
①
②
③
④
2 3
4
(option)
3.2. Mode select
3.2.1. Forwiredremotecontroller
F1 F2 F3 F4
Cool
Room
Set temp.
Mode Temp. Fan
Fri Press the [F1] button to go through the
operation modes in the order of “Cool”,
“Dry”, “Fan”, “Auto”, and “Heat”. Select the
desired operation mode.
Cool Dry Fan
Auto Heat
• Operation modes that are not available to
the connected indoor unit models will not
appear on the display.
What the blinking mode icon means
The mode icon will blink when other indoor units in the same refrigerant
system (connected to the same outdoor unit) are already operated in a
different mode. In this case, the rest of the unit in the same group can
only be operated in the same mode.
3.2.2. Forwirelessremotecontroller
■Press the operation mode ( ) button ②and select the
operation mode 2.
Cooling mode
Drying mode
Fan mode
Heating mode
Automatic (cooling/heating) mode
Ventillation mode
Only indicated on the following condition
Wired remote controller used
LOSSNAY connected
►

8
3. Operation
Automatic operation
■According to a set temperature, cooling operation starts if the room
temperature is too hot and heating operation starts if the room
temperature is too cold.
■During automatic operation, if the room temperature changes and
remains 2 °C or more above the set temperature for 15 minutes, the
air conditioner switches to cooling mode. In the same way, if the room
temperature remains 2 °C or more below the set temperature for 15
minutes, the air conditioner switches to heating mode.
Cooling mode 15 minutes (switches
from heating to cooling)
Set temperature +2°C
Set temperature
Set temperature -2°C
15 minutes (switches
from cooling to heating )
■Because the room temperature is automatically adjusted in order to
maintain a xed effective temperature, cooling operation is performed
a few degrees warmer and heating operation is performed a few
degrees cooler than the set room temperature once the temperature is
reached (automatic energy-saving operation).
3.3. Temperature setting
3.3.1. Forwiredremotecontroller
<Cool,Dry,Heat,andAuto>
Cool
Room
28.5
Set temp.
Mode Temp. Fan
Fri
28.5
Example display
(Centigrade in 0.5-degree increments)
F1 F2 F3 F4
Cool
Room
Set temp.
Mode Temp. Fan
Fri
Press the [F2] button to decrease the preset temperature, and press the
[F3] button to increase.
• Refer to the table on page 7 for the settable temperature range for
different operation modes.
• Preset temperature range cannot be set for Fan/Ventilation operation.
• Preset temperature will be displayed either in Centigrade in 0.5- or
1-degree increments, or in Fahrenheit, depending on the indoor unit
model and the display mode setting on the remote controller.
3.3.2. Forwirelessremotecontroller
►To decrease the room temperature:
Press button ③to set the desired temperature.
The selected temperature is displayed 3.
• Each time you press the button, the temperature value decreases by 1 °C.
►To increase the room temperature:
Press button ③to set the desired temperature.
The selected temperature is displayed 3.
• Each time you press the button, the temperature value decreases by 1 °C.
• Available temperature ranges are as follows:
Cooling/Drying: 19 - 30 °C
Heating: 17 - 28 °C
Automatic: 19 - 28 °C
• The display ashes either 8 °C - 39 °C to inform you if the room
temperature is lower or higher than the displayed temperature.
3.4. Fan speed setting
3.4.1. Forwiredremotecontroller
F1 F2 F3 F4
Cool
Room
Set temp.
Mode Temp. Fan
Fri
Press the [F4] button to go through the fan speeds in the following order.
Auto
3.4.2. Forwirelessremotecontroller
■ Press ④button to select a desired fan speed.
• Each time you press the button, available options change with the
display 4on the remote controller, as shown below.
Fan speed Remote controller display
Low Medium High Auto
3-stage
Notes:
● 
Inthefollowingcases,theactualfanspeedgeneratedbytheunit
willdifferfromthespeedshowntheremotecontrollerdisplay.
 1.Whilethedisplayisin“STANDBY”or“DEFROST”states.
 2.Whenthetemperatureoftheheatexchangerislowinthe
heating mode.
(e.g. immediately after heating operation starts)
 3.InHEATmode,whenroomtemperatureishigherthanthe
temperature setting.
4.When the unit is in DRY mode.
( ) ()
()

9
3. Operation
3.5. Ventillation(Forwiredremotecontroller)
3.5.1. Navigating through the Main menu
<AccessingtheMainmenu>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Press the [MENU] button.
The Main menu will appear.
<Itemselection>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Cursor
Press [F1] to move the cursor down.
Press [F2] to move the cursor up.
<Navigatingthroughthepages>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
page
Press [F3] to go to the previous page.
Press [F4] to go to the next page.
<Savingthesettings>
F1 F2 F3 F4
OU silent mode
Mon Tue Wed Thu Fri Sat Sun
Start Stop Silent
-
Setting display:
day
Select the desired item, and press
the [SELECT] button.
The screen to set the selected item
will appear.
<ExitingtheMainmenuscreen>
F1 F2 F3 F4
Cool
Room
Set temp.
Mode Temp. Fan
Fri Press the [RETURN] button to exit
the Main menu and return to the
Main display.
If no buttons are touched for 10 minutes, the screen will automatically
return to the Main display. Any settings that have not been saved will be
lost.
<Displayofunsupportedfunctions>
F1 F2 F3 F4
Title
Not available
Unsupported function
Return:
The message at left will appear
if the user selects a function not
supported by the corresponding
indoor unit model.
3.5.2. Vane·Vent.(Lossnay)
<Accessingthemenu>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Select "Vane·Louver·Vent.
(Lossnay)" from the Main menu,
and press the [SELECT] button.
<Vent.setting>
F1 F2 F3 F4
Fri
Low
Vent.
Press the [F3] button to go through
the ventilation setting options in the
order of "Off", "Low", and "High".
* Settable only when LOSSNAY
unit is connected.
Off Low High
Off Low High
• The fan on some models of
indoor units may be interlocked
with certain models of ventilation
units.
<ReturningtotheMainmenu>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Press the [RETURN] button to go
back to the Main menu.
3.6. Ventillation(Forwirelessremotecontroller)
●The ventilator will automatically operate when the indoor unit turns on.
●No indication on the wireless remote controller.

10
4. Timer
■Timer functions are different by each remote controller.
■For details on how to operate the remote controller, refer to the appropriate operation manual included with each remote controller.
4.1. Forwirelessremotecontroller
AAA
AAA
CLOCK
CHECK
RESET SET
TEST RUN
MODE
FAN
VANE
LOUVER
min
h
AUTO START
AUTO STOP
ON/OFF
TEMP
①③
②
Ⓓ
Ⓐ
Ⓒ
Ⓑ
1) Set the current time
①Press the CLOCK button using a thin stick and blink the time Ⓐ.
②Press the
h
and
min
button to set the current time.
③Press the CLOCK button using a thin stick.
2)Setthetimetostarttheunitasfollows
①Press the
AUTO START
button.
• Time can be set while the following symbol is blinking.
On time: ⒷSTART is blinking.
• The start times is displayed at Ⓐ.
②Use the
h
and
min
buttons to set the desired time.
③To cancel the ON timer, press the
AUTO START
button.
3)Setthetimetostoptheunitasfollows
①Press the
AUTO STOP
button.
• Time can be set while the following symbol is blinking.
Off time: ⒸSTOP is blinking.
• The stop times is displayed at Ⓓ.
②Use the
h
and
min
buttons to set the desired time.
③To cancel the OFF timer, press the
AUTO STOP
button.
4) Changing the set times
Press the
AUTO START
or
AUTO STOP
to cancel the timer and repeat from 2) or 3).
5. Emergency Operation for Wireless Remote-controller (option)
ON/OFF
HEAT COOL
②
①
①ON/OFF lamp (lit when unit is operating; unlit when unit is not
operating)
②Emergency operation
In cases where the remote control unit does not operate properly, use
either the COOL or HEAT button on the wireless remote control
signal receiver to toggle the unit on or off. On cooler only units,
pushing the HEAT button toggles the fan on and off.
Pressing the COOL or HEAT button selects the following settings.
Operation mode COOL HEAT
Preset temperature 24 °C/75 °F 24 °C/75 °F
Fan speed High High
6. Care and Cleaning
►Cleaningthelters
• Clean the lters using a vacuum cleaner. If you do not have a vacuum
cleaner, tap the lters against a solid object to knock off dirt and dust.
• If the lters are especially dirty, wash them in lukewarm water. Take
care to rinse off any detergent thoroughly and allow the lters to dry
completely before putting them back into the unit.
Caution:
• Donotdrytheltersindirectsunlightorbyusingaheatsource,
suchasanelectricheater:thismaywarpthem.
• Donotwashtheltersinhotwater(above50°C),asthismaywarp
them.
• Makesurethattheairltersarealwaysinstalled.Operatingthe
unitwithoutairlterscancausemalfunction.
Caution:
• Beforeyoustartcleaning,stopoperationandturnOFFthepower
supply.
• Indoorunitsareequippedwithlterstoremovethedustofsucked-in
air.Cleantheltersfollowingtheproceduresbelow.
►Filter removal
Caution:
• Inremovingthelter,precautionsmustbetakentoprotectyour
eyes from dust. Also, if you have to climb up on a stool to do the
job, be careful not to fall.
• Whenthelterisremoved,donottouchthemetallicpartsinside
theindoorunit,otherwiseinjurymayresult.
Ⓑ
Ⓐ
Ⓓ Ⓓ
Ⓒ
• While liftingthelterknob,pullit.
Ⓐ Air intake Ⓑ Air outlet Ⓒ Filter Ⓓ Knob

11
7. Trouble Shooting
Having trouble? Here is the solution. (Unit is operating normally.)
Air conditioner does not heat or cool well.
■Clean the lter. (Airow is reduced when the lter is dirty or clogged.)
■Check the temperature adjustment and adjust the set temperature.
■Make sure that there is plenty of space around the outdoor unit. Is the
indoor unit air intake or outlet blocked?
■Has a door or window been left open?
When heating operation starts, warm air does not blow from the indoor
unit soon.
■Warm air does not blow until the indoor unit has sufciently warmed up.
During heating mode, the air conditioner stops before the set room
temperature is reached.
■When the outdoor temperature is low and the humidity is high,
frost may form on the outdoor unit. If this occurs, the outdoor unit
performs a defrosting operation. Normal operation should begin after
approximately 10 minutes.
Airow direction changes during operation or airow direction cannot be
set.
■During heating mode, the vanes automatically move to the horizontal
airow direction when the airow temperature is low or during
defrosting mode.
When the airow direction is changed, the vanes always move up and
down past the set position before nally stopping at the position.
■When the airow direction is changed, the vanes move to the set
position after detecting the base position.
A owing water sound or occasional hissing sound is heard.
■These sounds can be heard when refrigerant is owing in the air
conditioner or when the refrigerant ow is changing.
A cracking or creaking sound is heard.
■These sounds can be heard when parts rub against each due to
expansion and contraction from temperature changes.
The room has an unpleasant odor.
■The indoor unit draws in air that contains gases produced from the
walls, carpeting, and furniture as well as odors trapped in clothing, and
then blows this air back into the room.
A white mist or vapor is emitted from the indoor unit.
■If the indoor temperature and the humidity are high, this condition may
occur when operation starts.
■During defrosting mode, cool airow may blow down and appear like a
mist.
Water or vapor is emitted from the outdoor unit.
■During cooling mode, water may form and drip from the cool pipes and
joints.
■During heating mode, water may form and drip from the heat exchanger.
■During defrosting mode, water on the heat exchanger evaporates and
water vapor may be emitted.
“” appears in the remote controller display.
■During central control, “ ” appears in the remote controller display
and air conditioner operation cannot be started or stopped using the
remote controller.
When restarting the air conditioner soon after stopping it, it does not
operate even though the ON/OFF button is pressed.
■Wait approximately three minutes.
■(Operation has stopped to protect the air conditioner.)
Air conditioner operates without the ON/OFF button being pressed.
■Is the on timer set?
Press the ON/OFF button to stop operation.
■Is the air conditioner connected to a central remote controller?
Consult the concerned people who control the air conditioner.
■Does “ ” appear in the remote controller display?
Consult the concerned people who control the air conditioner.
■Has the auto recovery feature from power failures been set?
Press the ON/OFF button to stop operation.
Air conditioner stops without the ON/OFF button being pressed.
■Is the off timer set?
Press the ON/OFF button to restart operation.
■Is the air conditioner connected to a central remote controller?
Consult the concerned people who control the air conditioner.
■Does “ ” appear in the remote controller display?
Consult the concerned people who control the air conditioner.
Remote controller timer operation cannot be set.
■Are timer settings invalid?
If the timer can be set, or appears in the remote controller
display.
“PLEASE WAIT” appears in the remote controller display.
■The initial settings are being performed. Wait approximately 3 minutes.
An error code appears in the remote controller display.
■The protection devices have operated to protect the air conditioner.
■Do not attempt to repair this equipment by yourself.
Turn off the power switch immediately and consult your dealer. Be
sure to provide the dealer with the model name and information that
appeared in the remote controller display.
Draining water or motor rotation sound is heard.
■When cooling operation stops, the drain pump operates and then
stops. Wait approximately 3 minutes.
The vanes do not move or the indoor unit does not respond to input from
the wireless remote controller.
■The junction wire connectors of the vane motor and signal receiver may
not be connected correctly. Have an installer check the connections.
(The colors of the male and female sections of the junction wire
connectors must match.)

12
7. Trouble Shooting
Having trouble? Here is the solution. (Unit is operating normally.)
Noise is louder than specications.
■The indoor operation sound level is affected by the acoustics of the
particular room as shown in the following table and will be higher than
the noise specication, which was measured in an echo-free room.
High sound-
absorbing
rooms
Normal rooms
Low sound-
absorbing
rooms
Location
examples
Broadcasting
studio, music
room, etc.
Reception
room, hotel
lobby, etc.
Ofce, hotel
room
Noise levels 3 to 7 dB 6 to 10 dB 9 to 13 dB
Nothing appears in the wireless remote controller display, the display
is faint, or signals are not received by the indoor unit unless the remote
controller is close.
■The batteries are low.
Replace the batteries and press the Reset button.
■If nothing appears even after the batteries are replaced, make sure that
the batteries are installed in the correct directions (+, –).
The operation lamp near the receiver for the wireless remote controller
on the indoor unit is ashing.
■The self diagnosis function has operated to protect the air conditioner.
■Do not attempt to repair this equipment by yourself.
Turn off the power switch immediately and consult your dealer. Be sure
to provide the dealer with the model name.
The wireless remote controller does not operate (the indoor unit beeps
4 times).
■Switch the auto mode setting to the AUTO (single set point) mode or
AUTO (dual set point) mode. For details, refer to the included Notice (A5
sheet) or the Installation Manual.
8.Specications
Item Model PEAD-M35JA(L) PEAD-M50JA(L) PEAD-M60JA(L) PEAD-M71JA(L)
Power source 220-240V 50Hz
Dimension Height / Width / Depth mm 250/900/732 250/900/732 250/1100/732 250/1100/732
Net weight kg 26(25) 28(27) 33(32) 33(32)
Fan m3/min 10.0-12.0-14.0 12.0-14.5-17.0 14.5-18.0-21.0 17.5-21.0-25.0
External static pressure
Airflow rate (Low-Middle-High)
Pa 35/50/70/100/150
Sound pressure level (Low-Mid-High) dB(A) 23-27-30 26-31-35 25-29-33 26-30-34
Item Model PEAD-M100JA(L) PEAD-M125JA(L) PEAD-M140JA(L)
Power source 220-240V 50Hz
Dimension Height / Width / Depth mm 250/1400/732 250/1400/732 250/1600/732
Net weight kg 41(40) 43(42) 47(46)
Fan m3/min 24.0-29.0-34.0 29.5-35.5-42.0 32.0-39.0-46.0
External static pressurePa 35/50/70/100/150
Sound pressure level (Low-Mid-High) dB(A) 29-34-38 33-36-40 34-38-43
Airflow rate (Low-Middle-High)
KJ79H015H01KJ79H015H01KJ79H015H01

KJ79H015H01
Please be sure to put the contact address/telephone number on
this manual before handing it to the customer.
HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
This product is designed and intended for use in the residential,
commercial and light-industrial environment.
The product at hand is
based on the following
EU regulations:
• Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility Directive
2014/30/EU
• Machinery Directive 2006/42/EC
• Energy-related Products Directive
2009/125/EC
KJ79H015H01_Backcover.fm 24 ページ ２０１６年１１月２日 水曜日 午前１１時２３分

СМОТРИТЕ ТАКЖЕ
Кондиционеры сплит-
системы Мультисплит-системы Моноблочные кондиционеры
Потолочные
вентиляторы
Бытовые рекуператоры Очистители воздуха Установка настенных
кондиционеров
Сервис
кондиционеров
Аксессуары для
кондиционеров Напольные вентиляторы Фреон Труба медная
Кронштейны для
кондиционеров
