Mitsubishi Electric MELSERVO-J2-Super Series User manual

SH (NA) 030026-F (0712) MEE Printed in Japan Specifications subject to change without notice.
This Instruction Manual uses recycled paper.
MODEL
MODEL
CODE
MODEL
MR-J2S- A4/B4
SERVO AMPLIFIER
SUPPLEMENTARY INSTRUCTION MANUAL
400VAC Compatible
J2-Super Series
General-Purpose AC Servo
Manual Name Manual No.
MR-J2S- A Servo Amplifier Instruction Manual
Servo Motor Instruction Manual
SH(NA)030006
SH(NA)3181
MR-J2S-60A4 to 22KA4
The corresponding manuals indicated below are required to use the 400VAC Compatible Servo.
Manual Name Manual No.
MR-J2S- B Servo Amplifier Instruction Manual
Servo Motor Instruction Manual
SH(NA)030007
SH(NA)3181
MR-J2S-60B4 to 22KB4
F
HEAD OFFICE : TOKYO BLDG MARUNOUCHI TOKYO 100-8310
J2-Super Series MR-J2S- A4/B4 Servo Amplifier Supplementary Instruction Manual F

A - 1
Safety Instructions
(Always read these instructions before using the equipment.)
Do not attempt to install, operate, maintain or inspect the servo amplifier and servo motor until you have read
through this Instruction Manual, Installation guide, Servo motor Instruction Manual and appended documents
carefully and can use the equipment correctly. Do not use the servo amplifier and servo motor until you have a
full knowledge of the equipment, safety information and instructions.
In this Instruction Manual, the safety instruction levels are classified into "WARNING" and "CAUTION".
WARNING Indicates that incorrect handling may cause hazardous conditions,
resulting in death or severe injury.
CAUTION Indicates that incorrect handling may cause hazardous conditions,
resulting in medium or slight injury to personnel or may cause physical
damage.
Note that the CAUTION level may lead to a serious consequence according to conditions. Please follow the
instructions of both levels because they are important to personnel safety.
What must not be done and what must be done are indicated by the following diagrammatic symbols:
: Indicates what must not be done. For example, "No Fire" is indicated by .
: Indicates what must be done. For example, grounding is indicated by .
In this Instruction Manual, instructions at a lower level than the above, instructions for other functions, and so
on are classified into "POINT".
After reading this installation guide, always keep it accessible to the operator.

A - 2
1. To prevent electric shock, note the following:
WARNING
Before wiring or inspection, turn off the power and wait for 15 minutes or more until the charge lamp turns
off. Then, confirm that the voltage between P and N is safe with a voltage tester and others. Otherwise, an
electric shock may occur. In addition, always confirm from the front of the servo amplifier, whether the
charge lamp is off or not.
Connect the servo amplifier and servo motor to ground.
Any person who is involved in wiring and inspection should be fully competent to do the work.
Do not attempt to wire the servo amplifier and servo motor until they have been installed. Otherwise, you
may get an electric shock.
Operate the switches with dry hand to prevent an electric shock.
The cables should not be damaged, stressed, loaded, or pinched. Otherwise, you may get an electric shock.
During power-on or operation, do not open the front cover of the servo amplifier. You may get an electric
shock.
Do not operate the servo amplifier with the front cover removed. High-voltage terminals and charging area
are exposed and you may get an electric shock.
Except for wiring or periodic inspection, do not remove the front cover even of the servo amplifier if the
power is off. The servo amplifier is charged and you may get an electric shock.
2. To prevent fire, note the following:
CAUTION
Install the servo amplifier, servo motor and regenerative resistor on incombustible material. Installing them
directly or close to combustibles will lead to a fire.
Always connect a magnetic contactor (MC) between the main circuit power supply and L1, L2, and L3of
the servo amplifier, and configure the wiring to be able to shut down the power supply on the side of the
servo amplifier’s power supply. If a magnetic contactor (MC) is not connected, continuous flow of a large
current may cause a fire when the servo amplifier malfunctions.
When a regenerative resistor is used, use an alarm signal to switch main power off. Otherwise, a
regenerative transistor fault or the like may overheat the regenerative resistor, causing a fire.
3. To prevent injury, note the follow
CAUTION
Only the voltage specified in the Instruction Manual should be applied to each terminal, Otherwise, a
burst, damage, etc. may occur.
Connect the terminals correctly to prevent a burst, damage, etc.
Ensure that polarity ( , ) is correct. Otherwise, a burst, damage, etc. may occur.
Take safety measures, e.g. provide covers, to prevent accidental contact of hands and parts (cables, etc.)
with the servo amplifier heat sink, regenerative resistor, servo motor, etc. since they may be hot while
power is on or for some time after power-off. Their temperatures may be high and you may get burnt or a
parts may damaged.
During operation, never touch the rotating parts of the servo motor. Doing so can cause injury.

A - 3
4. Additional instructions
The following instructions should also be fully noted. Incorrect handling may cause a fault, injury, electric
shock, etc.
(1) Transportation and installation
CAUTION
Transport the products correctly according to their masses.
Stacking in excess of the specified number of products is not allowed.
Do not carry the servo motor by the cables, shaft or encoder.
Do not hold the front cover to transport the servo amplifier. The servo amplifier may drop.
Install the servo amplifier in a load-bearing place in accordance with the Instruction Manual.
Do not climb or stand on servo equipment. Do not put heavy objects on equipment.
The servo amplifier and servo motor must be installed in the specified direction.
Leave specified clearances between the servo amplifier and control enclosure walls or other equipment.
Do not install or operate the servo amplifier and servo motor which has been damaged or has any parts
missing.
Provide adequate protection to prevent screws and other conductive matter, oil and other combustible
matter from entering the servo amplifier and servo motor.
Do not drop or strike servo amplifier or servo motor. Isolate from all impact loads.
When you keep or use it, please fulfill the following environmental conditions.
Conditions
Environment Servo amplifier Servo motor
[ ] 0 to 55 (non-freezing) 0 to 40 (non-freezing)
In operation []32 to 131 (non-freezing) 32 to 104 (non-freezing)
[ ] 20 to 65 (non-freezing) 15 to 70 (non-freezing)
Ambient
temperature In storage []4 to 149 (non-freezing) 5 to 158 (non-freezing)
In operation 90%RH or less (non-condensing) 80%RH or less (non-condensing)
Ambient
humidity In storage 90%RH or less (non-condensing)
Ambience Indoors (no direct sunlight) Free from corrosive gas, flammable gas, oil mist, dust and dirt
Altitude Max. 1000m (3280 ft) above sea level
HC-SFS524 to 1524 X, Y : 24.5
HC-SFS2024 3524 X : 24.5
Y : 49
HC-SFS5024 7024 X : 24.5
Y : 29.4
HA-LFS6014 to 12K14
HA-LFS701M4 to 15K1M4
HA-LFS11K24 to 22K24
X : 11.7
Y : 29.4
[m/s2]5.9 or less
HA-LFS15K14 22K14
HA-LFS22K1M4 X, Y : 9.8
HC-SFS524 to 1524 X, Y : 80
HC-SFS2024 3524 X : 80
Y : 161
HC-SFS5024 7024 X : 80
Y : 96
HA-LFS6014 to 12K14
HA-LFS701M4 to 15K1M4
HA-LFS11K24 to 22K24
X : 38.4
Y : 96.5
(Note)
Vibration
[ft/s2]19.4 or less
HA-LFS15K14 22K14
HA-LFS22K1M4 X, Y : 32
Note. Except the servo motor with reduction gear.
Securely attach the servo motor to the machine. If attach insecurely, the servo motor may come off during
operation.
The servo motor with reduction gear must be installed in the specified direction to prevent oil leakage.
Take safety measures, e.g. provide covers, to prevent accidental access to the rotating parts of the servo
motor during operation.
Never hit the servo motor or shaft, especially when coupling the servo motor to the machine. The encoder
may become faulty.
Do not subject the servo motor shaft to more than the permissible load. Otherwise, the shaft may break.
When the equipment has been stored for an extended period of time, consult Mitsubishi.

A - 4

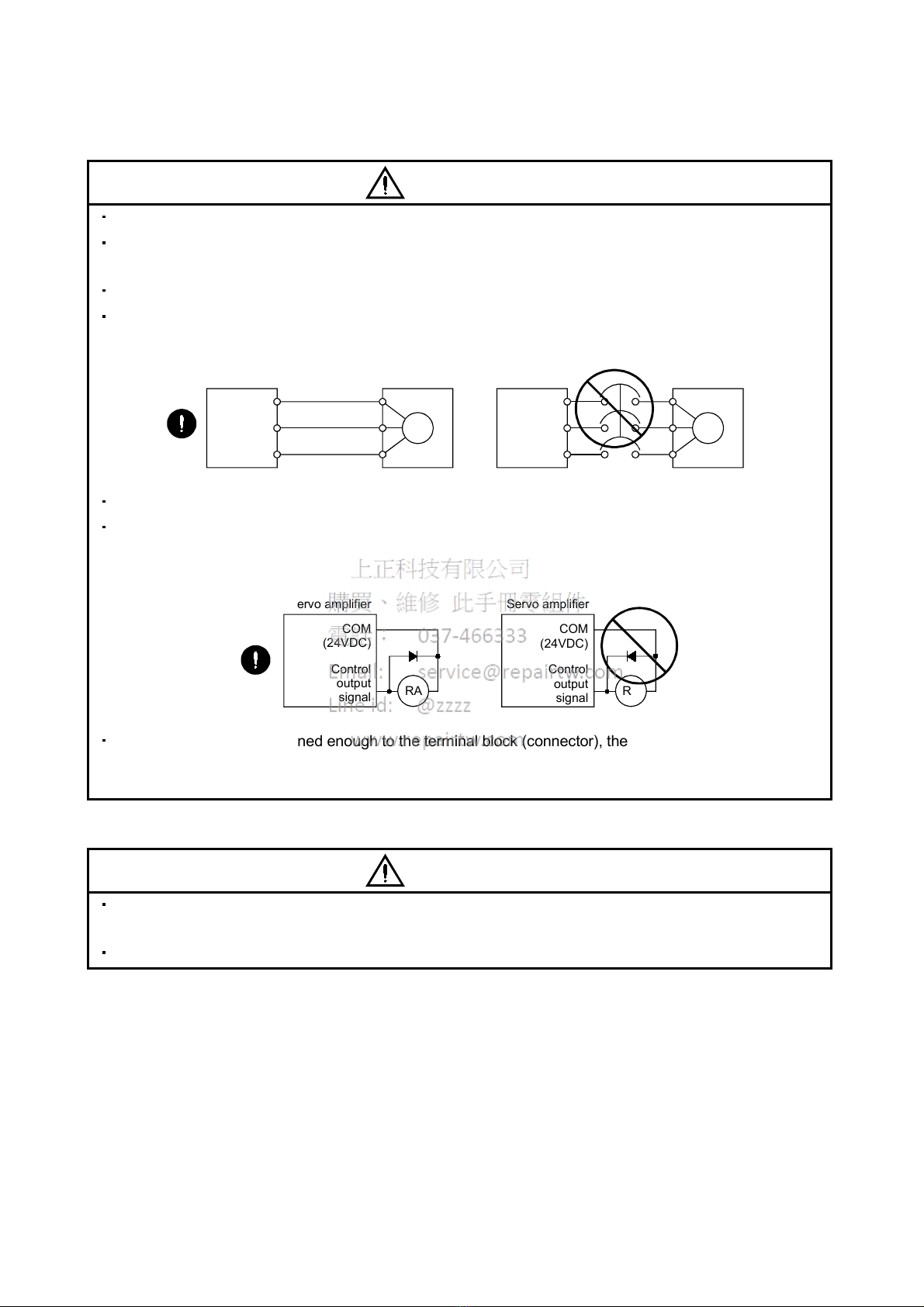

(2) Wiring
CAUTION
Wire the equipment correctly and securely. Otherwise, the servo motor may misoperate.
Do not install a power capacitor, surge absorber or radio noise filter (FR-BIF option) between the servo
motor and servo amplifier.
Connect the output terminals (U, V, W) correctly. Otherwise, the servo motor will operate improperly.
Connect the servo motor power terminal (U, V, W) to the servo motor power input terminal (U, V, W)
directly. Do not let a magnetic contactor, etc. intervene.
U
Servo motor
M
V
W
U
V
W
U
M
V
W
U
V
W
Servo amplifier Servo motorServo amplifier
Do not connect AC power directly to the servo motor. Otherwise, a fault may occur.
The surge absorbing diode installed on the DC output signal relay of the servo amplifier must be wired in
the specified direction. Otherwise, the emergency stop (EMG) and other protective circuits may not
operate.
COM
(24VDC)
RA
Control
output
signal
RA
COM
(24VDC)
Control
output
signal
Servo amplifier Servo amplifier
When the cable is not tightened enough to the terminal block (connector), the cable or terminal block
(connector) may generate heat because of the poor contact. Be sure to tighten the cable with specified
torque.
(3) Test run adjustment
CAUTION
Before operation, check the parameter settings. Improper settings may cause some machines to perform
unexpected operation.
The parameter settings must not be changed excessively. Operation will be insatiable.

A - 5
(4) Usage
CAUTION
Provide an external emergency stop circuit to ensure that operation can be stopped and power switched
off immediately.
Any person who is involved in disassembly and repair should be fully competent to do the work.
Before resetting an alarm, make sure that the run signal of the servo amplifier is off to prevent an
accident. A sudden restart is made if an alarm is reset with the run signal on.
Do not modify the equipment.
Use a noise filter, etc. to minimize the influence of electromagnetic interference, which may be caused by
electronic equipment used near the servo amplifier.
Burning or breaking a servo amplifier may cause a toxic gas. Do not burn or break a servo amplifier.
Use the servo amplifier with the specified servo motor.
The electromagnetic brake on the servo motor is designed to hold the motor shaft and should not be used
for ordinary braking.
For such reasons as service life and mechanical structure (e.g. where a ball screw and the servo motor
are coupled via a timing belt), the electromagnetic brake may not hold the motor shaft. To ensure safety,
install a stopper on the machine side.
(5) Corrective actions
CAUTION
When it is assumed that a hazardous condition may take place at the occur due to a power failure or a
product fault, use a servo motor with electromagnetic brake or an external brake mechanism for the
purpose of prevention.
Configure the electromagnetic brake circuit so that it is activated not only by the servo amplifier signals
but also by an external emergency stop (EMG).
EMGRA
24VDC
Contacts must be open when
servo-on (son) is OFF, when an
trouble (ALM) and when an
electromagnetic brake interlock
(MBR).
Electromagnetic brake
Servo motor
Circuit must be
opened during
emergency stop (EMG).
When any alarm has occurred, eliminate its cause, ensure safety, and deactivate the alarm before
restarting operation.
When power is restored after an instantaneous power failure, keep away from the machine because the
machine may be restarted suddenly (design the machine so that it is secured against hazard if restarted).

A - 6
(6) Maintenance, inspection and parts replacement
CAUTION
With age, the electrolytic capacitor of the servo amplifier will deteriorate. To prevent a secondary accident
due to a fault, it is recommended to replace the electrolytic capacitor every 10 years when used in general
environment.
Please consult our sales representative.
(7) General instruction
To illustrate details, the equipment in the diagrams of this Specifications and Instruction Manual may have
been drawn without covers and safety guards. When the equipment is operated, the covers and safety
guards must be installed as specified. Operation must be performed in accordance with this Specifications
and Instruction Manual.

A - 7
About processing of waste
When you discard servo amplifier, a battery (primary battery), and other option articles, please follow the law of
each country (area).
FOR MAXIMUM SAFETY
These products have been manufactured as a general-purpose part for general industries, and have not
been designed or manufactured to be incorporated in a device or system used in purposes related to
human life.
Before using the products for special purposes such as nuclear power, electric power, aerospace,
medicine, passenger movement vehicles or under water relays, contact Mitsubishi.
These products have been manufactured under strict quality control. However, when installing the product
where major accidents or losses could occur if the product fails, install appropriate backup or failsafe
functions in the system.
EEP-ROM life
The number of write times to the EEP-ROM, which stores parameter settings, etc., is limited to 100,000. If
the total number of the following operations exceeds 100,000, the servo amplifier and/or converter unit may
fail when the EEP-ROM reaches the end of its useful life.
Write to the EEP-ROM due to parameter setting changes
Home position setting in the absolute position detection system
Write to the EEP-ROM due to device changes
Precautions for Choosing the Products
Mitsubishi will not be held liable for damage caused by factors found not to be the cause of Mitsubishi;
machine damage or lost profits caused by faults in the Mitsubishi products; damage, secondary damage,
accident compensation caused by special factors unpredictable by Mitsubishi; damages to products other
than Mitsubishi products; and to other duties.

A - 8
COMPLIANCE WITH EC DIRECTIVES
1. WHAT ARE EC DIRECTIVES?
The EC directives were issued to standardize the regulations of the EU countries and ensure smooth
distribution of safety-guaranteed products. In the EU countries, the machinery directive (effective in
January, 1995), EMC directive (effective in January, 1996) and low voltage directive (effective in January,
1997) of the EC directives require that products to be sold should meet their fundamental safety
requirements and carry the CE marks (CE marking). CE marking applies to machines and equipment
into which servo amplifiers have been installed.
(1) EMC directive
The EMC directive applies not to the servo units alone but to servo-incorporated machines and
equipment. This requires the EMC filters to be used with the servo-incorporated machines and
equipment to comply with the EMC directive. For specific EMC directive conforming methods, refer to
the EMC Installation Guidelines (IB(NA)67310).
(2) Low voltage directive
The low voltage directive applies also to servo units alone. Hence, they are designed to comply with
the low voltage directive.
This servo is certified by TUV, third-party assessment organization, to comply with the low voltage
directive.
(3) Machine directive
Not being machines, the servo amplifiers need not comply with this directive.
2. PRECAUTIONS FOR COMPLIANCE
(1) Servo amplifiers and servo motors used
Use the servo amplifiers and servo motors which comply with the standard model.
Servo amplifier :MR-J2S-60A4 to MR-J2S-22KA4
MR-J2S-60B4 to MR-J2S-22KB4
Servo motor :HC-SFS 4
HA-LFS 4
(2) Configuration
NFB MC M
No-fuse
breaker
Magnetic
contactor
Reinforced
insulating type
24VDC
power
supply
Servo
amplifier
Servo
motor
Control box
(3) Environment
Operate the servo amplifier at or above the contamination level 2 set forth in IEC60664-1. For this
purpose, install the servo amplifier in a control box which is protected against water, oil, carbon, dust,
dirt, etc. (IP54).

A - 9
(4) Power supply
(a) This servo amplifier can be used under the conditions of the overvoltage category III set forth in
IE60664-1, a reinforced insulating transformer is not required in the power input section.
Unit shall be supplied from a three phase earthed neutral system.
(b) When supplying interface power from external, use a 24VDC power supply which has been
insulation-reinforced in I/O.

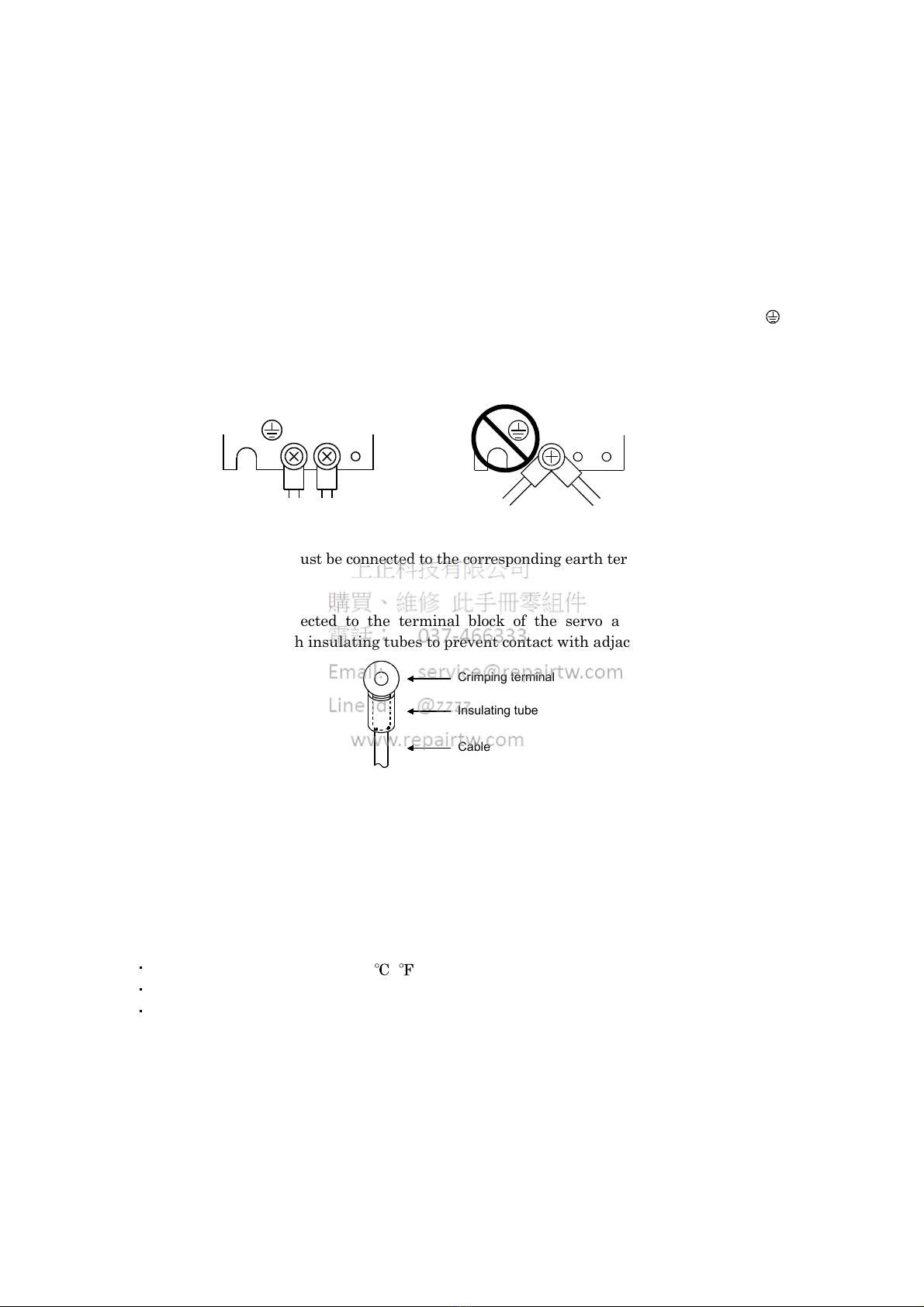

(5) Grounding
(a) To prevent an electric shock, always connect the protective earth (PE) terminals (marked ) of the
servo amplifier to the protective earth (PE) of the control box.
(b) Do not connect two ground cables to the same protective earth (PE) terminal. Always connect the
cables to the terminals one-to-one.
PE terminals PE terminals
(c) If a leakage current breaker is used to prevent an electric shock, the protective earth (PE) terminals
of the servo amplifier must be connected to the corresponding earth terminals.
(6) Wiring
(a) The cables to be connected to the terminal block of the servo amplifier must have crimping
terminals provided with insulating tubes to prevent contact with adjacent terminals.
Crimping terminal
Insulating tube
Cable
(b) Use the servo motor side power connector which complies with the EN Standard. The EN Standard-
compliant power connector sets are available from us as options.
(7) Auxiliary equipment and options
(a) The no-fuse breaker and magnetic contactor used should be the EN or IEC standard-compliant
products of the models described in section 6.2.2.
(b) The sizes of the cables described in section 6.2.1 meet the following requirements. To meet the
other requirements, follow Table 5 and Appendix C in EN60204-1.
Ambient temperature: 40 (104) [ ( )]
Sheath: PVC (polyvinyl chloride)
Installed on wall surface or open table tray
(c) Use the EMC filter for noise reduction.
(8) Performing EMC tests
When EMC tests are run on a machine/device into which the servo amplifier has been installed, it
must conform to the electromagnetic compatibility (immunity/emission) standards after it has
satisfied the operating environment/electrical equipment specifications.
For the other EMC directive guidelines on the servo amplifier, refer to the EMC Installation
Guidelines (IB(NA)67310).

A - 10
CONFORMANCE WITH UL/C-UL STANDARD
(1) Servo amplifiers and servo motors used
Use the servo amplifiers and servo motors which comply with the standard model.
Servo amplifier :MR-J2S-60A4 to MR-J2S-22KA4
MR-J2S-60B4 to MR-J2S-22KB4
Servo motor :HC-SFS 4
HA-LFS 4
(2) Installation
Install a fan of 100CFM (2.8m3/min) air flow 4 in (10.16 cm) above the servo amplifier or provide
cooling of at least equivalent capability.
(3) Short circuit rating
This servo amplifier conforms to the circuit whose peak current is limited to 5000A or less. Having
been subjected to the short-circuit tests of the UL in the alternating-current circuit, the servo
amplifier conforms to the above circuit.
(4) Capacitor discharge time
The capacitor discharge time is as listed below. To ensure safety, do not touch the charging section for
15 minutes after power-off.
Servo amplifier Discharge time
[min]
MR-J2S-60A4/B4 1
MR-J2S-100A4/B4 2
MR-J2S-200A4/B4 2
MR-J2S-350A4/B4 5
MR-J2S-500A4/B4 5
MR-J2S-700A4/B4 8
MR-J2S-11KA4/B4 4
MR-J2S-15KA4/B4 6
MR-J2S-22KA4/B4 8
(5) Options and auxiliary equipment
Use UL/C-UL standard-compliant products.
(6) Attachment of a servo motor
For the flange size of the machine side where the servo motor is installed, refer to “CONFORMANCE
WITH UL/C-UL STANDARD” in the Servo Motor Instruction Manual.
(7) About wiring protection
For installation in United States, branch circuit protection must be provided, in accordance with the
National Electrical Code and any applicable local codes.
For installation in Canada, branch circuit protection must be provided, in accordance with the Canada
Electrical Code and any applicable provincial codes.

A - 11
<<About the manuals>>
This Instruction Manual and the MELSERVO Servo Motor Instruction Manual are required if you use
this servo for the first time. Always purchase them and use this servo safely.
Relevant manuals
Manual name Manual No.
MELSERVO-J2-Super Series To Use the AC Servo Safely IB(NA)0300010
MR-J2S- A Servo Amplifier Instruction Manual SH(NA)030006
MR-J2S- B Servo Amplifier Instruction Manual SH(NA)030007
MELSERVO Servo Motor Instruction Manual SH(NA)3181
EMC Installation Guidelines IB(NA)67310

A - 12
MEMO

1
CONTENTS
1. INTRODUCTION 1- 1 to 1- 8
1.1 Model code definition .............................................................................................................................. 1- 1
1.2 Combination with servo motor............................................................................................................... 1- 2
1.3 Removal and reinstallation of the front cover ...................................................................................... 1- 2
1.4 Installation ............................................................................................................................................... 1- 5
1.4.1 Environmental conditions................................................................................................................ 1- 5
1.4.2 Installation direction and clearances.............................................................................................. 1- 6
2. MR-J2S- A4 SERVO AMPLIFIER 2- 1 to 2-38
2.1 Function block diagram .......................................................................................................................... 2- 1
2.2 Servo amplifier standard specifications ................................................................................................ 2- 4
2.3 Parts identification.................................................................................................................................. 2- 4
2.4 Servo system with auxiliary equipment................................................................................................ 2- 9
2.5 Signals and wiring.................................................................................................................................. 2-14
2.5.1 Connectors and signal arrangements............................................................................................ 2-15
2.5.2 Input power supply circuit.............................................................................................................. 2-18
2.5.3 Source interface ............................................................................................................................... 2-27
2.6 Connection of servo amplifier and servo motor ................................................................................... 2-29
2.6.1 Connection diagram......................................................................................................................... 2-29
2.6.2 I/O terminals .................................................................................................................................... 2-31
2.7. Parameter............................................................................................................................................... 2-35
2.8 Troubleshooting ...................................................................................................................................... 2-36
3. MR-J2S- B4 SERVO AMPLIFIER 3- 1 to 3-34
3.1 Function block diagram .......................................................................................................................... 3- 1
3.2 Servo amplifier standard specifications ................................................................................................ 3- 4
3.3 Parts identification.................................................................................................................................. 3- 4
3.4 Servo system with auxiliary equipment................................................................................................ 3- 9
3.5 Signals and wiring.................................................................................................................................. 3-14
3.5.1 Connectors and signal arrangements............................................................................................ 3-15
3.5.2 Input power supply circuit.............................................................................................................. 3-18
3.6 Connection of servo amplifier and servo motor ................................................................................... 3-26
3.6.1 Connection diagram......................................................................................................................... 3-26
3.6.2 Servo motor terminals..................................................................................................................... 3-28
3.7 Parameter................................................................................................................................................ 3-32
3.8 Troubleshooting ...................................................................................................................................... 3-33
4. OUTLINE DIMENSION DRAWINGS 4- 1 to 4- 6
5. CHARACTERISTICS 5- 1 to 5- 4
5.1 Overload protection characteristics ....................................................................................................... 5- 1
5.2 Power supply equipment capacity and generated loss ........................................................................ 5- 2
5.3 Dynamic brake characteristics............................................................................................................... 5- 3

2
5.4 Inrush currents at power-on of main circuit and control circuit ........................................................ 5- 4
6. OPTIONS AND AUXILIARY EQUIPMENT 6- 1 to 6- 36
6.1 Options...................................................................................................................................................... 6- 1
6.1.1 Regenerative options ........................................................................................................................ 6- 1
6.1.2 FR-BU2-H brake unit....................................................................................................................... 6- 9
6.1.3 Power regeneration converter ........................................................................................................ 6-17
6.1.4 External dynamic brake.................................................................................................................. 6-20
6.1.5 Heat sink outside mounting attachment (MR-JACN) ................................................................. 6-23
6.2 Auxiliary equipment............................................................................................................................... 6-26
6.2.1 Recommended wires ........................................................................................................................ 6-26
6.2.2 No-fuse breakers, magnetic contactors.......................................................................................... 6-28
6.2.3 Power factor improving reactors .................................................................................................... 6-28
6.2.4 Power factor improving DC reactors.............................................................................................. 6-29
6.2.5 Radio noise filter.............................................................................................................................. 6-30
6.2.6 Varistors for input power supply (Recommended) ....................................................................... 6-30
6.2.7 Leakage current breaker................................................................................................................. 6-31
6.2.8 Circuit protector............................................................................................................................... 6-32
6.2.9 EMC filter......................................................................................................................................... 6-33
APPENDIX App- 1
App. 1 Combinations of servo amplifiers and servo motors ................................................................. App- 1
App. 2 Auxiliary equipment manufacturer list ..................................................................................... App- 1

1 - 1
1. INTRODUCTION
1. INTRODUCTION
1.1 Model code definition
(1) Rating plate
Model
Capacity
Applicable power supply
Rated output current
Serial number
MITSUBISHI
MODEL MR-J2S-350A4
AC SERVO
INPUT :
OUTPUT :
SERIAL :
3.5kW
7.9A 3PH 380-480V 50Hz
323V 0-360Hz 8.6A
3PH 380-480V 60Hz
AZ
TC3 AAAAG52
MADE IN JAPAN
MITSUBISHI ELECTRIC CORPORATION
POWER :
PASSED
(2) Model
None
Series
60 0.6
100 1
200 2
350 3.5
500 5
700 7
11K 11
15K 15
22K 22
Rated output
Symbol Rated
output [kW]
Special specification
Symbol Special specification
Standard
This symbol is affixed to
indicate that the 11k to 22kW
servo amplifier does not need
the external regenerative
resistor equipped as standard
because the regenerative
option (MR-RB6B-4 MR-
RB60-4 MR-RB6K-4), brake
unit (FR-BU2-H) or power
regeneration converter (FR-
RC) is purchased.
Three-phase 380 to 480VAC
power supply feature
Servo amplifier type
-PX
Symbol Type
A General-purpose interface
B SSCNET compatible
MR-J2S-200A4/B4 or less
Rating plate
MR-J2S-700A4/B4
Rating plate
MR-J2S-350A4/B4 500A4/B4
Rating plate
MR-J2S-11KA4/B4 to 22KA4/B4
Rating plate

1 - 2
1. INTRODUCTION
1.2 Combination with servo motor
The following table lists combinations of servo amplifiers and servo motors. The same combinations apply
to the models with electromagnetic brakes and the models with reduction gears.
Servo motors
HA-LFS
Servo amplifier HC-SFS (Note 2)
1000r/min 1500r/min 2000r/min
MR-J2S-60A4/B4 524
MR-J2S-100A4/B4 1024
MR-J2S-200A4/B4 1524 2024
MR-J2S-350A4/B4 3524
MR-J2S-500A4/B4 5024
MR-J2S-700A4/B4 7024 6014 (Note 2) 701M4
MR-J2S-11KA4/B4 8014 12K14 11K1M4 11K24
MR-J2S-15KA4/B4 15K14 15K1M4 (Note 1) 15K24
MR-J2S-22KA4/B4 20K14 25K14 (Note 1)
22K1M4 22K24
Note 1. These servo amplifiers may not be connected depending on the production time of the servo amplifier. Refer to Appendix.
2. Consult us since the servo amplifier to be used with any of these servo motors is optional.
1.3 Removal and reinstallation of the front cover
(1) For 3.5k • 5kW
Front cover socket
(2 places)
Removal of the front cove
r
Reinstallation of the front cove
r
1) Insert the front cover hooks into the front cover sockets of
the servo amplifier.
2) Press the front cover against the servo amplifier until the
removing knob clicks.
1) Hold down the removing knob.
2) Pull the front cover toward you.
2)
1)
Front cover hook
(2 places)
2)
1)
Front cover

1 - 3
1. INTRODUCTION
(2) 7kW
Front cover socket
(2 places)
A)
1)
Removal of the front cover Reinstallation of the front cover
1) Insert the two front cover hooks at the bottom into the
sockets of the servo amplifier.
2) Press the front cover against the servo amplifier until the
removing knob clicks.
1) Push the removing knob A) or B), and put you
finger into the front hole of the front cover.
2) Pull the front cover toward you.
A)
2)
B)
2)
1)
Front cover
hook
(2 places)
(3) For 11k to 22kW
Mounting screws (2 places)
1) Remove the front cover mounting screws (2 places)
and remove the front cover.
Removal of the front cover
Mounting screws
(2 places)
2) Remove the front cover mounting screws (2 places).

1 - 4
1. INTRODUCTION
3) Remove the front cover by drawing it in the direction of arrow.
1) Insert the front cover in the direction of arrow.
Reinstallation of the front cove
r
Mounting screws
(2 places)
2) Fix it with the mounting screws (2 places).
Mounting screws (2 places)
3) Fit the front cover and fix it with the mounting screws (2 places).

1 - 5
1. INTRODUCTION
1.4 Installation
CAUTION
Stacking in excess of the limited number of products is not allowed.
Install the equipment to incombustibles. Installing them directly or close to
combustibles will led to a fire.
Install the equipment in a load-bearing place in accordance with this Instruction
Manual.
Do not get on or put heavy load on the equipment to prevent injury.
Use the equipment within the specified environmental condition range. (For the
environmental conditions, refer to section 2.2.)
Provide an adequate protection to prevent screws, metallic detritus and other
conductive matter or oil and other combustible matter from entering the servo
amplifier.
Do not block the intake/exhaust ports of the servo amplifier. Otherwise, a fault may
occur.
Do not subject the servo amplifier to drop impact or shock loads as they are
precision equipment.
Do not install or operate a faulty servo amplifier.
When the product has been stored for an extended period of time, consult
Mitsubishi.
When treating the servo amplifier, be careful about the edged parts such as the
corners of the servo amplifier.
1.4.1 Environmental conditions
Environment Conditions
[]0to55 (non-freezing)
In
operation [] 32 to 131 (non-freezing)
[ ] 20 to 65 (non-freezing)
Ambient
temperature In storage []4 to 149 (non-freezing)
In operation
Ambient
humidity In storage 90%RH or less (non-condensing)
Ambience Indoors (no direct sunlight)
Free from corrosive gas, flammable gas, oil mist, dust and dirt
Altitude Max. 1000m (3280 ft) above sea level
5.9 [m/s2] or less
Vibration 19.4 [ft/s2] or less
