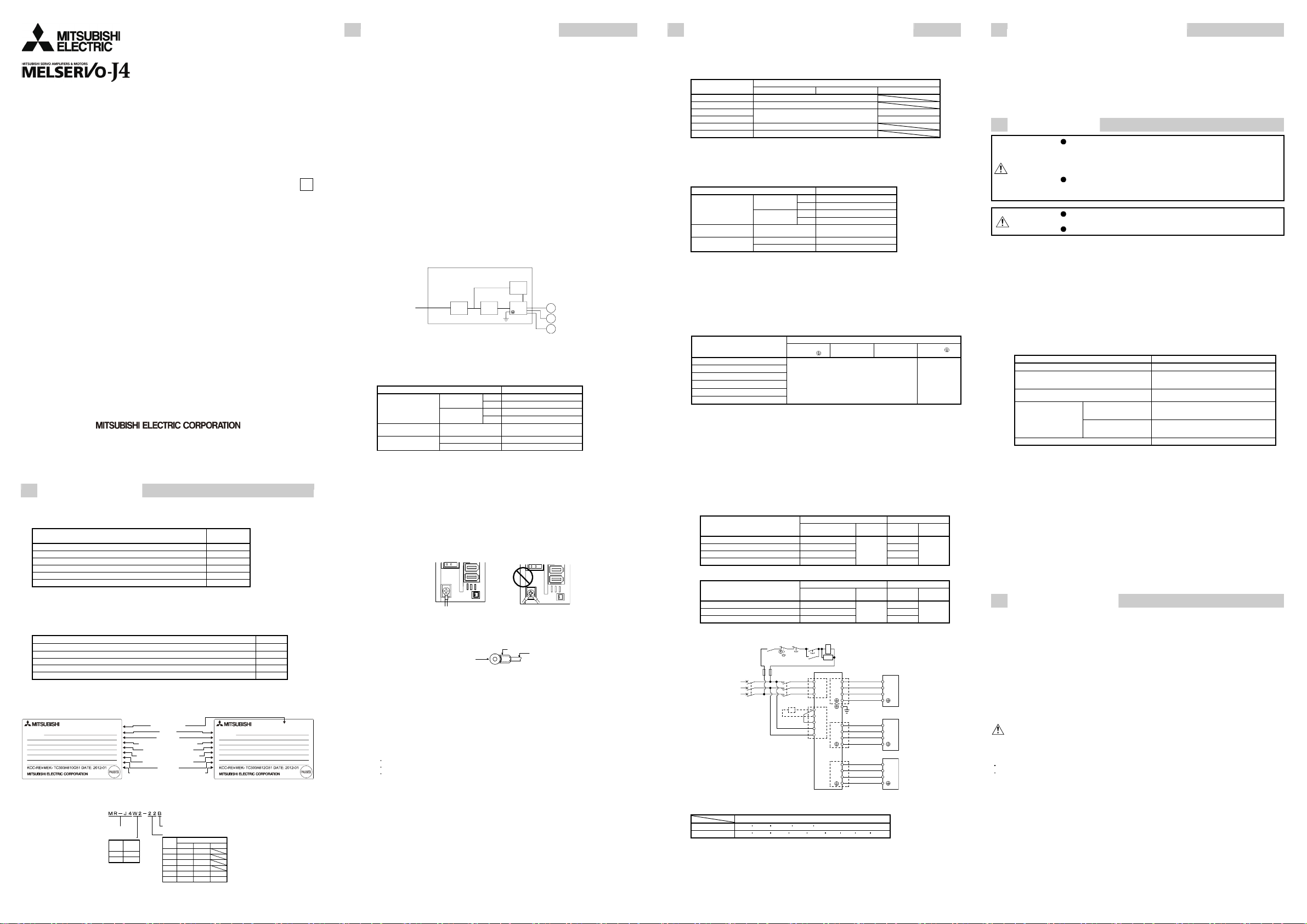

Mitsubishi Electric MR-J4W2-22B Quick guide

Instructions and Cautions for
Safe Use of AC Servos
MR-J4W2-22B to MR-J4W2-1010B
MR-J4W3-222B and MR-J4W3-444B
MR-J4 Multi-axis Servo amplifier
General-Purpose AC Servo
C
IB(NA)0300176-C(1201)MEE
HEAD OFFICE: TOKYO BLDG MARUNOUCHI TOKYO 100-8310
Printed in Japan
This guide uses recycled paper.
Specifications subject to change without notice.
Country/Region
USA
Germany
Italy
China
Taiwan
Korea
Singapore
Sales office
Mitsubishi Electric Automation Inc.
500 Corporate Woods Parkway, Vernon Hills, IL 60061, USA
Mitsubishi Electric Europe B.V. German Branch
Gothaer Strasse 8, D-40880 Ratingen, Germany
Mitsubishi Electric Europe B.V. Italian Branch
Viale Colleoni 7
1-20041 Agrate Brianza (Milano), Italy
Mitsubishi Electric Automation (China) Ltd.
4F Zhi Fu Plazz, No. 80 Xin Chang Road
Shanghai 200003, China
Setsuyo Enterprise Co., Ltd.
6F, No.105 Wu-Kung 3rd Rd, Wu-Ku Hsiang, Taipei Hsine, Taiwan
Mitsubishi Electric Automation Korea Co., Ltd.
3F, 1480-6, Gayang-dong, Gangseo-gu, Seoul
157-200, Korea
Mitsubishi Electric Asia Pte, Ltd.
307 Alexandra Road #05-01/02,
Mitsubishi Electric Building Singapore 159943
Tel/Fax
Tel :[phone]
Fax :[phone]
Tel :[phone]
Fax :[phone]
Tel :[phone]
Fax :[phone]
Tel :[phone]
Fax :[phone]
Tel :[phone]
Fax :[phone]
Tel :[phone]
Fax :[phone]
Tel :[phone]
Fax :[phone]
AC Servo
1. INTRODUCTION
1.1 Introduction to the manuals
If this is the first time for you to use the MELSERVO-J4 Series, read the following manuals before use.
Please read them all carefully to use the MELSERVO-J4 Series safely.
Manual name Manual No.
MELSERVO-J4W-_B Servo Amplifier Instruction Manual SH(NA)030105
MELSERVO-J4 Servo Amplifier Instruction Manual (Troubleshooting) SH(NA)030109
MELSERVO Servo Motor Instruction Manual (Vol.3)(Note1) SH(NA)030113
MELSERVO Linear Servo Motor Instruction Manual (Note 2) SH(NA)030110
MELSERVO Linear Encoder Instruction Manual (Note 2, 4) SH(NA)030111
MELSERVO Direct Drive Motor Instruction Manual (Note 3) SH(NA)030112
Note 1.
2.
3.
4.
It is necessary for using a rotary servo motor.
It is necessary for using a linear servo motor.
It is necessary for using a direct drive motor.
It is necessary for using a fully closed loop system (available in the future).
1.2 Contents of the packing
Unpack the product and check the rating plate to see if the servo motor is as you ordered.
Contents Quantity
Servo amplifier 1
Servo amplifier power supply connector CNP1/CNP2/CNP3A/CNP3B/CNP3C (Note) 1 each
Open tool for servo amplifier power supply connector 1
MELSERVO-J4 Series Instructions and Cautions for Safe Use of AC Servos (This installation guide) 1
Short-circuit connector CN8 1
Note. CNP3C is for MR-J4 3-axis servo amplifier.
1.3 Model code definition
(1) Rating plate
MODEL
TOKYO 100-8310, JAPAN MADE IN JAPAN
MR-J4W2-22B
SER. S21001001
AC SERVO
POWER
INPUT
OUTPUT
STD.: IEC/EN61800-5-1 MAN.: IB(NA)0300176
Max. Surrounding Air Temp.: 55°C
IP20
: 200W×2 (A, B)
: 3AC/AC200-240V 2.9A/5.0A 50/60Hz
: 3PH170V 0-360Hz 1.5A×2(A, B)
MODEL
TOKYO 100-8310, JAPAN MADE IN JAPAN
MR-J4W3-222B
SER. S21001001
AC SERVO
POWER
INPUT
OUTPUT
STD.: IEC/EN61800-5-1 MAN.: IB(NA)0300176
Max. Surrounding Air Temp.: 55°C
IP20 (Except for fan finger guard)
: 200W×3 (A, B, C)
: 3AC/AC200-240V 4.3A/7.5A 50/60Hz
: 3PH170V 0-360Hz 1.5A×3(A, B, C)
Serial number
Model
Capacity
Applicable power supply
Rated output current
Standard, Manual number
Ambient temperature
IP rating
KC mark number, The year and
month of manufacture
MR-J4 2-axis servo amplifier MR-J4 3-axis servo amplifier
(2) Model
The following describes what each block of a model name indicates. Not all combinations of the symbols are
available.
Symbol
SSCNETIII/H interface
Rated output
Number of axis
Symbol Rated output [kW]
44
22
77
A-axis B-axis C-axis
0.2
0.4
0.75
1
0.2
0.4
0.2
0.4
0.75
1
0.2
0.4
0.2
0.4
222
444
1010
Series
W2
W3
Number
of axis
2
3
2. COMPLIANCE WITH CE MARKING
This servo amplifier is designed to comply with EN61800-3 and EN61800-5-1 standard.
2.1 What is CE marking?
The CE marking is mandatory and must be affixed to specific products placed on the European Union. When a
product conforms to the requirements, the CE marking must be affixed to the product. The CE marking also applies
to machines and equipment incorporating servos.
(1) EMC directive
The EMC directive applies to the servo units alone. This servo is designed to comply with the EMC directive.
The EMC directive also applies the servo-incorporated machines and equipment. This requires the EMC filters
to be used with the servo-incorporated machines and equipment to comply with the EMC directive.
(2) Low voltage directive
The low voltage directive applies also to servo units alone. This servo is designed to comply with the low
voltage directive.
(3) Machinery directive (Compliance scheduled)
The MR-J4 series servo amplifiers comply with the safety component laid down in the Machinery directive.
Do not allow using the machine until the machine in which this servo amplifier is mounted is declared to comply
with the machinery directive.
2.2 For compliance
Be sure to perform an appearance inspection of every unit before installation. In addition, have a final performance
inspection on the entire machine/system, and keep the inspection record.
(1) Servo amplifiers and servo motors used
Use servo amplifiers and servo motors which standard product.
Servo amplifier: MR-J4W2-22B, MR-J4W2-44B, MR-J4W2-77B, MR-J4W2-1010B, MR-J4W3-222B
MR-J4W3-444B
Servo motor: HG-MR_, HG-KR_, HG-SR_
(2) Structure
To comply with the CE marking, configure each equipment as follows.
Servo motor (Note)
M
M
M
Cabinet
Molded case
circuit breaker
Magnetic
contactor
Servo
amplifier
Reinforced
insulating type
24 V DC
power
supply
MC
MCCB
Note. This shows the MR-J4 3-axis servo amplifier. Two servo motors are connected for the MR-J4 2-
axis servo amplifier.
(3) Environment
(a) Operate the servo amplifier at pollution degree 2 or 1 set forth in EN 61800-5-1. For this purpose, install the
servo amplifier in a cabinet which is protected against water, oil, carbon, dust, dirt, etc. (IP54).
(b) Use the equipment under the following environment.
Item Environment
[°C] 0 to 55 (non-freezing)
Operation [°F] 32 to 131 (non-freezing)
(Note)
Ambient temperature [°C] -20 to 65 (non-freezing)
Storage,
Transportation [°F] -4 to 149 (non-freezing)
Ambient humidity Operation, Storage,
Transportation 90%RH or less (non-condensing)
Operation, Storage 1000 m or less
Altitude Transportation 10000 m or less
Note. Ambient temperature is the internal temperature of the cabinet.
(4) Power supply
(a) This servo amplifier can be supplied from star-connected supply with grounded neutral point of overvoltage
category III set forth in EN 61800-5-1. However, when using the neutral point of 400 V system for single
phase supply, a reinforced insulating transformer is required in the power input section.
(b) The control circuit provides safe separation to the main circuit in the servo amplifier. For the interface power
supply, use a 24 V DC power supply with reinforced insulation on I/O terminals.
(5) Grounding
(a) To prevent an electric shock, always connect the protective earth (PE) terminal of the CNP3 connector of
the servo amplifier for grounding. Connect the grounding lead wire from the servo motor to the protective
earth (PE) terminal of the servo amplifier terminal block, and then connect the wire from the servo amplifier
to the ground via the protective earth (PE) of the cabinet.
(b) Do not connect two ground cable to the same protective earth (PE) terminal. Always connect cables to the
terminals one-to-one.
PE terminals
PE terminal
s
(c) If a leakage current breaker is used, always ground the protective earth (PE) terminal of the servo amplifier
to prevent an electric shock.
(6) Wiring
(a) The wires to be connected to the terminal block of the servo amplifier must have crimping terminals
provided with insulating tubes to prevent contact with adjacent terminals.
Insulating tube
Wire
Crimping terminal
(b) Use the servo motor-side power connector which complies with EN. The EN compliant power connector
sets are available from us as options.
(c) The servo amplifier must be installed in the metal cabinet.
(7) Peripheral devices, options
(a) Use the molded case circuit breaker and magnetic contactor models which are EN Standard-compliant
products given in the MR-J4 Series Servo Amplifier Instruction Manual. Use a residual current device
(RCD) of type B as necessary. When it is not used, provide insulation between the servo amplifier and
other device by double insulation or reinforced insulation, or install a transformer between the main power
supply and the servo amplifier.
Refer to Chapter 3 (7) for the compliance with molded case circuit breaker and fuse.
(b) The sizes of the wires given in the MR-J4 Series Servo Amplifier Instruction Manual meet the following
conditions. For use in any other conditions, follow Table 6 and Annex D of EN 60204-1.
Ambient temperature: 40 °C (104 °F)
Insulator: PVC (polyvinyl chloride)
Route the wires on wall surface or open cable tray.
(c) Use shielded wires for the power wires.
(d) Use the HF3000A-UN series EMC filter manufactured by Soshin Electric.
(e) Use a RSPD-250-U4 surge protector manufactured by Okaya Electric Industries.
(8) Performing EMC tests
When EMC tests are run on a machine/device into which the servo amplifier has been installed, it must
conform to the electromagnetic compatibility (immunity/emission) standards after it has satisfied the operating
environment/electrical equipment specifications.
(9) Short circuit rating (SCCR: Short Circuit Current Rating)
We confirmed in the short-circuit test that this servo amplifier is suitable for use in a circuit rated at 100 kA
RMS or less, and maximum voltage 500 V.
(10)Configuration diagram
Refer to Chapter 3 (8) for the compliance with configuration diagram.
3. COMPLIANCE WITH UL/CSA STANDARD
For the situation of safety certification, contact your local sales office.
This servo amplifier is designed to comply with UL 508C and CSA C22.2 No.14 standard.
(1) Servo amplifiers and servo motors used
Use servo amplifiers and servo motors which standard product.
Servo motor
Servo amplifier HG-MR HG-KR HG-SR
MR-J4W2-22B 053/13/23
MR-J4W2-44B 053/13/23/43
MR-J4W2-77B 51/52
MR-J4W2-1010B 43/73 51/52/81/102
MR-J4W3-222B 053/13/23
MR-J4W3-444B 053/13/23/43
(2) Installation
The MR-J4 series have been approved as the products which have been installed in a cabinet. The minimum
cabinet size is based on 150% of each MR-J4 combination. And also, design the cabinet so that the ambient
temperature in the cabinet is 55 °C (131 °F) or less.
The servo amplifier must be installed in the metal cabinet.
To ensure safety, do not touch the charging section for 15 minutes after power-off.
Item Environment
[°C] 0 to 55 (non-freezing)
Operation [°F] 32 to 131 (non-freezing)
(Note)
Ambient temperature [°C] -20 to 65 (non-freezing)
Storage,
Transportation [°F] -4 to 149 (non-freezing)
Ambient humidity Operation, Storage,
Transportation 90%RH or less (non-condensing)
Operation, Storage 1000 m or less
Altitude Transportation 10000 m or less
Note. Ambient temperature is the internal temperature of the cabinet.
(3) Short circuit rating (SCCR: Short Circuit Current Rating)
We confirmed in the short-circuit test that this servo amplifier is suitable for use in a circuit rated at 100 kA
RMS or less, and maximum voltage 500 V.
(4) Overload protection characteristics
Servo amplifier MR-J4W series has solid-state servo motor overload protection for each axis. (It is set on the
basis (full load current) of 120% rated current of the servo amplifier.)
(5) Selection example of wires
To comply with the UL/CSA Standard, use UL-approved copper wires rated at 75 °C (167 °F) for wiring.
Wire [AWG]
Servo amplifier (Note 1)
L1/L2/L3/ L11/L21 P+/C/D U/V/W/
MR-J4W2-22B
MR-J4W2-44B
MR-J4W2-77B
MR-J4W2-1010B
MR-J4W3-222B
MR-J4W3-444B
14 (Note 2)
Note 1.
2.
Use the crimping terminal specified as below for the PE terminal of the servo amplifier.
Crimping terminal: FVD2-4
Tool (body): YNT-1614
Manufacturer: JST
Tightening torque: 1.2 [N•m]
The wire size depends on the servo motor characteristics.
(6) About wiring protection
For installation in United States, branch circuit protection must be provided, in accordance with the National
Electrical Code and any applicable local codes.
For installation in Canada, branch circuit protection must be provided, in accordance with the Canada Electrical
Code and any applicable provincial codes.
(7) Options, peripheral devices
Use the UL/CSA Standard-compliant products.
Use the molded case circuit breaker (UL489 Listed MCCB) or a Class T fuse indicated in the table below.
(a) MR-J4W2
Molded case circuit breaker Fuse
Servo motor total output Current Voltage AC
[V] Current [A] Voltage AC [V]
400 W or less 50 A frame 5 A 10
From over 400 W to 900 W 50 A frame 10 A 15
From over 900 W to 1.6 kW 50 A frame 15 A 240 20 300
From over 1.6 kW to 2 kW 50 A frame 20 A 30
(b) MR-J4W3
Molded case circuit breaker Fuse
Servo motor total output Current Voltage AC
[V]
Current
[A]
Voltage AC
[V]
400 W or less 50 A frame 5 A 10
From over 400 W to 900 W 50 A frame 10 A 15 300
From over 900 W to 1.2 kW 50 A frame 15 A
240
20
(8) Connection example
Servo amplifier
CNP2
P+
C
D
Regenerative
option
CNP1
U
V
W
U
V
W
Servo motor
CNP3A
U
V
W
U
V
W
Servo motor
CNP3B
U
V
W
U
V
W
Servo motor
CNP3C
Malfunction
RA1 OFF
MC
ON M
C
SK
EMG stop
switch
L11
L21
L1
L2
L3
Power
supply
MC
MCCB
or fuse
(9) Power supply
The control circuit provides safe separation to the main circuit in the servo amplifier.
Connector/terminal
Main circuit CNP1 CNP2 CNP3A CNP3B CNP3C
Control circuit CN1A CN1B CN2A CN2B CN2C CN3 CN4 CN5 CN8
4. COMPLIANCE WITH KC MARK
For the situation of compliance, contact your local sales office.
Note the following when using the product in South Korea.
이기기는 업무용 (A급) 전자파적합기기로서 판매자 또는 사용자는 이점을 주의하시기 바라며,
가정외의 지역에서 사용하는 것을 목적으 로합니다 .
(The product is for business use (Class A) and meets the electromagnetic compatibility
requirements. The seller and the user must note the above point, and use the product in a place
except for home.)
5. INSPECTION
WARNING
Before starting maintenance and/or inspection, turn off the power and
wait for 15 minutes or more until the charge lamp turns off. Otherwise, an
electric shock may occur. In addition, when confirming whether the
charge lamp is off or not, always confirm it from the front of the servo
amplifier.
To avoid an electric shock, only qualified personnel should attempt
inspections. For repair and parts replacement, contact your local sales
office.
CAUTION
Do not perform insulation resistance test on the servo amplifier.
Otherwise, it may cause a malfunction.
Do not disassemble and/or repair the equipment on customer side.
(1) Inspection
It is recommend that the following points periodically be checked.
(a) Check for loose terminal block screws. Retighten any loose screws.
(b) Check the cables and the like for scratches and cracks. Inspect them periodically according to operating
conditions especially when the servo motor is movable.
(c) Check that the connector is securely connected to the servo amplifier.
(d) Check that the wires are not coming out from the connector.
(e) Check for dust accumulation on the servo amplifier.
(f) Check for unusual noise generated from the servo amplifier.
(2) Parts having service lives
Service lives of the following parts are listed below. However, the service lives vary depending on operating
methods and environment. If any fault is found in the parts, they must be replaced immediately regardless of
their service lives. For parts replacement, please contact your local sales office.
Part name Life guideline
Smoothing capacitor 10 years
Relay
Number of power-on and number of emergency stop
times: 100,000 times
Number of on and off for STO: 1,000,000 times
Cooling fan 50,000 hours to 70,000 hours
(7 years to 8 years)
Rotary servo motor
Approximately 40,000 hours/2 axes, 30,000 hours/3
axes, or 10,000 hours/8 axes (equipment power
supply: off, ambient temperature: 20 °C (68 °F))
(Note 1) Battery backup time
Direct drive motor
Approximately 10,000 hours/2 axes, 7,000 hours/3
axes, or 2,000 hours/8 axes (equipment power supply:
off, ambient temperature: 20 °C (68 °F))
(Note 2) Battery life 5 years from date of manufacture
Note 1.
2.
The data-holding time using five batteries of MR-BAT6V1 on condition that the power supply of the servo
amplifier is off. Replace the batteries within 3 years since the operation start whether the power supply of the
servo amplifier is on/off.
Quality of the batteries degrades by the storage condition. The battery life is 5 years from the production date
regardless of the connection status.
(a) Smoothing capacitor
Affected by ripple currents, etc. and deteriorates in characteristic. The life of the capacitor greatly depends
on ambient temperature and operating conditions. The capacitor will reach the end of its life in 10 years of
continuous operation in normal air-conditioned environment (40 °C (104 °F) surrounding air temperature or
less).
(b) Relays
Contact faults will occur due to contact wear arisen from switching currents. Relays reach the end of their
lives when the power is turned on and emergency stop occurs 100,000 times in total, or when the STO has
been turned on and off 1,000,000 times while the servo motor is stopped under servo-off state. However,
the lives of relays may depend on the power supply capacity.
(c) Servo amplifier cooling fan
The cooling fan bearings reach the end of their life in 50,000 hours to 70,000 hours. Normally, therefore,
the cooling fan must be changed in seven or eight years of continuous operation as a guideline. It must also
be changed if unusual noise or vibration is found during inspection.
The life indicates under the yearly average ambient temperature of 40 °C (104 °F), free from corrosive gas,
flammable gas, oil mist, dust and dirt.
6. ALARM/WARNING
For details on each type of alarms or warnings, refer to MELSERVO-J4 Servo Amplifier Instruction Manual
(Troubleshooting).
●DISPOSAL OF WASTE ●
Please dispose a servo amplifier, battery (primary battery) and other options according to your local
laws and regulations.
Battery transportation
To transport lithium batteries, take actions to comply with the instructions and regulations such as
the United Nations (UN), the International Civil Aviation Organization (ICAO), and the International
Maritime Organization (IMO).
EEP-ROM life
The number of write times to the EEP-ROM, which stores parameter settings, etc., is limited to
100,000. If the total number of the following operations exceeds 100,000, the servo amplifier may
malfunction when the EEP-ROM reaches the end of its useful life.
Write to the EEP-ROM due to parameter setting changes
Write to the EEP-ROM due to device changes

Safety Instructions
Please read the instructions carefully before using the equipment.
To use the equipment correctly, do not attempt to install, operate, maintain, or inspect the equipment
until you have read through this installation guide and appended documents carefully. Do not use the
servo amplifier and servo motor until you have a full knowledge of the equipment, safety information
and instructions.
In this installation guide, the safety instruction levels are classified into "WARNING" and
"CAUTION".
WARNING Indicates that incorrect handling may cause hazardous conditions,
resulting in death or severe injury.
CAUTION
Indicates that incorrect handling may cause hazardous conditions,
resulting in medium or slight injury to personnel or may cause physical
damage.
Note that the CAUTION level may lead to a serious consequence according to conditions. Please
follow the instructions of both levels because they are important to personnel safety.
What must not be done and what must be done are indicated by the following diagrammatic
symbols.
Indicates what must not be done. For example, "No Fire" is indicated by .
Indicates what must be done. For example, grounding is indicated by .
In this installation guide, instructions at a lower level than the above, instructions for other functions,
and so on are classified into "POINT".
After reading this installation guide, keep it accessible to the operator.
1. To prevent electric shock, note the following
WARNING
Before wiring and inspections, turn off the power and wait for 15 minutes or more until the
charge lamp turns off. Otherwise, an electric shock may occur. In addition, when confirming
whether the charge lamp is off or not, always confirm it from the front of the servo amplifier.
Ground the servo amplifier and servo motor securely.
Any person who is involved in wiring and inspection should be fully competent to do the work.
Do not attempt to wire the servo amplifier and servo motor until they have been installed.
Otherwise, it may cause an electric shock.
Do not operate switches with wet hands. Otherwise, it may cause an electric shock.
The cables should not be damaged, stressed loaded, or pinched. Otherwise, it may cause an
electric shock.
To prevent an electric shock, always connect the protective earth (PE) terminal (marked ) of
the servo amplifier to the protective earth (PE) of the cabinet.
When using a residual current device (RCD), select the type B.
To avoid an electric shock, insulate the connections of the power supply terminals.
2. To prevent fire, note the following
CAUTION
Install the servo amplifier, servo motor, and regenerative resistor on incombustible material.
Installing them directly or close to combustibles will lead to a fire.
Always connect a magnetic contactor between the power supply and the main circuit power
supply (L1, L2, and L3) of the servo amplifier, in order to configure a circuit that shuts down the
power supply on the side of the servo amplifier's power supply. If a magnetic contactor is not
connected, continuous flow of a large current may cause a fire when the servo amplifier
malfunctions.
When using the regenerative resistor, switch power off with the alarm signal. Not doing so may
cause a fire when a regenerative transistor malfunctions or the like may overheat the
regenerative resistor.
Provide adequate protection to prevent screws and other conductive matter, oil and other
combustible matter from entering the servo amplifier and servo motor.
Always connect a molded case circuit breaker to the power supply of the servo amplifier.
3. To prevent injury, note the following
CAUTION
Only the voltage specified in the Instruction Manual should be applied to each terminal.
Otherwise, a burst, damage, etc. may occur.
Connect cables to correct terminals. Otherwise, a burst, damage, etc. may occur.
Ensure that polarity (+/-) is correct. Otherwise, a burst, damage, etc. may occur.
The servo amplifier heat sink, regenerative resistor, servo motor, etc. may be hot while power is
on or for some time after power-off. Take safety measures, e.g. provide covers, to prevent
accidental contact of hands and parts (cables, etc.) with them. Otherwise, it may cause a burn
injury and parts damaged.
4. Additional instructions
The following instructions should also be fully noted. Incorrect handling may cause a malfunction,
injury, electric shock, etc.
(1) Transportation and installation
CAUTION
Transport the products correctly according to their mass.
Stacking in excess of the limited number of product packages is not allowed.
Install the servo amplifier and servo motor in a load-bearing place in accordance with the
Instruction Manual.
Do not get on or put heavy load on the equipment.
The equipment must be installed in the specified direction.
Leave specified clearances between the servo amplifier and cabinet walls or other equipment.
Do not install or operate the servo amplifier and servo motor which have been damaged or
have any parts missing.
When you keep or use it, please fulfill the following environment.
Item Environment
[°C] 0 to 55 (non-freezing)
Operation [°F] 32 to 131 (non-freezing)
[°C] -20 to 65 (non-freezing)
Ambient
temperature Storage [°F] -4 to 149 (non-freezing)
Operation
Ambient
humidity Storage 90% RH or less (non-condensing)
Ambience Indoors (no direct sunlight), free from corrosive gas, flammable gas, oil mist, dust and dirt
Altitude Max. 1000 m above sea level
Vibration 5.9 m/s2or less at 10 Hz to 55 Hz (directions of X, Y, and Z axes)
CAUTION
Do not block the intake and exhaust areas of the servo amplifier. Otherwise, it may cause a
malfunction.
Do not drop or strike the servo amplifier or servo motor. Isolate them from all impact loads.
When the equipment has been stored for an extended period of time, contact your local sales
office.
When handling the servo amplifier, be careful about the edged parts such as corners of the
servo amplifier.
The servo amplifier must be installed in the metal cabinet.
(2) Wiring
CAUTION
Wire the equipment correctly and securely. Otherwise, the servo motor may operate
unexpectedly.
Do not install a power capacitor, surge killer or radio noise filter (FR-BIF option) on the servo
amplifier output side.
To avoid an malfunction, connect the wires to the correct phase terminals (U, V, and W) of the
servo amplifier and servo motor.
Connect the servo amplifier power output (U, V, and W) to the servo motor power input (U, V,
and W) directly. Do not let a magnetic contactor, etc. intervene. Otherwise, it may cause a
malfunction.
U
Servo motor
M
V
W
U
V
W
U
Servo motor
M
V
W
U
V
W
Servo amplifier Servo amplifier
The surge absorbing diode installed to the DC relay for control output should be fitted in the
specified direction. Otherwise, the emergency stop and other protective circuits may not
operate.
DOCOM
Control output
signal
DICOM
24 V DC
Servo amplifier
RA
For sink output interface
For source output interface
DOCOM
Control output
signal
DICOM
24 V DC
Servo amplifier
RA
When the cable is not tightened enough to the terminal block, the cable or terminal block may
generate heat because of the poor contact. Be sure to tighten the cable with specified torque.
(3) Test run and adjustment
CAUTION
Before operation, check the parameter settings. Improper settings may cause some machines
to perform unexpected operation.
The parameter settings must not be changed excessively. Operation will be instable.
(4) Usage
CAUTION
Provide an external emergency stop circuit to ensure that operation can be stopped and power
switched off immediately.
Do not disassemble, repair, or modify the equipment.
Before resetting an alarm, make sure that the run signal of the servo amplifier is off in order to
prevent a sudden restart. Otherwise, it may cause an accident.
Use a noise filter, etc. to minimize the influence of electromagnetic interference.
Electromagnetic interference may be given to electronic equipment used near the servo
amplifier.
Burning or breaking a servo amplifier may cause a toxic gas. Do not burn or break a servo
amplifier.
Use the servo amplifier with the specified servo motor.
The electromagnetic brake on the servo motor is designed to hold the motor shaft and should
not be used for ordinary braking.
For such reasons as service life and mechanical structure (e.g. where a ball screw and the
servo motor are coupled via a timing belt), the electromagnetic brake may not hold the motor
shaft. To ensure safety, install a stopper on the machine side.
(5) Corrective actions
CAUTION
When it is assumed that a hazardous condition may occur due to a power failure or product
malfunction, use a servo motor with an electromagnetic brake or external brake to prevent the
condition.
Configure an electromagnetic brake circuit so that it is activated also by an external EMG stop
switch.
BU
RA
Contacts must be opened with
the EMG stop switch.
Contacts must be opened when CALM
(Common malfunction) and when MBR-_
(Electromagnetic brake interlock_).
24 V DC
Servo motor
Electromagnetic brake
When any alarm has occurred, eliminate its cause, ensure safety, and deactivate the alarm
before restarting operation.
Design the machine in order to avoid sudden restarting after an instantaneous power failure.
(6) Maintenance, inspection and parts replacement
CAUTION
With age, the electrolytic capacitor of the servo amplifier will deteriorate. To prevent a
secondary accident due to a malfunction, it is recommend that the electrolytic capacitor be
replaced every 10 years when it is used in general environment.
(7) General instruction
To illustrate details, the equipment in the diagrams of this installation guide and Instruction
Manual may have been drawn without covers and safety guards. When the equipment is
operated, the covers and safety guards must be installed as specified. Operation must be
performed in accordance with this installation guide and Instruction Manual.
[Warranty]
1. Warranty period and coverage
We will repair any failure or defect hereinafter referred to as "failure" in our FA equipment
hereinafter referred to as the "Product" arisen during warranty period at no charge due to
causes for which we are responsible through the distributor from which you purchased the
Product or our service provider. However, we will charge the actual cost of dispatching our
engineer for an on-site repair work on request by customer in Japan or overseas countries.
We are not responsible for any on-site readjustment and/or trial run that may be required after
a defective unit are repaired or replaced.
[Term]
The term of warranty for Product is twelve (12) months after your purchase or delivery of the
Product to a place designated by you or eighteen (18) months from the date of manufacture
whichever comes first ("Warranty Period"). Warranty period for repaired Product cannot
exceed beyond the original warranty period before any repair work.
[Limitations]
(1) You are requested to conduct an initial failure diagnosis by yourself, as a general rule. It can
also be carried out by us or our service company upon your request and the actual cost will
be charged. However, it will not be charged if we are responsible for the cause of the failure.
(2) This limited warranty applies only when the condition, method, environment, etc. of use are in
compliance with the terms and conditions and instructions that are set forth in the instruction
manual and user manual for the Product and the caution label affixed to the Product.
(3) Even during the term of warranty, the repair cost will be charged on you in the following
cases.
(i) a failure caused by your improper storing or handling, carelessness or negligence, etc.,
and a failure caused by your hardware or software problem
(ii) a failure caused by any alteration, etc. to the Product made on your side without our
approval
(iii) a failure which may be regarded as avoidable, if your equipment in which the Product is
incorporated is equipped with a safety device required by applicable laws and has any
function or structure considered to be indispensable according to a common sense in
the industry
(iv) a failure which may be regarded as avoidable if consumable parts designated in the
instruction manual, etc. are duly maintained and replaced
(v) any replacement of consumable parts (battery, fan, smoothing capacitor, etc.)
(vi) a failure caused by external factors such as inevitable accidents, including without
limitation fire and abnormal fluctuation of voltage, and acts of God, including without
limitation earthquake, lightning and natural disasters
(vii) a failure generated by an unforeseeable cause with a scientific technology that was not
available at the time of the shipment of the Product from our company
(viii) any other failures which we are not responsible for or which you acknowledge we are
not responsible for
2. Term of warranty after the stop of production
(1) We may accept the repair at charge for another seven (7) years after the production of the
product is discontinued. The announcement of the stop of production for each model can be
seen in our Sales and Service, etc.
(2) Please note that the Product (including its spare parts) cannot be ordered after its stop of
production.
3. Service in overseas countries
Our regional FA Center in overseas countries will accept the repair work of the Product.
However, the terms and conditions of the repair work may differ depending on each FA
Center. Please ask your local FA center for details.
4. Exclusion of responsibility for compensation against loss of opportunity, secondary loss, etc.
Whether under or after the term of warranty, we assume no responsibility for any damages
arisen from causes for which we are not responsible, any losses of opportunity and/or profit
incurred by you due to a failure of the Product, any damages, secondary damages or
compensation for accidents arisen under a specific circumstance that are foreseen or
unforeseen by our company, any damages to products other than the Product, and also
compensation for any replacement work, readjustment, start-up test run of local machines and
the Product and any other operations conducted by you.
5. Change of Product specifications
Specifications listed in our catalogs, manuals or technical documents may be changed without
notice.
6. Application and use of the Product
(1) For the use of our General-Purpose AC Servo, its applications should be those that may not
result in a serious damage even if any failure or malfunction occurs in General-Purpose AC
Servo, and a backup or fail-safe function should operate on an external system to General-
Purpose AC Servo when any failure or malfunction occurs.
(2) Our General-Purpose AC Servo is designed and manufactured as a general purpose product
for use at general industries.
Therefore, applications substantially influential on the public interest for such as atomic power
plants and other power plants of electric power companies, and also which require a special
quality assurance system, including applications for railway companies and government or
public offices are not recommended, and we assume no responsibility for any failure caused
by these applications when used.
In addition, applications which may be substantially influential to human lives or properties for
such as airlines, medical treatments, railway service, incineration and fuel systems, man-
operated material handling equipment, entertainment machines, safety machines, etc. are not
recommended, and we assume no responsibility for any failure caused by these applications
when used.
We will review the acceptability of the abovementioned applications, if you agree not to
require a specific quality for a specific application. Please contact us for consultation.
