Mitsubishi Electric Melsensor CF37-SR Service manual

Code Reader Setting Guide
-CF26-SR
-CF26-LR
-CF37-SR
-CF37-LR
This product is designed and manufactured by Cognex Corporation.
*Note that the warranty and general specifications of this product
differ from that of programmable controller products.

1
SAFETY PRECAUTIONS
(Read these precautions before using this product.)
Before using this product, please read this manual and the relevant manuals carefully and pay full attention to safety to handle
the product correctly.
The precautions given in this manual are concerned with this product only. For the safety precautions for other modules, refer
to their respective user's manuals.
In this manual, the safety precautions are classified into two levels: " WARNING" and " CAUTION".
Under some circumstances, failure to observe the precautions given under " CAUTION" may lead to serious
consequences.
Observe the precautions of both levels because they are important for personal and system safety.
Make sure that the end users read this manual and then keep the manual in a safe place for future reference.
[Installation Precautions]
[Security Precautions]
[Installation Precautions]
WARNING
●Before touching the code reader, be sure to touch an electric conductor such as grounded metal to
discharge the static electricity from your body. Otherwise, damage or faulty operation of the code
reader may occur.
●Be sure to install an I/O connector module to a main module. If not installed, dust or water-proof
performance may not be obtained.
WARNING
●To maintain the security (confidentiality, integrity, and availability) of the programmable controller and
the system against unauthorized access, denial-of-service (DoS) attacks, computer viruses, and other
cyberattacks from external devices via the network, take appropriate measures such as firewalls,
virtual private networks (VPNs), and antivirus solutions.
CAUTION
●IP protection rating is guaranteed only when all the connectors are connected with cables or sealed
with sealing caps.
●The cable is designed to connect with its key aligned with the keyway of the connector on the code
reader. Do not force the connections or damage may occur.
WARNING Indicates that incorrect handling may cause hazardous conditions, resulting in
death or severe injury.
CAUTION Indicates that incorrect handling may cause hazardous conditions, resulting in
minor or moderate injury or property damage.

2
[Wiring Precautions]
[Startup and Maintenance Precautions]
[Disposal Precautions]
PRECAUTIONS FOR USE
Observe the following precautions when installing and operating the code reader, to reduce the risk of injury or equipment
damage:
• This device requires the use of an LPS or NEC class 2 power supply.
• To reduce the risk of damage or malfunction due to over-voltage, line noise, electrostatic discharge (ESD), power surges, or
other irregularities in the power supply, route all cables away from high-voltage power sources.
• A code reader does not contain user-serviceable parts. Do not make electrical or mechanical modifications to a code
reader.
Unauthorized modifications may void your warranty.
• Changes or modifications not expressly approved by the party responsible for regulatory compliance could void the user's
authority to operate the equipment.
• If the bend radius or service loop is smaller than 10 times of the cable diameter, the cable may cause cable shielding
degradation, cable damage, or wear out in a short period. The bend radius must begin at least 152.4 mm from the
connector.
• Use this device in accordance with this manual.
CAUTION
●Use only 24 VDC and observe the indicated polarity. Otherwise, fire or damage may result.
CAUTION
●Do not clean the code reader with highly irritating or corrosive solvent such as caustic alkali solution,
methyl ethyl ketone (MEK), and gasoline. Doing so may cause a fault.
CAUTION
●When disposing of this product, treat it as industrial waste.

3
CONDITIONS OF USE FOR THE PRODUCT
(1) This code reader shall be used in conditions;
i) where any problem, fault or failure occurring in the code reader, if any, shall not lead to any major or serious accident;
and
ii) where the backup and fail-safe function are systematically or automatically provided outside of the code reader for
the case of any problem, fault or failure occurring in the code reader.
(2) This code reader has been designed and manufactured for the purpose of being used in general industries.
MITSUBISHI ELECTRIC SHALL HAVE NO RESPONSIBILITY OR LIABILITY (INCLUDING, BUT NOT LIMITED TO
ANY AND ALL RESPONSIBILITY OR LIABILITY BASED ON CONTRACT, WARRANTY, TORT, PRODUCT
LIABILITY) FOR ANY INJURY OR DEATH TO PERSONS OR LOSS OR DAMAGE TO PROPERTY CAUSED BY THIS
CODE READER THAT ARE OPERATED OR USED IN APPLICATION NOT INTENDED OR EXCLUDED BY
INSTRUCTIONS, PRECAUTIONS, OR WARNING CONTAINED IN MITSUBISHI ELECTRIC USER'S, INSTRUCTION
AND/OR SAFETY MANUALS, TECHNICAL BULLETINS AND GUIDELINES FOR the CODE READER.
("Prohibited Application")
Prohibited Applications include, but not limited to, the use of the code reader in;
• Nuclear Power Plants and any other power plants operated by Power companies, and/or any other cases in which the
public could be affected if any problem or fault occurs in the code reader.
• Railway companies or Public service purposes, and/or any other cases in which establishment of a special quality
assurance system is required by the Purchaser or End User.
• Aircraft or Aerospace, Medical applications, Train equipment, transport equipment such as Elevator and Escalator,
Incineration and Fuel devices, Vehicles, Manned transportation, Equipment for Recreation and Amusement, and
Safety devices, handling of Nuclear or Hazardous Materials or Chemicals, Mining and Drilling, and/or other
applications where there is a significant risk of injury to the public or property.
Notwithstanding the above restrictions, Mitsubishi Electric may in its sole discretion, authorize use of the code reader in
one or more of the Prohibited Applications, provided that the usage of the code reader is limited only for the specific
applications agreed to by Mitsubishi Electric and provided further that no special quality assurance or fail-safe,
redundant or other safety features which exceed the general specifications of the code readers are required. For details,
please contact the Mitsubishi Electric representative in your region.
(3) Mitsubishi Electric shall have no responsibility or liability for any problems involving programmable controller trouble and
system trouble caused by DoS attacks, unauthorized access, computer viruses, and other cyberattacks.

4
INTRODUCTION
Thank you for purchasing the Mitsubishi Electric FA sensor, MELSENSOR.
This manual describes the basic operations of DataMan Setup Tool for MELSENSOR.
For detailed description, use [Q & A] or [Help] on the menu of DataMan Setup Tool for MELSENSOR.
Before using the product, please read this manual and relevant manuals carefully, and develop familiarity with the functions
and performance of the code reader to handle the product correctly.
Please make sure that the end users read this manual.

5
CONTENTS
CONTENTS
SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
PRECAUTIONS FOR USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
CONDITIONS OF USE FOR THE PRODUCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
RELEVANT MANUALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
CHAPTER 1 OVERVIEW 8
1.1 Overview of DataMan Setup Tool for MELSENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Target code readers of SetupTool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CHAPTER 2 SetupTool INSTALLATION 10
2.1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CHAPTER 3 CODE READER SETUP FLOW CHART 12
3.1 Setup Flow Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CHAPTER 4 CONFIGURATIONS 14
4.1 Configuration and Wiring of CF26/CF37 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
CHAPTER 5 CONNECTING with SetupTool 16

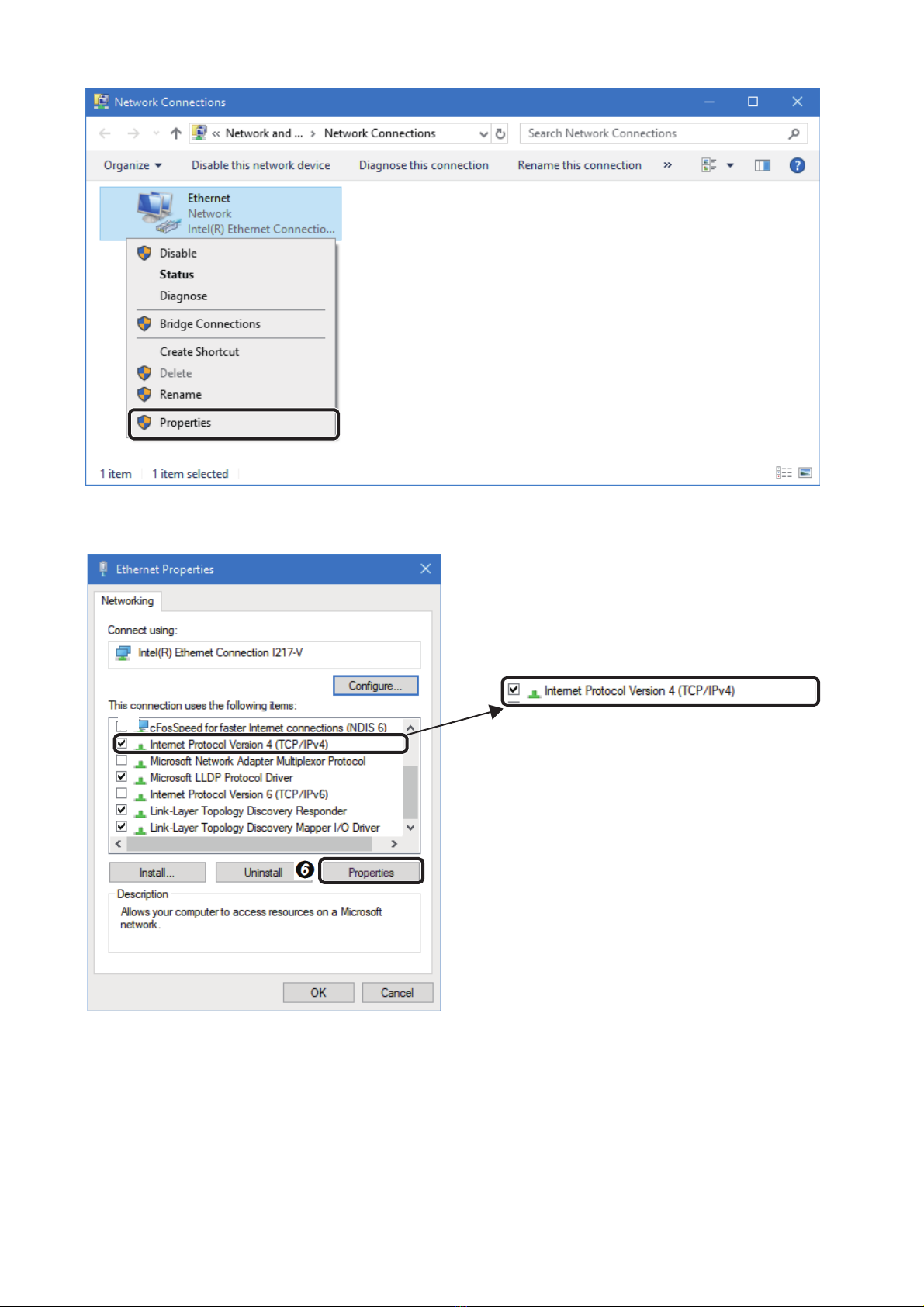

5.1 How to Check and Set Personal Computer IP Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2 Starting SetupTool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3 How to Check and Set Code Reader IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CHAPTER 6 SetupTool SCREEN 27
6.1 Screen Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.2 Shortcut Operation Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.3 Application Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.4 Menu Tabs and Operation Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.5 Image Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.6 Result History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.7 Screen Layout Customization (1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.8 Screen Layout Customization (2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6.9 Screen Layout Customization (3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
CHAPTER 7 SETTING CODE READER 39
7.1 Installing a Code Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Points for installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
7.2 Settings in Tune. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
7.3 Parameter Setting Using a Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
CHAPTER 8 Application Steps 44
8.1 Optimize Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
8.2 Code Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
8.3 Application Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

6
Trigger settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Decode Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
8.4 Format Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
8.5 Inputs/Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
TRIG Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
TUNE Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Output Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
8.6 Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Serial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
8.7 Save Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
CHAPTER 9 HOME TAB FUNCTIONS 70
9.1 Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
9.2 Restore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
9.3 Update Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
9.4 Language Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
APPENDIX 79
Appendix 1 Read Setups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Appendix 2 Code Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Appendix 3 External Transfer of Images and Reading Results Using FTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Appendix 4 Supplemental Remarks for Tuning (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Appendix 5 Supplemental Remarks for Tuning (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Appendix 6 Tuning After Optimizing Maximum Exposure Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Appendix 7 Exposure Time, Gain Factor, and Image Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Appendix 8 Customizing Output Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Appendix 9 Setting an IP Address to a Code Reader (DHCP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Appendix 10Virtual Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Appendix 11 Outputting any characters from a decoded character string . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
On a code reader side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
On a programmable controller side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
REVISIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

7
RELEVANT MANUALS
e-Manual refers to the Mitsubishi Electric FA electronic book manuals that can be browsed using a dedicated
tool.
e-Manual has the following features:
• Required information can be cross-searched in multiple manuals.
• Other manuals can be accessed from the links in the manual.
• Hardware specifications of each part can be found from the product figures.
• Pages that users often browse can be bookmarked.
• Sample programs can be copied to an engineering tool.
Manual name [Manual number] Description Available form
Code Reader Setting Guide
[BCN-P5999-1258] (this manual)
Basic operations of DataMan Setup Tool for MELSENSOR e-Manual
PDF
Code Reader CF26 User's Manual
[SH-082092ENG]
Functions, installation methods, system configuration, and required hardware
components etc. of a code reader CF26
e-Manual
PDF
Code Reader CF37 User's Manual
[SH-082325ENG]
Functions, installation methods, system configuration, and required hardware
components etc. of a code reader CF37
e-Manual
PDF
Code Reader Connection Guide
[BCN-P5999-1074]
Procedures for connecting a code reader to a MELSEC programmable
controller to control a code reader through a CC-Link IE Field Network Basic
connection, an SLMP connection, an RS-232 connection or an I/O connection
e-Manual
PDF

81 OVERVIEW
1.1 Overview of DataMan Setup Tool for MELSENSOR
1OVERVIEW
1.1 Overview of DataMan Setup Tool for MELSENSOR
DataMan Setup Tool for MELSENSOR (hereafter referred to as SetupTool) sets the operation of MELSENSOR Code Reader
CF Series. Each process for connecting, adjusting, and testing MELSENSOR Code Reader CF Series can be set easily in
accordance with application steps.
In this manual, a CF26 is used as an example to explain each setting.
Target code readers of SetupTool
Name Model name
CF26 CF26-SR, CF26-LR
CF37 CF37-SR, CF37-LR

1 OVERVIEW
1.1 Overview of DataMan Setup Tool for MELSENSOR 9
1
MEMO

10 2 SetupTool INSTALLATION
2.1 Installation
2SetupTool INSTALLATION
2.1 Installation
Operating environment
Installation procedure
1. Download the installer of SetupTool from the Mitsubishi Electric FA website.
www.MitsubishiElectric.co.jp/fa
2. Close all running applications.
3. Run the obtained installer.
4. Select or enter the necessary information according to the instructions shown in the screen.
Item Description
Operating system (English version) MicrosoftWindows7 Professional, Service Pack 1 (32-bit, 64-bit)
MicrosoftWindows10 Professional (32-bit, 64-bit)
Available hard disk capacity 2 GB or more
Ethernet 100 Mbps
(1 Gbps recommended)

2 SetupTool INSTALLATION
2.1 Installation 11
2
MEMO

12 3 CODE READER SETUP FLOW CHART
3.1 Setup Flow Chart
3CODE READER SETUP FLOW CHART
3.1 Setup Flow Chart
1. Wiring
Wire a code reader by referring to 'Chapter 4 Section 4.1 Configuration and Wiring
of CF26/CF37 Series.' When communicating and controlling the code reader with
industrial protocols such as SLMP, only power lines need to be wired.
2. Connection
Connect to a personal computer by referring to 'Chapter 5 CONNECTING with
SetupTool.'
3. Installation
Install the code reader by referring to 'Chapter 7 Section 7.1 Installing a Code
Reader.' (When pre-assessment and tests are executed, install the code reader in
accordance with the results.) The distance from the code reader to an inspection
target as well as the direction and angle of the code reader may affect the read rate
significantly.
4. Tune
Tune the code reader by referring to 'Chapter 7 Section 7.2 Settings in Tune,'
'Appendix 4 Supplemental Remarks for Tuning (1),' or 'Appendix 5 Supplemental
Remarks for Tuning (2).' Mainly, auto-tuning can be executed by configuring
'Optimize Image' 'Tune.' In some cases, 'Exposure,' 'Gain,' 'Lightening pattern,'
and 'Image Filter' need to be adjusted manually.
5. Reading test
A code is read and a reading test is performed by pressing the [Trigger] icon. The
test can also be performed by enabling 'Test Mode'.
6. Other settings
Other settings such as a trigger type, multi-codes, data format, code quality, and
communication are configured by referring to 'Chapter 8 Application Steps' as
necessary.
7. Operation test
A code is read and the operation test of the whole code reader settings is performed
by a command from the [Trigger] icon or the external device.
(1)Wiring
(2)Connection
(3)Installation
(4)Tune
(5)Reading test
(6)Other settings
(7)Operation test

3 CODE READER SETUP FLOW CHART
3.1 Setup Flow Chart 13
3
MEMO

14 4 CONFIGURATIONS
4.1 Configuration and Wiring of CF26/CF37 Series
4CONFIGURATIONS
4.1 Configuration and Wiring of CF26/CF37 Series
Configuration
For details on the Ethernet cables (COGNEX products) and breakout cables (COGNEX products), refer to the user's manual
for a code reader.
(CCB-84901-2001-**)
(CCB-PWRIO-**)
(CCB-M12X12FS-05)
CF37-SR CF37-LR
CF26-SR
CF26-LR
(CCB-84901-2002-**)
Switching hub
Ethernet cable
Breakout cable (COGNEX products)
24 VDC
power supply
24 VDC
power supply
red
black
brown
blue
Code Reader Ethernet cable (COGNEX products) Personal computer
or
or or

4 CONFIGURATIONS
4.1 Configuration and Wiring of CF26/CF37 Series 15
4
MEMO

16 5 CONNECTING with SetupTool
5CONNECTING with SetupTool
Set an IP address for a personal computer and the code reader that matches each other to connect the code reader and
SetupTool.
An IP address is an ID number assigned to a device to be communicated with Ethernet. To establish communication with
devices, an IP address that matches with the IP address of each device needs to be set.
Set the IP address in accordance with the use situation.
• For using the code reader in a system, the IP address must be matched with that of a device to be communicated (mainly a
programmable controller). Select "Use Static IP Address" for the code reader and "Use the following IP address" for the
personal computer, and set the respective IP address according to a device to be communicated.
• For using the code reader by connecting only to the personal computer, the IP address of the code reader must be matched
with that of the personal computer.
• When "Obtain an IP address automatically" is selected for the personal computer, select "Use DHCP Server" for the code
reader.
• When "Use the following IP address" is selected for the personal computer, select "Use Static IP Address" for the code
reader and set the code reader IP address that matches with the personal computer.
• For an IP address to be set when "Use Static IP Address" or "Use the following IP address" is selected, the rightmost set of
numbers in the IP address must not be duplicated with that of the other devices. The setting of a subnet mask must be the
same for the entire devices.
(An IP address setting example)
In this manual, the IP addresses shown above are used.
Setting item Personal computer Code reader
IP address 192.168.3.3 192.168.3.102
Subnet mask 255.255.255.0 255.255.255.0

5 CONNECTING with SetupTool
5.1 How to Check and Set Personal Computer IP Address 17
5
5.1 How to Check and Set Personal Computer IP
Address
This section shows the method for checking and setting a personal computer IP address (Windows 7/Windows 10).
Open [Control Panel] and change the setting of "View by" to "Small icons."
Click [Network and Sharing Center].
Click [Change adapter settings].
Ò
Ó
Ô

18 5 CONNECTING with SetupTool
5.1 How to Check and Set Personal Computer IP Address
Right-click an adapter to be connected to a code reader (Ethernet 3 in this example), and select [Properties] from the
shortcut menu.
Select "Internet Protocol Version 4 (TCP/IPv4)."
Click the [Properties] button.
Õ
Ö
