M-SERIES SINGLE ZONE SYSTEMS
MSZ-GE WALL-MOUNT HEAT PUMP SYSTEMS
1. INDOOR UNITS ................................................................................................................................................MSZ-GE-2
2. OUTDOOR UNITS ............................................................................................................................................MSZ-GE-3
3. SYSTEM............................................................................................................................................................MSZ-GE-4
 3-1.Specications..................................................................................................................................MSZ-GE-4
 3-2.ExternalDimensions ..................................................................................................................... MSZ-GE-11
 3-3.CenterofGravity...........................................................................................................................MSZ-GE-16
 3-4.ElectricalWiringDiagrams............................................................................................................MSZ-GE-17
 3-5.RefrigerantSystemDiagrams.......................................................................................................MSZ-GE-23
3-6.CapacityCorrectionCurvebyTemperature..................................................................................MSZ-GE-28
3-7.CapacityCorrectionTablebyTemperature ...................................................................................MSZ-GE-30
 3-8.CapacityCorrectionCurvebyRefrigerantPipingLength .............................................................MSZ-GE-34
 3-9.CapacityCorrectionTablebyRefrigerantPipingLength ..............................................................MSZ-GE-35
 3-10.ChargeCalculations....................................................................................................................MSZ-GE-37
 3-11.AirFlowData...............................................................................................................................MSZ-GE-38
3-12.SoundPressureLevels...............................................................................................................MSZ-GE-39
 3-13.StandardOperationRange .........................................................................................................MSZ-GE-49
 3-14.Accessories.................................................................................................................................MSZ-GE-50

MSZ-GE-2 2013 M-Series - MSZ-GE Heat Pump Systems (June 2013)
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
1. INDOOR UNITS
• MSZ-GE06NA-8*
• MSZ-GE09NA-8
• MSZ-GE12NA-8
• MSZ-GE15NA-8
• MSZ-GE18NA-8
• MSZ-GE24NA
*TheMSZ-GE06NA-8isonlycompatiblewiththemulti-splitMXZheatpumpsystems.

2013 M-Series - MSZ-GE Heat Pump Systems (June 2013) MSZ-GE-3
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
2. OUTDOOR UNITS
• MUY-GE09NA
• MUY-GE12NA
• MUY-GE15NA-1
• MUY-GE18NA-1
• MUY-GE24NA

MSZ-GE-4 2013 M-Series - MSZ-GE Heat Pump Systems (June 2013)
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-1. SPECIFICATIONS
• Wall-mountedindoorunitforresidentialapplication
• StandardHybridCatechinPrelterandanti-allergyenzymelterforhighair-puricationabilities
• Quietoperation
• Updatedsleek,compactindoorunitdesign
• Integratedi-seeSensorautomaticallyadjuststheunit’soperationaccordingtothetemperaturedifferencesdetected
betweentheoorandtheintakeair,ensuringoptimumcomfortandenergyusage
• Baseheaterisavailableasanoption
• Autofanspeedcontrol:Quiet,Low,Medium,High,andSuperHigh
• Hand-heldWirelessRemoteController
• Advancedmicroprocessorcontrol
• Autorestartfollowingapoweroutage
• Anti-allergyEnzymeFilter
• Limitedwarranty:veyearspartsandsevenyearscompressor

2013 M-Series - MSZ-GE Heat Pump Systems (June 2013) MSZ-GE-5
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-1. SPECIFICATIONS
Modelname MSZ-GE06NA-8 MSZ-GE09NA-8 MSZ-GE12NA-8
Powersupply V,phase,Hz 208/230, 1, 60
Max.fusesize(timedelay)/Disconnectswitch A 15
Min.circuitampacity A 1.0
BlowerMotor(ECM) F.L.A 0.76
Airow
SuperHigh-High-Med.-
Low-Quiet
COOLDry
(Wet)
CFM 399-321-237-170-145
(364-286-201-134-109)
HEATDry CFM 406-321-233-170-
145 406-321-237-170-145
Moistureremoval pt./h – 1.5 2.5
SensibleHeatFactor 0.82 0.74 0.80
Soundlevel
SuperHigh-High-Med.-
Low-Quiet
Cooling dB(A) 43-37-30-22-19 45-37-30-22-19
Heating dB(A) 43-37-30-22-19
Cond.drainconnectionO.D. in. 5/8
Dimensions
W
in.
31-7/16
D 9-1/8
H11-5/8
Weight Ib. 22
Externalnish Munsell 1.0Y 9.2/0.2
Controlvoltage(bybuilt-intransformer) 12 - 24 VDC
Modelname MSZ-GE15NA-8 MSZ-GE18NA-8
Powersupply V,phase,Hz 208/230, 1, 60
Max.fusesize(timedelay)/Disconnectswitch A 15
Min.circuitampacity A 1.0
BlowerMotor(ECM) F.L.A 0.76
Airow
SuperHigh-High-Med.-
Low-Quiet
COOLDry
(Wet)
CFM 533-420-335-272-205
(498-385-300-237-170)
533-420-339-275-230
(498-385-304-240-194)
HEATDry CFM 463-367-304-247-205 512-431-339-275-230
Moistureremoval pt./h 2.7 4.6
SensibleHeatFactor 0.71 0.75
Soundlevel
SuperHigh-High-Med.-
Low-Quiet
Cooling dB(A) 49-44-38-32-26 49-44-38-33-28
Heating dB(A) 46-40-35-30-26 48-43-38-33-28
Cond.drainconnectionO.D. in. 5/8
Dimensions
W
in.
31-7/16
D 9-1/8
H11-5/8
Weight Ib. 22
Externalnish Munsell 1.0Y 9.2/0.2
Controlvoltage(bybuilt-intransformer) 12 - 24 VDC
NOTE:TestconditionsarebasedonARI210/240.
MSZ-GE06NA-8 MSZ-GE09NA-8 MSZ-GE12NA-8 MSZ-GE15NA-8 MSZ-GE18NA-8

MSZ-GE-6 2013 M-Series - MSZ-GE Heat Pump Systems (June 2013)
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-1. SPECIFICATIONS
Modelname MSZ-GE24NA
Powersupply V,phase,Hz 208/230, 1, 60
Max.fusesize(timedelay)/Disconnectswitch A 20
Min.circuitampacity A 1.0
BlowerMotor(ECM) F.L.A 0.76
Airow
SuperHigh-High-Med.-
Low-Quiet
COOLDry
(Wet)
CFM 738-628-469-388
(661-562-420-347)
HEATDry
CFM 406-321-237-170-145
Moistureremoval pt./h 5.1
SensibleHeatFactor 0.75
Soundlevel
SuperHigh-High-Med.-
Low-Quiet
Cooling dB(A) 53-49-41-34
Heating
dB(A) 52-49-41-32
Cond.drainconnectionO.D. in. 5/8
Dimensions
W
in.
43-5/16
D 9-3/8
H12-13/16
Weight Ib. 37
Externalnish Munsell 1.0Y 9.2/0.2
Controlvoltage(bybuilt-intransformer) 12 - 24 VDC
NOTE:TestconditionsarebasedonARI210/240.
1:Ratingconditions (Cooling)—Indoor:80˚FDB,67˚FWB,Outdoor:95˚FDB,(75˚FWB) Ratedfrequency
  (Heating)—Indoor:70˚FDB,60˚FWB,Outdoor:47˚FDB,43˚FWB Ratedfrequency
2: (Heating)—Indoor:70˚FDB,60˚FWB,Outdoor:17˚FDB,15˚FWB Maximumfrequency
MSZ-GE24NA

2013 M-Series - MSZ-GE Heat Pump Systems (June 2013) MSZ-GE-7
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-1. SPECIFICATIONS
Modelname MUZ-GE09NA MUZ-GE12NA
Capacity
Rated(Minimum~Maximum)
Cooling 1 Btu/h 9,000
(3,800~12,200)
12,000
(3,800~13,600)
Heating47 1 Btu/h 10,900
(4,500~14,100)
14,400
(5,500~18,100)
Capacity Heating17 2 Btu/h 8,700 11,200
Powerconsumption
Rated(Minimum~Maximum)
Cooling 1W 660(205~1,200) 960(205~1,300)
Heating47 1W 760(255~1,200) 1,170(340~1,660)
Powerconsumption Heating17 2W950 1,200
EER 1 [SEER] 3 Cooling 13.6 [ 21.0 ] 12.5 [ 20.5 ]
HSPFIV 4 Heating 10.0 10.0
COP Heating 1 4.20 3.61
Powersupply V,phase,Hz 208/230 , 1 , 60
Max.fusesize(timedelay) A 15
Min.circuitampacity A 12 12
FanMotor(ECM) F.L.A 0.50
Compressor
Model KNB073FQDHC KNB092FQAHC
R.L.A 6.6 6.6
L.R.A 8.2 8.2
Refrigerationoilcc.
(Model) 320(NEO22)
Refrigerantcontrol Linearexpansionvalve
Soundlevel 1Cooling dB(A) 46 49
Heating dB(A) 50 51
Defrostmethod Reversecycle
Dimensions
Win. 31-1/2
D in. 11-1/4
Hin. 21-5/8
Weight Ib. 66 77
Externalnish Munsell 3Y 7.8/1.1
Remotecontroller Wirelesstype
Controlvoltage (bybuilt-intransformer) VDC 12 - 24
Refrigerantpiping Notsupplied
Refrigerantpipesize
(Min.wallthickness)
Liquid in. 1/4(0.0315)
Gas in. 3/8(0.0315)
Connectionmethod Indoor Flared
Outdoor Flared
Betweentheindoor&
outdoorunits
Heightdifference ft. 40
Pipinglength ft. 65
Refrigerantcharge(R410A) 1lb.12oz. 2lb.9oz.
NOTE:TestconditionsarebasedonARI210/240.
1:Ratingconditions (Cooling)—Indoor:80˚FDB,67˚FWB,Outdoor:95˚FDB,(75˚FWB) Ratedfrequency
  (Heating)—Indoor:70˚FDB,60˚FWB,Outdoor:47˚FDB,43˚FWB Ratedfrequency
2: (Heating)—Indoor:70˚FDB,60˚FWB,Outdoor:17˚FDB,15˚FWB Maximumfrequency
MUZ-GE09NA-1 MUZ-GE12NA-1

MSZ-GE-8 2013 M-Series - MSZ-GE Heat Pump Systems (June 2013)
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-1. SPECIFICATIONS
Modelname MUZ-GE15NA-1 MUZ-GE18NA-1
Capacity
Rated
(Minimum~Maximum)
Cooling 1 Btu/h 14,000
(3,100~18,200)
17,200
(3,700~18,700)
Heating47 1 Btu/h 18,000
(4,800~20,900)
21,600
(3,500~25,200)
Capacity Heating17 2 Btu/h 15,900 17,200
Powercon-
sumptionRated
(Minimum~Maximum)
Cooling 1W 1,080(160~2,000) 1,640(240~2,070)
Heating47 1W 1,600(270~2,010) 1,900(230~2,680)
Powerconsumption Heating17 2W1,950 2,080
EER 1 [SEER] 3 Cooling 13.0 [ 21.0 ] 10.5 [19.2]
HSPFIV 4 Heating 10.0 10.0
COP Heating 1 3.30 3.33
Powersupply V,phase,Hz 208/230 , 1 , 60
Max.fusesize(timedelay) A 15
Min.circuitampacity A 12 14
FanMotor(ECM) F.L.A 0.50 0.93
Compressor
Model SNB130FQBH
R.L.A 7.4 10.0
L.R.A 9.3 12.5
Refrigerationoilcc.
(Model) 450(NEO22)
Refrigerantcontrol Linearexpansionvalve
Soundlevel 1Cooling dB(A) 49 54
Heating dB(A) 51 56
Defrostmethod Reversecycle
Dimensions
Win. 31-1/2 33-1/16
D in. 11-1/4 13
Hin. 21-5/8 33-7/16
Weight Ib. 80 119
Externalnish Munsell 3Y 7.8/1.1
Remotecontroller Wirelesstype
Controlvoltage (bybuilt-intransformer) VDC 12 - 24
Refrigerantpiping Notsupplied
Refrigerantpipesize
(Min.wallthickness)
Liquid in. 1/4(0.0315)
Gas in. 1/2(0.0315)
Connectionmethod Indoor Flared
Outdoor Flared
Betweentheindoor
&outdoorunits
Heightdifference ft. 40 50
Pipinglength ft. 65 100
Refrigerantcharge(R410A) 2lb.9oz. 3lb.7oz.
NOTE:TestconditionsarebasedonARI210/240.
1:Ratingconditions (Cooling)—Indoor:80˚FDB,67˚FWB,Outdoor:95˚FDB,(75˚FWB) Ratedfrequency
  (Heating)—Indoor:70˚FDB,60˚FWB,Outdoor:47˚FDB,43˚FWB Ratedfrequency
2: (Heating)—Indoor:70˚FDB,60˚FWB,Outdoor:17˚FDB,15˚FWB Maximumfrequency
MUZ-GE15NA-1 MUZ-GE18NA-1

2013 M-Series - MSZ-GE Heat Pump Systems (June 2013) MSZ-GE-9
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-1. SPECIFICATIONS
Modelname MUZ-GE24NA
Capacity
Rated
(Minimum~Maximum)
Cooling 1 Btu/h 22,500
(8,200~31,400)
Heating47 1 Btu/h 16,000(24,600)
Capacity Heating17 2 Btu/h 1,800(570~3,580)
PowerconsumptionRat-
ed(Minimum~Maximum)
Cooling 1W 16,000(24,600)
Heating47 1W 2,340(520~3,650)
Powerconsumption Heating17 2W 1,770(3,290)
EER 1 [SEER] 3 Cooling 12.5 [19.0]
HSPFIV 4 Heating 10.0
COP Heating 1 3.46
Powersupply V,phase,Hz 208/230 , 1 , 60
Max.fusesize(timedelay) A 20
Min.circuitampacity A 17.1
FanMotor(ECM) F.L.A 0.93
Compressor
Model SNB172FQKMT
R.L.A 12.9
L.R.A 16.1
Refrigerationoilcc.
(Model) 0.40(FV50S)
Refrigerantcontrol Linearexpansionvalve
Soundlevel 1Cooling dB(A) 55
Heating dB(A) 55
Defrostmethod ReverseCycle
Dimensions
Win. 33-1/16
D in. 13
Hin. 34-5/8
Weight Ib. 119
Externalnish Munsell 3Y 7.8/1.1
Remotecontroller Wirelesstype
Controlvoltage (bybuilt-intransformer) VDC 12 - 24
Refrigerantpiping Notsupplied
Refrigerantpipesize
(Min.wallthickness)
Liquid in. 3/8(0.0315)
Gas in. 5/8(0.0315)
Connectionmethod Indoor Flared
Outdoor Flared
Betweentheindoor
&outdoorunits
Heightdifference ft. 50
Pipinglength ft. 100
Refrigerantcharge(R410A) 4lb.3oz.
NOTE:TestconditionsarebasedonARI210/240.
1:Ratingconditions (Cooling)—Indoor:80˚FDB,67˚FWB,Outdoor:95˚FDB,(75˚FWB) Ratedfrequency
  (Heating)—Indoor:70˚FDB,60˚FWB,Outdoor:47˚FDB,43˚FWB Ratedfrequency
2: (Heating)—Indoor:70˚FDB,60˚FWB,Outdoor:17˚FDB,15˚FWB Maximumfrequency
MUZ-GE24NA

MSZ-GE-10 2013 M-Series - MSZ-GE Heat Pump Systems (June 2013)
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-1. SPECIFICATIONS
EFFICIENCY RATINGS
Outdoor Unit Indoor Unit SEER EER HSPF COP
@ 47° F
COP
@ 17° F
Energy
Star
Tax
Credit
Most
Efcient
WALL-MOUNT HEAT PUMP
MUZ-GE09NA MSZ-GE09NA-8 21 13.6 10 4.2 2.76 Yes Yes Yes
MUZ-GE12NA MSZ-GE12NA-8 20.25 12.5 10 3.6 2.86 Yes Yes Yes
MUZ-GE15NA-1 MSZ-GE15NA-8 21 13 10 3.3 2.88 Yes Yes Yes
MUZ-GE18NA-1 MSZ-GE18NA-8 19.2 10.5 10 3.32 2.7
MUZ-GE24NA MSZ-GE24NA 19 12.5 10 3.46 2.64 Yes Yes
Note: EfciencyvaluesbasedonAHRI210/240testmethod.

2013 M-Series - MSZ-GE Heat Pump Systems (June 2013) MSZ-GE-11
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-2. EXTERNAL DIMENSIONS
MSZ-GE09NA-8 MSZ-GE12NA-8 MSZ-GE15NA-8 MSZ-GE18NA-8
8-5/16
9-1/8
9-15/16
7/8
6-1/8 6-1/8
3-1/8
3-1/8 8-7/8 8-7/8
1/8
3/4
6 - 1/4
2- 5/16
3/16
9-1/8
2-3/16
2-3/4
31-7/16
30-15/16 1/4
5-1/824-3/81-15/16
11-5/8
1-15/16
1-5/8
2-3/16
1-11/16
1-5/8
5/16
3-15/16
4/3/16
4-3/8
1-3/4
2-3/16
2-11/16
13-5/162-3/8
8-3/8
10
1-5/8
1-5/8
13-9/16 2-1/8
7/16×1 Oblong hole 7/16×13/16 Oblong hole
Installation plate
Indoor unit Wall hole ø2-9/16
Air in
Air out
Installation plate
Piping
Drain hose

MSZ-GE-12 2013 M-Series - MSZ-GE Heat Pump Systems (June 2013)
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-2. EXTERNAL DIMENSIONS
Unit: inch
MSZ-GE24NA
10-1/4
6-1/4
3/4
2-5/16
1-7/8
5/16
12-3/8
10-1/161-7/8
1/8
3-7/8
6-13/16
3-7/8 6-13/16
16-5/16 16-5/16
3/16
9-15/16
31-1/8
2-3/16
42-1/16
43-5/16
12-13/16
Air out
Air in
Insulation ø1-1/8
Drain hose ø5/8
(Connected part O.D)
Installation plate
Wall hole ø3
Wireless remote controller
Installation plate Indoor unit
{
Liquid line
ø
1/4 19-11/16
Gas line
ø
5/8 16-15/16
Insulation
ø
1-15/16 O.D
ø
1-1/4 I.D

2013 M-Series - MSZ-GE Heat Pump Systems (June 2013) MSZ-GE-13
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
MUZ-GE09NA MUZ-GE12NA MUZ-GE15NA-1
Liquid pipe :1/4 (flared) Gas pipe :3/8 (flared) (GE09/12) 1/2 (flared) (GE15)
6-23/32
2
5-7/8
2-23/32
1-3/4
15-3/4
12 ~ 12-3/4
13-9/16
11/16
1-9/16
7/8
21-5/8
11-1/32
13/32
31-1/2
19-11/16
5-15/16
11-29/32
17/3229/32 11-1/4
Air in
handle
Air in
Air out
2- 3/8 13/16 Oval hole
Drain hole 1-5/8
REQUIRED SPACE Basically open 4 inch or more
without any obstruction in front and on both sides of the unit.
14 in. or more
8 in. or more
4 in. or more
4 in. or more
Open two sides of left, right, or rear side.
3-2. EXTERNAL DIMENSIONS

MSZ-GE-14 2013 M-Series - MSZ-GE Heat Pump Systems (June 2013)
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
Unit: inch
MUZ-GE18NA-1
20-9/32
14-3/16
Air in
11-25/32
2-19/32
Air in
Air out
19-11/16
33-1/16
13
2
4-25/32
33-7/16
16-15/16
3-3/16
4-3/8
×
13/16 slot
1-11/32
1-9/16
Drain 3 holes (ø1
-5/16)
30°
35°
2-9/16
Liquid:1/4(flared) Gas :1/2(flared)
3-9/16
8-11/32
Open as a rule 20 inch or more if the front and both sides are open
4 inch or more/ 8 inch or more if there are obstacles to both sides
Open as a rule 20 inch or more if the back, both sides and top are open
REQUIRED SPACE
14 in. or more
4 in. or more
3-2. EXTERNAL DIMENSIONS

2013 M-Series - MSZ-GE Heat Pump Systems (June 2013) MSZ-GE-15
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.

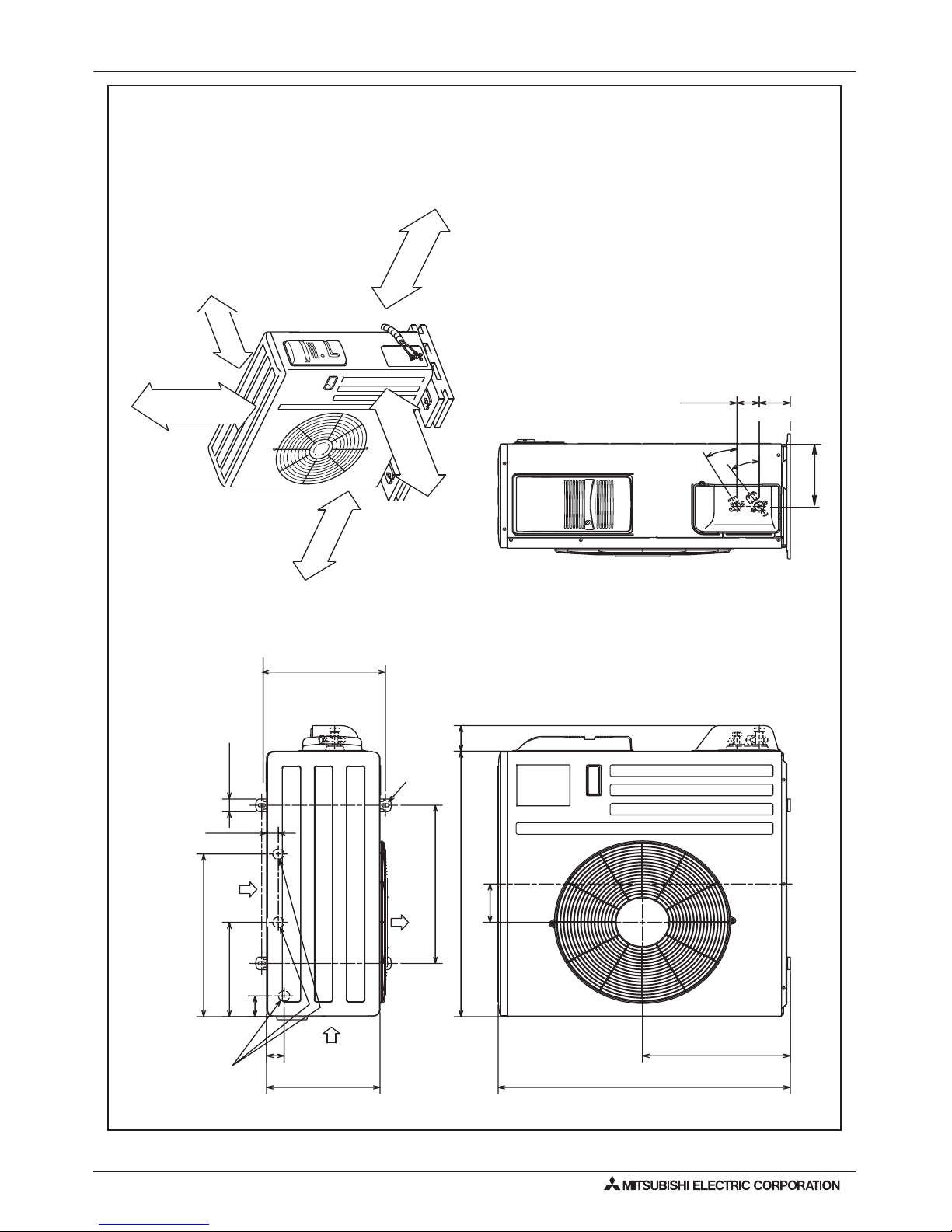

MUZ-GE24NA
30°
35°
6-1/28
3-17/32
7-25/32
1-9/16
20-9/32
11-25/32
2-19/32
2
14-3/16
33-7/16
16-15/16
19-11/16
3-3/16
4-25/32
33-1/16
Open as a rule 20 inch or more if the front and both sides are open
4 inch or more / 8 inch or more if there are obstacles to both sides
Open as a rule 20 inch or more if the back, both sides and top are open
14 in. or more
4 in. or more
Air in
Air out
13
Service panel
Gas refrigerant pipe joint Refrigerant pipe (flared) ø5/8
Liquid refrigerant pipe joint Refrigerant pipe (flared) ø1/4
Drain hole ø1-5/8
4-3/8 13/16 Oval hole
REQUIRED SPACE
Air in
3-2. EXTERNAL DIMENSIONS
Unit: inch

MSZ-GE-16 2013 M-Series - MSZ-GE Heat Pump Systems (June 2013)
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-3. CENTER OF GRAVITY
c
C
A
a b
B
ab
B
c
C
A
Unit: inch(mm)
Model name A B C a b c
MSZ-GE09NA-8
MSZ-GE12NA-8
MSZ-GE15NA-8
MSZ-GE18NA-8
13-7/16
(340)
3-3/4
(95)
7-1/2
(190)
31-7/16
(798)
9-1/8
(232)
11-5/8
(295)
MSZ-GE24NA 17-11/16
(450)
4-5/16
(110)
6-5/16
(160)
42-1/16
(1100)
10-1/4
(261)
12-13/16
(325)
Unit: inch(mm)
Model name A B C a b c
MUZ-GE09NA
MUZ-GE12NA
MUZ-GE15NA-1
11-1/16
(280)
5-9/16
(140)
9-1/2
(240)
31-1/2
(800)
11-1/4
(285)
21-5/8
(550)
MUZ-GE18NA-1 11-13/16
(300)
5-7/8
(150)
13-3/8
(340)
33-1/16
(840)
13
(330)
33-7/16
(850)
MUZ-GE24NA
MSZ-GE09NA-8 MSZ-GE12NA-8 MSZ-GE15NA-8
MSZ-GE18NA-8 MSZ-GE24NA
MUZ-GE09NA MUZ-GE12NA MUZ-GE15NA-1
MUZ-GE18NA-1 MUZ-GE24NA

2013 M-Series - MSZ-GE Heat Pump Systems (June 2013) MSZ-GE-17
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-4. ELECTRICAL WIRING DIAGRAMS
MSZ-GE09NA-8 MSZ-GE12NA-8 MSZ-GE15NA-8 MSZ-GE18NA-8

MSZ-GE-18 2013 M-Series - MSZ-GE Heat Pump Systems (June 2013)
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-4. ELECTRICAL WIRING DIAGRAMS
MSZ-GE24NA
8
MSZ-GE06NA MSZ-GE09NA MSZ-GE12NA MSZ-GE15NA MSZ-GE18NA MSY-GE09NA MSY-GE12NA MSY-GE15NA MSY-GE18NA
5WIRING DIAGRAM
MSZ-GE24NA MSY-GE24NA
OBH548C

2013 M-Series - MSZ-GE Heat Pump Systems (June 2013) MSZ-GE-19
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-4. ELECTRICAL WIRING DIAGRAMS
MUZ-GE09NA MUZ-GE12NA

MSZ-GE-20 2013 M-Series - MSZ-GE Heat Pump Systems (June 2013)
© 2013 Mitsubishi Electric US, Inc.
Due to continuing improvement, above specication may be subject to change without notice.
3-4. ELECTRICAL WIRING DIAGRAMS
MUZ-GE15NA-1
11
MUZ-GE15NA MUZ-GE15NA- 1
