TECHNICAL & SERVICE MANUAL
AIR-COOLED SPLIT-TYPE
PACKAGED AIR CONDITIONERS
HEAT PUMP PEH-RP200MYA
PEH-RP250MYA
Models
<Indoor unit>
2005
For use with the R410A or R407C

Page
Contents
1 SAFETY PRECAUTION ..........................................................................................................
2PART NAMES AND FUNCTIONS ............................................................................................
3 SPECIFICATIONS ..................................................................................................................

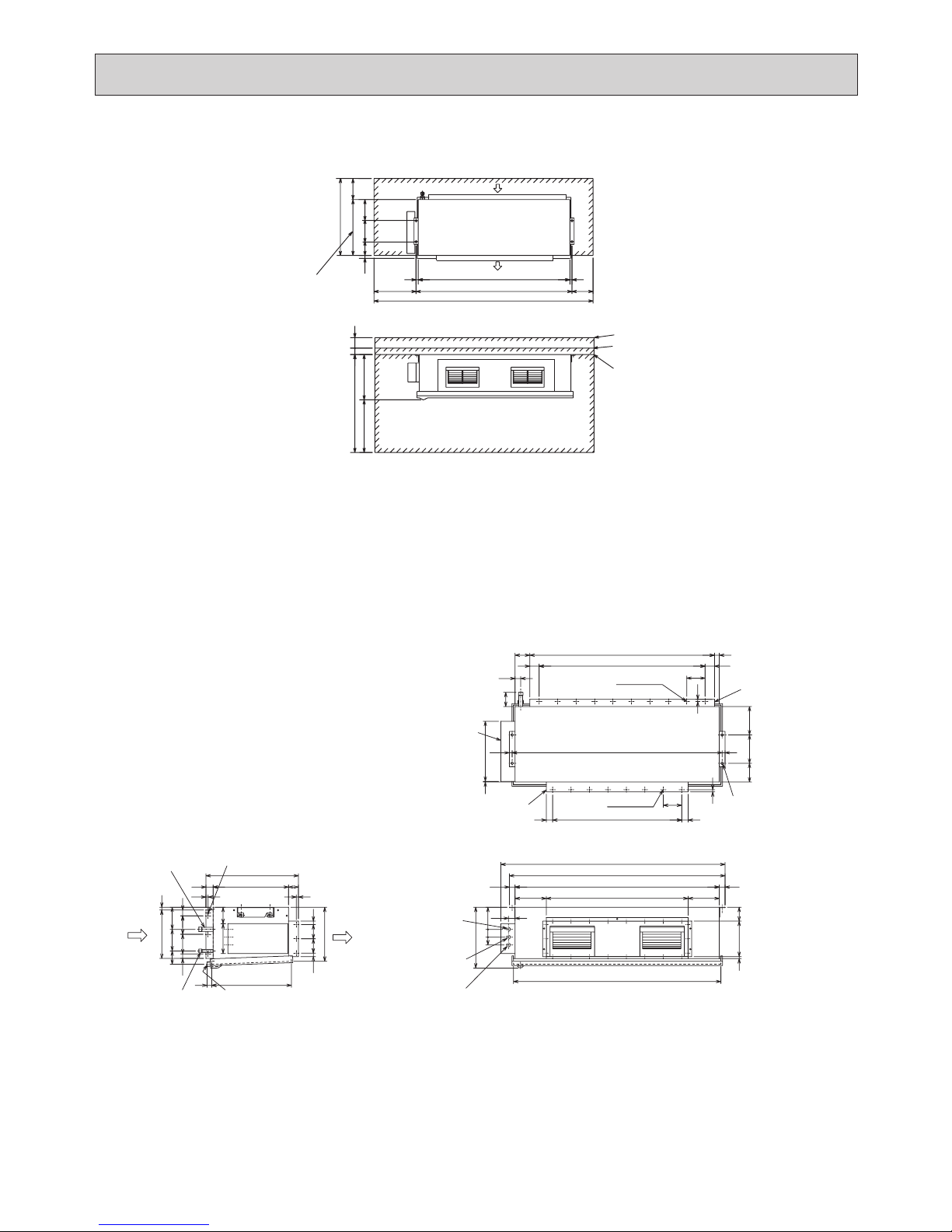

4 OUTLINE AND DIMENSIONS................................................................................................

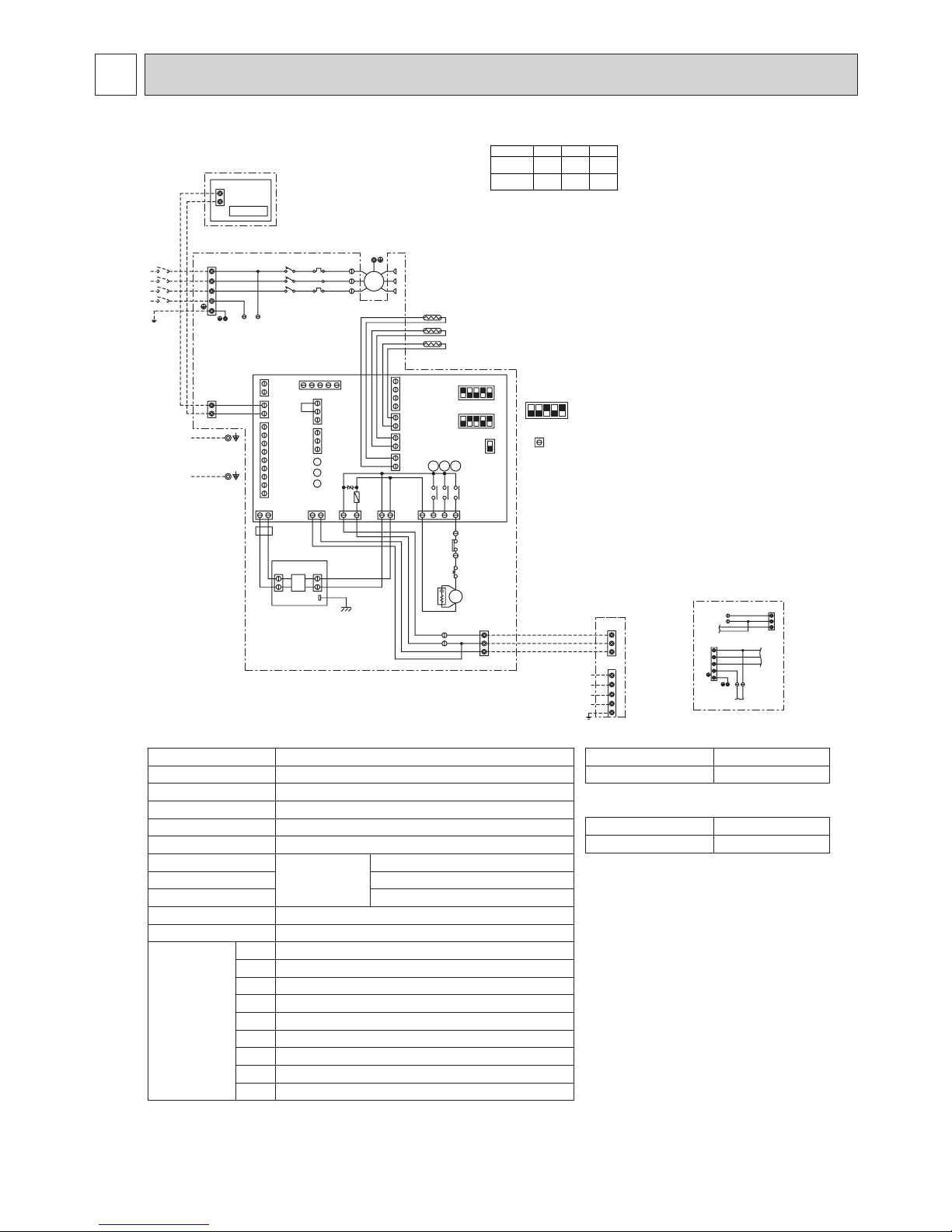

5ELECTRICAL WIRING DIAGRAM .........................................................................................
6TECHNICAL DATA ................................................................................................................
[1] Capacity/Input Ratio against Changes in Room Airflow Rate ...........................................
Capacity table
[4] Correction factors
...................................................................................................................
..............................................................................................................
[5] Airflow Characteristic Curves ............................................................................................
[7] Standard Operation Data ................................................................................................
NC Curve (Indoor unit) ......................................................................................................
7SERVICE DATA ......................................................................................................................
[1] Appearance of Equipment ................................................................................................
[2] Internal Construction .........................................................................................................
[3] Refrigerant Circuit .............................................................................................................
8FUNCTION OF SWITCH ON INDOOR CIRCUIT BOARD .....................................................
[1] DIP SW1 for model Selection (DIP SW1 has been set at factory) ....................................
[2] DIP SW2 for Capacity Setting (DIP SW2 has been set at factory) ...................................
[3] DIP SWE for Emergency Operation..................................................................................
9 TEST RUN ..............................................................................................................................
[1] Before test run ..................................................................................................................
[2] Test run procedures ..........................................................................................................
[3] Self-diagnosis ...................................................................................................................
[4] Remote controller diagnosis .............................................................................................
[6] Center of Gravity (Indoor unit) ..........................................................................................
[8]
[2] Bypass Factor Curves ......................................................................................................
[3]
1
3
5
7
10
11
11
13
18
19
21
23
23
24
24
25
25
25
25
26
26
26
29
30
20
22
12

- 1 -
1SAFETY PRECAUTION
Cautions for units utilizing refrigerant R410A or R407C
CAUTIONS RELATED TO NEW REFRIGERANT
Use new refrigerant pipes.
Keep the inner and outer surfaces of the pipes
clean and free of such contaminants as sulfur,
oxides, dust, dirt, shaving particles, oil, and
water.
In addition, use pipes with specified thickness.
Store the pipes to be installed indoors, and keep
both ends of the pipes sealed until immediately
before brazing. (Keep elbows and other joints
wrapped in plastic.)
Use a small amount of ester oil, ether oil, or
alkylbenzene to coat flares and flanges.
In case of using the existing pipes for R22, be careful with
the followings.
· Change flare nut to the one provided with this product.
Use a newly flared pipe.
· Avoid using thin pipes.
Charge liquid refrigerant (as opposed to gaseous
refrigerant) into the system.
If gaseous refrigerant is charged into the system, the
composition of the refrigerant in the cylinder will change
and may result in performance loss.
If other refrigerant (R22 etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse-flow check
valve.
Do not use refrigerant other than R410A or
R407C.
If a vacuum pump that is not equipped with a reverse-flow
check valve is used, the vacuum pump oil may flow into
the refrigerant cycle and cause the refrigerating machine
oil to deteriorate.
Prepare a set of tools for exclusive use with R407C
and another set for exclusive use with R410A.
The following tools are necessary to use R410A or R407C
refrigerant.
Exercise special care when handling the tools for
use with R407C.
Infiltration of dust, dirt, or water into the refrigerant system
may cause the refrigerating machine oil to deteriorate.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of the
refrigerant will change, and the unit may experience power
loss.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A or R407C
These types of contaminants inside the refrigerant pipes
may cause the refrigerant oil to deteriorate.
Infiltration of dust, dirt, or water into the refrigerant system
may cause the refrigerating machine oil to deteriorate or
cause the unit to malfunction.
Infiltration of a large amount of mineral oil may cause the
refrigerating machine oil to deteriorate.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
[1] Cautions for service
(1) Perform service after collecting the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A or R407C on the market is syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)

No. Specifications
1Gauge manifold ·Only for R410A or R407C
·Use the existing fitting specifications.(UNF1/2)
·Use high-tension side pressure of 5.3MPa·G or over.
2Charge hose ·Only for R410A or R407C
·Use pressure performance of 5.09MPa·G or over.
3Electronic scale
4Gas leak detector ·Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check ·Attach on vacuum pump.
6Refrigerant charge base
7Refrigerant cylinder ·Only for R410A or R407C Top of cylinder:R410A(Pink), R407C(Gray)
Cylinder with syphon
8Refrigerant recovery equipment
- 2 -
Gravimeter
Unit
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.

- 3 -

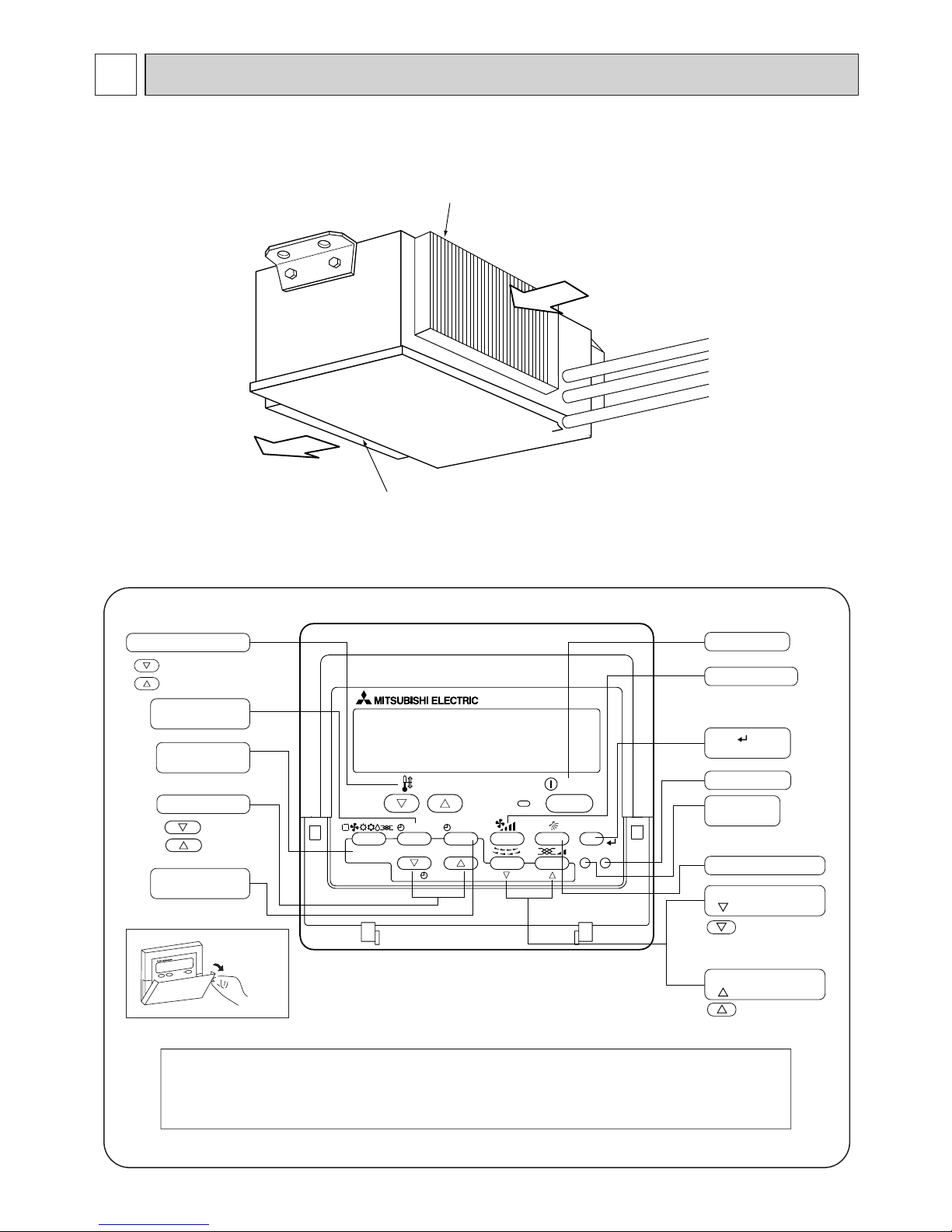

2PART NAMES AND FUNCTIONS
●Indoor Unit
PEH-RP200MYA
PEH-RP250MYA
Air intake duct flange
Air outlet duct flange
Air outlet
Air intake
(sucks the air inside the room into the unit)
● Operation buttons
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
Set Temperature buttons
Down
Up
Timer Menu button
(Monitor/Set button)
Mode button
(Return button)
Set Time buttons
Back
Ahead
Timer On/Off button
(Set Day button)
Opening the
door.
ON/OFF button
Fan Speed button
Filter button
(<Enter> button)
Test Run button
Airflow Up/Down button
Louver button
(Operation button)
To preceding
operation number.
Ventilation button
(Operation button)
To next operation
number.
Note:
If you press a button for a feature that is not installed at the indoor unit, the remote controller will display the “Not Available”
message.
If you are using the remote controller to drive multiple indoor units, this message will appear only if the feature is not present
at the parent unit.
Check button
(Clear button)

- 4 -
Caution
●Only the (Power on indicator) lights when the unit is stopped and power supplied to the unit.
●When the central control remote control unit, which is sold separately, is used the ON-OFF button, operation switch button
and TEMP. adjustment button do not operate.
●If you press a button for a feature that is not installed at the indoor unit, the remote controller will display the “Not Available”
message.
●When power is turned ON for the first time, it is normal that “PLEASE WAIT” is displayed on the screen (For max. 3minutes).
Please wait until this “PLEASE WAIT” disappear then start the operation.

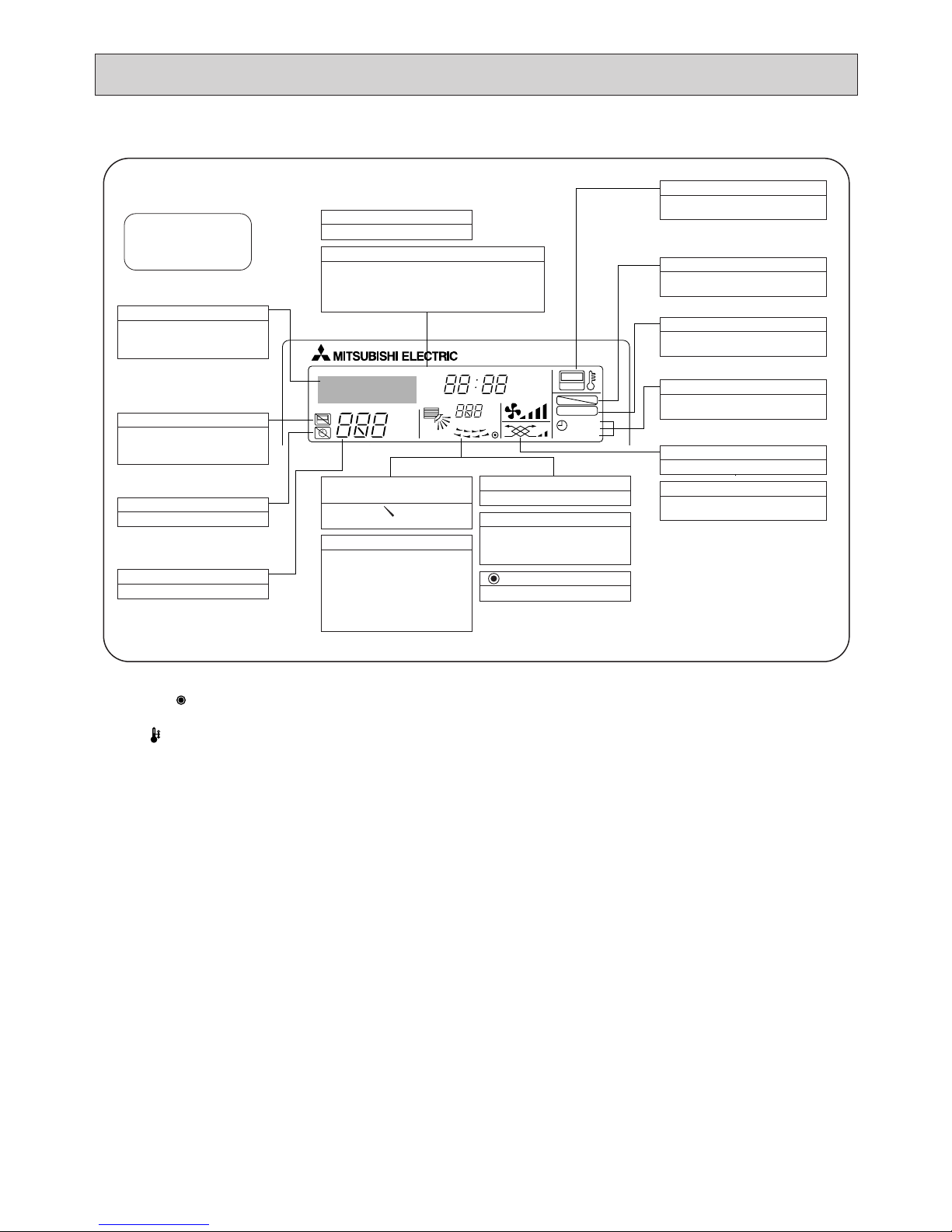

●Display
For purposes of this explanation,
all parts of the display are shown
as lit. During actual operation, only
the relevant items will be lit.
˚F˚C
˚F˚C
ERROR CODE
AFTER
TIMER
TIME SUN MON TUE WED THU FRI SAT
ON
OFF
Hr
AFTER
FILTER
FUNCTION
ONLY1Hr.
WEEKLY
SIMPLE
AUTO OFF
Identifies the current operation
Shows the operating mode, etc.
*Multilanguage display is sup-
ported.
“CentrallyControlled”indicator
Indicates that operation of the re-
mote controller has been prohib-
ited by a master controller.
“Timer Is Off” indicator
Indicates that the timer is off.
Temperature Setting
Shows the target temperature.
Day-of-Week
Shows the current day of the week.
Time/Timer Display
Shows the current time, unless the simple or Auto Off
timer is set.
If the simple or Auto Off timer is set, shows the time
remaining.
“Sensor” indication
Displayed when the remote controller
sensor is used.
“Locked” indicator
Indicates that remote controller but-
tons have been locked.
“Clean The Filter” indicator
Comes on when it is time to clean the
filter.
Timer indicators
The indicator comes on if the corre-
sponding timer is set.
Up/Down Air Direction indica-
tor
The indicator shows the direc-
tion of the outcoming airflow.
“One Hour Only” indicator
Displayed if the airflow is set to
weak and downward during COOL
or DRY mode. (Operation varies
according to model.)
The indicator goes off after one
hour, at which time the airflow di-
rection also changes.
Room Temperature display
Shows the room temperature.
Louver display
Indicates the action of the swing
louver. Does not appear if the
louver is stationary.
(Power On indicator)
Indicates that the power is on.
Fan Speed indicator
Shows the selected fan speed.
Ventilation indicator
Appears when the unit is running in
Ventilation mode.

Specifications of air-source heat pump type packaged air conditioner
(Ceiling concealed type indoor unit)
Model name PEH-RP200MYA
PEH-RP200MYAService Ref.
PEH-RP200MYAService Ref.
PUHZ-RP200YHAService Ref.
Outdoor
unit
Indoor unit
Quantity Symbol
Capacity kcal/h
kW
Indoor side Dry bulb temperature/wet bulb temperature
Outdoor side Dry bulb temperature/wet bulb temperature
Power source
Power consumption kW
Operating current A
Remote controller temperature setting range °C
Airflow direction control
Type ×Quantity
Airflow rate m3/min
External static pressure Pa
Motor output kW
External finish
Unit (H ×W ×D) mm
Panel (H ×W ×D) mm
Heat exchanger type
Air filter
Insulation material
Refrigerant piping size Liquid/Gas
φ mm
φ mm
Drain piping size
Noise level dB(A)
Net weight kg
Minimum wire thickness
Circuit breaker
Operation control device (provided)
Decoration panel (Option)
Other mountable major options
Accessories
Special note, Non-standard specifications, etc.
1. The cooling and heating capacities are the maximum capacities that were obtained by operating in the above
air conditions and with a refrigerant pipe of about 5m.
2. The actual capacity characteristics vary with the combination of indoor and outdoor units. See the technical
informaition.
3. The operating noise is the data that was obtained by measuring it 1.5 m from the unit’s bottom in an anechoic
room. (Noise meter A-scale value)
4. The
5. Refer to the service manual of outdoor unit for the outdoor unit’s specifications.
figure of Electrical characteristic, Airflow rate, Noise level, indicates, at 50/60/70 Pa setting.
Cooling Heating
16,300 19,300
19.0 (10.0~22.4) 22.4 (10.0~25.0)
27 °C/19 °C 20 °C/–
35 °C/24 °C7°C/6 ˚C
3N~ 380/400/415V 50Hz
0.65/0.65/0.65 0.65/0.65/0.65
1.12/1.12/1.12 1.12/1.12/1.12
19 ~ 30 17 ~ 28
–
Sirrocco fan ×2
60
50/60/70 (150/155/160)
0.75
Galvanizing
428 ×1380 ×650
–
Cross fin
Saran net
Polyethylene foam
9.52/25.4
25.4 (R1)
48/49/49 (at 50/60/70 Pa)
70
1.6 mm
15 A
Remote controller: PAR-21MAA
–
–
Electrical characteristics
Fan
External dimension
External wiring
Composing parts
Notes:
Installation manual, Operation manual,
Remote controller
–
Air con-
dition
- 5 -
3SPECIFICATIONS

PEH-RP250MYA
Cooling Heating
18,900 23,200
27 °C/19 °C 20 °C/–
35 °C/24 °C7°C/ 6 °C
3N~ 380/400/415V 50 Hz
0.94/0.94/0.94 0.94/0.94/0.94
1.64/1.64/1.64 1.64/1.64/1.64
19 ~ 30 17 ~ 28
–
Sirrocco fan ×2
80
50/60/70 (150/155/160)
1.23
Galvanizing
428 ×1,580 ×650
–
Cross fin
Saran net
Polyethyene foam
12.7/28.58
25.4 (R1)
52/53/53 (at 50/60/70 Pa)
80
1.6 mm
15 A
Remote controller: PAR-21MAA
–
–
Installation manual, Operation manual,
Remote controller
–
PUHZ-RP250YHA
PEH-RP250MYA
PEH-RP250MYA
22.0 (12.5~28.0) 27.0 (15.7~31.5)
Specifications of air-source heat pump type packaged air conditioner
(Ceiling concealed type indoor unit)
Model name
Service Ref.
Service Ref.
Service Ref.
Outdoor
unit
Indoor unit
Quantity Symbol
Capacity kcal/h
kW
Indoor side Dry bulb temperature/wet bulb temperature
Outdoor side Dry bulb temperature/wet bulb temperature
Power source
Power consumption kW
Operating current A
Remote controller temperature setting range °C
Airflow direction control
Type ×Quantity
Airflow rate m3/min
External static pressure Pa
Motor output kW
External finish
Unit (H ×W ×D) mm
Panel (H ×W ×D) mm
Heat exchanger type
Air filter
Insulation material
Refrigerant piping size Liquid/Gas
φ mm
φ mm
Drain piping size
Noise level dB(A)
Net weight kg
Minimum wire thickness
Circuit breaker
Operation control device (provided)
Decoration panel (Option)
Other mountable major options
Accessories
Special note, Non-standard specifications, etc.
1. The cooling and heating capacities are the maximum capacities that were obtained by operating in the above
air conditions and with a refrigerant pipe of about 5m.
2. The actual capacity characteristics vary with the combination of indoor and outdoor units. See the technical
informaition.
3. The operating noise is the data that was obtained by measuring it 1.5 m from the unit’s bottom in an anechoic
room. (Noise meter A-scale value)
4. The
5. Refer to the service manual of outdoor unit for the outdoor unit’s specifications.
figure of Electrical characteristic, Airflow rate, Noise level, indicates, at 50/60/70 Pa setting.
Electrical characteristics
Fan
External dimension
External wiring
Composing parts
Notes:
Air con-
dition
- 6 -

(1) Indoor Unit
• Model PEH-RP200MYA
928
1240
20
530
13132 200 199
400
730
200
1280
1880
200
20
428500
25 75
(1)
(2)
(3)
(1) When connecting air inlet
(2) When installing the suspension fixtures prior to installation of the indoor unit without inlet duct
(3) When hanging the indoor unit directly without inlet duct
(A) Service space
(B) Suspension bolt pitch
(C) Air inlet
(D) Air outlet
(A)
(A)
(C)
(B) (B)
(D)
Note: When connecting duct to the return air duct flange, remove the air filter attached to the unit body, and mount
an air filter onto the return air duct side separately.
Return air
sensor
Left side view
Top view
Front view
Rubber bush <For the
power supply wiring>
(Return air side)
Rubber bush <For the
outdoor unit connecting
wiring> (Return air side)
Rubber bush <For the
controller wiring>
(Return air side)
Accessory:
Refrigerant connecting
pipe ø12.7(1/2 braze)
[Use only for R407C]
Refrigerant pipe
ø25.4(1 braze)
Refrigerant pipe
ø9.52(3/8 braze)
Supply air
Return air
Control box
Supply air
duct flange
Return air
duct flange
24-ø3.1 Holes
4-ø12 Holes
22-ø3.1 Holes
7X130Pitch=910
8X130Pitch=1040
Drain R1
15
190
100
13042
152
14 250 98
1264
120 1000
1320
40
45
130
45
120
40
15
1280 20 20
1240
31
130
31
104 1102 34
382
562
33
95
42
20
344
130
50
10025 100
15
25
70530
156
428
650
15
<For hanging bolt M10>
[Field supply]
40
199200131
1380
1565555
46
5 423
116210
- 7 -
4OUTLINE AND DIMENSIONS

- 8 -
(1) When connecting air inlet
(2) When installing the suspension fixtures prior to installation of the indoor unit without inlet duct
(3) When hanging the indoor unit directly without inlet duct
(A) Service space
(B) Suspension bolt pitch
(C) Air inlet
(D) Air outlet
1440
20
530
13132 200 199
400
730
200
1480
2080
200
20
(A) (C)
(B) (B)
(D)
928
428500
25 75
(1)
(2)
(3)
(A)
• Model PEH-RP250MYA
Note: When connecting duct to the return air duct flange, remove the air filter attached to the unit body, and mount
an air filter onto the return air duct side separately.
Return air
sensor
Rubber bush <For the
power supply wiring>
(Return air side)
Rubber bush <For the
outdoor unit connecting
wiring> (Return air side)
Front view
Left side view
Top view
Refrigerant pipe
ø12.7(1/2 braze)
Return air
Rubber bush <For the
controller wiring>
(Return air side)
Supply air
Refrigerant pipe
ø28.58(1-1/8 braze)
Supply air
duct flange
26-ø3.1 Holes
Control box
4-ø12 Holes
Return air
duct flange
Drain R1
22-ø3.1 Holes
<For hanging bolt M10>
[Field supply]
1440
130
669X130Pitch=1170
45 7X130Pitch=910
15
199
100
40
42 130
152 156
14 250 98
1464
220 1000
1520
40
130
45
220
40
15
1480 20 20
66
104 1302 34
382
562
33
95
42
20
344
130
50
10025 100
15
25
70530
428
650
15
200131
1580
1565555
46
5 423
116210

(2) Remote Controller
• Model PAR-21MAA
120
130 19 46
83.5
(Front view) (Side view) (Rear view)
- 9 -

(1) Indoor Unit
• Models PEH-RP200MYA/RP250MYA
SUPPLY AIR
DUCT
CR
RETURN AIR
DUCT
7. mark is connector.
8.In case of indoor unit controller board power supplied from indoor unit,
refer *3.
50Hz
3N~PE
POWER SUPPLY
380/400/415V
(FIELD SUPPLY)
PEH-RP200,250MYA:15A
CIRCUIT BREAKER
Caution,
1.To protect fan motor from abnormal current,over current relays is installed.
Therefore, do not change factory set value of over current relays.
51F
INDOOR
CONTROLLER BOARD
POWER BOARD
INDOOR
TO OUTDOOR UNIT
CONNECTING WIRES
(POLAR)
REMOTE CONTROLLER
BOARD
1.The dotted lines show field wiring.
Note:
2.Color of earth wire is yellow and green twisting.
3.Specification subject to change without notice.
REPLACE CONNECTORS TO EACH OTHER
*3 INDOOR UNIT CONTROLLER BOARD
POWER SUPPLIED FROM INDOOR UNIT
(FOR INDOOR-OUTDOOR CONNECTION
WIRING S2,S3)
FERRITE CORE
SURGE KILLER
FB
CR
INDOOR
CONTROLLER
BOARD
SYMBOL NAME
MF1
51F
49F
TB2,4,5
TH1
TH2
FAN MOTOR (INDOOR)
OVER CURRENT RELAY (INDOOR FAN MOTOR)
INTERNAL THERMOSTAT (INDOOR FAN MOTOR)
TERMINAL BLOCK
THERMISTOR
INDOOR UNIT
REMOTE CONTROLLER
FUSE FUSE (T6.3AL250V)
ZNR VARISTOR
AUXILIARY RELAYX4-6
SW2
SWE
LED1 LED (POWER SUPPLY)
LED2 LED (POWER SUPPLY<REMOTE CONTROLLER>)
LED3 LED (TRANSMISSION<INDOOR.OUTDOOR>)
4.Indoor and outdoor connecting wires are made with polarities,make sure
matching wiring and terminal.
5.Emergency operation
If a trouble occurs with either the remote controller or the indoor microcom-
puter and no other trouble exists, emergency operation for cooling or heating
can be performed by changing the setting of switch (SWE) "ON" on the
indoor controller board.
TH5
SWITCH(MODEL SELECTION)SW1
SWITCH(CAPACITY CORD)
SWITCH(EMERGENCY OPERATION)
MAGNETIC CONTACTOR (INDOOR FAN MOTOR)52F
NAMESYMBOL
OUTDOOR UNIT
ROOM TEMP
LIQUID PIPE TEMP
COND/EVA TEMP
TB3 TERMINAL BLOCK
SYMBOL NAME
TB6 TERMINAL BLOCK
6.SW2(*1) shows PEH-RP250MYA setting.
In case of PEH-RP200MYA setting is shown as below.
3
1C04
52F
PE 31
BLUE
BLACK
WHITE
C03
RED
PE
N
PE BLUE
1
3
C04
TO CN3C
S1
S2
S3
TB4
TO MF1
C04
TO CND
31
C03
L1
L2
L3
TB2
RED
WHITE
BLACK
5
ON
OFF
(*1)SW2
3214
LCD
4123
(*1)SW2
OFF
ON
5
TAB1
3
1
CNSK
2
1
CN2S
DC
13.1V
CN2D
CN90
CN22
CN2L
FAN
CNDK
CND
CN32
CN31
CN51
12345
FUSE
ZNR
31
31
3112
DC13.1V
1573
X4 X5 X6
LED1
LED2
LED3
X4 X5 X6
2
1
2
1
2
1
2
1
3
3
6
5
4
9
8
7
3
1
2
CN3C
12345
SW1
OFF
ON
SWE
OFF
ON
CN20
CN21
CN41
CN29
1
2
3
4
1
2
1
2
2
1
FB
TH1
TH2
TH5
3
2
1
C12
C01
S1
PE
1
2
REMOTE CONTROLLER
1
2
3
3
1
S2
S3
TB5
TB6
49F
52F
MF1
TB2
N
L3
L2
L1
PE
PE
PE
PE
INDOOR UNIT CONTROL BOX
51F
TB4
(WHITE) C02
(RED)
*3
*3
*2 *2
POWER
3N~
380/400/415V
OUTDOOR UNIT
PE
N
L1
T B 1
T B 3
L2
L3
S1
S2
S3
PE
380V 400V 415V
50Pa 60Pa 70Pa
150Pa
CONNECTOR
CO1
(WHITE)
CO2
(RED) 155Pa 160Pa
*2(EXTERNAL STATIC PRESSURE)
- 10 -
5ELECTRICAL WIRING DIAGRAM

Capacity/Input ratio
Heating
Airflow rate (m3/min)
70 75 80 85 90
1.0
1.05
0.95
Capacity
Input
Capacity/Input ratio
Cooling
Airflow rate (m3/min)
70 75 80 85 90
1.0
1.05
0.95
Capacity
Input
50 55 60 65 70
Capacity/Input ratio
Airflow rate (m3/min)
1.0
1.05
0.95
Cooling
Capacity/Input ratio
Heating
Airflow rate (m3/min)
50 55 60 65 70
1.0
1.05
0.95
Input
Capacity
Capacity
Input

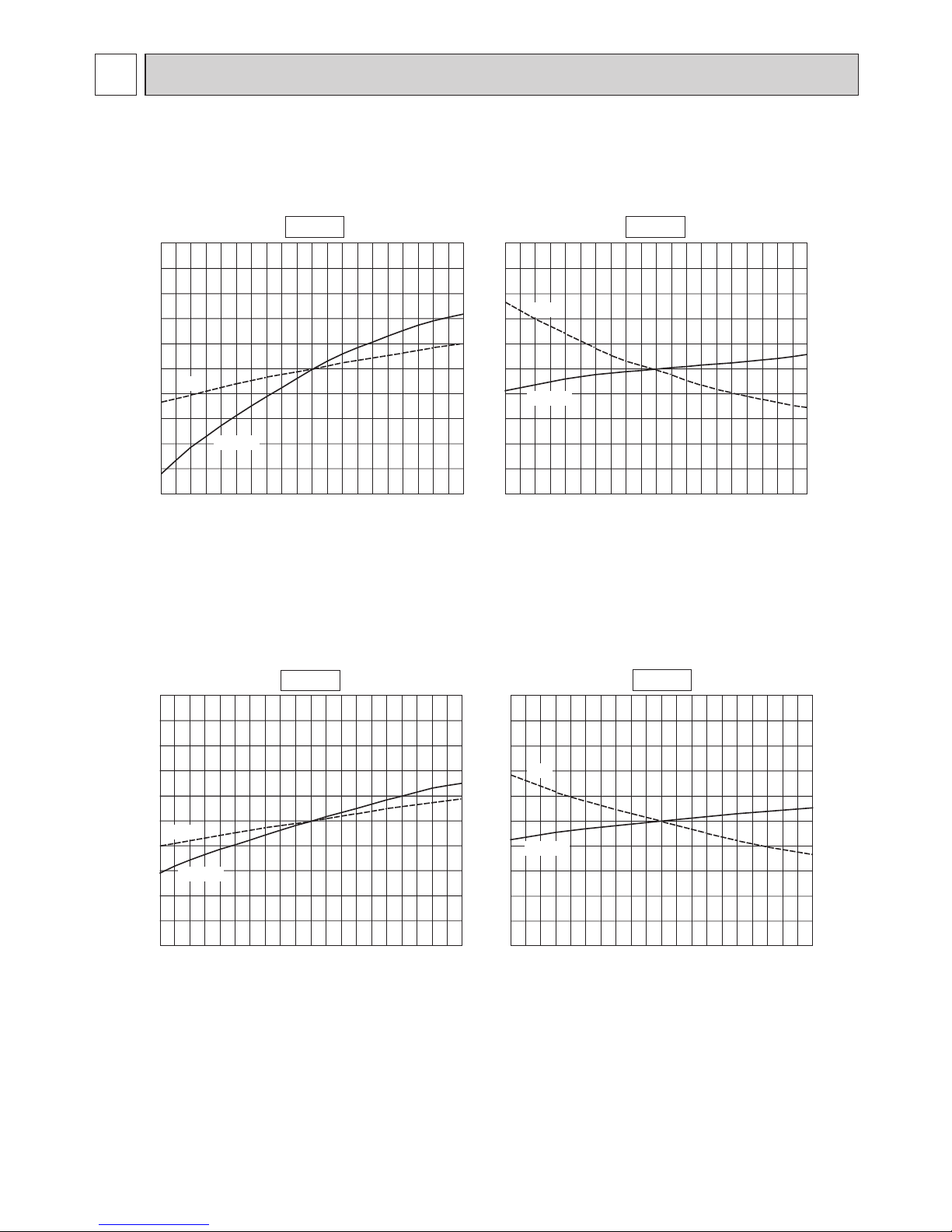

[1] Capacity/Input Ratio against Changes in Room Airflow Rate
• Model PEH-RP200MYA
• Model PEH-RP250MYA
- 11 -
6TECHNICAL DATA

Bypass factor
Airflow rate (m3/min)
50 55 60 65 70
0.30
0.25
0.20
0.15
0.10
PEH-RP200MYA PEH-RP250MYA
Bypass factor
Airflow rate (m3/min)
70 75 80 85 90
0.20
0.15
0.10
0.05
0.00

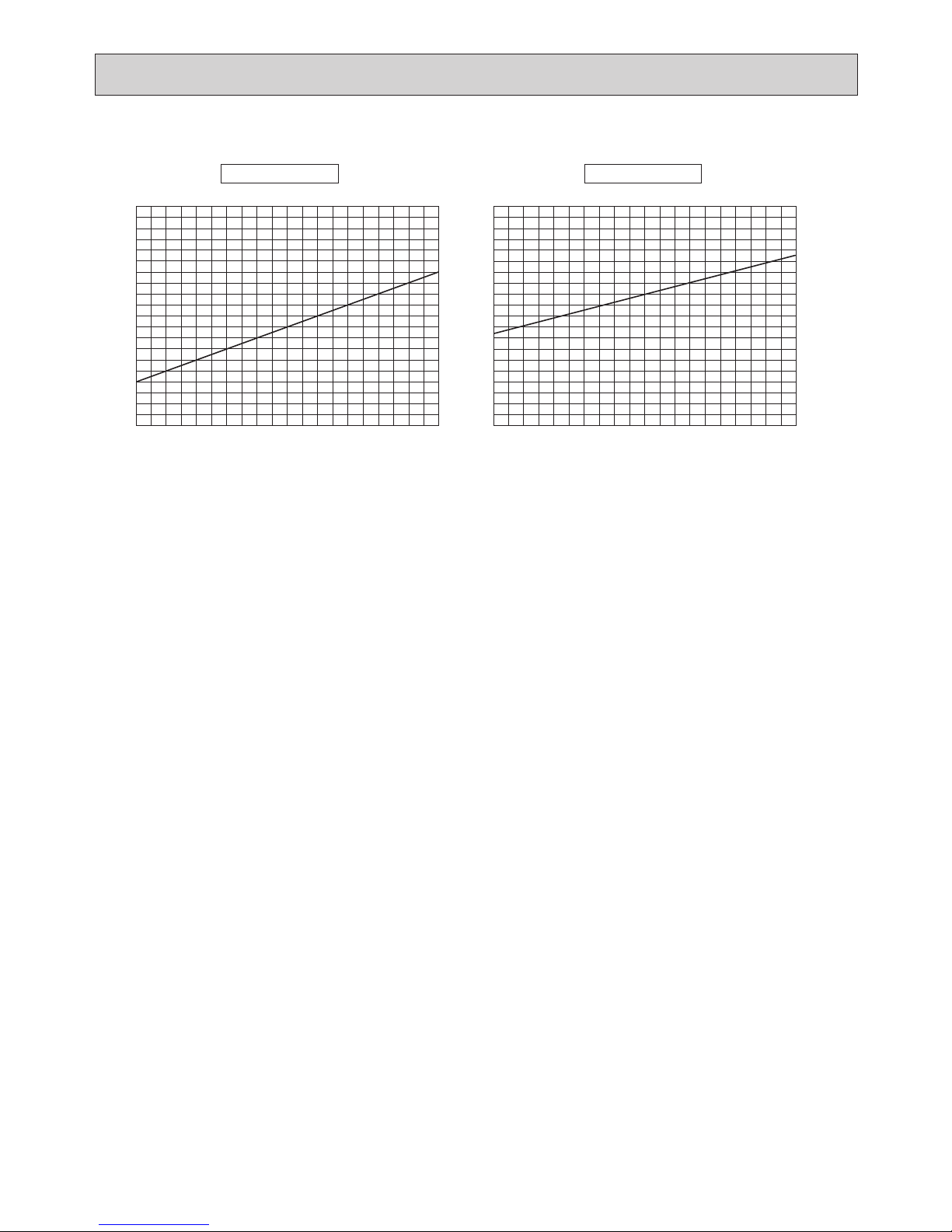

[2] Bypass Factor Curves
- 12 -

[3] Capacity table
COOLING CAPACITY (1)
PEH-RP200MYA/PUHZ-RP200YHA (Indoor unit Airflow rate 60m3/min)
Outdoor intake air DB˚C
2520
CA
SHC(W) SHF P.C. CA SHC(W) SHF P.C. CA SHC(W) SHF P.C.
18810
20140
21660
18810
20140
21660
18810
20140
21660
23085
18810
20140
21660
23085
18810
20140
21660
23085
18810
20140
21660
23085
18810
20140
21660
23085
18810
20140
21660
23085
18810
20140
21660
23085
12227
10674
8881
13731
12285
10613
15236
13897
12346
10388
16741
15508
14079
12235
17493
16313
14945
13158
18246
17119
15812
14082
18810
18730
17545
15929
18810
20140
19277
17775
18810
20140
21010
19622
20
22
24
26
27
28
30
32
34
16
18
20
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.45
0.89
0.77
0.65
0.53
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.93
0.81
0.69
1.00
1.00
0.89
0.77
1.00
1.00
0.97
0.85
5.82
5.93
6.12
5.82
5.93
6.12
5.82
5.93
6.12
6.26
5.82
5.93
6.12
6.26
5.82
5.93
6.12
6.26
5.82
5.93
6.12
6.26
5.82
5.93
6.12
6.26
5.82
5.93
6.12
6.26
5.82
5.93
6.12
6.26
18240
19570
21185
18240
19570
21185
18240
19570
21185
22610
18240
19570
21185
22610
18240
19570
21185
22610
18240
19570
21185
22610
18240
19570
21185
22610
18240
19570
21185
22610
18240
19570
21185
22610
11856
10372
8686
13315
11938
10381
14774
13503
12075
10175
16234
15069
13770
11983
16963
15852
14618
12888
17693
16635
15465
13792
18240
18200
17160
15601
18240
19570
18855
17410
18240
19570
20549
19219
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.45
0.89
0.77
0.65
0.53
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.93
0.81
0.69
1.00
1.00
0.89
0.77
1.00
1.00
0.97
0.85
6.15
6.26
6.41
6.15
6.26
6.41
6.15
6.26
6.41
6.62
6.15
6.26
6.41
6.62
6.15
6.26
6.41
6.62
6.15
6.26
6.41
6.62
6.15
6.26
6.41
6.62
6.15
6.26
6.41
6.62
6.15
6.26
6.41
6.62
17670
18905
20615
17670
18905
20615
17670
18905
20615
22040
17670
18905
20615
22040
17670
18905
20615
22040
17670
18905
20615
22040
17670
18905
20615
22040
17670
18905
20615
22040
17670
18905
20615
22040
11486
10020
8452
12899
11532
10101
14313
13044
11751
9918
15726
14557
13400
11681
16433
15313
14224
12563
17140
16069
15049
13444
17670
17582
16698
15208
17670
18905
18347
16971
17670
18905
19997
18734
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.45
0.89
0.77
0.65
0.53
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.93
0.81
0.69
1.00
1.00
0.89
0.77
1.00
1.00
0.97
0.85
6.52
6.70
6.84
6.52
6.70
6.84
6.52
6.70
6.84
7.06
6.52
6.70
6.84
7.06
6.52
6.70
6.84
7.06
6.52
6.70
6.84
7.06
6.52
6.70
6.84
7.06
6.52
6.70
6.84
7.06
6.52
6.70
6.84
7.06
Indoor
intake air
DB˚C
Indoor
intake air
WB˚C
30
NOTE: CA : Capacity (W) SHC : Sensible heat capacity (W)
P. C. : Power consumption (kW) SHF
: Sensible heat factor
- 13 -

COOLING CAPACITY (2)
PEH-RP200MYA/PUHZ-RP200YHA (Indoor unit Airflow rate 60m3/min)
Outdoor intake air DB˚C
4035
CA
SHC(W) SHF P.C. CA SHC(W) SHF P.C. CA SHC(W) SHF P.C.
16910
18240
19760
16910
18240
19760
16910
18240
19760
21280
16910
18240
19760
21280
16910
18240
19760
21280
16910
18240
19760
21280
16910
18240
19760
21280
16910
18240
19760
21280
16910
18240
19760
21280
10992
9667
8102
12344
11126
9682
13697
12586
11263
9576
15050
14045
12844
11278
15726
14774
13634
12130
16403
15504
14425
12981
16910
16963
16006
14683
16910
18240
17586
16386
16910
18240
19167
18088
20
22
24
26
27
28
30
32
34
16
18
20
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.45
0.89
0.77
0.65
0.53
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.93
0.81
0.69
1.00
1.00
0.89
0.77
1.00
1.00
0.97
0.85
6.99
7.17
7.35
6.99
7.17
7.35
6.99
7.17
7.35
7.50
6.99
7.17
7.35
7.50
6.99
7.17
7.35
7.50
6.99
7.17
7.35
7.50
6.99
7.17
7.35
7.50
6.99
7.17
7.35
7.50
6.99
7.17
7.35
7.50
16150
17670
19000
16150
17670
19000
16150
17670
19000
20520
16150
17670
19000
20520
16150
17670
19000
20520
16150
17670
19000
20520
16150
17670
19000
20520
16150
17670
19000
20520
16150
17670
19000
20520
10498
9365
7790
11790
10779
9310
13082
12192
10830
9234
14374
13606
12350
10876
15020
14313
13110
11696
15666
15020
13870
12517
16150
16433
15390
14159
16150
17670
16910
15800
16150
17670
18430
17442
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.45
0.89
0.77
0.65
0.53
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.93
0.81
0.69
1.00
1.00
0.89
0.77
1.00
1.00
0.97
0.85
7.50
7.72
7.86
7.50
7.72
7.86
7.50
7.72
7.86
8.08
7.50
7.72
7.86
8.08
7.50
7.72
7.86
8.08
7.50
7.72
7.86
8.08
7.50
7.72
7.86
8.08
7.50
7.72
7.86
8.08
7.50
7.72
7.86
8.08
15390
16530
17860
15390
16530
17860
15390
16530
17860
19380
15390
16530
17860
19380
15390
16530
17860
19380
15390
16530
17860
19380
15390
16530
17860
19380
15390
16530
17860
19380
15390
16530
17860
19380
10004
8761
7323
11235
10083
8751
12466
11406
10180
8721
13697
12728
11609
10271
14313
13389
12323
11047
14928
14051
13038
11822
15390
15373
14467
13372
15390
16530
15895
14923
15390
16530
17324
16473
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.45
0.89
0.77
0.65
0.53
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.93
0.81
0.69
1.00
1.00
0.89
0.77
1.00
1.00
0.97
0.85
8.12
8.30
8.44
8.12
8.30
8.44
8.12
8.30
8.44
8.59
8.12
8.30
8.44
8.59
8.12
8.30
8.44
8.59
8.12
8.30
8.44
8.59
8.12
8.30
8.44
8.59
8.12
8.30
8.44
8.59
8.12
8.30
8.44
8.59
Indoor
intake air
DB˚C
Indoor
intake air
WB˚C
45
NOTE: CA : Capacity (W) SHC : Sensible heat capacity (W)
P. C. : Power consumption (kW) SHF
: Sensible heat factor
- 14 -

- 15 -
COOLING CAPACITY (3)
PEH-RP250MYA/PUHZ-RP250YHA (Indoor unit Airflow rate 80m3/min)
NOTE: CA : Capacity (W) SHC : Sensible heat capacity (W)
P. C. : Power consumption (kW) SHF
: Sensible heat factor
Outdoor intake air DB˚C
2520
CA
SHC(W) SHF P.C. CA SHC(W) SHF P.C. CA SHC(W) SHF P.C.
21780
23320
25080
21780
23320
25080
21780
23320
25080
26730
21780
23320
25080
26730
21780
23320
25080
26730
21780
23320
25080
26730
21780
23320
25080
26730
21780
23320
25080
26730
21780
23320
25080
26730
15682
13992
12038
17424
15858
14045
19166
17723
16051
13900
20909
19589
18058
16038
21780
20522
19061
17107
21780
21454
20064
18176
21780
23320
22070
20315
21780
23320
24077
22453
21780
23320
25080
24592
20
22
24
26
27
28
30
32
34
16
18
20
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
0.72
0.60
0.48
0.80
0.68
0.56
0.88
0.76
0.64
0.52
0.96
0.84
0.72
0.60
1.00
0.88
0.76
0.64
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
1.00
1.00
0.96
0.84
1.00
1.00
1.00
0.92
6.74
6.87
7.08
6.74
6.87
7.08
6.74
6.87
7.08
7.25
6.74
6.87
7.08
7.25
6.74
6.87
7.08
7.25
6.74
6.87
7.08
7.25
6.74
6.87
7.08
7.25
6.74
6.87
7.08
7.25
6.74
6.87
7.08
7.25
21120
22660
24530
21120
22660
24530
21120
22660
24530
26180
21120
22660
24530
26180
21120
22660
24530
26180
21120
22660
24530
26180
21120
22660
24530
26180
21120
22660
24530
26180
21120
22660
24530
26180
15206
13596
11774
16896
15409
13737
18586
17222
15699
13614
20275
19034
17662
15708
21120
19941
18643
16755
21120
20847
19624
17802
21120
22660
21586
19897
21120
22660
23549
21991
21120
22660
24530
24086
0.72
0.60
0.48
0.80
0.68
0.56
0.88
0.76
0.64
0.52
0.96
0.84
0.72
0.60
1.00
0.88
0.76
0.64
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
1.00
1.00
0.96
0.84
1.00
1.00
1.00
0.92
7.12
7.25
7.42
7.12
7.25
7.42
7.12
7.25
7.42
7.67
7.12
7.25
7.42
7.67
7.12
7.25
7.42
7.67
7.12
7.25
7.42
7.67
7.12
7.25
7.42
7.67
7.12
7.25
7.42
7.67
7.12
7.25
7.42
7.67
20460
21890
23870
20460
21890
23870
20460
21890
23870
25520
20460
21890
23870
25520
20460
21890
23870
25520
20460
21890
23870
25520
20460
21890
23870
25520
20460
21890
23870
25520
20460
21890
23870
25520
14731
13134
11458
16368
14885
13367
18005
16636
15277
13270
19642
18388
17186
15312
20460
19263
18141
16333
20460
20139
19096
17354
20460
21890
21006
19395
20460
21890
22915
21437
20460
21890
23870
23478
0.72
0.60
0.48
0.80
0.68
0.56
0.88
0.76
0.64
0.52
0.96
0.84
0.72
0.60
1.00
0.88
0.76
0.64
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
1.00
1.00
0.96
0.84
1.00
1.00
1.00
0.92
7.54
7.76
7.92
7.54
7.76
7.92
7.54
7.76
7.92
8.18
7.54
7.76
7.92
8.18
7.54
7.76
7.92
8.18
7.54
7.76
7.92
8.18
7.54
7.76
7.92
8.18
7.54
7.76
7.92
8.18
7.54
7.76
7.92
8.18
Indoor
intake air
DB˚C
Indoor
intake air
WB˚C
30

COOLING CAPACITY (4)
PEH-RP250MYA/PUHZ-RP250YHA (Indoor unit Airflow rate 80m3/min)
Outdoor intake air DB˚C
4035
CA
SHC(W) SHF P.C. CA SHC(W) SHF P.C. CA SHC(W) SHF P.C.
19580
21120
22880
19580
21120
22880
19580
21120
22880
24640
19580
21120
22880
24640
19580
21120
22880
24640
19580
21120
22880
24640
19580
21120
22880
24640
19580
21120
22880
24640
19580
21120
22880
24640
14098
12672
10982
15664
14362
12813
17230
16051
14643
12813
18797
17741
16474
14784
19580
18586
17389
15770
19580
19430
18304
16755
19580
21120
20134
18726
19580
21120
21965
20698
19580
21120
22880
22669
20
22
24
26
27
28
30
32
34
16
18
20
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
0.72
0.60
0.48
0.80
0.68
0.56
0.88
0.76
0.64
0.52
0.96
0.84
0.72
0.60
1.00
0.88
0.76
0.64
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
1.00
1.00
0.96
0.84
1.00
1.00
1.00
0.92
8.09
8.30
8.51
8.09
8.30
8.51
8.09
8.30
8.51
8.68
8.09
8.30
8.51
8.68
8.09
8.30
8.51
8.68
8.09
8.30
8.51
8.68
8.09
8.30
8.51
8.68
8.09
8.30
8.51
8.68
8.09
8.30
8.51
8.68
18700
20460
22000
18700
20460
22000
18700
20460
22000
23760
18700
20460
22000
23760
18700
20460
22000
23760
18700
20460
22000
23760
18700
20460
22000
23760
18700
20460
22000
23760
18700
20460
22000
23760
13464
12276
10560
14960
13913
12320
16456
15550
14080
12355
17952
17186
15840
14256
18700
18005
16720
15206
18700
18823
17600
16157
18700
20460
19360
18058
18700
20460
21120
19958
18700
20460
22000
21859
0.72
0.60
0.48
0.80
0.68
0.56
0.88
0.76
0.64
0.52
0.96
0.84
0.72
0.60
1.00
0.88
0.76
0.64
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
1.00
1.00
0.96
0.84
1.00
1.00
1.00
0.92
8.68
8.94
9.10
8.68
8.94
9.10
8.68
8.94
9.10
9.36
8.68
8.94
9.10
9.36
8.68
8.94
9.10
9.36
8.68
8.94
9.10
9.36
8.68
8.94
9.10
9.36
8.68
8.94
9.10
9.36
8.68
8.94
9.10
9.36
17820
19140
20680
17820
19140
20680
17820
19140
20680
22440
17820
19140
20680
22440
17820
19140
20680
22440
17820
19140
20680
22440
17820
19140
20680
22440
17820
19140
20680
22440
17820
19140
20680
22440
12830
11484
9926
14256
13015
11581
15682
14546
13235
11669
17107
16078
14890
13464
17820
16843
15717
14362
17820
17609
16544
15259
17820
19140
18198
17054
17820
19140
19853
18850
17820
19140
20680
20645
0.72
0.60
0.48
0.80
0.68
0.56
0.88
0.76
0.64
0.52
0.96
0.84
0.72
0.60
1.00
0.88
0.76
0.64
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
1.00
1.00
0.96
0.84
1.00
1.00
1.00
0.92
9.40
9.61
9.78
9.40
9.61
9.78
9.40
9.61
9.78
9.95
9.40
9.61
9.78
9.95
9.40
9.61
9.78
9.95
9.40
9.61
9.78
9.95
9.40
9.61
9.78
9.95
9.40
9.61
9.78
9.95
9.40
9.61
9.78
9.95
Indoor
intake air
DB˚C
Indoor
intake air
WB˚C
45
NOTE: CA : Capacity (W) SHC : Sensible heat capacity (W)
P. C. : Power consumption (kW) SHF
: Sensible heat factor
- 16 -

COOLING CAPACITY (5)
PEH-RP200MYA/PUH-P200MYA (Indoor unit Airflow rate 60m3/min)
COOLING CAPACITY (6)
PEH-RP250MYA/PUH-P250MYA (Indoor unit Airflow rate 80m3/min)
Outdoor
temp.
(°C)
20
25
30
35
40
43
Indoor inlet air temperature (DB/WB°C)
CA
18100
17500
16900
16200
15300
14800
SHC
13700
13400
13100
12800
12500
12400
CA
19300
18700
18100
17400
16600
16000
SHC
13500
13300
13000
12700
12400
12300
CA
20000
19500
18900
18000
17400
16900
SHC
14400
13700
13500
13100
13000
12900
CA
20800
20300
19700
19000
18200
17700
SHC
14400
14200
14000
13700
13500
13400
CA
21900
21500
20900
20200
19500
19000
SHC
14200
13900
13700
13500
13300
13200
23/16 25/18 27/19 28/20 30/22
Outdoor
temp.
(°C)
20
25
30
35
40
43
Indoor inlet air temperature (DB/WB°C)
CA
22500
21800
21000
20100
19100
18400
SHC
18100
17800
17500
17100
16800
16600
CA
24000
23300
22500
21600
20600
20000
SHC
17900
17600
17300
16800
16600
16500
CA
24900
24300
23500
22400
21600
21000
SHC
18500
18300
17900
17400
17400
17300
CA
25800
25200
24500
23600
22700
22000
SHC
19200
18900
18600
18300
18100
18000
CA
27300
26700
26000
25200
24200
23600
SHC
18800
18600
18300
18100
17900
17800
23/16 25/18 27/19 28/20 30/22
- 17 -

HEATING CAPACITY
PUHZ-RP200YHA/PUHZ-RP250YHA
Cooling capacity correction factors
Heating capacity correction factors
[4] CORRECTION FACTORS
Outdoor intake air WB˚C
-5
CA P.C. CA P.C. CA P.C.
14224
13664
13216
17145
16470
15930
4.12
4.47
4.75
4.96
5.38
5.72
PEH-RP200MYA
(Airflow Rate
60m3/min)
PEH-RP250MYA
(Airflow Rate
80m3/min)
15
20
25
15
20
25
15456
14784
14336
18630
17820
17280
4.54
4.89
5.30
5.47
5.89
6.39
17248
16352
15680
20790
19710
18900
5.24
5.65
6.14
6.31
6.81
7.40
Service Ref.
Indoor
intake air
DB˚C
0-10
Refrigerent piping length (one way)
5m 10m 15m 20m 25m 30m 35m 40m
1.00
1.00
0.985
0.985
PEH-RP200MYA
PEH-RP250MYA
0.971
0.971
0.958
0.958
0.943
0.943
0.931
0.931
0.919
0.919
0.908
0.908
Service Ref.
Refrigerent piping length (one way)
45m 50m 55m 60m
PEH-RP200MYA
PEH-RP250MYA
0.898
0.898
0.887
0.887
0.876
0.876
0.865
0.865
Service Ref. 65m 70m
0.855
0.855
0.847
0.847
75m 80m
0.838
0.838
0.829
0.829
Refrigerent piping length (one way)
5m 10m 15m 20m 25m 30m 35m 40m
1.00
1.00
0.997
0.997
PEH-RP200MYA
PEH-RP250MYA
0.994
0.994
0.991
0.991
0.988
0.988
0.985
0.985
0.982
0.982
0.979
0.979
Service Ref.
Refrigerent piping length (one way)
45m 50m 55m 60m
PEH-RP200MYA
PEH-RP250MYA
0.976
0.976
0.973
0.973
0.970
0.970
0.967
0.967
Service Ref. 65m 70m
0.964
0.964
0.961
0.961
75m 80m
0.958
0.958
0.955
0.955
Outdoor intake air WB˚C
5
CA P.C. CA P.C. CA P.C.
PEH-RP200MYA
(Airflow Rate
60m3/min)
PEH-RP250MYA
(Airflow Rate
80m3/min)
15
20
25
15
20
25
22624
21840
20608
27270
26325
24840
6.28
6.77
7.19
7.57
8.16
8.66
25536
24640
23744
30780
29700
28620
6.98
7.54
8.06
8.41
9.08
9.71
28448
27440
26432
34290
33075
31860
7.54
8.10
8.69
9.08
9.76
10.47
Service Ref.
Indoor
intake air
DB˚C
1510
NOTE: CA : Capacity (W) P.C. : Power consumption (kW)
- 18 -
