Mitsubishi Electric Diamond View DV153 User manual

DIAMOND VIEW DV153
Colour TFT LCD Monitor
15” (38.1 cm) LCD Panel Size

i
Table of Contents
1
1Important Safety Instructions .......................................... 3
2
2Features.............................................................................4
3
3Unpacking the Monitor .....................................................5
4
4Hardware Installation........................................................6
5
5Windows Software Installation ........................................8
Windows 95 ........................................................................................ 8
Windows 98 ........................................................................................ 8
Windows Millennium Edition (Windows Me)................................... 9
Windows 2000 and Windows XP...................................................... 9
6
6Setting the Display Resolution ......................................10
Choosing The Best Resolution....................................................... 10
Supported Graphics Modes and Refresh Rate Selection............ 11
7
7Adjusting the Monitor.....................................................13
Picture Optimisation........................................................................ 13
Manual Picture Adjustment............................................................. 13
8

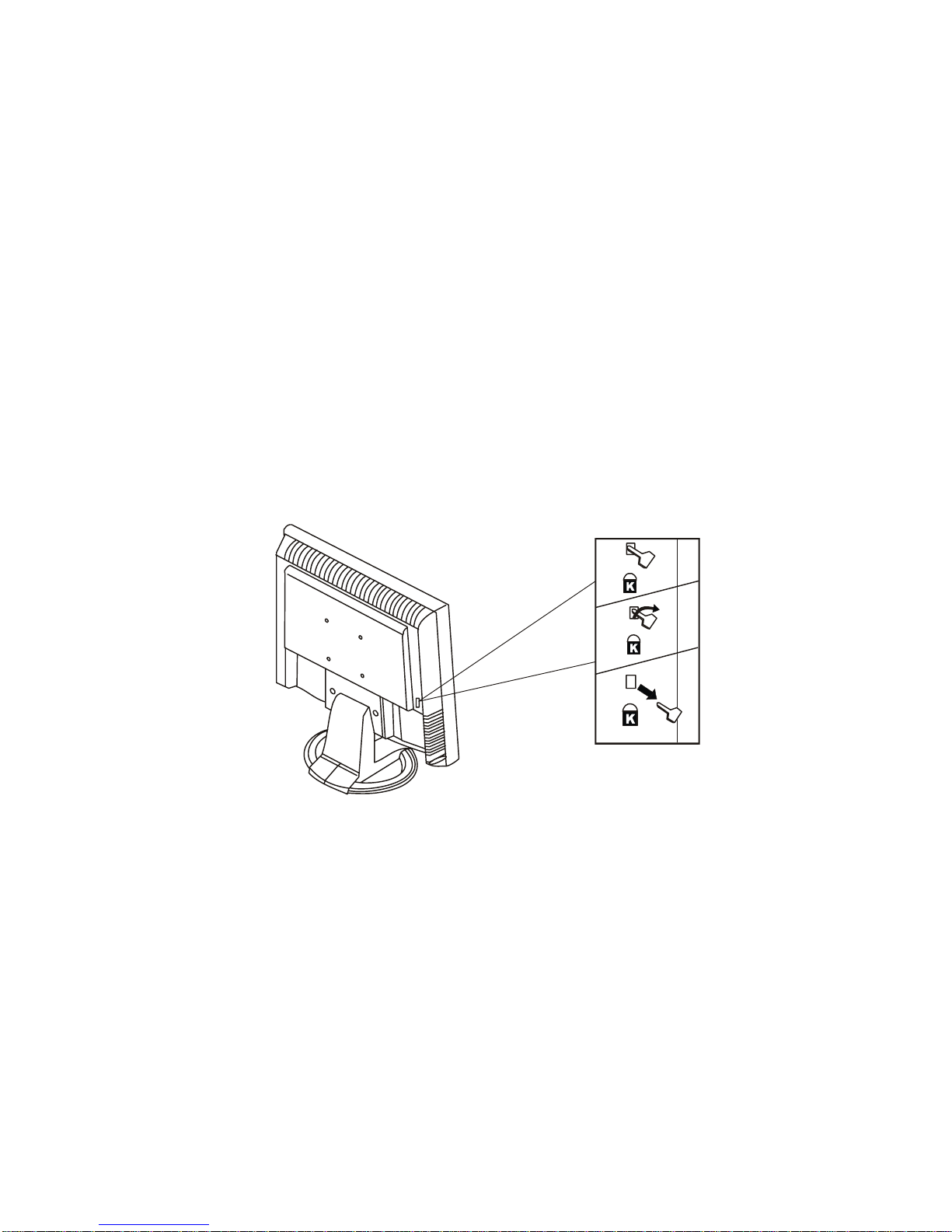

8Security Lock Installation...............................................16
9
9Frequently Asked Questions..........................................17
1
10 0Specifications..................................................................19
1
11 1Service Contacts.............................................................21
Australia............................................................................................ 21
New Zealand..................................................................................... 22

ii
Copyright Notice
Copyright 2002, Mitsubishi Electric Australia Pty. Ltd. All rights reserved. No
part of this publication may be reproduced, transmitted, transcribed, stored in
a retrieval system or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise, without the prior written permission.
Disclaimer
Mitsubishi Electric Australia Pty. Ltd. makes no representations or warranties,
either expressed or implied, with respect to the contents hereof and
specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Further, Mitsubishi Electric Australia reserves the right to
revise this publication and to make changes from time to time in the contents
hereof without obligation to notify any person of such revision or changes.
Diamond View is a registered trademark of Mitsubishi Electric Australia Pty. Ltd.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks remain the property of their respective owners.
Reference Information
For future reference, write the following information about your
monitor in the space below. The serial number is on the back of
the product or on the bottom of its stand.
Monitor Information
Product Name: Diamond View DV153
Serial Number:
Date of Purchase:
Dealer Information
Dealer:
Telephone
Number:
Address:

3
1
1 Important Safety
Instructions
Please read the following safety instructions before installing or cleaning
your Diamond View monitor:
1. Unplug the monitor’s power cable from the wall outlet before cleaning.
Do not use liquid or aerosol cleaners. Use a soft cloth to clean the
monitor’s housing and screen.
2. Slots and openings on the back or top of the cabinet are provided for
ventilation. They must not be blocked or covered. This product should
never be placed near or over a radiator or other heat source, or in a
built-in installation unless proper ventilation is provided.
3. Never push objects of any kind, or spill liquid of any kind into this
product.
4. Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltages or other risks.
5. If any abnormal operation or accident (such as dropping the unit) occurs,
disconnect the monitor from the wall power outlet and contact qualified
service personnel.
6. Turn the audio volume control of the built-in speakers to minimum (0)
and turn the monitor off before connecting or disconnecting any audio
cable.

4
2
2 Features
Your Diamond View DV153 Monitor features:
♦XGA (1024 x 768 pixel) Resolution LCD Panel
♦High Brightness – 250 cd/m2
♦High Contrast Ratio – 350:1
♦True Colour Display
With dithering support, Diamond View DV153 monitor enhances the
visual effect and offers you better image quality.
♦High Quality Ratiometric Expansion
With any resolution within the monitor’s specified range, your Diamond
View DV153 monitor can expand the image to full screen.
♦Auto Adjustment Function
The auto adjustment key automatically optimises the displayed image.
♦Plug and Play Compatibility with Microsoft®Windows®95, 98, 2000,
XP and ME
♦Space Saving - only 190 mm deep
♦Light Weight - only 3.5 kg
♦Lower Power Consumption
40 W maximum during operation with audio.
♦Power Saving
Power management complies with VESA DPMS standard. When the
system is idle (in monitor off mode), the monitor automatically cuts its
power consumption to less than 3 W.
♦On Screen Display
Allows you to adjust all settings simply using on-screen menus.
♦Built-in Stereo Amplifier and Speakers

5
3
3 Unpacking the
Monitor
Please check that the following items are included with your monitor. If they
are missing or damaged, please contact your place of purchase immediately.
♦LCD monitor with attached signal cable
♦Power cord
♦User’s manual
♦Audio Cable
♦Utilities and Driver Floppy Diskette
Locate the model name and the serial number label on the back of your
monitor and write the details of the monitor and your place of purchase in the
space on page (ii) of this manual for future reference.

6
4
4 Hardware Installation
Your monitor is equipped with an automatic power supply with a voltage
range from 100 to 240 Volts AC at a frequency of 50 to 60 Hz. Make sure
that your local power supply is within the supported range. If you are unsure,
please contact your electricity supplier.
To install your Diamond View DV153 monitor:
1. Make sure that the power to the computer and the power to the monitor
are both turned off.
A. Assemble the extension base.
B. Connect the power cord to the LCD monitor.
C. Connect the Audio Input of the LCD monitor.
2. Connect the blue connector of the monitor’s VGA cable to the VGA
output of the computer‘s graphics card.
3. Connect the audio cable to your computer.

4. Connect the monitor‘s power cord to an AC power socket. Please make
sure, that you have easy access to the power socket so you can
disconnect the unit from the power socket should you need to.
Signal
Audio cable
Power cord
7

8
5
5 Windows Software
Installation
To get best performance with Windows 95, 98, Millennium Edition , 2000 or
XP, you should use the Windows driver supplied with your DV153 monitor.
Windows 95
The first time you start Windows after connecting your new monitor, the
system will detect it and automatically install the driver for Plug and Play
displays. To install the Diamond View DV153 driver and colour profile:
1. Insert the Diamond View LCD Monitor Utilities floppy disk into your
floppy disk drive.
2. Right-click on the Windows desktop and select Properties or open the
Control Panel and double-click Display.
3. From the Display Properties window, select the Settings tab and then
click the Advanced Properties button at the bottom, right corner.
4. Select the Monitor tab and then click the Change button.
5. Click the Have Disk button at the bottom right corner. The Install From
Disk window will appear with the floppy drive A:\ selected. Click OK.
6. Select DV153 from the list and click OK again to install the driver.
7. You will be returned to the Advanced Graphics Properties dialogue.
Close this window by clicking OK and confirm the subsequent messages
by clicking Yes. Click OK and then Yes once more.
8. The installation is now complete, click OK to close Display Properties.
Windows 98
The first time you start Windows with a new monitor, the system will detect it
and automatically start the Add New Hardware wizard.
1. Click the Next button. Select Search for the best driver for your device
(recommended) and click Next.
2. Insert the Diamond View LCD Monitor Utilities floppy disk into your
floppy disk drive. Select the Floppy disk drive check box and click Next.

9
3. Click Next again and then click Continue. The driver and monitor colour
profile will be installed. Click Finish to complete the installation.
Windows Millennium Edition (Windows Me)
The first time you start Windows with a new monitor, the system will detect it
and automatically start the Add New Hardware wizard.
1. Insert the Diamond View LCD Monitor Utilities floppy disk into your
floppy disk drive. Select the Floppy disk drive check box and click Next.
2. Select Search for the best driver for your device (recommended), tick the
Removable Media (Floppy, CD-ROM,…) and click Next.
3. Click Next again and then Finish to complete the installation.
Windows 2000 and Windows XP
If the system will detects your DV153 monitor automatically and starts the
Add new hardware wizard, carry out these instructions beginning at step 7.
Otherwise, to install the monitor driver and ICC colour profile:
1. Click Start and then Settings and open the Control Panel.
2. Double click the Display icon.
3. From the Display Properties dialogue box, select the Settings tab.
Click the Advanced…. button at the bottom, right corner.
4. Select Monitor then click Properties.
5. Select the Driver tab and click Update Driver.
6. The Upgrade Device Driver Wizard will pop start. Click Next.
7. Insert the Diamond View LCD Monitor Utilities disk into your floppy disk
drive.
8. Select Display a list of the known drivers for this device so that I
can choose a specific driver and click Next.
9. In the next window, click Have Disk. The Install From Disk dialogue
will open. The default drive is the floppy disk drive, A:\. Click OK.
10. Select the DV153 LCD monitor from the list and then click Next twice.
11. The Digital Signature Not Found window will appear. Click Yes or
Continue anyway and then click Finish to complete the driver
installation.

10
6
6 Setting the Display
Resolution
Choosing The Best Resolution
All Liquid Crystal Displays (LCDs) have a fixed or “native” resolution that is
the manufactured resolution of the LCD. In the case of the DV153 the LCD
resolution is 1024 x 768 pixels. Some lower and higher resolutions can be
displayed at full screen through an interpolation circuit. Because the different
resolutions must be expanded or compressed, the quality of the displayed
image is not as good as that available when the native resolution is
displayed. For optimal performance from any LCD monitor, you must use the
monitor’s native resolution.
If you are using Windows 95, 98, 2000, XP, Me or NT 4.0, you can change
the resolution as follows:
1. Double-click the Display icon in the control panel.
2. From the Display Properties dialogue box, select the Settings tab.
There is a slider on the right-hand side in the middle of the dialogue that
alters the displayed resolution. Set the resolution to 1024x768.
3. For Windows NT users only: select a refresh rate of either 60 Hz or 75
Hz and click Test. A test pattern will be displayed. Make sure that there
are no error messages shown by the monitor. If an error message is
displayed, check the resolution and refresh rate settings or choose a
different refresh rate.
4. Click OK to close Display Properties.
If you are using an Apple Macintosh, you may change the resolution by:
1. Click the Apple icon at the top, left corner of the screen, select Control
Panel and then select Monitors & Sound.
2. Select a resolution of 1024 x 768 pixels with either 60 Hz or 75 Hz
refresh rate.
3. If refresh rates of 60 Hz or 75 Hz are not available, click Recommended
in the Show drop-down box and change it to All. Select the resolution
and refresh rate as above.
4. A colour depth of either Thousands or Millions is recommended.

11
Supported Graphics Modes and Refresh Rate Selection
There is no need to choose the highest possible refresh rate when using an
LCD monitor. It is not technically possible for an LCD monitor to flicker. Even
at a refresh rate of 60 Hz you will get an absolutely flicker-free image.
For best results, it is important that you set the graphics adaptor to use one
of the monitor’s preset display modes shown in Table 1 on the next page.
Other graphics signals may be displayed poorly or not at all. Note that the
DV153’s preset modes correspond to VESA or Apple Macintosh standard
graphics signals for these resolutions. All recent models of graphics adaptor
should be able to support these modes. For the native resolution of 1024 x
768 pixels, for example, refresh rates of 60, 70 and 75 Hertz are supported.
With Windows 95, 98, 2000, XP or Millennium Edition you can change the
refresh rate of the graphics signal as follows:
1. Double click the Display icon in the control panel.
2. From the Display Properties dialogue, select the Settings tab and click
the Advanced Properties button.
3. Select the Adapter tab. The refresh rate selection field is located in the
centre, at the bottom of the dialogue box.
4. Choose a refresh rate that corresponds with one of the factory modes
from the table below.
5. Click Apply, and then OK twice.
Please Note:
•Graphics modes that are not listed in the table may not be supported.
For an optimal picture it is recommended that you choose a graphics
mode with a resolution of 1024 x 768 pixels that is listed in Table 1 on
the next page. Resolutions of 640 x 480, 800 x 600, 832 x 624 and
1024 x 768 pixels are supported. Signals marked with an asterisk (*)
are not pre-adjusted in the factory. The default setting may require
some adjustment before use.
•The displayed image may show some distortion or noise that can be
caused by the signal from the VGA card if it does not correspond with
the usual standard. This is not, however, a problem with the monitor. If
it is still visible after using the Automatic adjustment, you can usually
improve the displayed image by manually adjusting the phase,
horizontal position and pixel frequency settings using the "Geometry"
menu. See Chapter 7, Adjusting the Monitor, for more details.

12
•When you shut Windows down you may see interference lines on your
screen. This caused by the manner in which Windows controls the
graphics card at this point and is normal with all LCD monitors.
•To extend the service life of the product, we recommend that you use
your computer's power management functions to turn the monitor off
after extended idle periods.
Input Signal
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel
Frequency
(MHz)
Comment
Actual
Display
Resolution
640x350* 31.47(P) 70.08(N) 25.17 DOS 1024 x 675
640x480 31.47(N) 60.00(N) 25.18 DOS
640x480 35.00(N) 67.00(N) 30.24 Macintosh
640x480 37.50(N) 75.00(N) 31.50 VESA
640x480* 37.86(N) 72.80(N) 31.50 VESA
720x400 31.47(N) 70.08(P) 28.32 DOS
800x600* 35.16(P) 56.25(P) 36.00 VESA
800x600* 37.88(P) 60.32(P) 40.00 VESA
800x600* 48.08(P) 72.19(P) 50.00 VESA
800x600 46.87(P) 75.00(P) 49.50 VESA
832x624 49.72(N) 74.55(N) 57.29 M acintosh
1024x768 48.36(N) 60.00(N) 65.00 VESA
1024x768 56.48(N) 70.10(N) 75.00 VESA
1024x768 60.02(P) 75.00(P) 78.75 VESA
1024x768 60.24(N) 74.93(N) 80.00 Macintosh
Full image
1024 x 768

13
7
7 Adjusting the Monitor
Picture Optimisation
The easiest way to obtain an optimal picture is by using the AUTO button.
This only works reliably if the graphics adaptor is set to use one of the
monitor’s factory modes (see Table 1 in the previous chapter) and if you are
displaying an appropriate full-screen test pattern.
Windows users should run the adjustment software (Auto.exe) from the
Utilities floppy disk to display the correct test pattern. Press the Auto button
once the test pattern is displayed. You can quit Auto.exe once the procedure
is complete by clicking the left mouse button once and selecting Exit.
Test patterns in TIFF and JPEG file formats are also available from the File
Downloads section of Mitsubishi Electric Australia’s web site at
www.mitsubishi-electric.com.au. Follow the link to the TFT LCD monitors
page and download a pattern with the resolution that you need. Display the
test pattern at its actual size (100% zoom), preferably at full screen and then
press the monitor’s Auto button.
If you are still not satisfied with the result, you can enhance the image by
using the monitor’s manual adjustment functions.
Manual Picture Adjustment
Adjustments to the displayed image and audio volume are made using the
On-Screen Display (OSD) navigated using the buttons on the front of the
monitor. The user’s controls include Power, AUTO, Exit and Enter. The <
and > buttons are used to move the menu cursor and to change the values
of image parameters. The Enter and Exit buttons are used to select Menu
items and exit from menu areas.

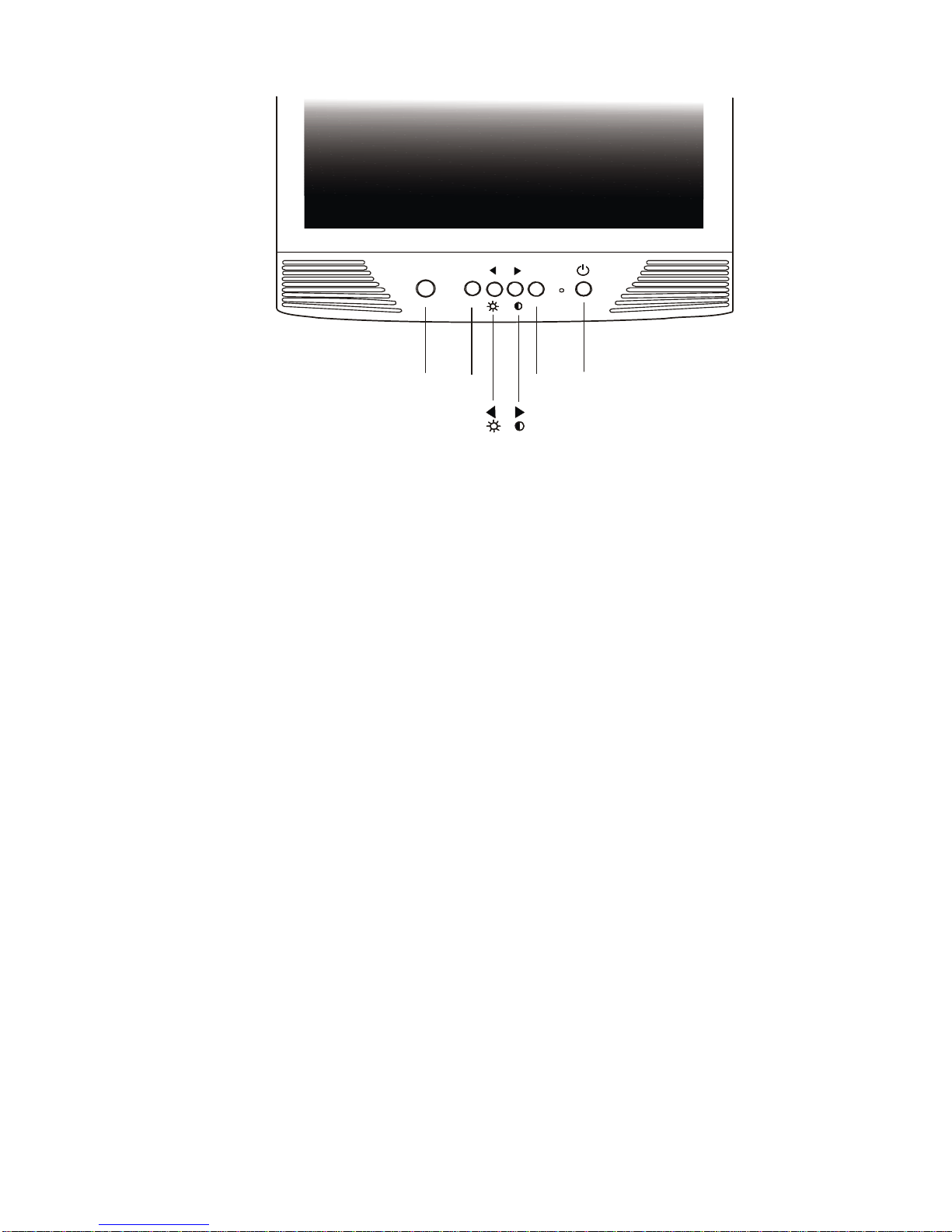

Auto Exit Enter
Auto Exit Enter Power
Power: Turn the monitor on or off.
AUTO: Automatically adjusts the vertical position, pixel phase,
horizontal position and pixel clock.
Exit: Return to the main menu or exit the OSD menu without
saving. Press the exit key when the OSD is not displayed to
adjust the audio volume.
Enter: Enter sub-menus, select items, save changes.
<>: Turn this to select a menu item or make an adjustment
when using the OSD. Also acts as a hot key for Brightness
and Contrast adjustment.
To manually adjust the image:
1. Display the adjustment test pattern. This is the best way to observe
changes as you adjust the image. Windows users should run the
Auto.exe test pattern program. For non-Windows operating systems, you
also can use the test pattern described in the previous section or
another full-screen image, such the desktop of the operating system.
2. Open the OSD menu by pressing the Enter button on the monitor.
3. Use < or > to select the Geometry submenu and then press Enter.
4. Five patterns will be shown at the top of the OSD window. Use < or > to
select Clock and then press Enter.
14

15
5. Check the current setting. Use < or > to tune the sampling clock to get
the optimum picture. Look at the centre section of the test pattern that
has alternating black and white vertical lines that are each 1 pixel wide.
There should be no vertical noise bands visible within the image. The
centre section will clearly show the alternating black and white lines or a
uniform level of noise will appear across the image. Close the clock
submenu by pressing Exit.
6. Press < or > to select Horizontal Position and press Enter.
7. Adjust the horizontal position so that the image is centered. Its width
should be the same as the visible width of the screen. Press Exit.
8. If some noise or distortion is still visible in the centre section of the test
pattern, press < or > to select Phase and press Enter.
9. Adjust the monitor’s phase to optimise the displayed image. The
alternating black and white lines on the test pattern should be clearly
visible. Press Exit.
10. Press Exit twice to close the OSD. Select Yes using the < > buttons and
press Enter when the Yes indicator turns blue.
If you are still not satisfied with the result, try repeating the procedure using a
graphics signal that has a different refresh rate.
Notes:
You must use one of the factory modes. If the AUTO button is not working,
or the NON PRESET MODE message is shown on the OSD you are not
using one of the supported modes. If you are having difficulties generating a
supported mode, ask your computer dealer or the distributor or manufacturer
of your graphics card for assistance.
The procedures described in this chapter should be performed for every
resolution and type of graphics signal that you wish to use. For example, if a
particular application requires a resolution of 800 x 600 pixels, but all other
applications use the monitor’s native resolution, you will need to display the
test pattern and make adjustments twice.
The monitor will remember your settings and use them whenever you turn
the monitor on. Note that you may need to readjust the monitor if it is
connected to a different computer or if the computer’s graphics adaptor is
replaced.

16
8
8 Security Lock
Installation
The Diamond View DV153 can be secured to your desk or any other fixed
object with a Kensington lock security product. The Kensington lock’s cable
can be attached to a slot located at the rear of the monitor.
1. Insert the lock in the slot located on the rear of the monitor.
2. Turn the key to lock the Security Lock.
3. Remove the key and store it in a safe place.
Note: Kensington locks are not available from Mitsubishi Electric Australia.
Please contact your reseller for more information.

17
9
9 Frequently Asked
Questions
The image is blurred, how can I get the best quality picture?
♦Read chapter 6, Setting the Display Resolution, and select a graphics
signal with the correct resolution and refresh rate. Then read chapter 7,
Adjusting the Monitor, and make adjustments to the displayed image
based on these instructions.
♦Have you used a VGA extension cable?
If so, remove the extension cable and check the displayed image. Is the
image quality improved? Optimise the image using the procedures in
chapter 7 with the extension cable removed. Reconnect the extension
cable once the image has been optimised. Depending on the
characteristics and type of the extension cable, some blurring or
distortion may occur due to conduction losses of the extension cable. You
can minimise these losses by using an extension cable with better
conduction quality or with a built-in booster.
♦Does the blurring only occur at resolutions lower than the native
(maximum) resolution?
Please read chapter 6, Setting the Display Resolution. Select a graphics
signal that uses the monitor’s the native resolution (1024 x 768 pixels).
Why does the image look yellow, blue or pink instead of showing the
correct colours?
♦The most common cause of this problem is a loose VGA signal cable or
connector. Check that the cable is securely connected to the computer.
♦Check the VGA signal cable for damage. If any pins are bent or broken
off, contact your dealer or an authorised Mitsubishi Electric service agent
(see Chapter 11 for details).
♦Check the monitor’s colour settings. Press the Enter button and use the
arrows then Enter again to select the Color Settings menu. Select the
Recall menu item and press Enter.

18
No image is displayed, what can I do?
♦Check that the light (LED) next to the monitor’s power button is lit and is
green in colour. If the LED is green, press the Exit button on the monitor
to access the On Screen Display. If the message NON PRESET MODE
appears there, please read chapter 6, Setting the Display Resolution and
reset the graphics card to one of the monitor’s supported graphics signals.
♦If the LED is orange the monitor is in power saving mode. Press a button
on the computer keyboard or move the mouse to wake the computer. If
that does not help, check that the VGA cable is securely plugged into the
computer. Also check the pins of the VGA cable’s connector. If any pins
are bent or broken off, then contact your dealer (see Chapter 11 for
details).
♦If the LED is not lit at all, check that the monitor is plugged into the power
supply mains socket and that the power switch is turned on. Check that
the monitor’s power switch is also turned on.
The image is or distorted, flashes or flickers:
♦Check that the monitor’s signal cable is securely connected to the
computer.
♦Read the chapters 6 and 7 of this manual, then select the correct
resolution, refresh rate and make adjustments based on these
instructions.
The image is displaced in one direction:
♦Use the Hor. Position (horizontal position) adjustment in the Geometry
menu of the monitor’s OSD to reposition the image.
♦Read the chapters 6 and 7 and then select the correct resolution, refresh
rate and make adjustments based on these instructions.
