1. Product Introduction
The 4-channel Video Server supports the network service for up to four existing analog
cameras. An analog image entered can be monitored on a real-time screen regardless of
distances and locations. By using its dedicated program, many users are able to have an
access to the Video Server at once or a single user can monitor various Video Servers at the
same time. It also enables users to play, store and retrieve a monitoring image by using a PC.
All the settings and real-time monitoring screens are also provided through an access to the
web.
1.1 Components
1.2 VIDEO SERVER’S External View and Port Description
1.2.1 Front View

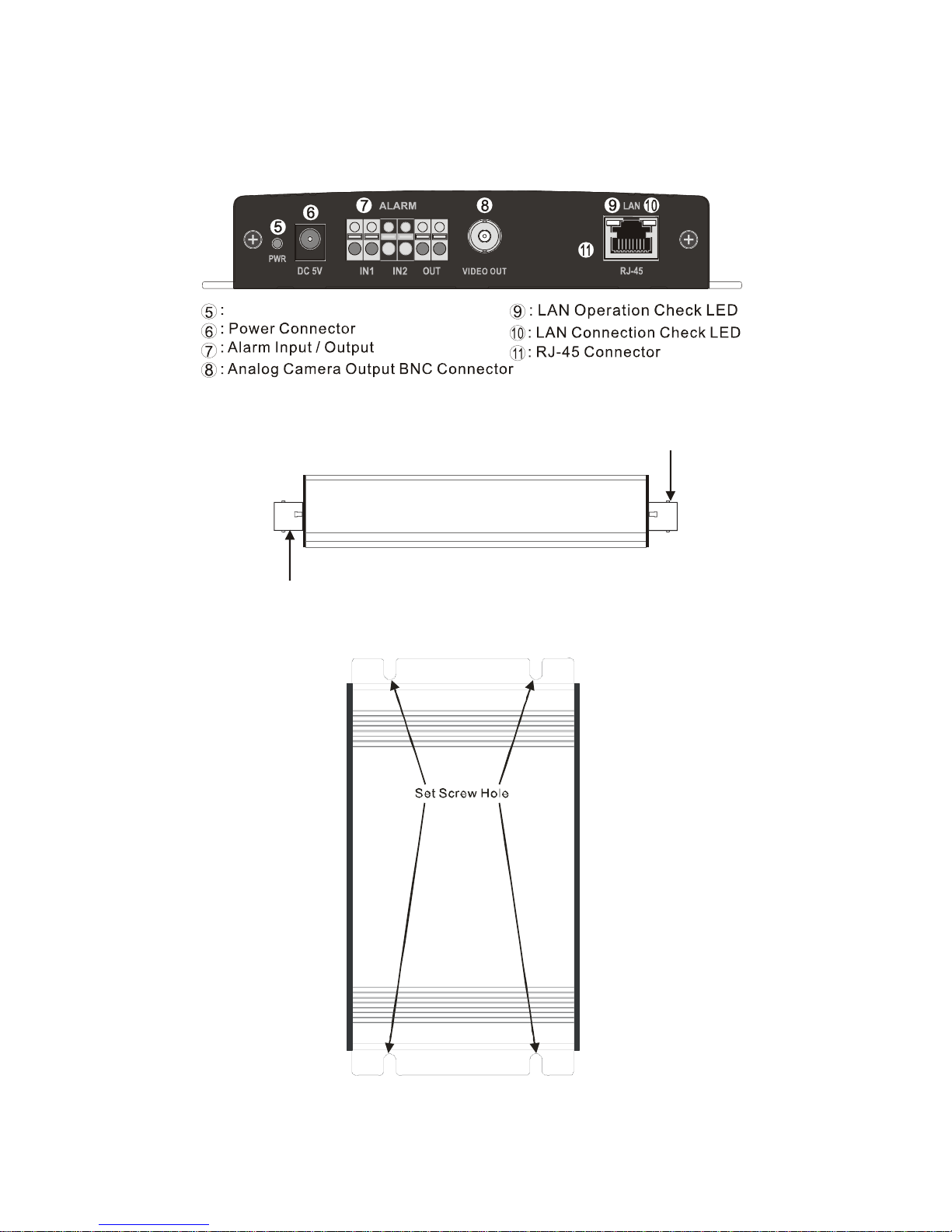

- 2 -
A
nalog Camera Input BNC Connector
Analog Camera Output BNC Connector
1.2.2 Back View
1.2.3 Side View
1.2.4 Top View
Power Indicator

- 3 -
2. VIDEO SERVER Installation
2.1 Installation Order
For the operation of the Video Server, it is necessary to connect a network cable to power,
and connect a general analog camera. Depending on operation methods, it is possible to
connect an alarm cable or audio cable additionally. For its fixation on different locations,
please consult with an installer.
2.2 Network Connection
The Video Server supports the operation through the network. Therefore, it is necessary to
connect a standard RJ-45 cable to it. Generally a cross cable is used for directly connection
to PC, while a direct cable is used for connection to a hub.
2.2.1 VIDEO SERVER IP Assignment
Video server that is first connected to network basically has no IP address. So, it is
necessary to allocate the IP address of video server with an IP allocation program.
Open the program folder installed with the provided CD and execute “IP Setting Utility”.
1. MAC Address
- Enter MAC address of the product
for IP input.
2. IP Address
- Enter IP address to use.
3. Ethernet Adapter
- In case there are several network
cards, select a card to use for the
operation of video server.
4. Start
- Allocate input IP to the video
server to use. When a completion
message appears on ○
5Status
window in several seconds or
minutes, input completes its
process. You can add additional
IPs to other devices continuously.

- 4 -
2.3 Analog Camera Connection
Connect the analog camera to the video input of the Video Server. Connect a general
camera of PAL/NTSC type. Users can enter up to four analog cameras and check input
image on a display device. For more information on analog camera installation and BNC
input display, consult with an installer.
2.4 Analog Monitor Connection
Connect an analog monitor to the image output terminal of video server. For more detailed
information about the installation of analog monitor which can accept BNC input, please ask
an installation provider.
2.5 Audio Connection
The Video Server enable voice transceiving through the audio input/output module
interworked. Use it after connecting the port to the microphone and speaker, which have an
amplifier function.
External Micrphone External Speaker

- 5 -
2.6 Alarm Connection
Users can control the alarm systems like a siren, an alarm and a warning light through two
alarm inputs. For technical support necessary to use the alarm function, please contact the
installer.
2.7 RS-485 Connection
The four RS-485 terminals are provided to control the four RTZ cameras.
2.8 Power Connection
The Video Server requires a stable power supply for normal operation. It uses an adapter of
the DC 5V / 4A specifications. It is recommended to use with an uninterruptible power
supply (UPS).
2.9 VIDEO SERVER Fixation
For the general installation of the Video Server, users can fix the Video Server to the wall or
control box with the screw holes on the both sides of the main frame by using the screws
included in the product.
Besides this installation method, there are various ones which slightly differ depending on
locations and operation methods. So, please consult with an installer.

- 6 -
3. Operation by Web Browser
3.1 Connecting the VIDEO SERVER by Web Browser
●Execute the Web Browser on the PC.
●Enter the Video Server address on the address window of the Web Brower and execute it.
Ex)http://192.168.0.2/
(If the Video Server has no IP address or its IP address is wrong, users will fail to connect
the Video Server. In this case, users will have to connect the Video Server by the Web
Browser after entering the IP address with the IP Setting Utility.)
●Refer to ‘2.2.1 Video Server IP Assignment’ section for detailed information.
●If a security window for the ActiveX Controller installation appears, press the Confirm and
install it.
●If it is not connected in the Internet, from the CD-ROM install the ActiveX Controller by
manual operation.
3.2 Real-Time Monitoring
Supports 4 individual channel and Quad screen, and an automatic conversion screen,
along with 4 types of screen size each. Gives support to 4 types of screen size covering D1,
VGA, CIF, and QCIF, among which users can select and monitor the most reasonable size.
Please, adjust the mode in accordance with your PC specifications and monitoring
purposes.

- 7 -
If you move a screen mode to “Quad”, you can watch the 4 input cameras on a single
screen. When you set a screen mode to “Sequence”, a total of 5 screens including 4
respective channel and Quad screen present their automatic conversion as the designated
settings by users. For more concrete setting method, please see “3.3.2 Live View Setting –
Sequence Mode”.
In case of real-time monitoring with the Web Browser, one Video Server will be connected
to just one Web Browser. However, this case is not suitable for monitoring various screens
at the same time. If users are to monitor various images at the same time, please contact
your dealer.

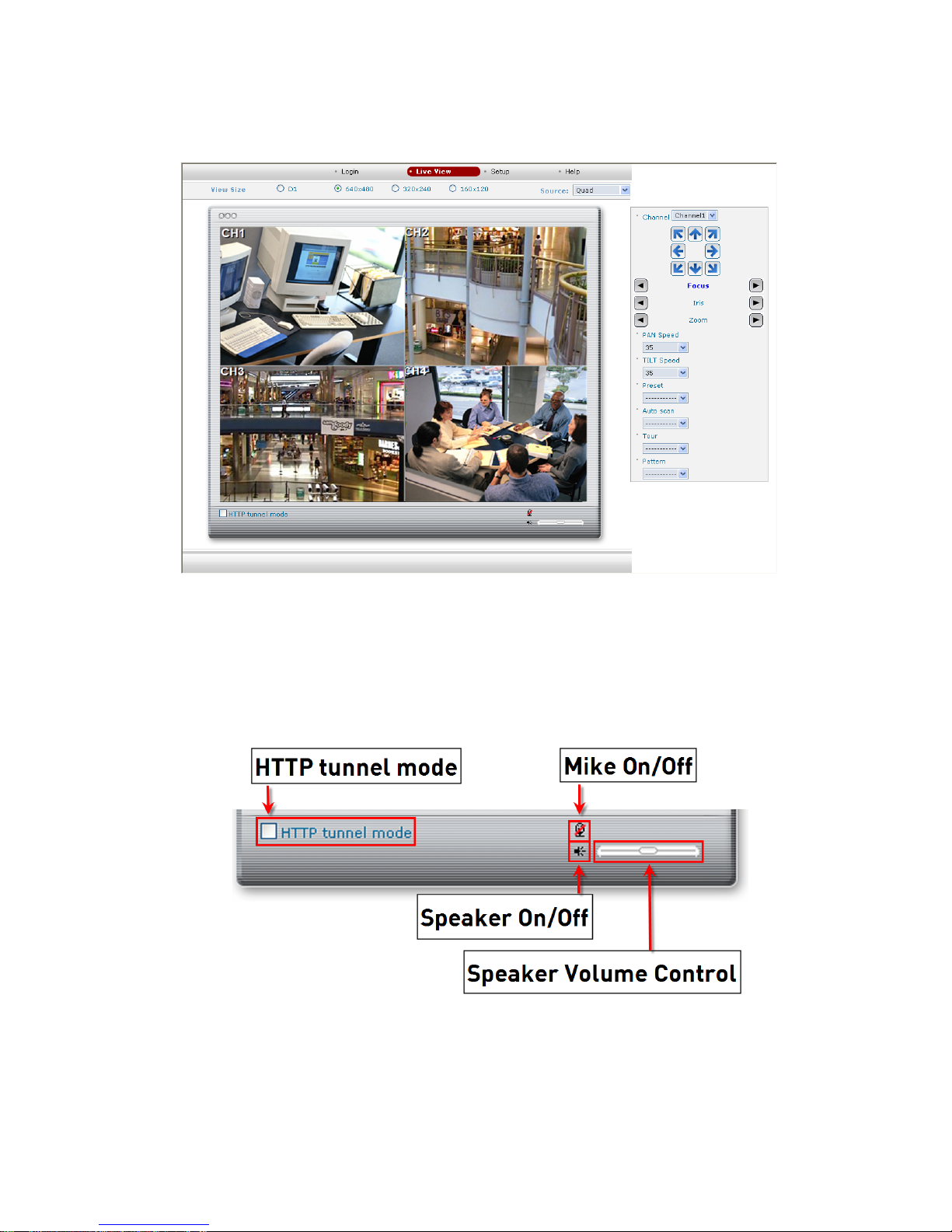

□HTTP tunnel mode
When the screen is not indicated, check. (Notice: "unicast mode" only it is applied.)
If users are to control the volume of a microphone and speaker connected to a user PC,
they should adjust the user PC volume regardless of the microphone and speaker volume
control set in Video Servers.

- 8 -
3.3 VIDEO SERVER Setting
Video Server setting is divided into video, audio, alarm, and system settings. And the
detailed screen will be provided for each setting.
3.3.1 Video Setting
For image settings, there is 4 division: Channel1, Channel2, Channel3, Channel4, Quad,
and Sequence. Each channel menu contains an image for real-time monitoring and a
menu on network transport, and with this setting alone all the necessary settings for
watching monitoring screens can be completed.
zChannel Setting
Setting method from Channel1 to Channel 4 is the same.
Image Appearance
Resolution
It enables users to determine a basic screen size when having an access through the
Web Browser or PC program.
The screen size control comes in four modes like D1, VGA, CIF, and QCIF. Users can
reset the selected screen size anytime while monitoring the screen on a real-time basis.
Compression
When it is necessary to adjust a smooth transmission status according to network
situations, users can increase the compressibility to carry out the network transmission
stably. On the other hand, when it is necessary to maintain a detailed monitoring
screen by enhancing the image quality, users can do so by decreasing the
compressibility. In ease case, please adjust this function according to the network
status and monitoring purposes. The basic value is 2000(Kbps).

- 9 -
Image filter
The image filter control enables users to reinforce the image quality in a strong or weak
way. The basic value is "disabled.”
BCSH Adjust
Brightness
The screen brightness can be adjusted from 0 to 255 stages, and the basic value is
128. The brightness may differ depending on the equipment and PC monitor status.
Contrast
The screen contrast can be adjusted from 0 to 255 stages, and the basic value is 128.
The contrast may differ depending on the equipment and PC monitor status.
Saturation
The screen saturation can be adjusted from 0 to 255 stages, and the basic value is 128.
The saturation may differ depending on the equipment and PC monitor status.
Hue
The screen hue can be adjusted from 0 to 255 stages, and the basic value is 128. The
hue may differ depending on the equipment and PC monitor status.
Text Overlay Settings
Cast a reflection of characters for camera separation on a monitoring screen.
Enable: Check for the use of Text Overlay function.
Content: Enter characters for Text Overlay.
Location: Appoint a location for character reflection.
MPEG4 Video Stream
Frame rate
Upon the real-time play, users should select a frame refresh rate per second. If the rate
is high, the image will become smooth. On the other hand, if the rate is low, the image
will not be natural but it can reduce a network load.
Bit-rate control
-Variable bit rate (VBR): It refers to the type of using a variable bit rate (VBR). Increase
a bit rate for the image with much motion, and decrease a bit rate for the image with
little motion. The basic setting value is a VBR type.
-Constant bit rate (CBR): Using a constant bit rate (CBR) may guarantee a stable play.
However, if a large amount of data is not required, it may cause the waste of a
transmission rate. If a large amount of data is required, it may cause the image quality
to be decreased.
Profile
SP (Simple Profile) is available up to the CIF resolution and 384kbit/s.
ASP (Advanced Simple Profile) is available up to the 4CIF resolution and 8000kbit/s.
GOV size
Enter the GOV (group of VOP) size. If users want to have a high quality of fast image
one by one, please decrease the value. For the purpose of general monitoring, please
do not change a basic value. Such act may cause a problem to the system
performance. For the details of GOV setting, please contact the service center.

- 10 -

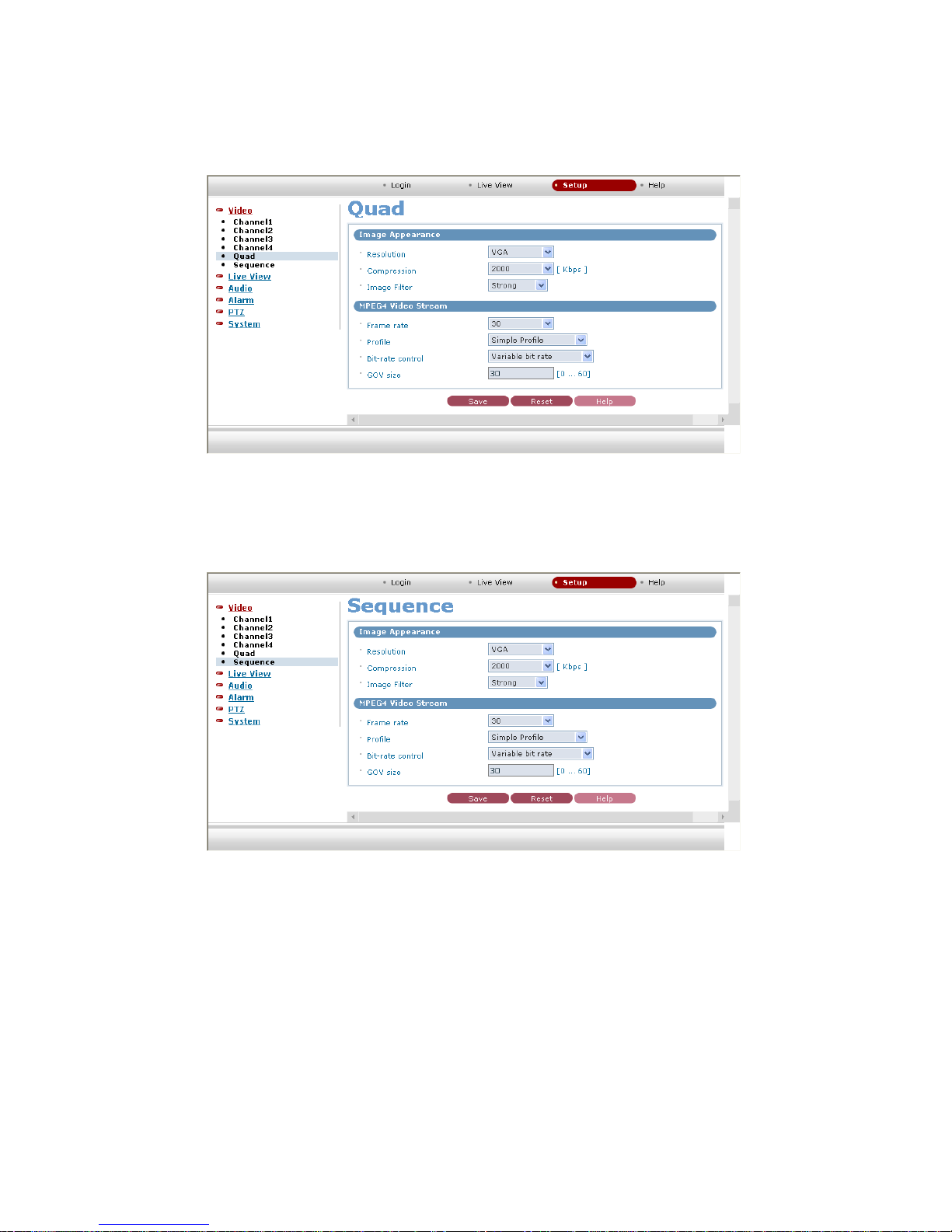

zQuad Setting
It is an image setting for Quad Mode which allows 4 input images to be seen on a single
screen. Setting methods for Image Appearance and MPEG4 Video Stream takes the
same process as the image settings of each channel.
zSequence Setting
It is an image setting for Sequence Mode which shows 4 input images with an automatic
sequential switching. The setting method for Image Appearance and MPEG4 Video
Stream is the same as the image setting of each channel.

- 11 -
3.3.2 Live View Setting

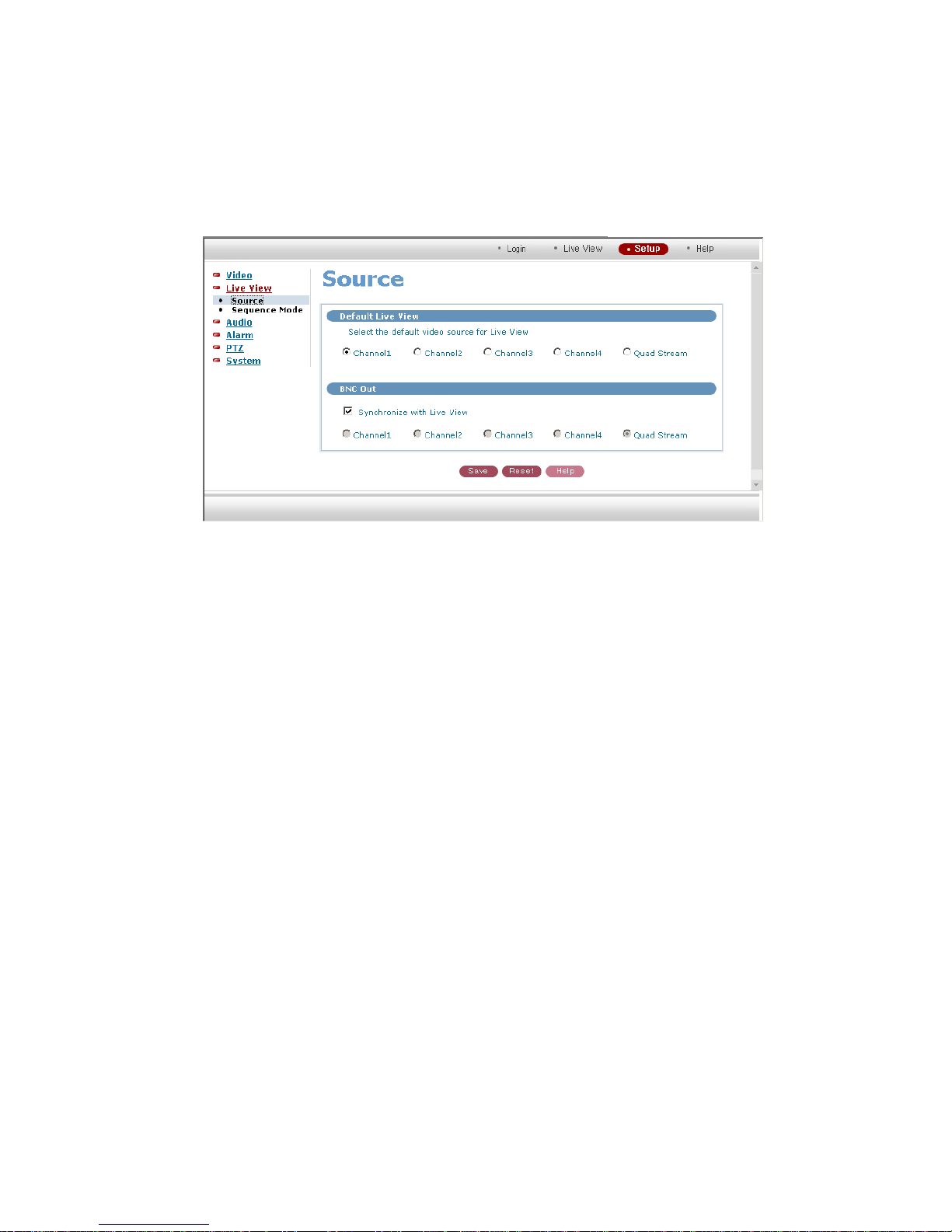

zSource Setting
Set the channel by web browser-based connection and the allocated channel to BNC Out.
Default Live View
Set the channel by web browser-based connection. You can select one among the 4:
Channel1, Channel2, Channel3, Channel4, and Quad Stream. The chosen screen is
seen on the control screen as a basic one. Screen modification is possible even
during the control operation.
BNC Out
One screen out of the 4 input images and Quad Stream can be allocated by BNC
Out. The allocated screen can be seen through general CRT monitor.

- 12 -
zSequence Setting
Automatic screen switching setting can be seen with the control screen and BNC Out,
and either watching one of the two or the two at a time is possible. You can select,
among the 4 channels and Quad screen, the screen that will be included in switching list,
for each of which you can set delay time separately.
Sequence Mode Setting
Enable
Allow checking at time of an automatic screen switching function in operation.
Use sequence mode in Live View
Make it possible to see the automatic screen switching on the control screen.
Use sequence mode in BNC
Allow the automatic screen switching to be seen on BNS Out screen.
Use sequence mode in Live View and BNC Out
Allow the automatic screen switching to be seen on the control screen and BNS
Out screen.
Channel1~4, Quad Stream
Each of the 4 channels and Quad screen can be selected to be included on the
switching list to set up the delay time.

- 13 -
3.3.3 Audio Setting
zBasic Setting
Users can use a microphone and speaker by using the audio function.
Audio Setting
Compression type
Users can increase a transmission rate or enhance a tone quality by selecting an
audio compression mode. The PCM 16-bit implements the best tone quality, while
the PCM 8-bit corresponds to that of radio sound.
Sample rate
If a sample rate is low, the tone quality will go down but the transmission rate will go
up. If a sample rate is high, the tone quality will be better, but the transmission rate
will drop. Please, adjust its rate in accordance with a network status or purposes.
Audio Input
Source
Users can select either MIC input or LINE input, but cannot use both at once.
Input Volume
Users can control the input volume by adjusting the microphone volume.
Audio Output
Output Volume
Users can control the output volume of the speaker connected to the Video Server.

- 14 -
3.3.4 Alarm Setting
This function enables users to conduct the alarm input/output setting and event setting.
zMotion Setup
Motion information is processed by splitting the screen into 64 areas. Each area can
be selected by clicking with the mouse, and the selected area is highlighted. The area
which uses the motion information as an event is shown in blue, while the area which
does not use the information is indicated empty.
Applicable to each of the 4 channels and Quad screen.
Motion Detection Setting
Enable
Checks this item when using the motion information.
-Sensitivity
Sets up the sensitivity of a motion. This item has a value between 10 ~ 255. Lower
value means high sensitivity so that a motion event occurs even for a slight
movement.
-Motion dwelling time
Sets up the event duration time when a motion occurs. This item can have a value
between 0 ~ 6 seconds. When an event occurs, the motion icon at upper right of
the screen blinks for the specified period.
-Enable down FPS
Increases FPS of the video transferred through the network when a motion occurs.
