Mitsubishi F5M41 User manual

GENERAL INFORMATION 22B-0-3
...........................................
1. SPECIFICATIONS 22B-1-1
..................................................
TRANSMISSION MODEL TABLE 22B-1-1
...............................
GEAR RATIO TABLE 22B-1-2d
..........................................
SERVICE SPECIFICATIONS 22B-1-2d
..................................
SEALANTS AND ADHESIVES 22B-1-2e
................................
LUBRICANTS 22B-1-3
...................................................
SNAP RINGS, SPACERS AND THRUST PLATE
ADJUSTMENT 22B-1-4
...................................................
TORQUE SPECIFICATIONS 22B-1-9
....................................
2. SPECIAL TOOLS 22B-2-1
..................................................
3. TRANSMISSION <F5M41> 22B-3-1
........................................
4. TRANSMISSION <F5M42, W5M42> 22B-4-1
..............................
5. INPUT SHAFT <F5M41> 22B-5-1
...........................................
6. INPUT SHAFT <F5M42, W5M42> 22B-6-1
.................................
7. OUTPUT SHAFT <F5M41> 22B-7-1
........................................
8. OUTPUT SHAFT <F5M42, W5M42> 22B-8-1
..............................
9. REVERSE IDLER GEAR <F5M42, W5M42> 22B-9-1
......................
10. SPEEDOMETER GEAR 22B-10-1
........................................
11. SELECT LEVER 22B-11-1
................................................
12. CONTROL HOUSING 22B-12-1
..........................................
13. CLUTCH HOUSING 22B-13-1
............................................
14. TRANSMISSION CASE 22B-14-1
........................................
15. DIFFERENTIAL <F5M41, F5M42>,
FRONT DIFFERENTIAL <W5M42> 22B-15-1
............................
16. CENTER DIFFERENTIAL <W5M42> 22B-16-1
..........................
17. TRANSFER <W5M42> 22B-17-1
.........................................
22B-0-1
MANUAL
TRANSMISSION
F5M41, F5M42, W5M42
CONTENTS
PWEE9508-G
EJun. 2000Mitsubishi Motors Corporation Revised

22B-0-2
NOTES

MANUAL TRANSMISSION (E-W) - General Information 22B-0-3
GENERAL INFORMATION
F5M41 <Types with single synchronizer ring for 2nd gear>
12345
67
10
9
8
11
1214 13
15
TFM0809
1. Reverse gear meshing noise pre-
vention device
<Models with reverse brake>
2. 5th-reverse speed synchronizer hub
3. 5th speed gear
4. 4th speed gear
5. 3rd-4th speed synchronizer hub
6. 3rd speed gear
7. Transmission case
8. Clutch housing
9. Release bearing retainer
10. Input shaft
11. Differential
12. 1st speed gear
13. 1st-2nd speed synchronizer hub
14. 2nd speed gear
15. Output shaft
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - General Information
22B-0-4
F5M41 <Types with double synchronizer ring for 2nd gear>
12345
67
10
9
8
11
1214 13
15
1. Reverse gear meshing noise pre-
vention device
2. 5th-reverse speed synchronizer hub
3. 5th speed gear
4. 4th speed gear
5. 3rd-4th speed synchronizer hub
6. 3rd speed gear
7. Transmission case
8. Clutch housing
9. Release bearing retainer
10. Input shaft
11. Differential
12. 1st speed gear
13. 1st-2nd speed synchronizer hub
14. 2nd speed gear
15. Output shaft
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

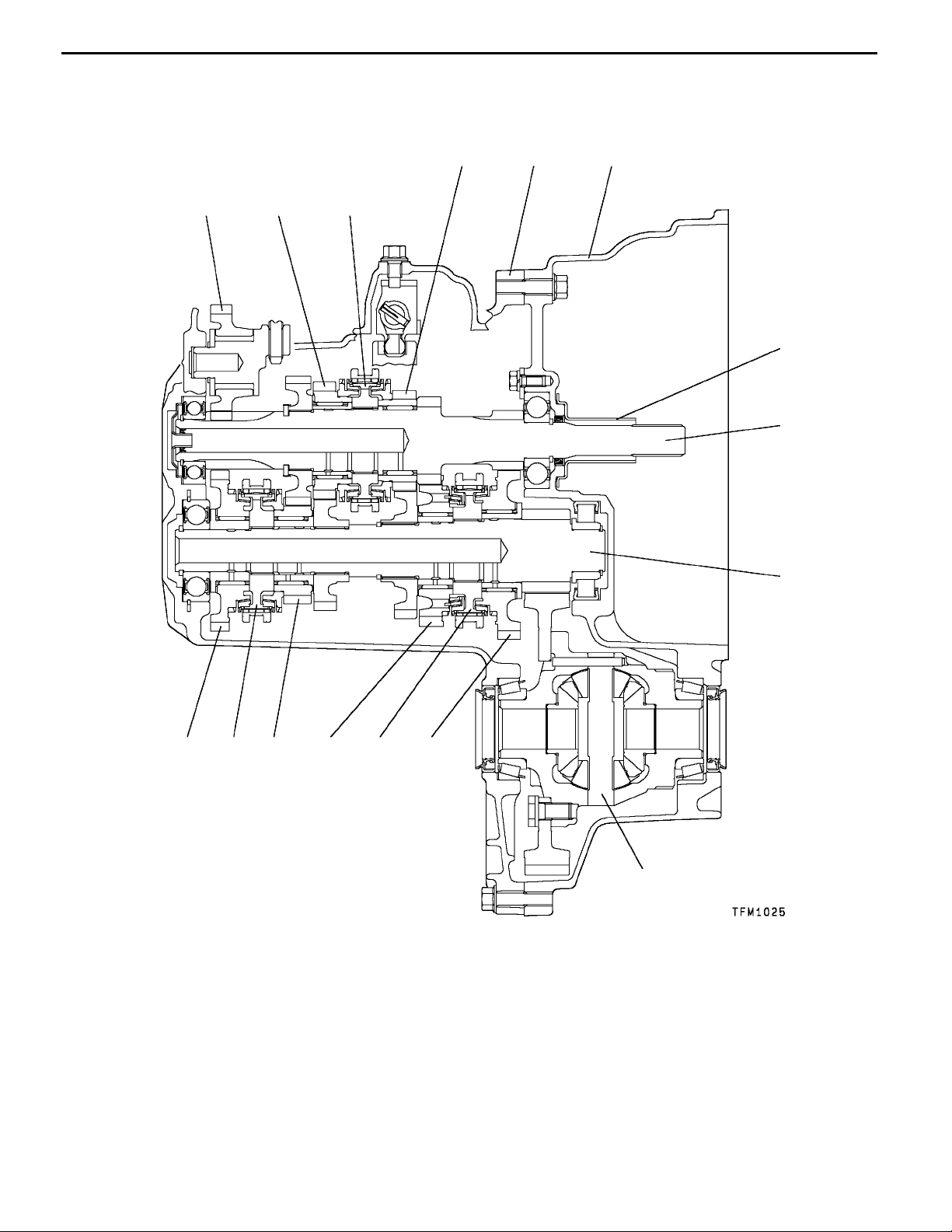

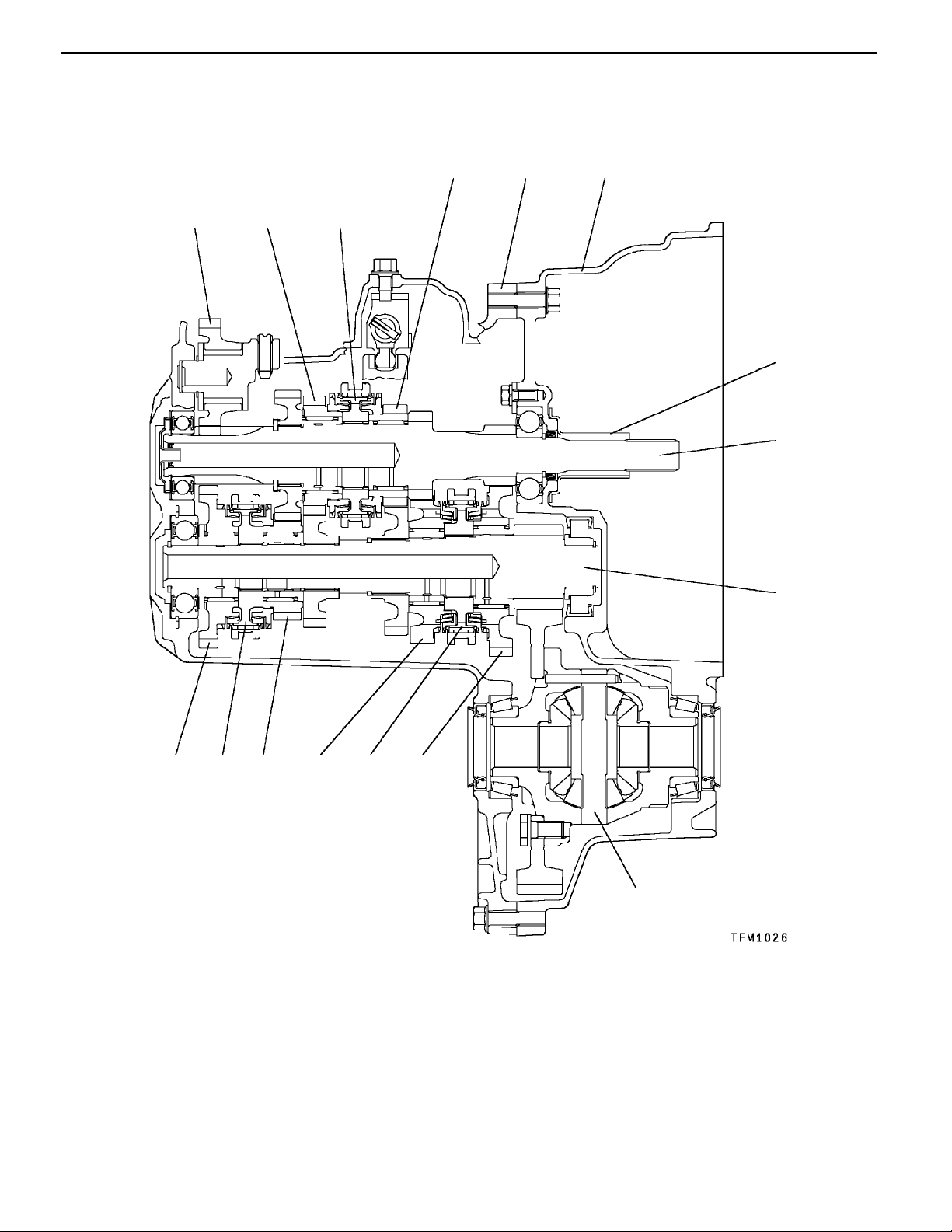

MANUAL TRANSMISSION (E-W) - General Information 22B-0-5
F5M42
<Types with single synchronizer ring for 1st gear and double synchronizer ring
for 2nd gear>
123
456
7
10
9
8
111214 131516
1. Reverse idler gear
2. 4th speed gear
3. 3rd-4th speed synchronizer hub
4. 3rd speed gear
5. Transmission case
6. Clutch housing
7. Release bearing retainer
8. Input shaft
9. Output shaft
10. Differential
11. 1st speed gear
12. 1st-2nd speed synchronizer hub
13. 2nd speed gear
14. 5th speed gear
15. 5th-reverse speed synchronizer hub
16. Reverse gear
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - General Information
22B-0-6
F5M42
<Types with double synchronizer ring for both 1st and 2nd gears, types with
double synchronizer ring for 1st gear and triple synchronizer ring for 2nd gear>
123
456
7
10
9
8
1112
14 13 15
16
1. Reverse idler gear
2. 4th speed gear
3. 3rd-4th speed synchronizer hub
4. 3rd speed gear
5. Transmission case
6. Clutch housing
7. Release bearing retainer
8. Input shaft
9. Output shaft
10. Differential
11. 1st speed gear
12. 1st-2nd speed synchronizer hub
13. 2nd speed gear
14. 5th speed gear
15. 5th-reverse speed synchronizer hub
16. Reverse gear
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

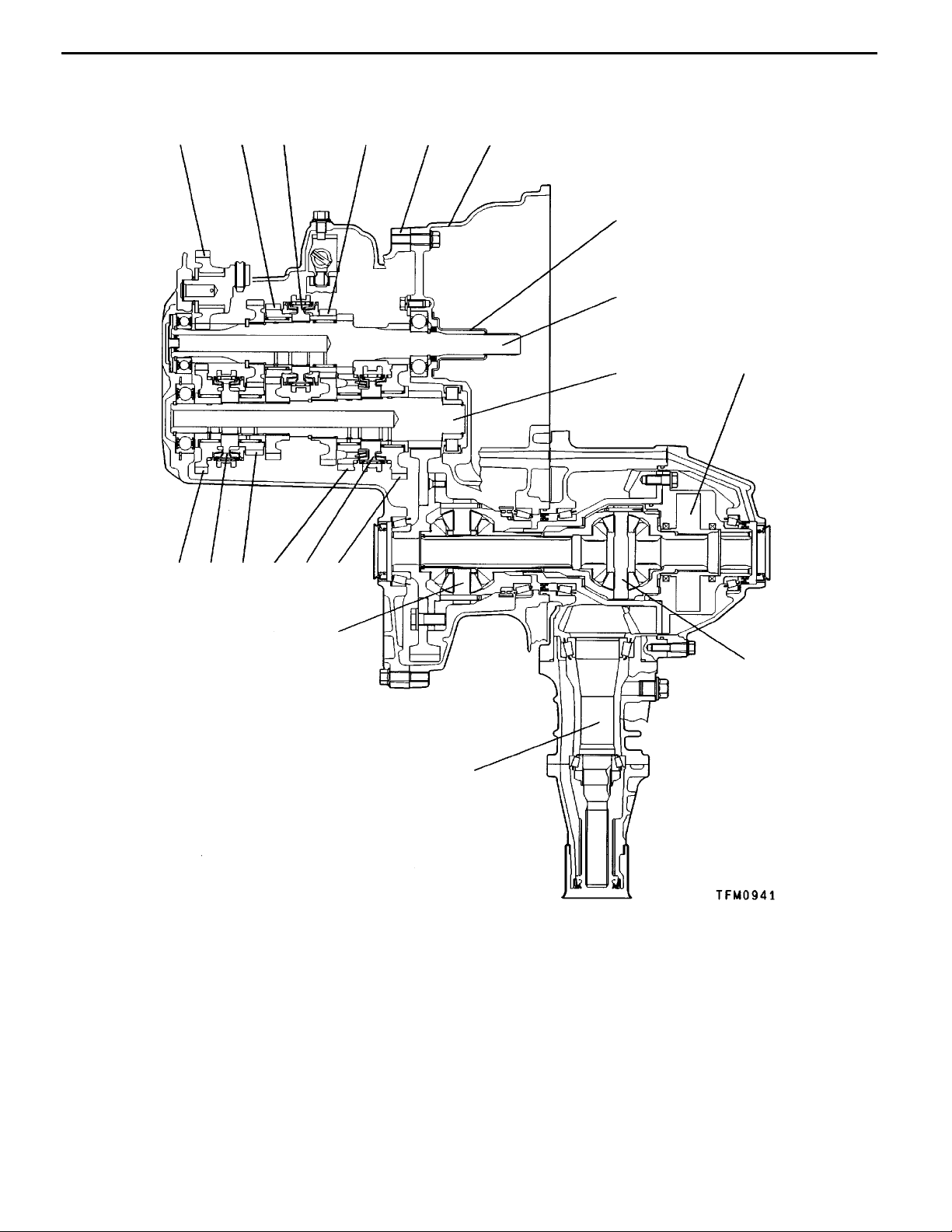

MANUAL TRANSMISSION (E-W) - General Information 22B-0-7
W5M42
123456
7
10
9
8
11
12
14
13
15
16
171819
1. Reverse idler gear
2. 4th speed gear
3. 3rd-4th speed synchronizer hub
4. 3rd speed gear
5. Transmission case
6. Clutch housing
7. Release bearing retainer
8. Input shaft
9. Output shaft
10. Viscous coupling
11. Front differential
12. Transfer driven gear
13. Center differential
14. 1st speed gear
15. 1st-2nd speed synchronizer hub
16. 2nd speed gear
17. 5th speed gear
18. 5th-reverse speed synchronizer hub
19. Reverse gear
PWEE9508-E
EJun. 1998Mitsubishi Motors Corporation Added

MANUAL TRANSMISSION (E-W) - Specifications 22B-1-1
1. SPECIFICATIONS
TRANSMISSION MODEL TABLE - MODEL 1996
Transmission model Gear ratio Speedometer
gear ratio
Final gear ratio Vehicle model Engine model
EUR F5M41-1-B8A1 B31/36 3.454 CJ4A 4G92-MVV
F5M41-1-F8A1 A31/36 3.714 CJ4A, CK4A 4G92-MPI
F5M41-1-R8A A31/36 4.052 CJ1A, CK1A 4G13
EXP F5M41-1-F8A1 A31/36 3.714 CJ4A, CK4A 4G92-MPI
F5M41-1-R8A A31/36 4.052 CJ1A, CK1A 4G13
F5M41-1-R8A A31/36 4.052 CJ2A, CK2A 4G15
F5M42-1-Y8A C31/36 4.058 CK4A 4G92-MIVEC
TRANSMISSION MODEL TABLE - MODEL 1997
Transmission model Gear ratio Speedometer
gear ratio
Final gear ratio Vehicle model Engine model
EUR F5M42-1-F7N D30/36 3.722 EA2A, EA2W 4G63
F5M42-2-F6N2 D29/36 3.722 EA5A, EA5W 6A13
F5M42-2-F6N5 E29/36 3.722 EA6A, EA6W 4D68
EXP F5M42-1-F6N4 D29/36 3.722 EA2A 4G63-MPI
F5M42-1-F7N D30/36 3.722 EA2A 4G63-MPI
F5M42-1-R6N2 D29/36 4.058 EA1A 4G93
F5M42-1-R6N3 D29/36 4.058 EA2A 4G63-CARB
F5M42-2-F6N2 D29/36 3.722 EA5A 6A13
F5M42-2-V6N D29/36 4.312 EA4A 6A12
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - Specifications
22B-1-2
TRANSMISSION MODEL TABLE - MODEL 1998
Transmission model Gear ratio Speedometer
gear ratio
Final gear ratio Vehicle model Engine model
EUR F5M41-1-B8A2 B31/36 3.454 CJ4A 4G92
F5M41-1-F8A5 A31/36 3.714 CJ4A 4G92
F5M41-1-R8A1 A31/36 4.052 CK1A, CJ1A 4G13
F5M42-1-F71 D30/36 3.722 EA2A, EA2W 4G63
F5M42-1-F8A4 D31/36 3.722 DA2A 4G93-GDI
F5M42-2-F6NA E29/36 3.722 EA6A, EA6W 4D68
F5M42-2-F6N7 F29/36 3.722 EA5A, EA5W 6A13
EXP F5M41-1-F8A5 A31/36 3.714 CJ4A, CK4A 4G92
F5M41-1-R8A1 A31/36 4.052 CJ1A, CK1A 4G13
F5M41-1-R8A1 A31/36 4.052 CJ2A, CK2A 4G15
F5M42-1-R6N6 D29/36 4.052 EA1A 4G93
F5M42-2-R6N7 D29/36 3.722 EA2A 4G63
F5M42-2-R6N8 D29/36 3.722 EA6A 4D68
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - Specifications 22B-1-2a
TRANSMISSION MODEL TABLE - MODEL 1999
Transmission model Gear ratio Speedometer
gear ratio
Final gear ratio Vehicle model Engine model
EUR F5M42-1-V5A4 D28/36 4.312 N61W 4G93-GDI
F5M42-2-R5A3 G28/36 4.058 N84W 4G64-GDI
W5M42-1-V5A1 H28/36 4.352 N94W 4G64-GDI
F5M42-1-F8A G31/36 3.722 DA2A 4G93-GDI
F5M42-2-F7N2 D30/36 3.722 EA2A, EA2W 4G93
F5M42-2-F6NC G29/36 3.722 EA3A, EA3W 4G64-GDI
F5M42-2-F6N7 F29/36 3.722 EA5A, EA5W 6A13
F5M42-2-F6NA E29/36 3.722 EA6A, EA6W 4D65
EXP F5M42-1-R6N6 D29/36 4.058 EA1A 4G93
F5M42-1-R6N7 D29/36 4.058 EA2A 4G63
F5M42-1-F6N9 D29/36 3.722 EA2A 4G63
F5M42-1-F7N1 D30/36 3.722 EA2A 4G63
F5M42-2-V6N1 D29/36 4.352 EA4A 6A12-MIVEC
F5M42-2-F6N7 F29/36 3.722 EA5A 6A13
F5M42-2-R6N8 E29/36 4.058 EA6A 4D56
F5M42-2-R5A2 D28/36 4.058 N84W 4G64
MMAL F5M41-1-F8A5 D31/36 3.722 CJ2A, CK2A 4G15
F5M42-1-F8A7 D31/36 3.722 CJ5A, CK5A 4G93
F5M42-2-R5A2 D28/36 4.058 N84W 4G64
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - Specifications
22B-1-2b
TRANSMISSION MODEL TABLE - MODEL 2000
Transmission model Gear ratio Speedometer
gear ratio
Final gear ratio Vehicle model Engine model
EUR F5M41-1-R8A1 A31/36 4.052 CJ1A 4G13
F5M41-1-F8A5 A31/36 3.714 CJ4A 4G92
F5M41-1-B8A2 B31/36 3.454 CJ4A 4G92-MVV
F5M42-1-R7A2 D30/36 4.058 DA2A 4G93-GDI
F5M42-1-V5A4 D28/36 4.312 N61W 4G93-GDI
F5M42-2-R5A3 G28/36 4.058 N64W, N84W 4G64-GDI
W5M42-1-V5A1 H28/36 4.352 N94W 4G64-GDI
EXP F5M41-1-R8A1 A31/36 4.052 CJ1A, CK1A 4G13
F5M41-1-F8A5 A31/36 3.714 CJ4A, CK4A 4G92
F5M42-1-R6N6 D29/36 4.058 EA1A 4G93
F5M42-1-R6N7 D29/36 4.058 EA2A 4G63
F5M42-1-F6N9 D29/36 3.722 EA2A, EA2W 4G63
F5M42-2-F6N7 F29/36 3.722 EA5A 6A13
F5M42-2-R5A2 D28/36 4.058 N84W 4G64
MMAL F5M42-2-R5A2 D28/36 4.058 N84W 4G64
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - Specifications 22B-1-2c
TRANSMISSION MODEL TABLE - MODEL 2001
Transmission model Gear ratio Speedometer
gear ratio
Final gear ratio Vehicle model Engine model
EUR F5M41-1-R8A1 A 31/36 4.052 CJ1A 4G13
F5M41-1-F8A5 A 31/36 3.714 CJ4A 4G92
F5M41-1-F8AC B 31/36 3.454 DG5A 4G93
F5M42-2-R7A2 D 30/36 4.058 DA2A 4G93
F5M42-2-F7N2 D 30/36 3.722 EA2A, W 4G63
F5M42-2-F6NC G 29/36 3.722 EA3A, W 4G64
F5M42-2-F6N7 F 29/36 3.722 EA5A, W 6A13
F5M42-2-V5A D 28/36 4.352 N63W 4G63
F5M42-2-R5A3 G 28/36 4.058 N64W 4G64
EXP F5M41-1-R8A1 A 31/36 4.052 CJ1A 4G13
F5M41-1-F8A5 A 31/36 3.714 CJ4A 4G92
F5M42-1-F6N9 D 29/36 3.722 EA2W 4G63
F5M42-1-F7N1 D 30/36 3.722 EA2W 4G63
F5M42-1-R6N6 D 29/36 4.058 EA1A 4G93
F5M42-1-F6N7 F 29/36 3.722 EA1A 4G93
F5M42-1-R6N7 D 29/36 4.058 EA2A 4G63
F5M42-1-F6N9 D 29/36 3.722 EA2A 4G63
F5M42-1-F6N7 F 29/36 3.722 EA5A 6A13
F5M42-2-R6N8 E 29/36 4.058 EA6A 4D68
F5M42-2-R5A2 D 28/36 4.058 N84W 4G64
MMAL F5M41-1-F8A5 A 31/36 3.714 CJ2A 4G15
F5M42-1-F8A7 F 31/36 3.722 CJ5A 4G93
F5M42-2-R5A2 D 31/36 4.058 N84W 4G64
PWEE9508-G
EJun. 2000Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - Specifications
22B-1-2d
GEAR RATIO TABLE
A B C D E F G
1st 3.583 3.727 3.071 3.583 3.583 3.583 3.583
2nd 1.947 1.947 1.947 1.947 1.947 1.947 1.947
3rd 1.343 1.343 1.379 1.379 1.379 1.379 1.266
4th 0.976 0.976 1.030 1.030 1.030 1.030 0.970
5th 0.804 0.804 0.820 0.820 0.733 0.767 0.767
Reverse 3.416 3.416 3.363 3.363 3.363 3.363 3.363
H
1st 3.583
2nd 1.947
3rd 1.266
4th 0.970
5th 0.767
Reverse 3.363
Transfer 0.3018
SERVICE SPECIFICATIONS
Items Allowable range Limit
Input shaft front bearing end play mm - 0.01 - 0.12 -
Input shaft rear bearing end play <F5M41> mm - 0.01 - 0.09 -
Input shaft rear bearing end play <F5M42, W5M42> mm - 0.01 - 0.12 -
Input shaft 5th speed gear end play <F5M42, W5M42> mm - 0.01 - 0.09 -
Output shaft front bearing end play mm - 0.01 - 0.12 -
Output shaft rear bearing end play mm - 0.01 - 0.09 -
Output shaft 3rd speed gear end play mm - 0.01 - 0.09 -
Differential case end play <F5M41> mm 0.05 - 0.17 -
Differential case pinion backlash <F5M41, F5M42> mm 0.025 - 0.150 -
Front differential case backlash <W5M42> mm 0.025 - 0.150 -
Differential case preload <F5M42> mm 0.05- 0.11 -
NOTE: Standard play = 0 mm
PWEE9508-G
EJun. 2000Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - Specifications 22B-1-2e
Items Allowable range Limit
Front differential case preload <W5M42> mm 0.05 - 0.11 -
Center differential case pinion backlash <W5M42> mm 0.025 - 0.150 -
Center differential case preload <W5M42> mm 0.05- 0.11 -
Synchronizer ring back surface to gear clearance mm - 0.5
NOTE: Standard play = 0 mm
SEALANTS AND ADHESIVES
TRANSMISSION
Items Specified sealants and adhesives
Clutch housing- transmission case mating surface MITSUBISHI genuine sealant part No. MD997740
Control housing- transmission case mating surface
or equivalent
Under cover- transmission case mating surface
<F5M42, W5M42>
Air breather 3M SUPER WEATHERSTRIP No. 8001 or
equivalent
Differential drive gear bolt <F5M41, F5M42> 3M STUD Locking No. 4170 or equivalent
Front differential drive gear bolt <W5M42>
Center differential drive gear bolt <W5M42>
Front bearing retainer bolt (countersink head bolt) <F5M41>
TRANSFER
Item Specified sealant
Air breather 3M SUPER WEATHERSTRIP No. 8001 or
equivalent
PWEE9508-G
EJun. 2000Mitsubishi Motors Corporation Added

MANUAL TRANSMISSION (E-W) - Specifications 22B-1-3
FORM-IN-PLACE GASKET
The transmission has several areas where the form-in-place gasket (FIPG) is in use. To ensure that the
gasket fully serves its purpose, it is necessary to observe some precautions when applying the gasket.
Bead size, continuity and location are of paramount importance. Too thin a bead could cause leaks. Too
thick a bead, on the other hand, could be squeezed out of location, causing blocking or narrowing of
the fluid feed line. To eliminate the possibility of leaks from a joint, therefore, it is absolutely necessary
to apply the gasket evenly without a break, while observing the correct bead size.
Since the RTV hardens as it reacts with the moisture in the atmospheric air, it is normally used in the
metallic flange areas.
DISASSEMBLY
The parts assembled with the FIPG can be easily disassembled without use of a special method. In some
cases, however, the sealant between the joined surfaces may have to be broken by lightly striking with
a mallet or similar tool. A flat and thin gasket scraper may be lightly hammered in between the joined
surfaces. In this case, however, care must be taken to prevent damage to the joined surfaces.
Surface Preparation
Thoroughly remove all substances deposited on the gasket application surfaces, using a gasket scraper
or wire brush. Check to ensure that the surfaces to which the FIPG is to be applied is flat. Make sure
that there are no oils, greases and foreign substances deposited on the application surfaces. Do not forget
to remove the old sealant remaining in the bolt holes.
FORM-IN-PLACE GASKET APPLICATION
When assembling parts with the FIPG, you must observe some precautions, but the procedures is very
simple as in the case of a conventional precut gasket.
Applied FIPG bead should be of the specified size and without breaks. Also be sure to encircle the bolt
hole circumference with a completely continuous bead. The FIPG can be wiped away unless it is hardened.
While the FIPG is still moist (in less than 15 minutes), mount the parts in position. When the parts are
mounted, make sure that the gasket is applied to the required area only. In addition, do not apply any
oil or water to the sealing locations or start the engine until a sufficient amount of time (about one hour)
has passed after installation is completed.
The FIPG application procedure may vary on different areas. Observe the procedure described in the
text when applying the FIPG.
LUBRICANTS
TRANSMISSION
Items Specified lubricants
Drive shaft oil seal lip area Hypoid gear oil SAE 75W-85W conforming to API
Control shaft oil seal lip area
classification GL-4 or higher
Input shaft oil seal lip area MITSUBISHI genuine grease part No. 0101011 or
Select lever shoe
equivalent
TRANSFER
Items Specified lubricants
Drive shaft oil seal lip area Hypoid gear oil SAE 75W-85W conforming to API
Front differential oil seal lip area
classification GL-4 or higher
Each O-ring
PWEE9508-E
EJun. 1998Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - Specifications
22B-1-4
SNAP RINGS, SPACERS AND THRUST PLATE ADJUSTMENT
Part name Thickness mm Identification
symbol
Part No.
Snap ring 2.24 None MD706537
(For adjustment of input shaft front bearing end
play) 2.31 Blue MD706538
2.38 Brown MD706539
Snap ring 2.31 Black (2) MD747149
(For adjustment of input shaft rear bearing end
play ....F5M41) 2.35 None MD746561
(For adjustment of output shaft rear bearing end
play ....F5M42, W5M42) 2.39 Blue MD746562
2.43 Brown MD746563
2.47 Green MD746564
2.51 White MD746565
2.55 Yellow MD746566
2.59 Black MD746567
2.63 Orange MD746568
2.67 Blue MD746569
2.71 Brown MD746570
Thrust plate: F5M42, W5M42 2.82 - MD748015
(For adjustment of input shaft 5th speed gear
end play) 2.86 - MD748016
2.90 - MD748017
2.94 - MD748018
2.98 - MD748019
3.02 - MD748020
3.06 - MD748021
3.10 - MD748022
Snap ring 1.43 Green (2) MD746708
(For adjustment of output shaft front bearing end
play) 1.51 White (2) MD746709
(For adjustment of input shaft rear bearing end
play ....F5M42, W5M42) 1.59 Yellow (2) MD746710
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - Specifications 22B-1-5
Part name Part No.Identification
symbol
Thickness mm
Snap ring: F5M41 2.31 Black (2) MD748800
(For adjustment of output shaft rear bearing end
play) 2.35 None MD748801
2.39 Blue MD748802
2.43 Brown MD748803
2.47 Green MD748804
2.51 White MD748805
2.55 Yellow MD748806
2.59 Black MD748807
2.63 Orange MD748808
2.67 Blue MD748809
2.71 Brown MD748810
Snap ring: F5M41 2.81 Green MD748782
(For adjustment of output shaft 3rd speed gear
end play) 2.85 White MD748783
2.89 Yellow MD748784
2.93 Black MD748785
2.97 Orange MD748786
3.01 Red MD748787
3.05 Pink MD748788
3.09 Blue MD748789
Snap ring: F5M42, W5M42 2.81 Green MD745799
(For adjustment of output shaft 3rd speed gear
end play) 2.85 White MD745800
2.89 Yellow MD745801
2.93 Black MD745802
2.97 Orange MD745803
3.01 Red MD745804
3.05 Pink MD745805
3.09 Blue MD745806
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - Specifications
22B-1-6
Part name Part No.Identification
symbol
Thickness mm
Spacer: F5M41 0.77 77 MD754476
(For adjustment of differential case end play)
0.86 86 MD720938
0.95 95 MD720941
1.04 04 MD720944
1.13 D MD700270
1.22 G MD700271
1.31 E MD706574
1.40 None MD706573
1.49 C MD706572
1.58 B MD706571
1.67 A MD706570
1.76 F MD706575
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - Specifications 22B-1-7
Part name Part No.Identification
symbol
Thickness mm
Spacer: F5M42 0.71 71 MD754475
(For adjustment of differential case preload)
0.74 74 MD727660
0.77 77 MD754476
0.80 80 MD727661
0.83 83 MD720937
0.86 86 MD720938
0.89 89 MD720939
0.92 92 MD720940
0.95 95 MD720941
0.98 98 MD720942
1.01 01 MD720943
1.04 04 MD720944
1.07 07 MD720945
1.10 J MD710454
1.13 D MD700270
1.16 K MD710455
1.19 L MD710456
1.22 G MD700271
1.25 M MD710457
1.28 N MD710458
1.31 E MD706574
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised

MANUAL TRANSMISSION (E-W) - Specifications
22B-1-8
Part name Part No.Identification
symbol
Thickness mm
Spacer: W5M42 0.74 74 MD727660
(For adjustment of center differential case
preload) 0.77 77 MD745476
0.80 80 MD727661
0.83 83 MD720937
0.86 86 MD720938
0.89 89 MD720939
0.92 92 MD720940
0.95 95 MD720941
0.98 98 MD720942
1.01 01 MD720943
1.04 04 MD720944
1.07 07 MD720945
1.10 J MD710454
1.13 D MD700270
1.16 K MD710455
1.19 L MD710456
1.22 G MD700271
1.25 M MD710457
1.28 N MD710458
1.31 E MD706574
Spacer: F5M41, F5M42 0.75- 0.82 - MA180862
(For adjustment of differential case backlash)
0.83- 0.92 - MA180861
0.93- 1.00 - MA180860
1.01- 1.08 - MA180875
1.09- 1.16 - MA180876
Spacer: W5M42 0.75 - 0.82 - MD744236
(For adjustment of center differential case pinion
backlash) 0.83 - 0.92 - MD744235
0.93 - 1.00 - MD744234
1.01 - 1.08 - MD744233
1.09 - 1.16 - MD744232
PWEE9508-F
EJuly 1999Mitsubishi Motors Corporation Revised
