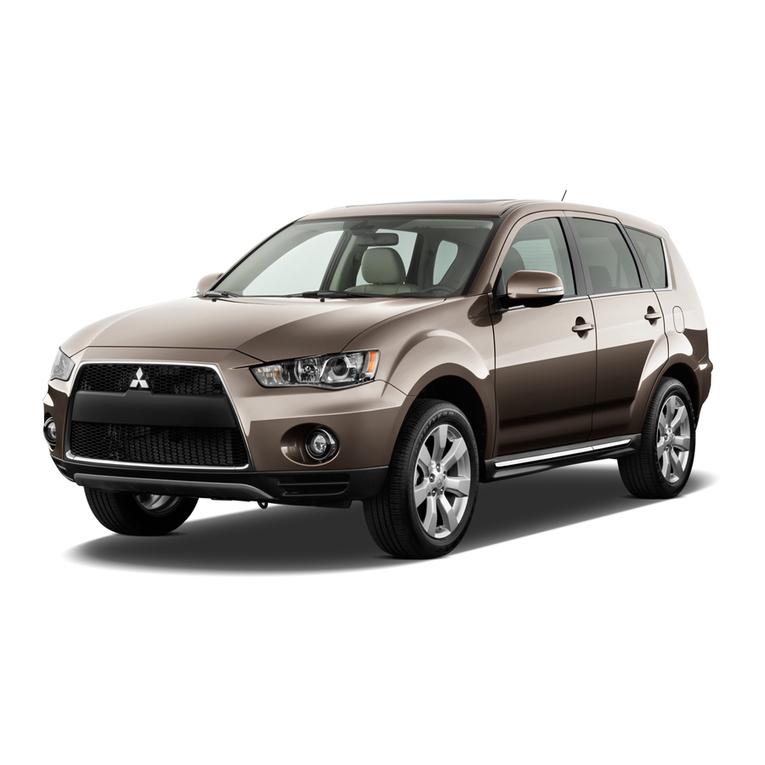

Mitsubishi Outlander 2017 User manual

Outlander
2017 /OWNER’S MANUAL
Outlander /2017 OWNER’S MANUAL

Table of contents
1
2
3
4
5
6
7
8
9
10
11
12
Overview
Quick index
General information
Seat and restraint systems
Features and controls
Driving safety
Comfort controls
For emergencies
Vehicle care and maintenance
Customer assistance/Reporting Safety Defects
Specifications
Alphabetical index
BK0239700US.book 1 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

Instruments and controls
1-1
1
Overview
N00100202762
Instruments and controls
Combination headlights and dimmer switch P.5-220
Automatic high beam system switch
(if so equipped) P.5-224
Turn signal lever P.5-230
Front fog light switch (if so equipped)
P.5-231
Steering wheel audio remote control switches P.7-26
[For DISPLAY AUDIO, Smartphone Link Display Audio and
MMCS, refer to the separate owner’s manuals.]
Active stability control
(ASC) OFF switch P.5-101
Supplemental restraint system
(SRS) - airbag (for driver’s
seat) P.4-34, 4-41
Horn switch P.5-239
Instrument cluster
P.5-163
Windshield wiper and washer
switch P.5-232
Rear window wiper and
washer switch P.5-236
Cruise control switch P.5-102, 5-106
Steering wheel height and reach adjustment lever P.5-57
Engine switch (if so
equipped) P.5-18
Bluetooth®2.0 interface P.5-240
Driver’s vents
P. 7 - 2
Sportronic steering wheel paddle
shifter (if so equipped)
P.5-72, 5-80
Driver’s vents P.7-2
Multi information display
switch (if so equipped)
P.5-167
Headlight leveling switch
(if so equipped) P.5-229
Driver’s side power liftgate switch
(if so equipped) P.5-41
Fuse box P.9-25
Lane departure warning (LDW)
switch (if so equipped)
P.5-139
Forward collision mitigation
system (FCM) and Ultra-
sonic misacceleration Miti-
gation System ON/OFF
switch (if so equipped)
P.5-122, 5-131
Supplemental restraint system (SRS) - front knee airbag
(for driver’s seat) P.4-41
Ignition switch (if so equipped)
P.5-63
Sonar switch
(if so equipped) P.5-147
BK0239700US.book 1 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

Instruments and controls
Overview 1-2
1
Audio (if so equipped) P.7-14
Mitsubishi Multi-Communication System (MMCS) (if so equipped)
Multi around monitor (if so equipped) P.5-154
[For DISPLAY AUDIO, Smartphone Link Display Audio and MMCS,
refer to the separate owner’s manuals.]
Hazard warning flasher switch
P.5-231
Electric rear window defogger switch P.5-237
Wiper deicer switch (if so equipped) P.5-237
Fuel tank filler door release lever
P.3- 3
Air conditioner P.7-5
Hood release lever
P. 9 - 3
Floor console box P.5-277
Arm rest
12 V power outlet P.5-267
USB input terminal P.5-263
Cup holder P.5-279
12 V power outlet P.5-267
Power liftgate main switch (if so equipped)
P.5-40 Key slot (if so equipped)
P.5-27
Passenger’s vents
P. 7 - 2
Passenger’s airbag off indicator P.4-39
Front passenger seat belt warning light
P.4-23
Heated steering wheel
switch (if so equipped)
P.5-239
Blind Spot Warning (BSW)
switch (if so equipped)
P.5-131
Camera switch (if so equipped)
P.5-157
BK0239700US.book 2 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

Instruments and controls
1-3 Overview
1
Supplemental restraint system (SRS) - airbag
(for front passenger’s seat)
P. 4-34, 4-41
Glove compartment P.5-276
Card holder P.5-276
Selector lever
P.5-68, 5-75
Drive mode-selector
(if so equipped) P.5-83
S-AWC drive mode-selector
(if so equipped) P.5-86
Parking brake lever P.5-53
Heated seat switch
(if so equipped)
P. 4 - 8
Selector lever
P.5-68, 5-75
Electric parking brake switch P.5-54
Brake auto hold
switch P.5-93
Drive mode-selector
(if so equipped)
P.5-83
Electric parking brake typeParking brake lever type
Heated seat switch
(if so equipped)
P. 4 - 8
BK0239700US.book 3 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

Interior
Overview 1-4
1
N00100302457
Interior
Sun visors P.5-266
Vanity mirror P.5-266
Card holder P.5-266
Supplemental restraint system (SRS) - side airbag
(for front seats) P.4-45
Sunglasses holder (if so equipped)
P.5-279
Adjustable seat belt shoulder anchor P.4-24
Seat belts P.4-18
Cargo room light
P.5-275, 9-33
Electric remote-controlled outside rearview mirrors switch P.5-61
Lock switch P.5-50
Power door lock
switch P.5-36
Power window switch
P.5-49
Second row seat P.4-8
Third row seat (7 persons)
P.4- 1 0
Dome light (rear) P.5-274
Inside rearview mirror P.5-57
HomeLink®Wireless Control System
(if so equipped) P.5-268
Multi around monitor (if so equipped)
P.5-154
Front seat P.4-4
BK0239700US.book 4 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

Interior
1-5 Overview
1
Assist grips P.5-283
Coat hook P.5-283
Bottle holder P.5-280 Sunroof switch
(if so equipped) P.5-51
Head restraints P.4-11
Arm rest P.4-10
Cup holder P.5-280
Cargo area cover (if so equipped)
P.5-281
Supplemental restraint system (SRS) - curtain
airbags P.4-46
Dome light (front)/Reading
lights P.5-273, 5-274
Downlight
P.5-220
Hands-free microphone
P.5-241
BK0239700US.book 5 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

Luggage area
Overview 1-6
1
N00100501579
Luggage area
Jack P. 8-5
Tools P.8-5
Luggage hooks
P.5-283
Luggage floor box P.5-277
Tether anchorages for child restraint system P.4-30
12 V power outlet
P.5-267
BK0239700US.book 6 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

Outside (Front)
1-7 Overview
1
N00100602694
Outside (Front)
Sunroof (if so equipped) P.5-51
Windshield wipers P.5-232
Engine hood P.9-3
Front fog lights (if so equipped) P.5-231, 9-32, 9-36
Outside rearview mirrors P.5-60
Side turn-signal lights (if so equipped)
P.5-230, 9-32, 9-36
Side-view camera (if so equipped)
P.5-154
Fuel tank filler P.3-3
Power window P.5-49
Front turn-signal lights
P.5-230, 9-32, 9-36
Front turn signal lights
P.5-230, 9-32, 9-36
Headlights, low beam
P.5-220, 9-32, 9-34
Parking lights P.5-220, 9-32, 9-36
Daytime running lights P.5-220, 9-32,
9-36
Headlights, low beam
P.5-220, 9-32, 9-34
Parking lights P.5-220, 9-32, 9-36
Daytime running lights P.5-220, 9-32,
9-36
Headlights, high beam
P.5-220, 9-32, 9-35
Headlights, high beam
P.5-220, 9-32, 9-35
Halogen headlights type LED headlights type
Front side-marker lights
P.5-220, 9-32, 9-35
Front side-marker lights
P.5-220, 9-32, 9-35
Sensor (if so equipped) [for Forward Collision Mitigation System
(FCM), Lane Departure Warning System (LDW) and Automatic
high beam system] P. 5-117, 5-139, 5-224
Rain sensor (if so equipped) P.5-232
Front-view camera (if so equipped) P.5-154
Ultrasonic misacceleration Mitigation System (if so equipped)
P.5-127
Parking sensors (if so equipped) P.5-147
BK0239700US.book 7 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

Outside (Rear)
Overview 1-8
1
N00100602708
Outside (Rear)
Keyless entry system (if so equipped) P.5-7, 5-30
F.A.S.T.-key (Free-hand Advanced Security Transmitter) (if so equipped)
P.5-13
Locking and unlocking P.5-34
Tire P.9-15
Tire pressure monitoring system
P.5-142
Tire inflation pressures P.9-18
Changing tires P.8-6
Tire rotation P.9-20
Tire chains P.9-21
Size of tires and wheels P.11-7
Stop lights P.5-220, 9-32, 9-37
Rear turn signal lights P.5-230, 9-32, 9-37
Spare tire P.8-7 Back-up lights P.9-32, 9-38
License plate lights
P.5-220, 9-32, 9-39
Rear-view camera (if so equipped)
P.5-151, 5-154
Rear window wiper
P.5-236
High-mounted stop light
P.9-32
Antenna
Liftgate (if so equipped) P.5-38
Power liftgate (if so equipped) P.5-39
Rear side-marker lights P.5-220, 9-32
Tail lights P.5-220, 9-32, 9-37
Ultrasonic misacceleration Mitigation System
(if so equipped) P.5-127
Parking sensors (if so equipped) P.5-147
BK0239700US.book 8 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

BK0239700US.book 9 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

2-1
2
If this warning light comes on or flashes while you’re driving...
Quick index
N00200702276
If this warning light comes on or flashes while you’re driving...
NOTE
For information regarding warning displays in the multi-information display (Color liquid crystal display type), refer to “Multi-information display” on
page 5-164.
These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON” or the operation mode is put in ON.
Warning lights Do this Ref. Page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for assis-
tance.
P. 5-217
Oil pressure warning light
(Vehicles equipped with mono-color
liquid crystal display)
Park your vehicle in a safe place and stop the engine, then check the engine oil
level.
If the light comes on while the engine oil level is normal, have the system checked
at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon
as possible.
P. 5-218
or
Brake warning light (red)
If this light comes on while driving, check to see that the parking brake is fully
released.
If this light stays on after releasing the parking brake, immediately stop and check
the brake fluid level.
If the brake fluid level is correct, there may be a system malfunction. Avoid hard
braking and high speed, and contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice for assistance.
P. 5-216
BK0239700US.book 1 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

If this warning light comes on or flashes while you’re driving...
2-2 Quick index
2
Electric parking brake warning light
(yellow) (if so equipped)
If the warning light comes on during driving, there is the possibility that the parking
brake cannot be operated or released. Immediately stop the vehicle in a safe place,
and contact an authorized Mitsubishi Motors dealer or a repair facility of your
choice for assistance.
P. 5-216
Selector lever position indicator in the
instrument cluster flashes rapidly
(once per second)
(Vehicles equipped with mono-color
liquid crystal display)
Park your vehicle in a safe place.
Idle the engine until the selector lever position indicator stops flashing.
If the indicator does not go off, have the system checked at an authorized Mitsubi-
shi Motors dealer or a repair facility of your choice as soon as possible.
P. 5-70,
5-78
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair facility
of your choice as soon as possible. If the vehicle is not drivable, contact emergency
roadside assistance at 1-888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an authorized Mitsubishi Motors dealer, or local
towing company for assistance.
P. 5-217
Warning lights Do this Ref. Page
BK0239700US.book 2 ページ ２０１６年７月１日 金曜日 午後３時１５分

If this warning light comes on or flashes while you’re driving...
Quick index 2-3
2
Electric power steering system (EPS)
warning light
(Vehicles equipped with mono-color
liquid crystal display)
If this light comes on while the engine is running, it may become harder to turn the
steering wheel. Have your vehicle inspected at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.
P. 5-99
Anti-lock braking system warning
light
When this light comes on, the anti-lock braking system is not functioning and only
the ordinary braking system is functioning.
Park your vehicle in a safe place and stop the engine.
Test the system as described on page 5-98.
If the light does not go out after the test, or if it comes on again, we recommend that
you have the system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
P. 5-98
SRS warning light
Immediately have the airbag and the pre-tensioner seat belt system checked at an
authorized Mitsubishi Motors dealer. P. 4-40
Selector lever position indicator in the
instrument cluster flashes slowly
(once every 2 seconds)
(Vehicles equipped with mono-color
liquid crystal display)
Have the automatic transaxle checked at an authorized Mitsubishi Motors dealer or
a repair facility of your choice as soon as possible.
P. 5-70,
5-78
Warning lights Do this Ref. Page
BK0239700US.book 3 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

If this warning light comes on or flashes while you’re driving...
2-4 Quick index
2
and
ASC indicator and ASC OFF indicator
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator goes out.
If the indicator does not go out, or if it comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon
as possible.
When this indicator comes on, the active stability control is not functioning and
normal operation of the vehicle will not be affected.
P. 5-102
ASC indicator
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indicator goes out.
If the indicator does not go out, or if it comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon
as possible.
When this indicator comes on, the hill start assist is not functioning.
Start off carefully on a steep uphill slope.
P. 5-96
Tire pressure monitoring system warn-
ing light
If the warning light comes on, you should stop and adjust the tires to the proper
inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 9-18.)
Once adjustments have been made, the warning light will go off after a few minutes
of driving.
If the warning light blinks for approximately 1 minute and then remains continu-
ously illuminated, the system is not operating properly. If the system returns to nor-
mal, the warning light will go off. If the warning light does not go off, have the
vehicle inspected at an authorized Mitsubishi Motors dealer.
P. 5-142
LED headlight warning light
If the warning light comes on, there may be a malfunction in the LED headlight
unit.
Have the vehicle inspected at an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
P. 5-223
Warning lights Do this Ref. Page
BK0239700US.book 4 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

If this problem occurs...
Quick index 2-5
2
N00200901936
If this problem occurs...
Problem Do this Ref. Page
Unable to turn the key.
(except for vehicles equipped
with the F.A.S.T.-key)
Will not turn from “LOCK” to “ACC”. (Vehicles with steering lock system)
Turn the key while turning the steering wheel in either direction. P. 5-65
Will not turn from “ACC” to “OFF” or “LOCK”.
Check the position of the selector lever.
The key cannot be removed unless the selector lever is set to the “P” (PARK) position.
On vehicles with steering lock system, push the key in at the “ACC” position and keep it
depressed until it is turned to the “LOCK” position.
P. 5-64
The engine does not start when
the engine switch is pressed.
(for vehicles equipped with the
F.A.S.T.-key)
Make sure the F.A.S.T.-key is in the vehicle.
Make sure the selector lever is in the “P” (PARK) position, and then press the engine switch
while depressing the brake pedal.
P. 5-25
The F.A.S.T.-key does not oper-
ate.
(for vehicles equipped with the
F.A.S.T.-key)
Insert the F.A.S.T.-key into the key slot of the instrument panel, and then start the engine or
change the operation mode. Use the emergency key to lock and unlock the driver’s door.
P. 5-27,
5-28
BK0239700US.book 5 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

If this problem occurs...
2-6 Quick index
2
Cannot shift the selector lever
from the “P” (PARK) position.
Shift the selector lever while pressing the brake pedal.
Check that the ignition switch or the operation mode is in ON. P. 5-68
The windows are fogged up.
Push the defogger switch to change to the “ ” position. P. 7-8
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.
Have the battery checked. Recharge or replace as needed. P. 8-2,
9-13
Problem Do this Ref. Page
BK0239700US.book 6 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

If this problem occurs...
Quick index 2-7
2
Problem Do this Ref. Page
The information screen in the
multi information display will
be interrupted and the engine
coolant temperature warning
display will appear. Also “ ”
will blink. (Type 1: Color liquid
crystal display type)
The high coolant temperature
warning light will illuminate.
(Type 2: Mono-color liquid
crystal display type)
Steam comes out of the engine
compartment.
The engine is overheated.
Carefully stop the vehicle in a safe place. P. 8- 4
Type 1
Type 2
and
BK0239700US.book 7 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

If this problem occurs...
2-8 Quick index
2
If your vehicle becomes stuck in
sand, mud or snow
1. Slowly press down on the accelerator pedal to get your vehicle moving again. For an all-
wheel drive vehicle, set the drive mode-selector to the “4WD AUTO” or “4WD LOCK”
position (Electronically controlled 4WD), “SNOW” or “LOCK” position (S-AWC) and
then slowly press down on the accelerator pedal to get your vehicle moving.
2. If there is nothing to stop your tires from slipping, rock your vehicle out of the stuck posi-
tion.
P. 8-15
WARNING
When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking motion may cause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders.
Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
Problem Do this Ref. Page
The brakes are not functioning
properly after crossing a puddle
or stream.
Dry out the brakes by driving slowly while lightly pressing the brake pedal. P. 5-90,
6-5
The automatic transaxle makes
no gear change when accelerat-
ing. The initial movement of the
vehicle is slow when the vehicle
starts moving.
(for vehicles with automatic
transaxle)
There may be a problem in the automatic transaxle.
Have the system inspected by your authorized Mitsubishi Motors dealer or a repair facility of
your choice.
P. 5-74
Problem Do this Ref. Page
BK0239700US.book 8 ページ ２０１６年６月１６日 木曜日 午前１０時５８分

If this problem occurs...
Quick index 2-9
2
The continuously variable trans-
mission (CVT) makes no shift
change when accelerating. The
initial movement of the vehicle
is slow when the vehicle starts
moving.
(for vehicles with CVT)
There may be a problem in the CVT.
If the or warning lights on the multi-information display (Color liquid crystal display
type) will not turn off, or if they come on frequently, please have the vehicle checked at your
nearest Mitsubishi Motors dealer.
P. 5-81
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. Replace the flat tire with the spare tire. P. 8- 6
Problem Do this Ref. Page
BK0239700US.book 9 ページ ２０１６年６月１６日 木曜日 午前１０時５８分
