Mitsubishi WD-62526 User manual

Get the Perfect Picture Every Time
• Internal HDTV Tuner For Over-The-Air Or Non-Scrambled
Cable Reception.
• Mitsubishi Exclusive LCD Light Engine
• SmartShutter™
• QuickMotion™
• Plush720p™
• PerfectColor™
Watch TV Your Way
• ChannelView™On-Screen Channel List
• 2 HDMI™Inputs
• 2 Component Inputs
• Digital Audio Output for All Analog and A/V Sources
• Partially Illuminated Remote Control
Models:
WD-52526
WD-62526
Overview
The Mitsubishi 526 Series Integrated LCD HDTVs offer a high
quality picture in a stylish compact cabinet.
The Mitsubishi QuickMotion™LCD drive displays sharp, crisp,
and clean moving images especially with fast moving scenes.
SmartShutter™technology displays deep blacks and improved
dark scene detail. And Plush720p™upconverts lower quality
signals to deliver maximum clarity from every source.
ClearThought™technology makes digital TV easy to use. The
526 series includes two HDMI™inputs and two component inputs
for flexible connectivity.
526 Series LCD HDTV
WD-52526 Shown
©2005 Mitsubishi Digital Electronics America, Inc. www.mitsubishi-tv.com
Descriptions and specifications subject to change without notice. The dimensions are approximate for general information when deciding the locations and placements of the product. When creating a custom-built
environment for this product, please take exact measurements from the specific unit to be installed before doing any finished carpentry. When installing the unit, allow for air circulation, ventilation, and variations due to
manufacturing tolerances. The cosmetic appearance of the product may vary from that depicted here.

Optical System
Light Engine Proprietary 3LCD
Pixel Resolution (horizontal x vertical) 1280 x 720
LCD Driver QuickMotion™
Lamp Power 110W
High Contrast System SmartShutter™
Screen Protective Shield No
Video Performance
Video Signal Conversion Plush720p™
PerfectColor™•
Video Noise Reduction •
Picture Format Modes (4:3 sources, including
anamorphic DVDs) 6
Picture Format Modes (16:9 sources) 2
User Interface
Control Features
ChannelView™(on-screen channel list) •
AV Adjustment (memorized by input/device) •
Color Temperature Control (by device) High/Low
Bright/Natural Mode •
Full Screen Image Freeze •
PIP with External Devices
PIP Still, Exchange, and Move •
Split Screen •
Audio
Internal Loudspeakers Stereo Full Range
Speaker Sizes 5 1/2" x 2 1/4"
Output Power (watts x ch.) 10W x 2
Level Sound (dynamics limiter) •
Digital Output (PCM) for All Analog Sources •
Tuning
HDTV Air/Cable (ATSC/QAM) 1
Analog Air/Cable (NTSC) 1
Antenna (RF) Inputs
Analog / Digital Combined 1
AV Inputs (Analog) with Stereo Audio
Front A/V Inputs with S-Video 1
Rear A/V Inputs with S-Video 2
Component Video Inputs (480i/480p/720p/1080i) 2
Inputs / Outputs (Digital)
HDMI™/ MonitorLink™with DVI Stereo Audio
(480i/480p/720p/1080i/PCM audio) 2
Digital Audio Output (Dolby®Digital / PCM) 1 (coaxial)
Outputs (Analog)
Stereo Audio Output 2 (fixed)
Video Output 1
Customization Features
Direct IR Input Selection •
Direct IR Format Selection •
Independent Power ON/OFF •
Included Accessories
Multibrand Illuminated Remote Control •
Digital Coaxial Audio Cable No
Descriptions and specifications subject to change without notice.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Dolby and Dolby Digital are registered trademarks of Dolby Laboratories.

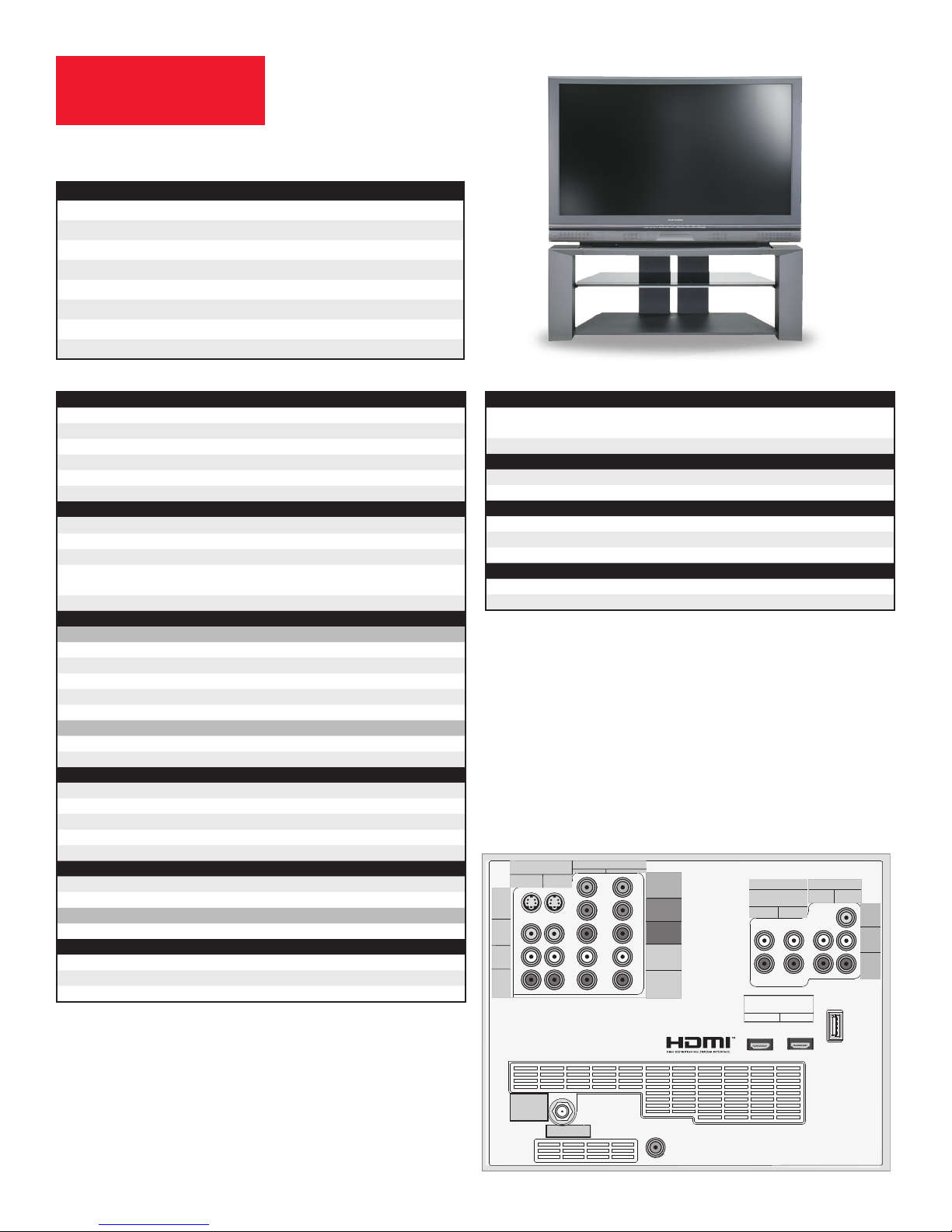

WD-52526 Shown on Optional Matching Base
Model WD-52526 WD-62526
Screen Size 52" 62"
Aspect Ratio 16:9 (widescreen) 16:9 (widescreen)
Height 33.9" 40.3"
Width 49.6" 58.3"
Depth 17.8" 19.9"
Height On Base 51.9" 58.4"
Weight 110 lbs. 133 lbs.
Power Consumption 225 Watts 225 Watts
COMPONENT
YPbPr (480i/480p/720p/1080i)
INPUT
12
S-VIDEO
VIDEO
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
DTV/CABLE/
VHF/UHF
ANT 1 / MAIN
DIGITAL
AUDIO
OUTPUT
12
Y
Pb
Pr
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
OUTPUT
AUDIO
OUTPUT
RECORD
OUTPUT
DVI
Analog Audio
1 2 VIDEO
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
SERVICE
PORT
MONITORLINK™/HDMI
VIDEO 480i/480p/720p/1080i
AUDIO PCM LINEAR
12
INPUT
Rev. 1/30/06
526 Series LCD HDTV
