Mitsubishi WS-73517 User manual

Get the Perfect Picture Every Time
• Digital Cable Ready (DCR) HDTV with CableCARD™ Slot
• Plush™ Imaging
• PerfectColor™
• DefinEdge™ VSM
• 480 Line Motion Adaptive 3D Y/C Comb Filter
• Auto Film Mode
• Removable ColorTuned™ Shield
• 9" CRTs and Lenses (WS-73517)
Watch TV Your Way
• NetCommand®
• ChannelView™
• Full Screen Freeze-Frame
• 8 Format Modes
• HDMI™ Input
• 2 IEEE 1394 Rear Inputs
517 Series Models:
WS-55517
WS-65517
WS-73517
Overview
A Mitsubishi 517 Series fully integrated Digital Cable Ready
HDTV is the ideal way to start enjoying everything digital.
The 517 Series features Plush™ imaging which converts lower
quality analog and digital pictures into near-HDTV quality. In
addition, PerfectColor™ technology lets the viewer create the
perfect color palette through its six-way independent color
control. Mitsubishi even includes a removable ColorTuned™
protective shield.
Digital Cable Ready HDTV
WD-73517 Shown
©2005 Mitsubishi Digital Electronics America, Inc. www.mitsubishi-tv.com
Descriptions and specifications subject to change without notice. The dimensions are approximate for general information when deciding the locations and placements of the product. When creating a custom-built
environment for this product, please take exact measurements from the specific unit to be installed before doing any finished carpentry. When installing the unit, allow for air circulation, ventilation, and variations due to
manufacturing tolerances. The cosmetic appearance of the product may vary from that depicted here.

Video Features
Plush™ Imaging •
Comb Filter Motion-Adaptive 480-Line 3D Y/C
Automatic Film Mode
(3:2 pulldown compensation) •
DefinEdge™ VSM Selectable by Input
HDTV Scanning Rate 1080i
Picture Format Modes for Analog 480i/480p
and 4:3 Digital Sources 6
Picture Format Modes for Analog 1080i and
Digital 16:9 Sources 2
Picture Performance
ColorTuned™ Shield User-Removable
CRT Size 7" WS-55517 and WS-65517
9" WS-73517
User Interface
Control Features
NetCommand®•
ChannelView™ (on-screen channel list) •
IR System Control with Learning Mode •
PerfectColor™ / Auto Color Correction Selectable by Input
Full Screen Freeze Frame •
PIP/POP Features
Multi-Image 1 PIP, 3 and 9 POP
Split Screen •
Channel Preview/Input Strobe
(analog channels only) •
Audio
Speakers
WS-55517, WS-65517, WS-73517 5" Full Range x 2
Output Power (Watts) 10W x 2
Tuning
HDTV Air/Cable (ATSC/QAM) 1
Analog Air/Cable (NTSC) 2
Digital Cable Ready with CableCARD™ Slot •
Antenna (RF) Inputs
Analog / Digital Combined 2
AV Inputs (Analog)
A/V Inputs with S-Video (Front/Rear)
with Stereo Audio 1/2
Component Video Inputs with Stereo Audio 2 (480i/480p/1080i)
AV Outputs (Analog)
Monitor A/V Output (for recording) •
Stereo Audio Output (fixed audio) •
Inputs/Outputs (Digital)
IEEE 1394 (front/rear) 1/2
HDMI™ with Analog Stereo Input
(480i/480p/720p/1080i/PCM Audio) 1
Digital Audio Bitstream Output (Dolby® Digital) 1 (coaxial)
Included Accessories
Multibrand Illuminated Remote Control Illuminated
IR Emitter Cable 1 (2-headed)
Digital Coaxial Audio Cable 1
Descriptions and specifications subject to change without notice.
CableCARD is a trademark of Cable Television Laboratories, Inc.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Dolby and Dolby Digital are registered trademarks of Dolby Laboratories.
DTVLink is a trademark of Consumer Electronics Association.

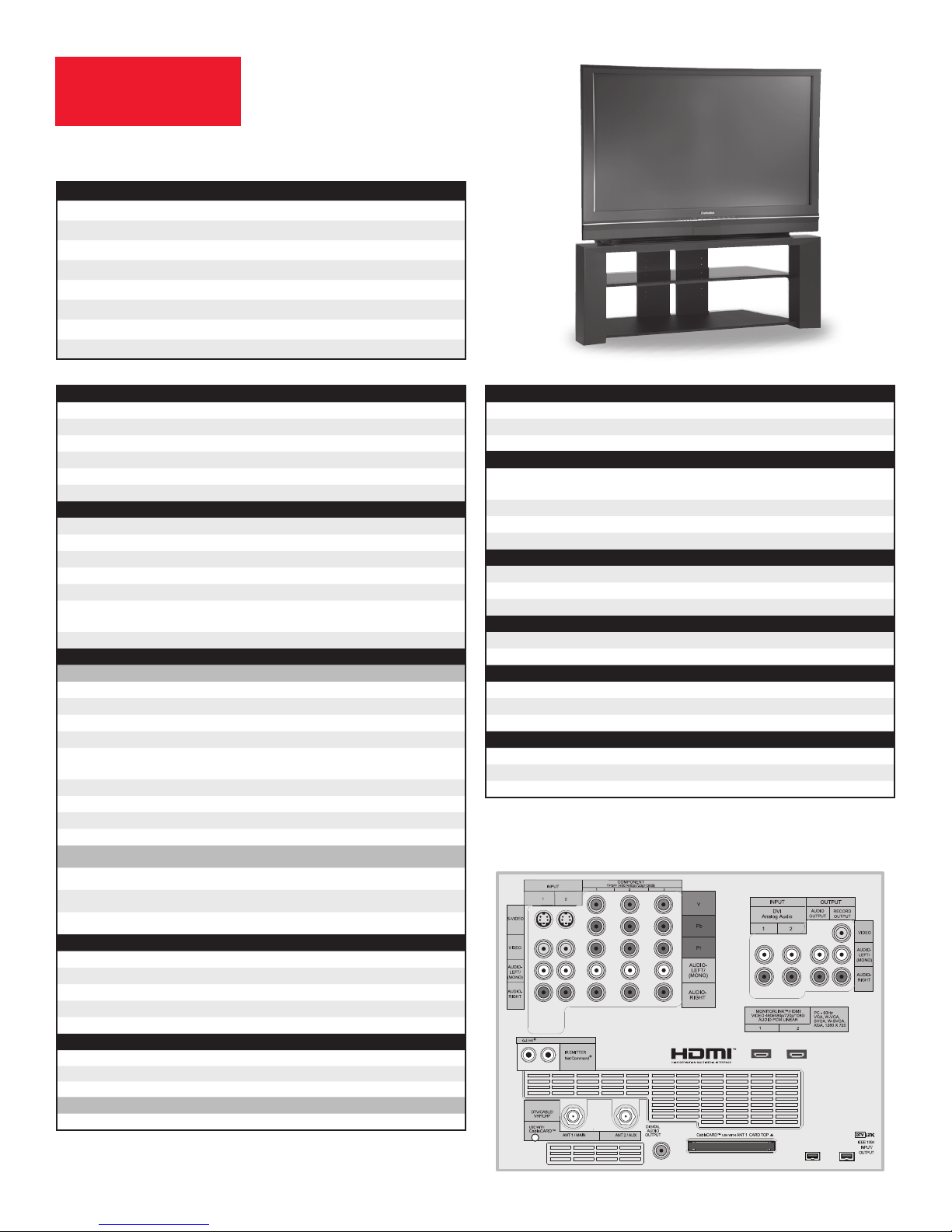

517 Series Digital Cable Ready HDTV
Model Screen Size Cabinet Dimensions / Weight (HxWxD, lbs.)
WS-55517 55" 50.7" x 50.5" x 28", 215 lbs.
WS-65517 65" 62" x 58.9" x 28.4", 330 lbs.
WS-73517 73" 66.3" x 65.9" x 29.9", 395 lbs.
WS-55517 WS-65517
WS-73517
Updated 9/30/05

Get the Perfect Picture Every Time
• Mitsubishi Exclusive LCD Light Engine
• SmartShutter™
• Plush720p™
• QuickMotion™
• PerfectColor™
• Digital Cable Ready (DCR) HDTV with CableCARD™ Slot
Watch TV Your Way
• TV Guide On Screen®
• NetCommand® 5.0
• 2 HDMI™ Inputs
• 2 Component Inputs
• 2 IEEE 1394 Rear Inputs
• Digital Audio Output for All Analog and A/V Sources
• Partially Illuminated Remote Control
527 Series Models:
WD-52527
WD-62527
Overview
The Mitsubishi 527 Series Integrated Digital Cable Ready LCD
HDTVs offer a high quality picture in a stylish compact cabinet.
The Mitsubishi QuickMotion™ LCD drive displays sharp, crisp,
and clean moving images especially with fast moving scenes.
SmartShutter™ technology displays deep blacks and improved
dark scene detail. And Plush720p™ upconverts lower quality
signals to deliver maximum clarity from every source.
ClearThought™ technology makes digital TV easy to use. The
527 series includes two HDMI™ inputs, two component inputs,
and two IEEE 1394 ports for maximum connectivity.
LCD HDTV
WD-52527 Shown
©2005 Mitsubishi Digital Electronics America, Inc. www.mitsubishi-tv.com
Descriptions and specifications subject to change without notice. The dimensions are approximate for general information when deciding the locations and placements of the product. When creating a custom-built
environment for this product, please take exact measurements from the specific unit to be installed before doing any finished carpentry. When installing the unit, allow for air circulation, ventilation, and variations due to
manufacturing tolerances. The cosmetic appearance of the product may vary from that depicted here.

Optical System
Light Engine Proprietary 3LCD
Pixel Resolution (horizontal x vertical) 1280 x 720
LCD Driver QuickMotion™
Lamp Power 110W
High Contrast System SmartShutter™
Screen Protective Shield No
Video Performance
Video Signal Conversion Plush720p™
PerfectColor™ •
Video Noise Reduction •
Picture Format Modes (4:3 sources, including
anamorphic DVDs) 6
Picture Format Modes (16:9 sources) 2
User Interface
Control Features
TV Guide On Screen® (8-day interactive guide) •
NetCommand® 5.0 Home Theater Control •
IR Learning •
ChannelView™ (on-screen channel list) •
AV Adjustment (memorized by input/device) •
Color Temperature Control (by device) High/Low
Bright/Natural Mode •
Full Screen Image Freeze •
2-Tuner PIP
PIP Still, Exchange, and Move •
Split Screen •
Audio
Internal Loudspeakers Stereo Full Range
Speaker Sizes 5 1/2" x 2 1/4"
Output Power (watts x ch.) 10W x 2
Level Sound (dynamics limiter) •
Digital Output (PCM) for All Analog Sources •
Tuning
HDTV Air/Cable (ATSC/QAM) 1
Analog Air/Cable (NTSC) 2
Digital Cable Ready (DCR) w/CableCARD™ Slot •
Antenna (RF) Inputs
Analog / Digital Combined 2
AV Inputs (Analog) with Stereo Audio
Front A/V Inputs with S-Video 1
Rear A/V Inputs with S-Video 2
Component Video Inputs (480i/480p/720p/1080i) 2
Inputs / Outputs (Digital)
HDMI™/ MonitorLink™with DVI Stereo Audio
(480i/480p/720p/1080i/PCM audio) 2
IEEE 1394 (MPEG2) Rear 2
Digital Audio Output (Dolby® Digital / PCM) 1 (coaxial)
Outputs (Analog)
Stereo Audio Output 1 (fi xed)
Independent Record AV Output 1
NetCommand® / G-Link™ IR Emitter 2
Customization Features
Direct IR Input Selection •
Direct IR Format Selection •
Independent Power ON/OFF •
Included Accessories
Multibrand Illuminated Remote Control •
IR Emitter Cable 1 (2-headed)
Digital Coaxial Audio Cable No
Descriptions and specifi cations subject to change without notice.
CableCARD is a trademark of Cable Television Laboratories, Inc.
HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Dolby and Dolby Digital are registered trademarks of Dolby Laboratories.
DTVLink is a trademark of Consumer Electronics Association.
TV GUIDE and other related marks are registered marks of Gemstar-TV Guide International, Inc. and/or one of its affi liates.

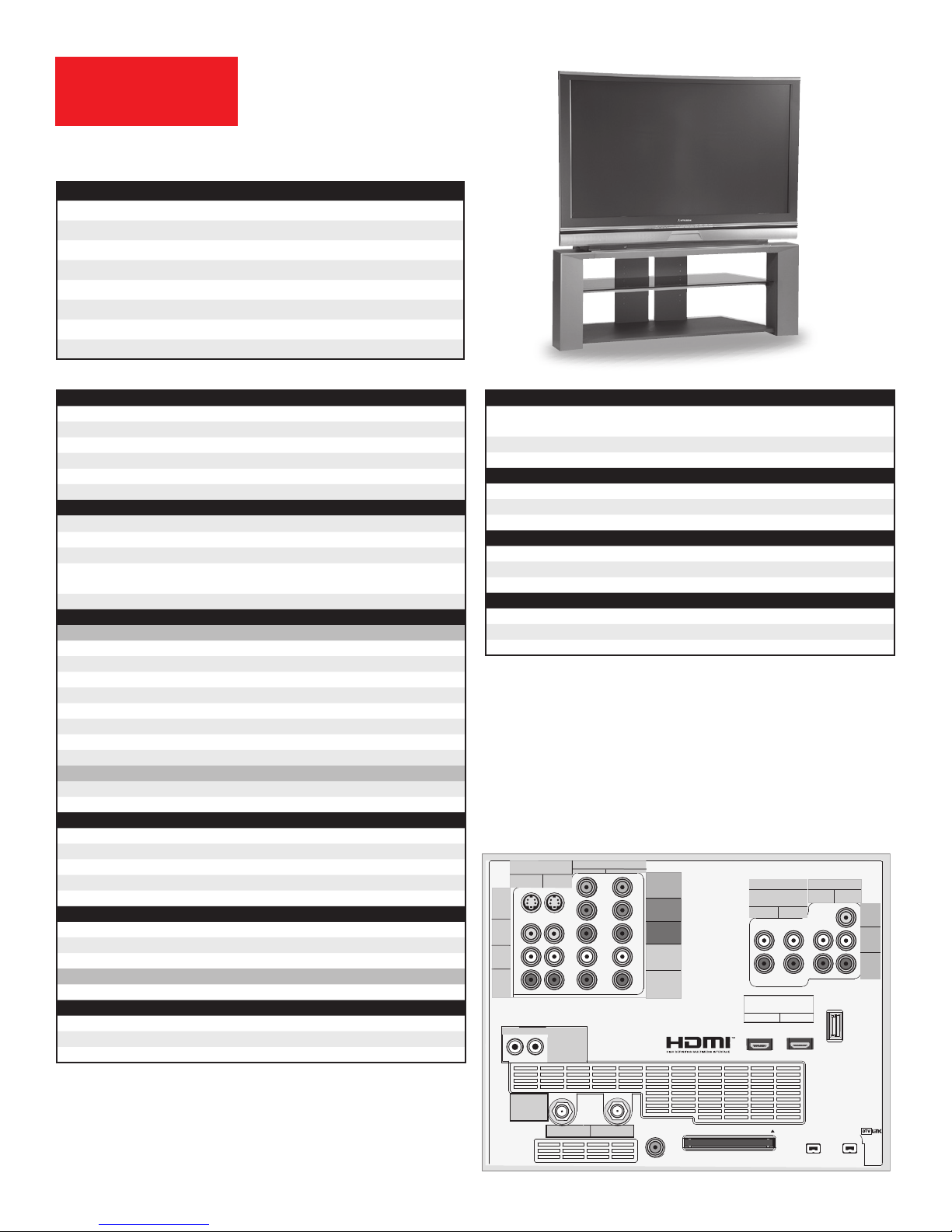

527 Series LCD HDTV
WD-52527 Shown on Optional Matching Base
Model WD-52527 WD-62527
Screen Size 52" 62"
Aspect Ratio 16:9 (widescreen) 16:9 (widescreen)
Height 33.9" 40.3"
Width 49.6" 58.3"
Depth 17.8" 19.9"
Height On Base 51.9" 58.4"
Weight 110 lbs. 133 lbs.
Power Consumption 225 Watts 225 Watts
COMPONENT
YPbPr (480i/480p/720p/1080i)
INPUT
12
S-VIDEO
VIDEO
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
DTV/CABLE/
VHF/UHF
ANT 1 / MAIN ANT 2 / AUX
DIGITAL
AUDIO
OUTPUT CableCARD™ USE WITH ANT 1 CARD TOP
12
Y
Pb
Pr
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
OUTPUT
AUDIO
OUTPUT
RECORD
OUTPUT
DVI
Analog Audio
1 2 VIDEO
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
SERVICE
PORT
MONITORLINK™/HDMI
VIDEO 480i/480p/720p/1080i
AUDIO PCM LINEAR
12
IEEE 1394
INPUT/
OUTPUT
Net Command
IR EMITTER


INPUT
Updated 9/30/05

Get the Perfect Picture Every Time
• Mitsubishi Exclusive LCD Light Engine
• SmartShutter™
• Plush720p™
• QuickMotion™
• PerfectColor™
• Digital Cable Ready (DCR) HDTV with CableCARD™ Slot
• DeepField™ Imager (switchable)
• SharpEdge™ (switchable)
Watch TV Your Way
• TV Guide On Screen®
• NetCommand® 5.0
• 2 HDMI™ Inputs
• 3 Component Inputs
• 2 IEEE 1394 Rear Inputs
• Digital Audio Output for All Analog and A/V Sources
• Fully Illuminated Remote Control
528 Series Models:
WD-52528
WD-62528
Overview
The Mitsubishi 528 Series of Integrated Digital Cable Ready LCD
HDTVs feature a high quality picture in a stylish compact cabinet.
The Mitsubishi QuickMotion™ LCD drive displays sharp, crisp, and
clean moving images while the SmartShutter™ system provides
deeper blacks and better dark scene detail.
The 528 Series also includes a host of advanced signal
processing for maximum picture quality. SharpEdge™
technology creates clean, focused edges between objects and
scene backgrounds. DeepField™ imager technology dynamically
adjusts brightness and contrast within every scene. And
Plush720p™ upconverts lower quality signals to deliver maximum
clarity from every source.
With ClearThought™ technology, digital TV becomes easy to use.
The 528 Series includes two HDMI™ inputs, three component
inputs, and two IEEE 1394 ports for maximum connectivity.

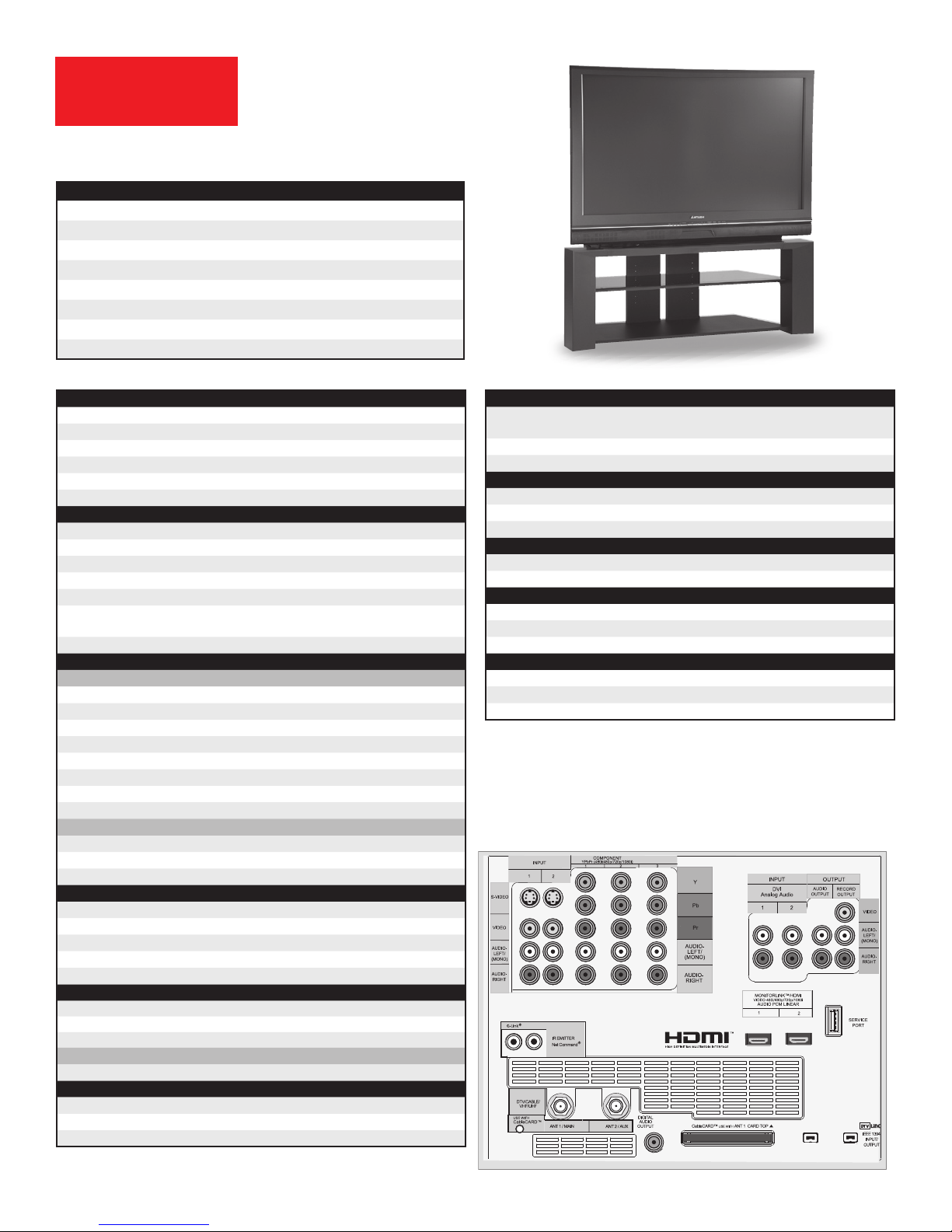

LCD HDTV
WD-52528 Shown
©2005 Mitsubishi Digital Electronics America, Inc. www.mitsubishi-tv.com
Descriptions and specifications subject to change without notice. The dimensions are approximate for general information when deciding the locations and placements of the product. When creating a custom-built
environment for this product, please take exact measurements from the specific unit to be installed before doing any finished carpentry. When installing the unit, allow for air circulation, ventilation, and variations due to
manufacturing tolerances. The cosmetic appearance of the product may vary from that depicted here.

Optical System
Light Engine Proprietary 3LCD
Pixel Resolution (horizontal x vertical) 1280 x 720
LCD Driver QuickMotion™
Lamp Power 110W
High Contrast System SmartShutter™
Screen Protective Shield No
Video Performance
Video Format Conversion Plush720p™
PerfectColor™ •
DeepField™ Imager (switchable) Yes
SharpEdge™ (switchable) Yes
Video Noise Reduction •
Picture Format Modes (4:3 sources, including
anamorphic DVDs) 6
Picture Format Modes (16:9 sources) 2
User Interface
Control Features
TV Guide On Screen® (8-day interactive guide) •
NetCommand® 5.0 Home Theater Control •
IR Learning •
ChannelView™ (on-screen channel list) •
AV Adjustment (memorized by input/device) •
Color Temperature Control (by device) High/Low
Bright/Natural Mode •
Full Screen Image Freeze •
2-Tuner PIP
PIP Still, Exchange, and Move •
Split Screen •
Channel Preview 3 POP
Audio
Internal Loudspeakers Stereo Full Range
Speaker Sizes 5 1/2" x 2 1/4"
Output Power (watts/ch.) 10W x 2
Level Sound (dynamics limiter) •
Digital Output (PCM) for All Analog Sources •
Tuning
HDTV Air/Cable (ATSC/QAM) 1
Analog Air/Cable (NTSC) 2
Digital Cable Ready (DCR) w/CableCARD™ Slot •
Antenna (RF) Inputs
Analog / Digital Combined 2
AV Inputs (Analog) with Stereo Audio
Front A/V Inputs with S-Video 1
Rear A/V Inputs with S-Video 2
Component Video Inputs (480i/480p/720p/1080i) 3
Inputs / Outputs (Digital)
HDMI™/ MonitorLink™ with DVI Stereo Audio
(480i/480p/720p/1080i/PCM audio) 2
IEEE 1394 (MPEG2) Rear 2
Digital Audio Output (Dolby® Digital / PCM) 1 (coaxial)
Outputs (Analog)
Stereo Audio Output 1 (fi xed)
Independent Record AV Output 1
NetCommand® / G-Link™ IR Emitter 2
NetCommand® Remote Control
Illuminated •
Full Screen Remote Sensor •
Customization Features
Direct IR Input Selection •
Direct IR Format Selection •
Independent Power ON/OFF •
Included Accessories
Multibrand Fully-Illuminated Remote Control •
IR Emitter Cable 1 (4-headed)
Digital Coaxial Audio Cable •
Descriptions and specifi cations subject to change without notice.
CableCARD is a trademark of Cable Television Laboratories, Inc.
HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Dolby and Dolby Digital are registered trademarks of Dolby Laboratories.
DTVLink is a trademark of Consumer Electronics Association.
TV GUIDE and other related marks are registered marks of Gemstar-TV Guide International, Inc. and/or one of its affi liates.
528 Series LCD HDTV
WD-52528 Shown on Optional Matching Base
Model WD-52528 WD-62528
Screen Size 52" 62"
Aspect Ratio 16:9 (widescreen) 16:9 (widescreen)
Height 33.9" 40.3"
Width 49.6" 58.3"
Depth 17.8" 19.9"
Height On Base 51.9" 58.4"
Weight 110 lbs. 133 lbs.
Power Consumption 225 Watts 225 Watts
Updated 9/30/05

Get the Perfect Picture Every Time
• Mitsubishi Exclusive 1080p DLP® Light Engine
• Dark Detailer™
• Plush1080p™
• PerfectColor™
• Digital Cable Ready (DCR) HDTV with CableCARD™ Slot
Watch TV Your Way
• TV Guide On Screen®
• NetCommand® 5.0
• 2 HDMI™ Inputs
• 3 Component Inputs
• 2 IEEE 1394 Rear Inputs
• Multi-Format Memory Card Reader
• Digital Audio Output for All Analog and A/V Sources
• Partially Illuminated Remote Control
627 Series Models:
WD-52627
WD-62627
Overview
The 627 Series 1080p DLP® HDTVs produce exceptionally sharp
and clear high resolution pictures.
At its heart is an all-new Mitsubishi digital light engine employing
the latest 1080p DLP® chip for unsurpassed detail. Mitsubishi
also uses a high speed video processor called Plush1080p™
that upconverts 1080i signals to 1080p producing four times the
resolution of traditional line doublers. Mitsubishi further enhances
the picture performance with Dark Detailer™, a system that
displays deeper blacks and better dark scene detail.
The 627 Series also comes with ClearThought™ technology for
flexibility and ease of use. Each 627 includes a Digital Cable
Ready HDTV tuner, a CableCARD™ slot, two HDMI™ digital
inputs, and a multi-format memory card reader to view digital
photos and playback digital audio files.
1080p DLP® HDTV
WD-52627 Shown
©2005 Mitsubishi Digital Electronics America, Inc. www.mitsubishi-tv.com
Descriptions and specifications subject to change without notice. The dimensions are approximate for general information when deciding the locations and placements of the product. When creating a custom-built
environment for this product, please take exact measurements from the specific unit to be installed before doing any finished carpentry. When installing the unit, allow for air circulation, ventilation, and variations due to
manufacturing tolerances. The cosmetic appearance of the product may vary from that depicted here.

Optical System
Light Engine Proprietary DLP® Light Engine
Pixel Resolution (horizontal x vertical*) 1920 x 1080
Color Wheel 6-Segment (10,800 RPM)
Lamp Power 120W
Dark Detailer™•
Screen Protective Shield No
Video Performance
Video Format Conversion Plush1080p™
PerfectColor™ •
Video Noise Reduction •
Picture Format Modes (4:3 sources,
including anamorphic DVDs) 6
Picture Format Modes (16:9 sources) 2
User Interface
Control Features
TV Guide On Screen® (8-day interactive guide) •
NetCommand® 5.0 Home Theater Control •
IR Learning •
ChannelView™ (on-screen channel list) •
MediaCommand™ (multi-format memory
card reader) •
AV Adjustment (memorized by input/device) •
Color Temperature Control (by device) High/Low
Bright/Natural Mode •
Full Screen Image Freeze •
2-Tuner PIP
PIP Still, Exchange, and Move •
Split Screen •
Channel Preview No
Audio
Internal Loudspeakers Stereo 2-Way
Speaker Sizes 1.5" Round x 2, 5.5" x 2.2" x 2
Output Power (watts/ch.) 10W x 2
Level Sound (dynamics limiter) •
Digital Output (PCM) for All Analog Sources •
Tuning
HDTV Air/Cable (ATSC/QAM) 1
Analog Air/Cable (NTSC) 2
Digital Cable Ready (DCR) w/CableCARD™ Slot •
Antenna (RF) Inputs
Analog / Digital Combined 2
AV Inputs (Analog) with Stereo Audio
Front A/V Inputs with S-Video 1
Rear A/V Inputs with S-Video 2
Component Video Inputs (480i/480p/720p/1080i) 3
Inputs / Outputs (Digital)
HDMI™/ MonitorLink™ with DVI Stereo Audio
(480i/480p/720p/1080i/PCM audio)
2 (1 also compatible with VGA-
XGA/60Hz)
IEEE 1394 (MPEG2) Rear 2
Digital Audio Output (Dolby® Digital / PCM) 1 (coaxial)
Memory Card Reader (JPEG/MP3/WMA) Multi-Format
Outputs (Analog)
Stereo Audio Output 1 (fi xed)
Independent Record AV Output 1
NetCommand® / G-Link™ IR Emitter 2
NetCommand® Remote Control
Illuminated •
Full Screen Remote Sensor •
Customization Features
Direct IR Input Selection •
Direct IR Format Selection •
Independent Power ON/OFF •
Included Accessories
Multibrand Illuminated Remote Control •
IR Emitter Cable 1 (2-headed)
Digital Coaxial Audio Cable No
Digital Light Processing and DLP are registered trademarks of Texas Instruments.
CableCARD is a trademark of Cable Television Laboratories, Inc.
TV GUIDE and other related marks are registered marks of Gemstar-TV Guide International, Inc. and/or one of its affi liates.
HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Dolby and Dolby Digital are registered trademarks of Dolby Laboratories.
DTVLink is a trademark of Consumer Electronics Association.
627 Series 1080p DLP® HDTV
WD-52627 Shown on Optional Matching Base
Model WD-52627 WD-62627
Screen Size 52" 62"
Aspect Ratio 16:9 (widescreen) 16:9 (widescreen)
Height 33.9" 40.3"
Width 49.6" 58.3"
Depth 18.5" 20.2"
Height On Base 51.9" 58.4"
Weight 121 lbs. 133 lbs.
Power Consumption 295 Watts 295 Watts
*TV and some PC displays have standard overscan
Descriptions and specifi cations subject to change without notice.
Updated 9/30/05

Get the Perfect Picture Every Time
• Mitsubishi Exclusive 1080p DLP® Light Engine
• Dark Detailer™
• Plush1080p™
• PerfectColor™
• Digital Cable Ready (DCR) HDTV with CableCARD™ Slot
• DeepField™ Imager (switchable)
• SharpEdge™ (switchable)
Watch TV Your Way
• TV Guide On Screen®
• NetCommand® 5.0
• 2 HDMI™ Inputs
• 3 Component Inputs
• 2 IEEE 1394 Rear Inputs
• Multi-Format Memory Card Reader
• Front IEEE 1394 with DV Decoder
• Digital Audio Output for All Analog and A/V Sources
• Fully Illuminated Remote Control
628 Series Models:
WD-52628
WD-62628
Overview
The 628 Series 1080p DLP® HDTVs employ advanced signal
processing and the latest 1080p DLP® chip for unsurpassed
detail to produce an exceptional picture quality.
Mitsubishi includes the latest in digital signal processing to get
the most from this optical system. Dark Detailer™ provides deep
blacks and enhanced dark scene detail. Mitsubishi also uses a
high speed video processor called Plush1080p™ that upconverts
1080i signals to 1080p producing four times the resolution of
traditional line doublers. DeepField™ imager uses new techniques
to optimize brightness and contrast within every scene while
SharpEdge™ delivers clean, focused edges between objects and
scene backgrounds. The result is exquisite picture clarity from
any source in every scene.
With Mitsubishi’s ClearThought™ technology, digital TV becomes
easy to use. These televisions also feature a Digital Cable Ready
HDTV tuner with CableCARD™ slot, two HDMI™ digital inputs,
and multi-format memory card readers to easily view pictures
and playback digital audio files.
1080p DLP® HDTV
WD-52628 Shown
©2005 Mitsubishi Digital Electronics America, Inc. www.mitsubishi-tv.com
Descriptions and specifications subject to change without notice. The dimensions are approximate for general information when deciding the locations and placements of the product. When creating a custom-built
environment for this product, please take exact measurements from the specific unit to be installed before doing any finished carpentry. When installing the unit, allow for air circulation, ventilation, and variations due to
manufacturing tolerances. The cosmetic appearance of the product may vary from that depicted here.

Optical System
Light Engine Proprietary DLP® Light Engine
Pixel Resolution (horizontal x vertical*) 1920 x 1080
Color Wheel 6-Segment (10,800 RPM)
Lamp Power 120W
Dark Detailer™•
Screen Protective Shield No
Video Performance
Video Format Conversion Plush1080p™
PerfectColor™ •
DeepField™ Imager (switchable) Yes
SharpEdge™ (switchable) Yes
Video Noise Reduction •
Picture Format Modes (4:3 sources, including
anamorphic DVDs) 6
Picture Format Modes (16:9 sources) 2
User Interface
Control Features
TV Guide On Screen® (8-day interactive guide) •
NetCommand® 5.0 Home Theater Control •
IR Learning •
ChannelView™ (on-screen channel list) •
MediaCommand™ (multi-format memory
card reader) •
AV Adjustment (memorized by input/device) •
Color Temperature Control (by device) High/Low
Bright/Natural Mode •
Full Screen Image Freeze •
2-Tuner PIP
PIP Still, Exchange, and Move •
Split Screen •
Channel Preview 3 POP
Audio
Internal Loudspeakers Stereo 2-Way
Speaker Sizes 1.5" Round x 2, 5.5" x 2.2" x 2
Output Power (watts/ch.) 10W x 2
Level Sound (dynamics limiter) •
Digital Output (PCM) for All Analog Sources •
Tuning
HDTV Air/Cable (ATSC/QAM) 1
Analog Air/Cable (NTSC) 2
Digital Cable Ready (DCR) w/CableCARD™ Slot •
Antenna (RF) Inputs
Analog / Digital Combined 2
AV Inputs (Analog) with Stereo Audio
Front A/V Inputs with S-Video 1
Rear A/V Inputs with S-Video 2
Component Video Inputs (480i/480p/720p/1080i) 3
Inputs / Outputs (Digital)
HDMI™/ MonitorLink™ with DVI Stereo Audio
(480i/480p/720p/1080i/PCM audio)
2 (1 also compatible with VGA-
XGA/60Hz)
IEEE 1394 (MPEG2 / DV) Front/Rear 1/2
Digital Audio Output (Dolby® Digital / PCM) 1 (coaxial)
Memory Card Reader (JPEG/MP3/WMA) Multi-Format
Outputs (Analog)
Stereo Audio Output 1 (fi xed)
Independent Record AV Output 1
NetCommand® / G-Link™ IR Emitter 2
NetCommand® Remote Control
Fully-Illuminated •
Full Screen Remote Sensor •
Customization Features
Direct IR Input Selection •
Direct IR Format Selection •
Independent Power ON/OFF •
Included Accessories
Multibrand Fully-Illuminated Remote Control •
IR Emitter Cable 1 (4-headed)
Digital Coaxial Audio Cable Yes
Digital Light Processing and DLP are registered trademarks of Texas Instruments.
CableCARD is a trademark of Cable Television Laboratories, Inc.
TV GUIDE and other related marks are registered marks of Gemstar-TV Guide International, Inc. and/or one of its affi liates.
HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Dolby and Dolby Digital are registered trademarks of Dolby Laboratories.
DTVLink is a trademark of Consumer Electronics Association.
628 Series 1080p DLP® HDTV
WD-52628 Shown on Optional Matching Base
Model WD-52628 WD-62628
Screen Size 52" 62"
Aspect Ratio 16:9 (widescreen) 16:9 (widescreen)
Height 33.9" 40.3"
Width 49.6" 58.3"
Depth 18.5" 20.2"
Height On Base 51.9" 58.4"
Weight 121 lbs. 133 lbs.
Power Consumption 295 Watts 295 Watts
*TV and some PC displays have standard overscan
Descriptions and specifi cations subject to change without notice.
Updated 9/30/05
